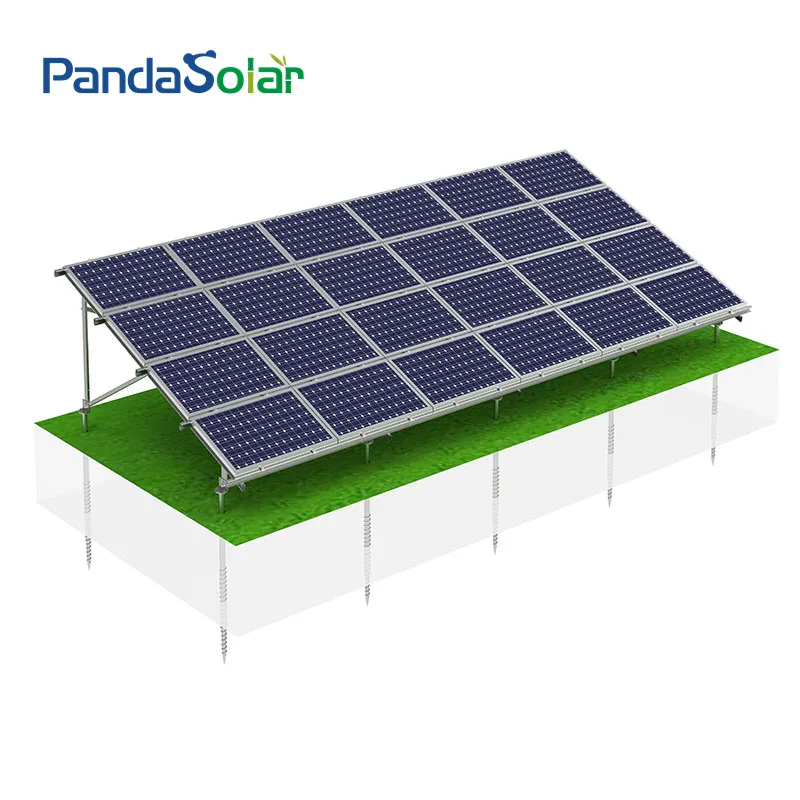

Galvanized Solar Racking Ground Mount Solar Panel Ground Mounting Structure

This solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications, and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs must also be considered. It is necessary to control the cost and ensure the quality, so the service life of the bracket is very long. The support foundations are: straight into the ground, with ground screws and cement piers.

GM4 double column can be ground bolt column or piling column. Ground screw posts allow for tiny height adjustments. The piling column strength is higher, and the requirements for installation accuracy are also higher.

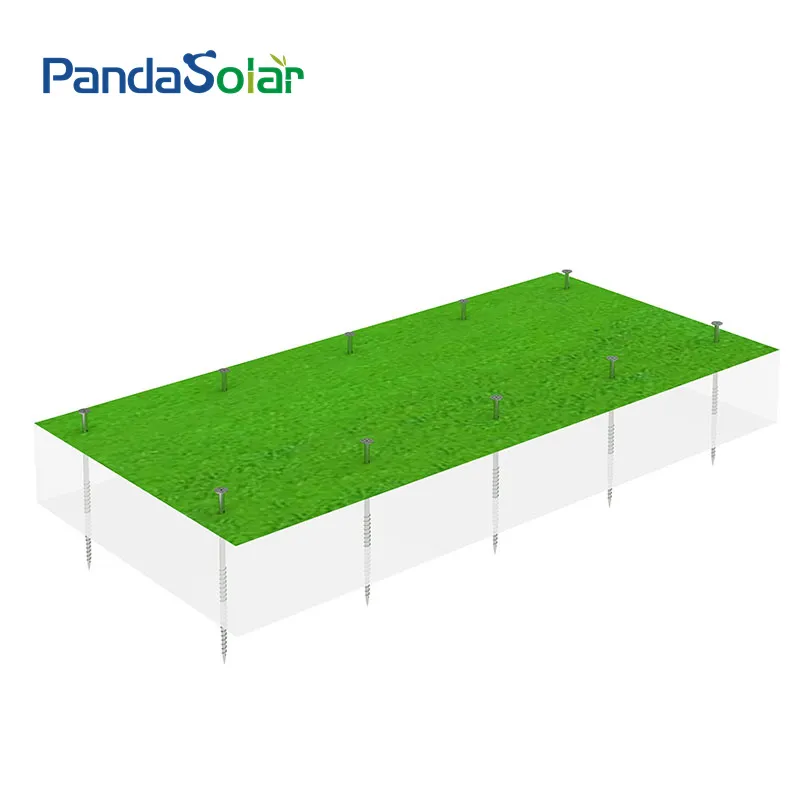

1. Installing Ground Screws: These screws are used to anchor the support structure to the ground. The screws are drilled into the soil using specialized equipment.

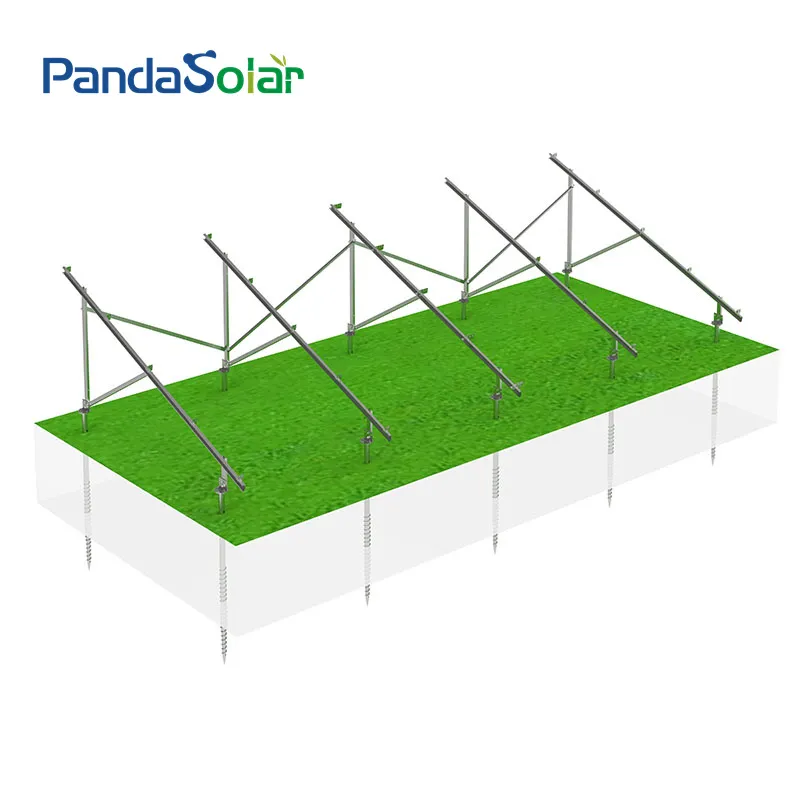

2. Install the Beam and Diagonal Support Pole: Connect the diagonal support pole to the top of the pole using bolts and nuts.

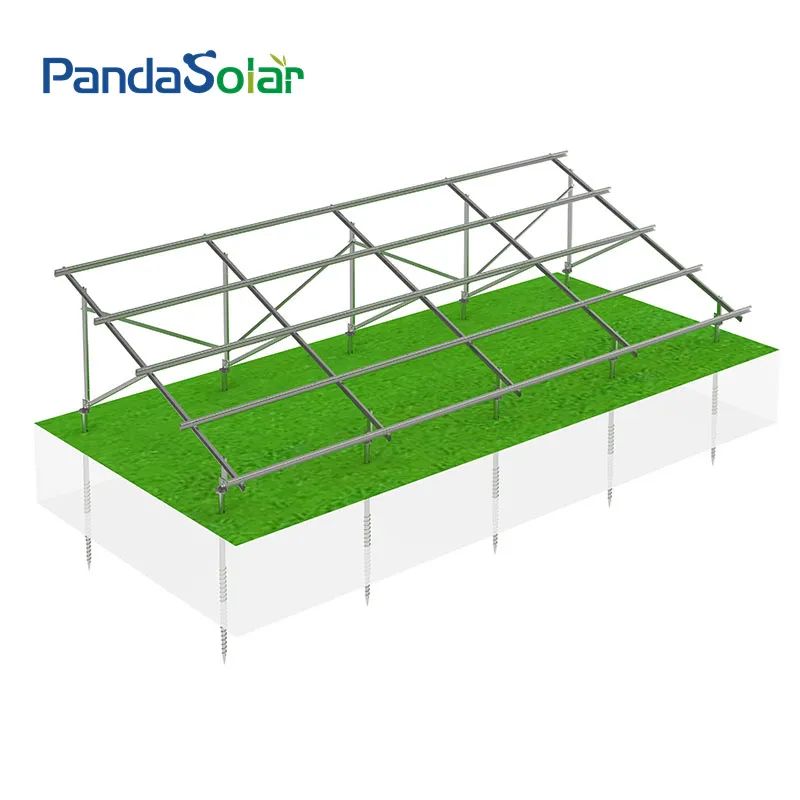

3. Installing Rails: Attach the rail that will support the solar panels. Ensure that the rail is level before moving to the next step.

4. Installing Solar Panels: Finally, attach the solar panels to the rail using mounting hardware. Make sure each panel is securely fastened.

• Simple double-column structure
• High strength performance
• High self-healing capabilities
• Cost-effective solution
• Beautiful and functional design

• Highly pre-assembled for fast setup
• Great flexibility in different designs
• Long service life and durability
• Accept OEM requests
• Easy installation process

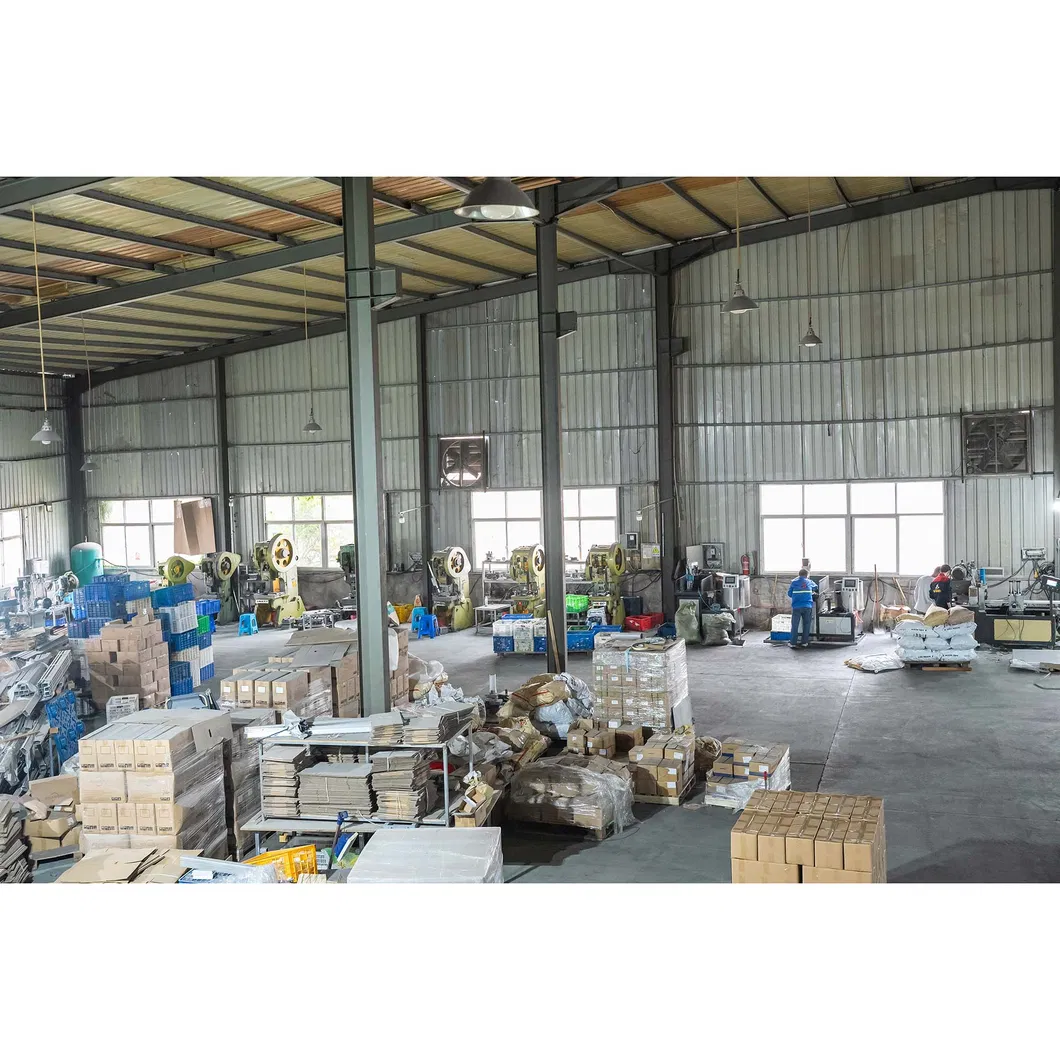

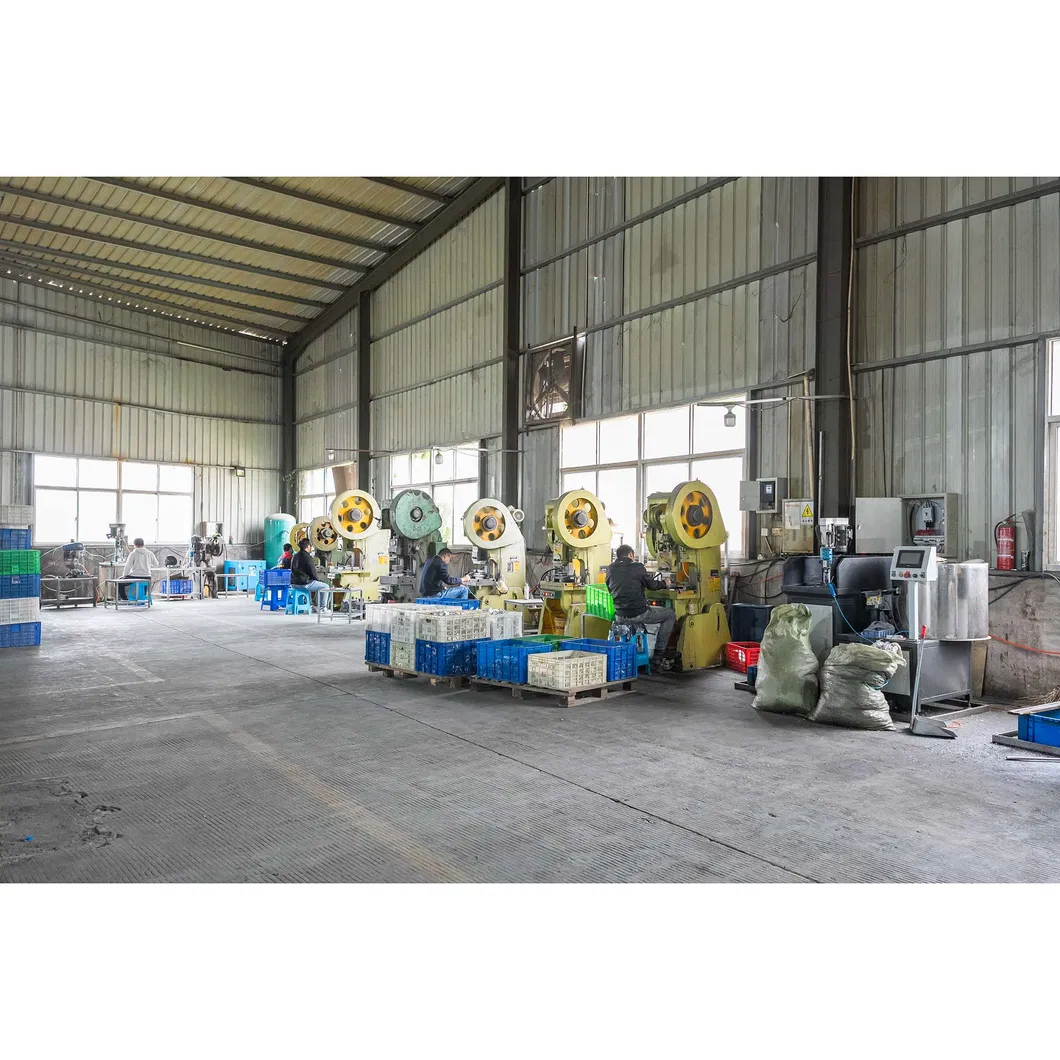

A professional aluminum alloy product processing workshop where cutting, drilling, stamping, forging, and other work are completed independently. The professional production team can accept products with high customization and precision requirements.

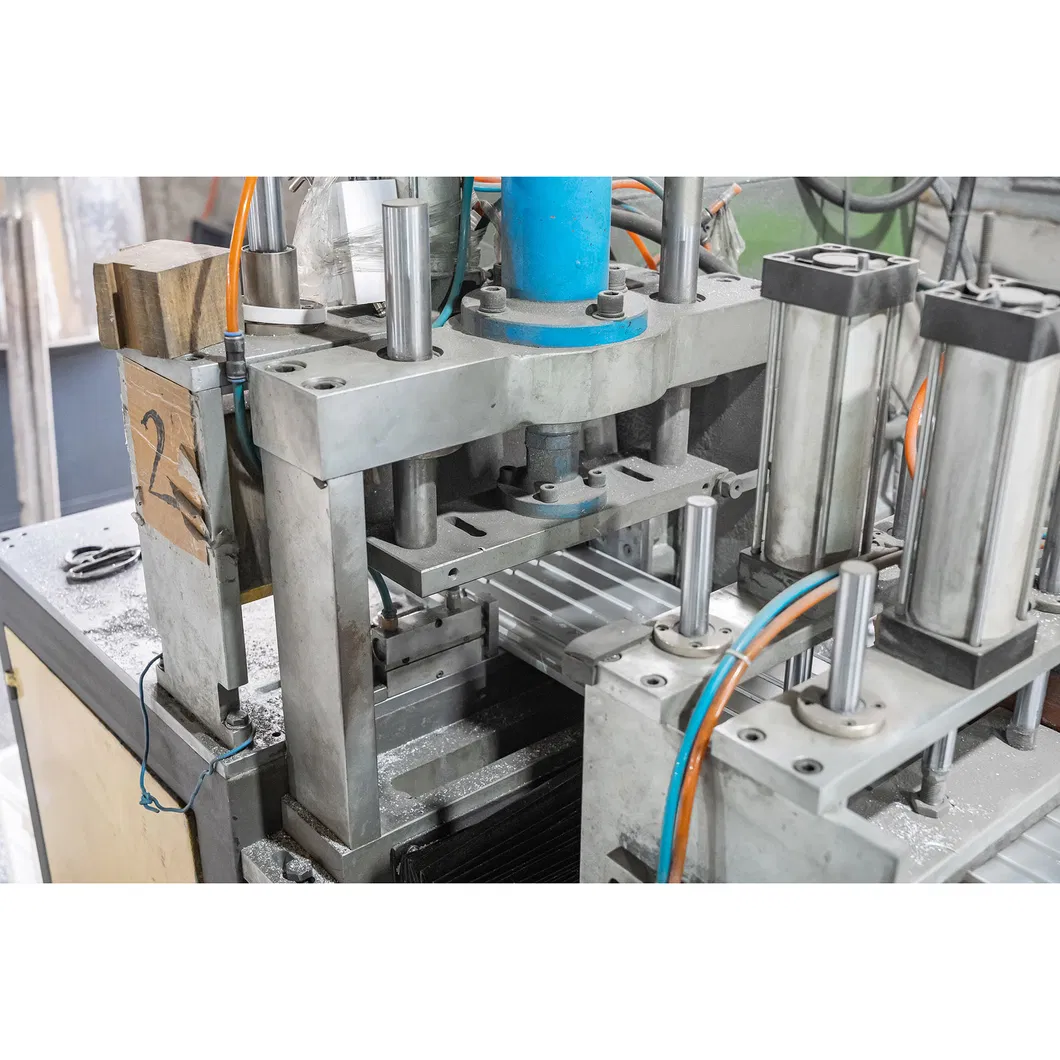

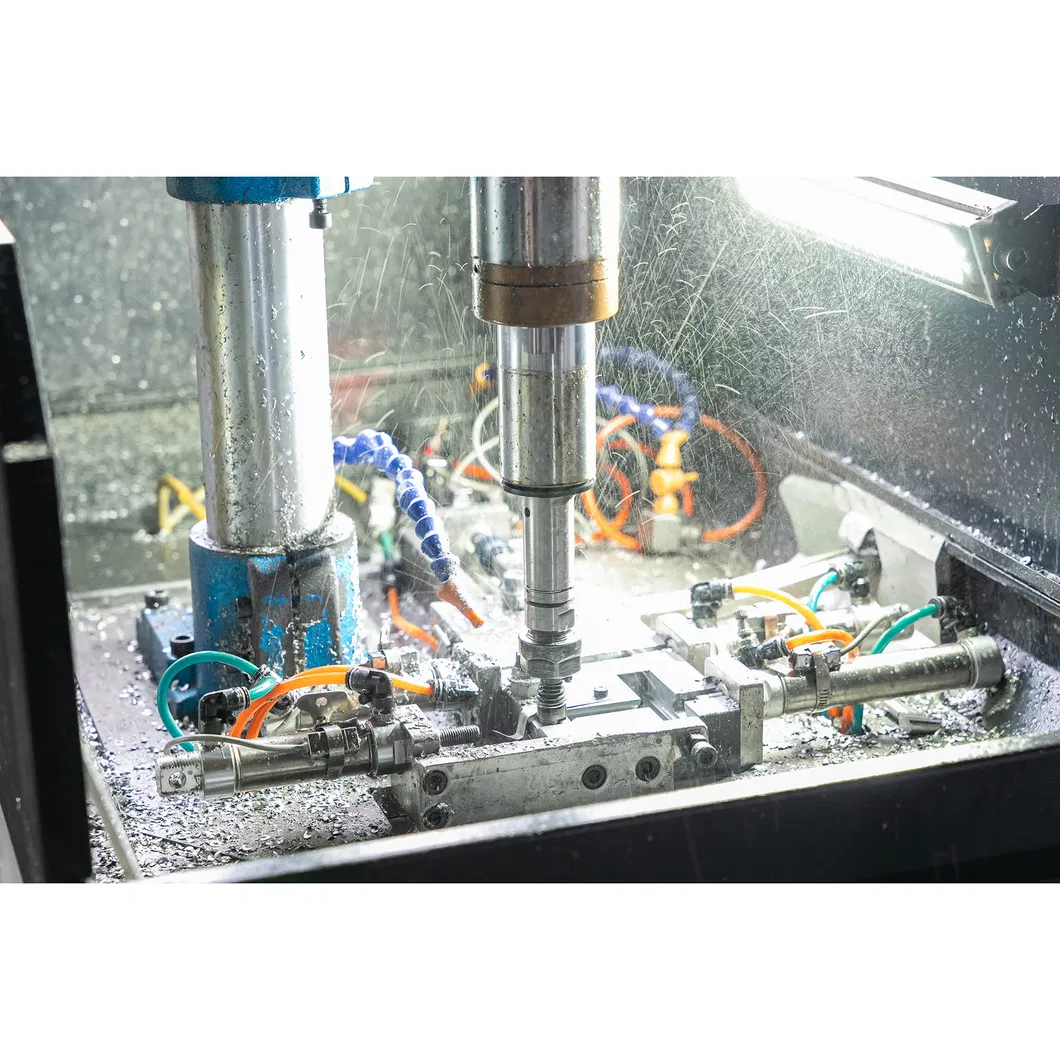

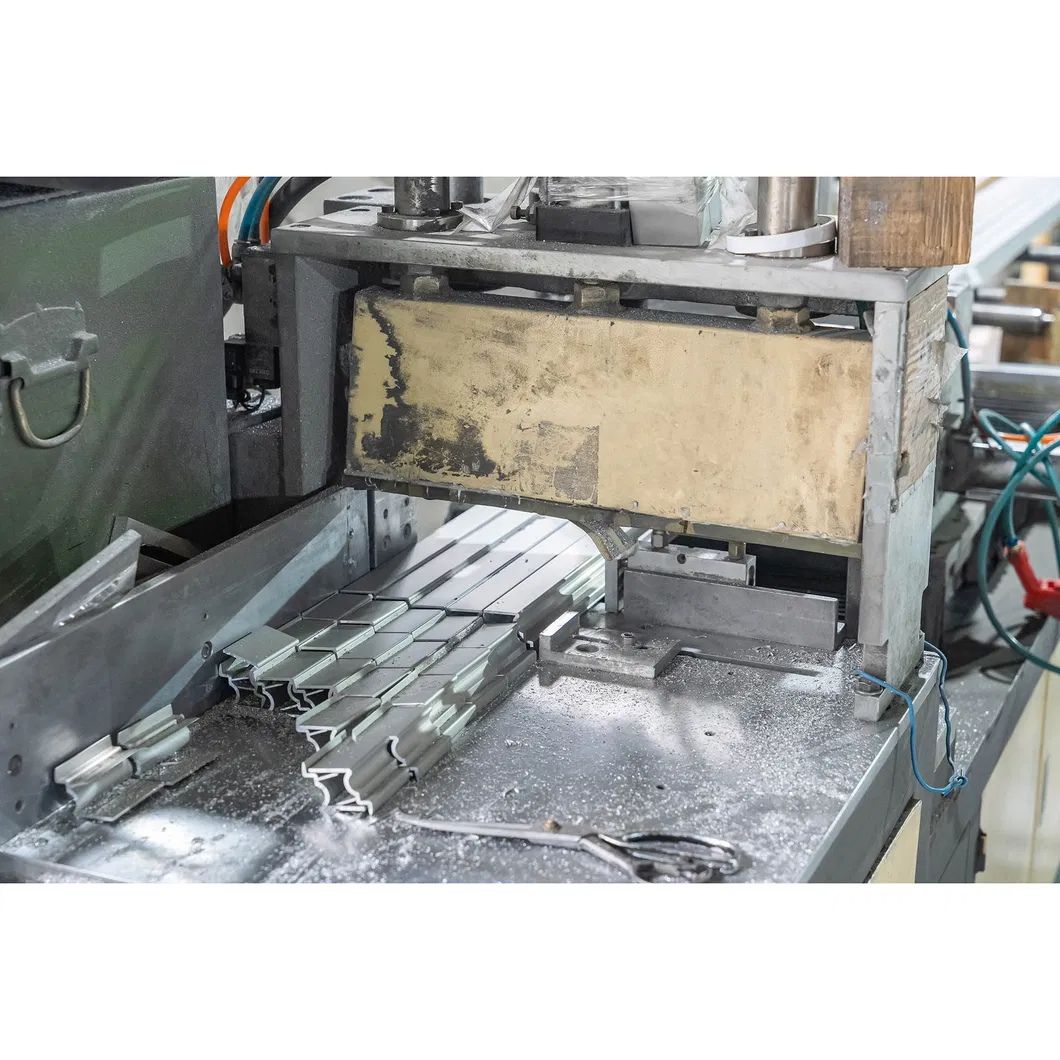

Specialized processing workshop for Steel, Magnesium Aluminum Zinc, S350GD, and S450GD. Equipped with 6 production lines and several molding machines. Capable of completing cutting and hole processing with a productivity of 40-50MW per month.
