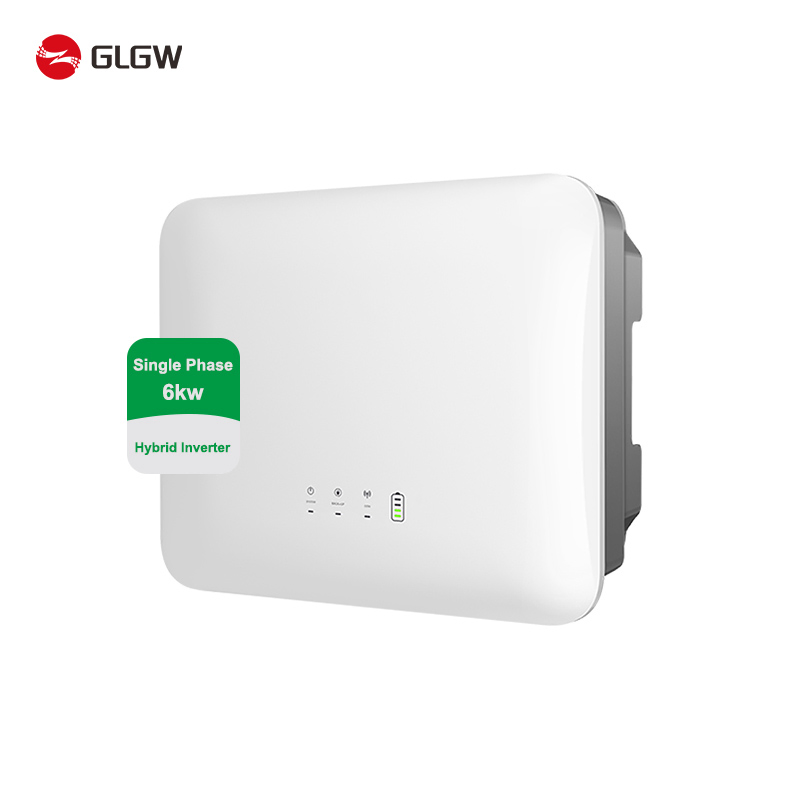

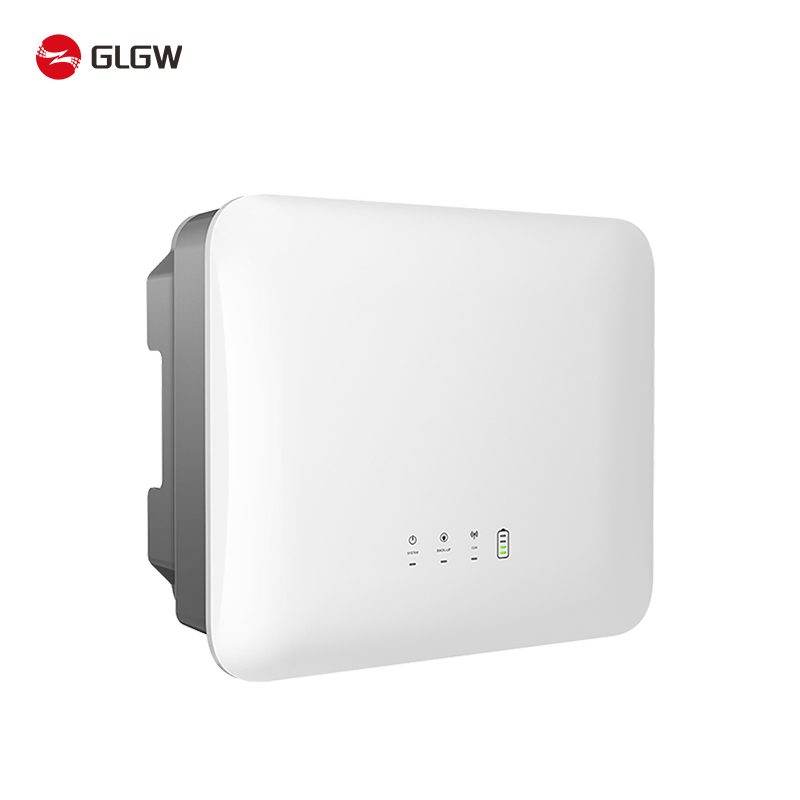

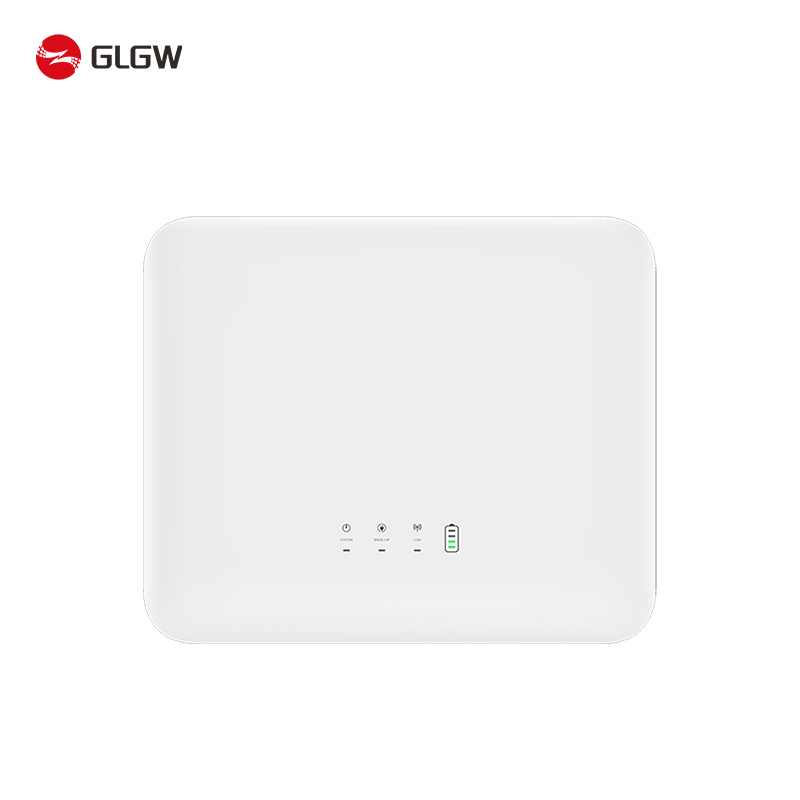

Glgw Gw6000-Es-20 Single Phase 2 Mppts 48V 6kw Energy Storage Hybrid Solar Inverter

1 / 5

Glgw Gw6000-Es-20 Single Phase 2 Mppts 48V 6kw Energy Storage Hybrid Solar Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GLGW6000-ES-20

Nature of Source

Active Inverter

Phase

Single

Output Power

6kw

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Sine Wave Inverter

Battery Type

Lead Acid / Lithium

Display

LED, WLAN + APP

Output Voltage

220 / 230 / 240V

Protection

IP65

Input Voltage

360V

Output Frequency

50/60Hz

Specification

505.90 * 434.90 * 154.80mm

Product Description

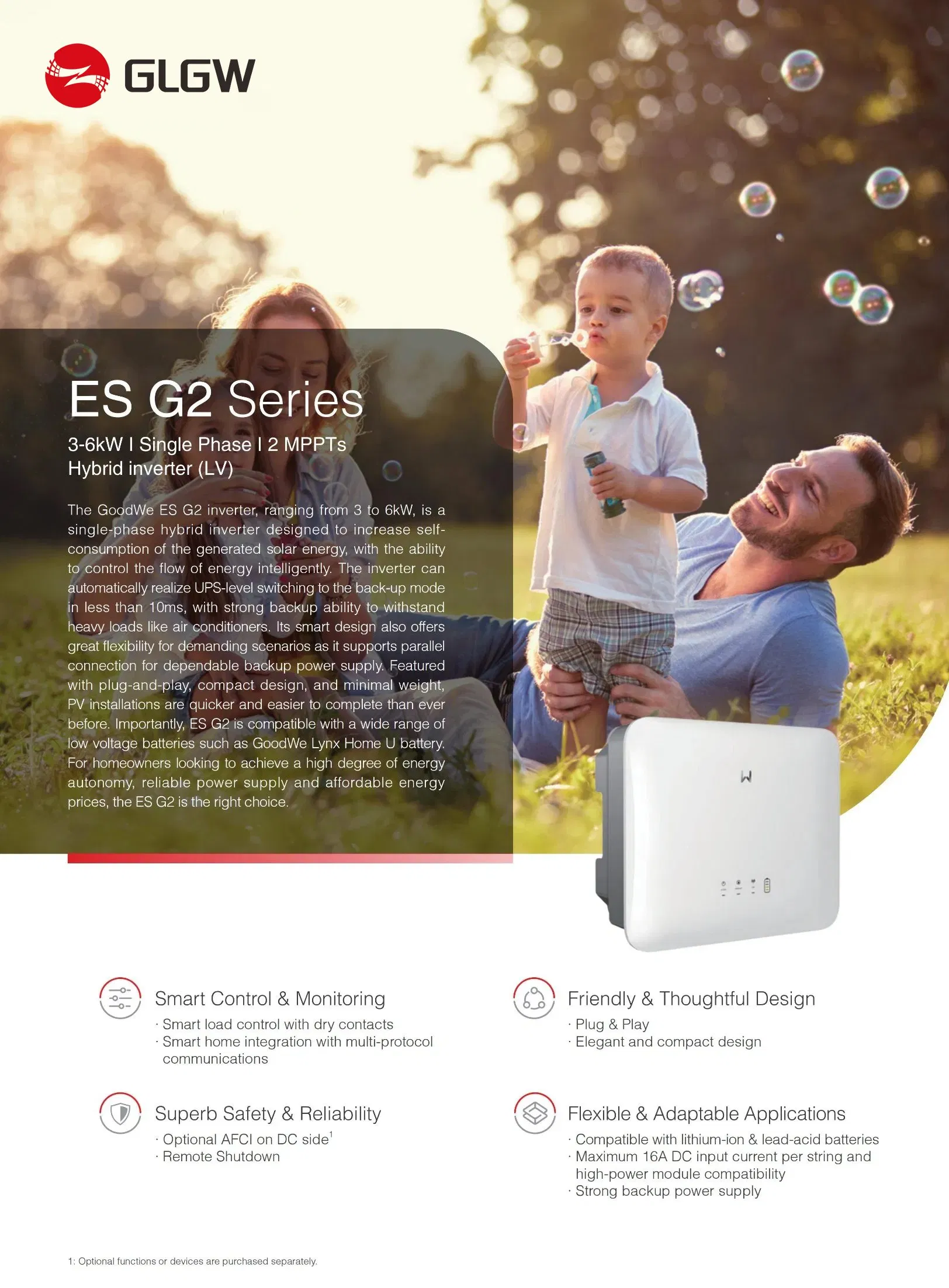

GLGW Gw6000-Es-20 Energy Storage Hybrid Solar Inverter

An intelligent and efficient hybrid inverter that integrates both on-grid and off-grid functions. It is suitable for solar energy storage systems in homes, shops, and small offices. It can connect to the grid even without a battery, making it an ideal solution for unstable grids and high electricity costs.

⚡

Uninterrupted Supply: 10ms switch to battery/solar power for seamless transition.

📉

Cost Reduction: Maximize solar usage and reduce grid dependency.

🚀

High Efficiency: 99.9% MPPT efficiency significantly boosts power generation.

🔋

Battery Care: Segmented charging & lithium activation extend battery life.

🛡️

Stable Power: Pure sine wave output ensures stable power for delicate devices.

🌧️

Tough Build: IP65 rating and wide temperature range for harsh conditions.

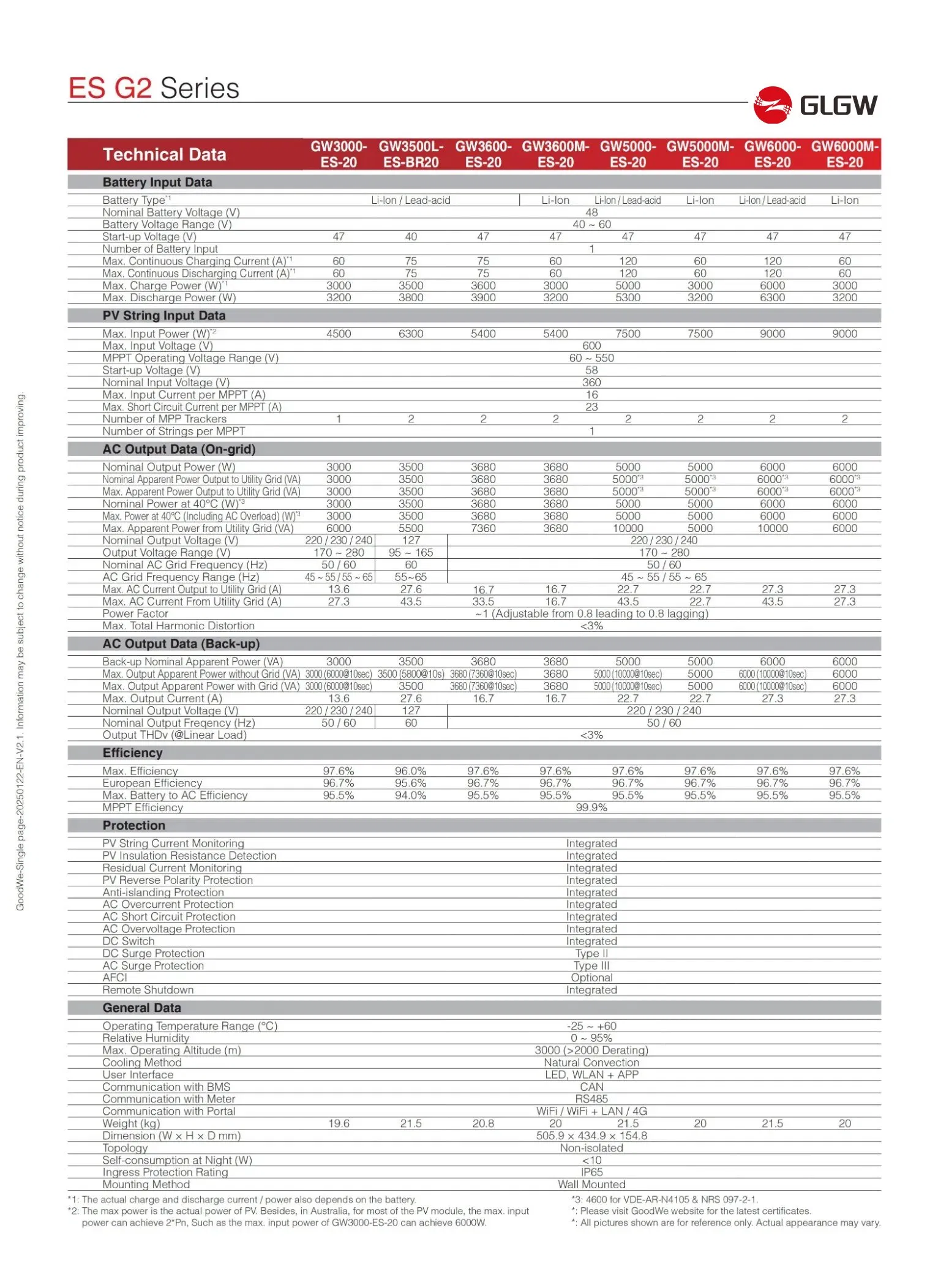

Technical Specifications

Technical Data	GLGW3000-ES-20	GLGW3600-ES-20	GLGW5000-ES-20	GLGW6000-ES-20
Battery Input Data
Battery Type	Li-Ion / Lead-acid
Voltage Range (V)	40-60
Max. Charge/Discharge (A)	60	75	120	120
PV String Input Data
Max. Input Power (W)	4500	5400	7500	9000
MPPT Voltage Range (V)	60 ~ 550
Number of MPP Trackers	1	2	2	2
AC Output Data (On-grid)
Nominal Output Power (W)	3000	3680	5000	6000
Nominal Output Voltage (V)	220 / 230 / 240
Max. Efficiency	97.6%
General Data
Operating Temp Range	-25 ~ +60°C
Ingress Protection	IP65
Dimension (mm)	505.9 × 434.9 × 154.8

Product Showcase

Frequently Asked Questions

What core advantages do commercial energy storage systems have for industrial users?

Our systems adopt high-performance lithium batteries and advanced BMS, featuring high energy density, long cycle life (≥6000 cycles), and intelligent grid connection. They help users reduce electricity costs via peak-valley arbitrage and ensure stable power supply.

Can your energy storage systems integrate with photovoltaic (PV) systems?

Yes. Our systems are fully compatible with PV systems, enabling solar energy storage and on-demand power supply, which maximizes the utilization of renewable energy and reduces reliance on the grid.

What is the lead time for custom commercial energy storage projects?

The lead time varies by project scale—typically 4–12 weeks for design, production, and commissioning. We provide a detailed project timeline and real-time progress updates for clients.

What after-sales services do you offer for energy storage systems?

We provide one-stop after-sales services, including on-site installation guidance, system debugging, operation training, and 24/7 remote monitoring. The warranty period is 24–36 months for core components.

Are your energy storage systems compliant with grid connection standards?

Yes. Our systems meet IEC, UL, and GB standards, and we can provide grid connection certification documents required by different countries to ensure smooth project implementation.

What battery types are compatible with the hybrid inverter?

The system is designed to work seamlessly with both Lead-acid and Lithium battery technologies, providing flexibility for different storage requirements and budgets.
