Choose The Goodwe 12kw Hybrid Inverter to Effortlessly Manage Photovoltaics (PV) and The Power Grid, and Enjoy a Smart Energy Lifestyle

1 / 5

Choose The Goodwe 12kw Hybrid Inverter to Effortlessly Manage Photovoltaics (PV) and The Power Grid, and Enjoy a Smart Energy Lifestyle

Customization:	Available
Nominal Voltage:	230V
Warranty:	5 Years

Send Inquiry

Product Description

Basic Specifications

Nominal Capacity	IP65
Cycle Life	6000-10000
Transport Package	Carton
Specification	554715cm
Trademark	GROWATT
Origin	China
HS Code	8504403090
Production Capacity	3000 Units Per Year

Product Description

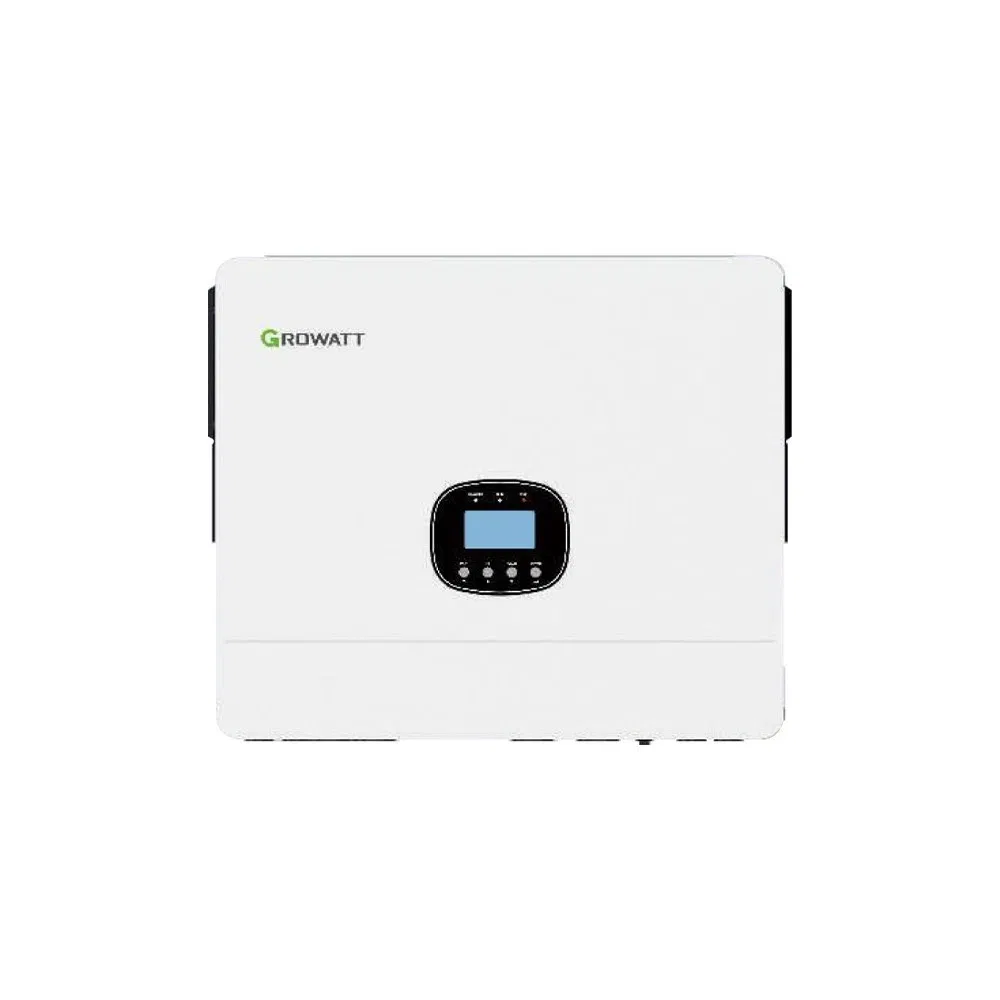

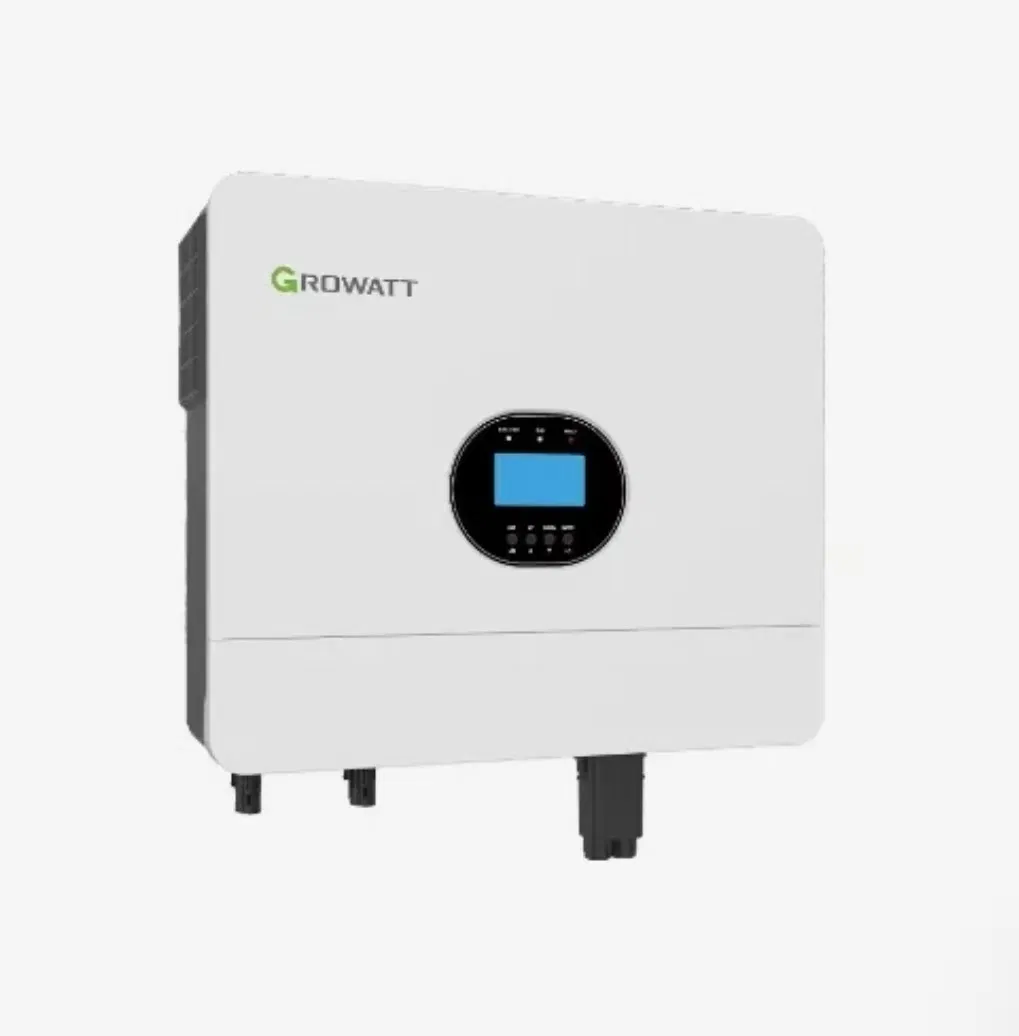

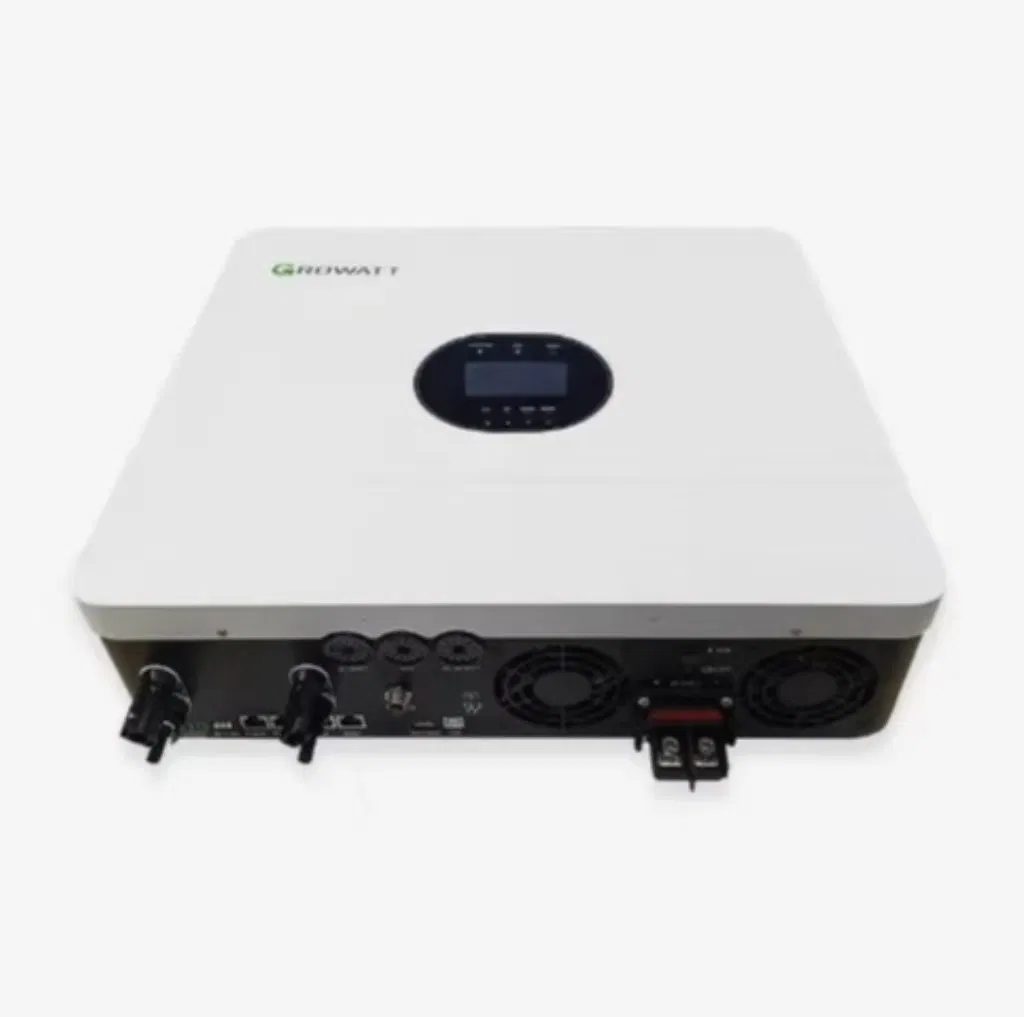

Characteristics: This is a multifunctional PV Hybrid inverter integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for offgrid backup power and self-consumption applications. This inverter can work with or without batteries.

●Rated power 8KW to 12KW, power factor 1.

●2 strings of MPPT, Max. PV array power 10000W to 15000W.

●MPPT Voltage range 60Vdc-480Vdc, 550Voc.

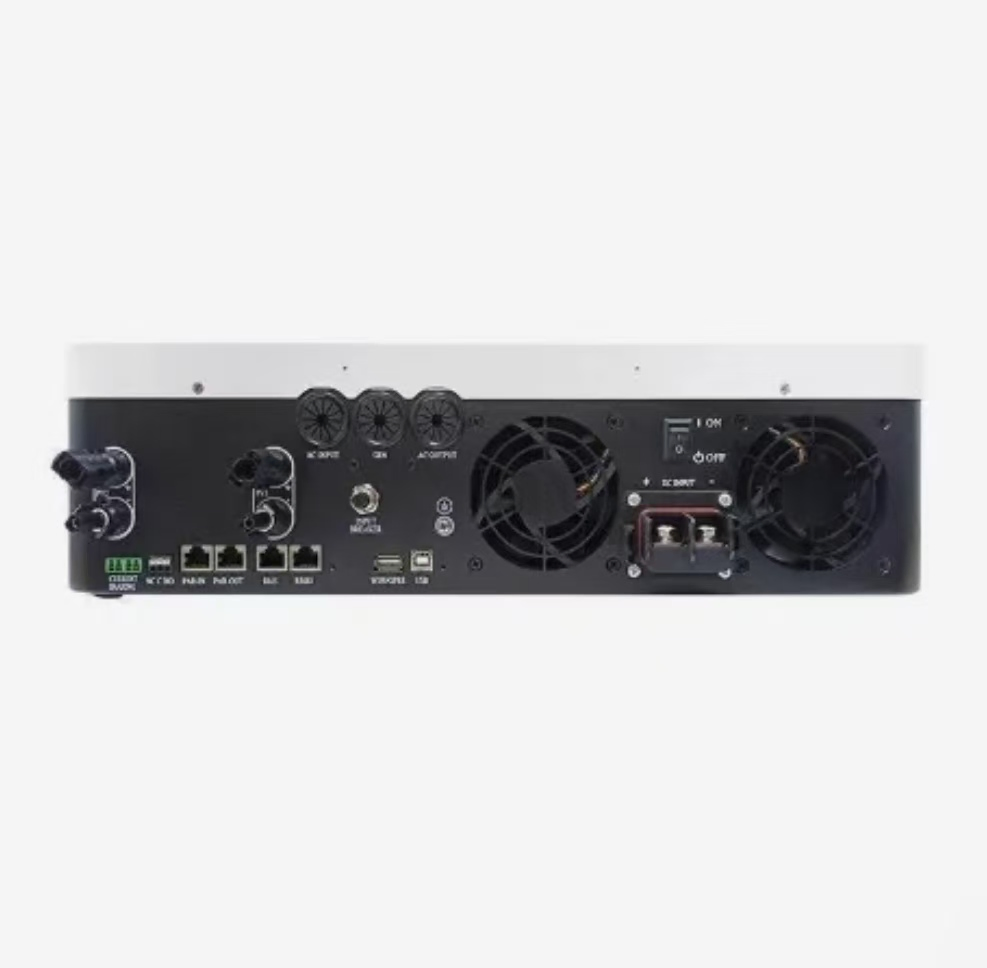

●Built-in ATS for automatic grid and generator switching.

●Communication: CAN/RS485 for BMS; WIFI/4G wireless monitoring.

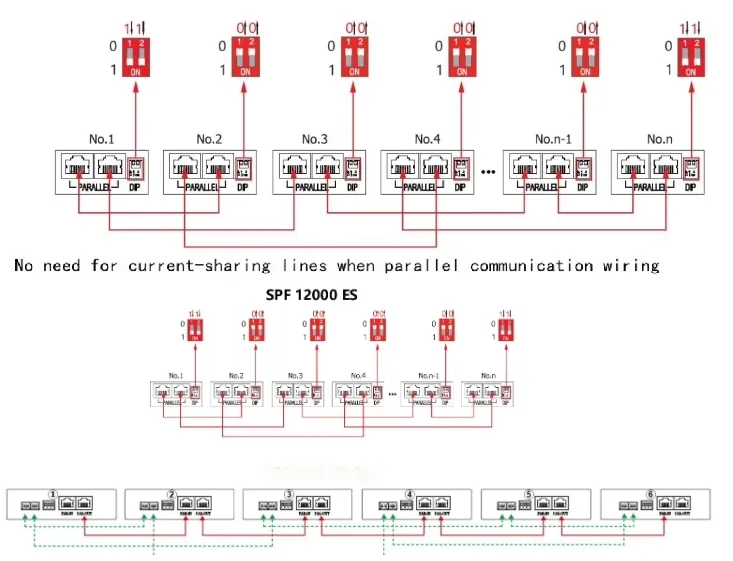

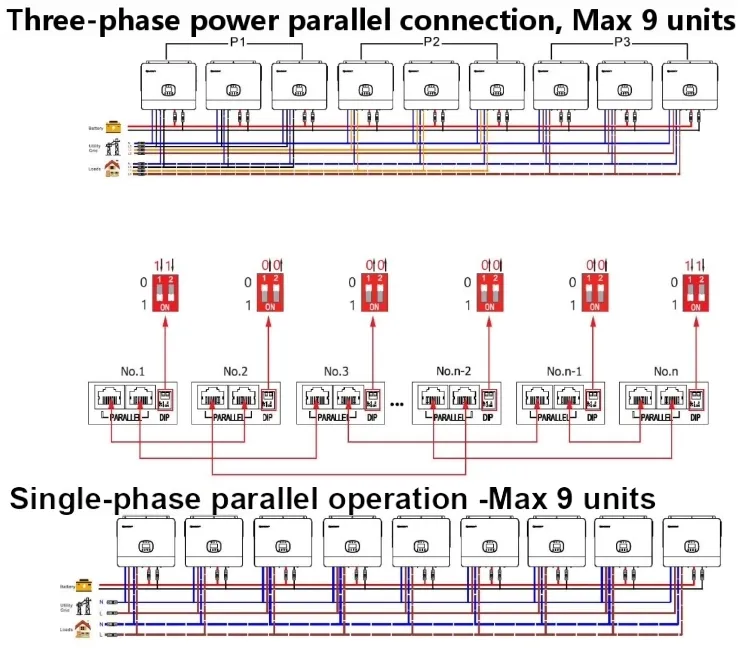

●Parallel operation up to 9 units (with battery).

Technical Parameters

Photovoltaic Input
Maximum PV Input Power	15000W
Maximum DC Voltage	550V
Starting Voltage	120V
MPPT Operating Range	60V-480V
MPPT Quantity	2
Grid Output
Power Rating	12000W
Rated Voltage	230V
Grid Frequency	50/60Hz
Maximum Efficiency	96.5%
Battery Data
Rated Battery Voltage	48V
Max Charge/Discharge Current	250A/280A
Battery Type	LFP (Lithium Iron Phosphate)
General Parameters
Dimensions (W/H/T)	550/465/150mm
Weight	21.5kg
Operating Temperature	–10°C ... +50°C
Protection Level	IP20

Packing & Delivery

Package Size	58.00cm * 50.00cm * 17.00cm
Package Gross Weight	24.000kg

About Our Technology

Our company focuses on the "carbon neutrality" goal and adheres to the development philosophy of "green, technology, low-carbon, wisdom, and future-oriented". We are committed to providing global customers with high-quality, high-performance, safe and reliable energy storage battery products and comprehensive energy storage solutions. We have developed into a comprehensive new energy enterprise that integrates photovoltaic system applications, BIPV building green integration, smart operation and maintenance, renewable energy, and energy storage.

Frequently Asked Questions

Q1: Can I use my existing solar panels or batteries with this inverter?

Yes, you can. However, we need to verify the parameters of your equipment, such as power capacity and brand. Providing photos of product labels helps us ensure optimal compatibility.

Q2: How long is the lifespan and warranty of the energy storage batteries?

Our Class A battery cells are designed for longevity. Under standard discharge rates, battery degradation will not exceed 20% over ten years. We also provide a five-year warranty period with free maintenance or replacement.

Q3: Can solar panels supply power without energy storage batteries?

While possible, it is not recommended. Batteries ensure system stability. Without them, sudden changes in lighting (like cloud cover) can cause power fluctuations in your system.

Q4: What is the maximum number of units that can be connected in parallel?

This hybrid inverter supports parallel operation of up to 9 units, provided that batteries are connected to the system.

Q5: What is the protection rating and suitable installation environment?

The inverter has an IP20 protection level and is designed to operate in temperatures ranging from -10°C to +50°C. It is suitable for altitudes under 2000m.

Q6: Does the inverter support remote monitoring?

Yes, the system supports WIFI and 4G wireless monitoring (optional), allowing you to track energy performance via mobile or computer.
