Ground Mount Solar Car Parking PV Mounting System Solar Carport Structure

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HINA

Material

Steel

Type

Pile-ground Bracket

Standard

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing

Zinc, HDG, Sandblasting

Certificate

ISO 9001:2015

Delivery Time

7-30 days

Installation Site

Flat Roof, Ground

Wind Load

60m/S

Snow Load

1.6kN/M2

Panel Layout

Portrait or Landscape

HS Code

7318159090

Production Capacity

500 ton/Month

Product Description

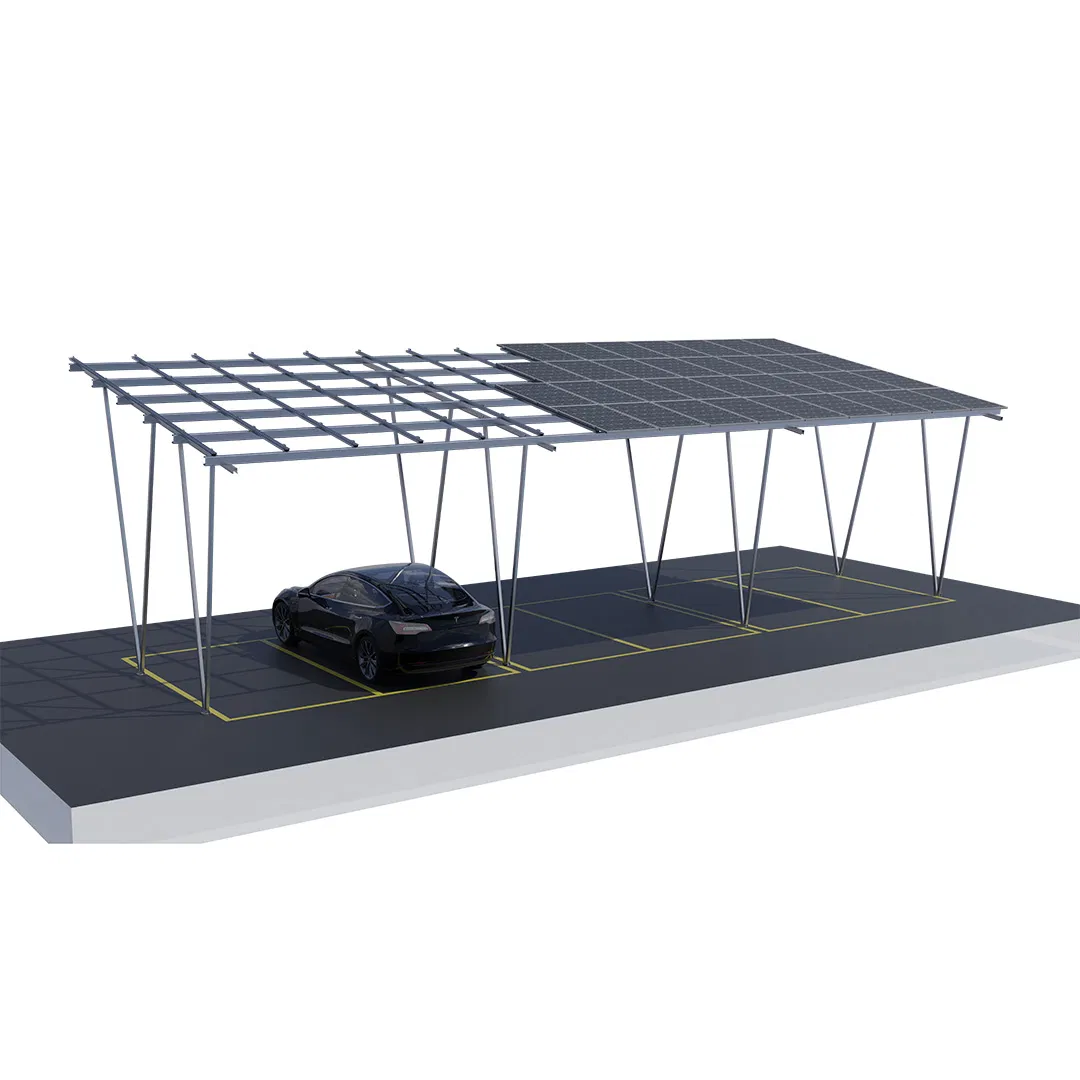

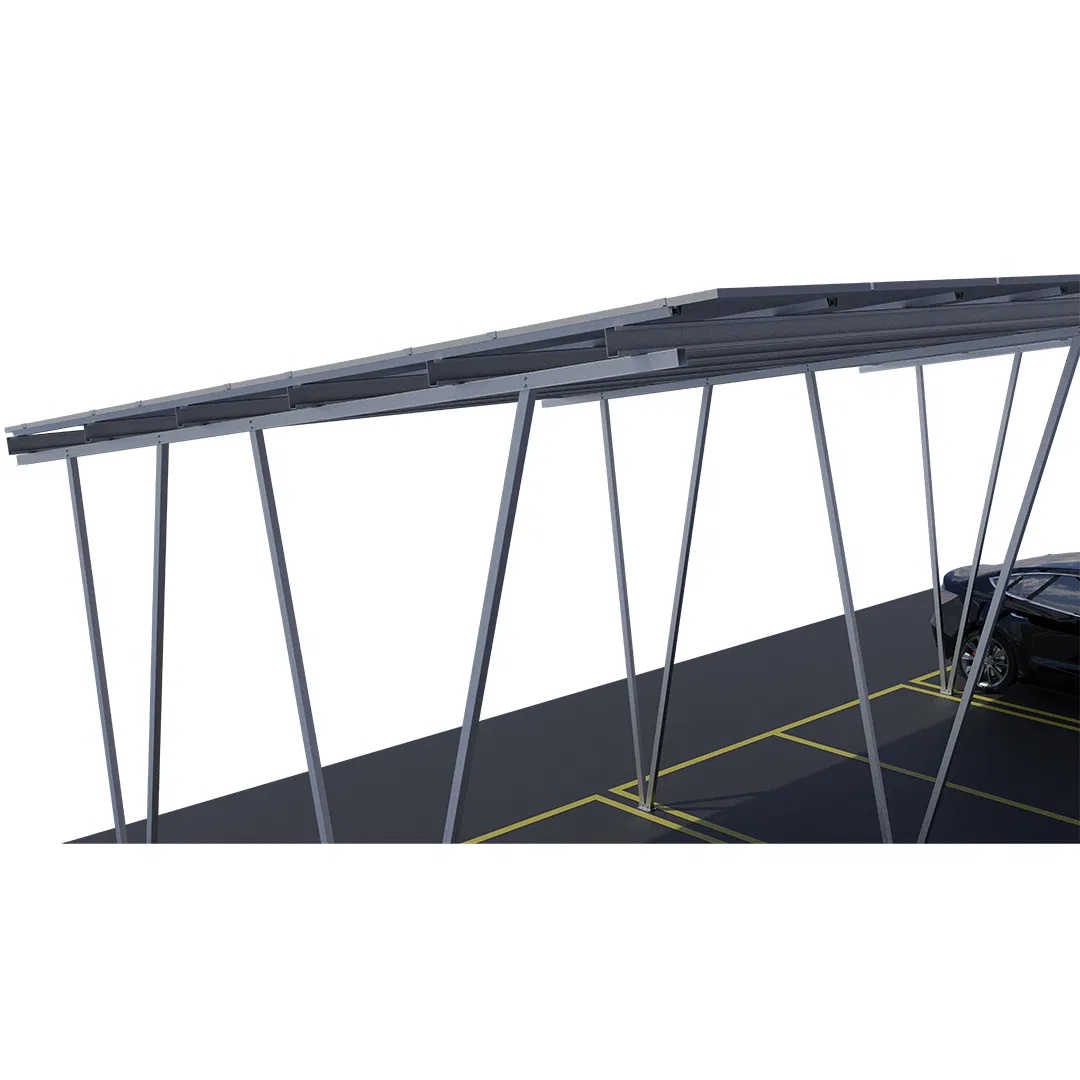

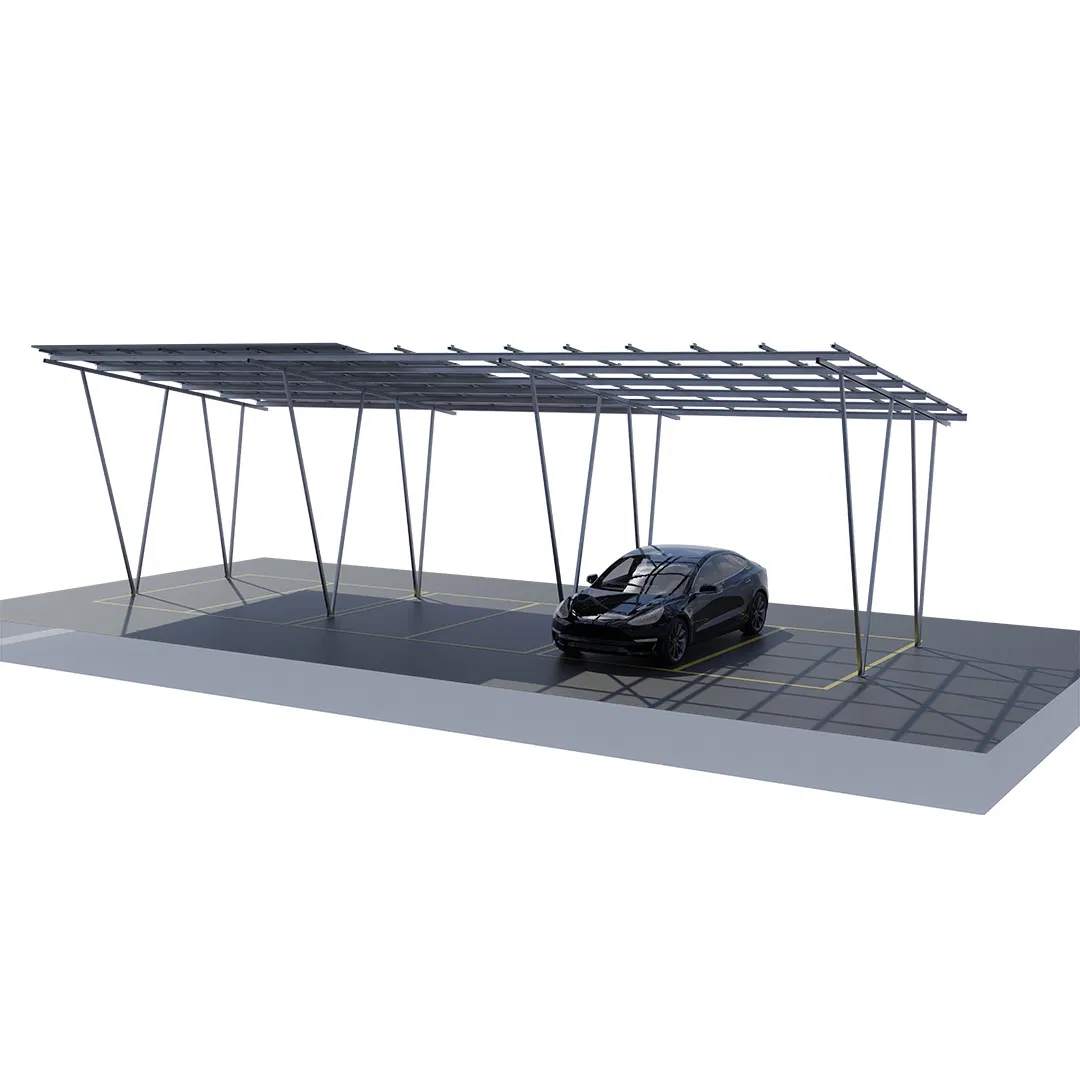

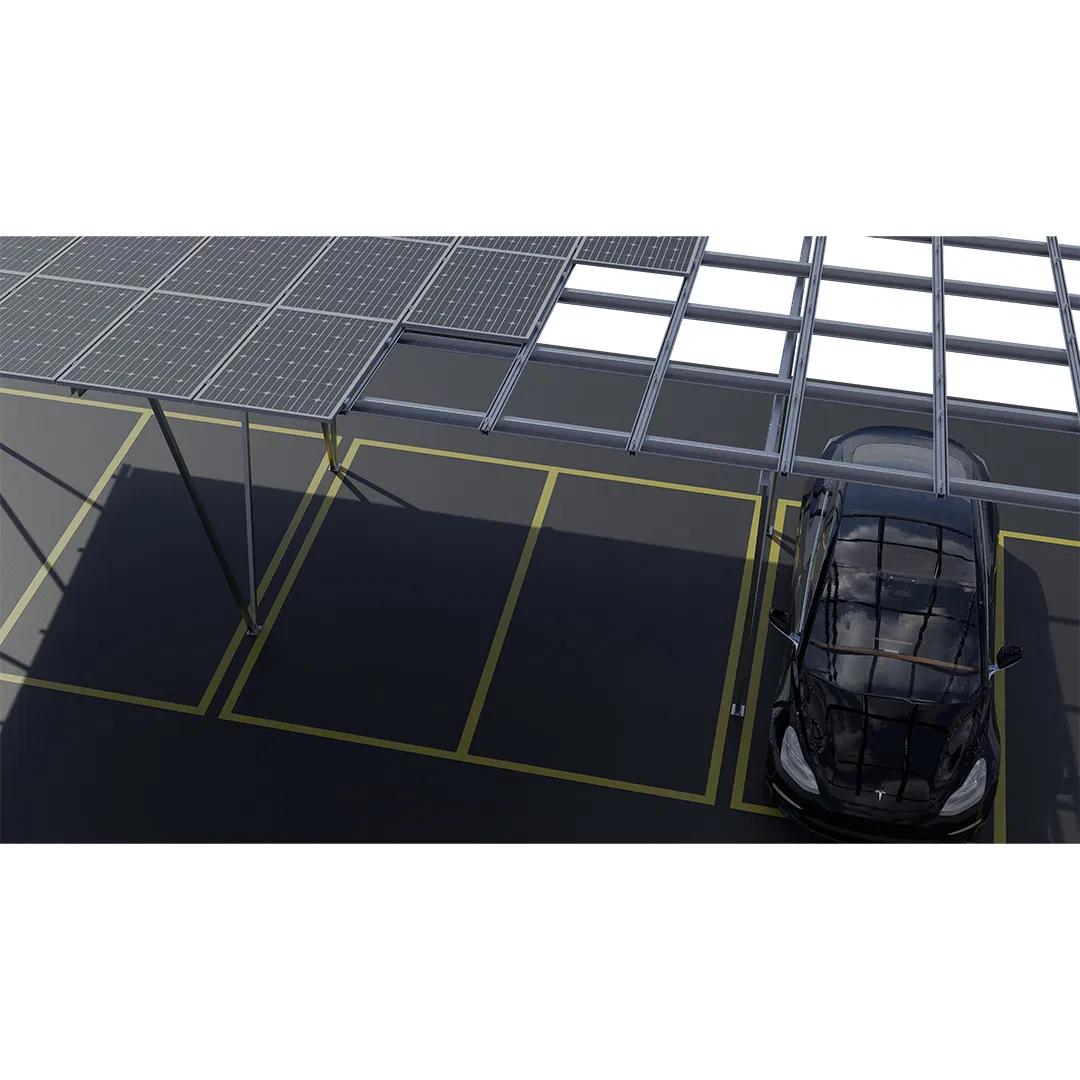

The solar carport is a structure used to support and fix the solar panels. It is mostly made of high-strength steel or aluminum alloy, and has the characteristics of corrosion resistance, wind resistance, and strong load-bearing capacity. It erects the solar panels on the top of the carport, realizing the dual functions of shading for parking and photovoltaic power generation, and facilitating energy conservation, emission reduction, and the utilization of green energy.

Technical Parameters
System Name	Solar Carport Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Ground	Building Code	IBC 2009 / CBC 2010
Tilt Angle	5-10°	Hook Material	Steel
Wind Load	60m/s	Fastener	Steel
Snow Load	1.6KN/M²	Components	AL6005-T5(Anodized)
Solar Module	Framed	Warranty	10-year warranty

Professional Services

Professional Manufacturer Designed and manufactured according to buyers' specification and performance.

Quality Guaranteed Durability testing and critical technical design to enhance lifetime.

Cost Effective Competitive prices with professional factory supply.

10 Years Experience Perfect fastening solutions with a wide range of parts selection.

Customized Solutions Customized services according to samples and drawings offered.

Frequently Asked Questions

What materials are used in the solar carport structure?

The system is primarily constructed from high-strength steel and AL6005-T5 aluminum alloy with protective finishes such as Zinc or Hot-Dip Galvanization (HDG).

What is the maximum wind and snow load the carport can handle?

The structure is engineered to withstand wind speeds of up to 60m/s and a snow load of up to 1.6kN/M².

Can the panel layout be adjusted?

Yes, the design supports both Portrait and Landscape layouts to suit your specific space and energy requirements.

What is the typical tilt angle for the solar panels?

The standard tilt angle ranges from 5 to 10 degrees, optimized for both drainage and energy efficiency.

What kind of warranty is provided with the mounting system?

We provide a 10-year warranty, ensuring long-term durability and performance for your solar investment.

Which international standards do your products comply with?

Our mounting systems are designed to meet global standards including AS/NZS 1170, DIN 1055, and JIS C8955:2017.
