HYBO Energy
HYBO Energy
| Performance Parameter | |
|---|---|
| Energy Storage System | Monet-100TS(215kWh) |
| Rated Energy Storage Capacity | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Rated AC Power | 100kW |
| Rated AC Voltage | 400V, 3W+N+PE / 3W+PE |
| Rated AC Frequency | 50/60Hz |
| Degree of Protection | IP54 |
| Isolation Method | Transformer isolation |
| Cooling Method | Intelligent air Cooling |
| Dimensions (W*D*H) | 1800*1200*2300mm |
| Weight (approx.) | 3000kg |
Note: Product dimensions and physical appearance are nominal and subject to change without prior notification.
Peak Power Watts: 455-690Watt
Tier 1 standard quality
12 years quality warranty
30 years power warranty
Max. DC Input Voltage: 1200V
MPPT Voltage Range: 90-1000V
Wifi Stick included for monitoring
Warranty: 5-10 Years
Real-time data logging via Wi-Fi/GPRS.
Keep informed about PV system conditions anywhere.
App available for PC, IOS & Android.
Mounting Rail & Splice Kit: AI6005 & SUS304.
Mid & End Clamps: 35-50mm.
L Foot and Hanger Bolt options available.

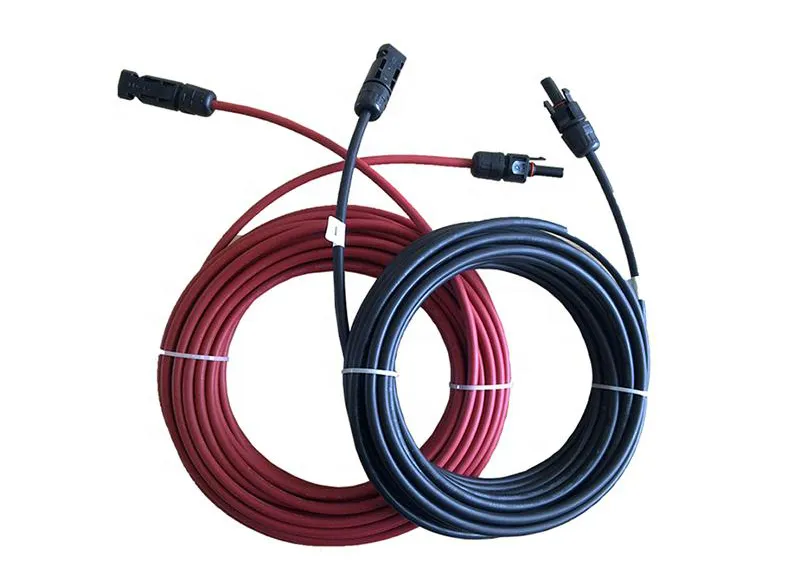

Cross Section: 4mm2, 6mm2 optional.
Rated Voltage: 1000VDC (TUV).
Lifetime: ≤25 Years.

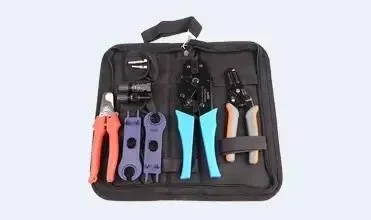

Wire Cable Cutter & Stripper.
MC4 Crimper and Assembly Tools.
Complete disassembly tool kits.
Professional experience in providing module products for large-scale projects to maximize investment benefits.
Ideal for self-consumption or grid selling, providing a reliable investment path.
Enabling homes to enjoy clean power with lower bills and sustainable profits.
