The automatic dosing device is designed for almost all water treatment requirements in systems such as air-conditioning chilled water, cooling water systems, boiler water systems, industrial circulating water systems, and sewage treatment systems.

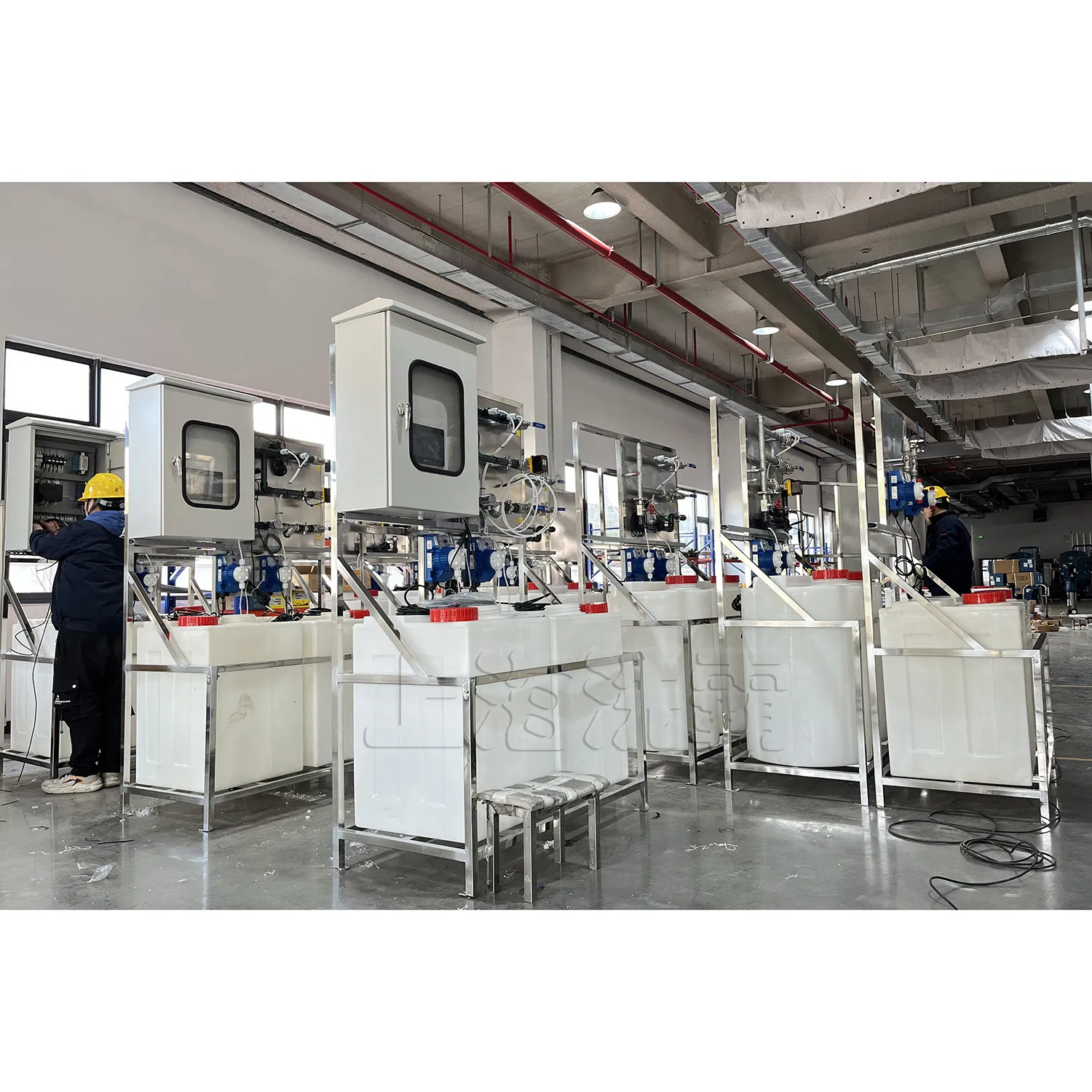

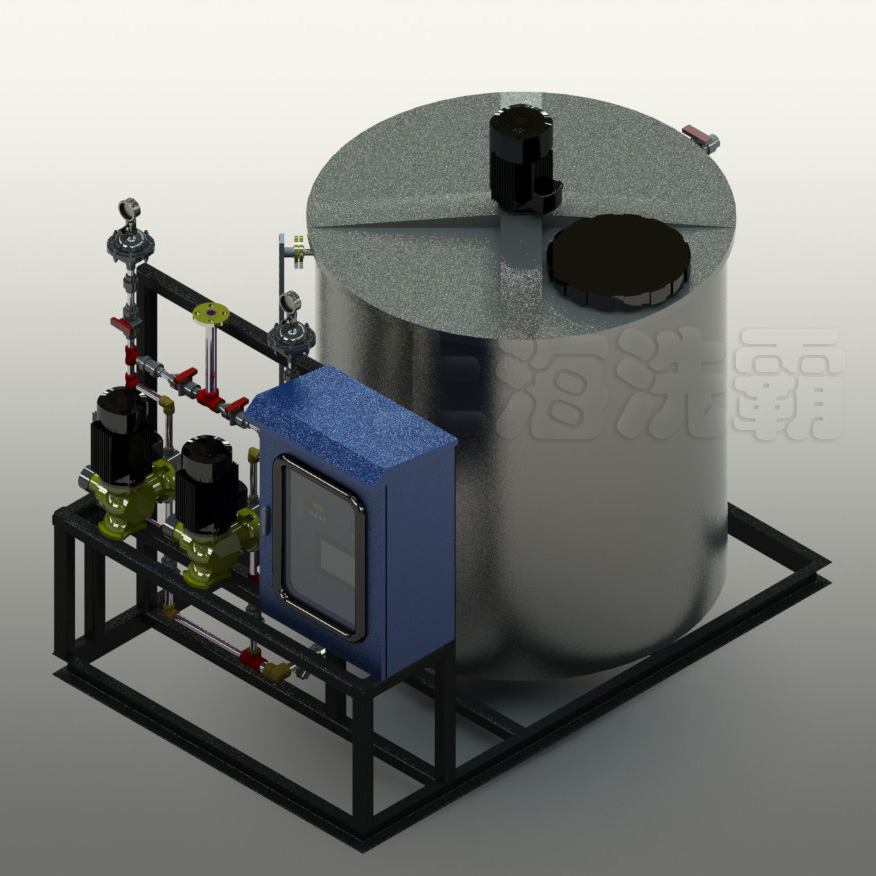

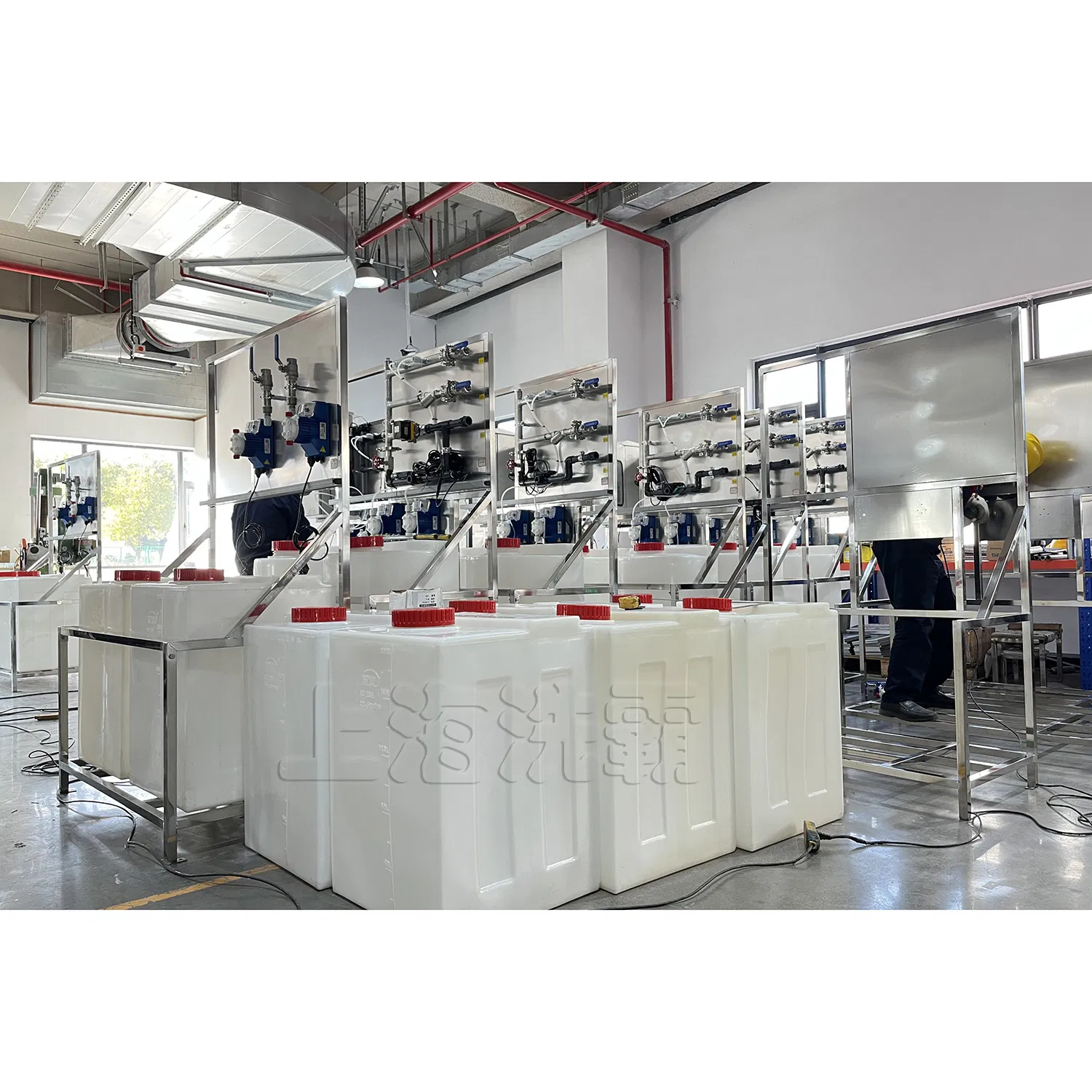

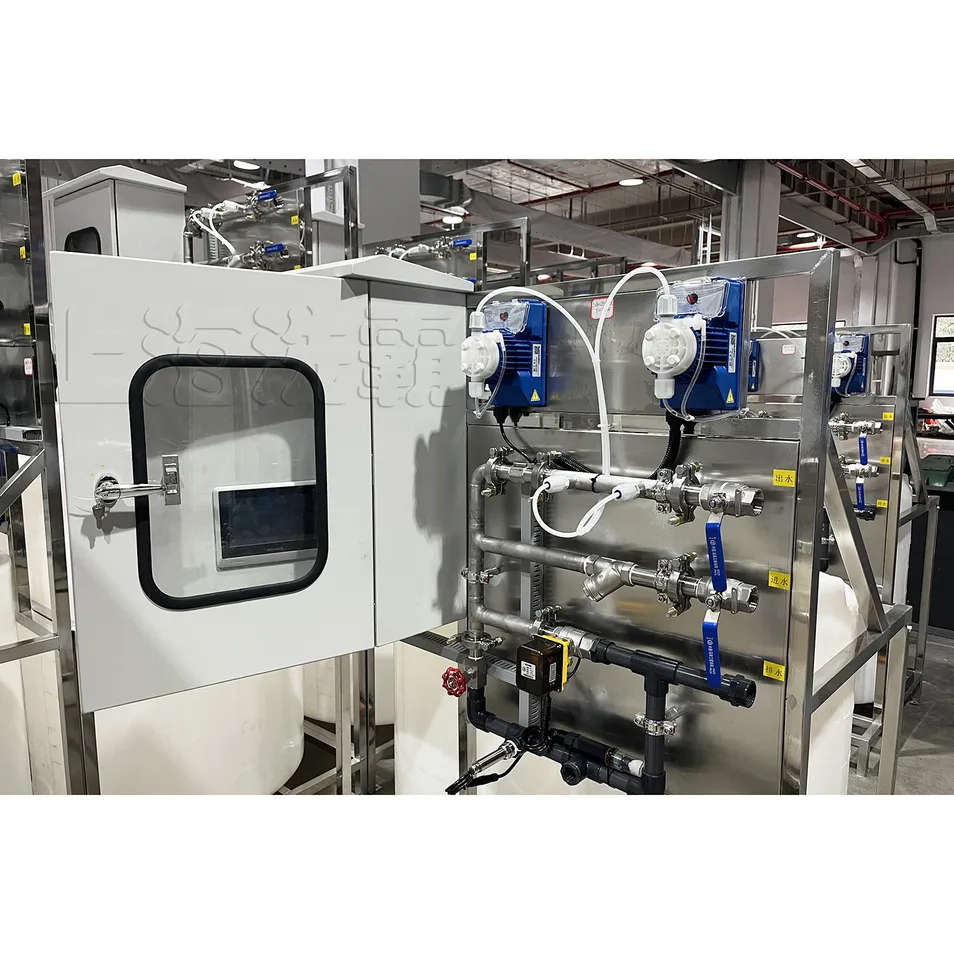

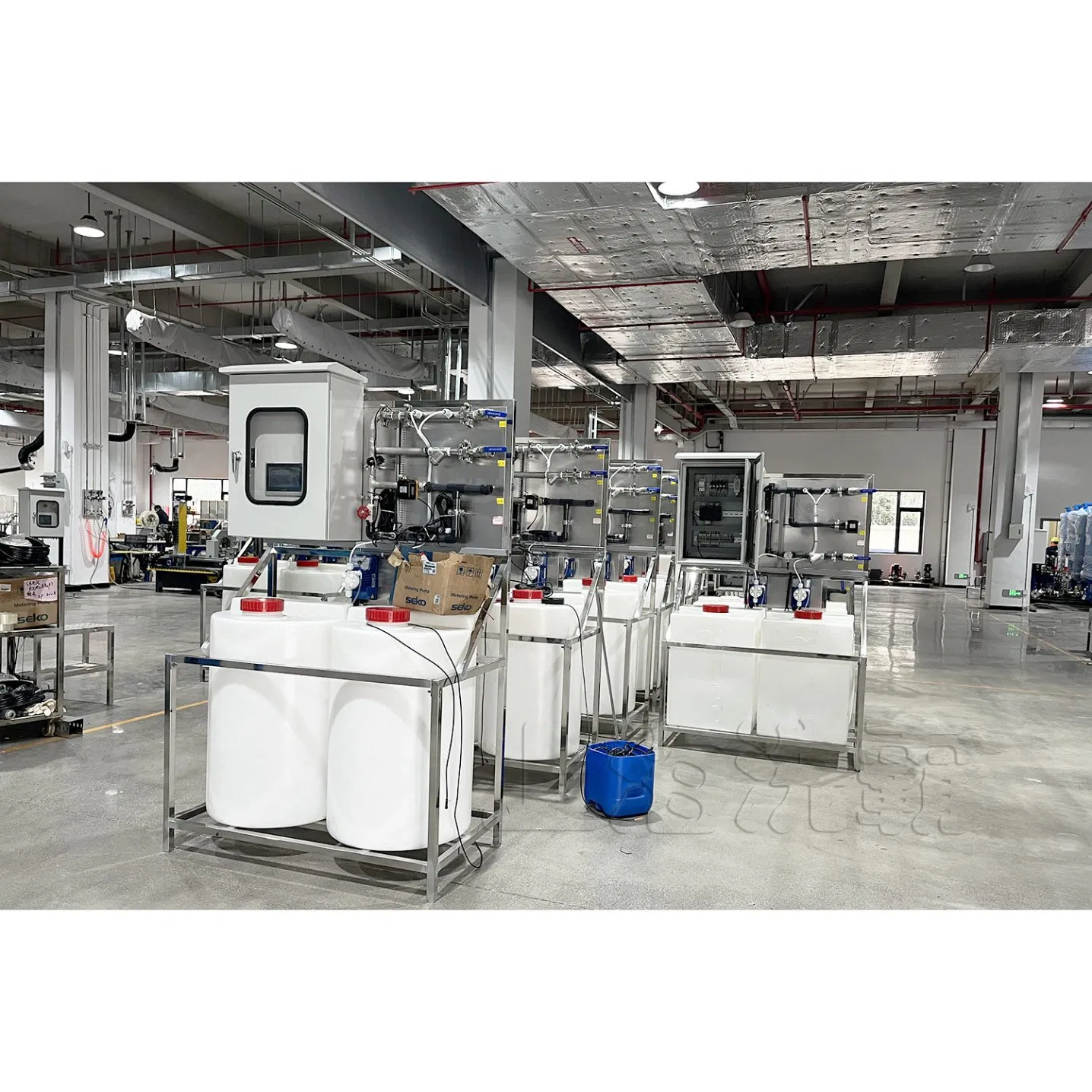

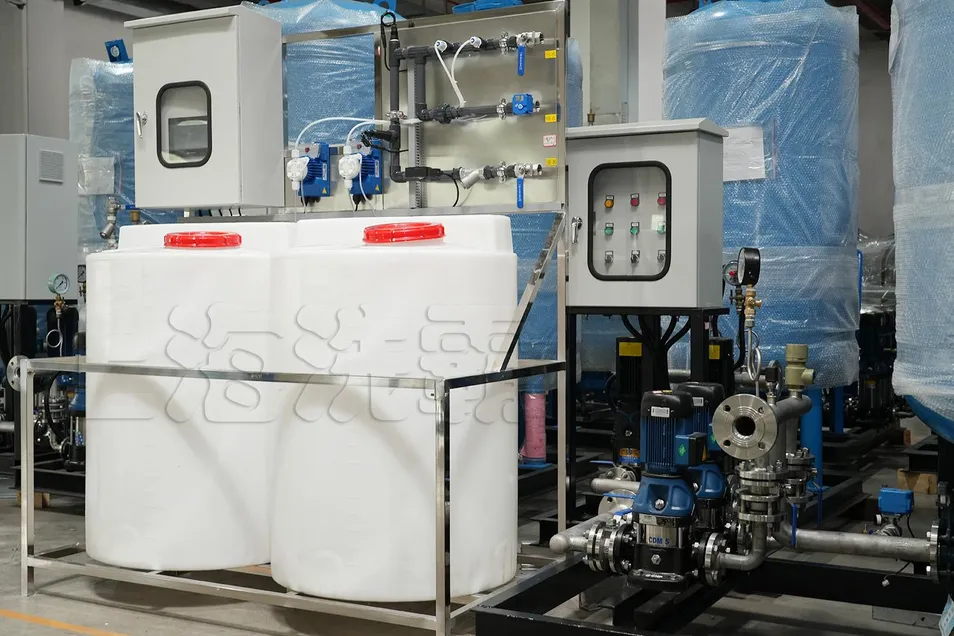

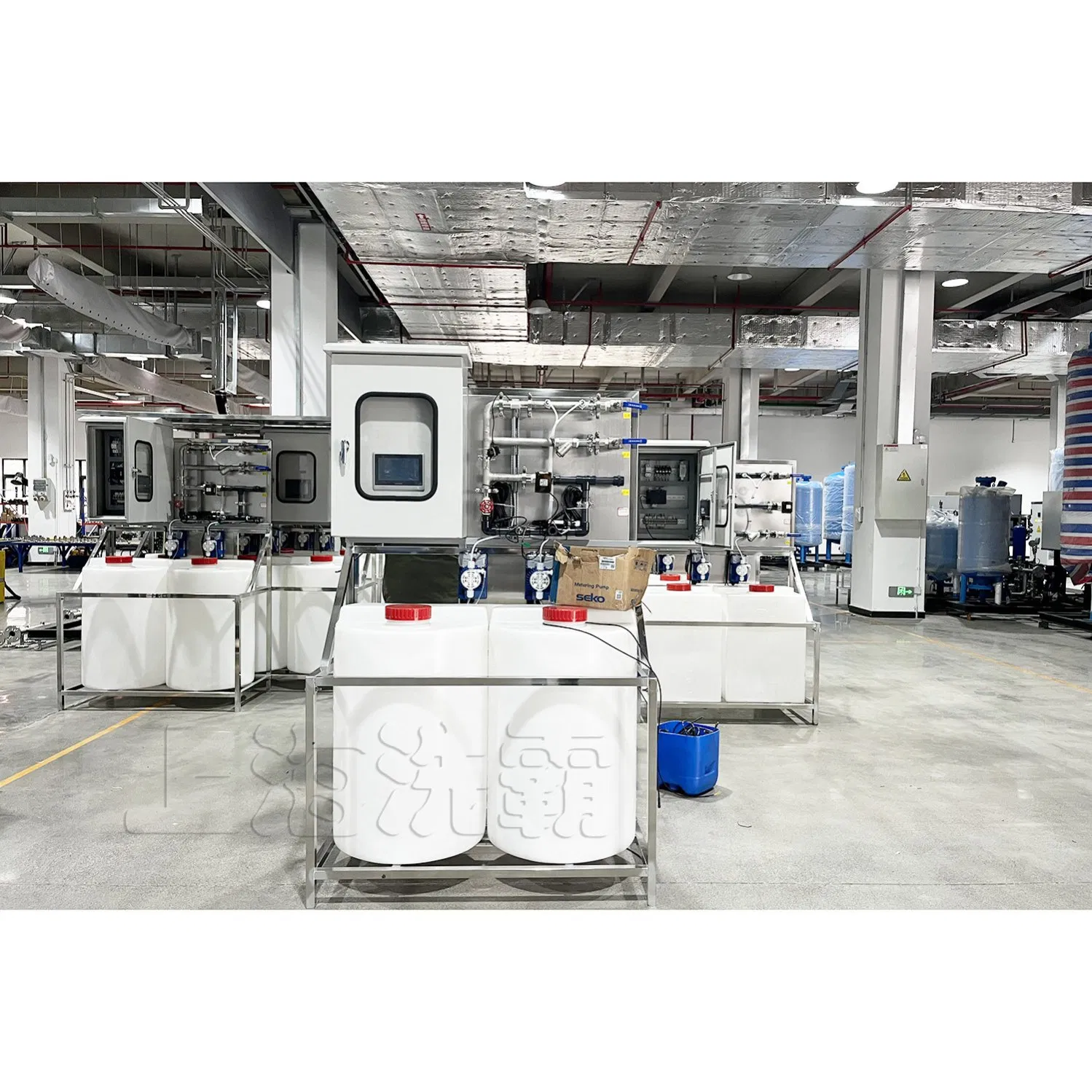

Our dosing device includes a comprehensive setup: control cabinet, dosing pumps, buckets, gauges, and other necessary accessories. Gauges can be customized to include pH meters, conductivity meters, corrosion rate meters, and more, based on specific client needs.
The device introduces specific chemicals to mitigate corrosion and scaling trends in equipment and pipelines while eliminating bacteria and algae. Utilizing an intelligent control algorithm, the system adjusts concentration ratios and agent levels to maintain stability within preset ranges, ensuring optimal treatment performance.
(Custom configurations available upon request.)
| Parameter | ECH-A-604 (Open System) | ECH-B-604 (Closed System) | ECH-C-604 (Steam Boiler) |
|---|---|---|---|
| Cycle Volume Range | 0-5000m³/h | 5000-20000m³/h | >20000m³/h |
| Boiler Evaporation | 0-10m³/h | 10-40m³/h | >40m³/h |
| Dosing Tank | 200L (PE/SS304/SS316) | 500L (PE/SS304/SS316) | 1000L (PE/SS304/SS316) |
| Overall Size (mm) | 640*640*1800 | 1900*950*1800 | 3400*2000*1800 |
| Power Supply | AC220V-0.5KW | AC380V-2.5KW | AC380V-3.0KW |

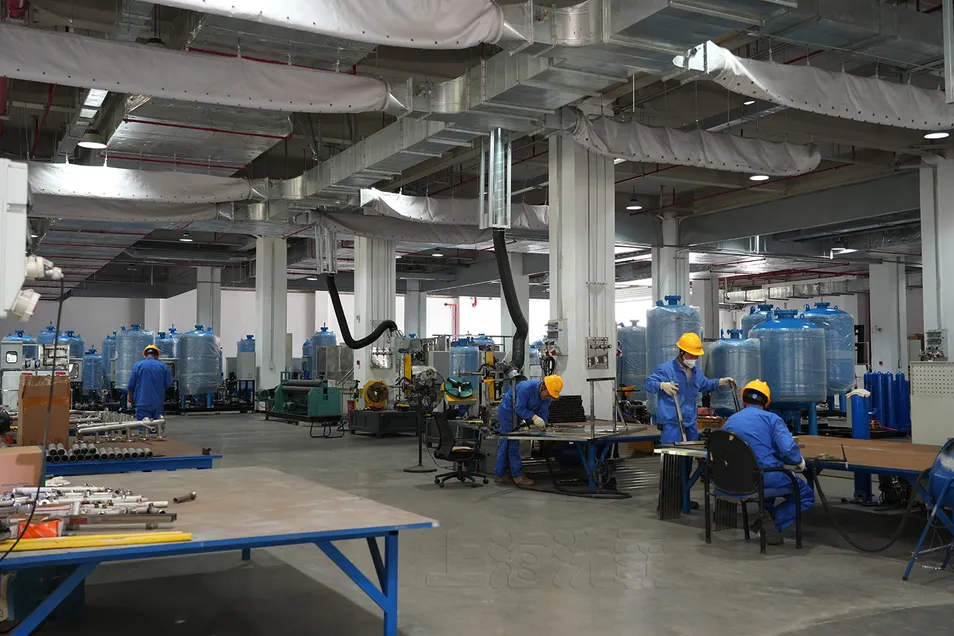

Founded in 1994, our company is a professional service provider for integrated water treatment technology. We are recognized as a National Torch High-tech Enterprise and were listed on the stock exchange in 2017. Our expertise spans across water treatment chemicals, softeners, filters, RO systems, and UV sterilizers.
As of 2024, our company holds 126 authorized patents, including 60 invention patents and 38 software copyrights. We operate a dedicated water treatment technology research center to provide comprehensive technical and operational services.
