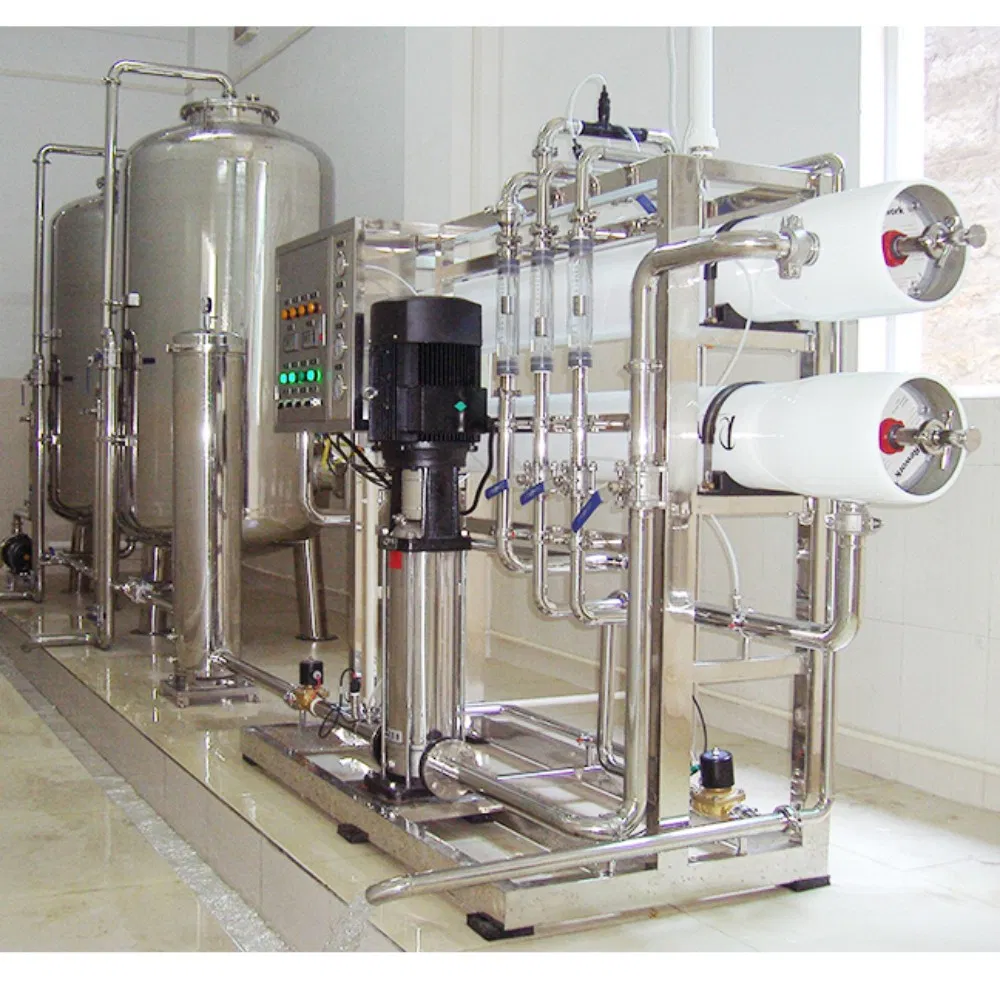

Industrial RO System 2m³/h

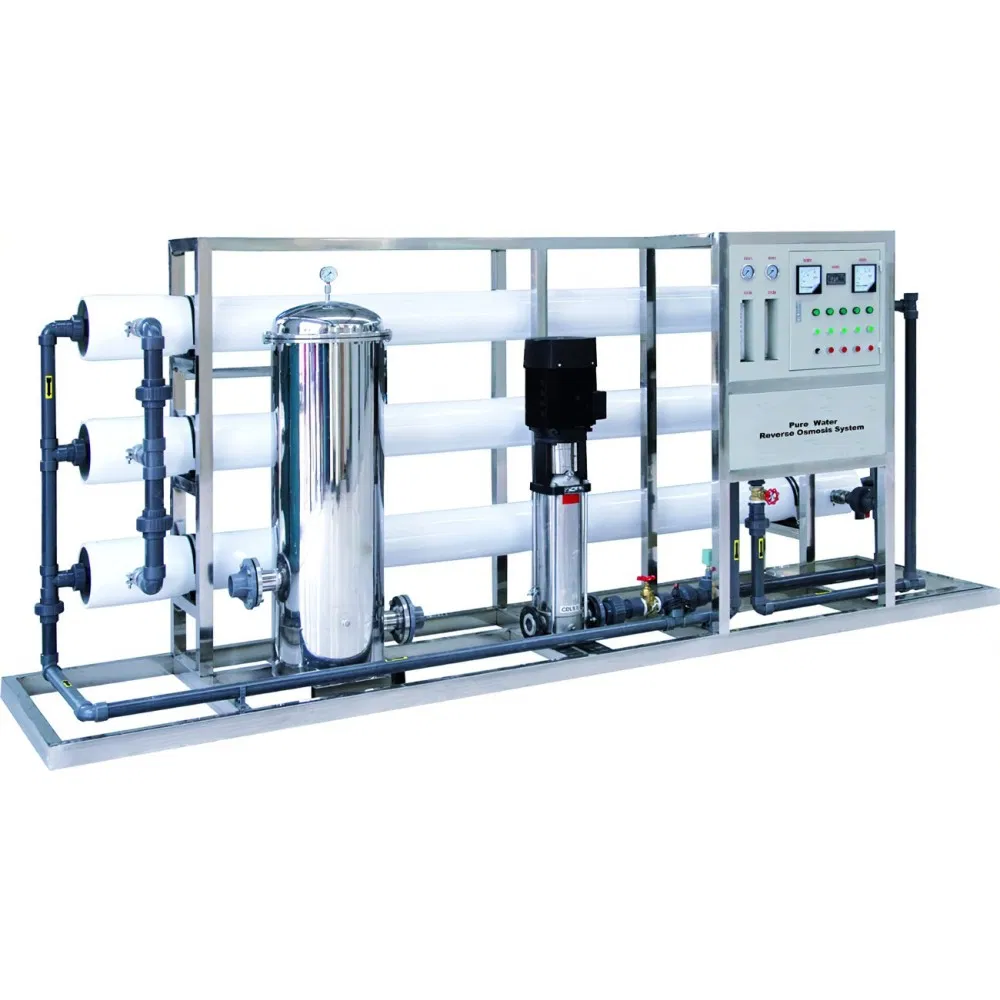

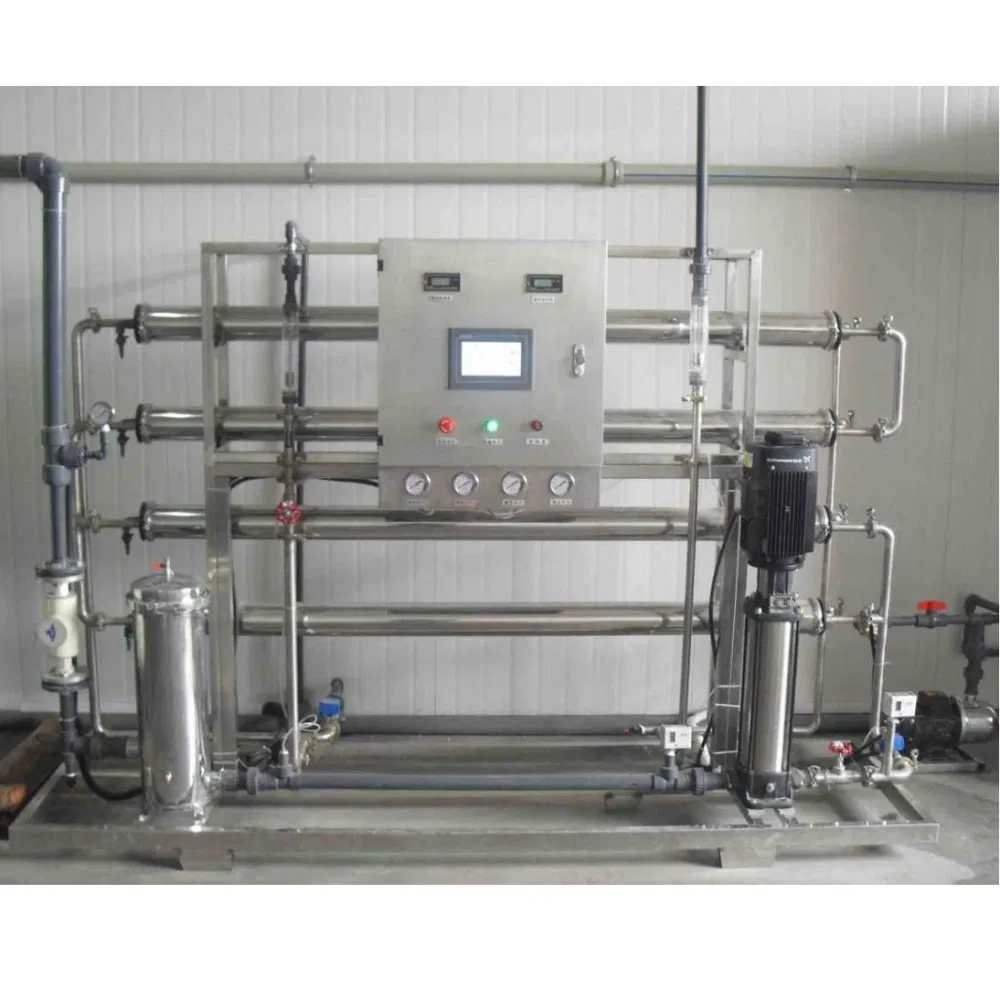

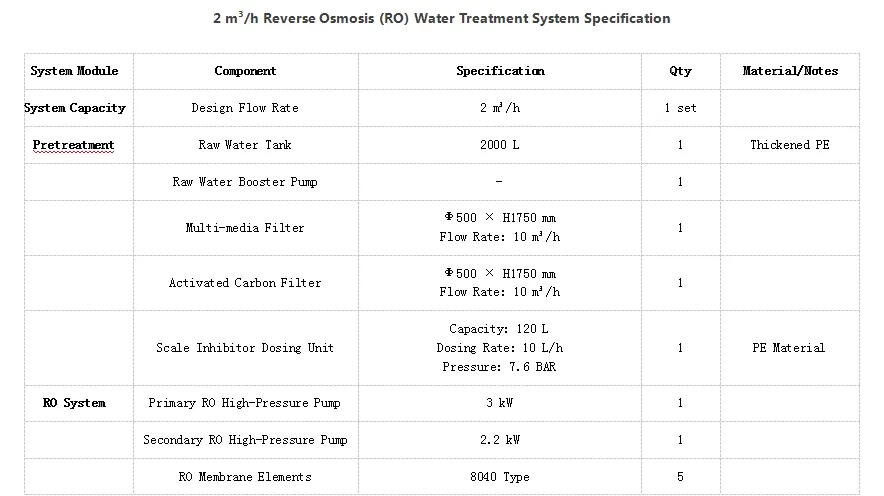

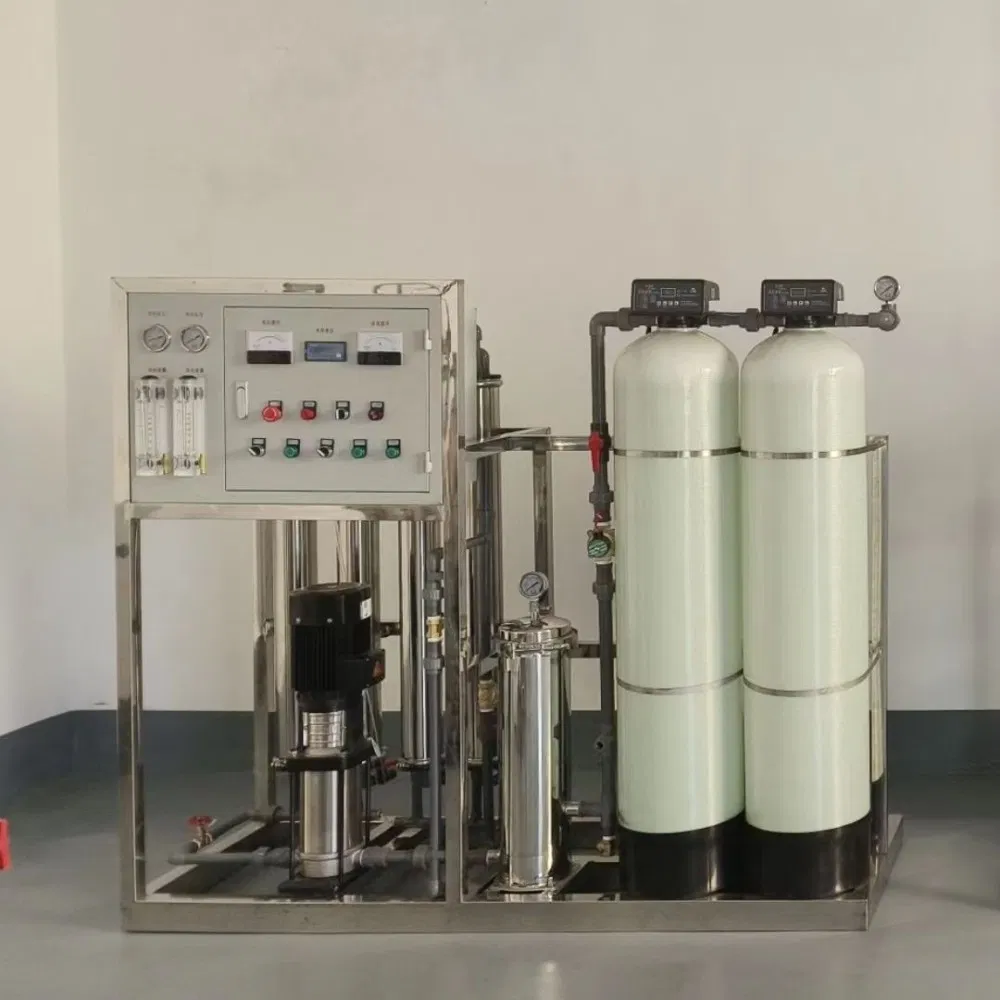

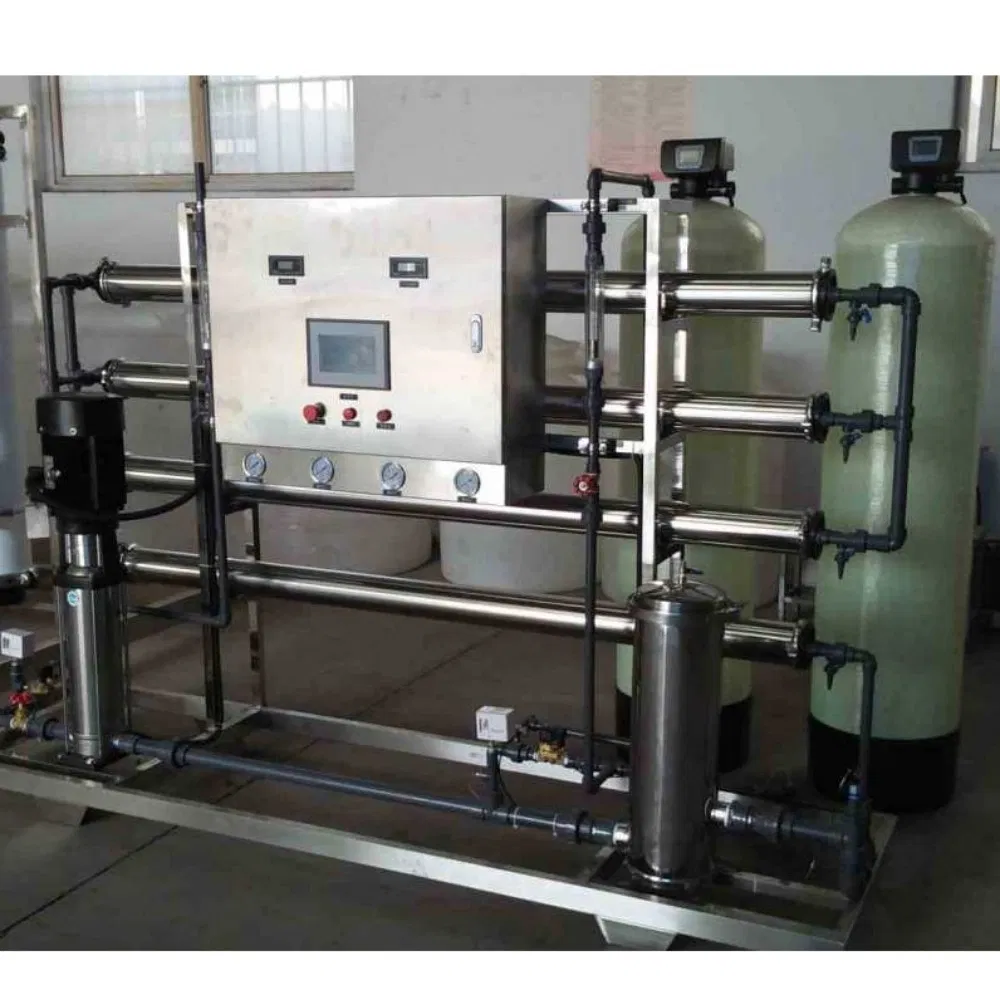

This 2m³/h reverse osmosis (RO) water treatment system includes pretreatment, reverse osmosis unit, electrical control, and piping system. The preprocessing section combines multi-media filters, activated carbon filters, softeners, and cylindrical filters to protect the reverse osmosis membrane. The reverse osmosis unit is equipped with 3kw and 2.2kw high-pressure pumps, 8040 membranes (5 pieces), and an automatic control system, producing water with a conductivity of ≤5μS/cm. The system is made of SS304 stainless steel and is suitable for the food, electronics, or pharmaceutical industries.
Key Features
- Fully automatic operation
- Main components made of SS304 material
- Multi-stage pretreatment protection
- Stable product water quality
- RO membrane life up to 3 years
- High degree of automation
Performance Parameters
- System Capacity: 2m³/h
- Recovery Rate: ≥75%
- Desalination Rate: ≥98%
- Outlet Conductivity: ≤5μS/cm
- Operation Pressure: 1.0-1.5MPa
Professional Solutions & Strength
As a professional service provider of integrated solutions for water treatment technology, we hold multiple qualifications including safety production permits and certifications for quality, environment, and health management systems. Recognized as a National Torch High-tech Enterprise, we have extensive experience in delivering projects globally across Indonesia, Ethiopia, Pakistan, and the USA.
Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Turnkey project solutions
- Listed company in the industry
- Fast shipping & customs clearance support
R&D and Patents
- 126 authorized patents held
- 60 invention patents
- 38 software copyrights
- District-level research center
- ISO9001, ISO45001, ISO14001 certified
Frequently Asked Questions
Q1: How to ensure the nominal lifespan of RO membrane is 3 years?
A1: Pre-treatment protection includes multi-media filtration, activated carbon, and scale inhibitors. PLC intelligent management handles automatic flushing, low voltage protection, and fault alarms. We recommend a recovery rate of ≤ 75%.
Q2: Why adopt a configuration of primary (3kW) + secondary (2.2kW) pumps?
A2: This dual-stage design achieves a desalination rate of over 98% and saves more than 30% energy compared to a single-stage system by optimizing pump power in the second stage.
Q3: Can we customize the equipment for specific industrial needs?
A3: Yes, we offer full OEM/ODM customization based on your specific water quality requirements and industry standards.
Q4: Are you a trading company or a manufacturer?
A4: We are a manufacturer with in-house production and export capabilities, integrating R&D, manufacturing, and international trade to offer factory-direct prices.
Q5: What industries are these RO systems suitable for?
A5: Our systems are widely used in the food and beverage, electronics, pharmaceutical, and general manufacturing industries requiring high-purity water.
Q6: What maintenance is required for the system?
A6: Regular maintenance includes replacing pretreatment filter media, monitoring conductivity levels, and periodic chemical cleaning of the RO membranes to ensure optimal performance.
