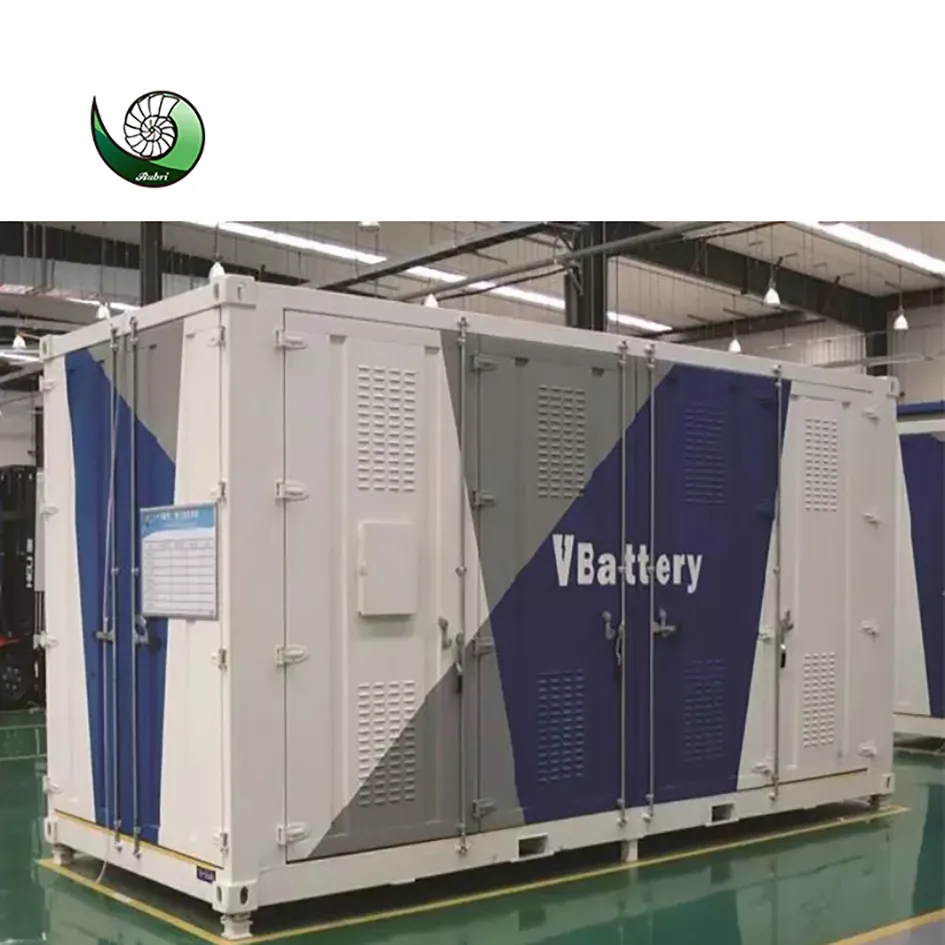

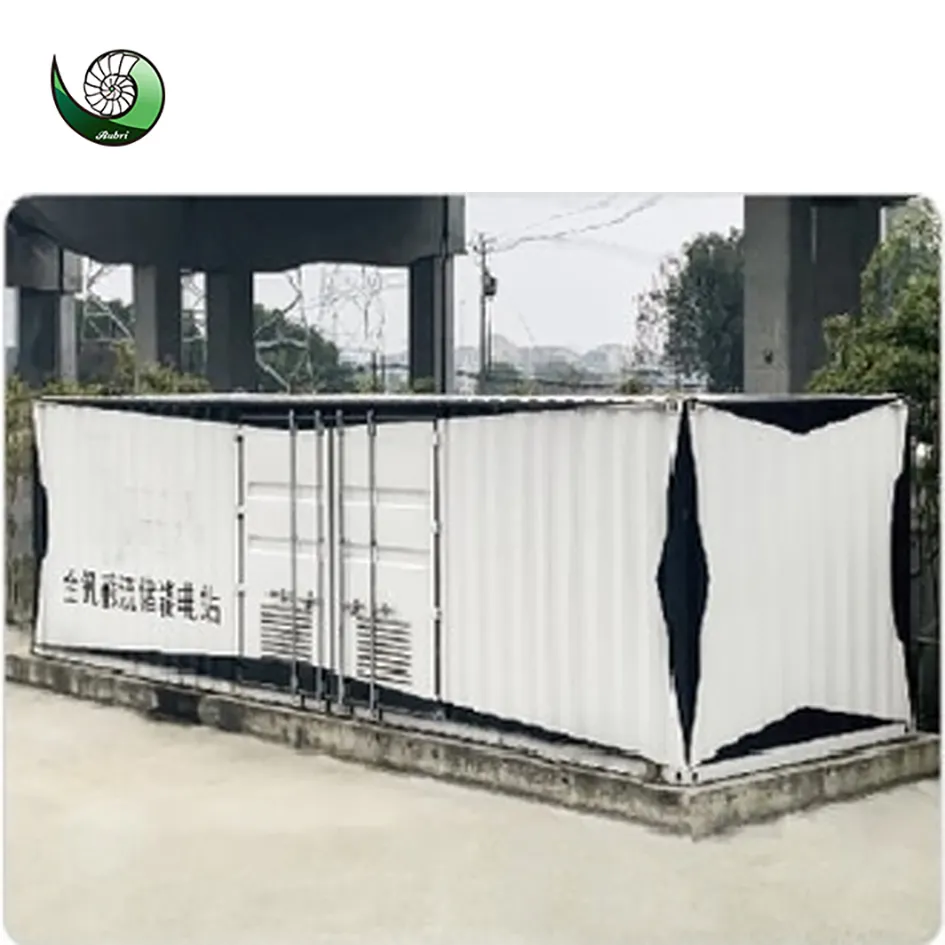

All vanadium flow battery energy storage power station is a comprehensive energy storage system that integrates stack, electrolyte, pumping system, battery management system, energy management system, temperature control system, and other auxiliary systems, with complete functions. The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power, and the discharge duration can be achieved by adjusting the amount of electrolyte in the energy storage power station. The energy storage power station can charge and discharge more than the rated power, achieving high-power operation.
125KW Vanadium Redox Flow Battery Data Sheet (VFB125/500)
| No. | Parameter Type | Unit | Data |
|---|---|---|---|
| 1 | Rated power | KW | 125 |
| 2 | Rated capacity | KWh | 500 |
| 3 | Maximum power | KW | 500 |
| 4 | Energy efficiency | / | >75% |
| 5 | System weight | T | 58.75 |
| 6 | System size | L*W*H(m) | 10.5*2.8*2.8 |
| 7 | Electrolyte weight | T | 40 |
| 8 | Electrolyte volume | m³ | 30 |
| 9 | Charge voltage limiting | VDC | 219 |
| 10 | Discharge voltage limiting | VDC | 232 |
| 11 | Cycle | cycles | ≥15000 |
| 12 | Service life | years | ≥20 |
Established in 2011, we supply various products in the energy industry chain, including but not limited to hydrogen production, hydrogen storage, hydrogen supply, electric maintenance and BOP parts, fuel cell system assemblies, and vehicles. We have an experienced professional technology research and development team, which can provide professional services from product selection and matching, system design, product customization, development, and technical support. Our solutions, including stacks, fuel cell systems, and production equipment, are exported to dozens of countries and regions such as the United States, the Netherlands, Italy, Germany, South Korea, India, and Malaysia.
The main advantage is its long cycle life (over 15,000 cycles) and the ability to decouple power and energy. It is also safer as the electrolyte is non-flammable.
The design service life of our Vanadium Redox Flow Battery system is ≥20 years, making it an ideal long-term energy storage solution.

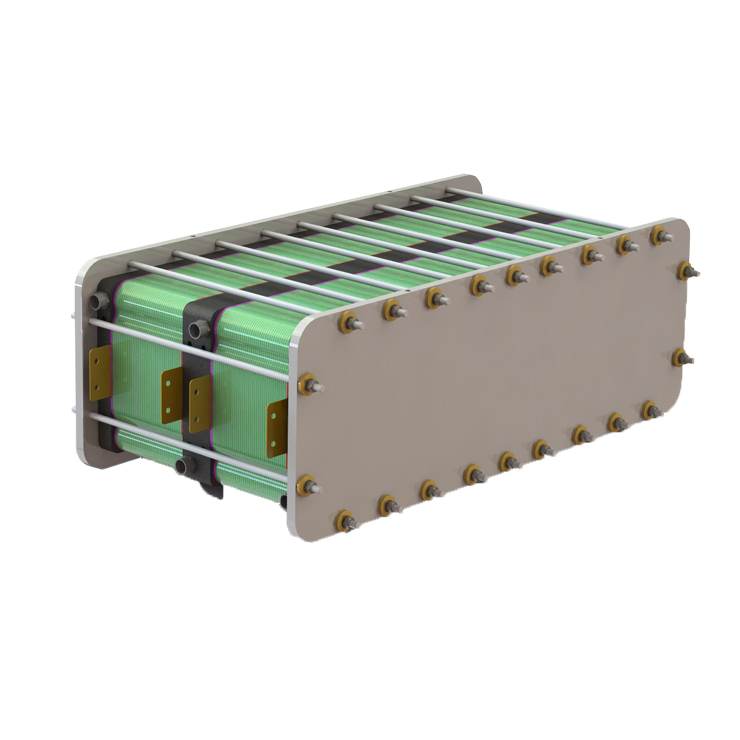

Yes. The discharge duration can be extended by increasing the volume of the electrolyte in the storage tanks without needing to change the power stack.

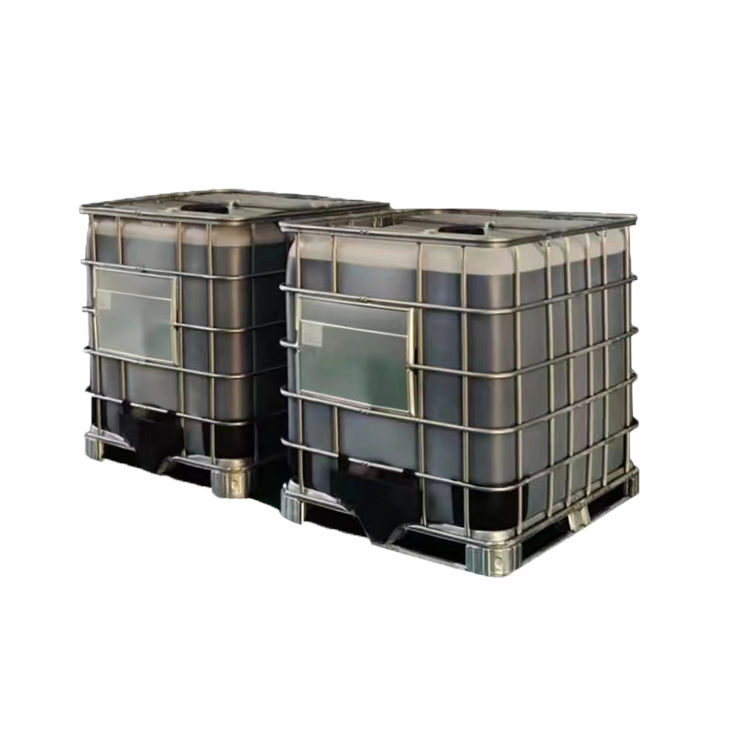

Yes, the vanadium electrolyte does not degrade during the charge/discharge cycles and can be recovered and reused at the end of the battery's life.
The system maintains an energy efficiency of over 75%, providing stable and reliable power conversion for grid and industrial applications.
The system is designed with a Battery Management System (BMS) and temperature control. Routine maintenance involves checking the pumping system and ensuring the electrolyte levels are optimal.
