High Voltage Smart Battery Management System for 300V to 1500V

Customization:	Available
Insulation Detection:	Support
Emergency Stop Detection:	Support

Send Inquiry

Product Description

Basic Specifications

Model NO.GYCH-MCA-01

Address Line3

Transport PackageCarton Packaging

SpecificationCustomized

TrademarkOEM

OriginChina

Product Description

High voltage energy storage systems designed for industrial and commercial applications, providing robust solutions for energy storage needs. Sophisticated 3+1 level BMS architecture offering comprehensive protection and management. With an integrated flexible networking mode, this advanced system supports both single cluster independent use and multiple cluster parallel applications.

Seamlessly online monitor your system's total voltage, current, insulation resistance, and relay bonding. Benefit from real-time cell safety monitoring, intelligent balancing, fault diagnosis, multi-level alarms, and protection. Harness the power of precise SOX computing and enjoy mass data collection and storage coupled with AI-driven big data security warnings.

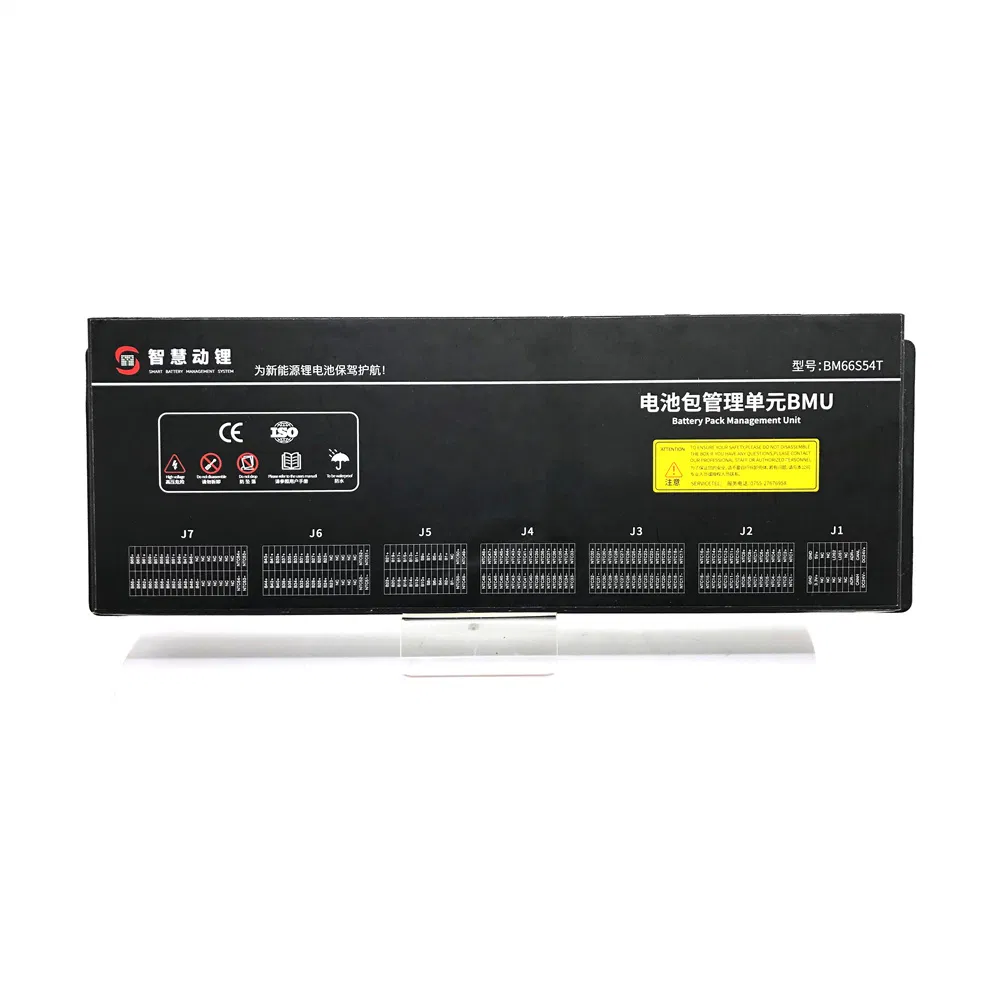

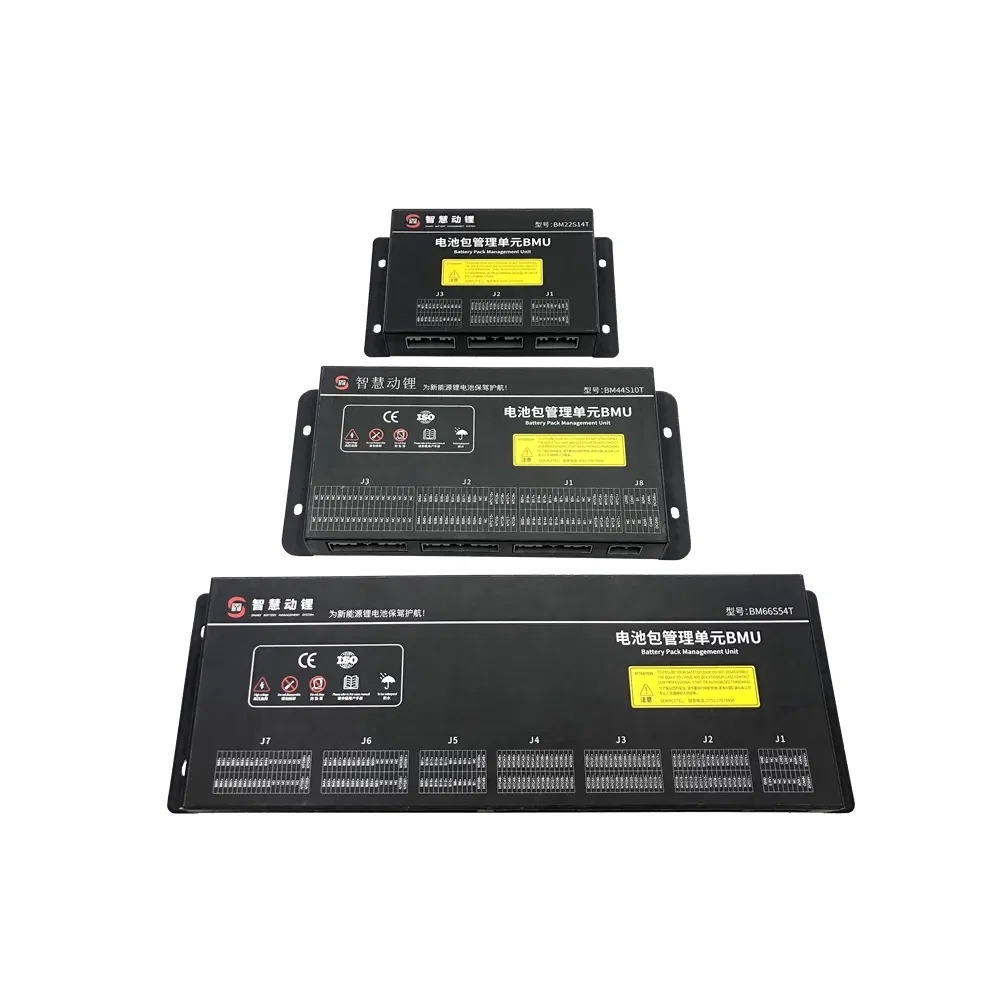

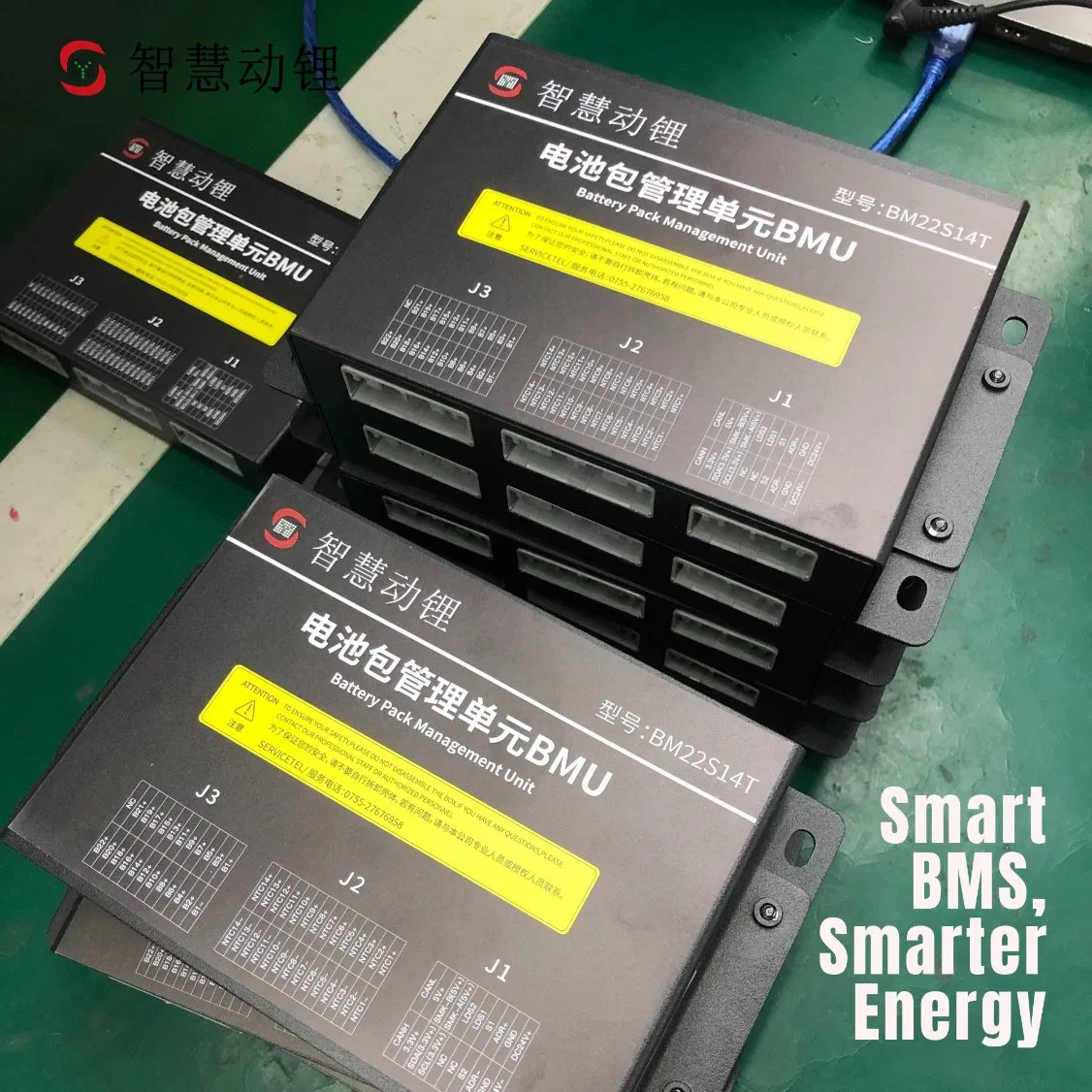

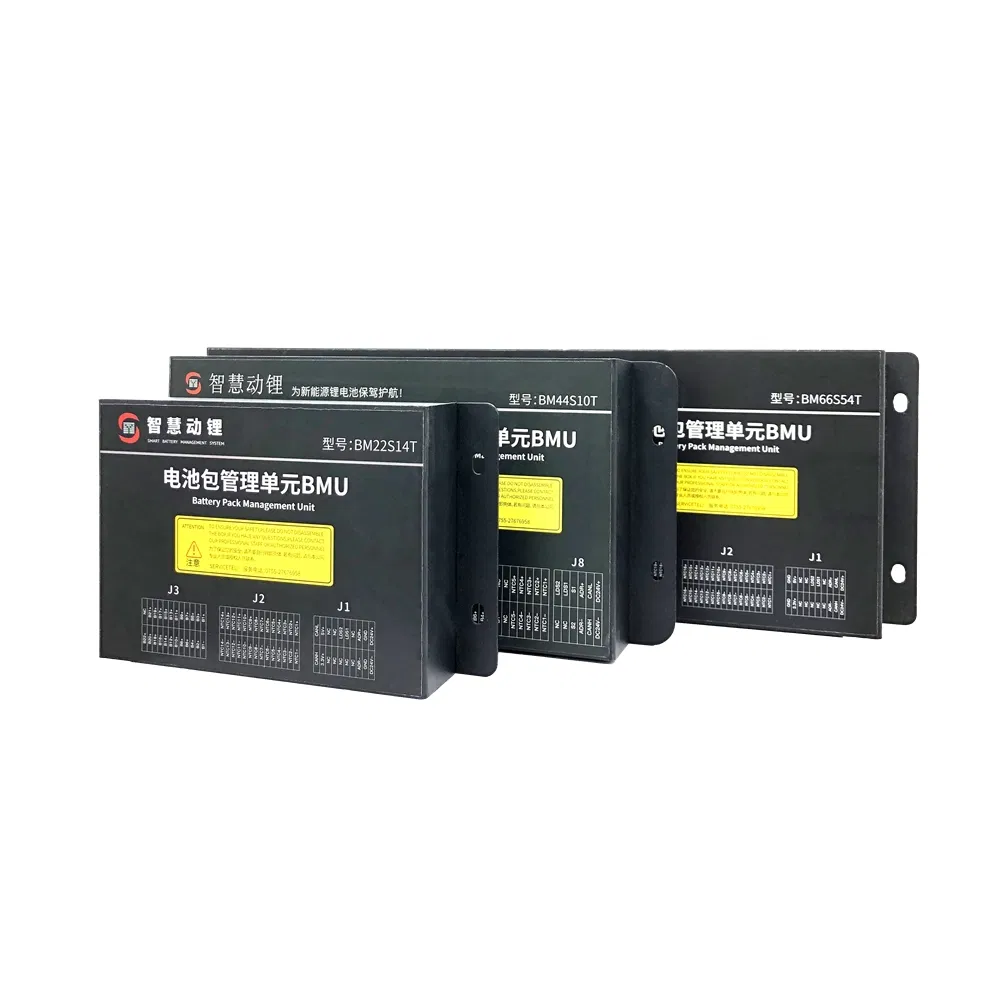

BMU Technical Parameters

Parameter Item	Specification Details
Operation Voltage	DC12V-36V
Operation Current	≤ 35mA(12V)/≤ 20mA(24V)
CAN	1
Voltage acquisition strings	16S~22S , 23S~44S , 45S~66S
Temperature sensors	14~54
Single detecting	0~5000mV
Voltage acquisition accuracy	±4mV
Temperature acquisition accuracy	±1ºC
Balance	Supports Passive Balance
Balance Voltage	100mA
Size	17010031.2mm; 36012031.2mm

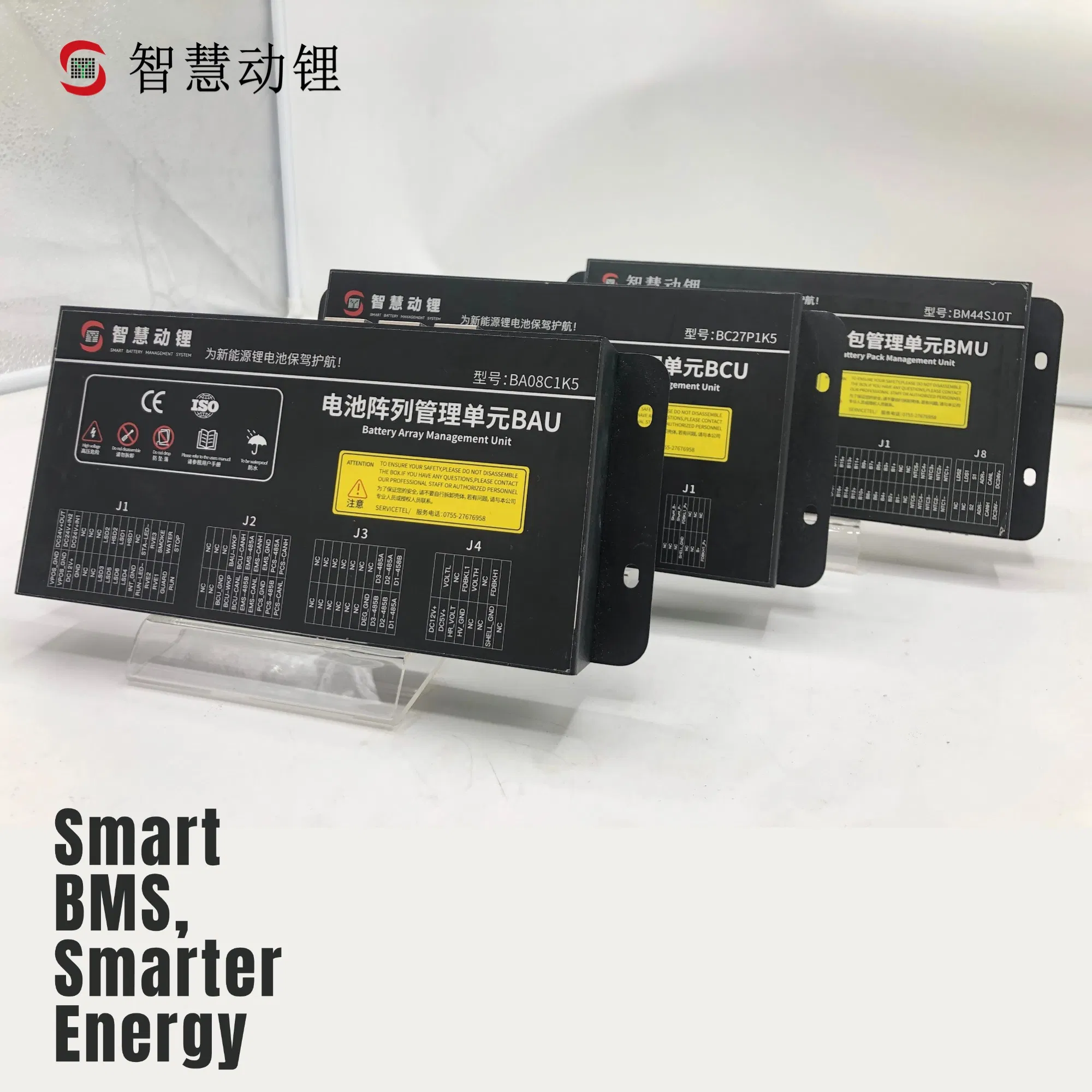

BCU & BAU Parameters

Product parameters	BCU Specification	BAU Specification
Operation Voltage	DC12V-36V
Operation Current	≤ 70mA(24V)	≤ 70mA(24V)
Communication (CAN/RS485)	CAN: 3 / RS485: 2	CAN: 3 / RS485: 5
Ethernet	1	3
Contactor Control	6 low-side / 2 high-side	3 high-side / 5 low-side
Insulation Detection	Support Input	Support
Size	24511529.7mm	245106.529.7mm

Core Advantages

Equipped with a top-tier 32-bit MCU and high-performance vehicle level AFE for unparalleled efficiency.
Modular 3+1 level architecture enhances multi-level protection and flexible configuration.
Rich communication interfaces supporting 4G/CAN/RS485/Ethernet standards.
Advanced SOC and learning algorithm ensuring automatic correction and precise monitoring.
Cloud-based BMS management for big data analysis and comprehensive lifecycle recording.
Supports OTA updates, remote maintenance, and AI fault warnings.
Compatible with up to 1500V high voltage systems and various cooling pack solutions.

Application Scenarios

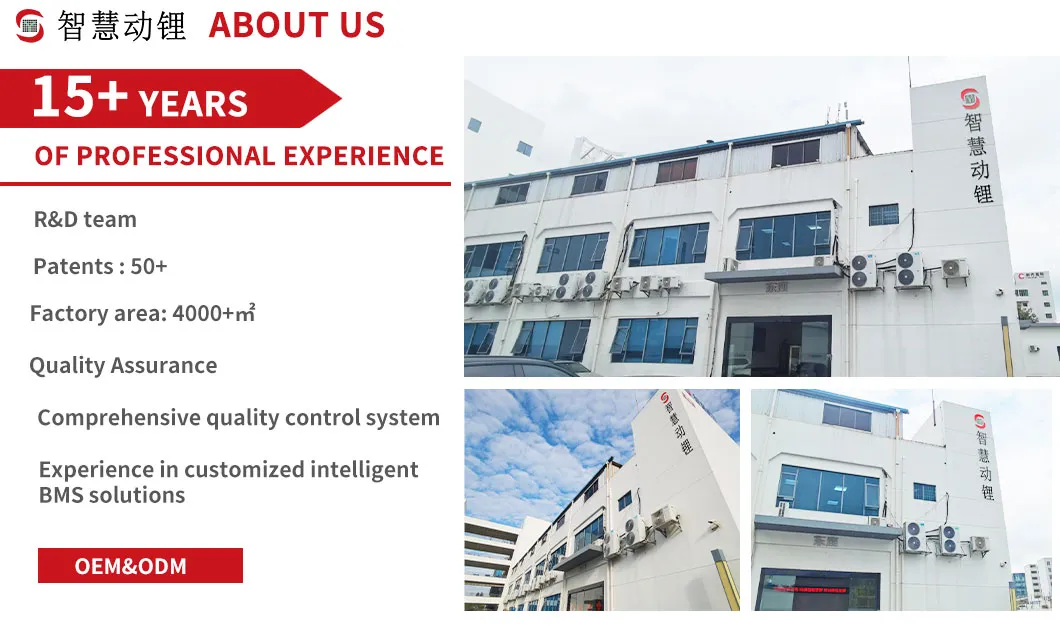

Company Overview

Founded in 2011, this pioneering high-tech enterprise stands at the forefront of lithium battery management systems (BMS) innovation. Dedicated to research, development, and strategic production, the company delivers unmatched safety and efficiency in energy solutions. With a robust R&D team and over 50 national patents, they lead the charge in digital safety management.

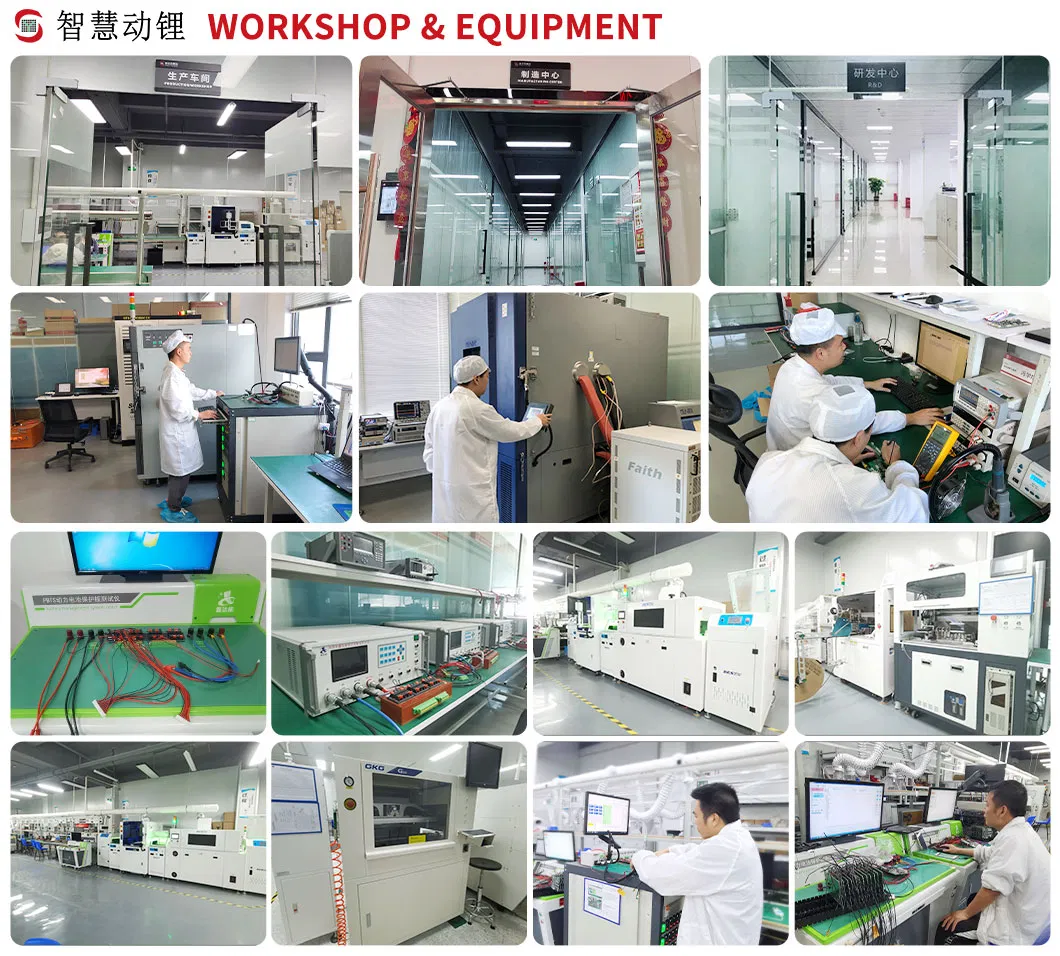

Quality & Logistics

Frequently Asked Questions

Q1: How do I choose the right BMS board? A1: It depends on your cell & battery pack parameters and your application scenarios. Please consult technical support before purchasing.

Q2: What is your factory production capability? A2: Our facility can produce 50,000pcs per month, with the capacity to scale up to 100,000pcs within 3 months based on demand.

Q3: What is your delivery time? A3: Standard products are delivered within 7-15 days. For OEM/ODM or large volume orders, please verify with our sales team.

Q4: Do you provide OEM/ODM service? A4: Yes, we have a strong R&D team and professional equipment. OEM and ODM projects are warmly welcomed.

Q5: What are your shipping terms? A5: We offer shipping by air, express (DHL, FEDEX, UPS, etc.), or by sea, depending on your specific requirements.

Q6: What are your payment terms? A6: We prefer T/T, though L/C is also acceptable. Please contact sales for further information.
