| Model NO. | SMP-NU005/6/7 |

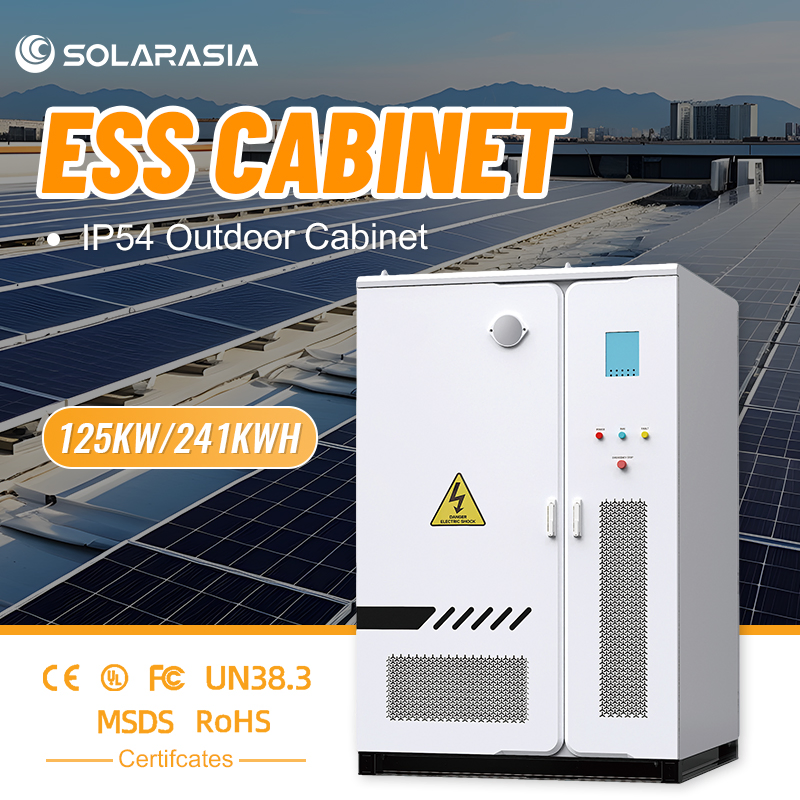

| IP Rating | IP54 |
| Security Certification | CE / UN38.3 |
| Net Weight | 1050kg |
| BMS Communication | Ethernet / RS485 / CAN |
| Package Size | 110cm * 210cm * 115cm |
| Working Temp | -20 ~ 55°C |
| Cooling | Liquid / Air Cooled |
| Origin | China |
| Package Gross Weight | 1060.00kg |

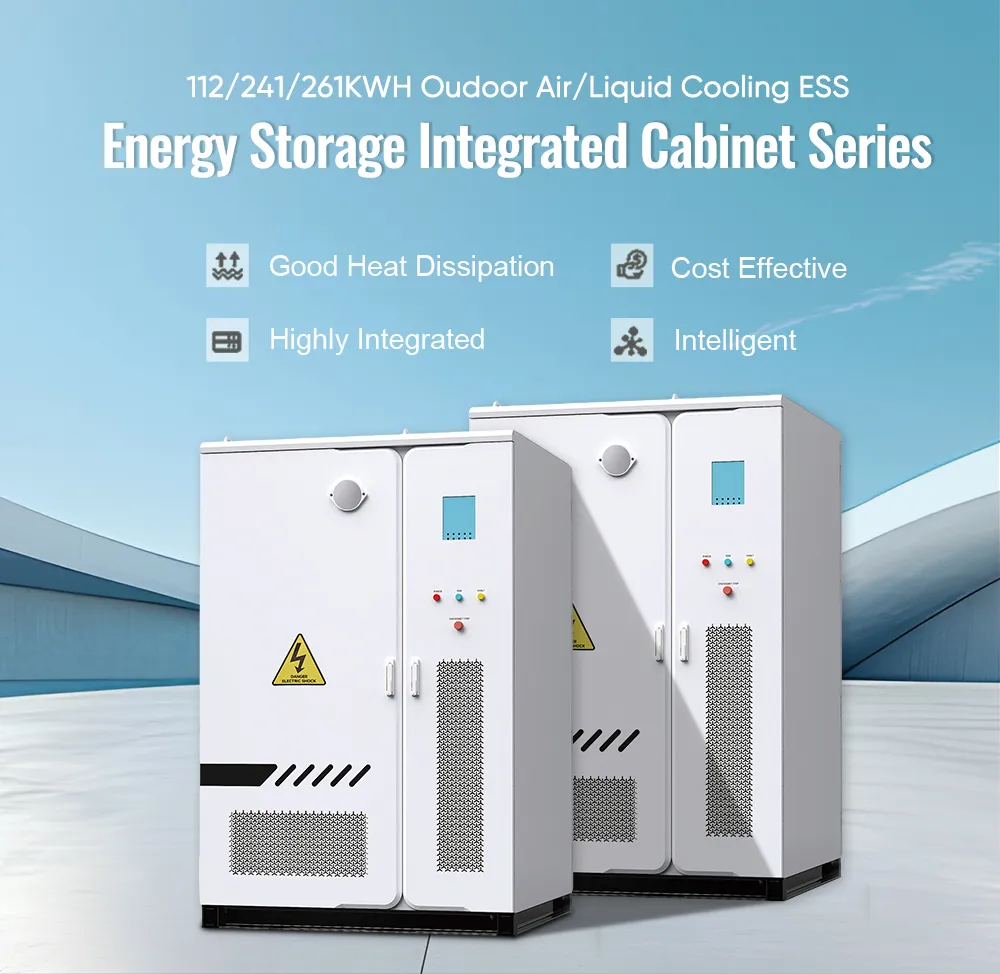

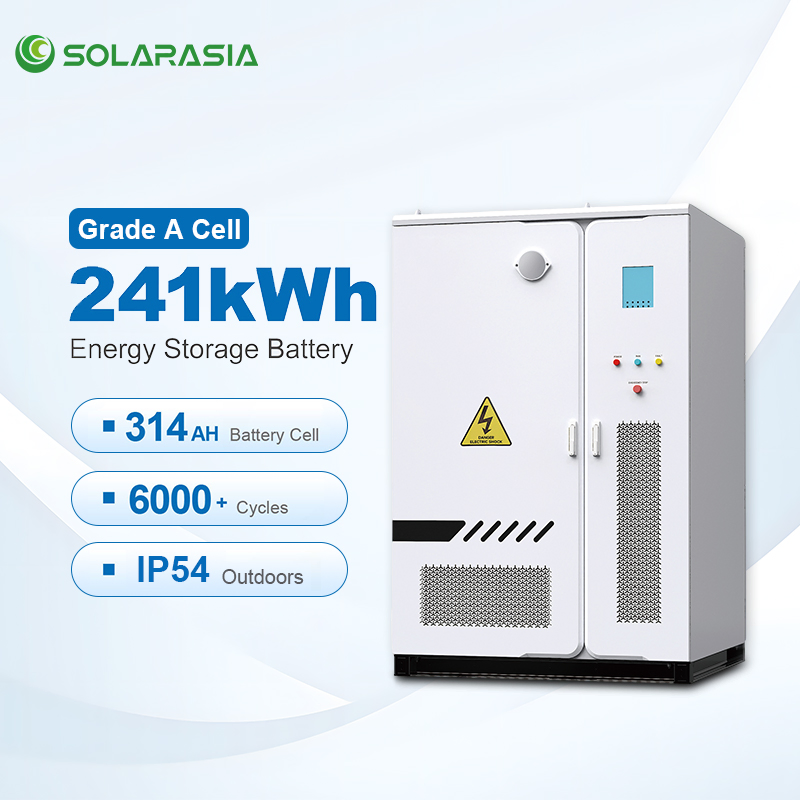

| Model | SMP-NU005 | SMP-NU006 | SMP-NU007 | |
|---|---|---|---|---|
| Battery System | ||||
| Type | 358.4V 314Ah | 768V 314Ah | 832V 314Ah | |
| Rated Energy | 112kWh | 241kWh | 261kWh | |
| Working Voltage Range | 313.6~403.2V | 672~864V | 728~936V | |
| PCS Parameters | ||||
| AC Side | Rated Power | 50kW | 125kW | |
| Max Power | 60kW | 150kW (1min) | ||
| Rated Voltage | 380V/400V | |||
| General Parameters | ||||
| Dimensions (mm) | 1086*2058*1110 | 1500*2306*1539 | 1450*2258*1545 | |
| Cooling Method | Air-cooled | Air-cooled | Liquid-cooled | |
LiFePO4 cells with integrated multi-layer protection and fire suppression.
Efficient thermal management ensures stable operation and longer lifespan.

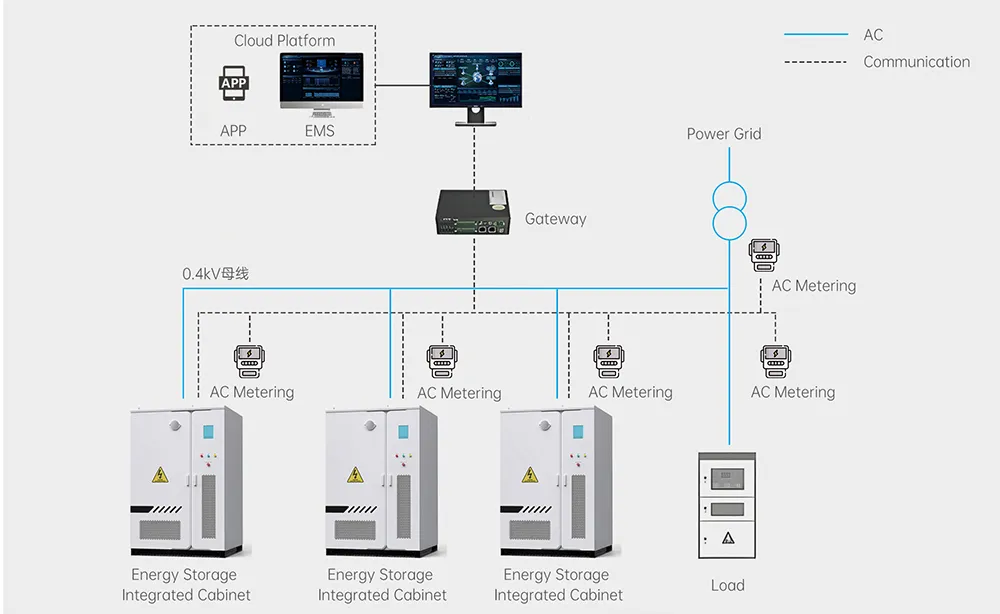

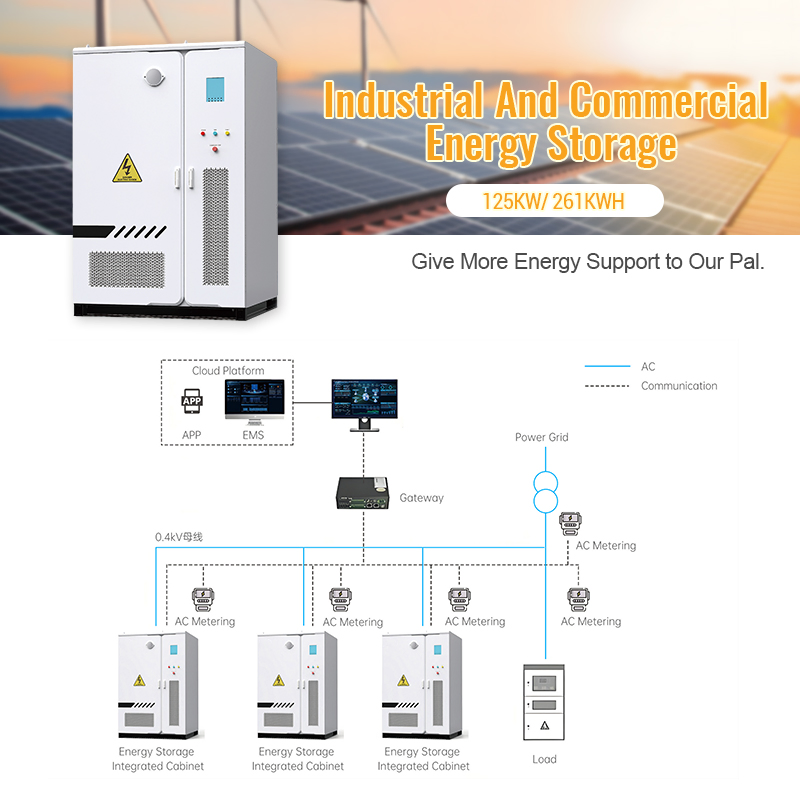

Integrated PCS, BMS, and EMS for seamless plug-and-play deployment.
