Overview
ADW series rail type multi-loop power meters are designed for measuring full electrical parameters across multiple three-phase circuits. They support up to four three-phase loop current inputs simultaneously, monitoring voltage, current, power, power factor, phase angle, unbalance, and harmonics.
Frequently Asked Questions
What is the primary use of the ADW210 power meter?
The ADW210 is primarily used for measuring full electrical parameters across multiple three-phase circuits, supporting up to four loops simultaneously, making it ideal for industrial and commercial energy monitoring.

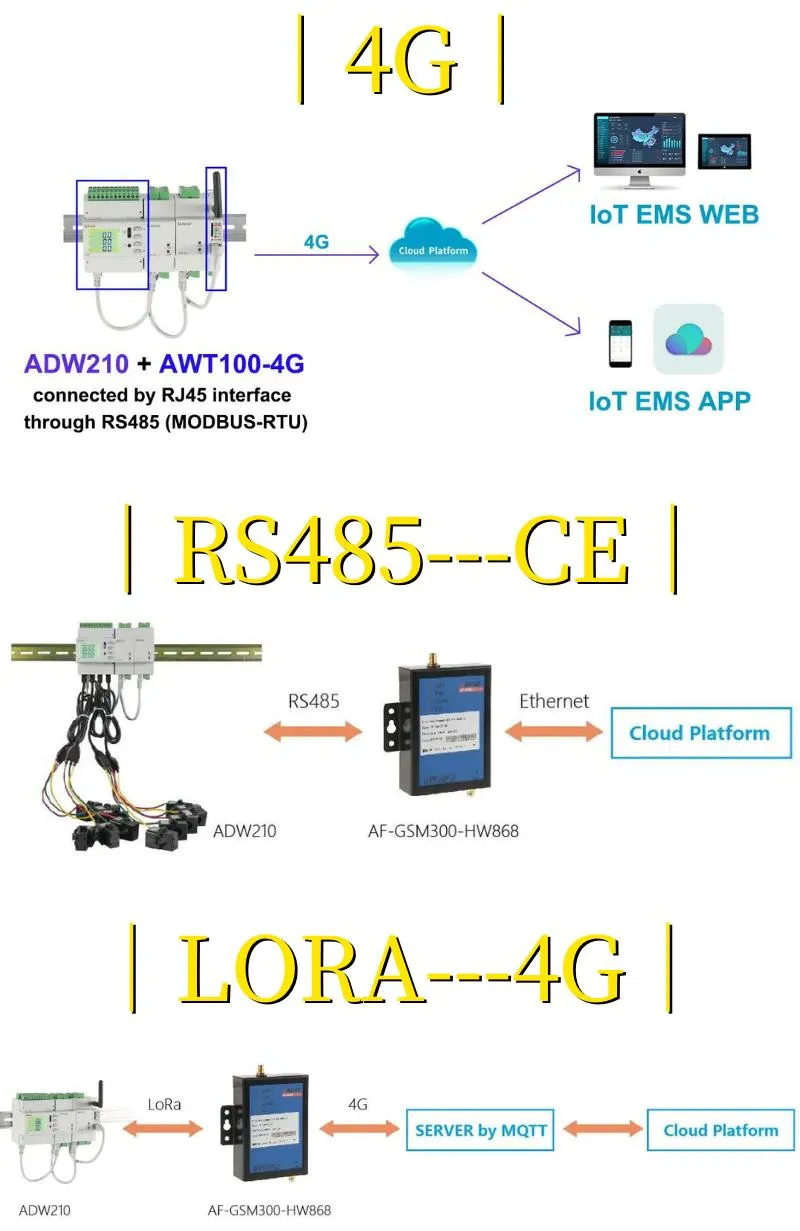

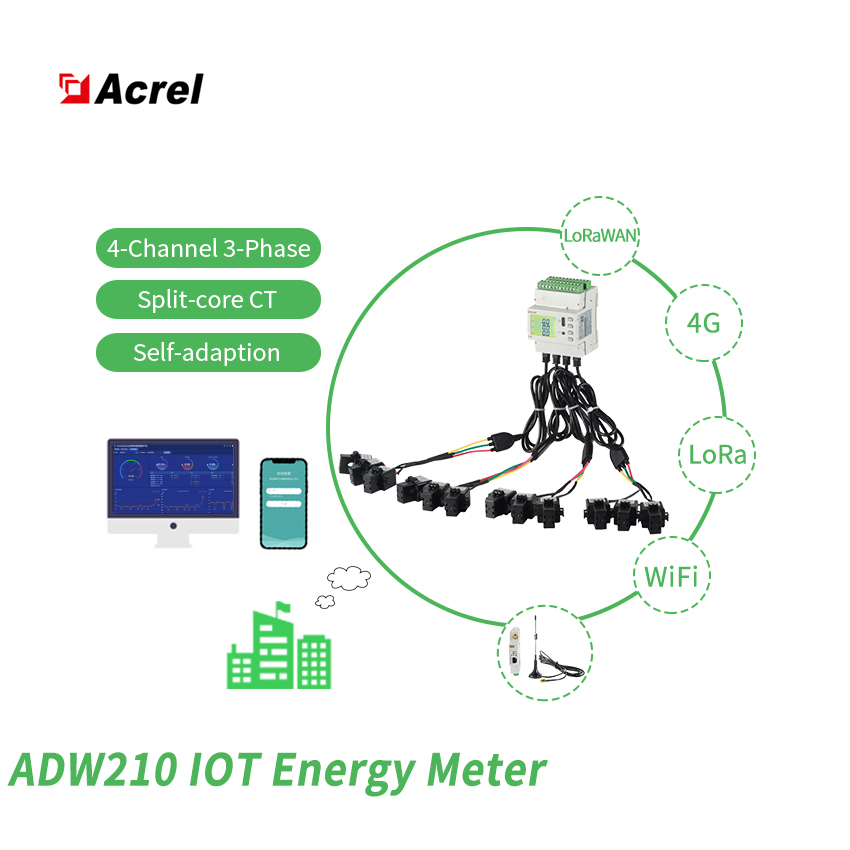

Does the device support wireless communication?
Yes, depending on the model and expanded modules, it supports RS485, Lora, LoRaWAN, 4G, WiFi, NB-IoT, and Ethernet.

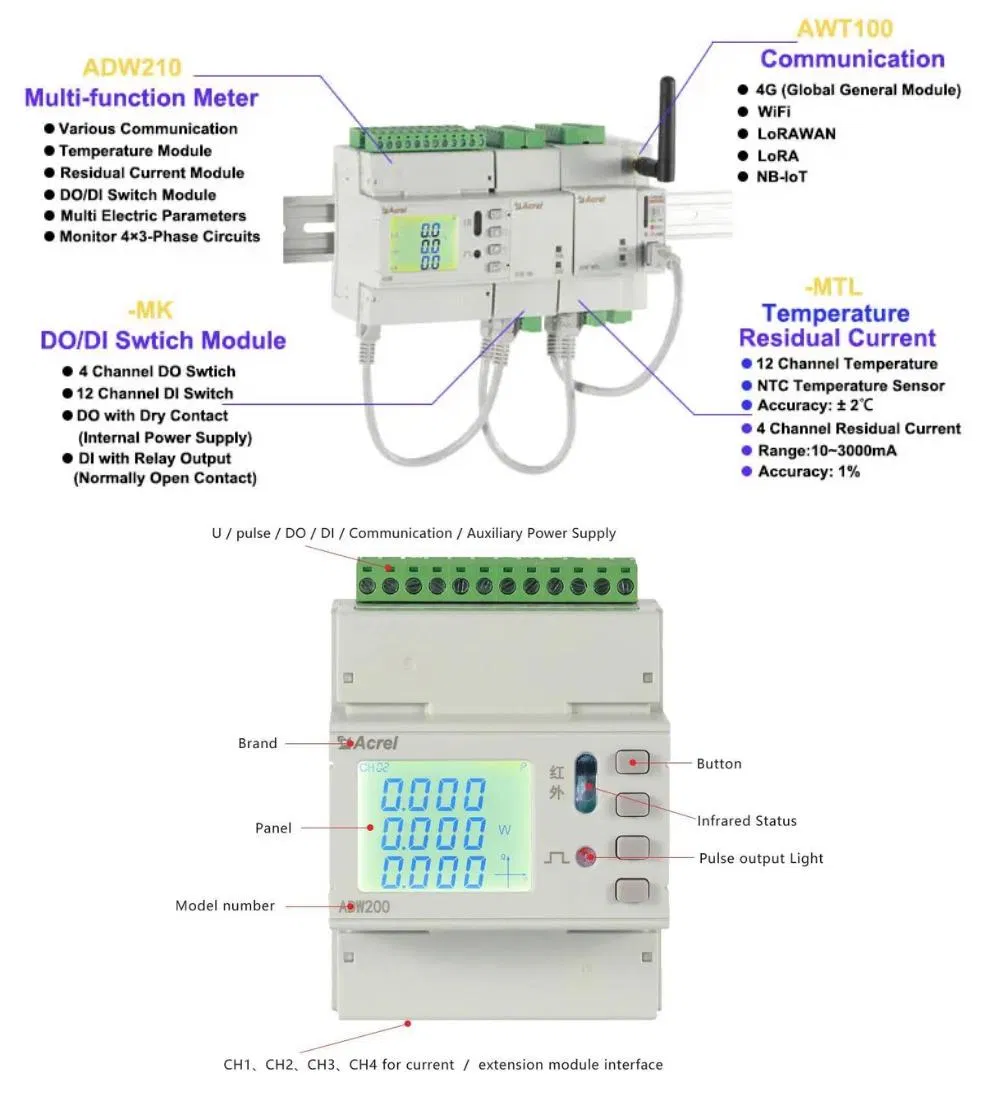

Can I monitor temperature and leakage current with this meter?
Yes, by adding the MTL module, you can monitor up to 12 channels of temperature and 4 channels of residual (leakage) current.

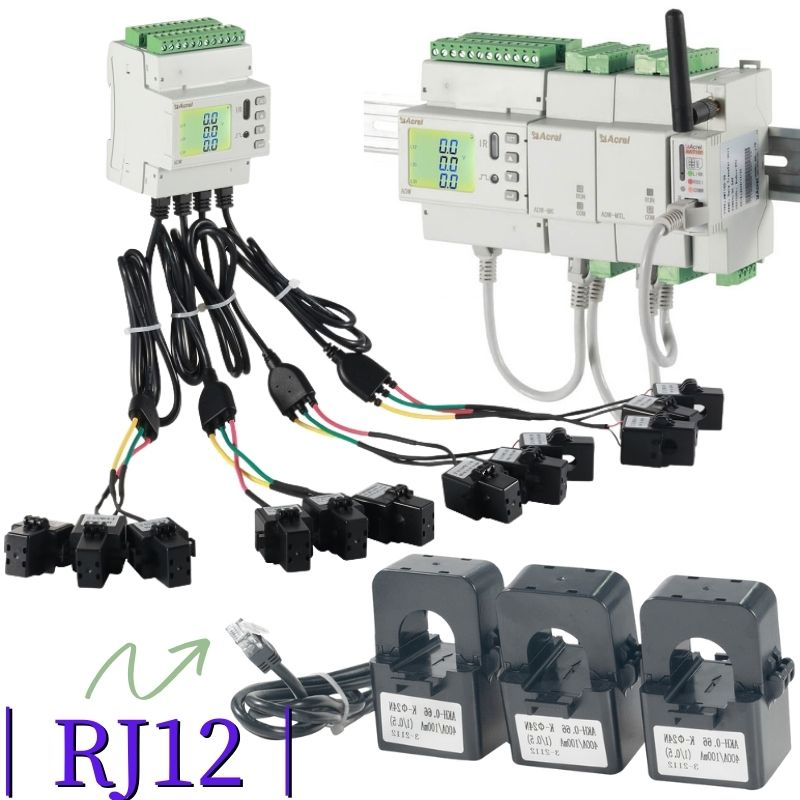

Is the installation difficult?

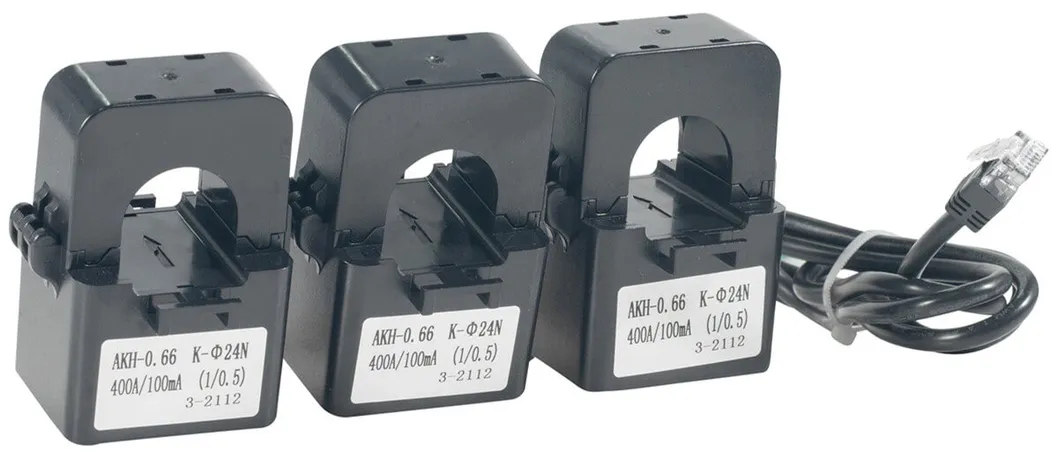

No, the device is designed for rail mounting and uses split-core current transformers with an RJ12 interface for quick and easy "plug-and-play" installation.
What kind of accuracy does the ADW210 offer?
It offers high precision with Class 0.5 accuracy for voltage and current measurements, and Class 1 for active energy (kWh).

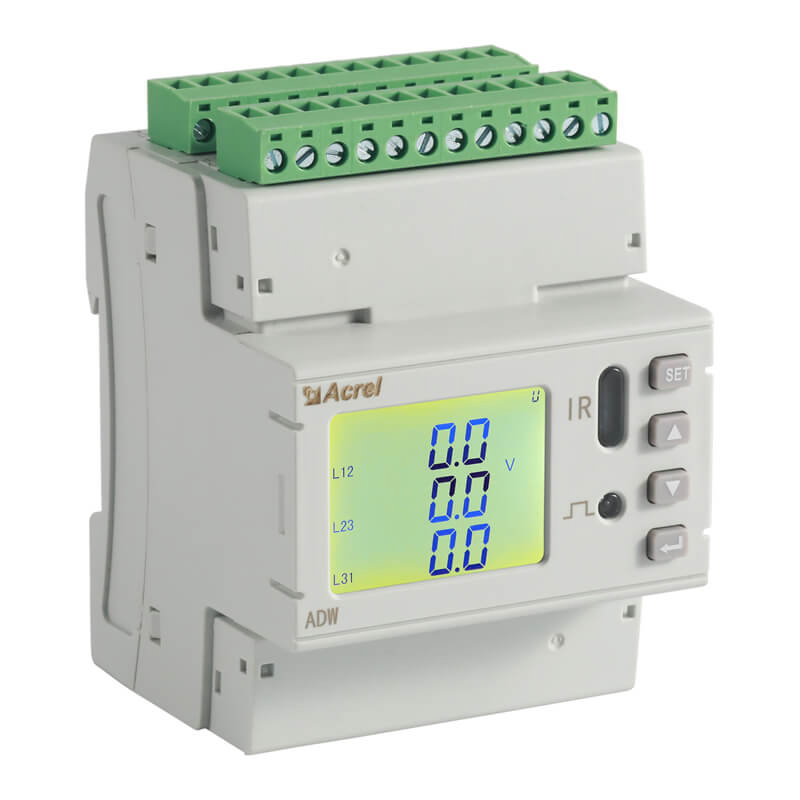

What parameters can be displayed on the LCD?
The 8-digit LCD can display voltage, current, power (P, Q, S), power factor, frequency, harmonics, and energy consumption (kWh/kvarh).
