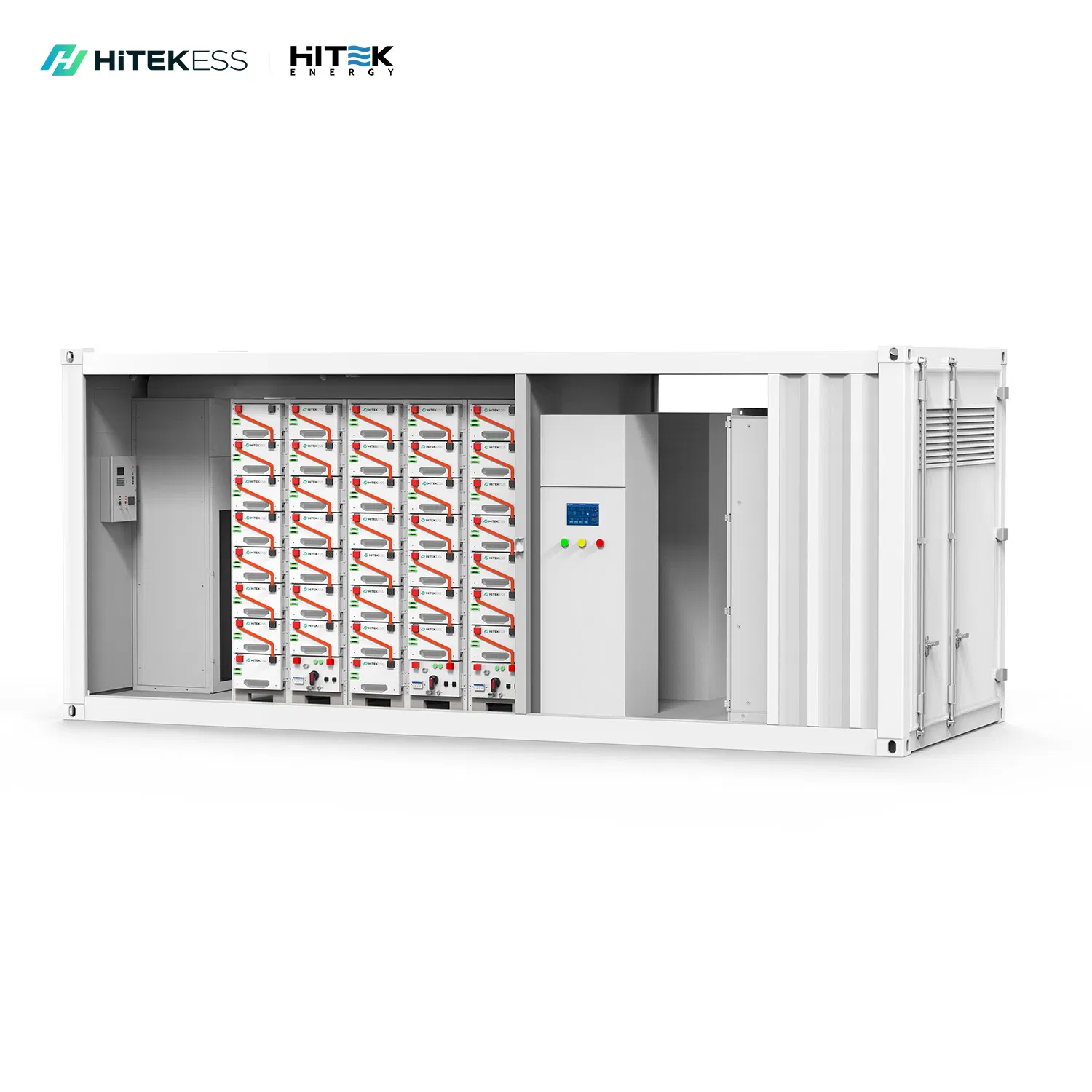

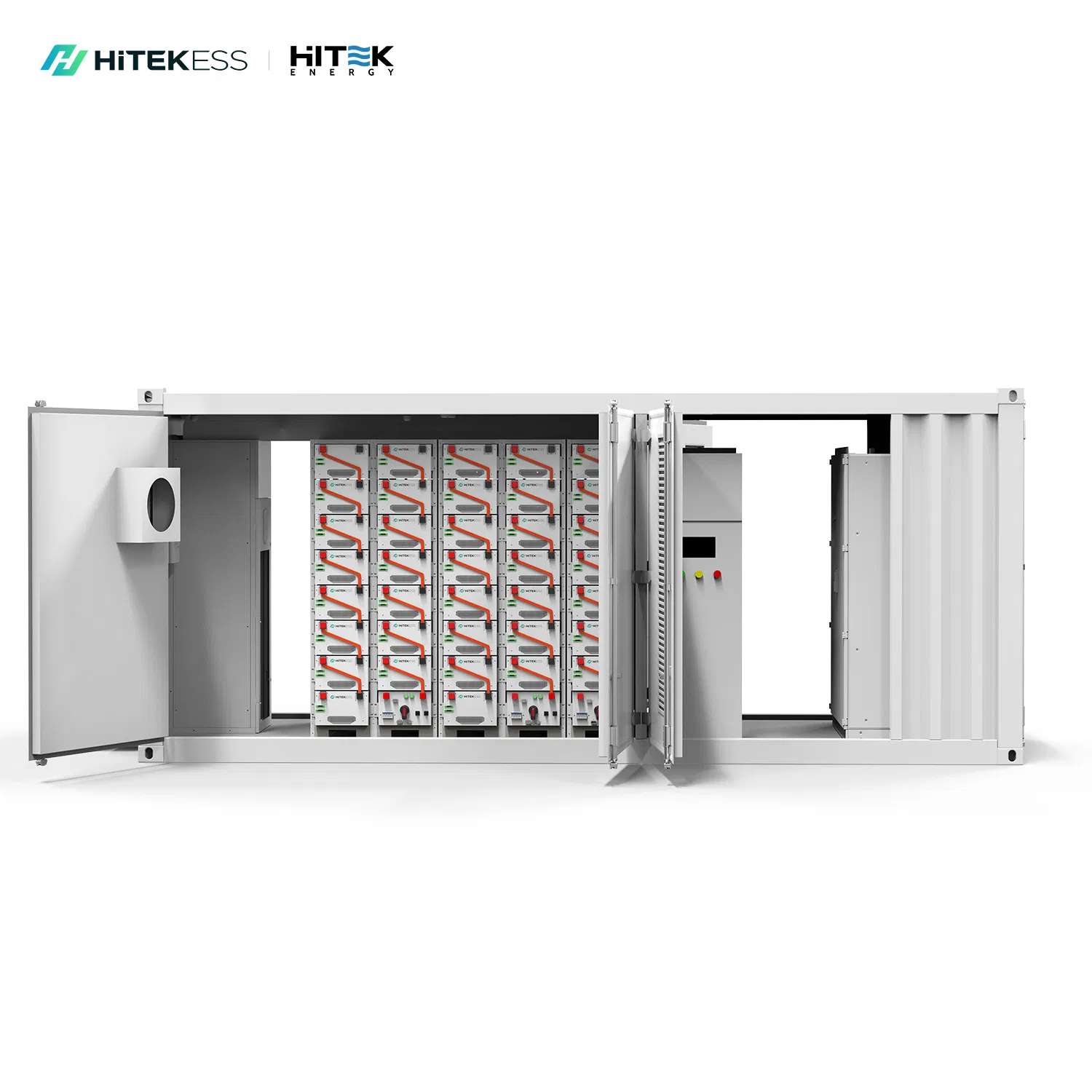

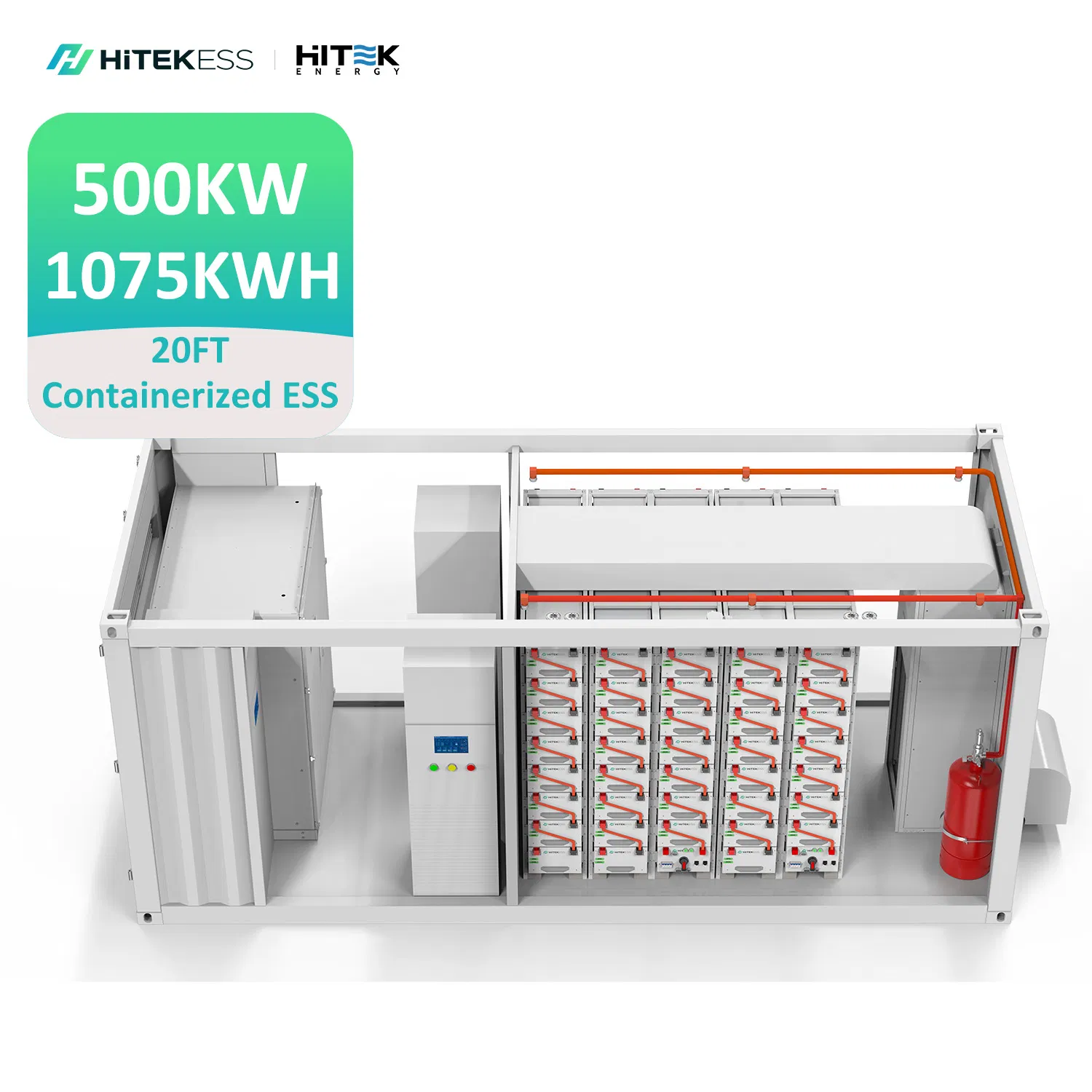

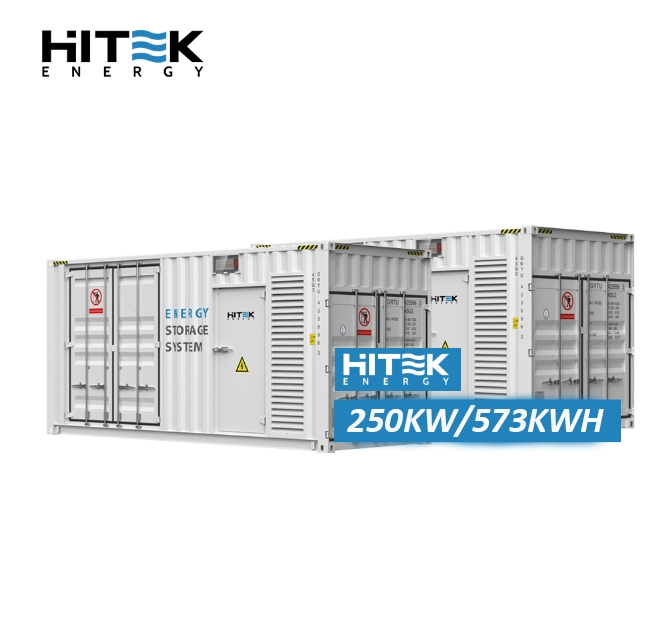

20FT Containerized Solar Solution

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

HT-500/1000-EC

Nominal Voltage

380/400/415/480V 3 Phase

Warranty

5 Years

Nominal Capacity

250kwh, 500kwh, 1mwh, 2mwh

Cycle Life

6000+ Cycles

System Application

Ess Solar Storage Container

Battery Type

LiFePO4/Lithium Battery/Gel Battery

BMS

Integrated Battery Management System

Container

20FT for Outdoor Installation, IP54

Production Capacity

100sets/Week

📘 Product Description

Main Features of Energy Storage System Container

Working Mode: Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Offgrid Mode; Generator Connection (Optional).
BMS Features: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing Management, Protection Alarms, Communication).
PCS Features: Wide Range of DC Input Voltage, Indoor/Outdoor Installation, Short Conversion Time of full Power from Charge to Discharge.
Safety: Integrated Fire Protection System.
Environment: Integrated Air Condition System for climate control.

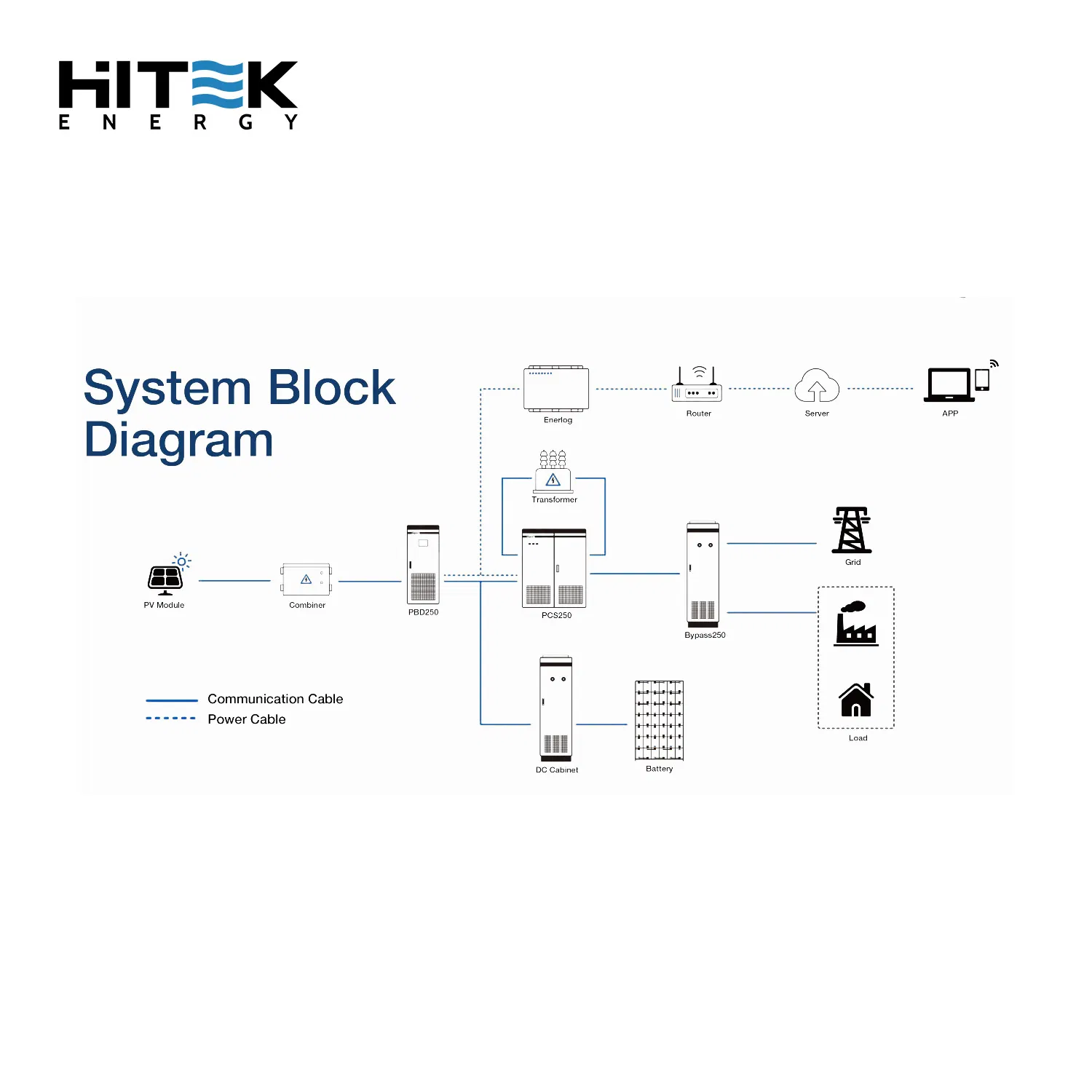

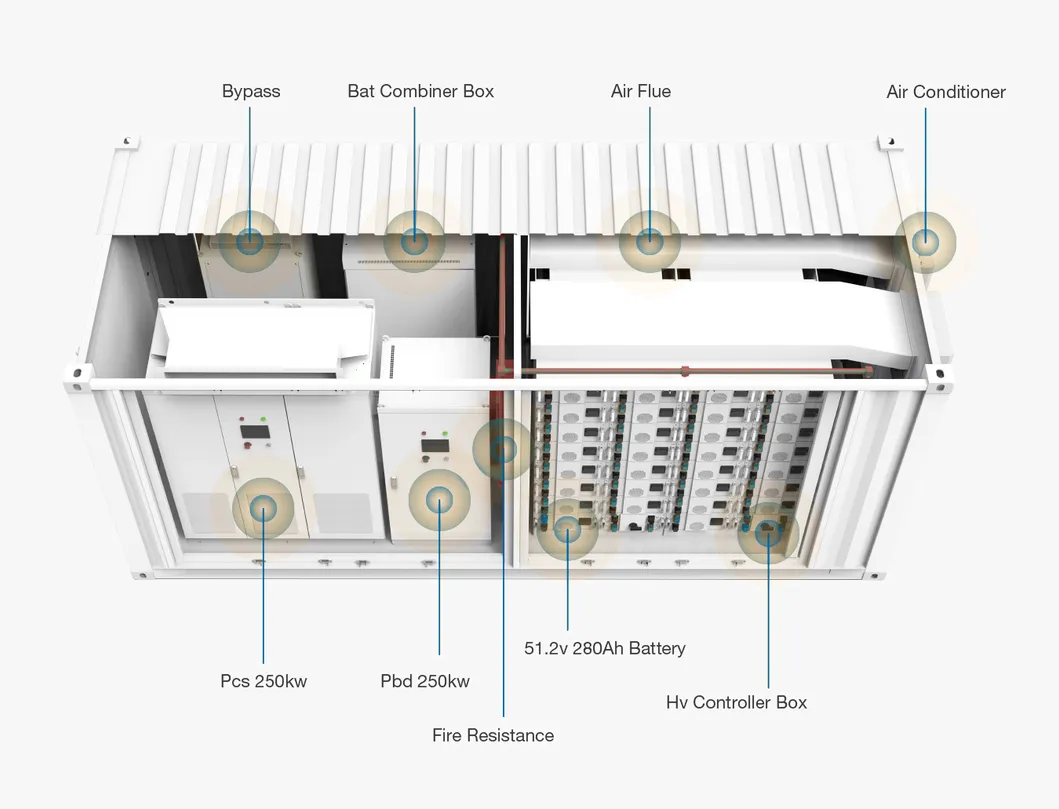

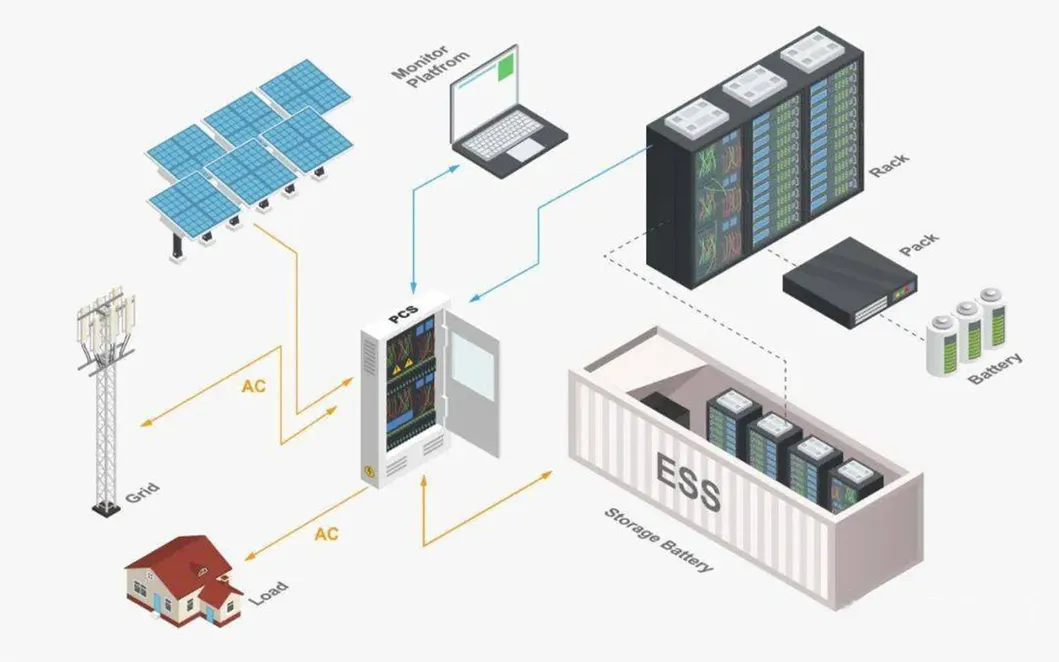

⚙️ System Configuration

Item	Description	Quantity (pcs)	Remarks
PV Solar Panel	HT560M-72H	960	12 pieces/string; Total 537.6KW
Battery Rack	Combiner Box 1500V-1500A	1	Multiple battery racks combination
Battery Module	280Ah Lithium Module	150	51.2V 280AH (14.3kWh per module)
Controller	1500V 300A	15	High Voltage Controller Box
PV-Combiner Box	8 Inputs 1 Output	10	For PV module strings combination
Solar Charge Controller	PBD250	2	250kW solar charge controller
Battery Inverter	PCS500	1	250kW battery inverter
Bypass Unit	Bypass 500	1	Switch between on-grid and off-grid
Container System	20FT Container	1	IP54, includes lighting, fire-resistance, air conditioner

Note: This system can be configured according to your specific needs. Exclusive solutions are available upon technical consultation.

📋 Product Parameters

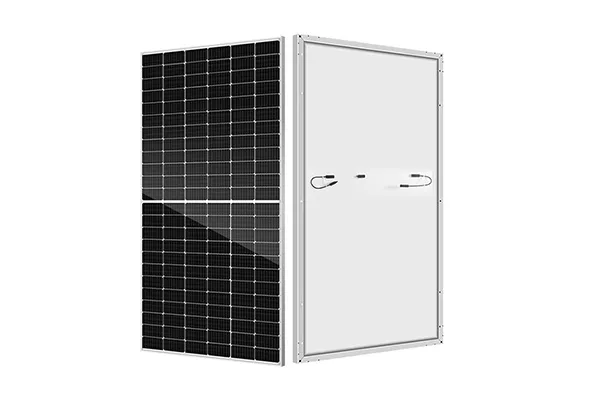

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Open Circuit Voltage (Voc): 49.84V
Voltage at Max Power (Vmp): 41.08V
Dimensions: 2279*1134*35mm
Weight: 28kg

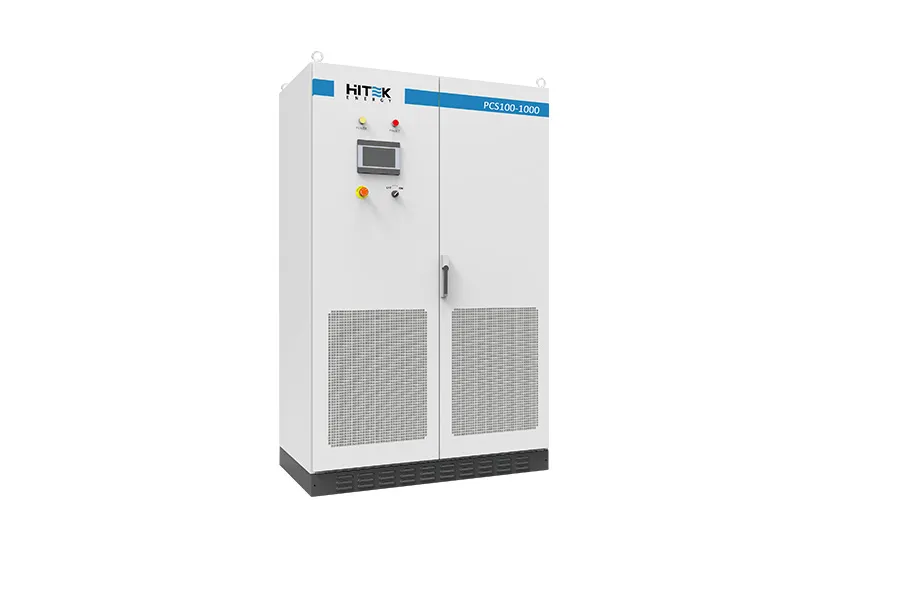

PCS 100-1000KW

Bidirectional battery inverter, can be used alone or with solar chargers. Features include paralleling multiple units, flexible configuration, programmable working modes, and touchscreen LCD.

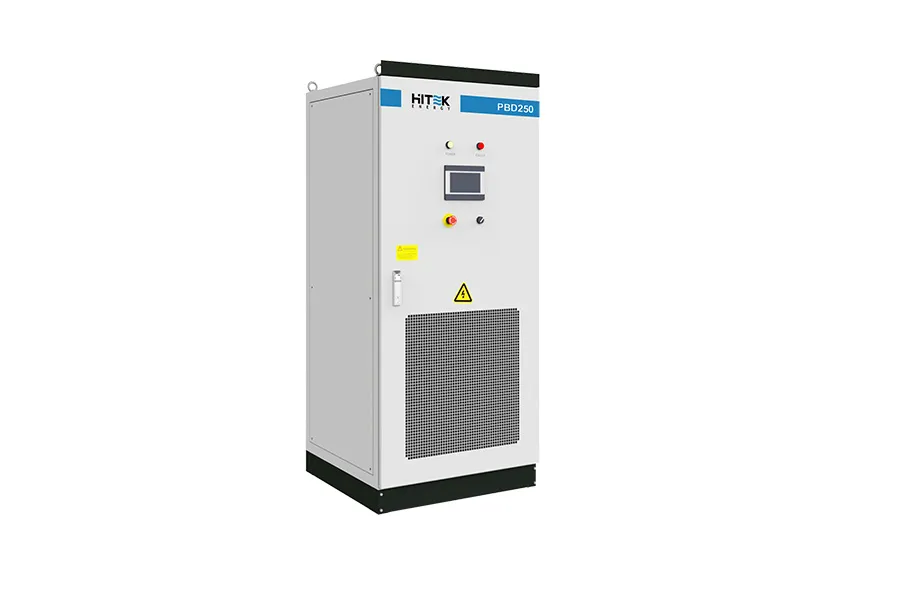

PBD 250KW Solar Charge Controller

1000V level DC to DC controller for large scale projects.
- Multiple units parallelable
- Up to 5 MPPT
- Modular and Transformerless design

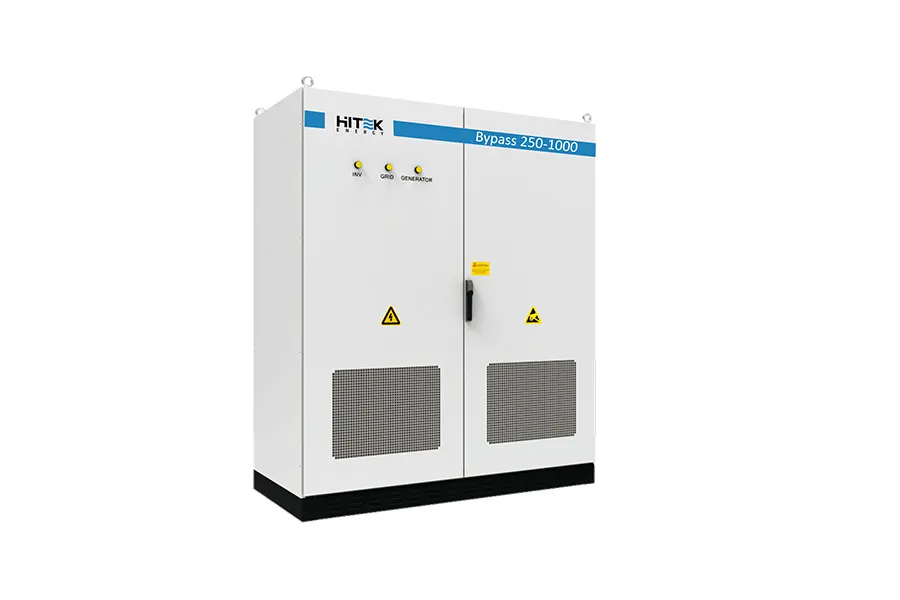

Bypass 100-1000KW

Designed to realize seamless transfer between on-grid and off-grid modes automatically when used with bidirectional inverters.

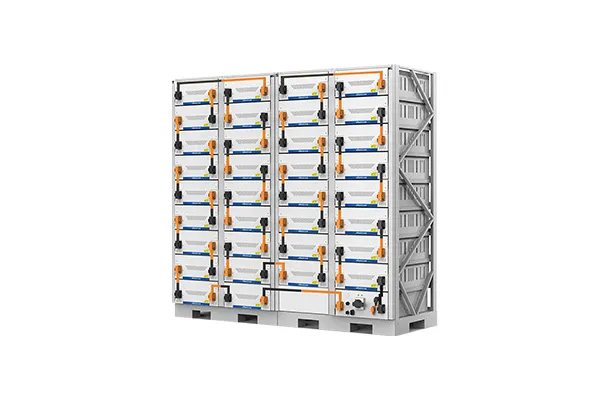

Storage Battery Bank

Consists of 150 single cells per standard module. Nominal voltage: 51.2V. Total capacity configuration reaches up to 1720kWh @ 80% DOD.

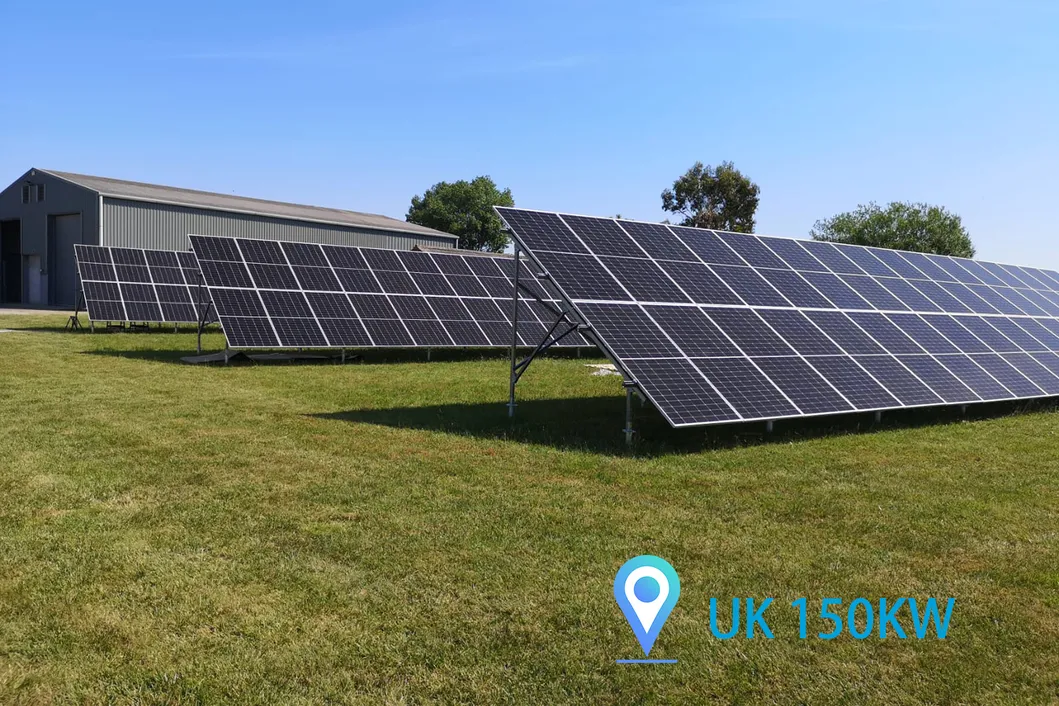

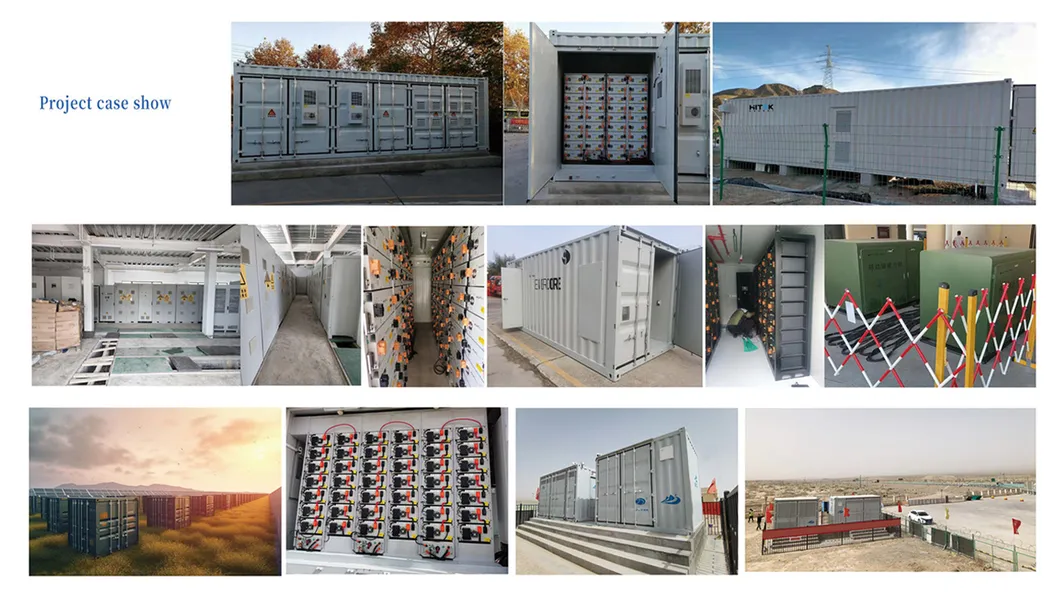

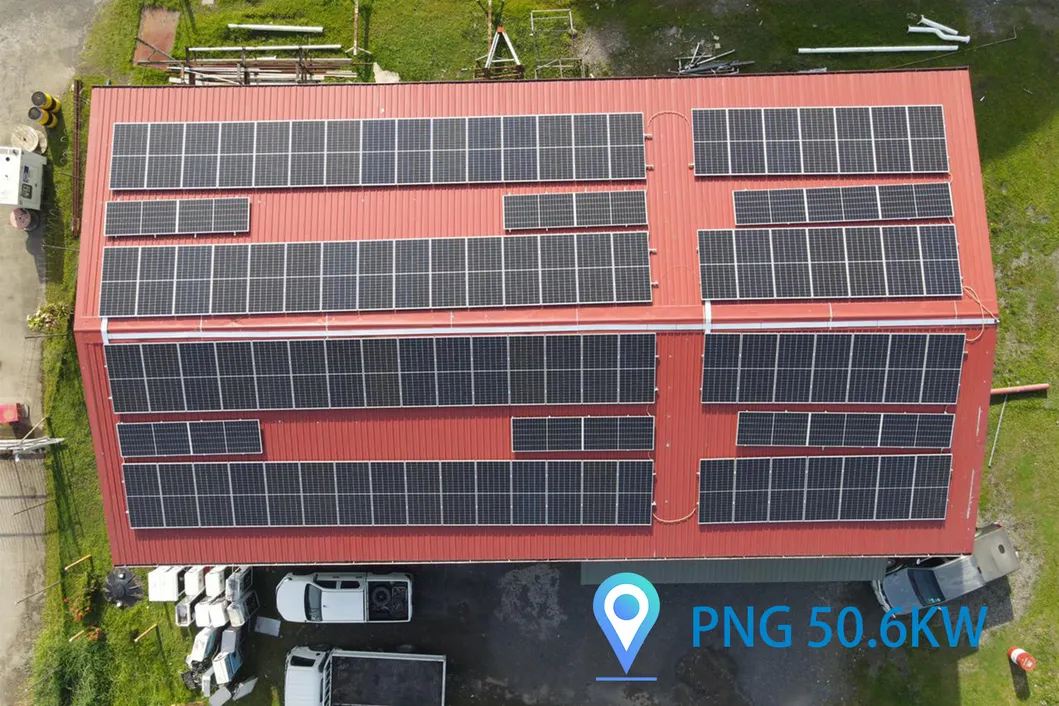

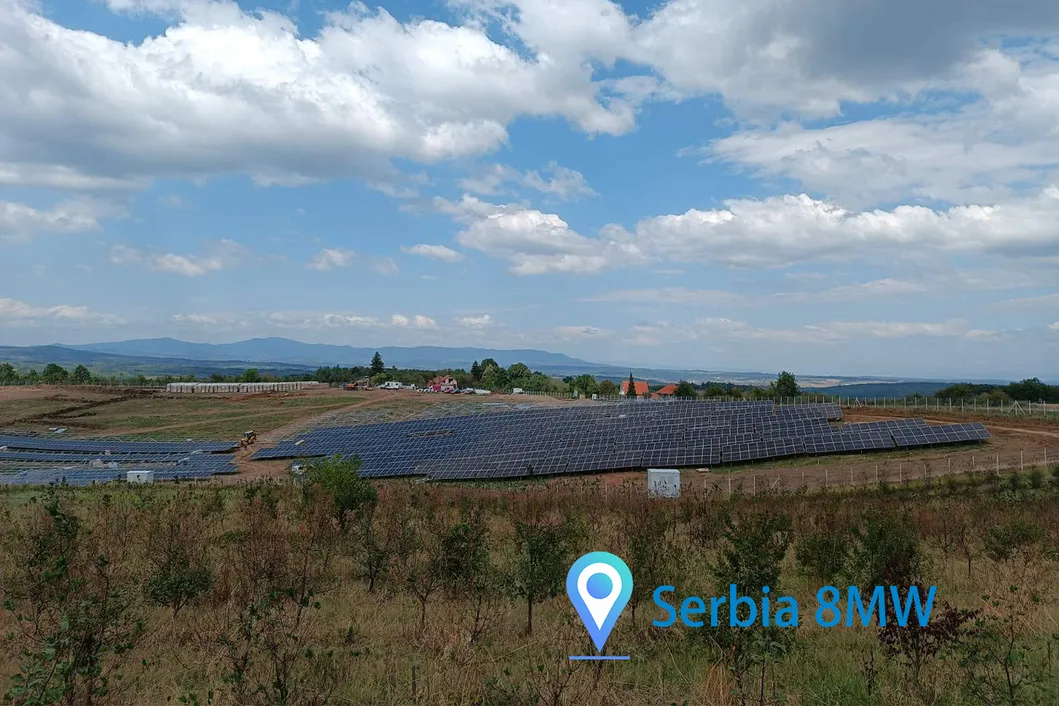

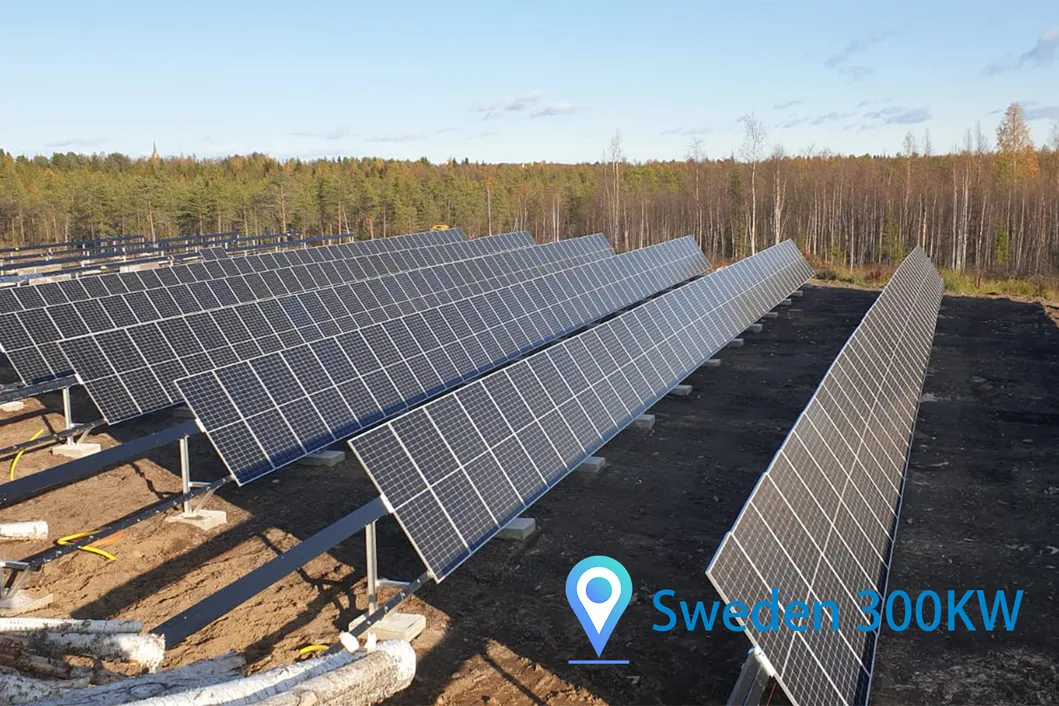

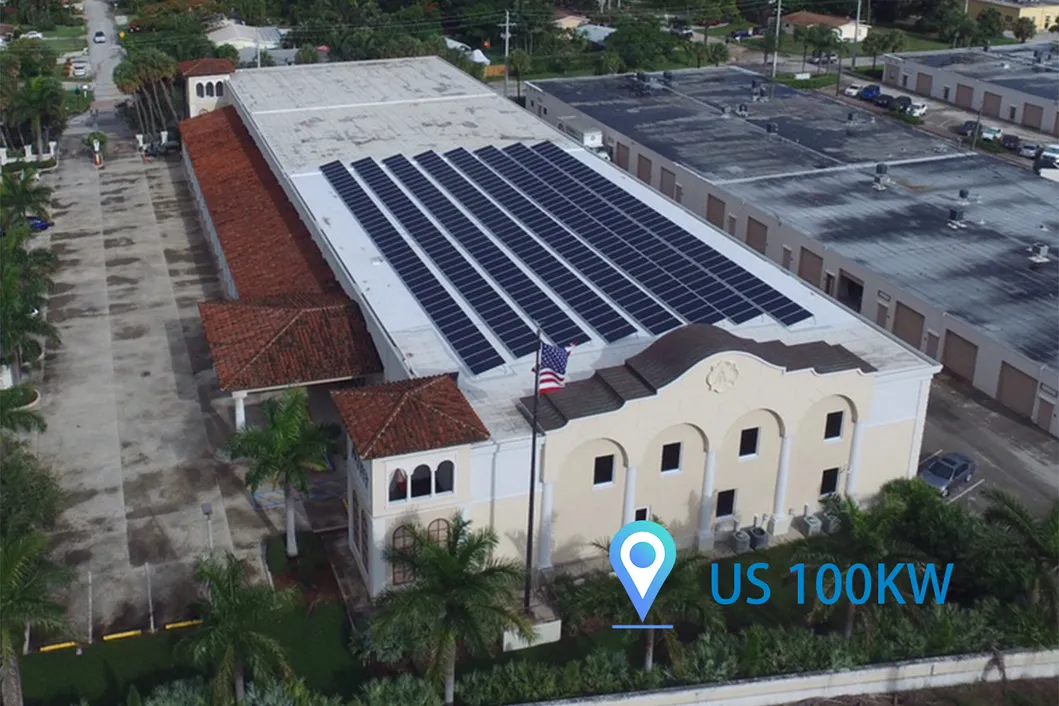

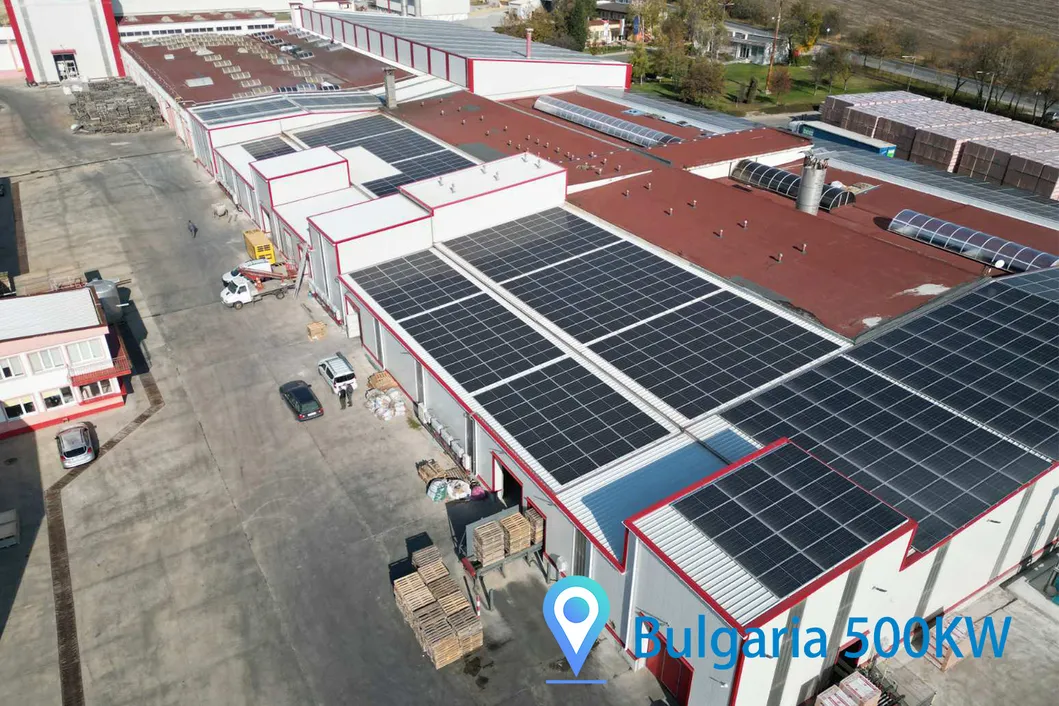

🌍 Global Projects

⭐ Our Advantages

❓ Frequently Asked Questions

What is the primary use of this containerized energy storage system?

It is designed for large-scale industrial and commercial applications, including peak shaving, backup power, and integrating renewable energy sources like solar into the grid.

How long does the battery last?

The system utilizes high-quality LiFePO4 cells with a cycle life of over 6000 cycles, providing reliable service for many years depending on usage patterns.

Does the system work in extreme weather conditions?

Yes, the 20FT container is IP54 rated for outdoor use and includes an integrated industrial air conditioning system to maintain optimal operating temperatures for the batteries.

Can the capacity be customized?

Absolutely. The system is modular and can be configured with nominal capacities ranging from 250kWh to 2MWh or more based on project requirements.

Is there a safety system included?

Yes, each container is equipped with an integrated Battery Management System (BMS) for real-time monitoring and a specialized fire protection system to ensure safety.

What working modes are supported?

The system supports both On-grid and Off-grid modes, including specialized modes like Zero Export, Load First, and Generator Connection.
