Model NO.:YJLZ-A
Display:Digital
Installation:Direct Connected
Usage:Reactive Energy Meter
Equipment:Leakage Monitoring Record
Theory:Electronic Meter
Connection:Terminal
Signal:Continuous Wave

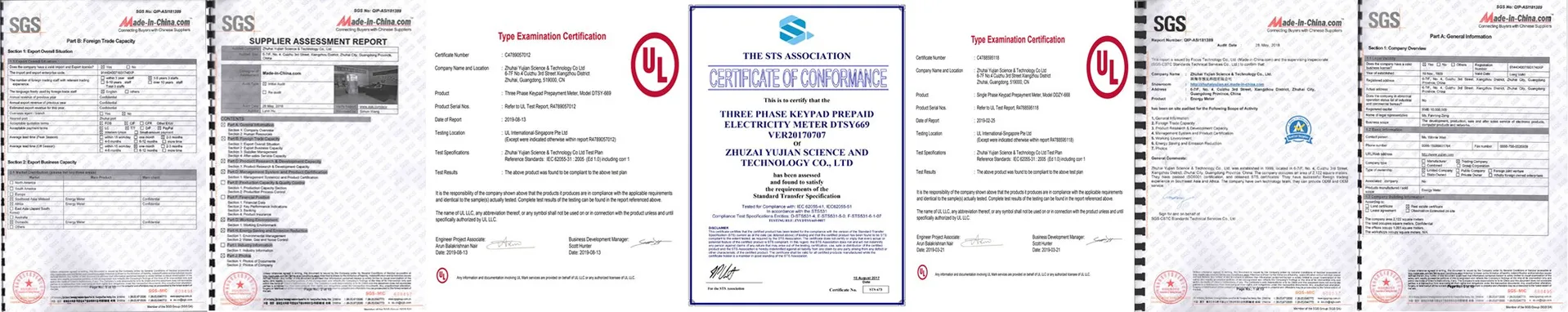

Certification:ISO, CE, MID UL
Origin:Made in China
Application Range:

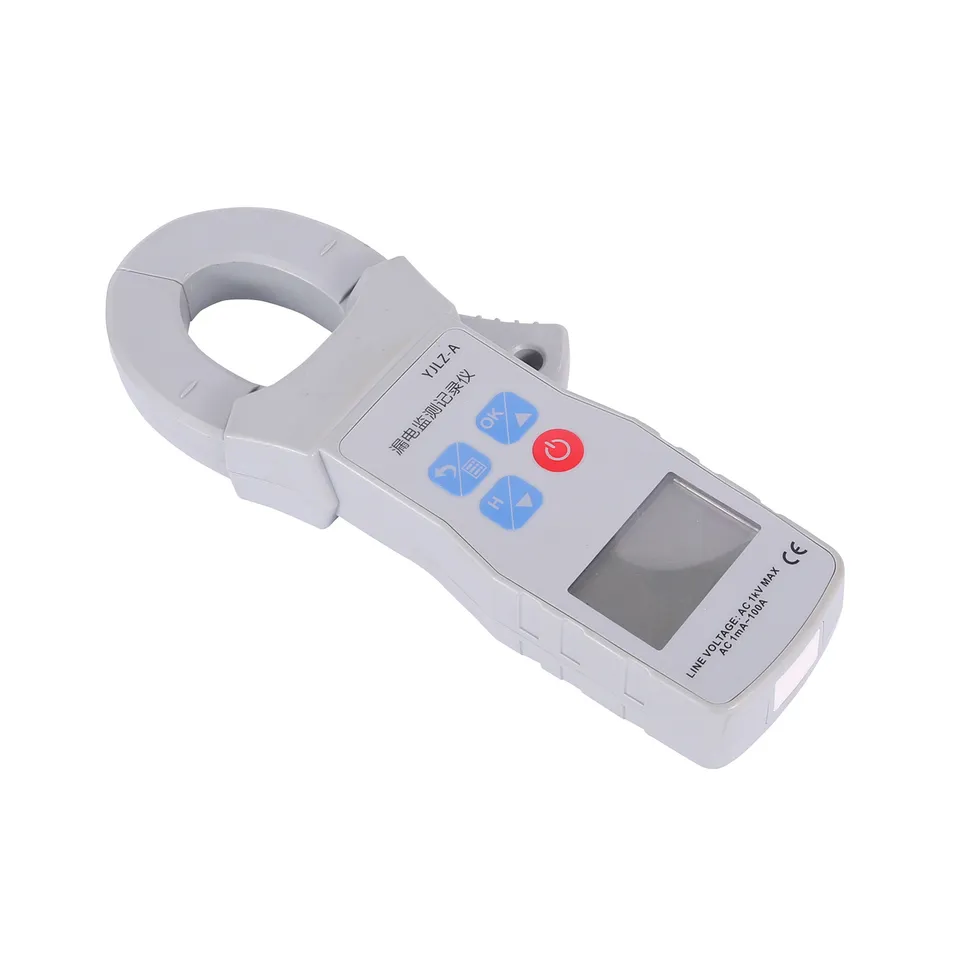

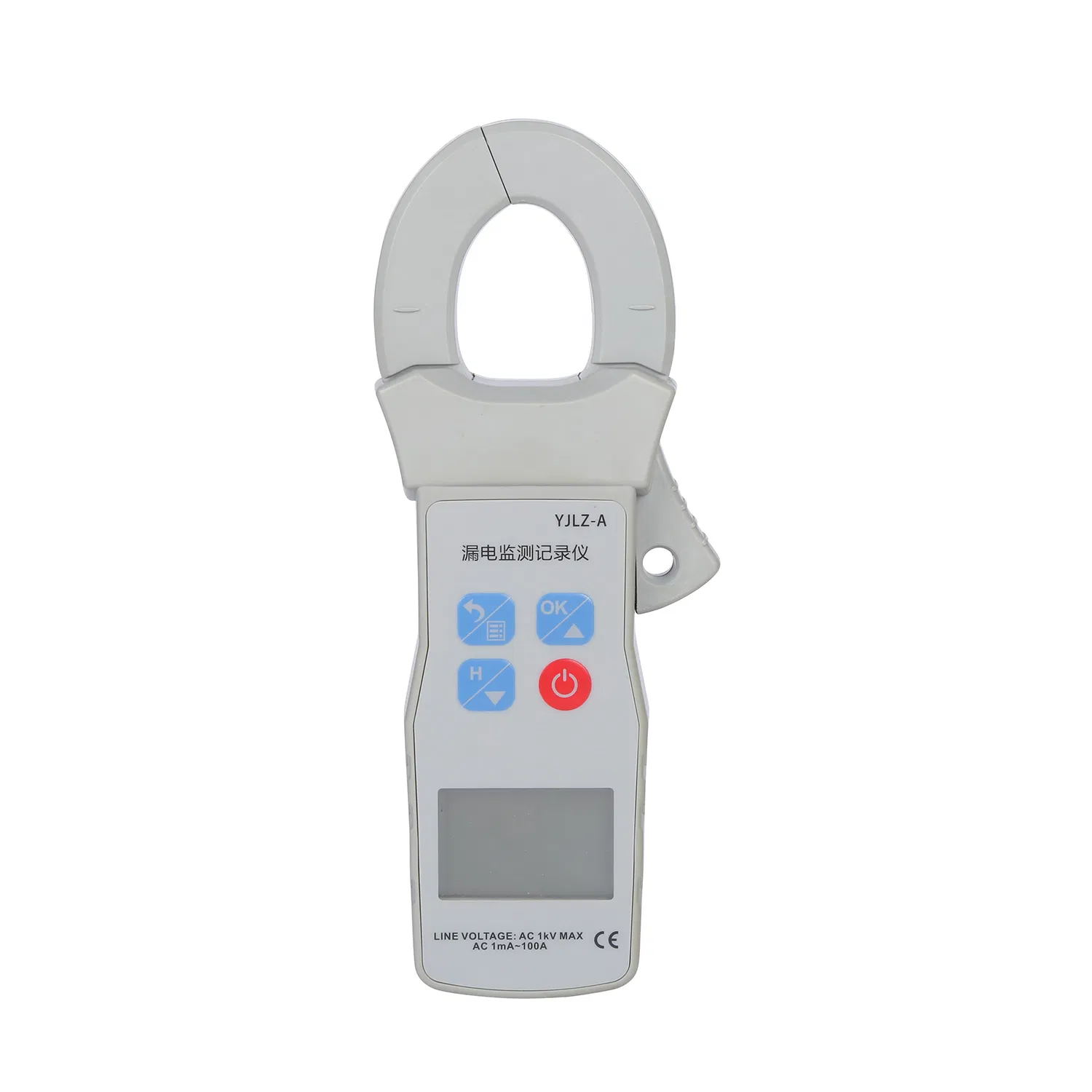

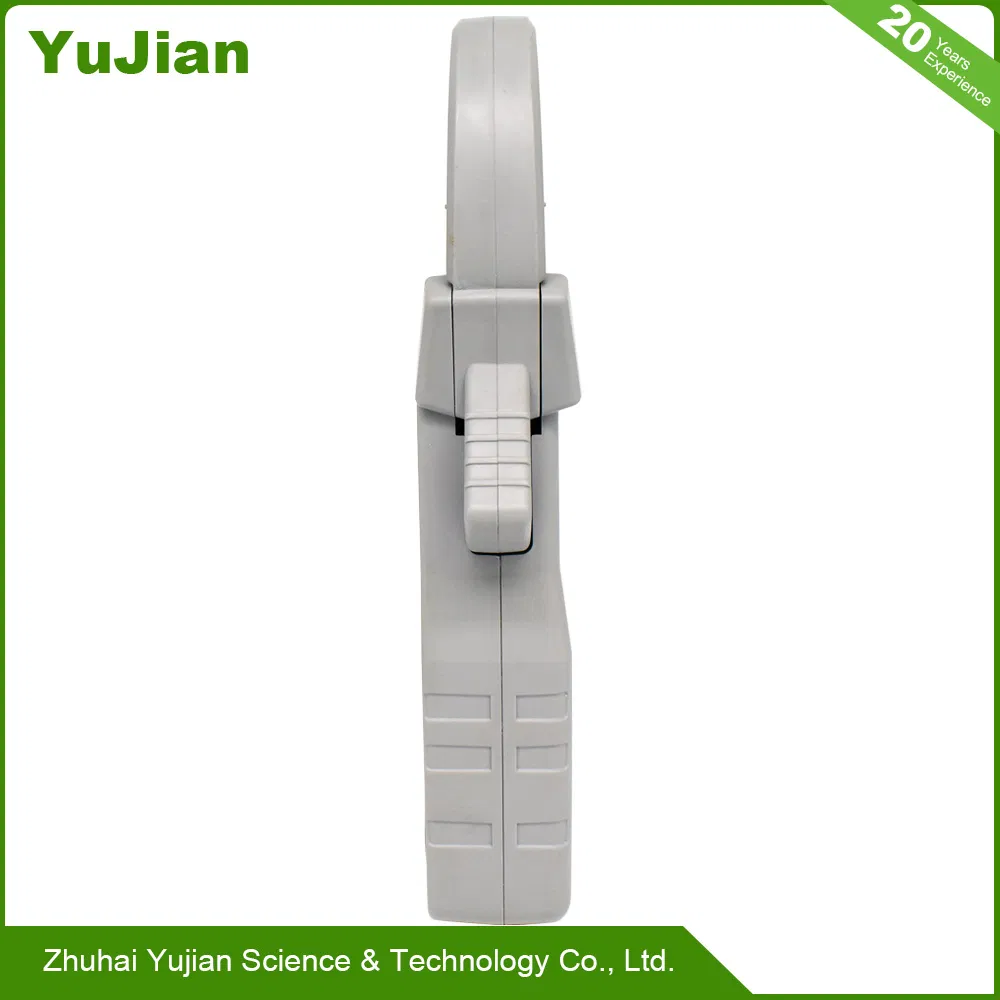

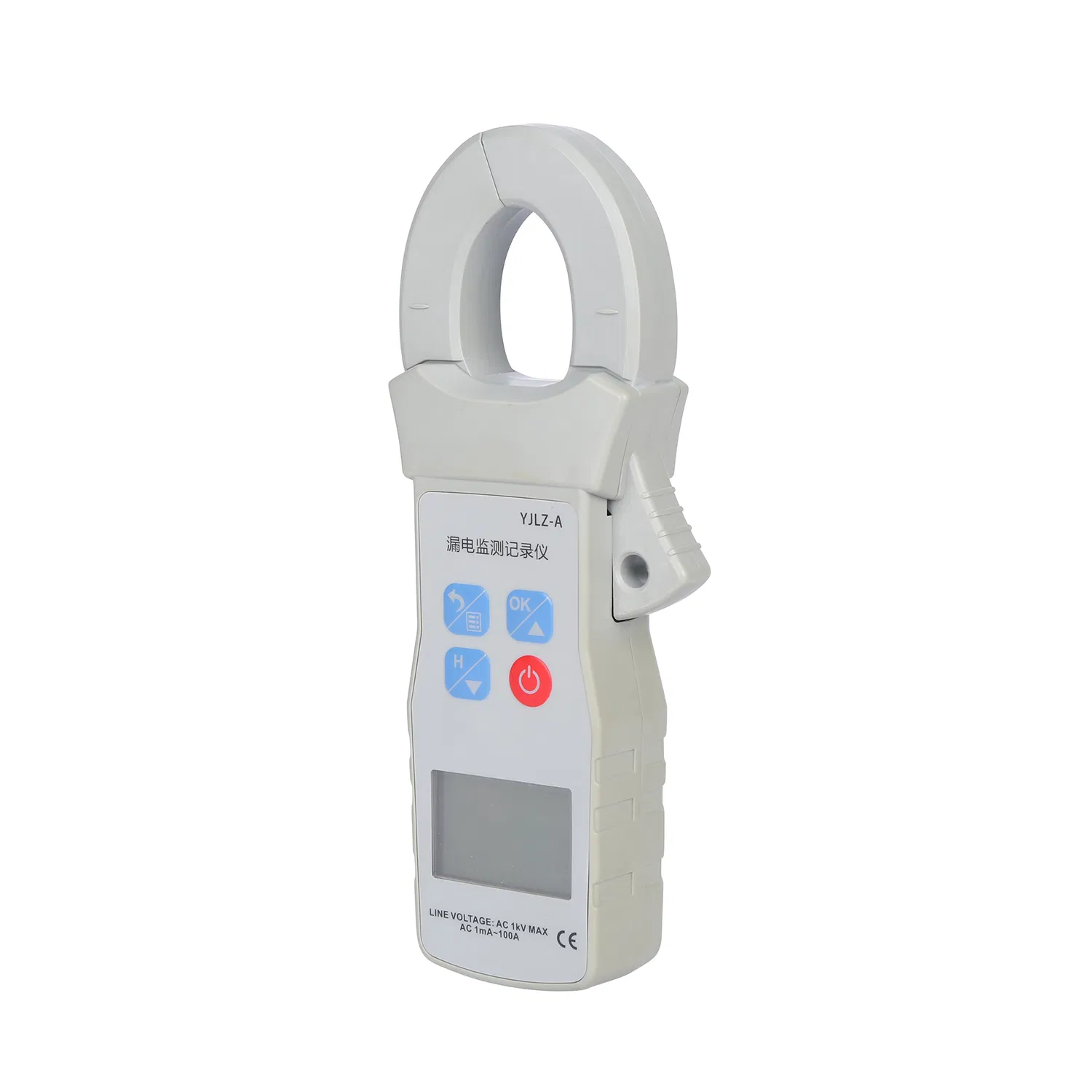

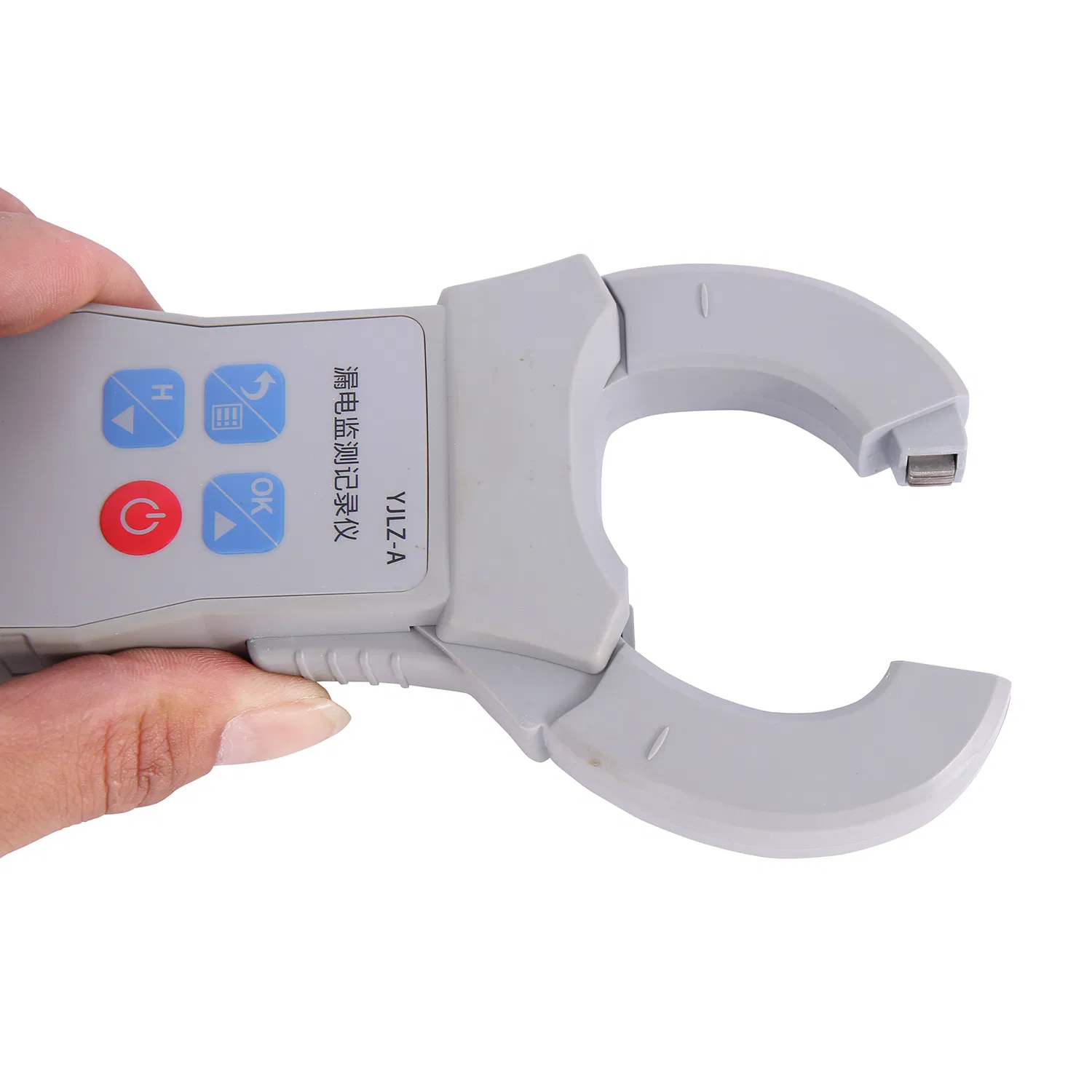

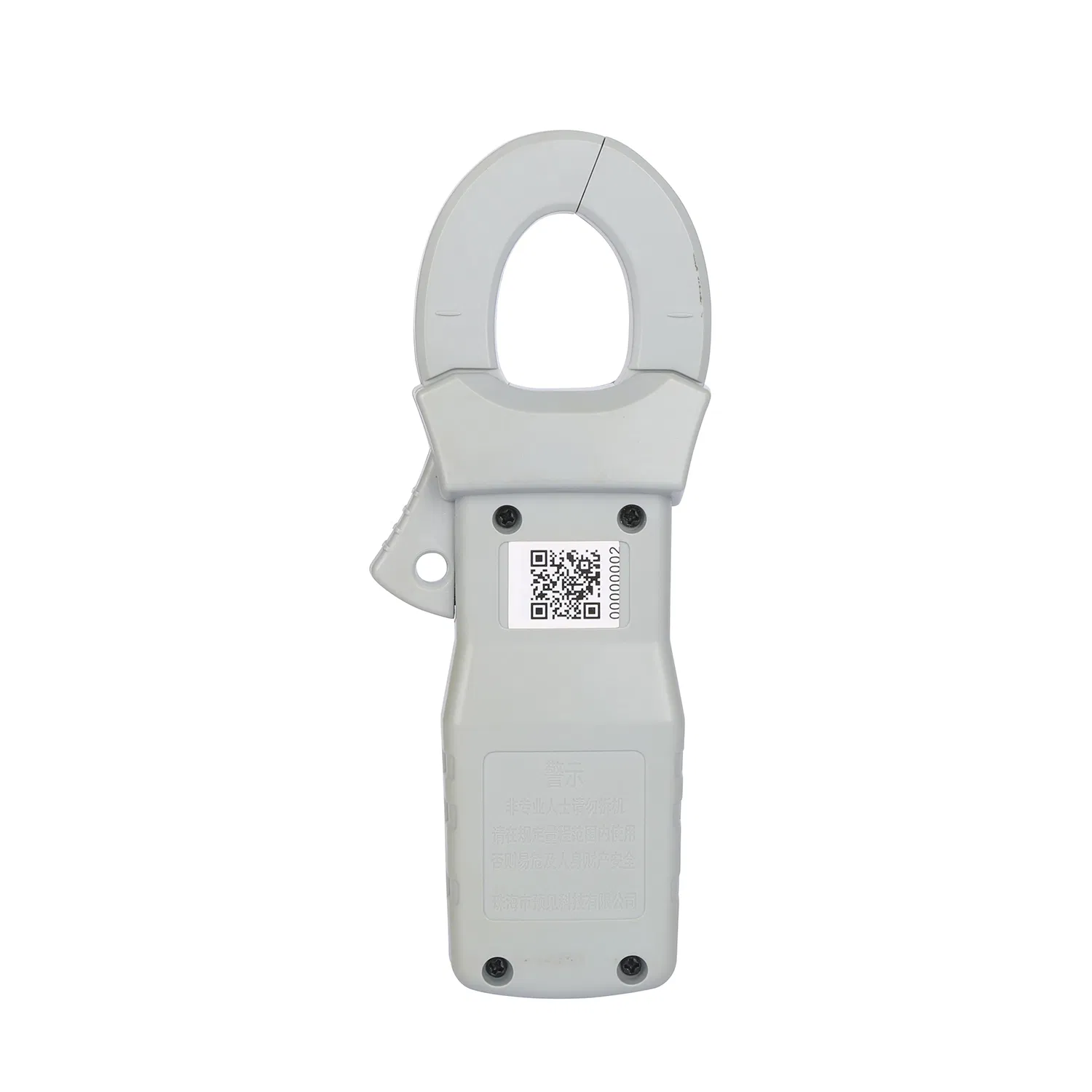

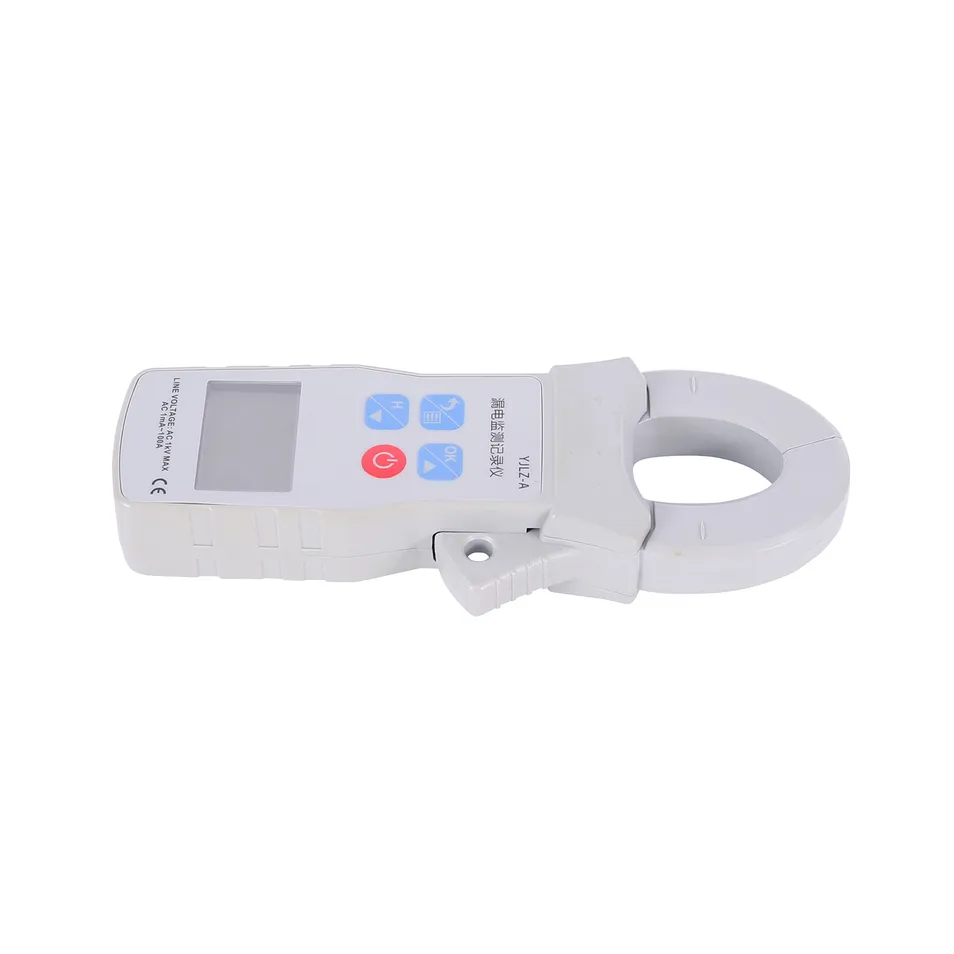

The leakage monitor & phase wire identified device (model: YJLZ-A) performs leakage current measurement, data recording, alarming, GPRS communication, and phase wire identification. Equipped with a built-in high-accuracy zero sequence CT utilizing magnetic shielding technology, this device ensures high precision and powerful anti-interference capabilities. It is ideally applied in electricity management, communication sectors, and industrial/mining enterprises.
🔔 Leakage Alarm
Users can set alarm thresholds. The device provides sound and light warnings and proactively uploads alarm information to the APP client when detected leakage current exceeds the threshold.
📁 Leakage Data Log
When enabled, the device saves measured leakage current and timestamps into a built-in SD card. Historical data can be viewed via the APP or a computer after importing.
📱 APP Remote Monitoring
A single APP client can manage hundreds of devices. Users can set thresholds, view historical data, and receive real-time leakage alerts remotely.
🛡️ Non-contact Phase Identification
Identifies phase wires using the CT coupling method. This eliminates the need for direct contact with power lines, ensuring personal security.
❓
Frequently Asked Questions
1. How does the YJLZ-A communicate data to the user?
The device supports both USB and GPRS communication, allowing data to be accessed via PC terminals, mobile APP clients, or directly on the device terminal.
2. What is the measurement accuracy of the leakage monitor?
For currents between 0.1 mA and 10 mA, the accuracy is ±3%+5dgt. For currents between 11 mA and 300 mA, the accuracy is ±2%+5dgt.
3. Is the phase wire identification safe to perform?
Yes, it uses a non-contact CT coupling method, which means there is no need for direct contact with live power lines, significantly improving operator safety.
4. Can I store historical leakage data locally?
Yes, the device has a built-in SD card slot for logging measured leakage current and timestamps for future analysis and historical review.
5. Does the device support real-time alerts?
Yes, it features a sound and light alarm on-site and can proactively push alarm notifications to the mobile APP whenever the leakage current exceeds the user-defined threshold.
6. What industries is this device suitable for?
It is designed for use in electricity distribution, communication facilities, and various industrial or mining enterprises requiring precise leakage monitoring.
