Overview & Basic Info
Model NO.Top-Quality Steel C Channel
CertificationGB, ISO, CE, RoHS
ApplicationCommercial / Solar Part
MaterialSteel Q235/355
CoatingHot DIP Galvanized or Zinc Al Mg
Wind Load60m/S
Snow Load1.4kN/M²
Capacity100,000 Tons / Year
🛠️
Product Description

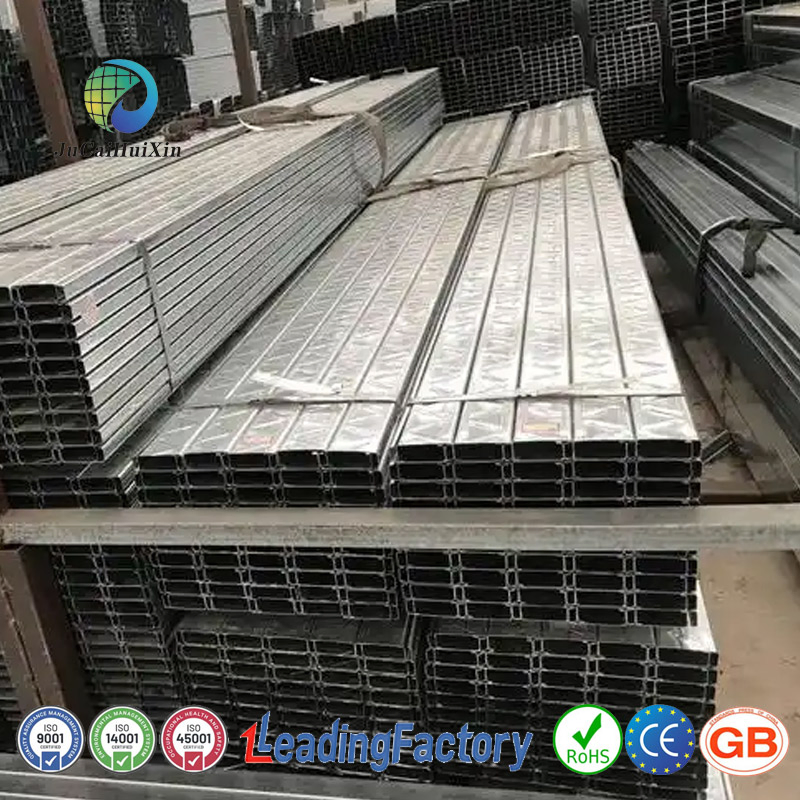

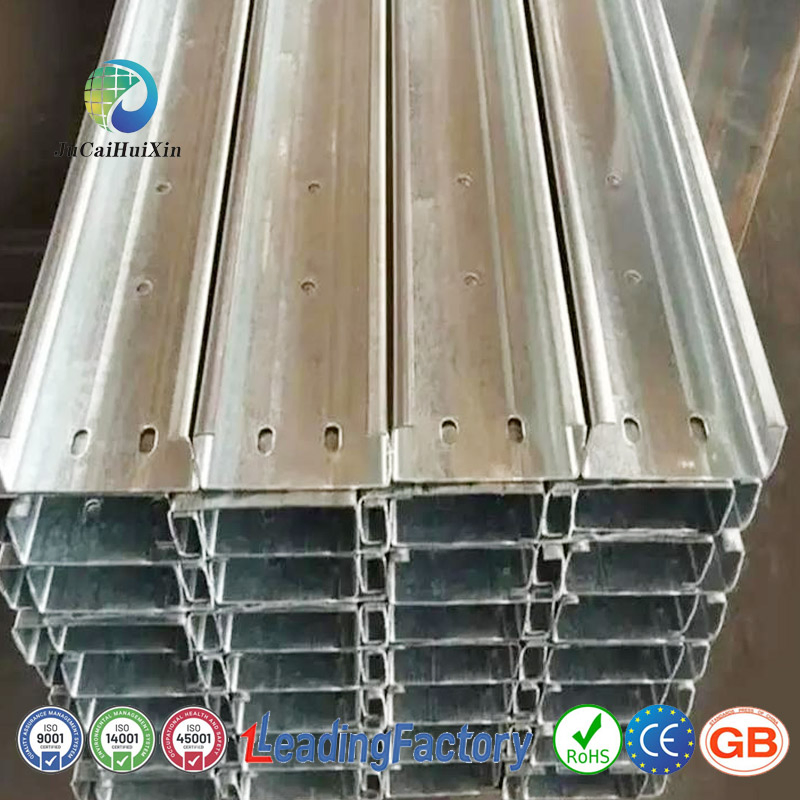

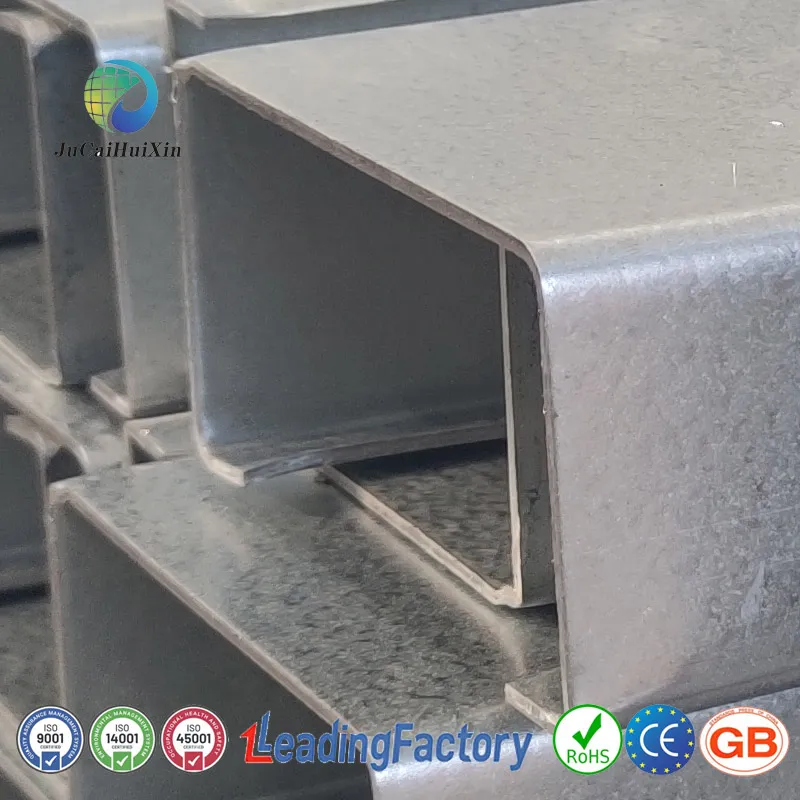

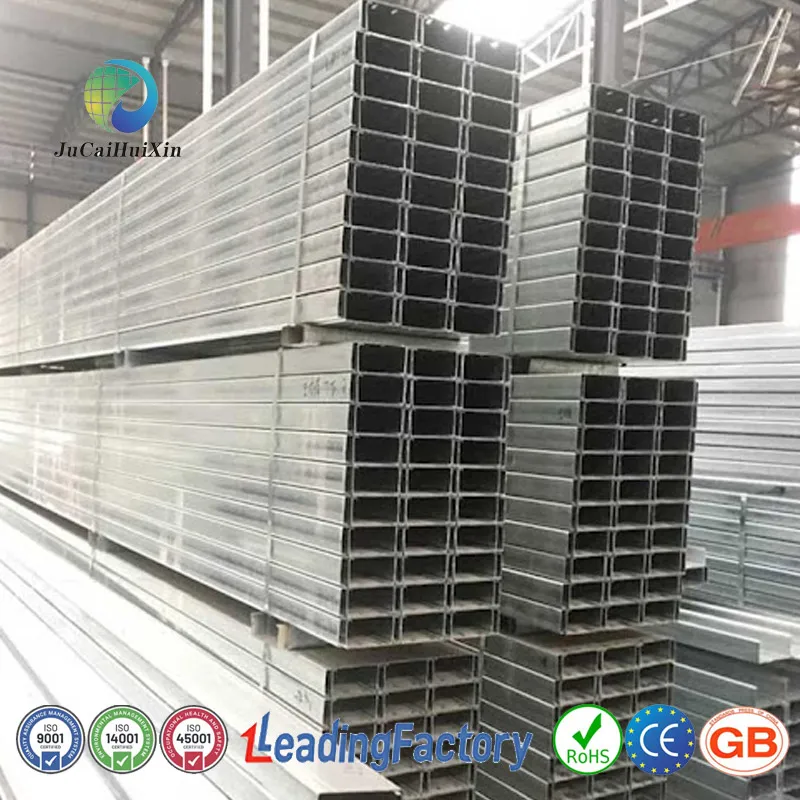

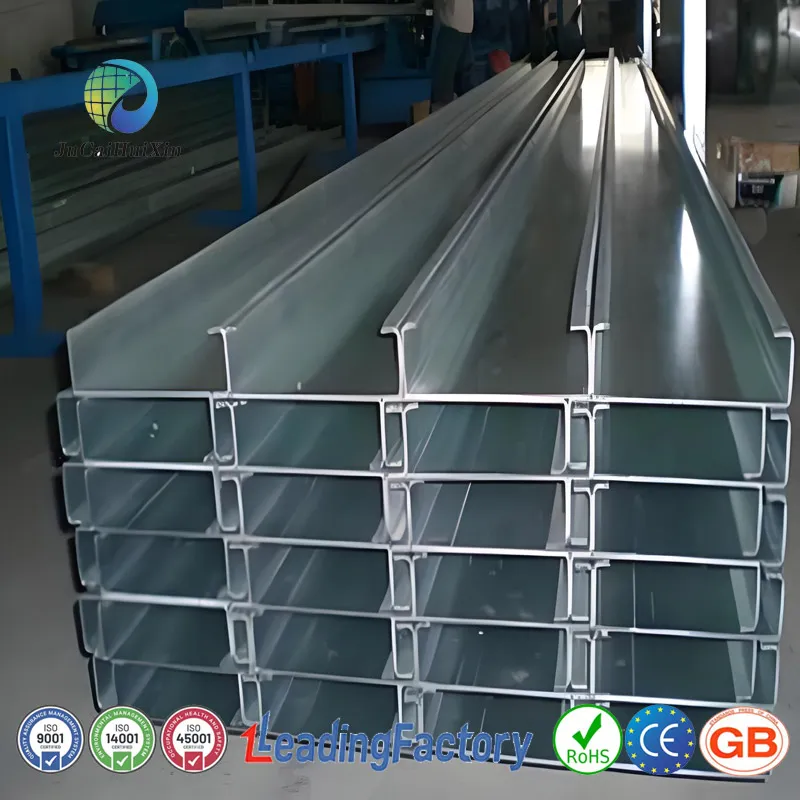

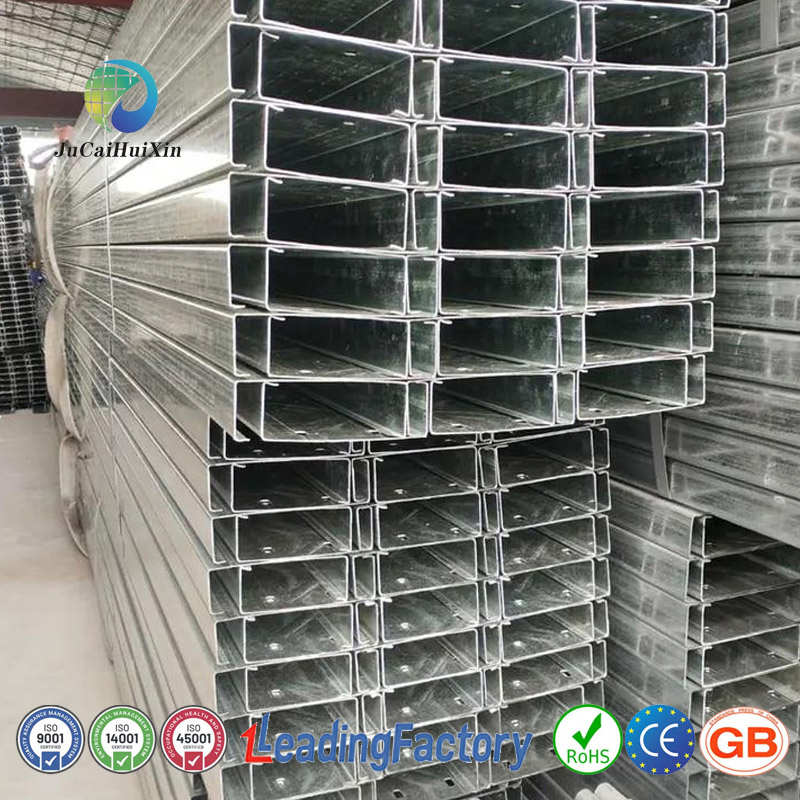

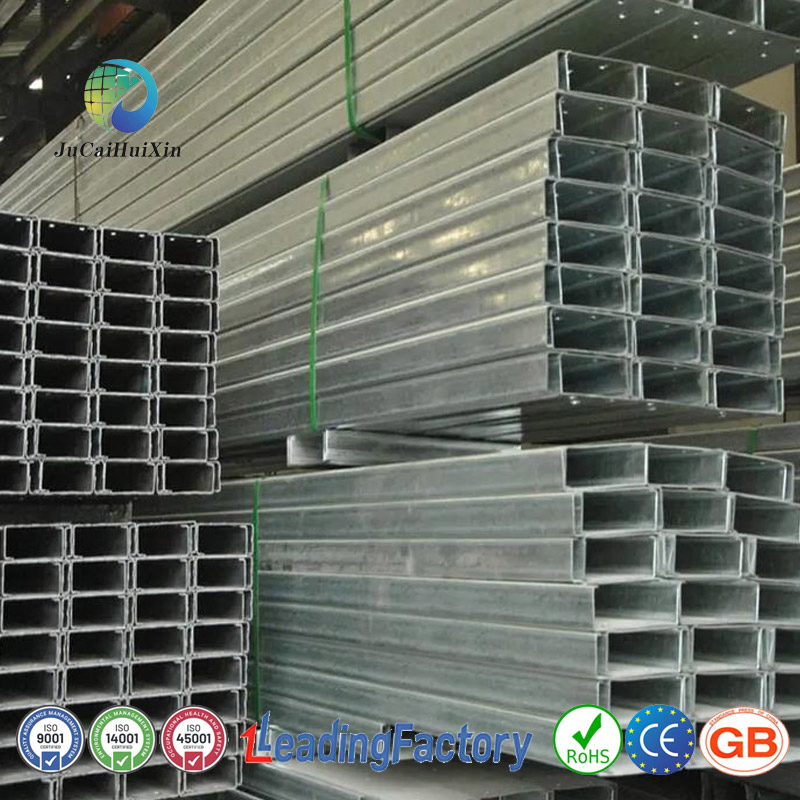

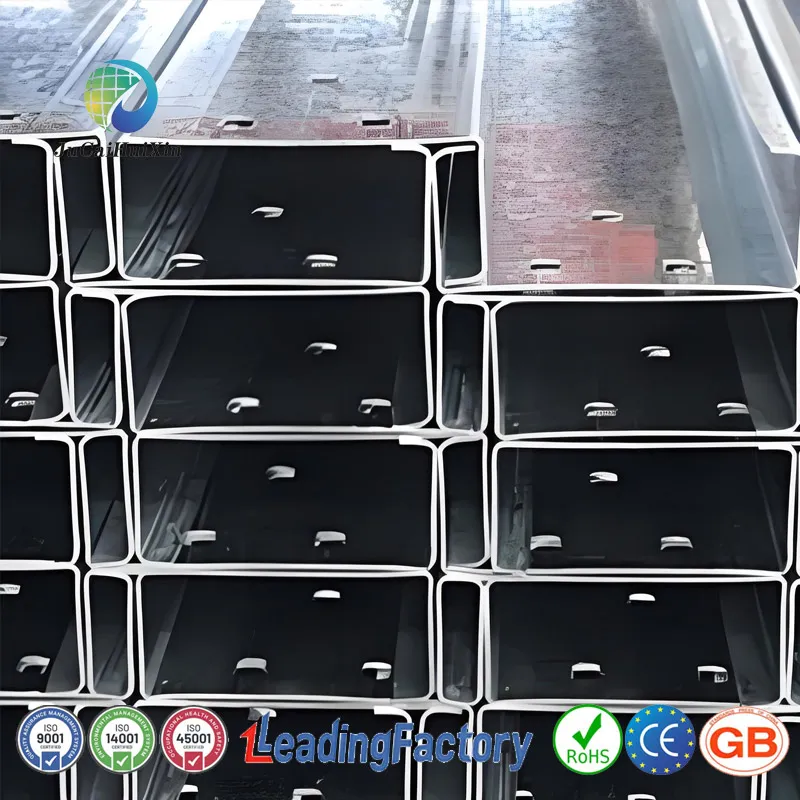

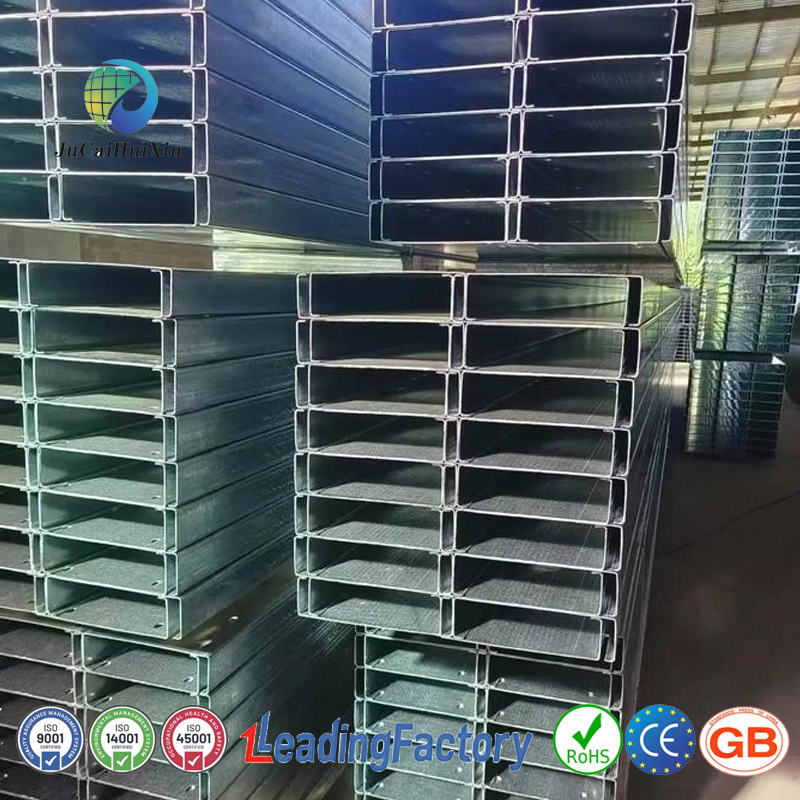

Metal C U Steel Structure for PV Mounting System
Our mounting system is a core support component designed specifically for photovoltaic systems, made of high-grade carbon steel. The U-shaped groove structure provides excellent bending strength (tensile strength ≥ 160MPa) and surface anodizing treatment (thickness ≥ 12 μm). It has successfully passed 4,800 hours of salt spray testing, making it ideal for rooftops, ground installations, and carports.
| Material |
Steel |
Grade |
Q235/355, etc. |
| Wall Thickness |
1.5-3mm |
Zinc Coating |
Hot DIP Galvanized / Zinc Al Mg |
| Service Life |
Over 25 Years |
Inventory |
10,000 Tons |
| Customization |
Available (OEM/ODM) |
Load-bearing |
≤ 180kg (spacing ≤ 1.5m) |
Core Advantages
- Factory Direct Pricing: Cost is 15% - 30% lower than similar market products by eliminating intermediaries.
- Universal Compatibility: U-shaped groove design is compatible with 90% of mainstream fixtures.
- Extreme Weather Resistance: Suitable for coastal and high-humidity areas, passing 4,800 hours of salt spray tests.
- High Production Capacity: Daily production capacity of 20,000 meters ensures fast global delivery.
⭐
Service Commitment
1v1 Exclusive Butler: Full support from design to installation.
24-hour Cloud Escort: Global time zone response.
0 Yuan Experience: Free design and sample experience.
Custom Solutions: 3D modeling provided within 48 hours.
❓
Frequently Asked Questions
What is hot-dip galvanizing and its advantages?
It involves immersing steel in molten zinc at 450°C. It offers superior corrosion resistance (coating >65μm), comprehensive protection for all edges, and a long service life with low maintenance.
Can you provide custom sizes and specifications?
Yes. We offer highly customized services for dimensions (height, width, thickness), lengths, and steel grades to meet your specific project technical drawings.

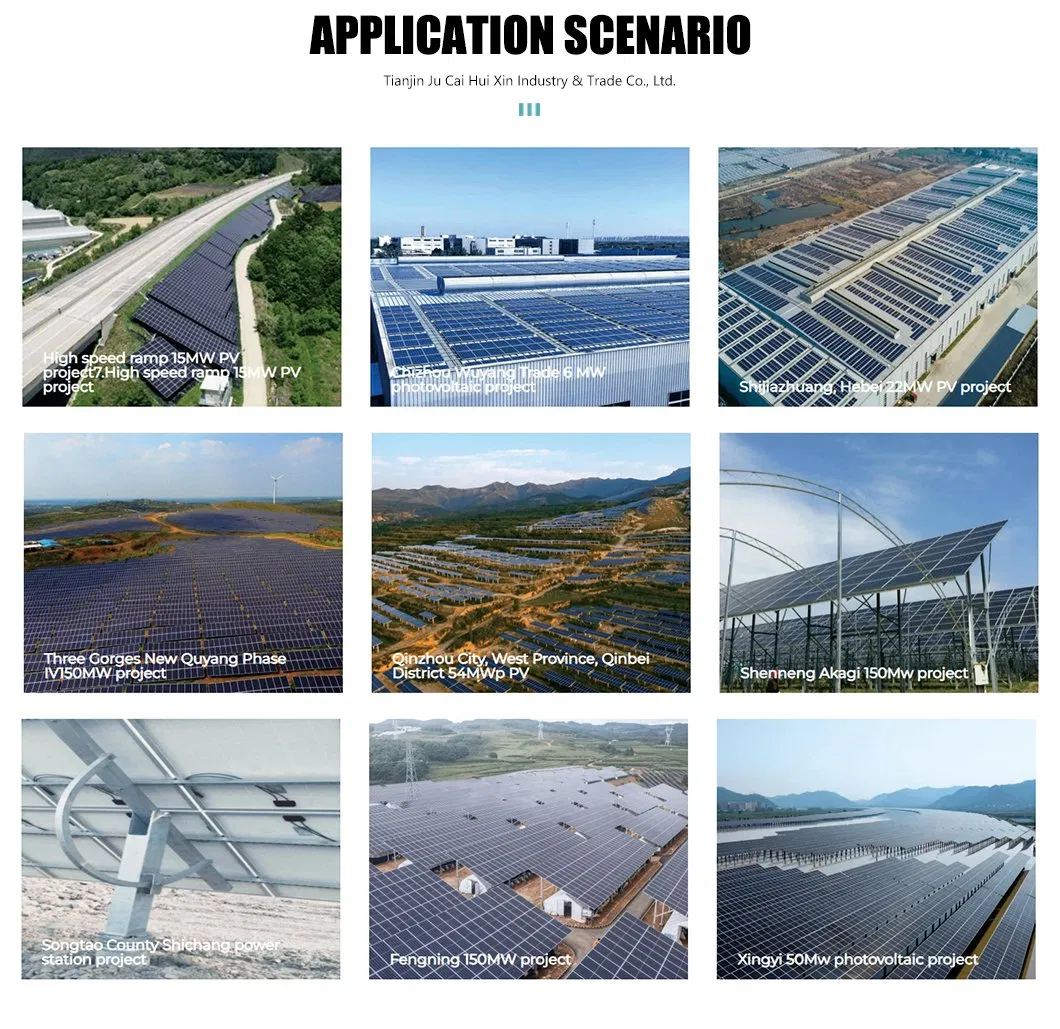

What are the common construction applications?
Commonly used for lightweight steel frames, warehouses, agricultural structures (greenhouses/stables), and infrastructure like cable trays and solar mounting racks.
What international quality standards do you follow?
Our products conform to ASTM A123 or ISO 1461 for galvanizing, and ASTM A36 or A572 for base steel, as well as EN, JIS, and GB standards.
What is the approximate delivery time?
Standard stock products are delivered quickly. Custom OEM orders depend on mold preparation and production cycles, typically ranging from 3 to 45 days.
What is the load-bearing capacity of the C-sections?
The monorail load-bearing capacity is ≤ 180kg, provided the spacing between supports is ≤ 1.5 meters.
