Jchx CE Certified Carbon Steel Structure for Ground-Mounted Photovoltaics

1 / 5

Jchx CE Certified Carbon Steel Structure for Ground-Mounted Photovoltaics

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Technical Specifications

Model NO.

ground mounted photovoltaics

Certification

GB, ISO, CE, RoHS

Application

Commercial / Utility

Material

Carbon Steel / Stainless Steel

Type

Ground Bracket

Coating

Hot DIP Galvanized or Zinc Al Mg Coating

Production Capacity

100,000 Tons / Year

Package Gross Weight

500.000kg

Product Description

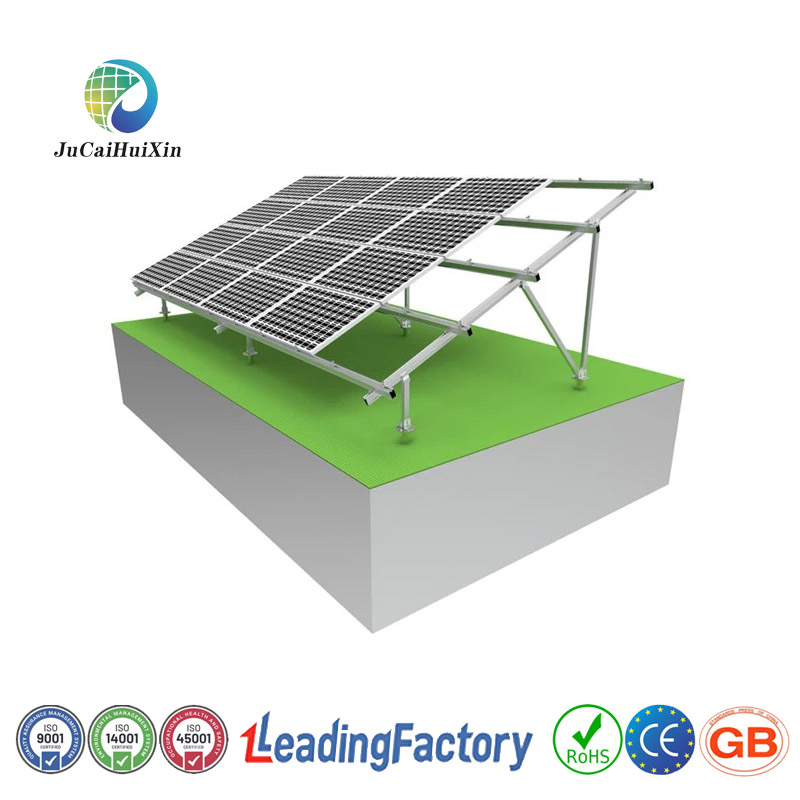

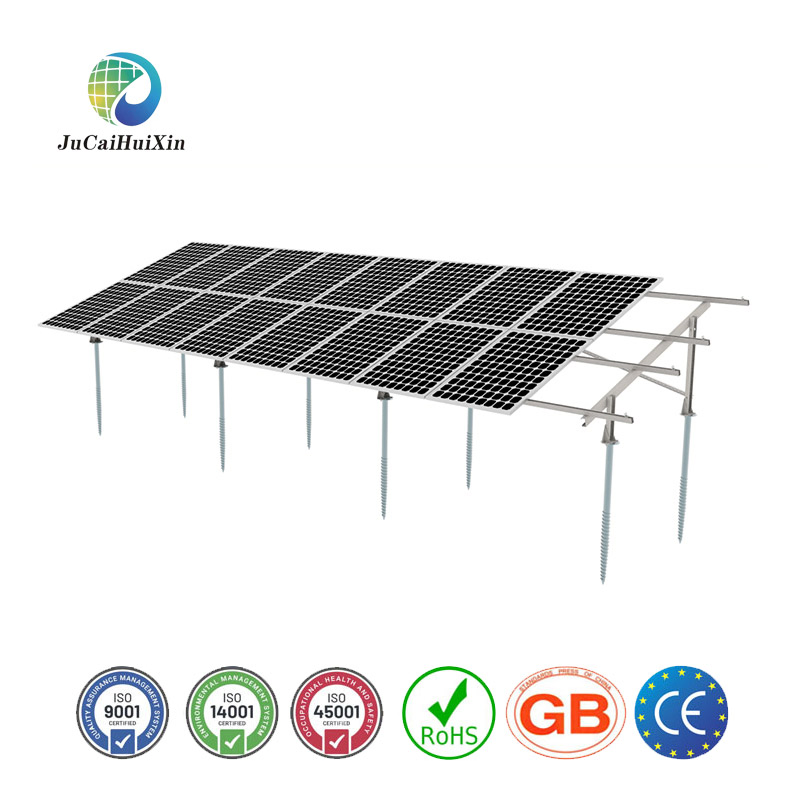

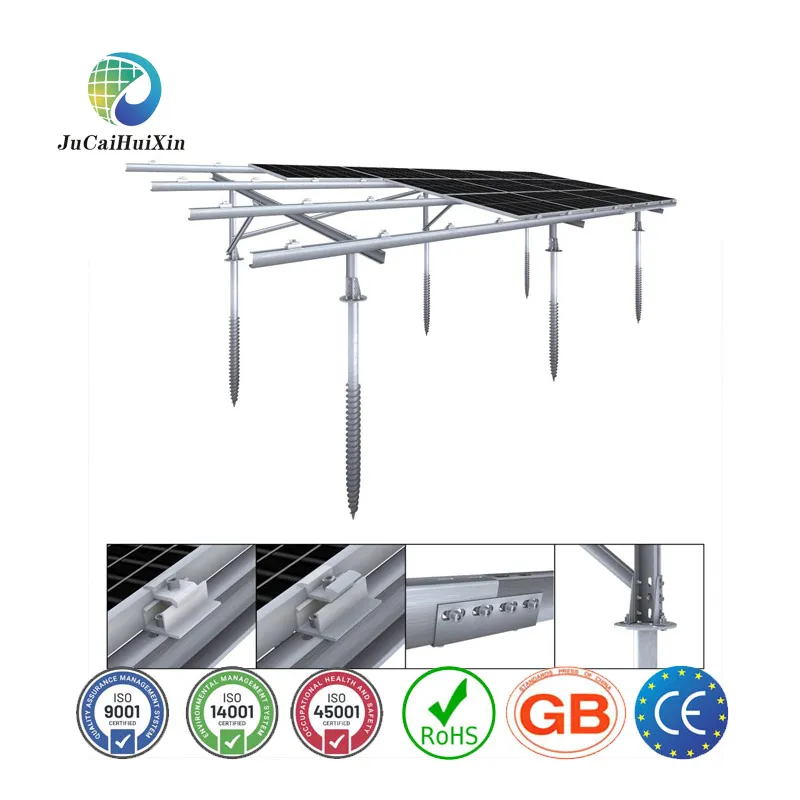

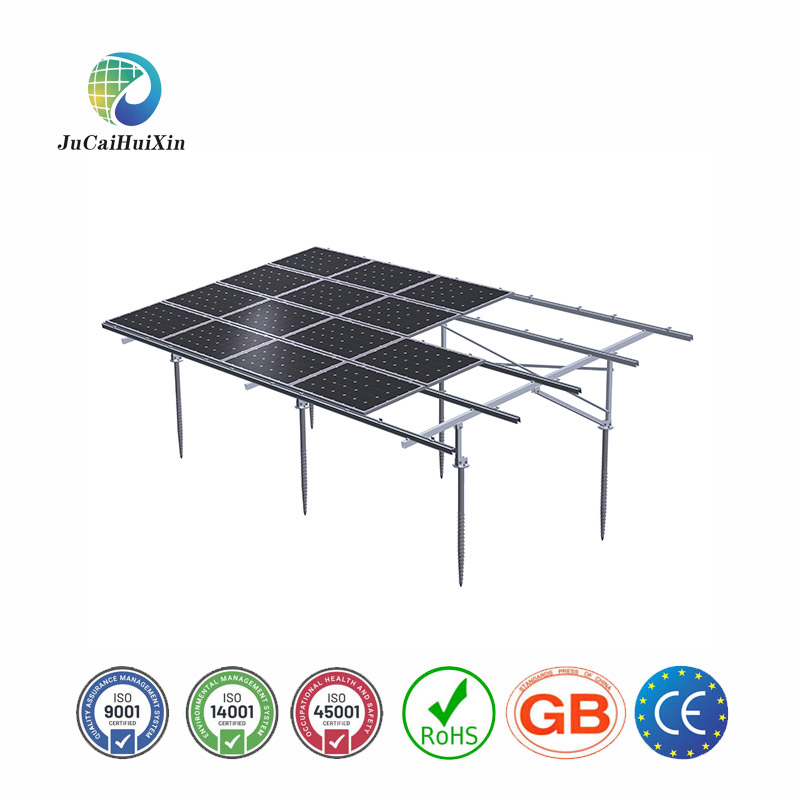

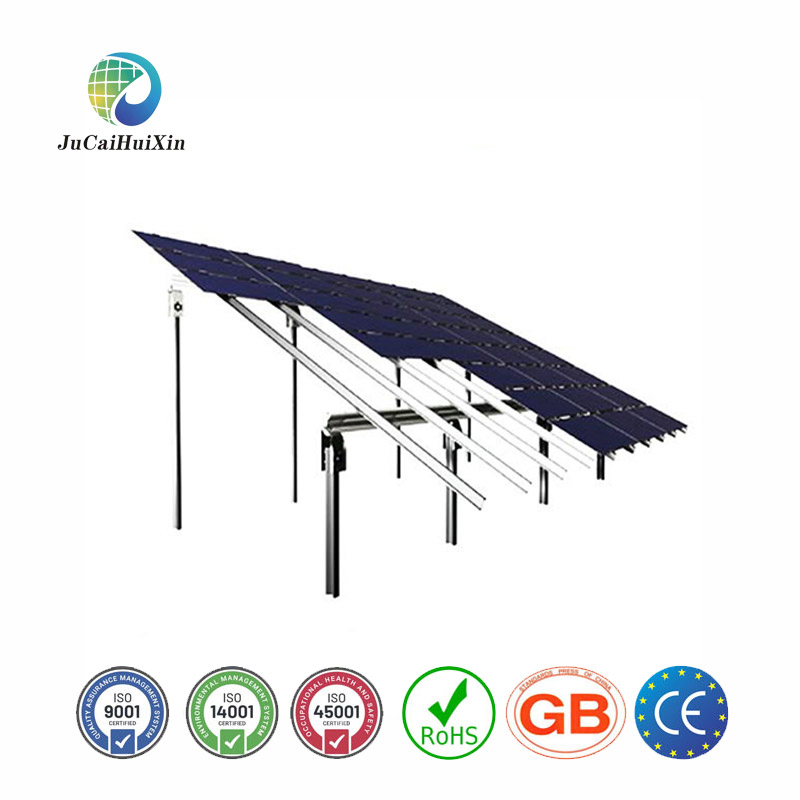

Carbon steel structure for ground-mounted photovoltaics is a professional solar photovoltaic bracket system designed for ground installations. The system is mainly composed of solar hooks, fasteners, aluminum rails, and galvanized C steel channels. It features a simplified structure, convenient installation, and exceptional bearing capacity.

Key advantages include high structural stability to withstand large loads, easy installation without the need for heavy hoisting equipment, wide applicability for various terrains, and cost-saving reusability.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	International Code	IBC 2009 / CBC 2010
Tilt Angle	5-10° (Customizable)	Wind Load	60m/s
Snow Load	1.6KN/M²	Material	SUS304 / AL / HDG Steel
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

🌟 Value-Added Services

✔ Custom turnkey solar installation solutions

✔ 24/7 dedicated account support

✔ Complimentary system design & samples

✔ Full-cycle services from engineering to maintenance

✔ Optimized solar energy utilization for global clients

Core Product Portfolio

1. Hot-dip galvanized solar mounting systems

2. Zinc-aluminum-magnesium coated PV racks

3. Aluminum alloy solar structures

4. Stainless steel PV supports

5. Solar mounting accessories

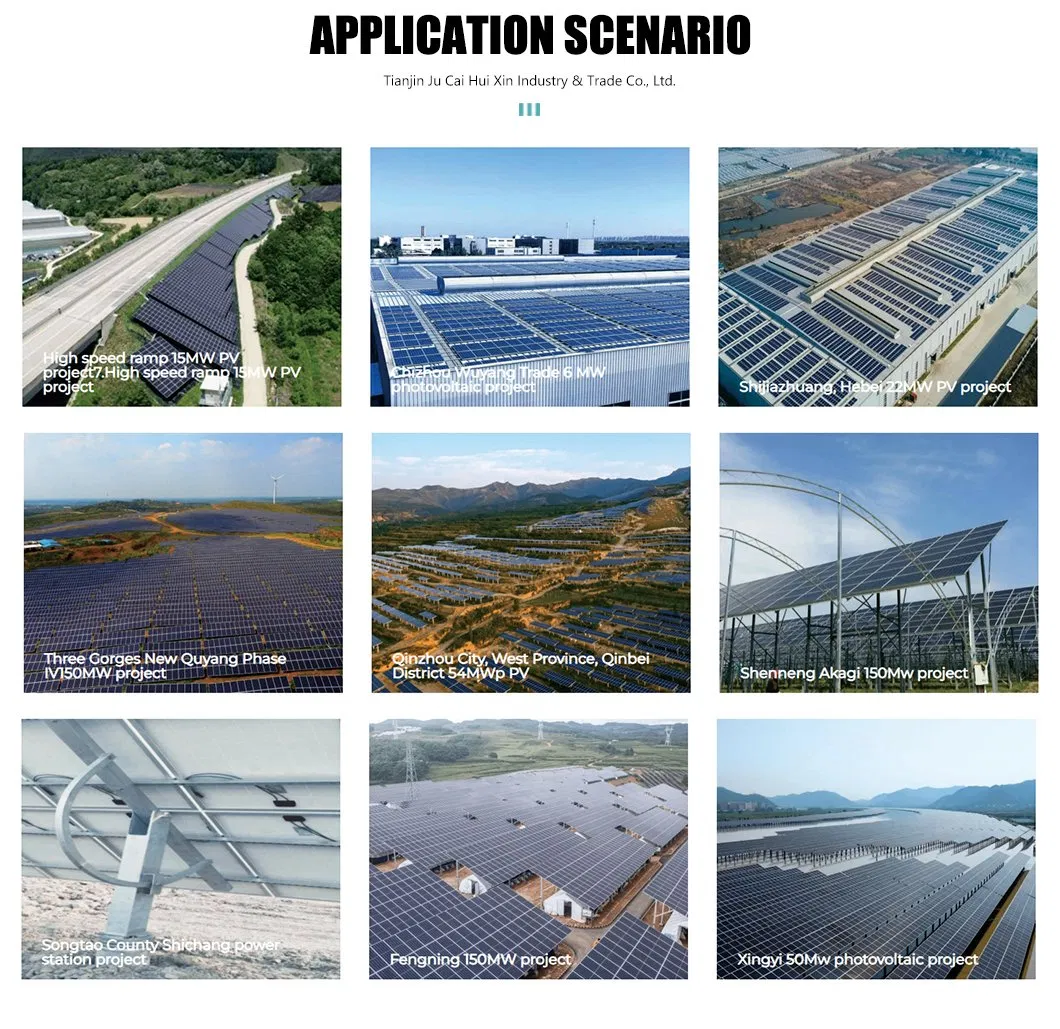

Global Application Areas

📍 Utility-scale solar farms

📍 Commercial/industrial rooftops

📍 Residential PV installations

📍 Floating solar plants

📍 Agri-PV greenhouses

📍 Remote communication stations

Frequently Asked Questions

Is your carbon steel structure certified by CE?

Yes, our carbon steel structure for ground-mounted photovoltaics fully complies with CE certification (EN 1090-1/EN 1090-2), ensuring it meets European safety, quality, and structural standards.

What load-bearing capacity does the structure support?

Designed for high stability, it supports wind speeds up to 180 km/h (60m/s) and snow loads up to 1.6 kN/m², with customizable options for extreme weather regions.

What corrosion protection methods are used?

The carbon steel is treated with hot-dip galvanizing (80-275μm zinc coating) or optional Zinc-Aluminum-Magnesium coating for extended resistance in humid or coastal environments.

Can the structure be customized for different terrains?

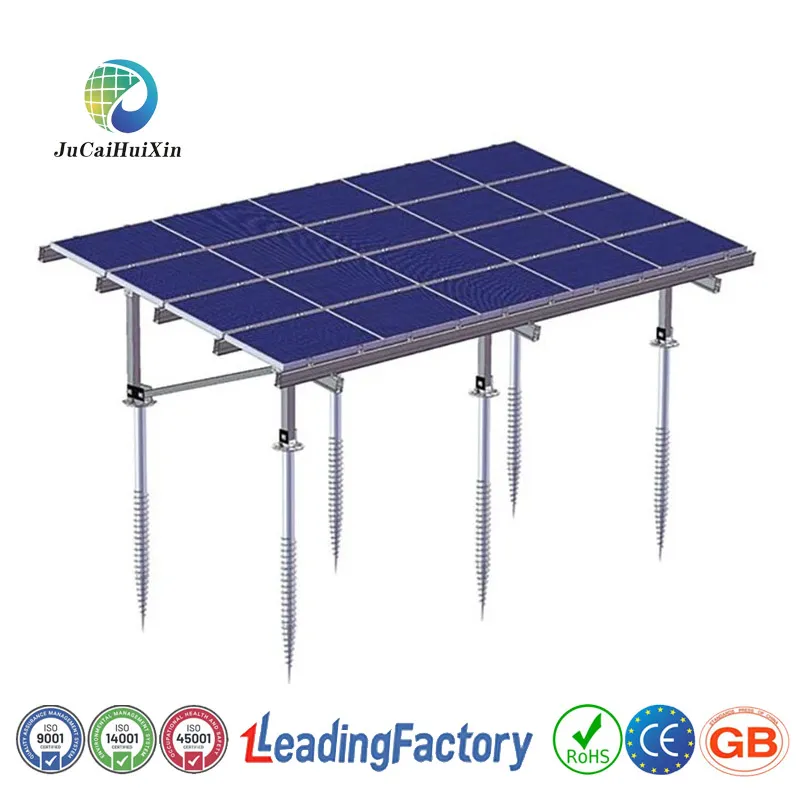

Absolutely. It supports adjustable foundation designs including concrete anchors, ground screws, or ballast blocks to fit uneven terrain and slopes.

What is the lead time for production and delivery?

Standard models ship within 15-30 days. Custom-sized or large-batch orders typically take 30-45 days depending on project requirements.

What is the provided warranty for these systems?

We offer a 10-year warranty as standard, with anti-rust guarantees ranging from 10-25 years depending on the coating type and environmental conditions.
