Jchx Dual Pile Carbon Steel Ground Solar Mounting System PV Panel Support Structure

🔹 Basic Information

Model NO.Solar Panel Mounting Bracket

CertificationGB, ISO, CE, RoHS

ApplicationCommercial / Ground

MaterialHigh-strength Carbon Steel

TypeSolar Bracket

CoatingHot DIP Galvanized or Zinc Al Mg Coating

Wind Load60m/S

Snow Load1.4kN/M²

Production Capacity100,000 Tons / Year

📋 Product Description

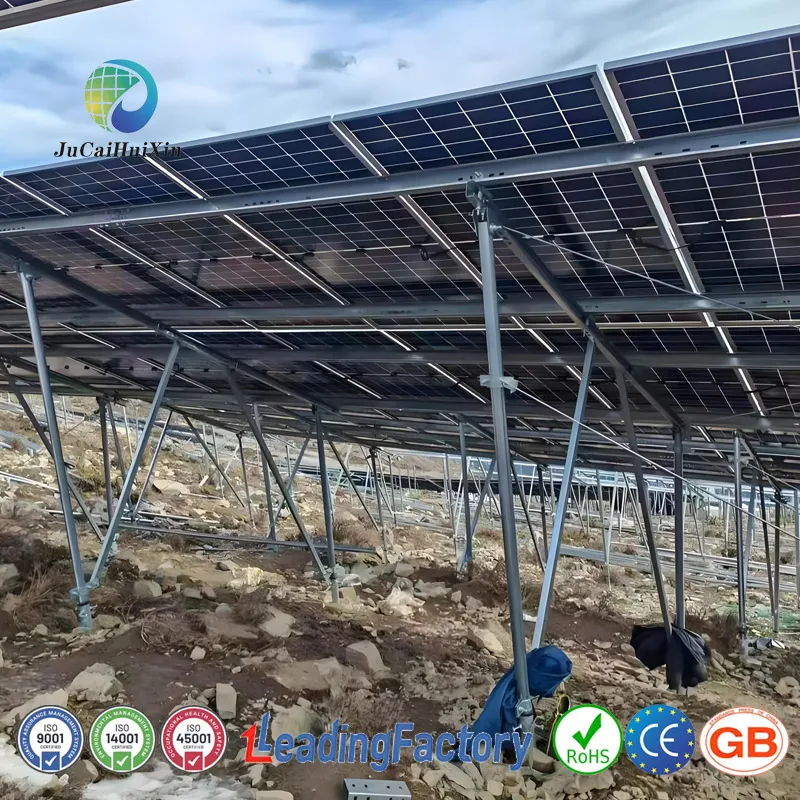

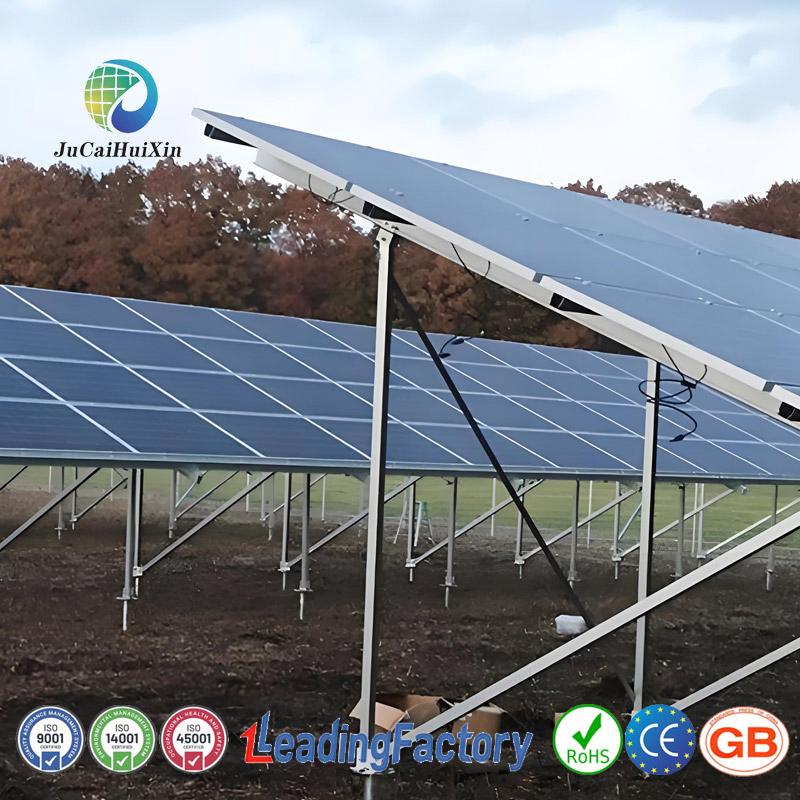

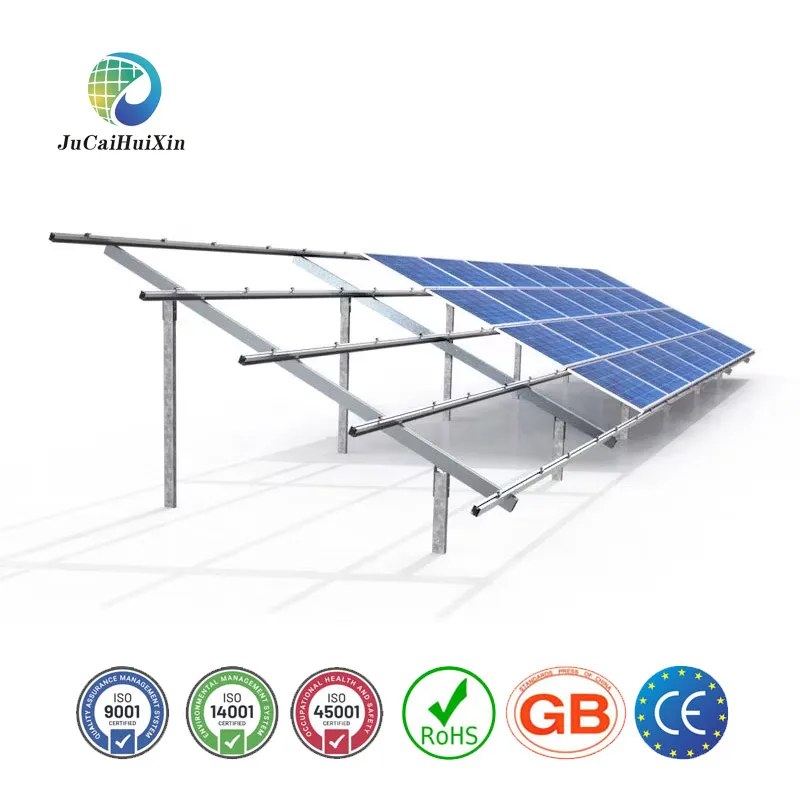

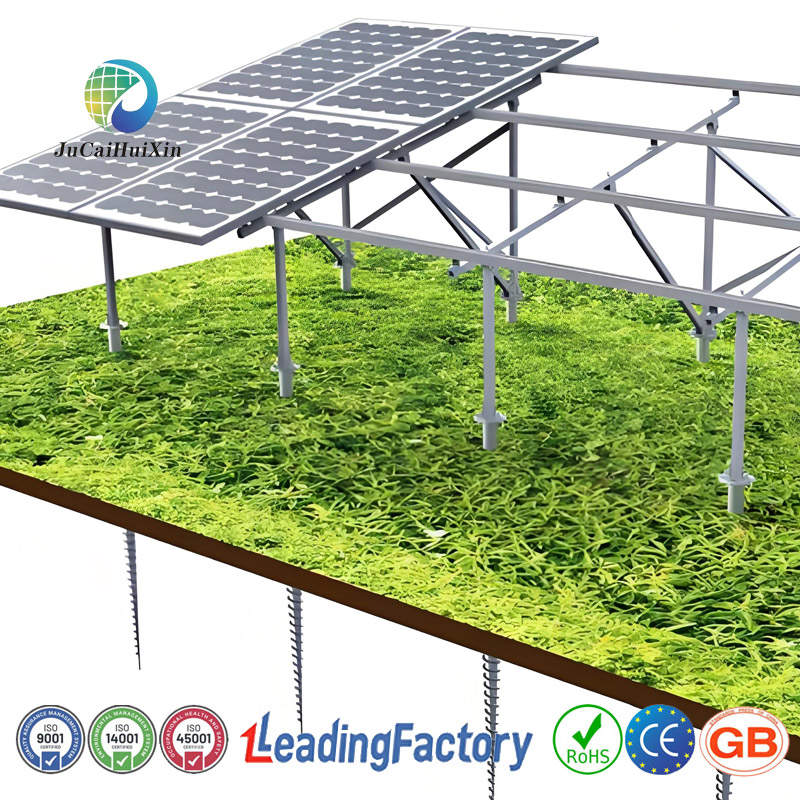

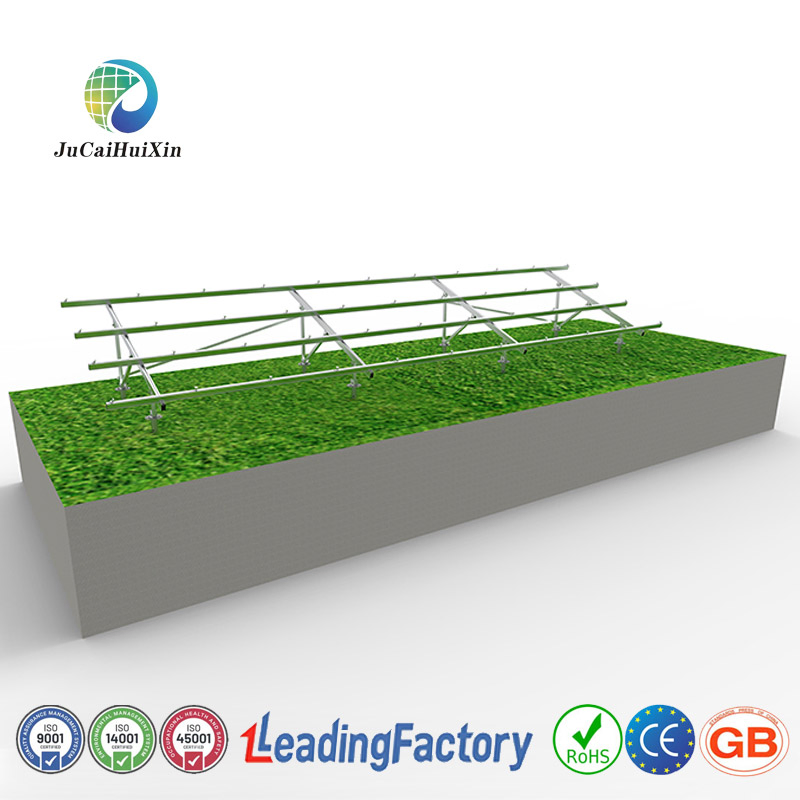

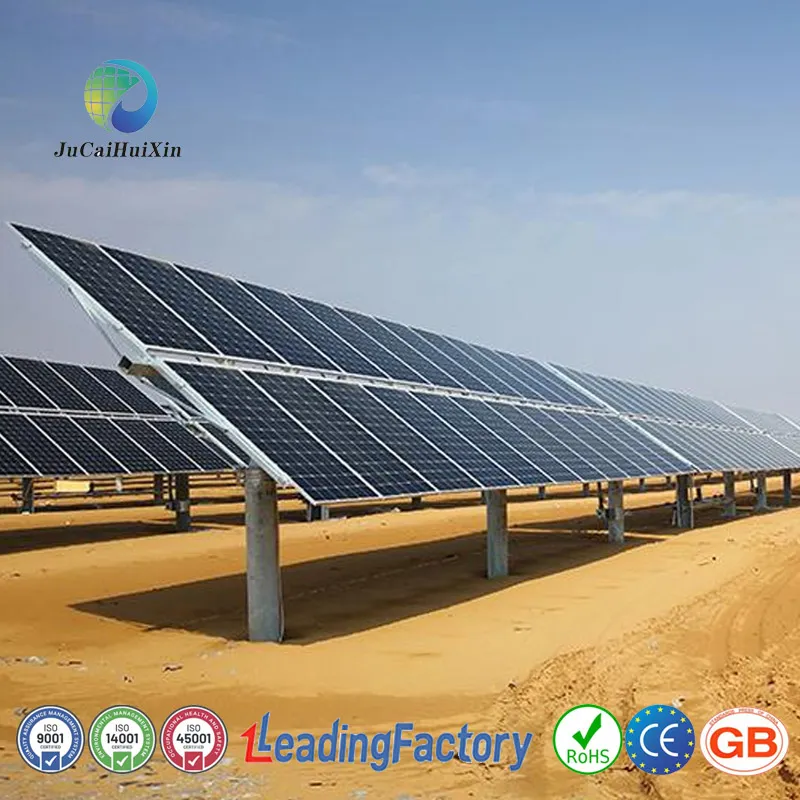

Dual-Pile Carbon Steel Ground Solar Support

Dual-Pile Carbon Steel Ground solar panel supports are highly corrosion-resistant and popular photovoltaic bracket varieties. It features excellent yield strength, tensile strength, and wear resistance. The thick hot-dip galvanized protective layer allows the bracket to adapt to harsh climates including drought, humidity, salt spray, rain, and snow, making it especially suitable for coastal environments.

Parameter	Specification
Material	High-strength carbon steel
Panel Configuration	Custom
Wind Load	60m/s
Snow Load	1.4KN/M2
Coating	Hot-dipped galvanized / Zn Al Mg alloy coating
Tilt Angles	Within 15 to 45º

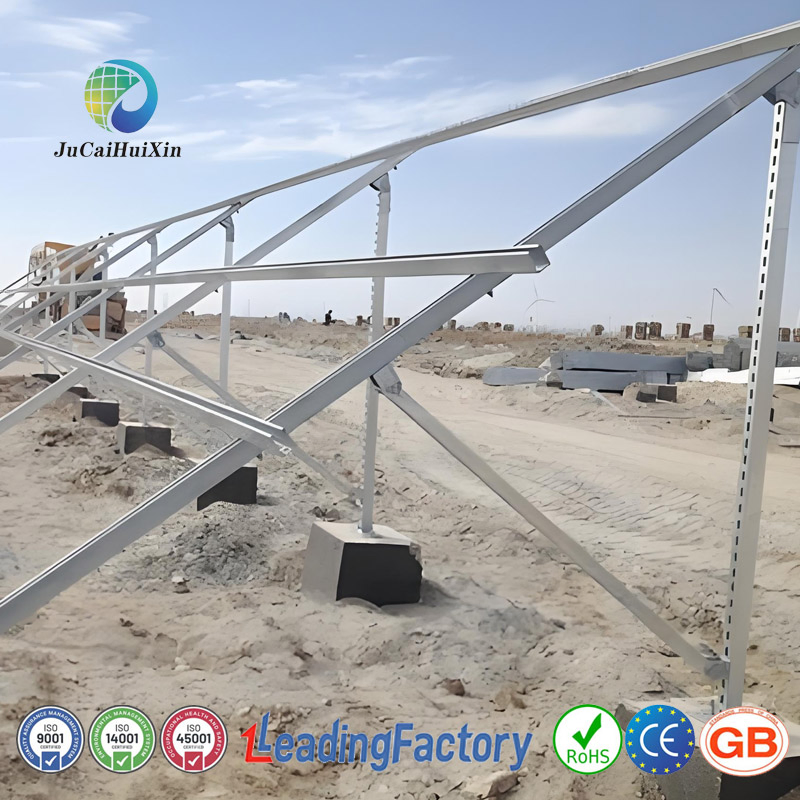

Piling Type	Cement-embedded or Steel ground screw piles
Corrosion Resistance	30 Years (salt spray and UV resistant)

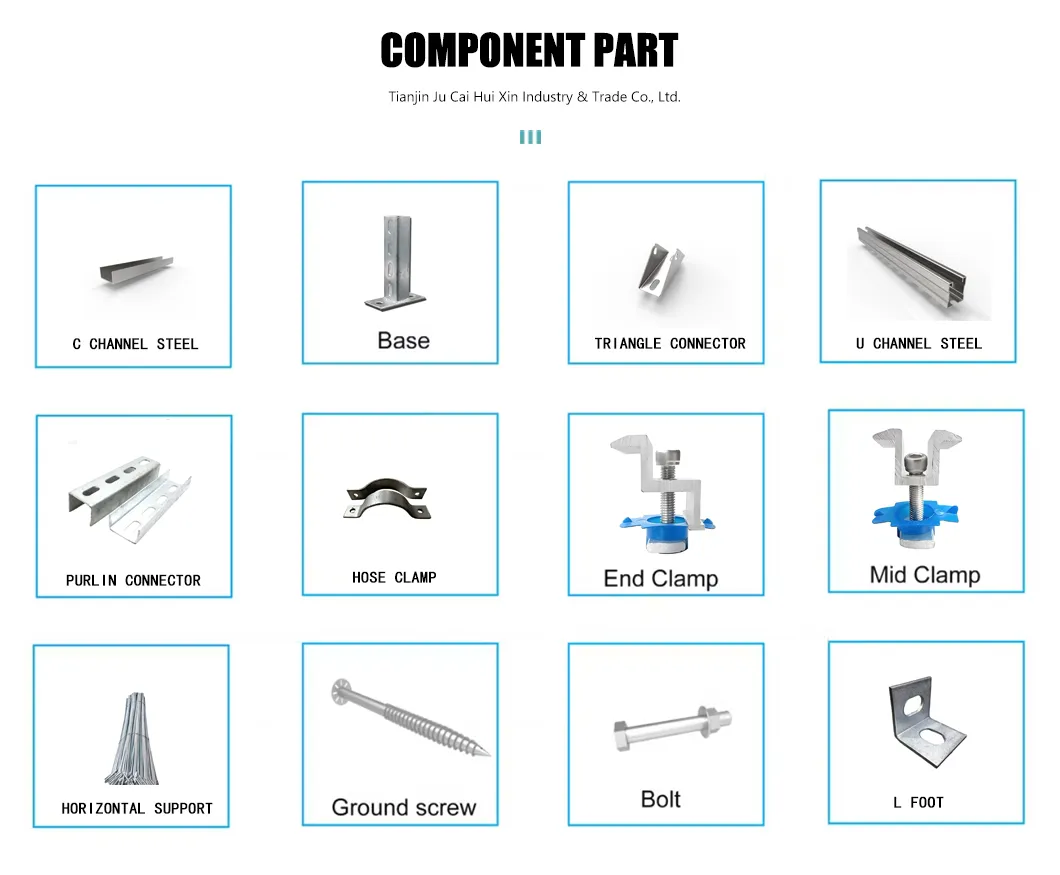

Main Components	Guide rails, C-shaped steel, fasteners, pressure plates, ground piles

💡 Product Advantages

✔

Highly Corrosion-Resistant: Excellent weather and fatigue resistance. It ensures the safety of modules against wind, snow, and earthquakes.

✔

High Structural Strength: Made of carbon steel with Zinc-Aluminum-Magnesium coating for maximum stability under heavy loads.

🏭 Manufacturing Capabilities

Global Expert in Intelligent Photovoltaic Bracket Manufacturing

◈ 10,000 sqm Intelligent Manufacturing Base
◈ 10 Advanced automated production lines
◈ 200,000 Tons annual profile output
◈ ISO Triple System, CE, and Rohs Certifications

Bracket Systems for Every Scenario:

Hot-dip Galvanized Series: 25+ years protection.
Zinc-Aluminum-Magnesium Series: Self-repairing technology for harsh environments.
Aviation Aluminum Series: Lightweight for rooftop projects.
Stainless Steel Series: Salt spray expert for offshore projects.

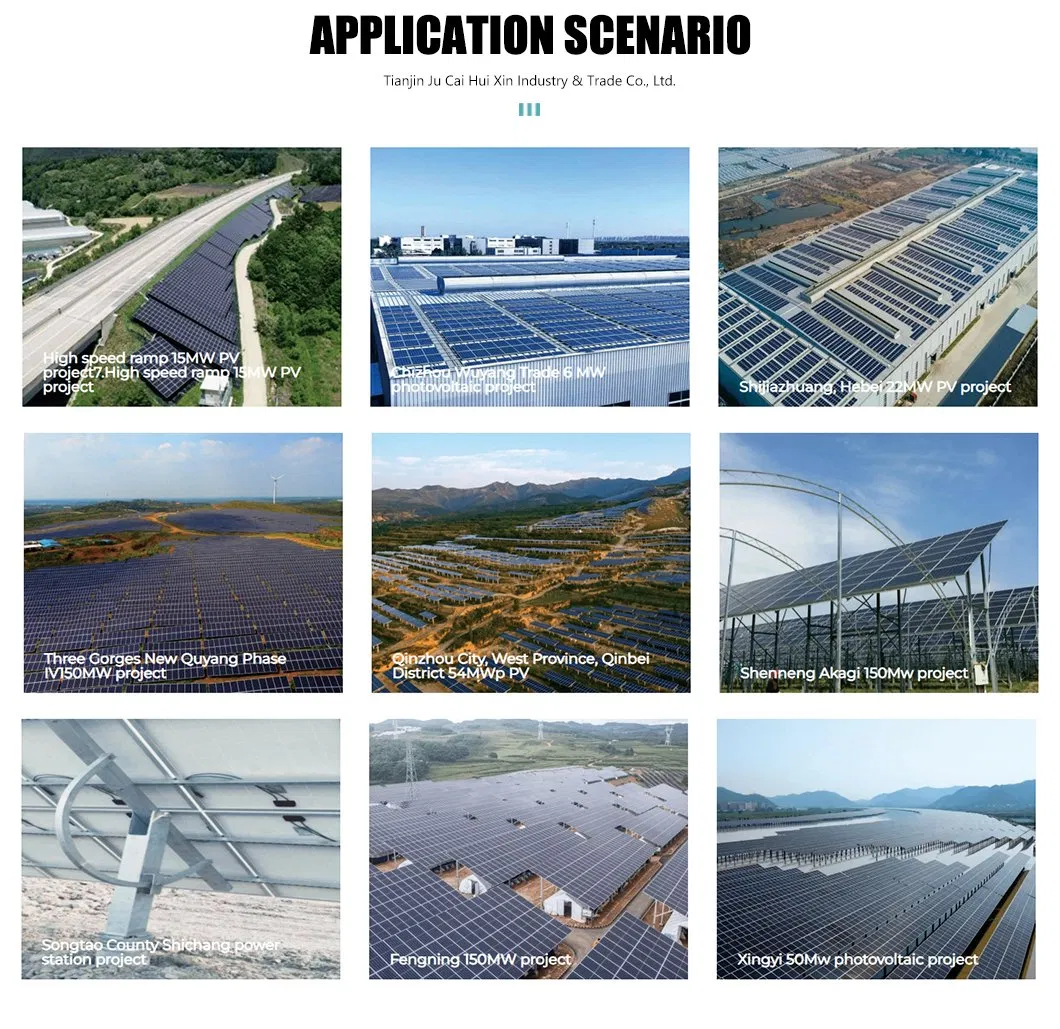

🌍 Global Projects

Preferred Brand for Large-Scale Energy Projects:

Million Kilowatt-level Photovoltaic Oxygen Production Projects
Wind-Solar-Storage Integrated Demonstration Projects
Ecological Photovoltaic Poverty Alleviation Stations

★ Five-star Service Commitment ★

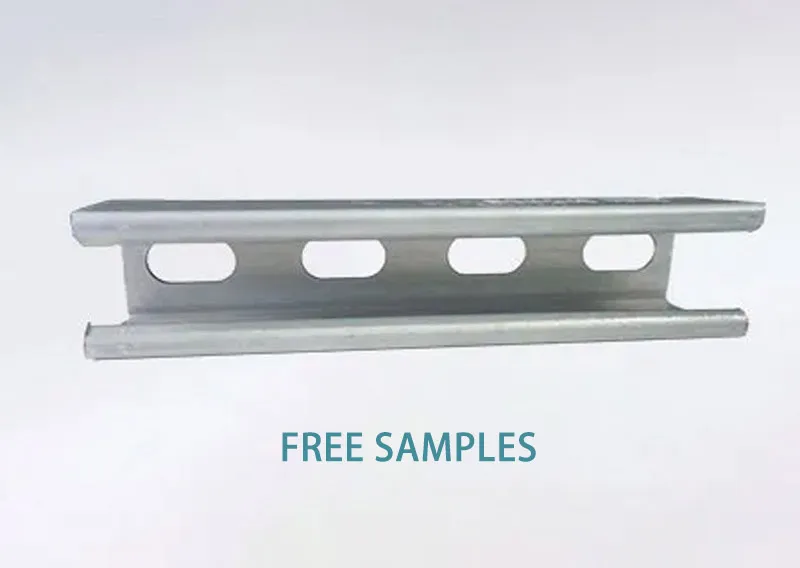

1v1 Exclusive Support | 24-hour Response | Free Design & Samples

"Making Every Ray of Sunshine Valuable!"

❓ Frequently Asked Questions

Q1: What is a solar ground mounting system and its advantages? A: It is a structure used to mount panels on the ground using corrosion-resistant materials like galvanized steel. Advantages include easier maintenance, optimized tilt angles for better efficiency, and suitability for large-scale utility projects where roof space is limited.

Q2: What kind of foundation is required for installation? A: Foundations depend on local geology. Options include concrete foundations (stable/reliable), screw piles (fast installation/removable), or ballasted foundations (no excavation required, ideal for rocky ground).

Q3: What are the typical land area requirements? A: Land requirements depend on the total system capacity, the efficiency of the panels, and the layout (inter-row spacing to prevent shading). Custom designs can optimize the use of available land.

Q4: How often does the system require maintenance? A: Maintenance is minimal. We recommend inspecting connections once or twice a year. Regular panel cleaning and vegetation management (trimming weeds) are also necessary to ensure maximum sunlight exposure.

Q5: What is the expected lifespan of these mounting systems? A: High-quality systems using hot-dip galvanized steel or Zinc-Aluminum-Magnesium coatings are designed to last over 25-30 years, even in harsh environmental conditions.

Q6: Are the systems resistant to extreme weather? A: Yes, our systems are engineered to withstand wind loads up to 60m/s and snow loads up to 1.4kN/m², ensuring stability during storms and heavy winter conditions.
