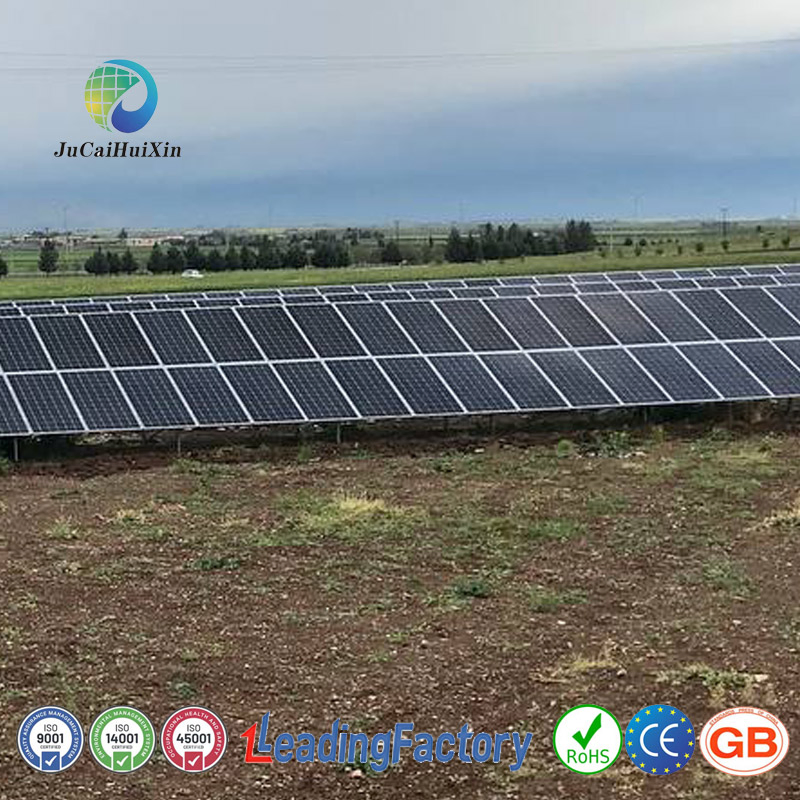

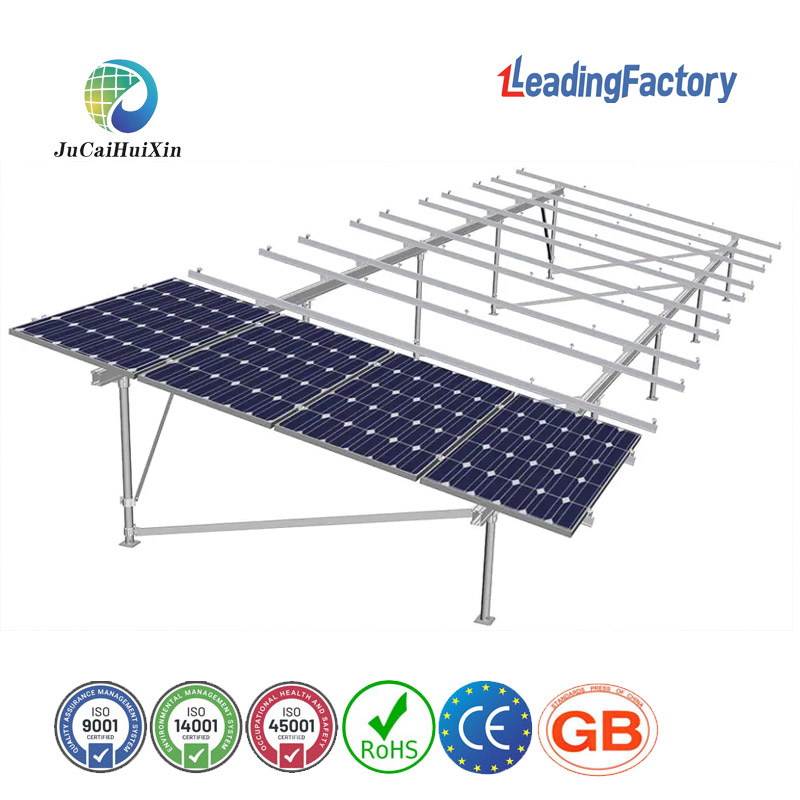

Jchx PV Ground Mounting Structure for Solar Ground Power Station

1 / 5

Jchx PV Ground Mounting Structure for Solar Ground Power Station

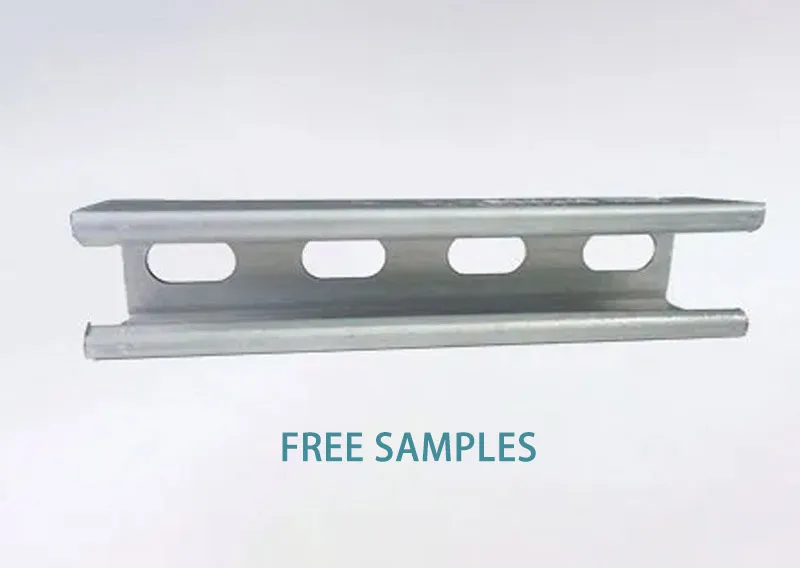

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Solar Panel Mounts
Certification	GB, ISO, CE, RoHS
Application	Commercial
Material	Steel
Type	Solar Bracket
Coating	Hot DIP Galvanized or Zinc Al Mg Coating
Grade	Q235/355, etc.
Wind Load	60m/S
Snow Load	1.4kN/M²
Production Capacity	100,000 Tons / Year

Product Description

The photovoltaic ground mounting structure for solar power stations is highly corrosion-resistant and a popular choice for large-scale energy projects. It offers excellent yield strength, tensile strength, and wear resistance. The thick hot-dip galvanized protective layer allows the bracket to adapt to harsh climates, including drought, high humidity, salt spray, and heavy snow, making it ideal for coastal environments.

Technical Parameters

Material	High-strength carbon steel
Number of Panels	Customizable
Wind Load	60m/s
Snow Load	1.4KN/M2
Tilt Angles	15 to 45º
Installation Method	Fastener installation
Corrosion Resistance	Up to 30 Years
System Height	18-36 inches above ground

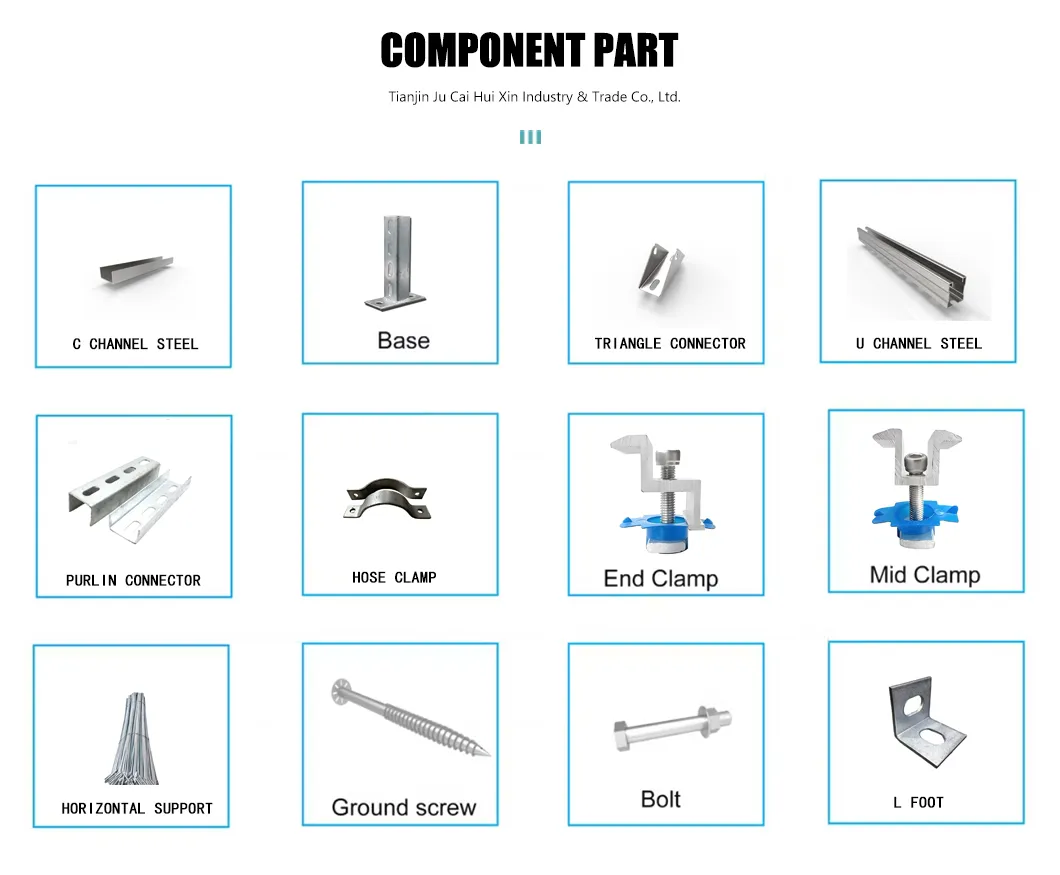

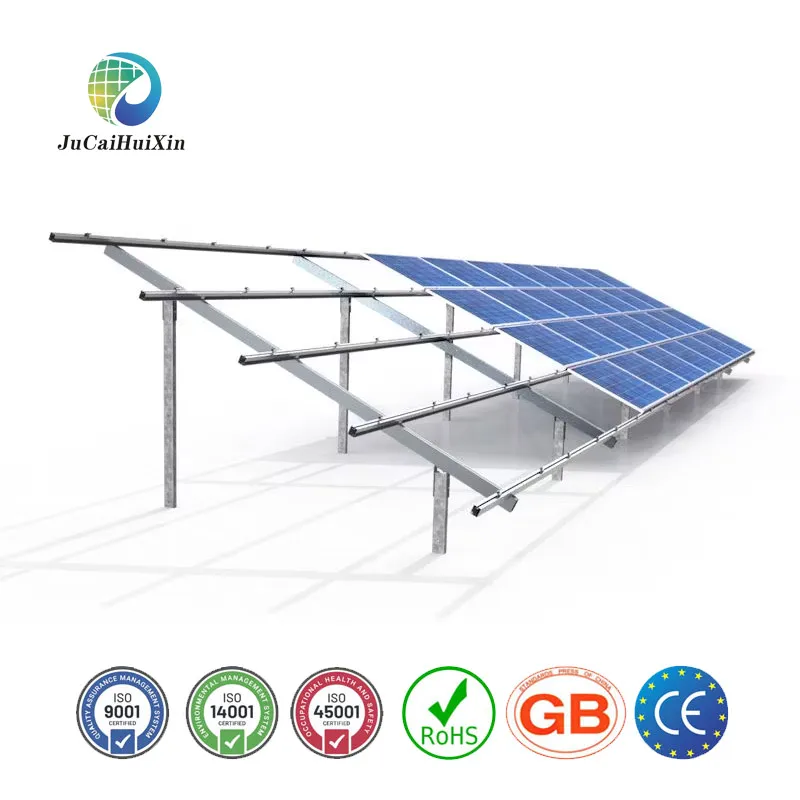

Main Components	Guide rails, C-shaped steel, nuts/bolts, pressure plates, ground piles

Key Advantages

1. Highly Corrosion-Resistant: Excellent weather and fatigue resistance. It maintains uniform stress under external forces like wind, snow, and earthquakes, ensuring module safety.

2. High Structural Strength and Stability: Manufactured from carbon steel with advanced Zinc-Aluminum-Magnesium coating for superior bearing capacity.

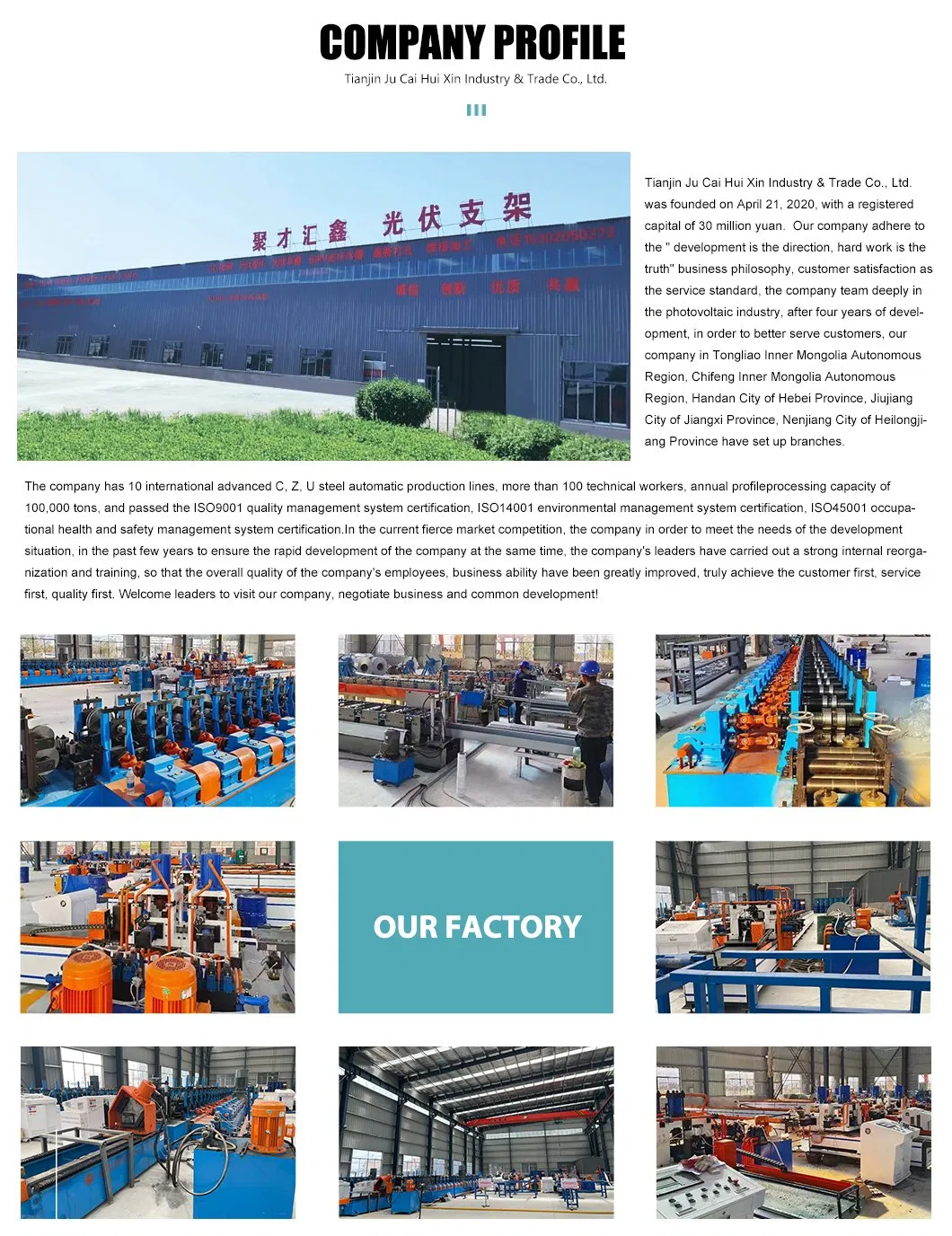

Intelligent Manufacturing Base

10,000 sqm Base: A physical factory ensuring robust production capabilities.
Advanced Production: 10 automated CZU steel lines producing 200,000 tons annually.
Certifications: Triple ISO systems, CE, and RoHS compliant.

Product Solutions

We provide bracket systems for every scenario:

Hot-dip Galvanized: 25+ years protection.
Zinc-Aluminum-Magnesium: Self-repairing technology for harsh environments.
Aviation Aluminum: Lightweight for rooftops.
Stainless Steel: Expert solution for offshore projects.
BIPV & Tracking Systems: Integrated waterproof brackets and sun-tracking solutions.

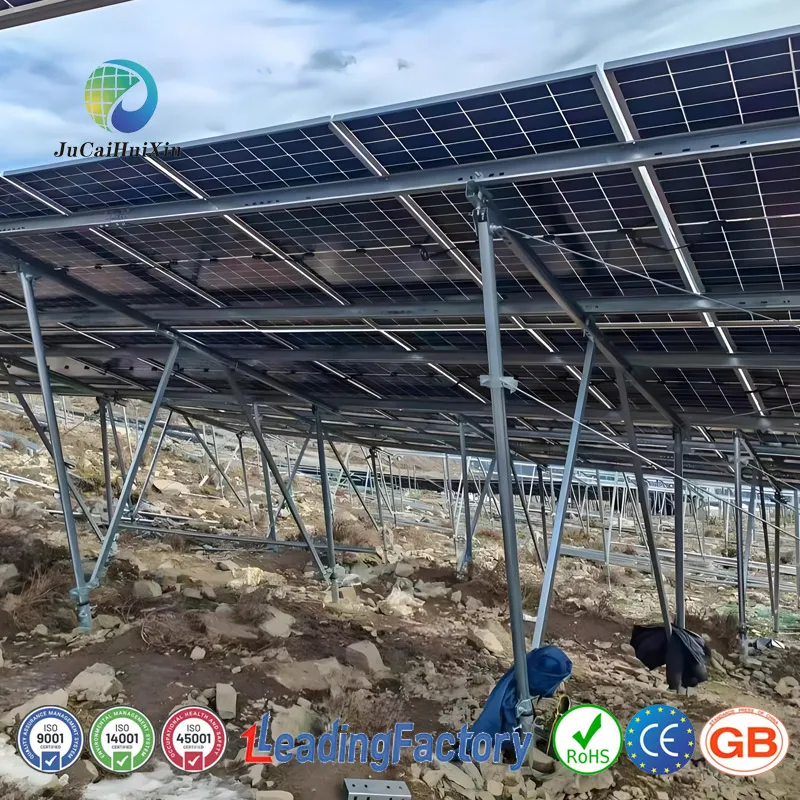

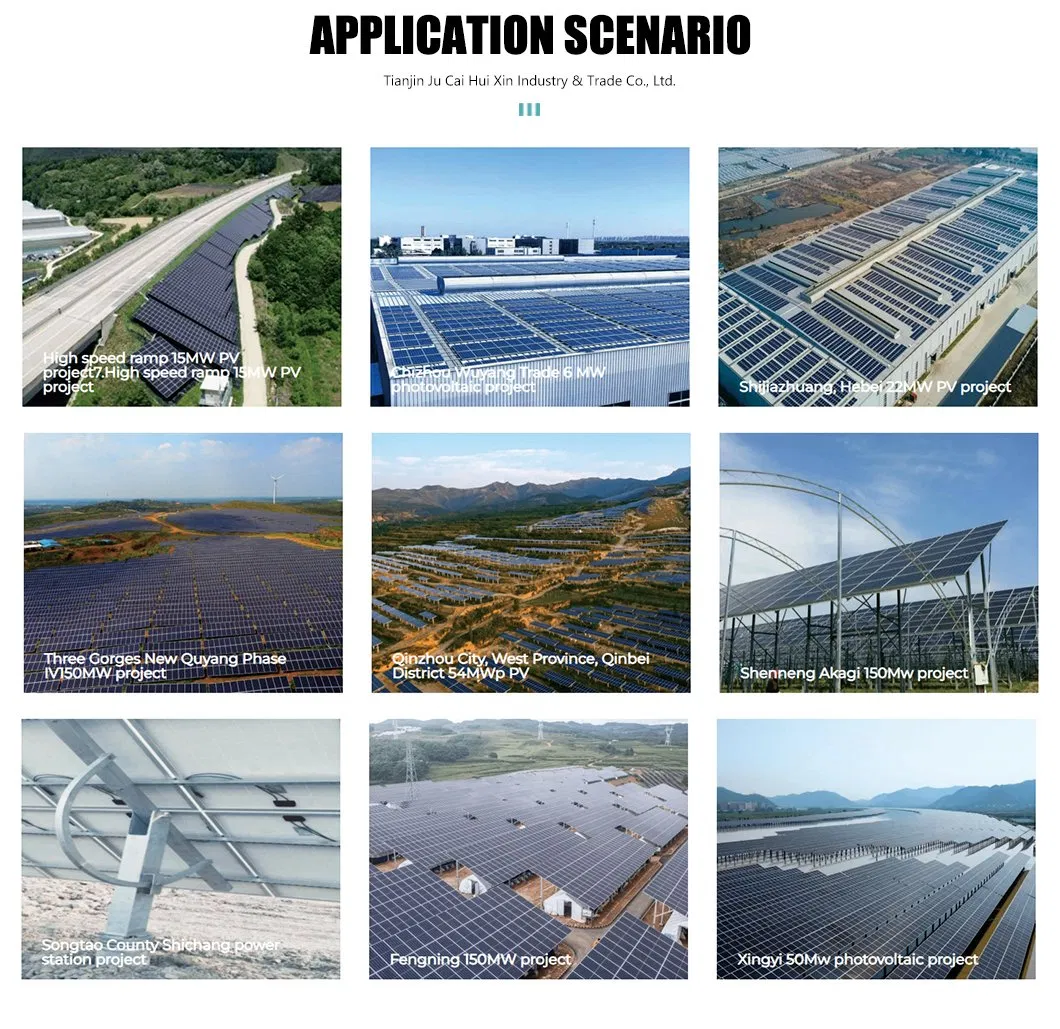

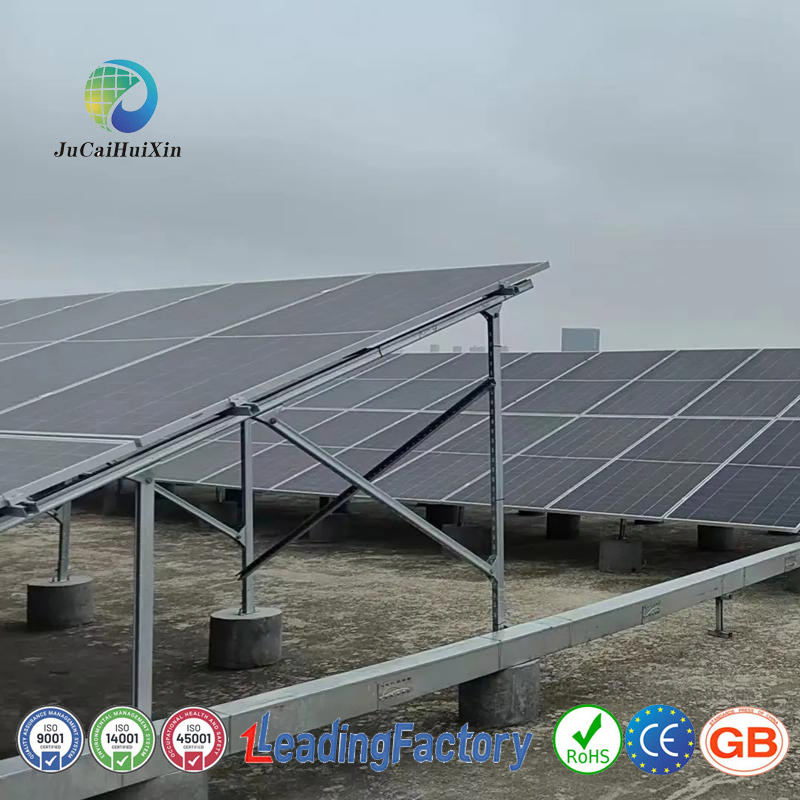

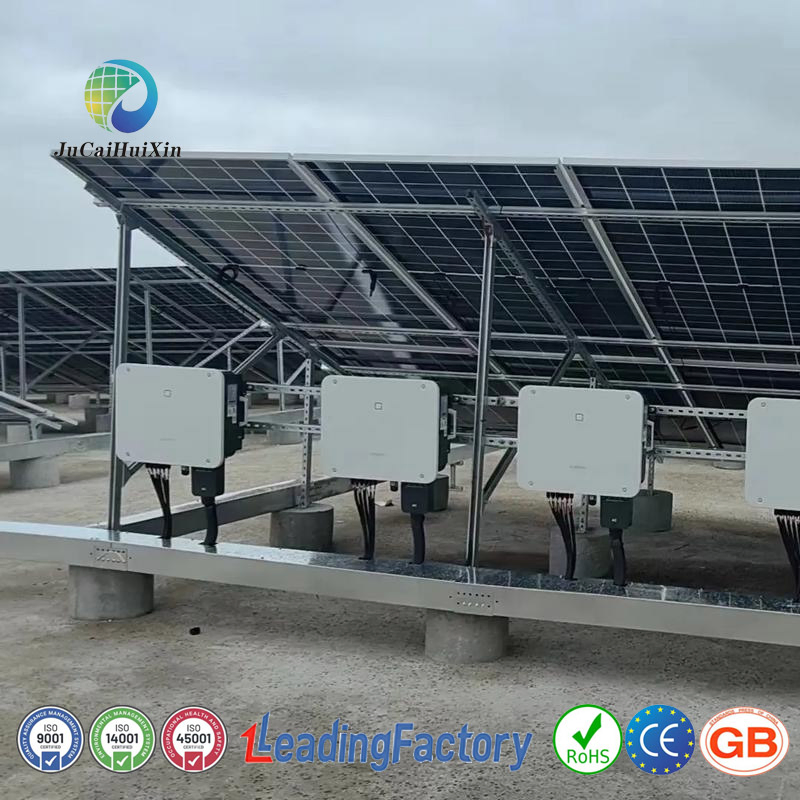

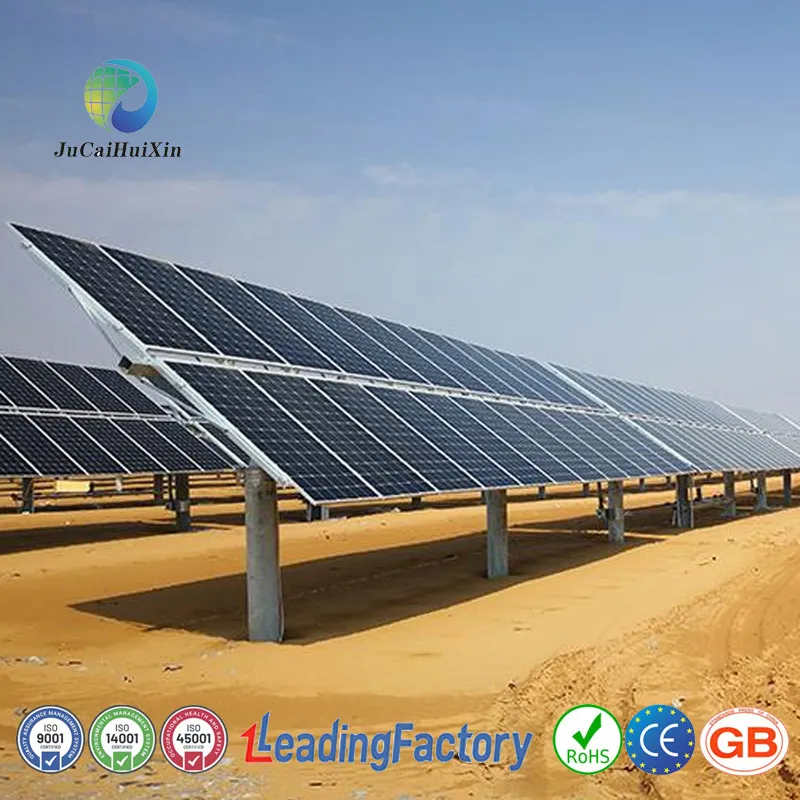

Project Showcase

Frequently Asked Questions

What is a solar ground mounting system?

It is a support structure used to mount photovoltaic solar panels on the ground. Typically made of corrosion-resistant materials like galvanized steel or aluminum alloy, it is anchored using concrete foundations or screw piles.

What kind of foundation is required for installation?

The choice depends on geology and climate. Common foundations include Concrete piers (stable/reliable), Screw piles (fast/minimal soil disturbance), and Ballasted foundations (weights for sites where excavation is unsuitable).

What are the land area requirements?

The required area depends primarily on the total system capacity and the specific layout of the photovoltaic panels.

How often do these systems require maintenance?

Maintenance is minimal. Tasks include inspecting structural connections once or twice a year, regular panel cleaning, and vegetation management to prevent shadows.

What is the typical cost of a ground-mounted system?

Costs vary by system size, design complexity, and material. While initial installation may be higher than rooftop systems, ground mounts offer durability and easier access for long-term maintenance.

How long does the mounting structure last?

High-quality mounting systems use hot-dip galvanized steel or specialized coatings designed to resist corrosion for over 25 to 30 years.
