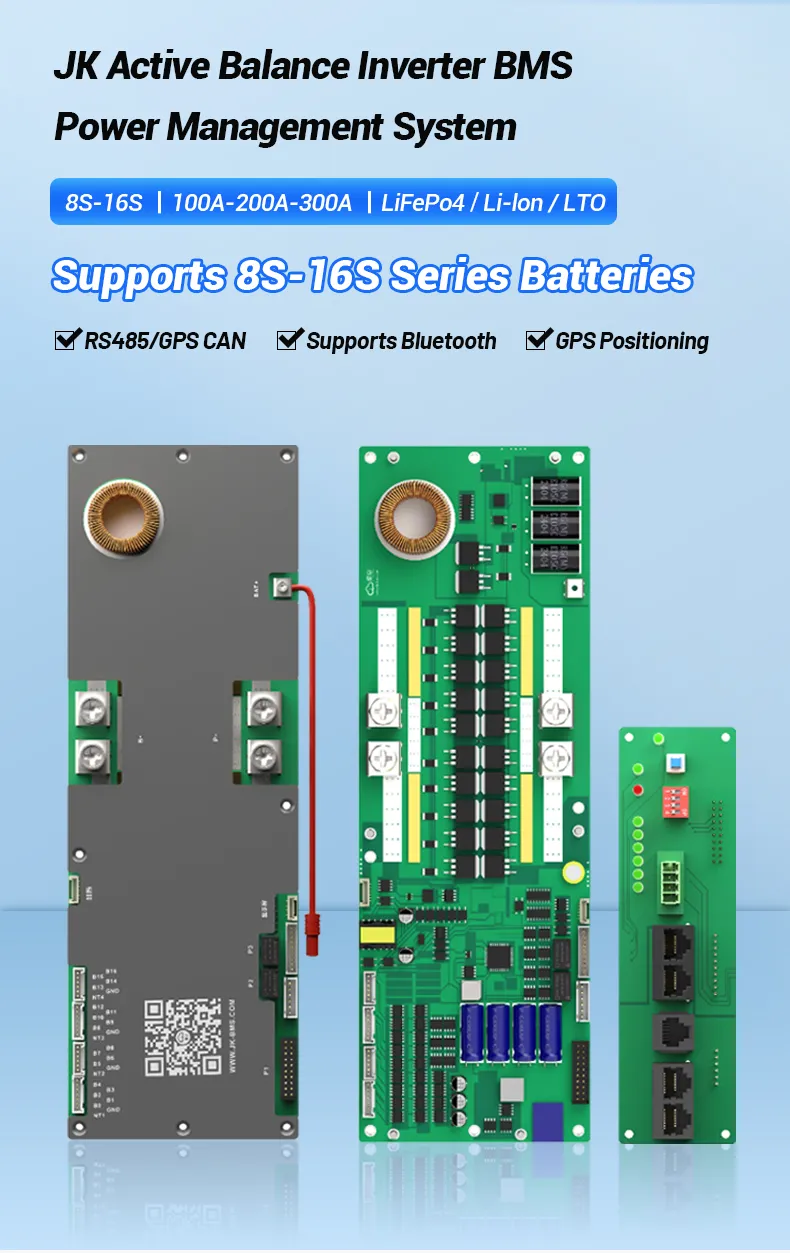

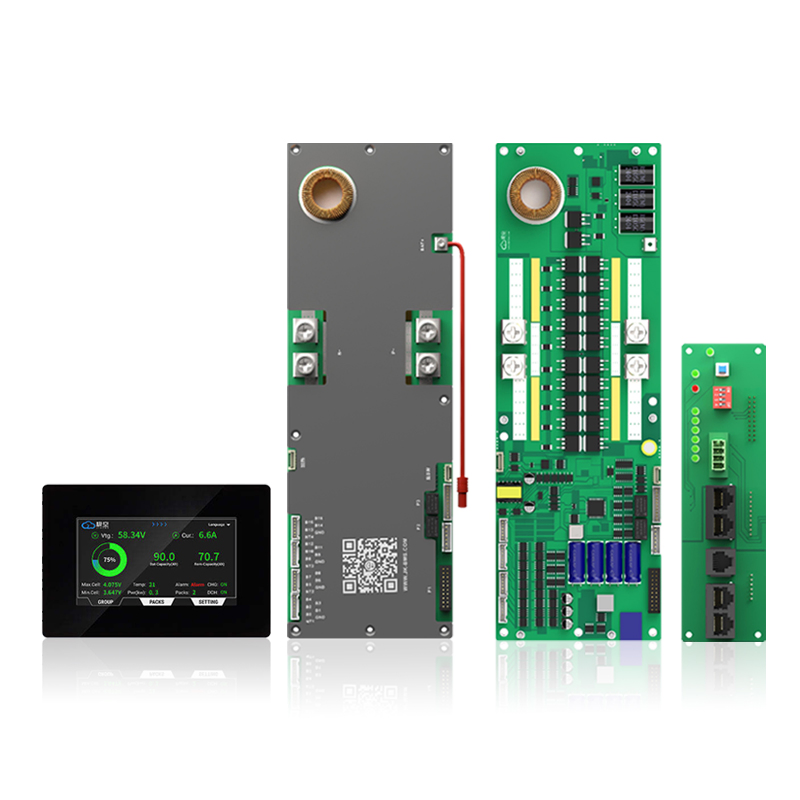

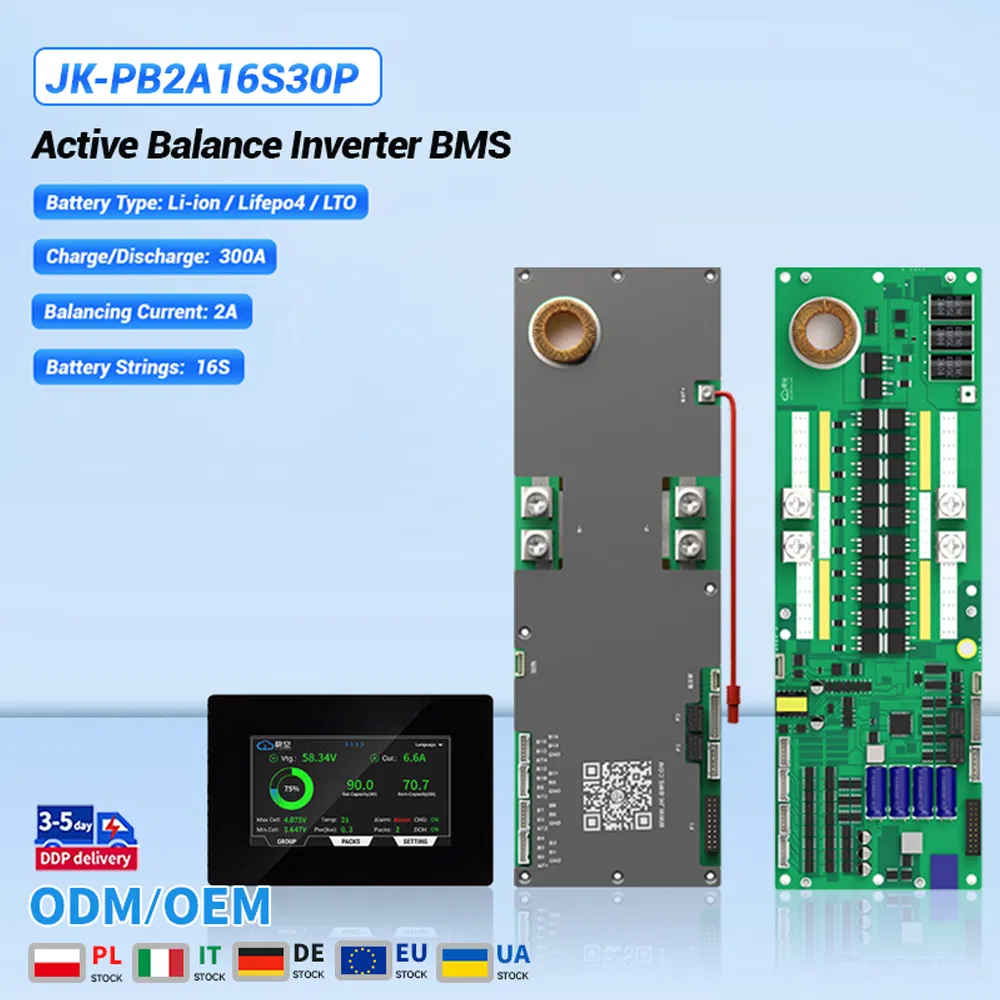

Smart 300A Inverter Jk for with 2A Active Balance for 8-16s Solar Energy Storage Systems Metal Core PCB Bt Can RS485

1 / 5

Smart 300A Inverter Jk for with 2A Active Balance for 8-16s Solar Energy Storage Systems Metal Core PCB Bt Can RS485

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

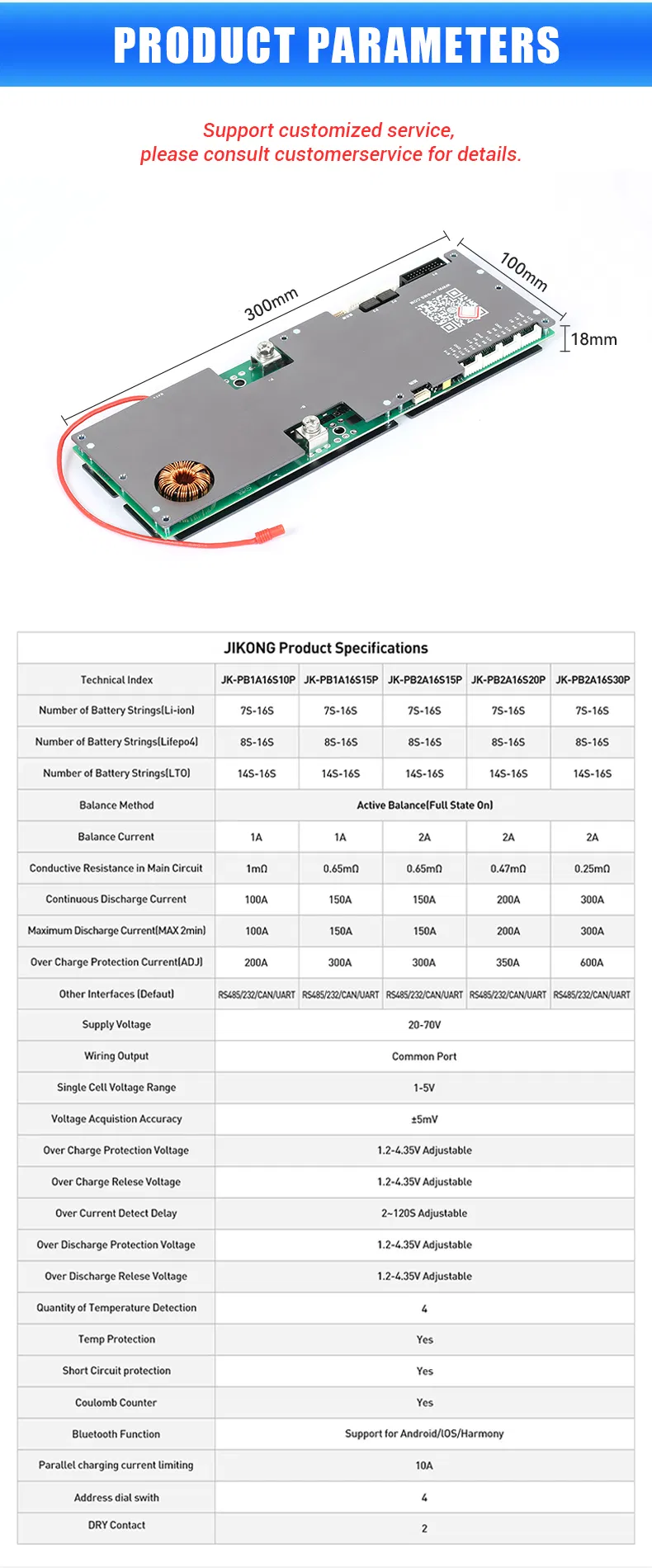

Basic Information

Model NO.

JK-PB2A16S20P

Base Material

PCBA

Communication

RS485/Canbus/Uart/Bluetooth Optional

Usage

Battery Management System

Min. Hole Size

≤ 1mm

Min. Line Spacing

≤3mm

Trademark

JIKONG

HS Code

8507600090

Capacity

500,000 Pieces/Month

Packaging & Delivery

Package Size

20.00cm * 15.00cm * 10.00cm

Gross Weight

1.000kg

Product Description

A high-tech company specializing in new energy lithium battery solutions, focusing on environmental energy, power, and energy storage lithium batteries. Providing intelligent solutions for enterprises, the company is recognized for product quality and industry strength, committed to common development and creating value in the new energy sector.

Battery Cell Specifications

Brand	Model	V & Ah	Impedance (mΩ)	Weight (kg)
CATL	CATL 50AH	3.7V 50Ah	≤2.0	1.38
CATL	CATL 120AH	3.2V 120Ah	≤0.7	2.86
CATL	CATL 176AH	3.2V 176Ah	≤0.5	4.06
CATL	CATL 280AH	3.2V 280Ah	≤0.3	5.34
CATL	CATL 314AH	3.2V 314Ah	≤0.18	5.5
CATL	CATL 340AH	3.2V 340Ah	≤0.18	5.55

Rechargeable LiFePO4 Battery Packs

Voltage	V & Ah	Nominal Energy (WH)	Dimensions (LWH)	Weight (kg)
12V / 12.8V	12V 100Ah	1280 WH	260175211 mm	12
	12V 200Ah	2560 WH	522240245 mm	25
	12V 300Ah	3840 WH	520268220 mm	30
24V / 25.6V	24V 100Ah	2560 WH	522240215 mm	22
24V / 25.6V	24V 200Ah	5120 WH	530238250 mm	48
48V / 51.2V	48V 100Ah	4800 WH	580320220 mm	20
48V / 51.2V	48V 200Ah	9600 WH	580320220 mm	48

System Configuration & Application

Suit for System: 12V 24V 48V 72V 96V 108V... Solar Energy Storage Systems
Application: Backup power for home energy storage, campers, RVs, yachts, etc.
Requirement: For a 48V system, you need 16 pieces; for 24V, 8 pieces; for 12V, 4 pieces.
Shipping: High hardness custom sponge and 5 layers of corrugated cartons for protection.

Frequently Asked Questions

What should be done before assembling the DIY battery pack?

DIY battery packs must have the cells balanced (same voltage) before assembly. Professionals detect voltage, resistance, and appearance issues before every shipment to ensure each cell is functional.

What happens if the product is missing or damaged during shipping?

Please contact us first and provide pictures or videos for verification. If the battery is damaged or unusable, we will communicate options for resending, replacement, or refunding the product cost.

Are the batteries tested prior to shipping?

Yes, we conduct capacity tests (less than 2% margin of error), voltage tests (deviation less than 0.01V), and resistance tests (deviation less than 0.05mΩ).

Do the batteries come with busbars and bolts?

Yes, the cells come with free busbars and bolts or studs. Each battery typically includes 1 piece of busbar and 2 pieces of bolts/studs.

Under what situations are returns or refunds not provided?

Returns are not accepted for problems occurring during or after assembly, such as connecting wires incorrectly, BMS failures, or damage caused by charging without protection. Batteries must be unused and intact for returns.

How can I place an order for Ready to Ship (RTS) products?

You can place trade assurance orders online. For RTS products with clear shipping costs, you can complete the payment directly. Alternatively, provide your shipping information to sales to create an online order.
