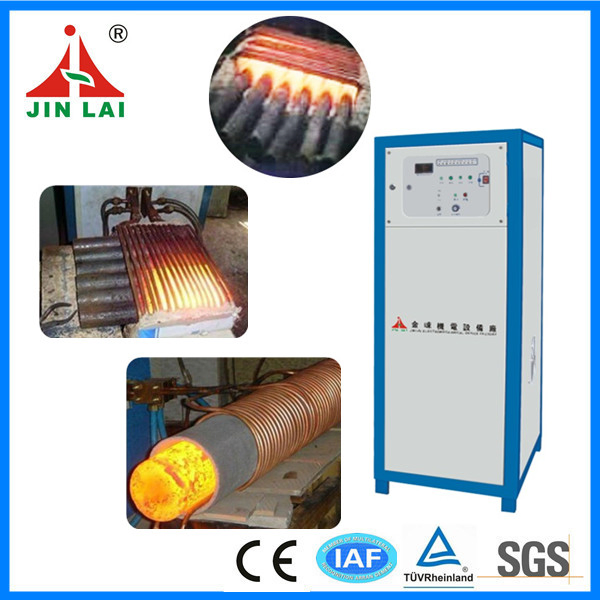

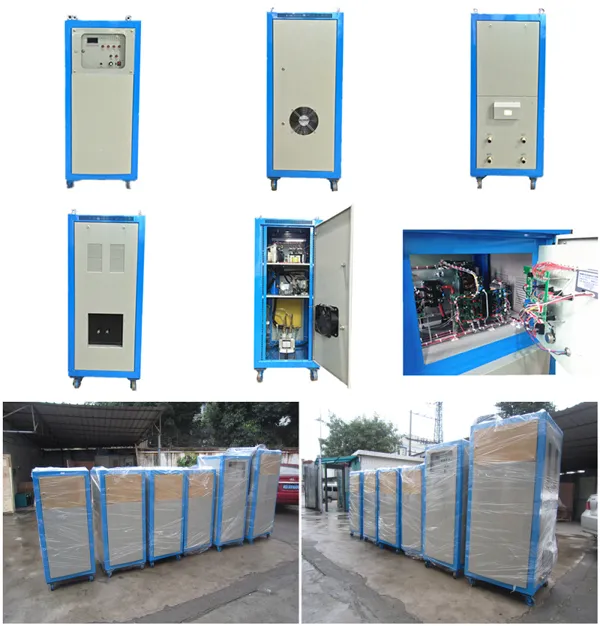

| Parameter | Specification |
|---|---|

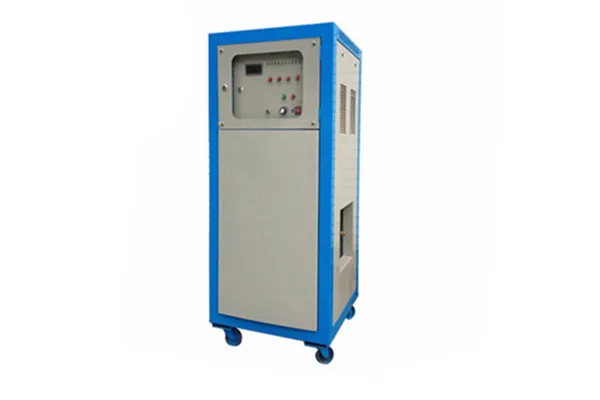

| Model | JLZ-160KW |
| Input Power | 3 phase 380V 50/60HZ |
| Capacity | 160KVA |
| Max Input Current | 240A |
| Output Current | 30-320A |
| Output Voltage | 70-550V |
| Oscillate Frequency | 0.5-10KHZ |
| Duty Cycle | 100% (40°C) |
| Net Weight | 200kg |

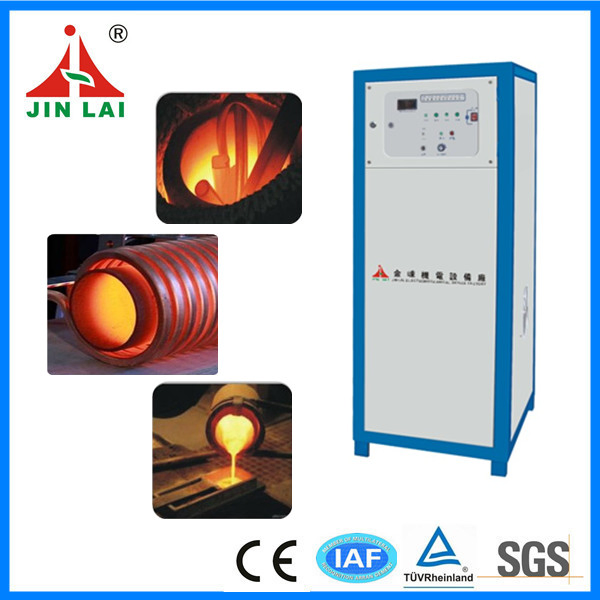

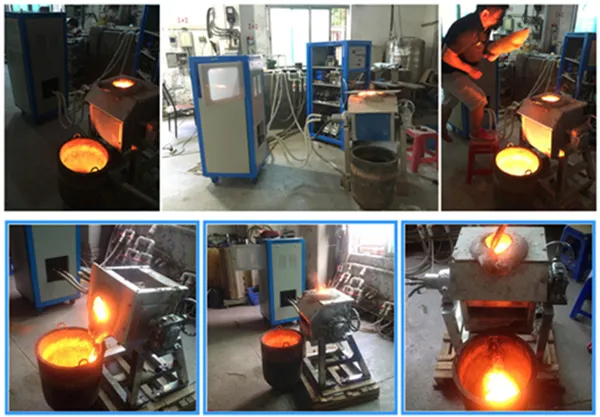

1. Melting: Used for Cast iron, Alloy steel, Gold, Silver, Copper, Brass, Aluminum, and Zinc.

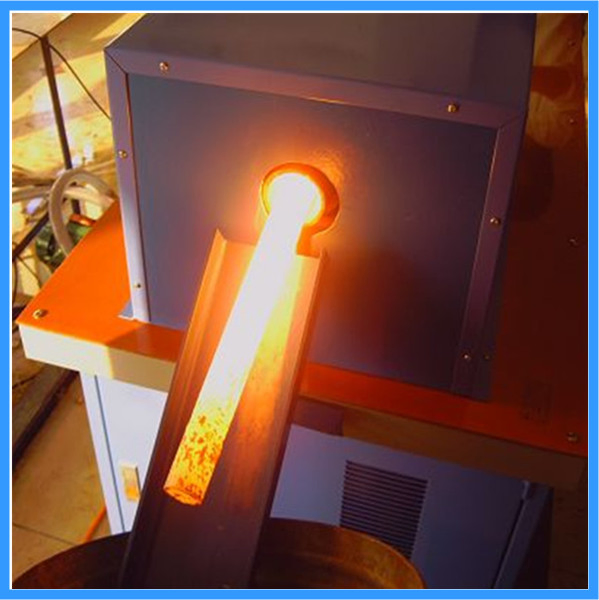

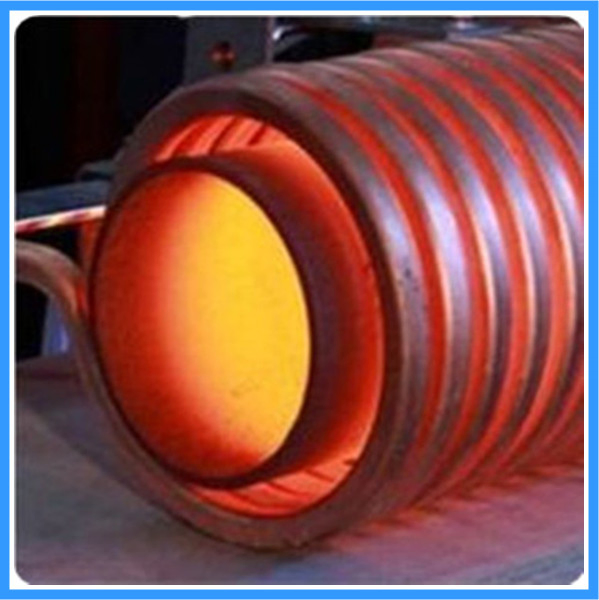

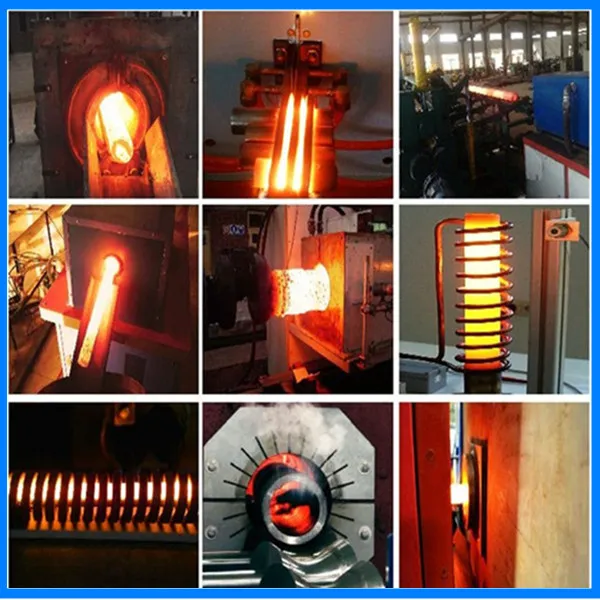

2. Forging Molding: Suitable for bars and rods larger than Φ12, including fasteners, hardware tools, and auto accessories.
| Model | Steel (to 1100°C) | Copper (to 700°C) | Aluminium (to 500°C) |
|---|---|---|---|
| JLZ-35 | 1.25 KG/min | 1.75 KG/min | 1.46 KG/min |
| JLZ-70 | 2.5 KG/min | 3.5 KG/min | 2.92 KG/min |
| JLZ-110 | 4.17 KG/min | 5.83 KG/min | 4.58 KG/min |
| JLZ-160 | 5.83 KG/min | ------- | 6.67 KG/min |
