Aluminum composite panel is composed of multi-layer composite materials. The above and below layers are high purity aluminum alloy sheets, between which is non-toxic low density PE core board, and with protective layer on the above shape. Normally KYNAR500 PVDF adopted for the surface coating for outdoor and PE coated for indoor.

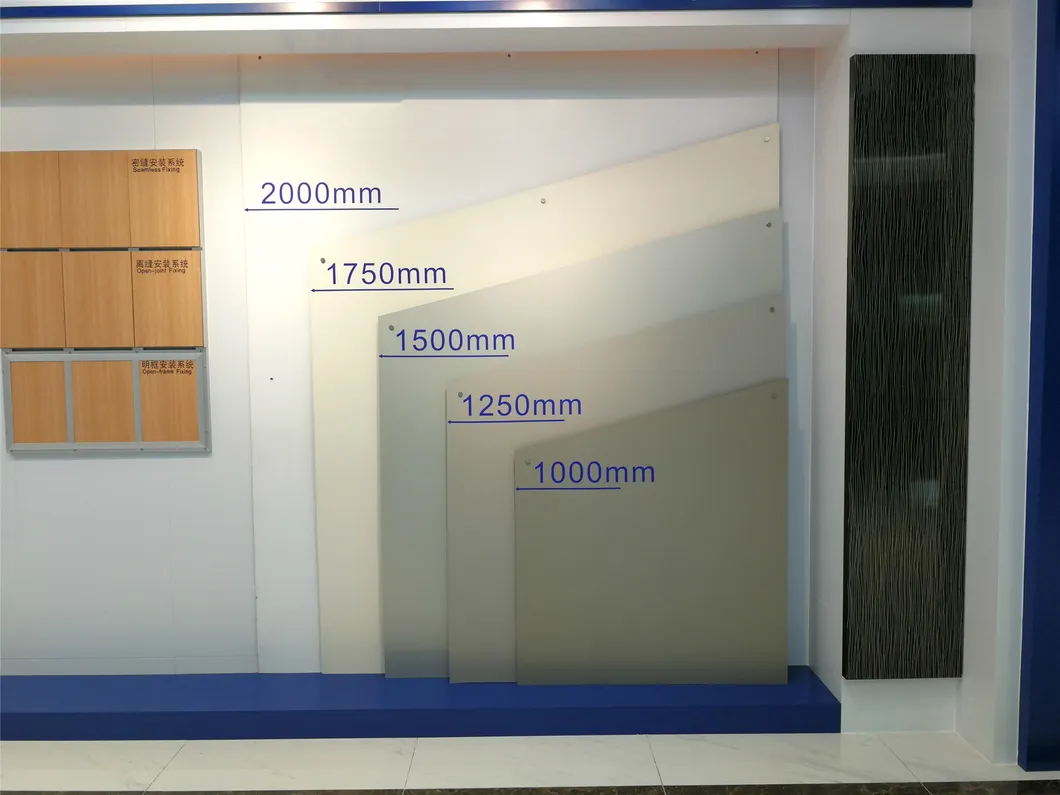

| Width | 1000mm, 1220mm, 1250mm, 1500mm, 1550mm, 1570mm, 2030mm / As per order |
| Length | 2440mm, 3200mm, 4000mm, 5000mm, 5800mm / As per order |
| Total Thickness | 2mm, 3mm, 4mm, 5mm, 6mm |
| Alu. Skin Thickness | 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm / As per order |
| Inner Core | Nontoxic PE core, Half unbreakable, Unbreakable, Virgin LDPE, FR Core |

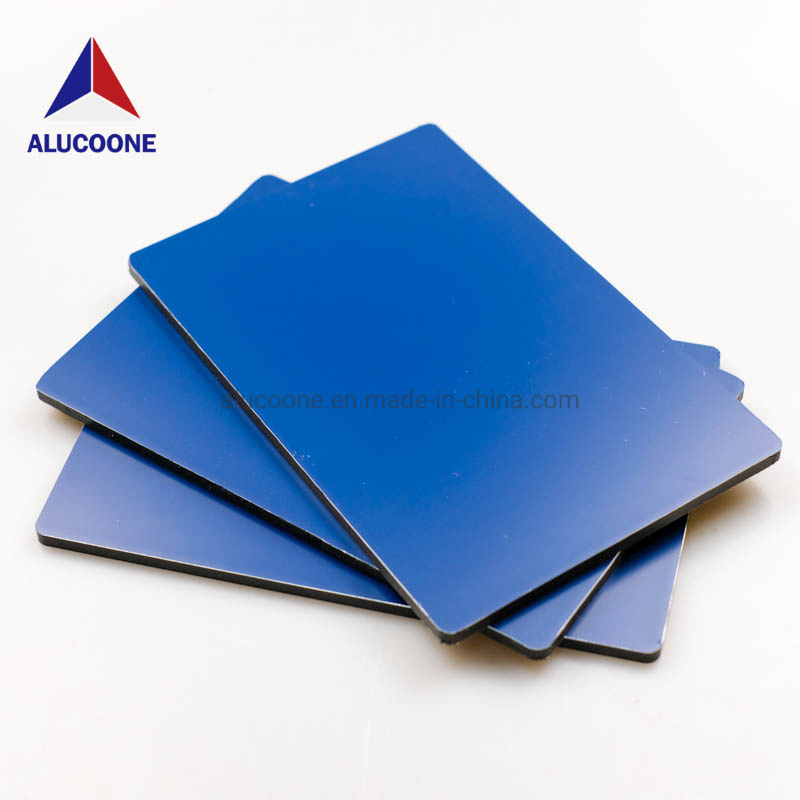

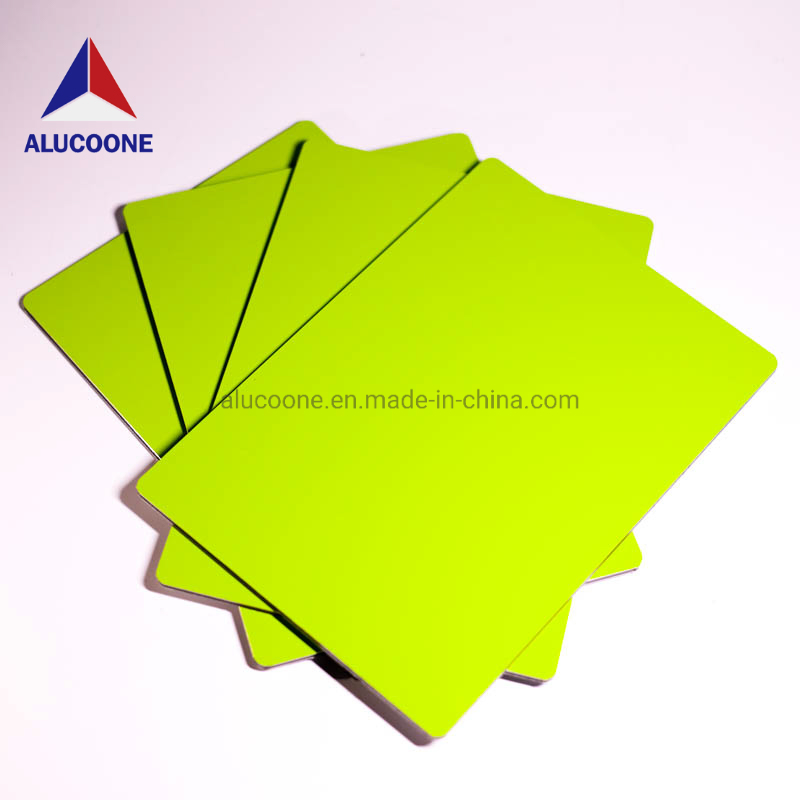

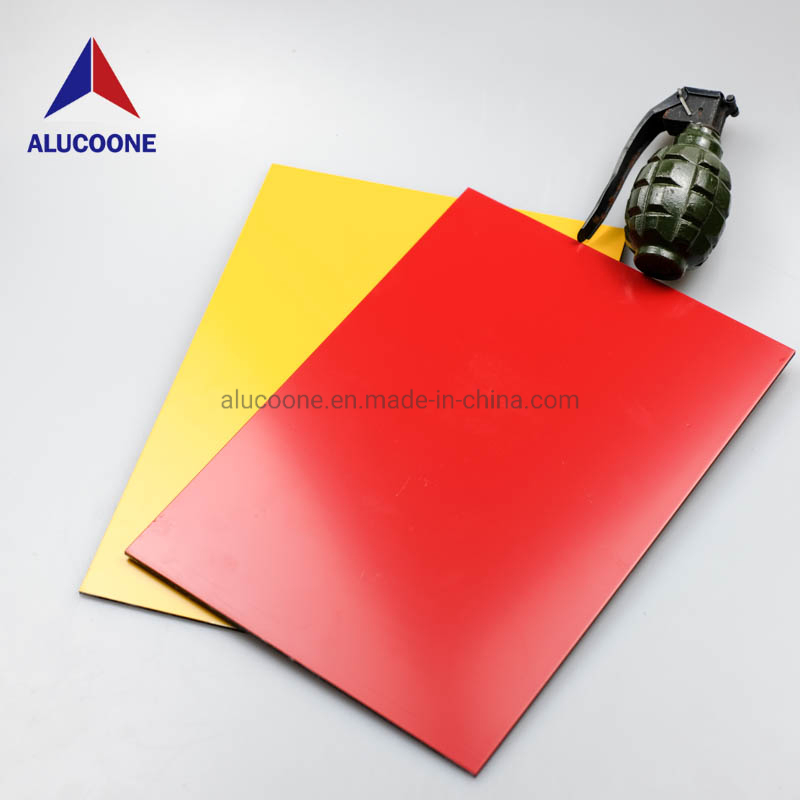

| Color & Finish | Solid color, metallic color, brush color, mirror, marble, wooden color, glossy, etc. |
| Coatings | PE, PVDF, NANO |
| OEM / ODM | Acceptable |
*Colors could be custom-made; Normally PE coating for indoor use, PVDF coating for outdoor use.
PE (Polyester) Coating: High molecular polymer as monomer and addition of alkyd, is a UV-resistant coating. With a Warranty of 8-10 years, it is specially applied for internal decoration and signboards.
Special Colors Coating:
• Brushed Panel: Natural aluminum appearance, modern and elegant.

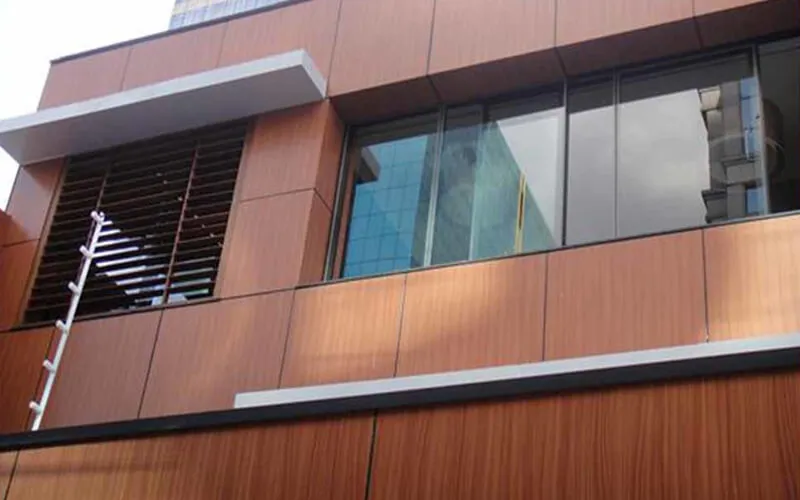

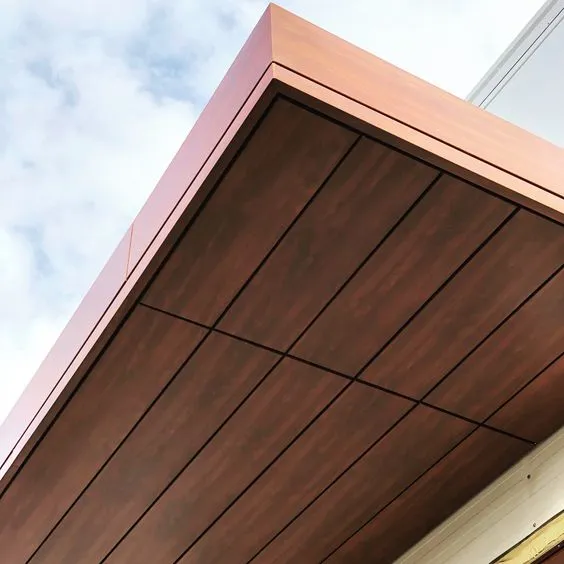

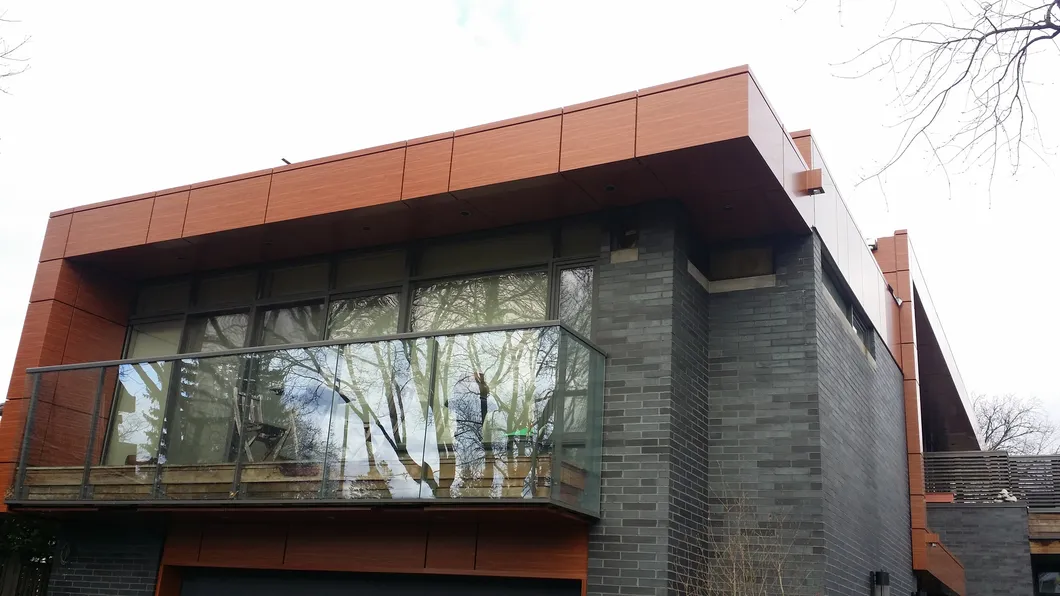

• Wooden and Stone Panel: Processed by film-sticking or Roller Coating for high weather resistance.
• Mirror Finish Panel: Anodic oxidation finishing makes the surface like a mirror.

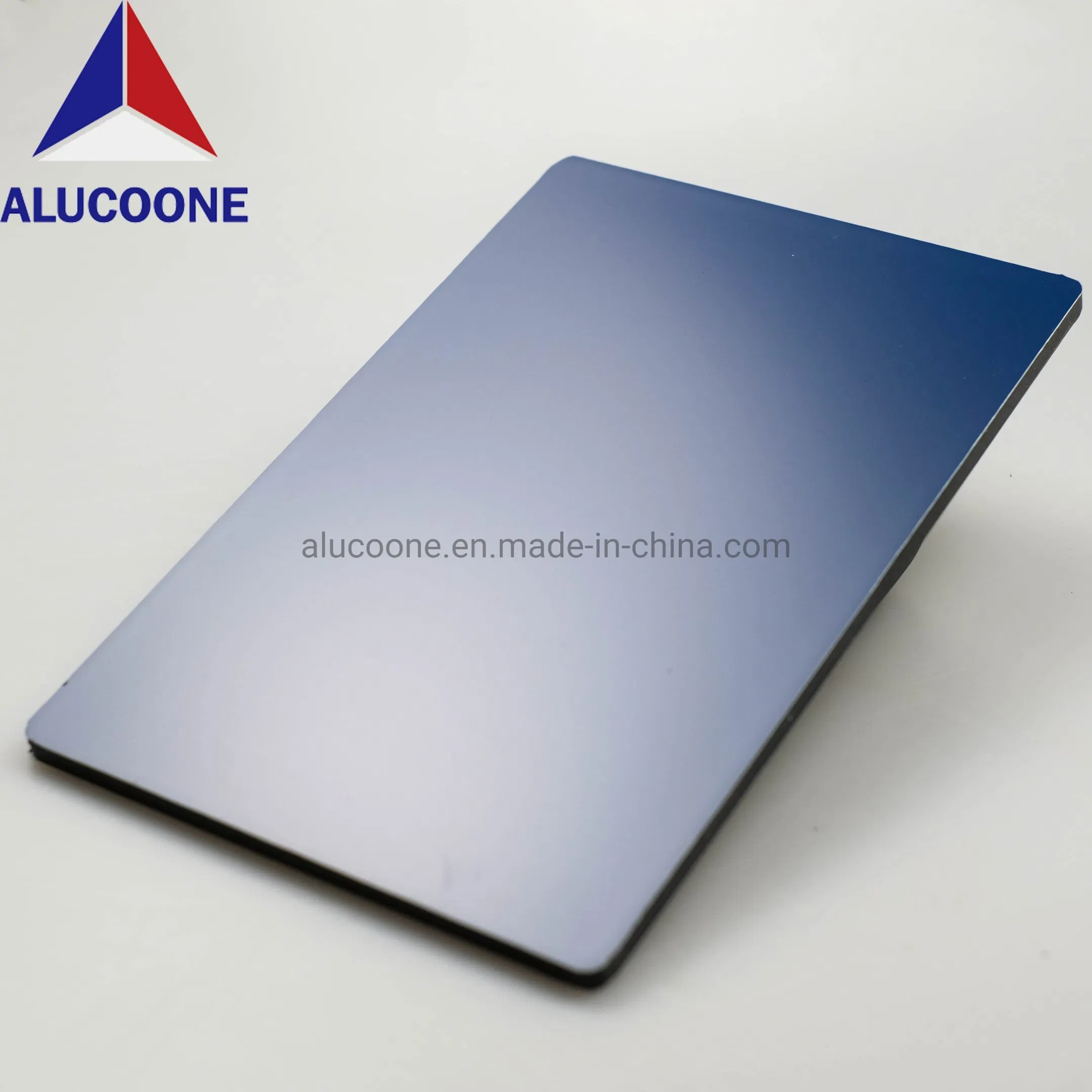

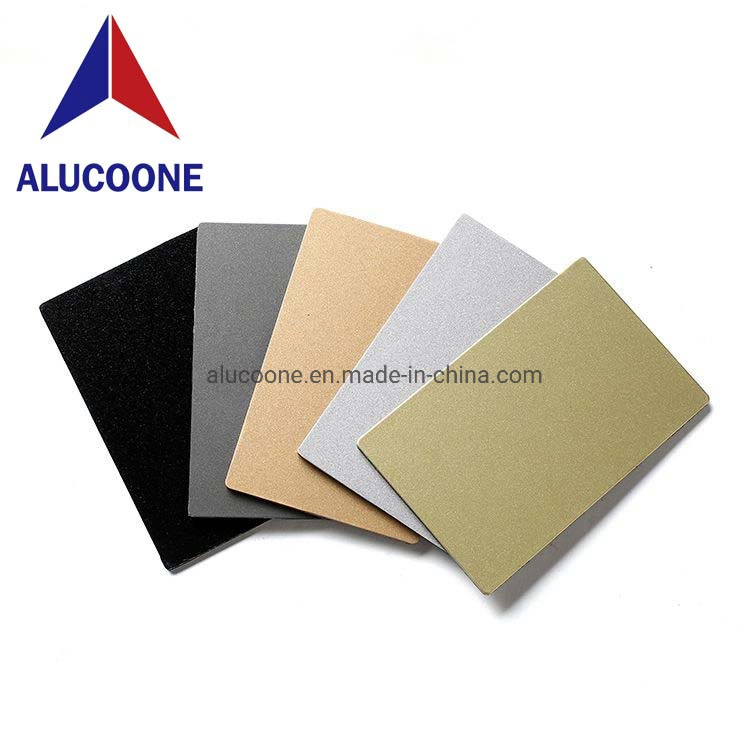

Metallic & Special Effect Colors: The different appearance of color and gloss under various light conditions gives these surfaces a vivid impression. Gloss ranges from 30% to 80% depending on the coating layer.
