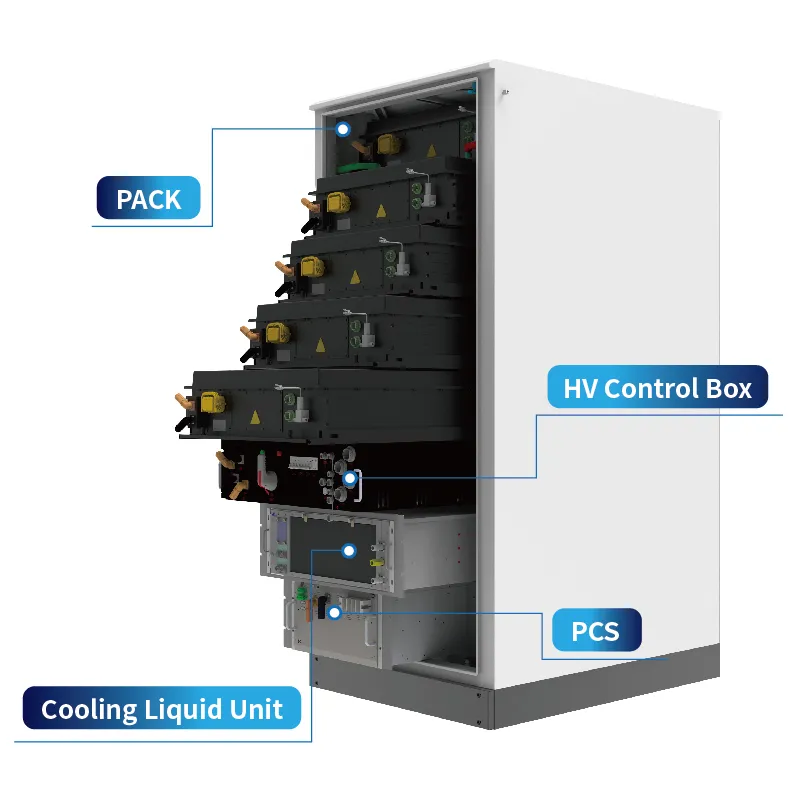

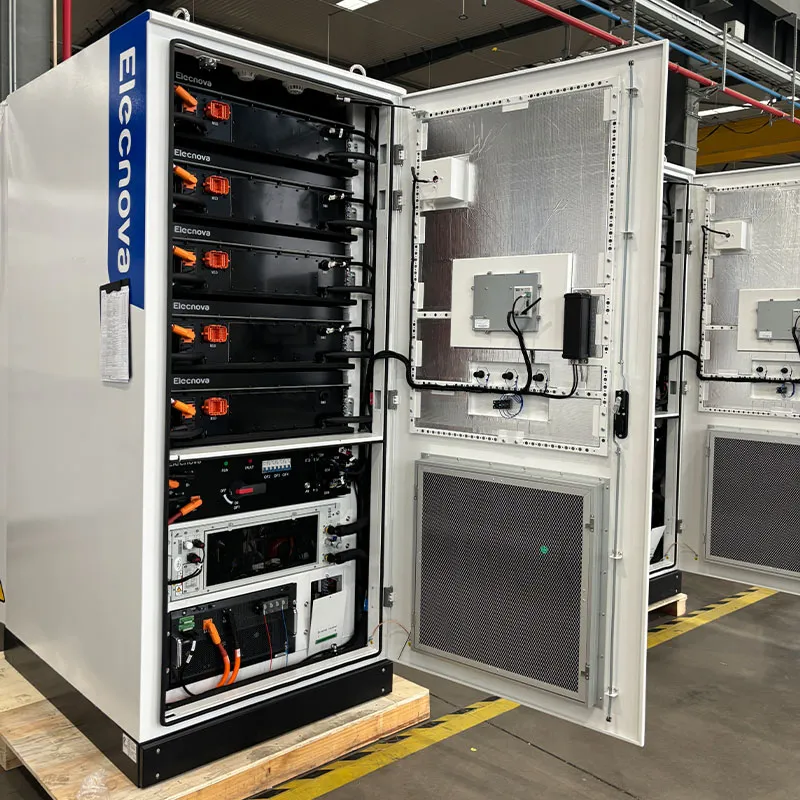

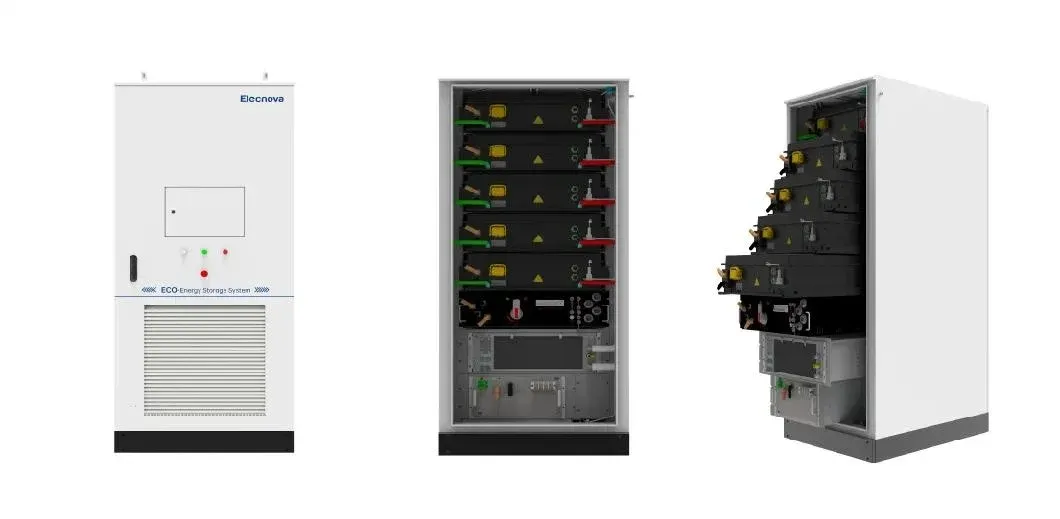

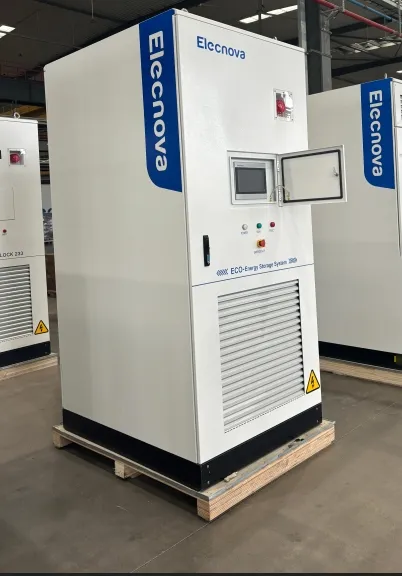

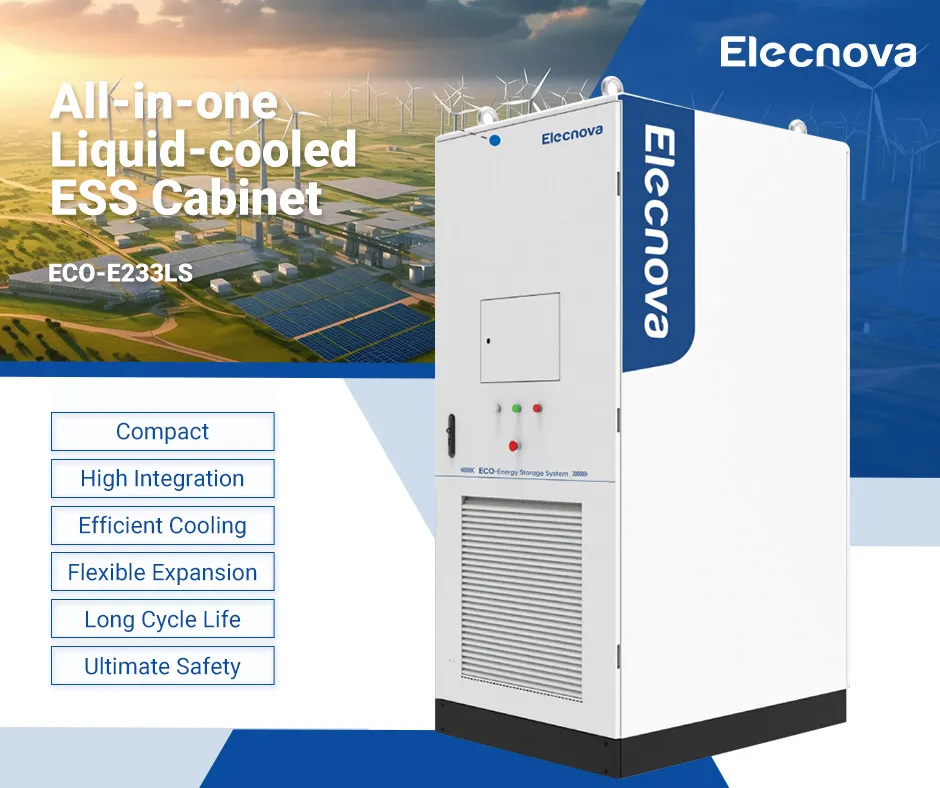

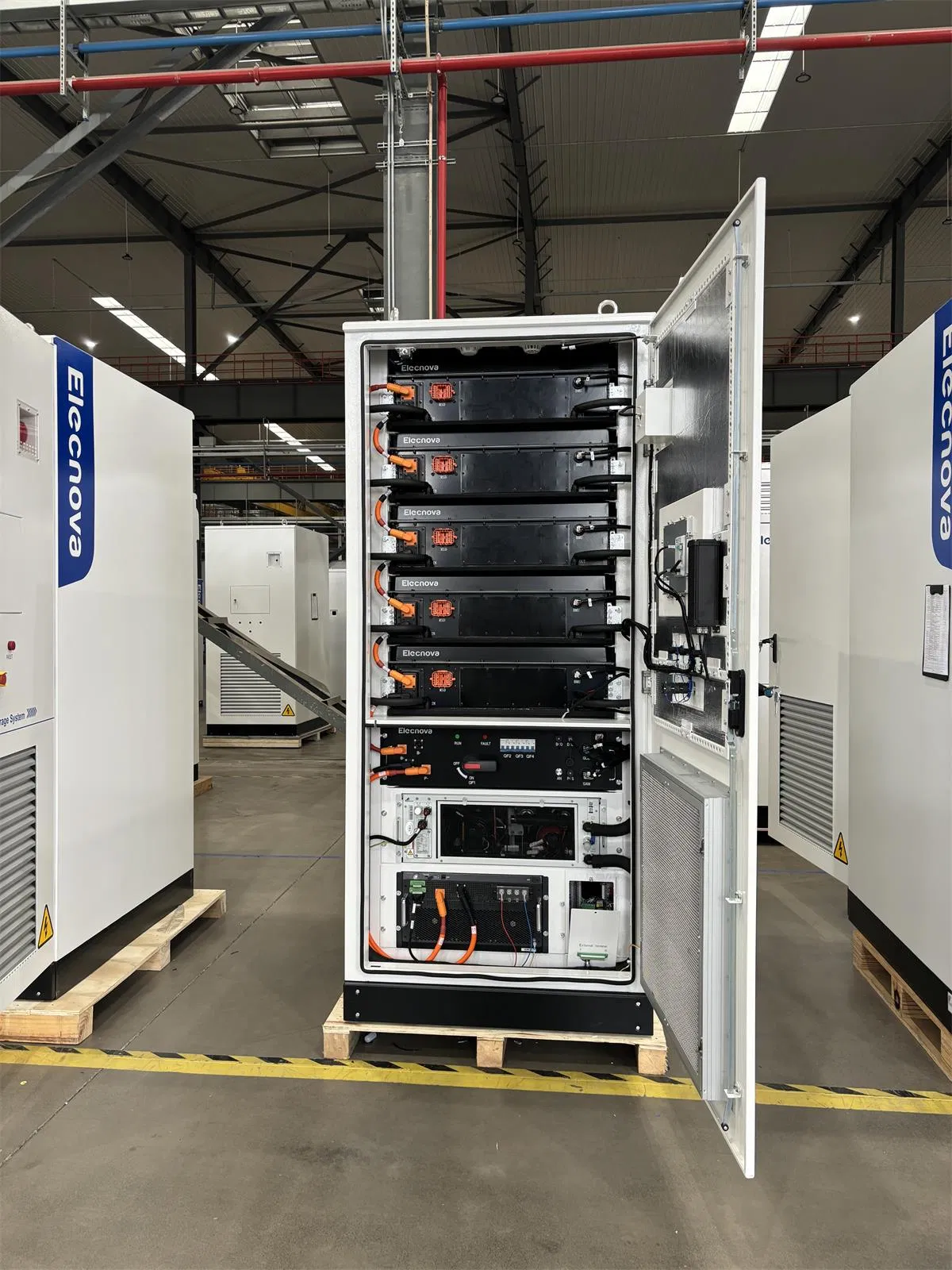

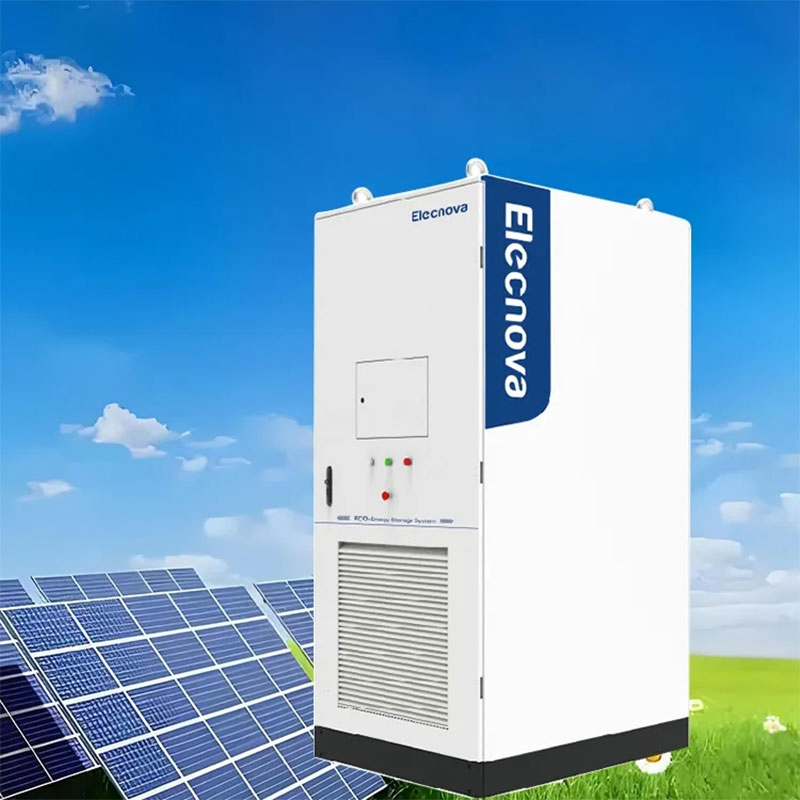

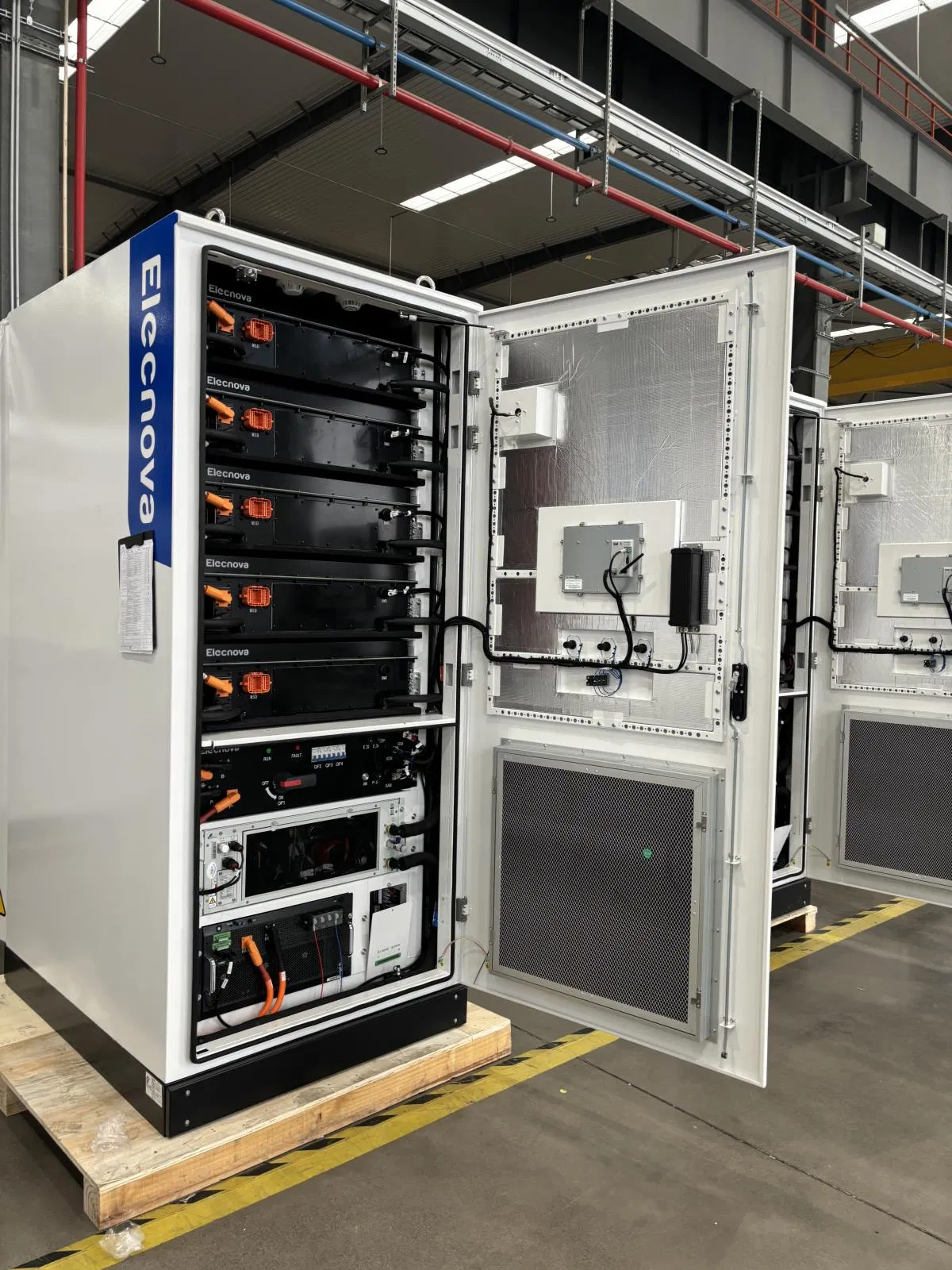

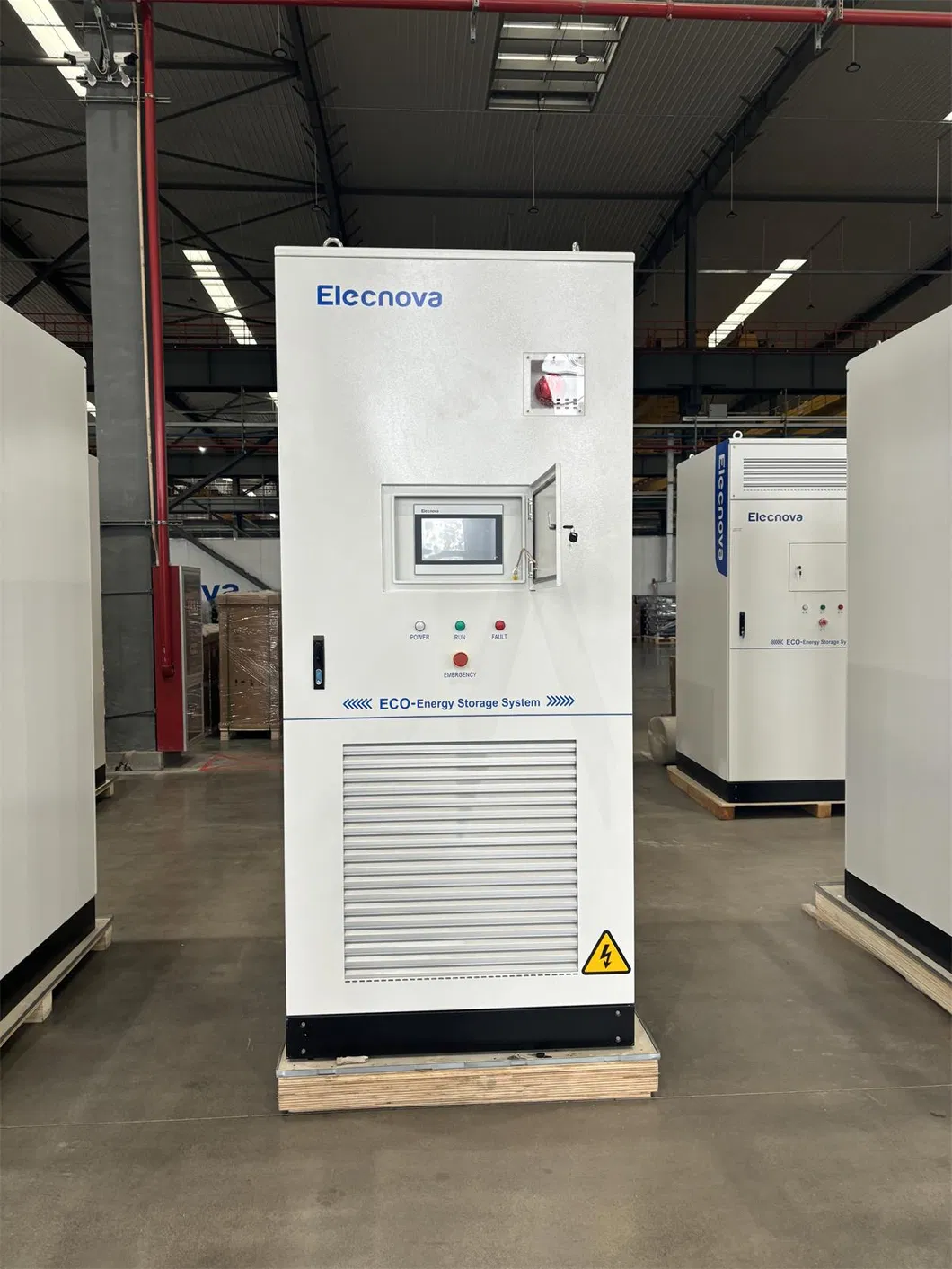

The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

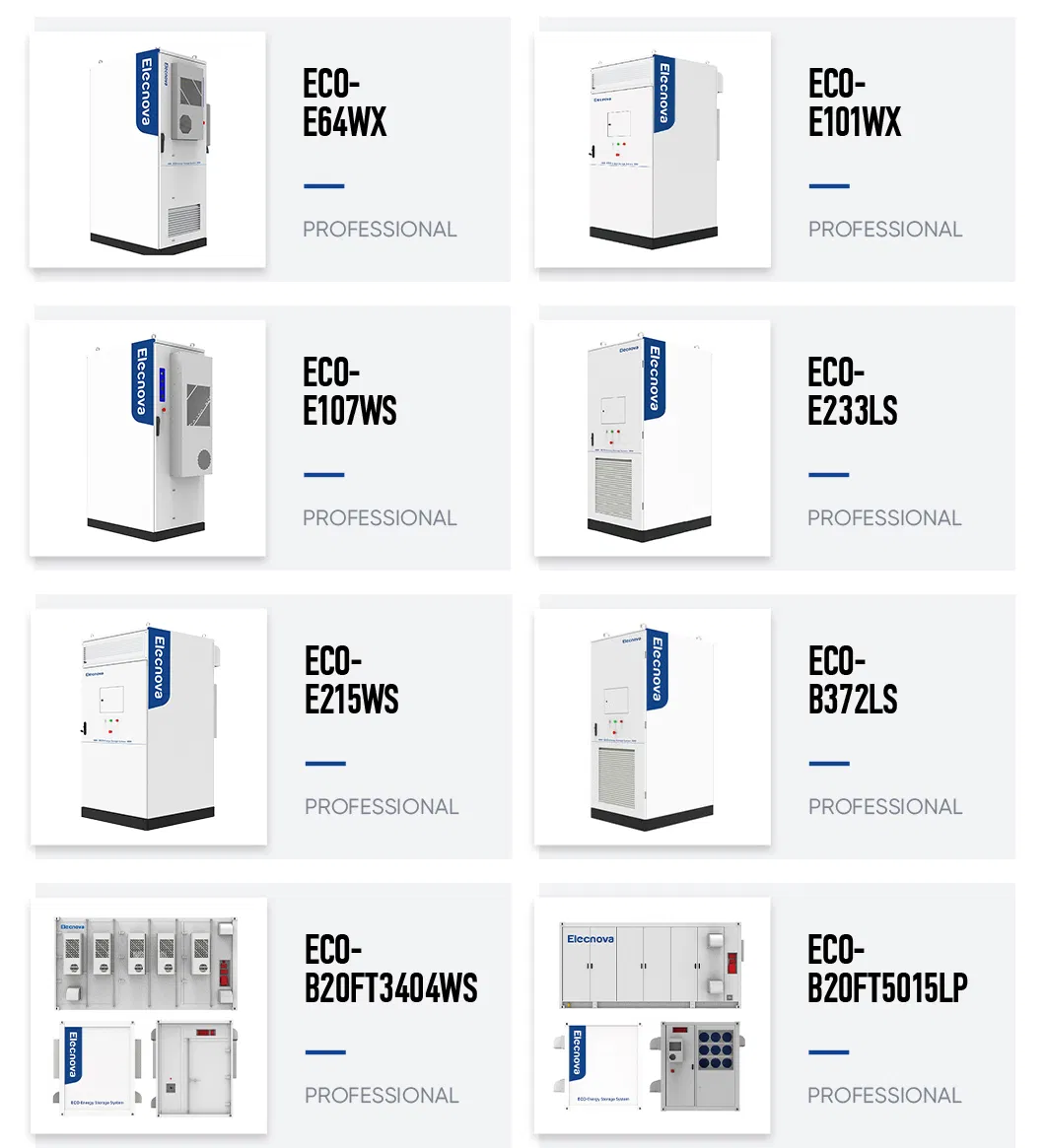

| Parameter | ECO-E215WS | ECO-E233LS | ECO-E101WX |
|---|---|---|---|
| DC Side | |||
| Cell Type | LFP 280Ah | LFP 120Ah | |
| Battery System | 215kWh | 232.96kWh | 101kWh |
| Voltage Range | 672~864Vdc | 728~936Vdc | 739.2V~950.4V |
| AC Side | |||
| Rated Power | 100kW | ||
| Nominal Voltage | 400Vac/3P+N+PE | ||
| General | |||
| Cycle Life | ≥8,000 times | ≥5,500 cycles | |
| Cooling | Forced air | Active liquid cooling | Forced air |
| Ingress Rating | IP55 | ||
| Dimensions (mm) | 1250*1300*2400 | 1050*1350*2400 | 1250*1200*2150 |

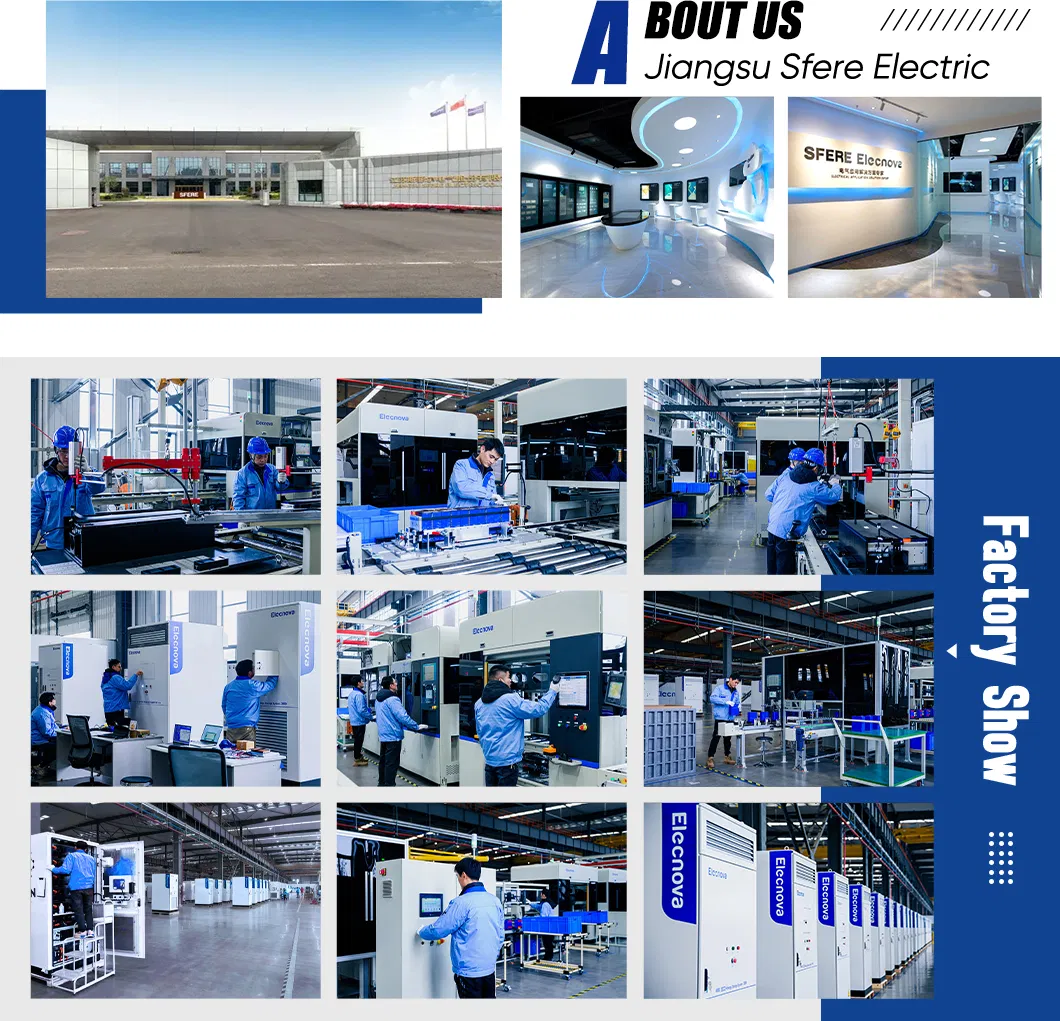

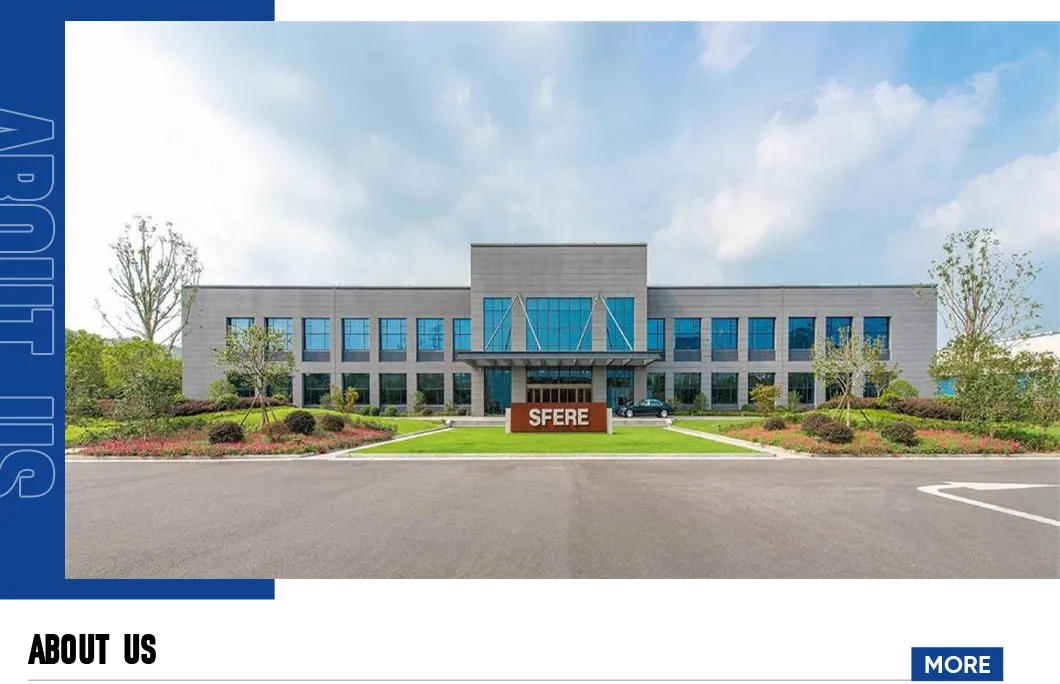

Our company integrates R&D, manufacturing, sales and service, maintaining a complete product ecosystem from smart terminal components to Internet of Things platforms. Our electrical application solutions empower users with intelligent and digital energy management, providing reliable data services for energy saving, safety, and refined management.
We specialize in three series: power monitoring systems, power quality mitigation products, electrical components, and energy storage systems (ESS). With over a decade of experience, we have obtained 122 invention and utility model patents and 42 software copyrights.
We possess overall supporting capabilities for system integration of PACK, PCS, and BESS, aiming to meet diversified energy requirements across power generation, grid-side, and user-side scenarios.
