| Model Type | Woven Fabric Insulation |
|---|---|
| Transparency | Opaque |
| Reflectivity | 97% |
| Material Feature | Metallized Aluminum Woven Fabric |
| Width | ≤2000mm |
| Length | 1000m - 6000m |
| Thickness | 7 - 50 Mic |
| Color Options | Silver, Blue, Green |
| Usage | Building Insulation / House Wrapping |
| Capacity | 1,000,000 Square Meters Per Day |

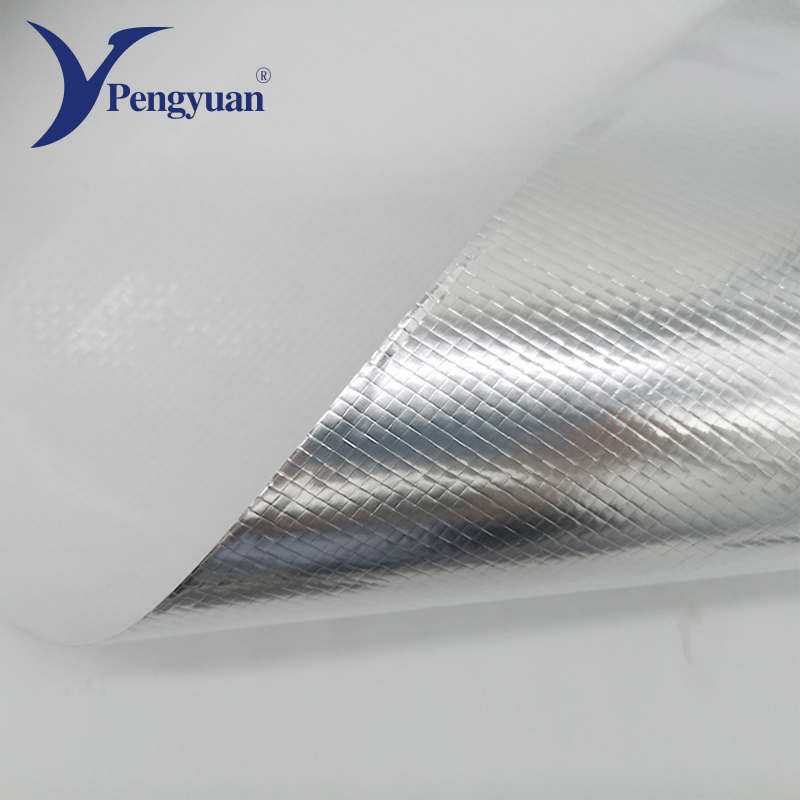

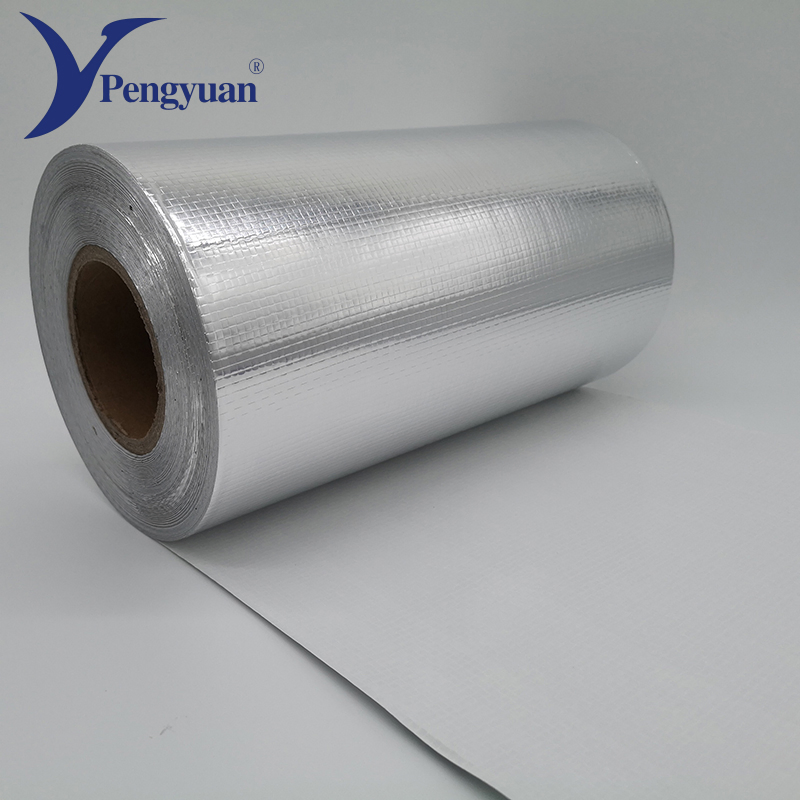

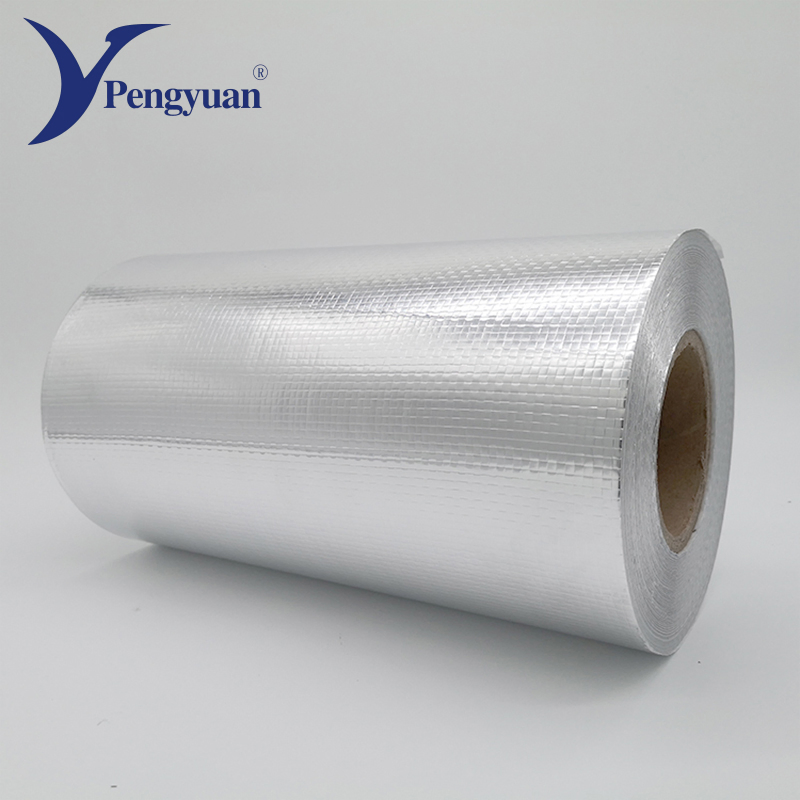

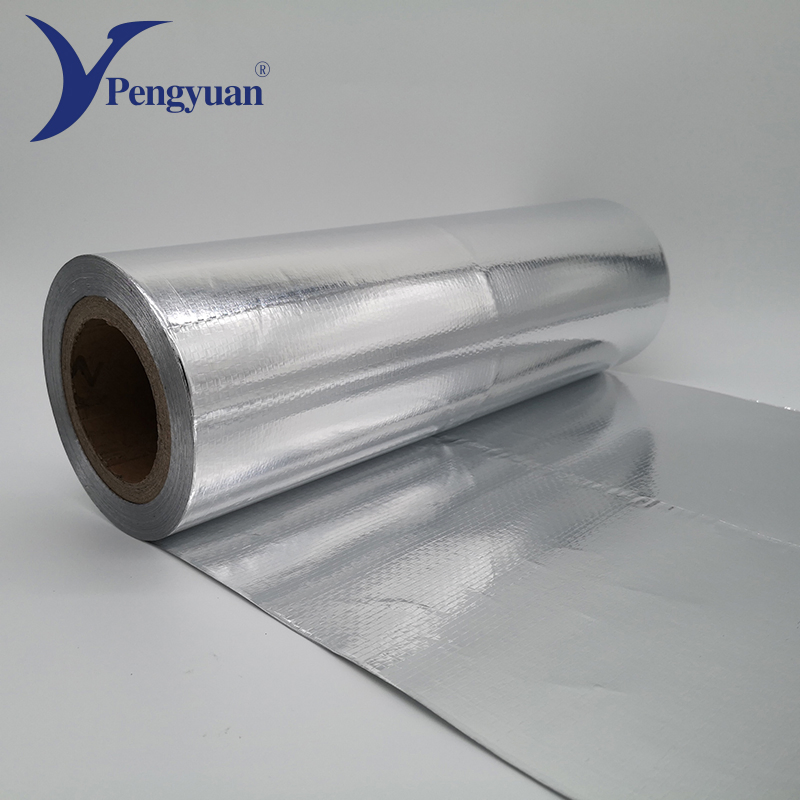

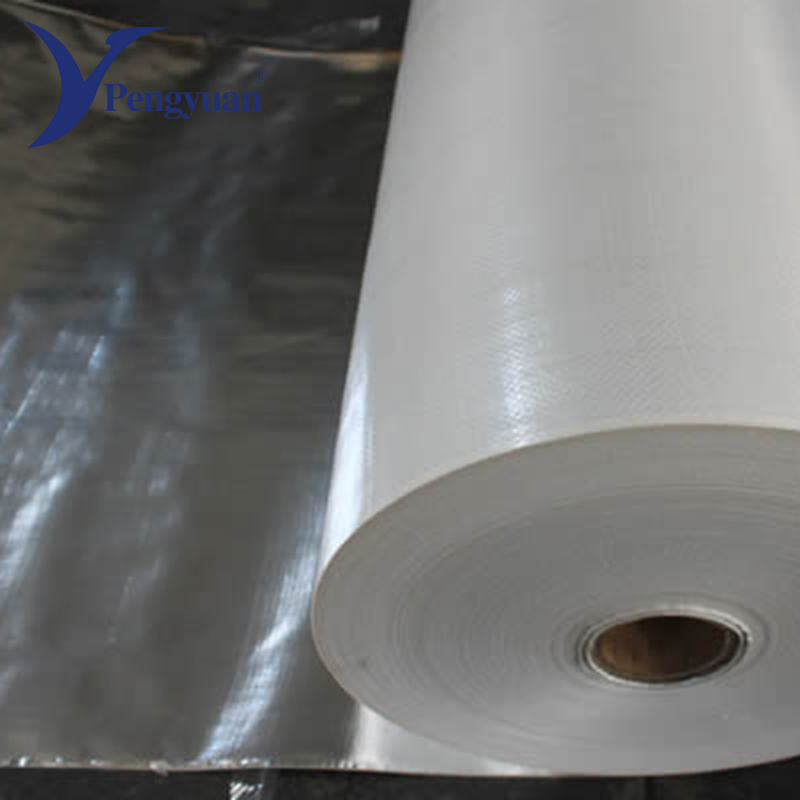

Aluminum Foil Woven Fabric Radiant Barrier is a high-performance material designed to minimize the transmission of radiant energy. This innovative product is constructed from double-sided metalized aluminum laminated with high-strength woven fabric.
By technical definition, the emissivity of this radiant barrier is approximately 0.1, meaning it effectively blocks about 90% of the radiant energy emitted by hot roofing materials. When installed in residential attics or industrial roofs, it maintains a significantly cooler environment, reducing the need for air conditioning and enhancing energy efficiency.
| Material Structure | Aluminum Foil / Woven Fabric |
|---|---|

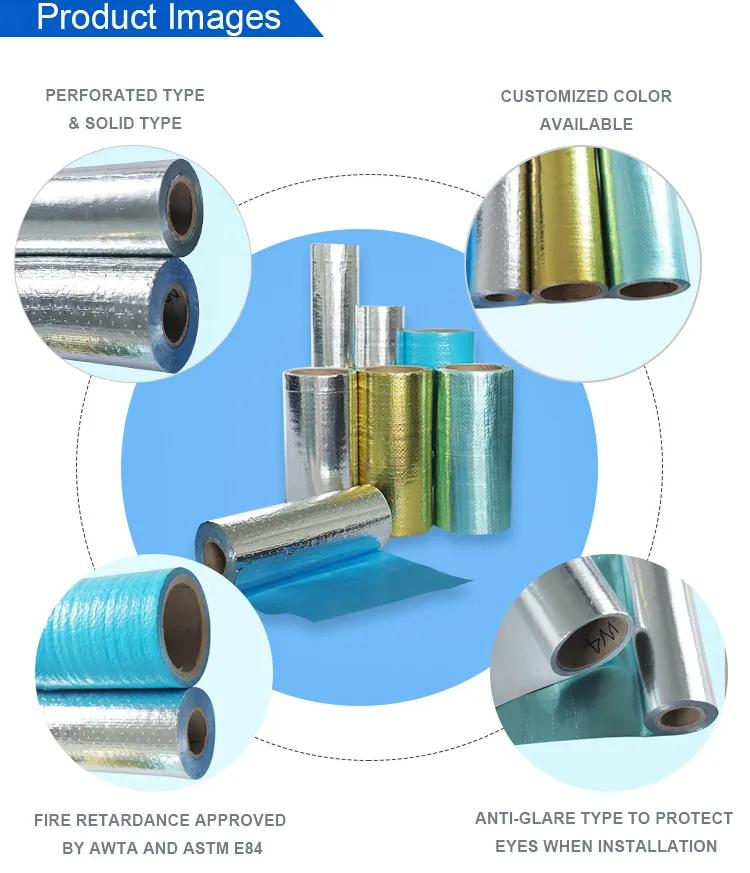

| Barrier Type | Solid or Perforated |
| Aluminum Thickness | 7um, 10um, 12um or Customized |
| Standard Widths | 1m, 1.2m, 1.22m, 1.5m |
| Overall Thickness | 0.13mm or 5 mic |

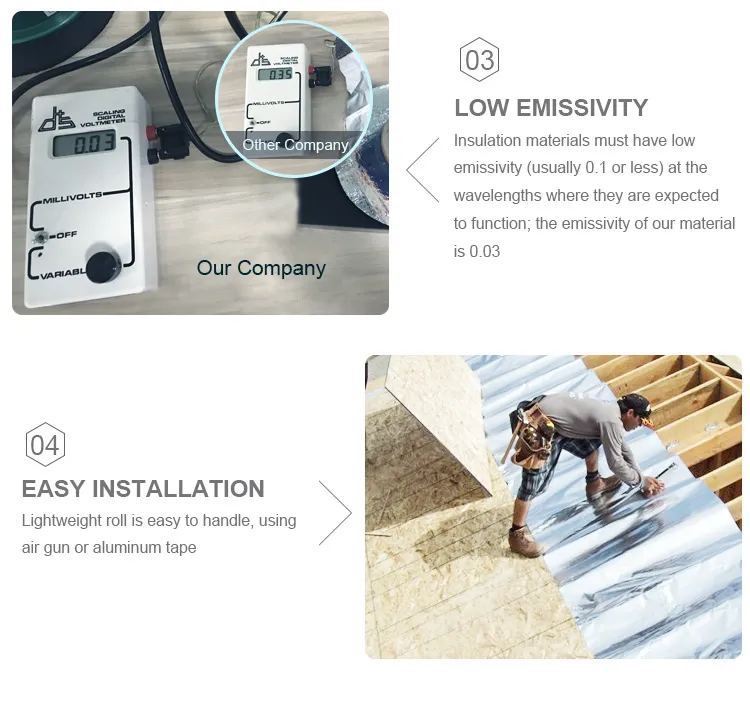

| Emissivity | 0.1 |
| Water Vapor Performance | 0.013 g/m2kpa |
| Fire Rating | Class A |
| Temperature Range | -50ºC to 80ºC |
Standard packaging involves film wrap followed by palletizing to ensure material integrity during long-distance transport.
