HYBO Energy
HYBO Energy

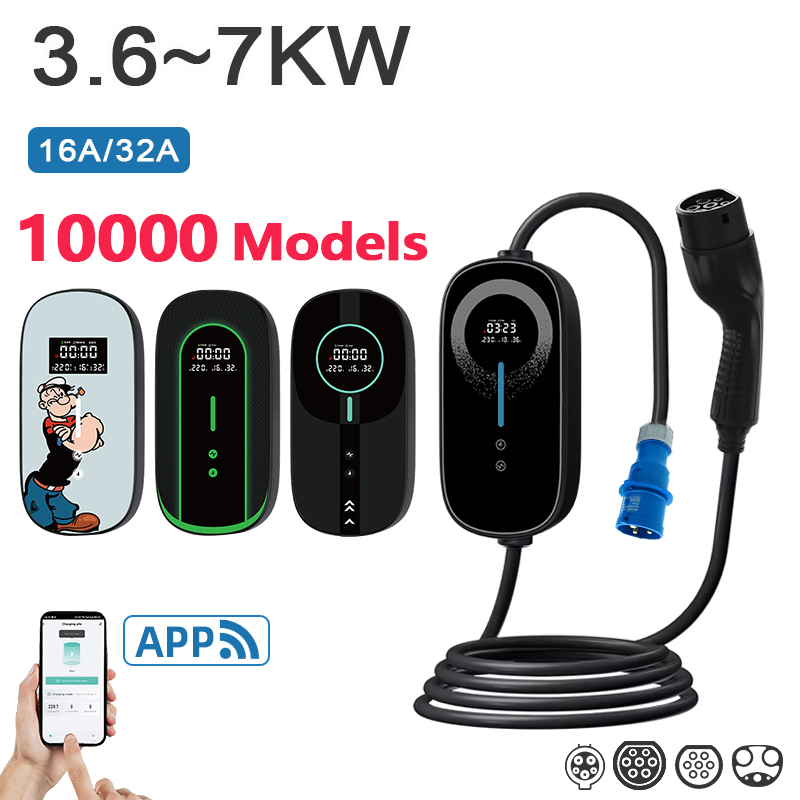

| Model NO. | QD07 |
| Installation | Wall Mounted / Portable |

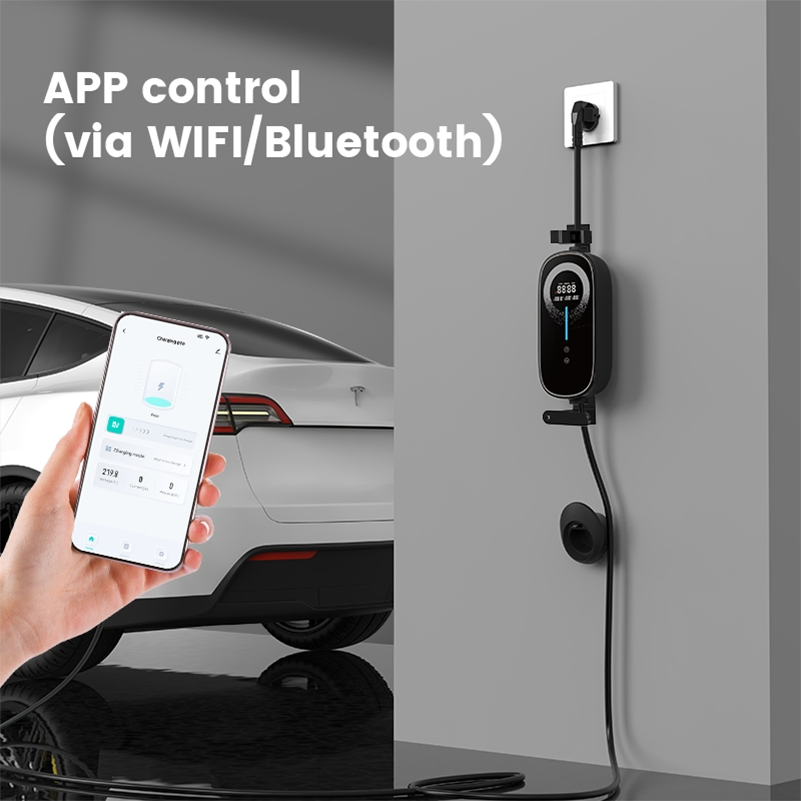

| Start Mode | APP Control, Remote Control, Plug and Charge |
| Adjust The Current | 8-10-13-16-32A |
| Rated Voltage | 110V/230V±10% |
| IP Grade | IP65 |
| IK Grade | IK10 |
| Cable Length | 5 Meters / OEM |
| Standard | IEC 62196 / GBT 18487 / SAE J1772 / NACS |
Adjust Current: Press and hold for 3 seconds (8A-32A).
Scheduled Charging: Double press for 3 seconds to set (0-12H delay).

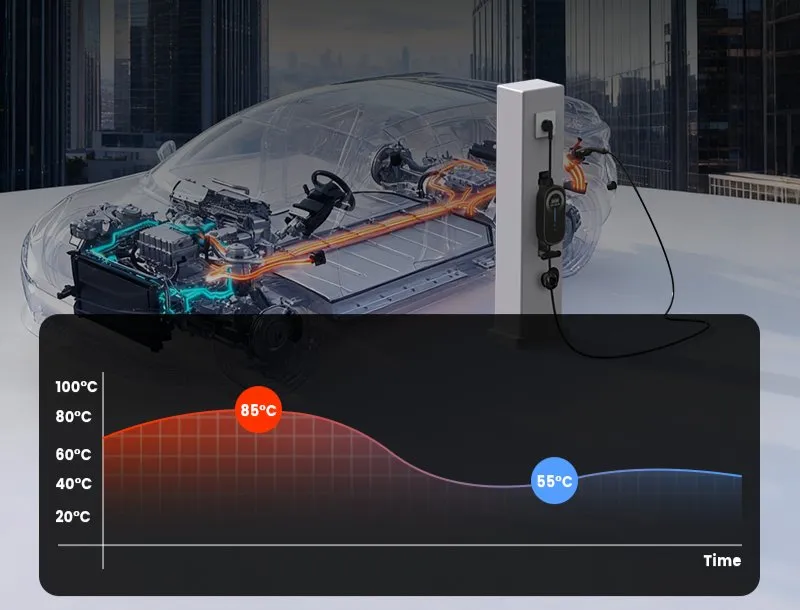

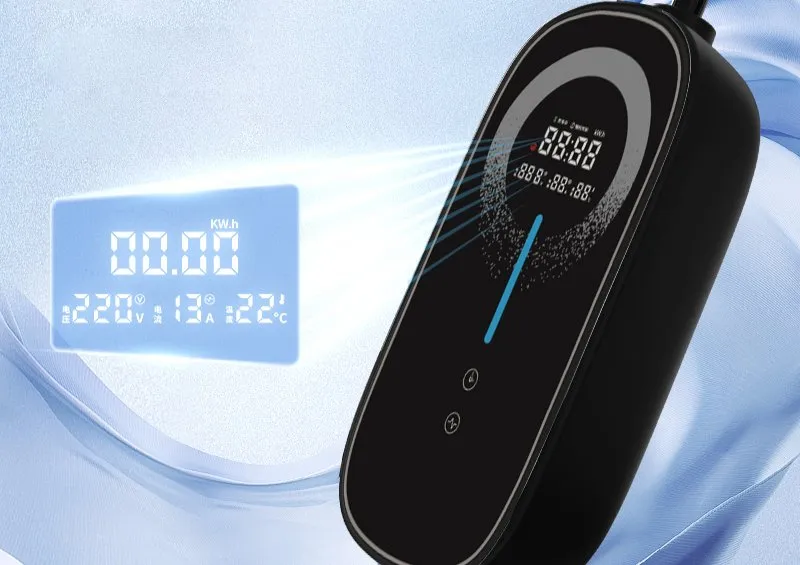

LED Screen: Monitors real-time electricity (kw/h), duration (H), current (A), voltage (V), and temperature (°C).

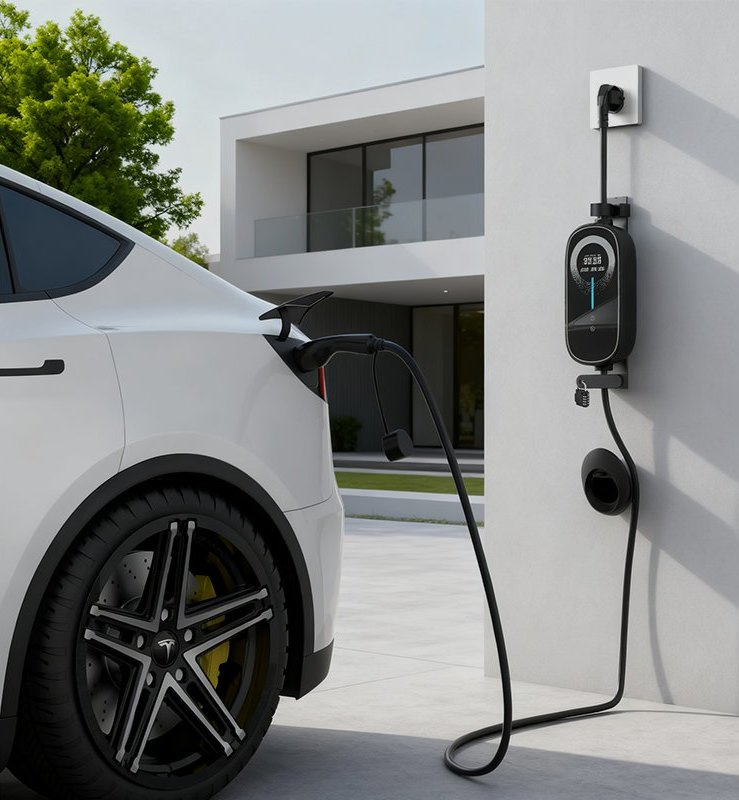

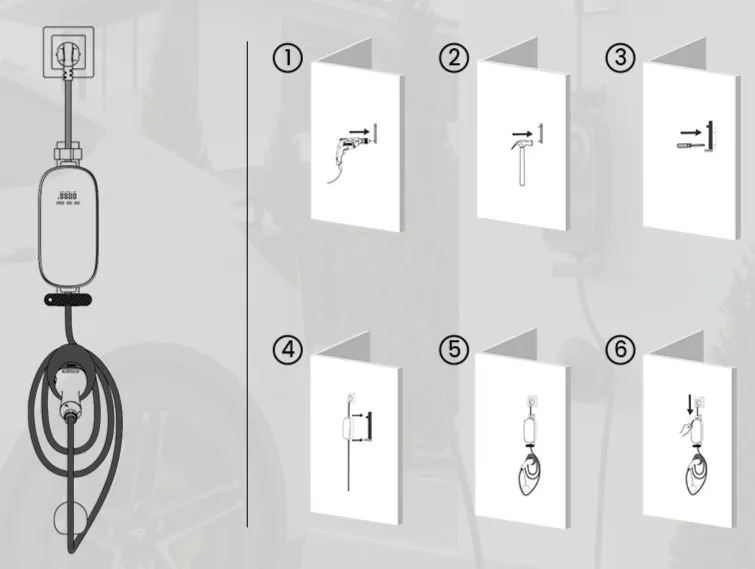

Wall-mounted Mode

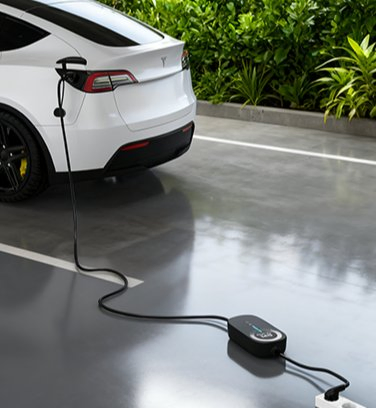

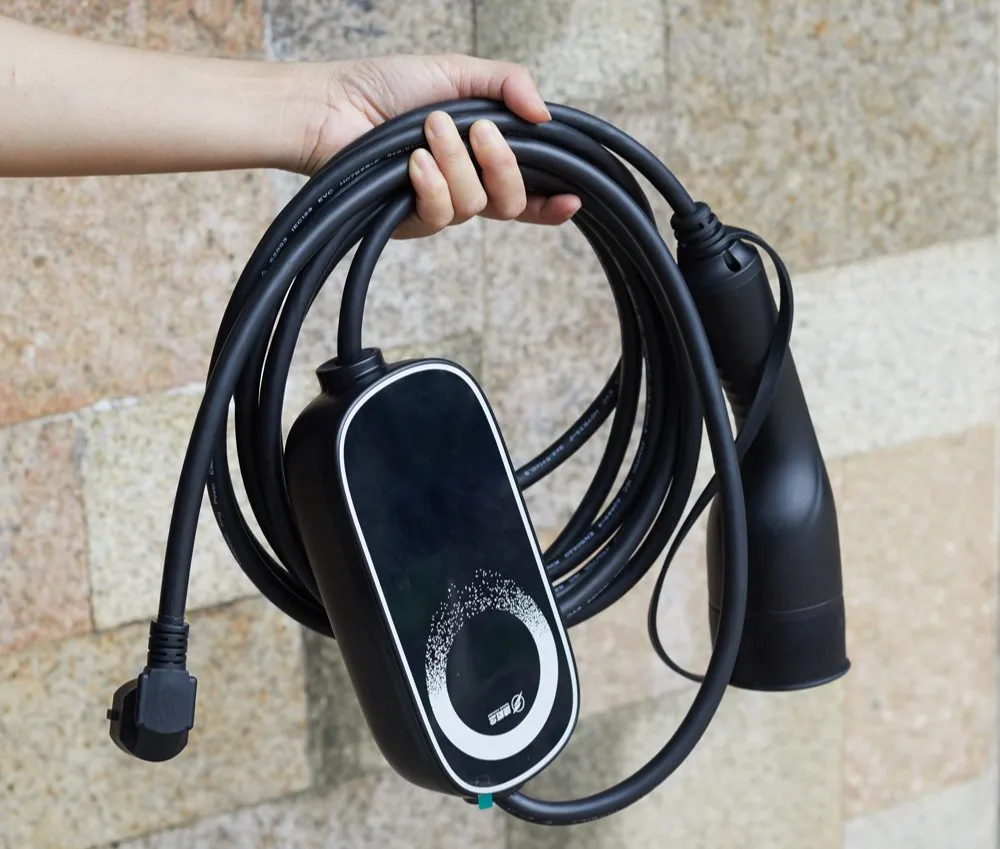

Portable Mode
| Electrical Specification | |
|---|---|
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Power | 3.5kW / 7kW |
| Frequency | 47~63Hz |
| Interface Type | IEC 62196-2, SAE J1772, GB/T 18487, NACS |

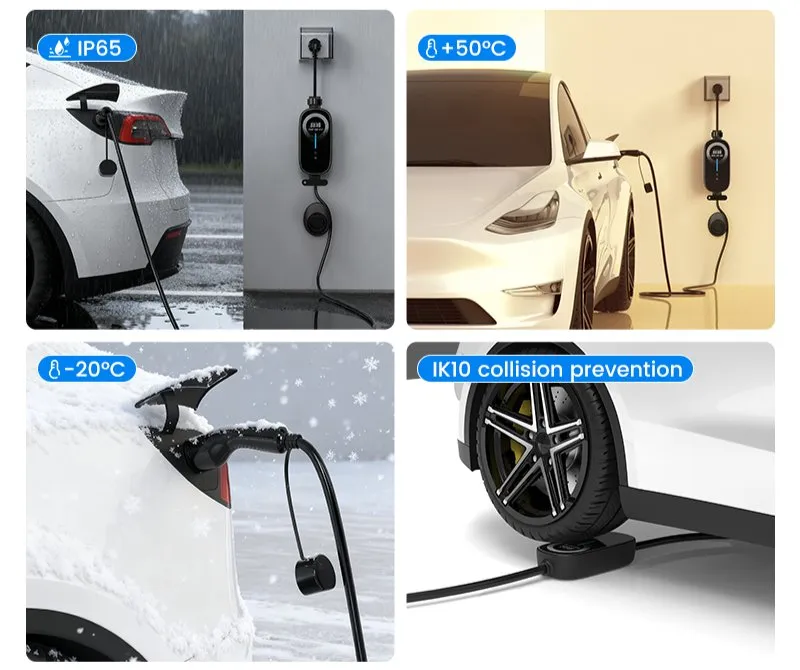

| Protection & Environment | |
| RCD | Type A 30mA AC + 6mA DC |
| Working Temp | -20ºC ~ +50ºC |
| Protection | IP65 / IK10 |
| Certificates | CE, FCC, ISO9001, CCC, ROHS, UKCA |

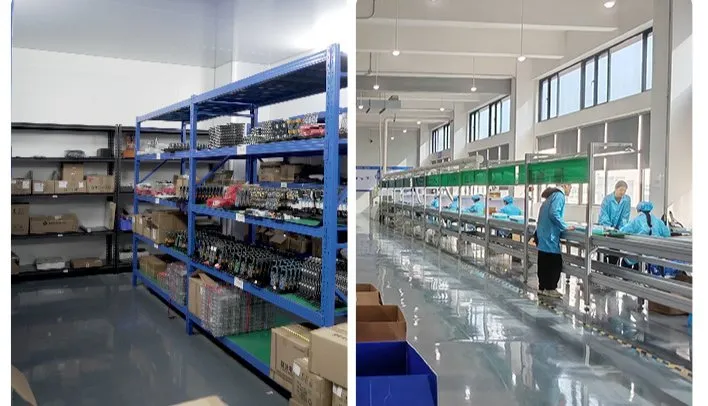

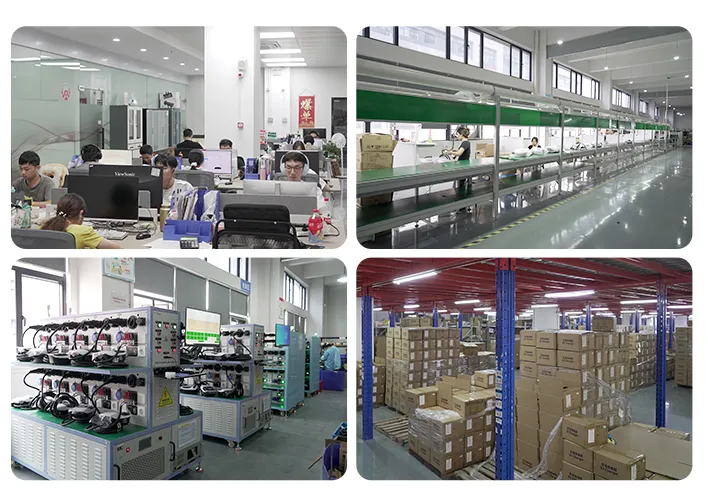

We are a high-tech enterprise focusing on R&D, production, and sales of NEV charging equipment including EV charger stations, portable chargers, and V2L adapters. With a 4,400+ square meter factory and 200+ professionals, we ensure strict quality control and technical advancement.
