Basic Product Information
Model NO.AGF-M
InstallationIndirect Connected
UsageMulti-Functional Energy Meter, Industrial/Home Use
EquipmentDC Energy Meter
TheoryStatic Meter
ConnectionTerminal
SignalContinuous Wave
TypeEnergy Meter
CertificationRoHS, ISO, CE
CommunicationRS485 Modbus-RTU
Frequency45~60Hz
Rated VoltageUp to 1500V (Busbar)
Rated CurrentDC0~±20A
Accuracy0.5 Class
Product Description

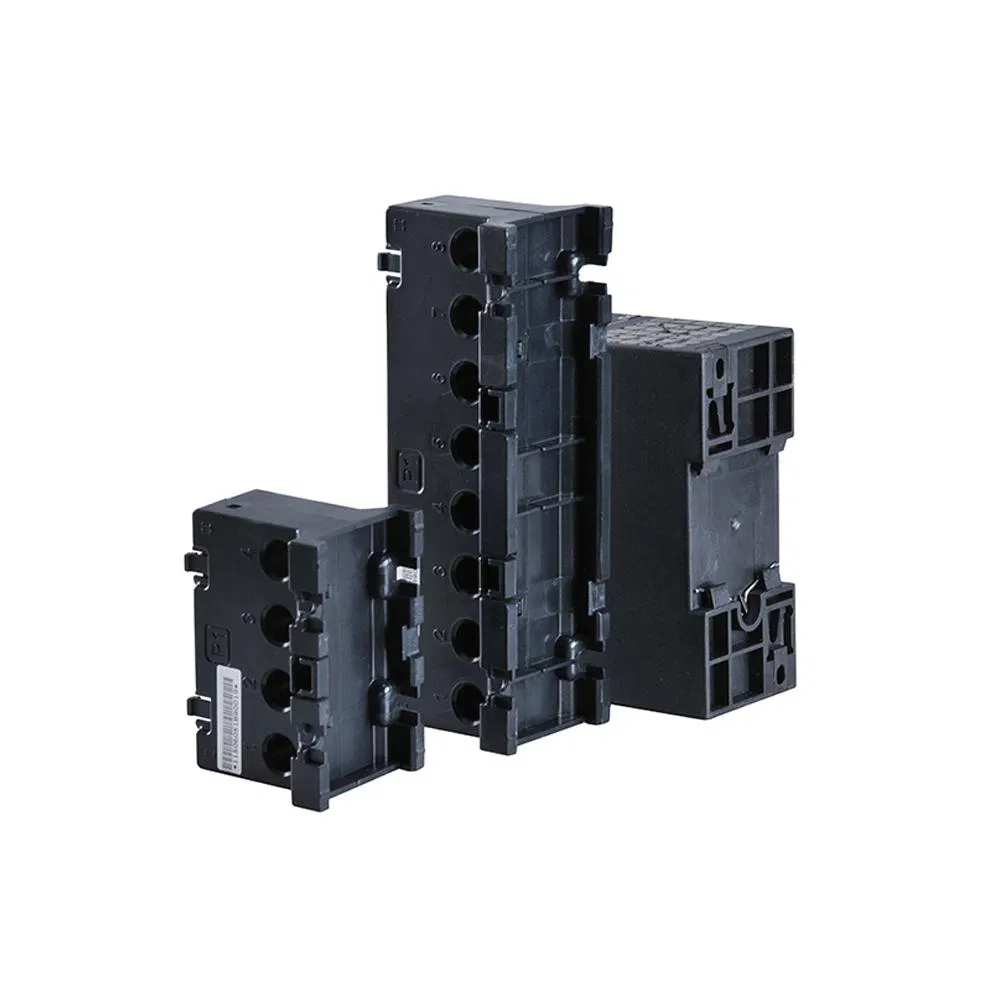

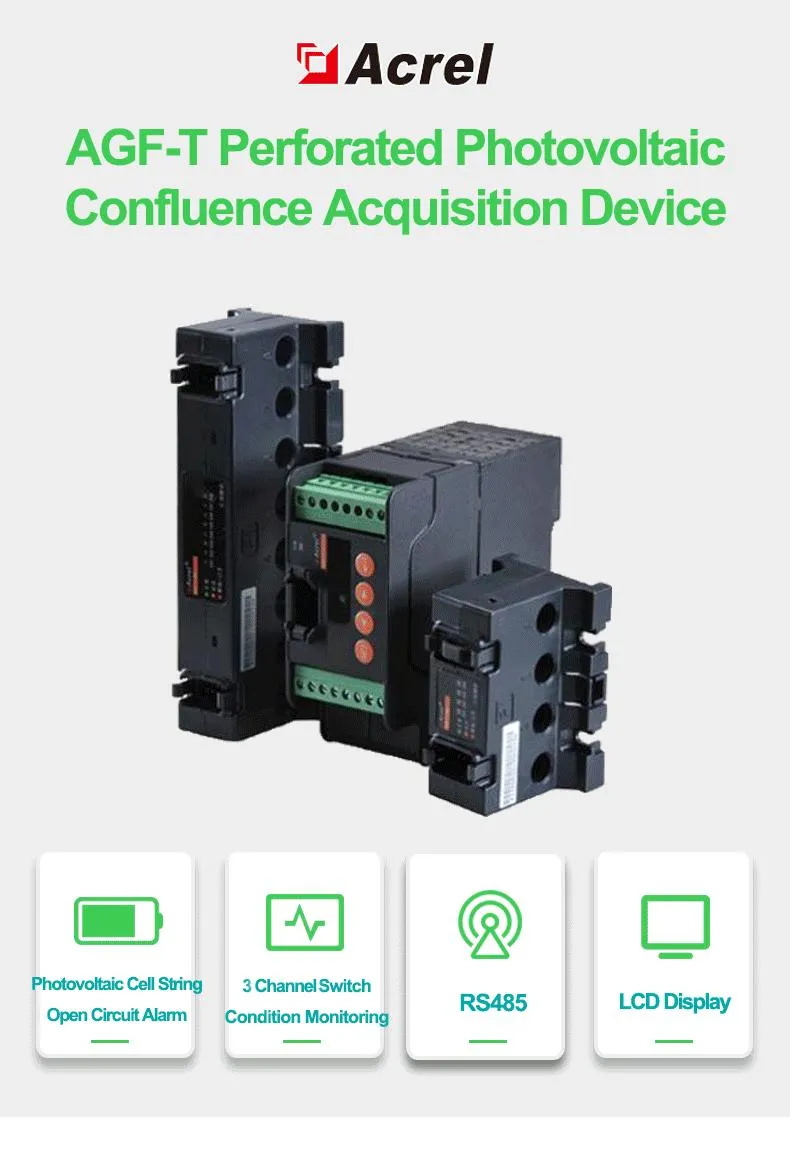

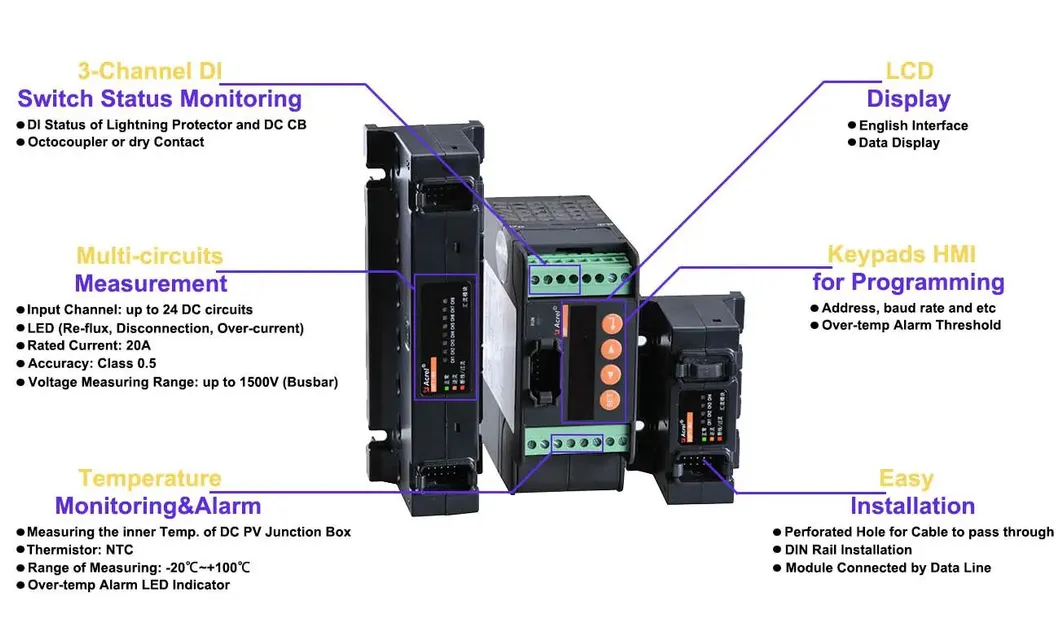

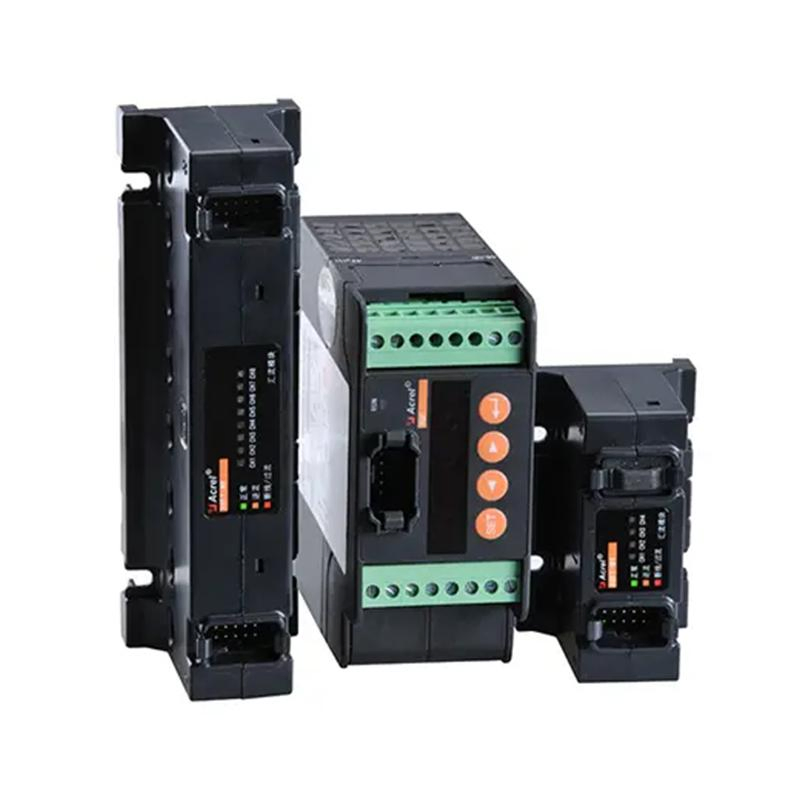

AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box
●

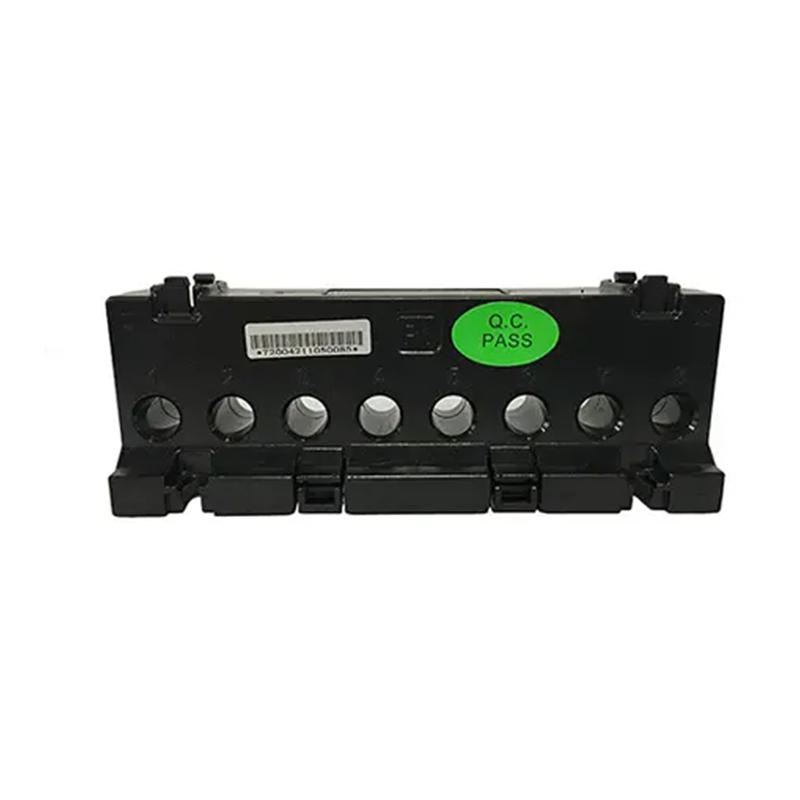

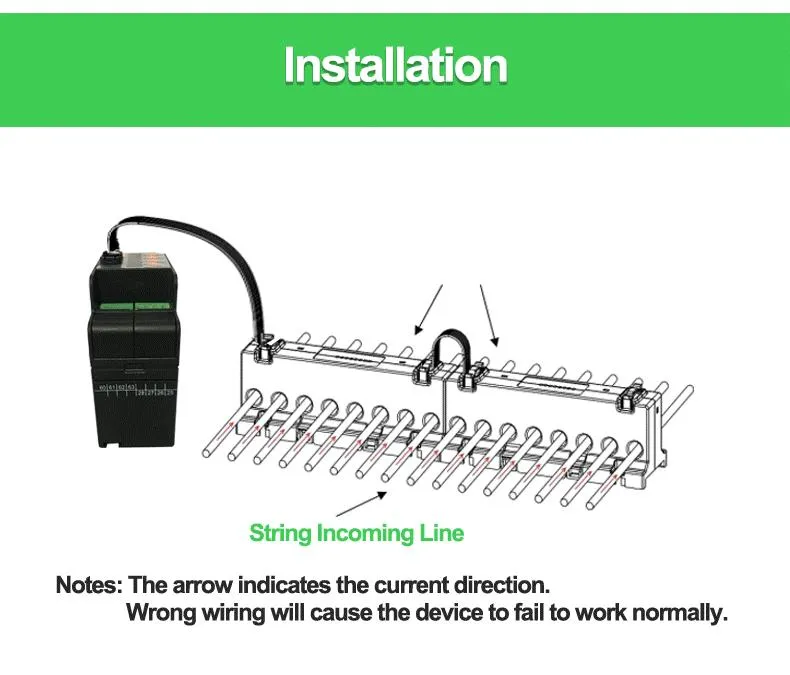

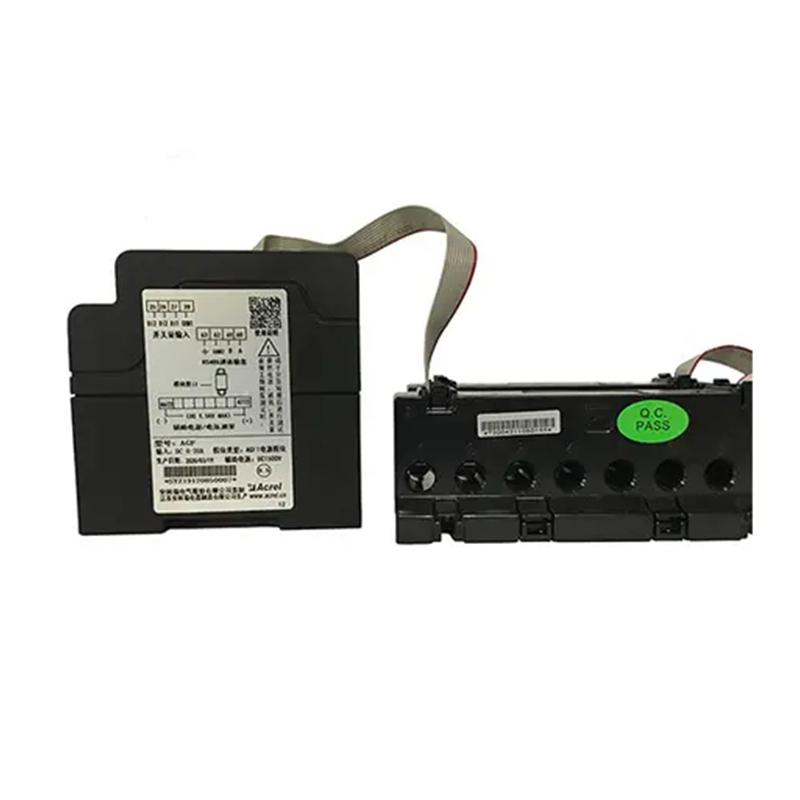

The primary current is connected by perforation, easy installation, and high security.
●
Measuring element adopts Hall sensor, isolation measuring current up to 20A.
●
Voltage measurement function supports bus voltage up to DC1500V.
●

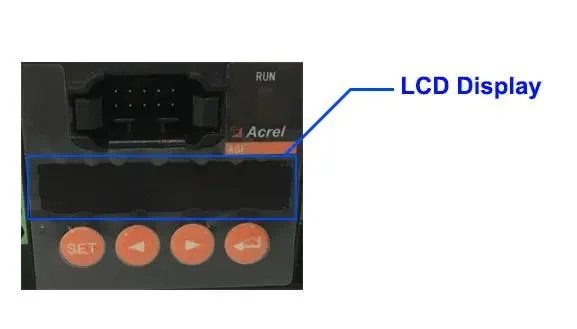

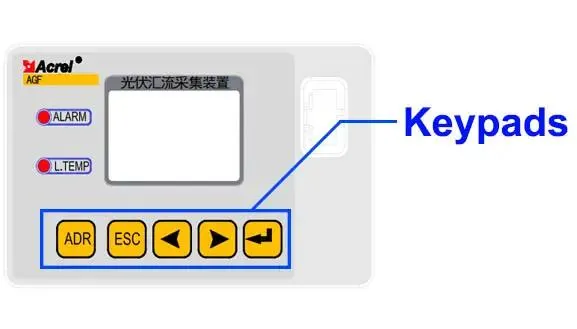

LCD display suitable for wide temperatures and outdoor environment operation.
●

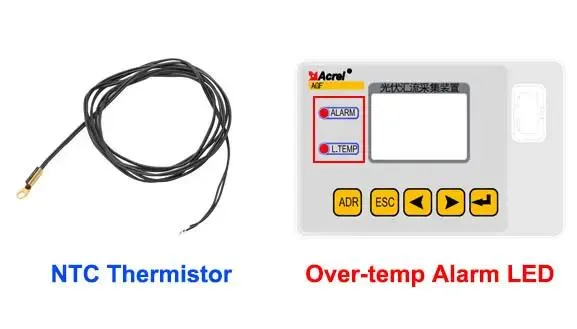

Internal real-time temperature measurement in the combiner box.
●

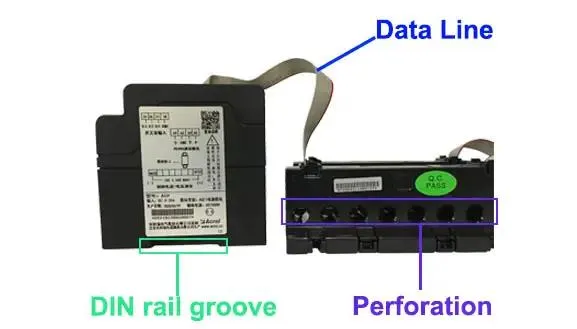

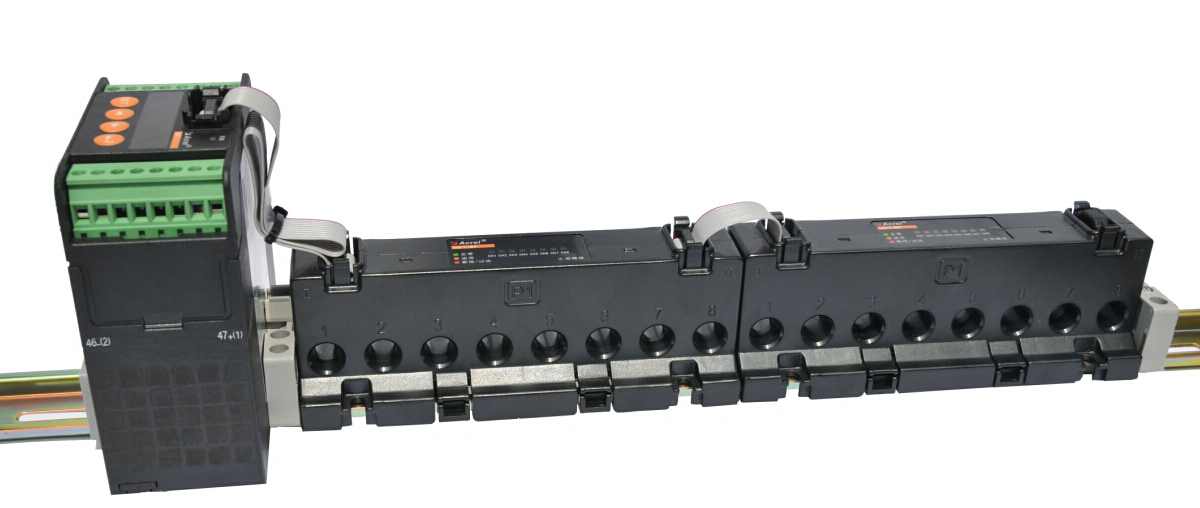

Compatible with DIN rail and base plate fixed installation, saving box space.
Frequently Asked Questions
What is the main application of the AGF-M series?

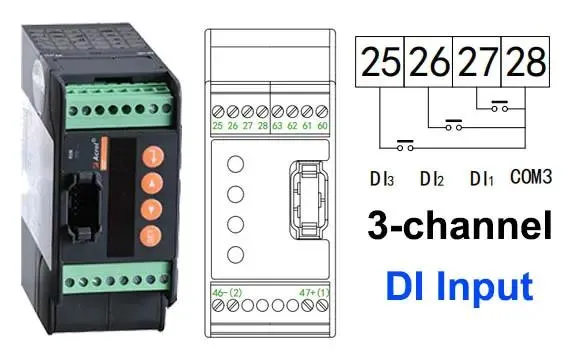

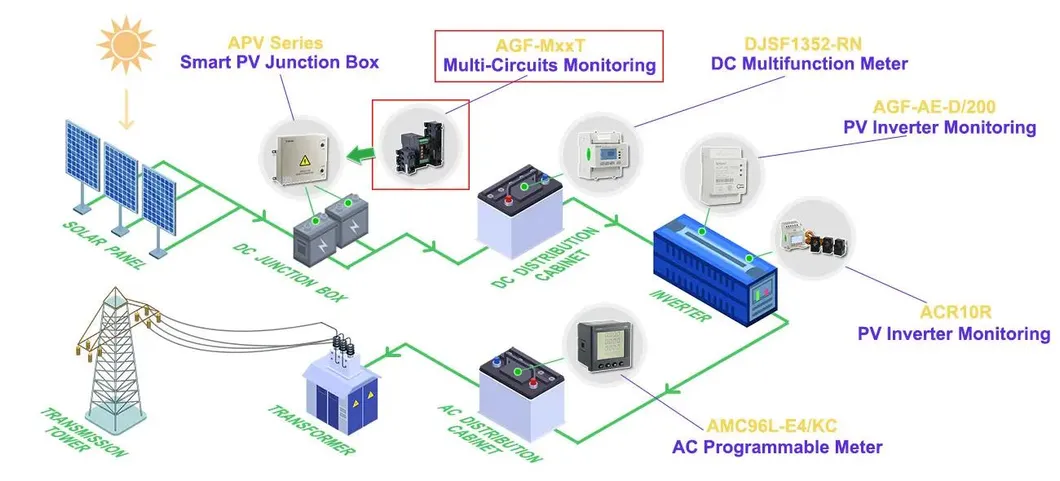

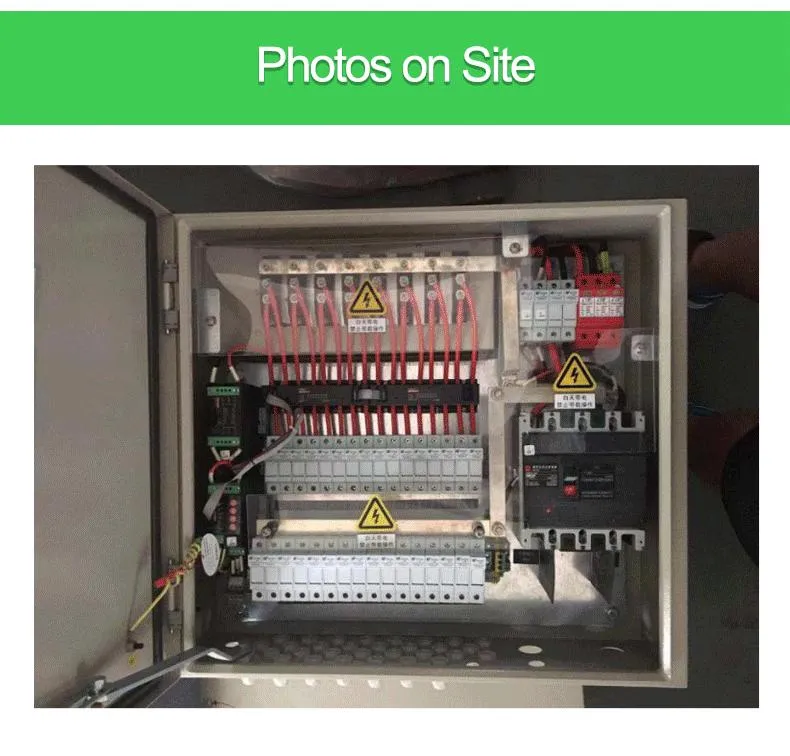

It is specifically designed for smart PV combiner boxes to monitor the running state of solar panels, measure currents, and detect the state of surge protection devices and breakers.
How many circuits can a single device monitor?

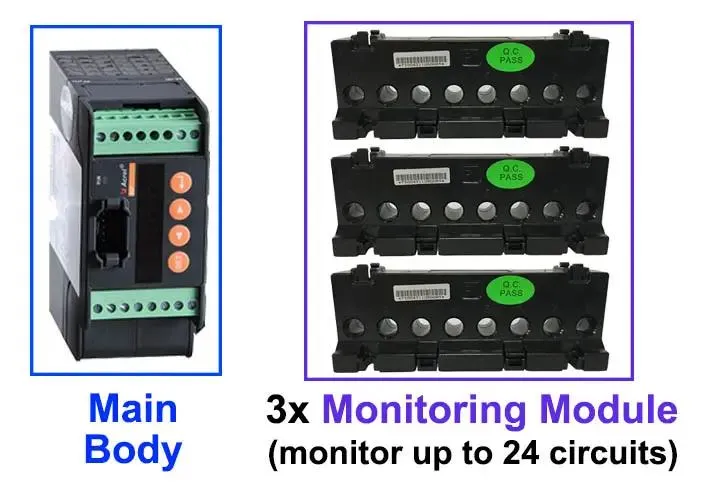

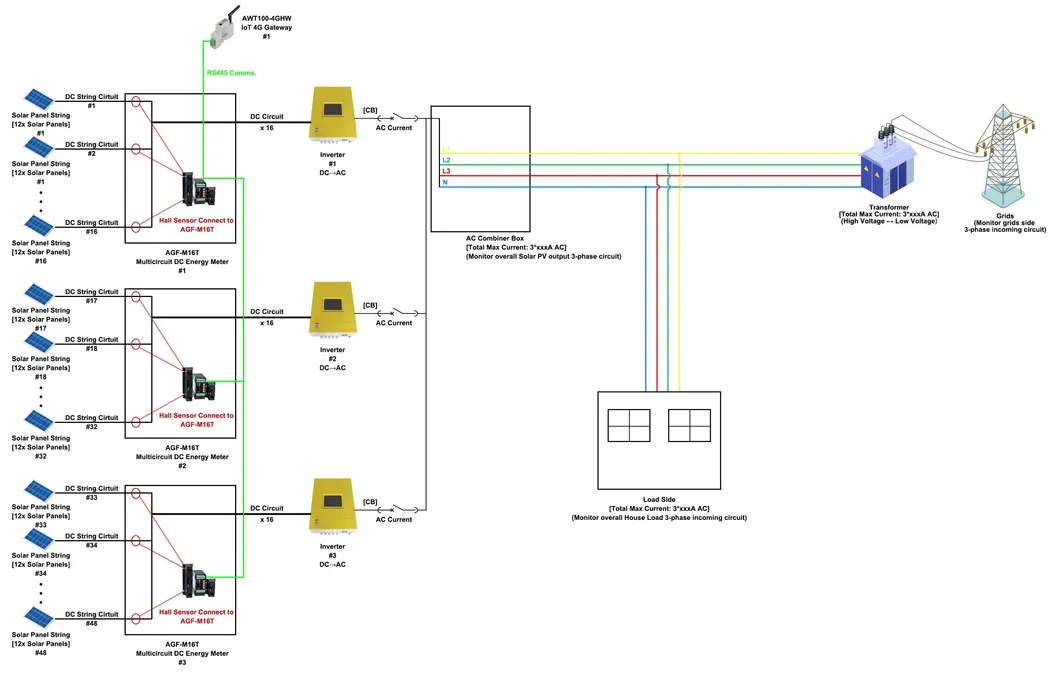

The series offers flexible options including 4, 8, 12, 16, 20, and up to 24 DC circuits monitoring.
What type of sensors does it use for current measurement?
The device utilizes Hall sensors for isolated current measurement, providing high security and an accuracy class of 0.5.
Can it handle high-voltage PV systems?
Yes, it is designed for high-voltage applications with a busbar voltage measurement capability of up to DC 1500V.
Does it support remote data transmission?
Absolutely. It is equipped with an RS485 communication port using the Modbus-RTU protocol for transmitting data to master devices or SCADA systems.
Is the installation complex?
No, the device supports both DIN rail installation and base plate fixed installation. The perforated current connection design ensures easy and safe integration.
