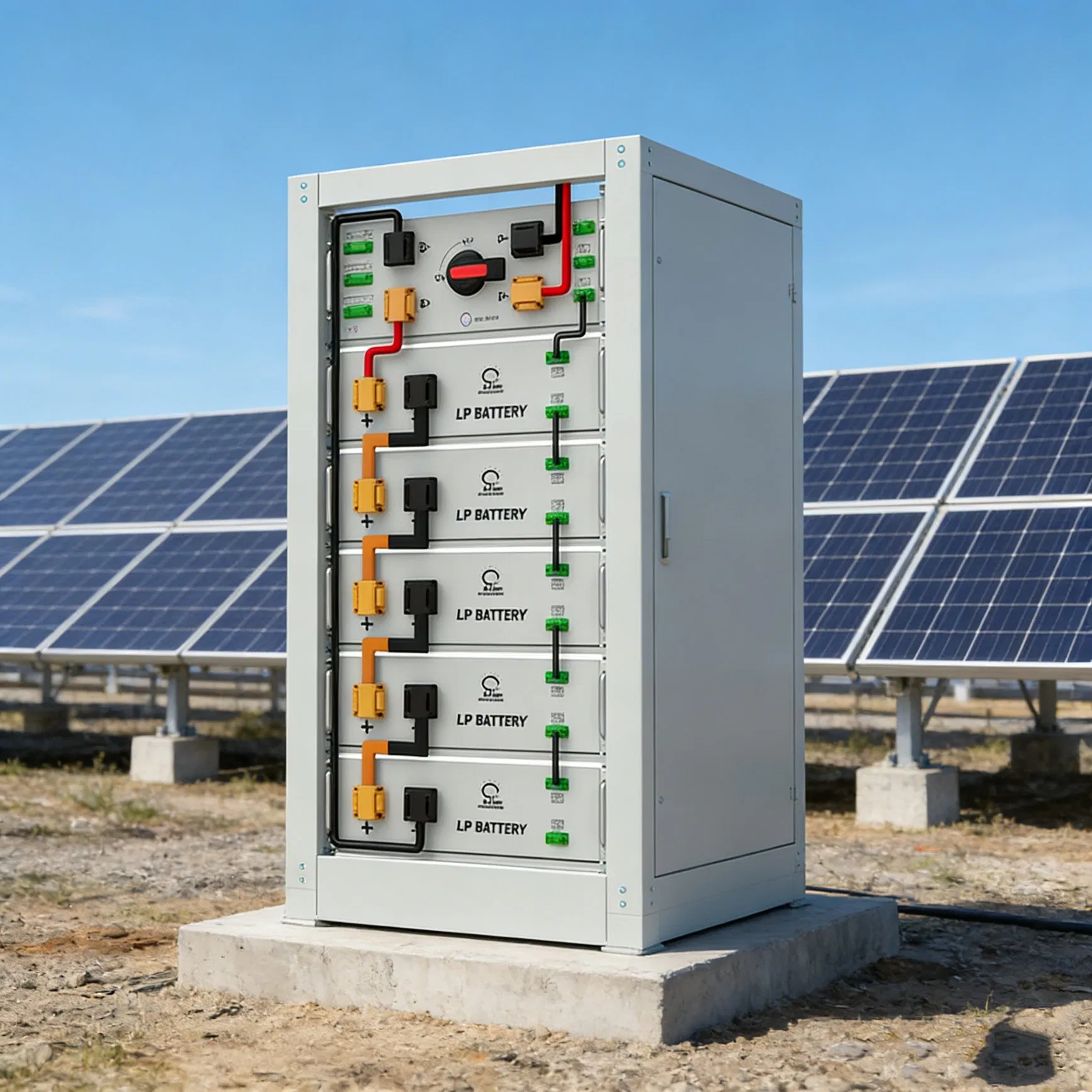

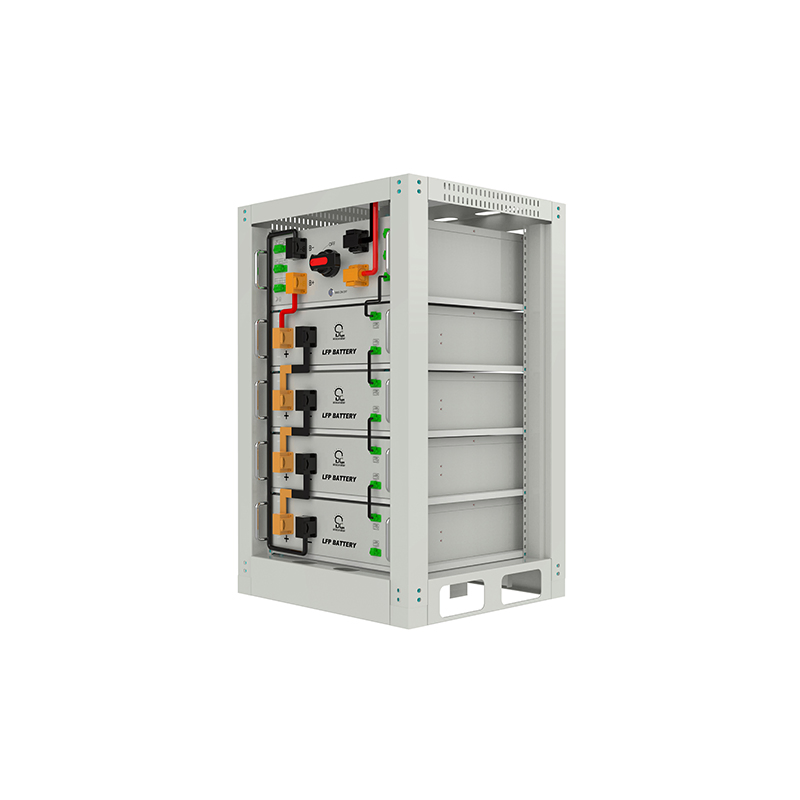

off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
1 / 5
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries
off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries

off Grid, Hybrid Grid Battery Solar Home Energy Storage Ess Batteries

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

Basic Information

Rechargeable:Yes
Size:Medium
Grid Connection:Off Grid, Hybrid Grid
System Type:Stackable, Rack-Mounted
Voltage:240V
Cycle Life:>6000 Cycles
Capacity:106ah
Specification:BR-LFP-51.2/100
Origin:China
Production Cap.:10000 pieces/Year

Packaging & Delivery

Package Size:80.00cm * 50.00cm * 30.00cm
Gross Weight:9.100kg

Technical Specifications

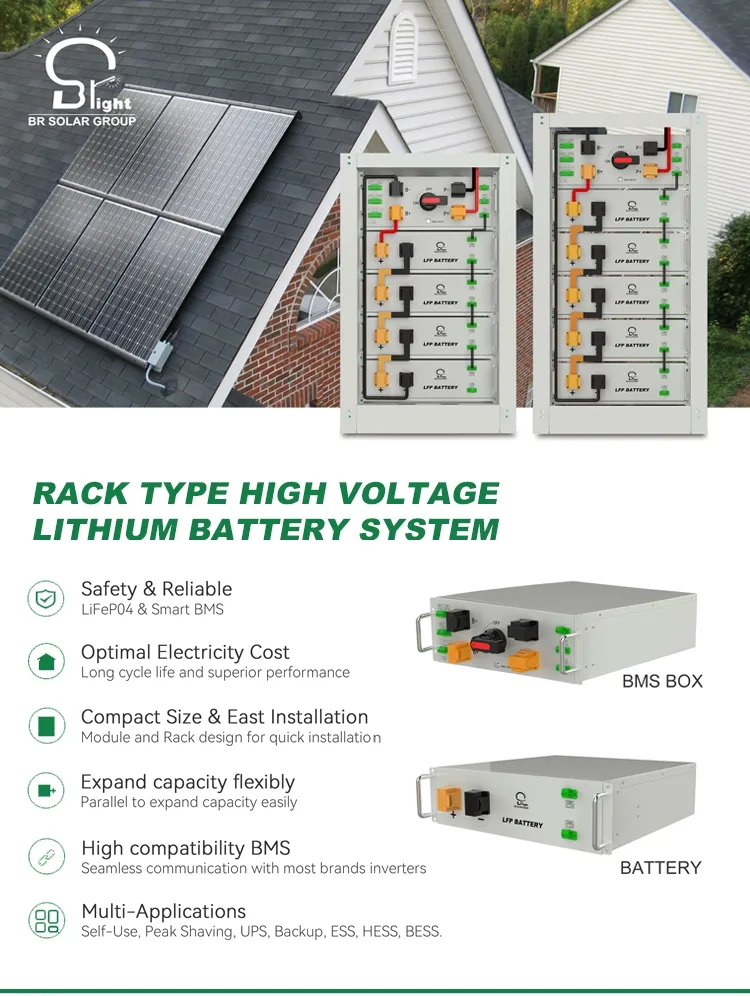

Battery Solar Home Energy Storage Ess Batteries
MODEL BRLF-HV15K15SN BRLF-HV20K15SN BRLF-HV25K15SN BRLF-HV30K15SN BRLF-HV35K15SN BRLF-HV40K15SN
Model No 144V106AH 192V 106AH 240V106AH 288V106AH 336V106AH 384V106AH
Nominal Voltage 144V 192V 240V 288V 336V 384V
Nominal Capacity 106AH
Module Dim. (mm) 440*442*133*3 440*442*133*4 440*442*133*5 440*442*133*6 440*442*133*7 440*442*133*8
Rack Dim. (mm) 600*550*608 600*550*760 600*550*912 600*550*1064 600*550*1216 600*550*1368
Weight (kg) 165KG 210KG 258KG 305KG 352KG 406KG
Energy (KWH) 15.26KWH 20.35KWH 25.44KWH 30.52KWH 35.61KWh 40.7KWH
Communication RS485 / RS232 / CAN
Design Life 15 years+
Cycle Life >6000 times (0.5C/0.5C-80% DOD)

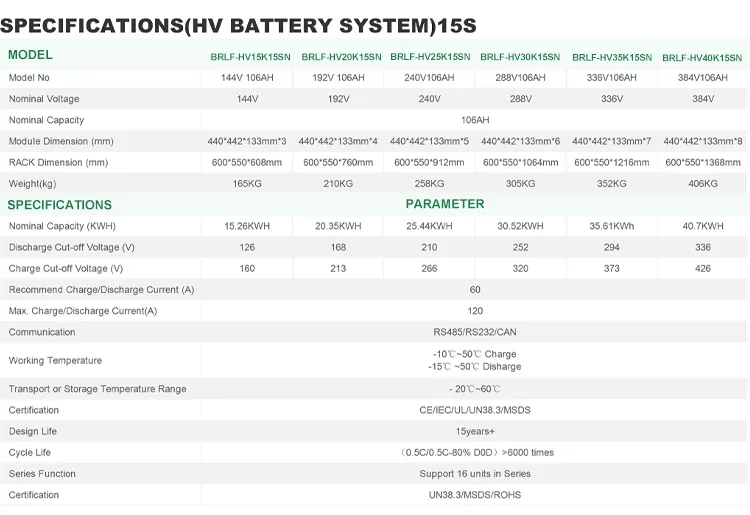

Detail 1

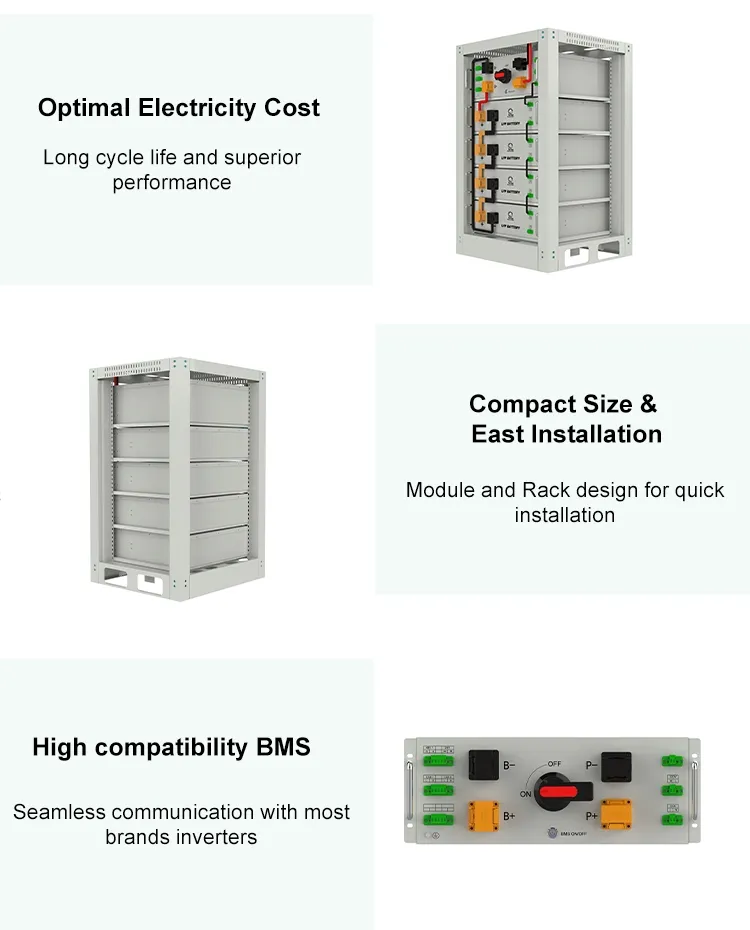

Detail 2
Detail 3
Detail 4

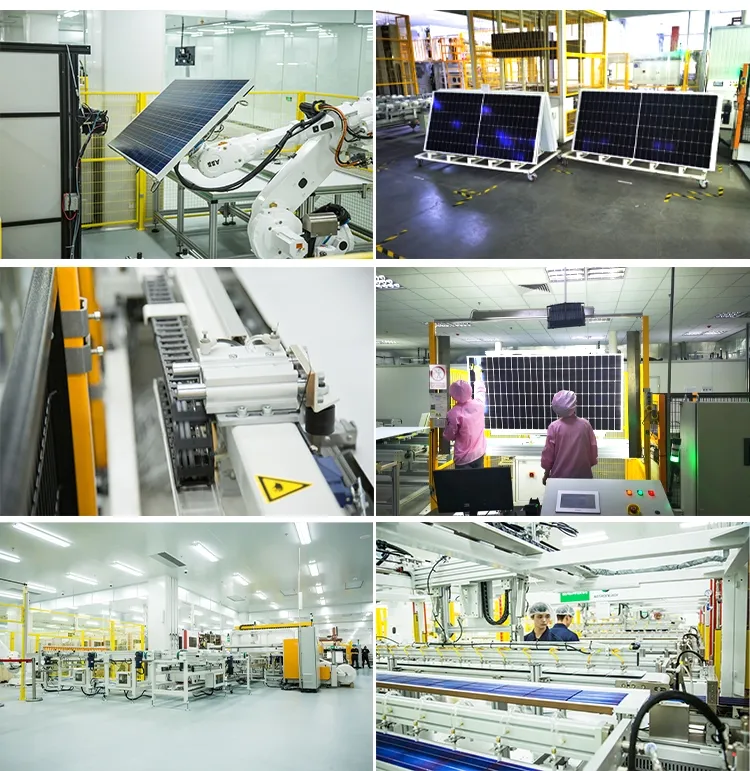

Detail 5
Detail 6

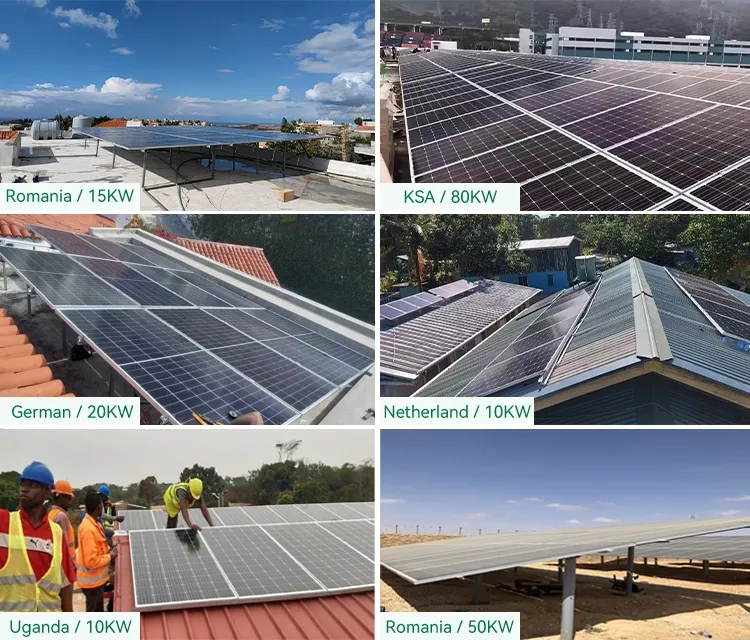

Detail 7
Detail 8

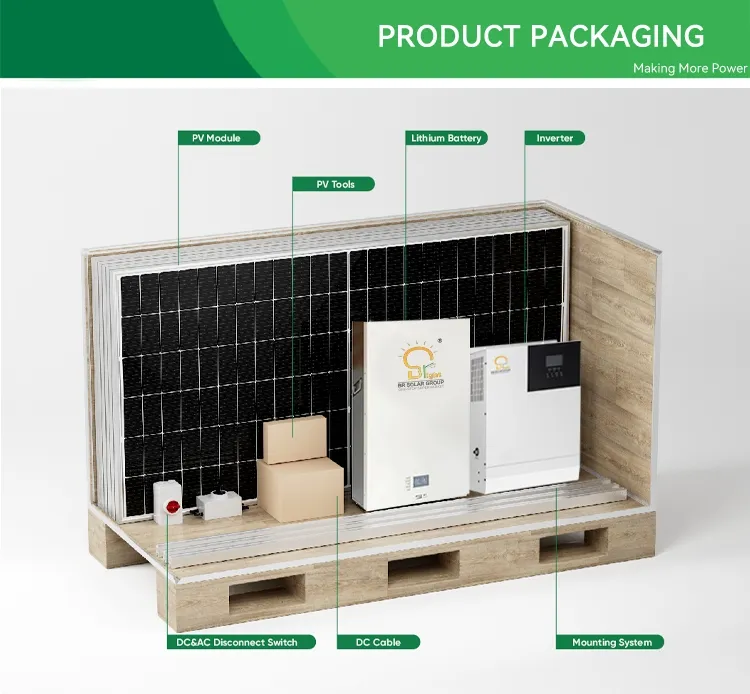

Detail 9

Frequently Asked Questions

Q: What is the expected cycle life of this energy storage system? A: The system offers a long cycle life of over 6000 cycles at 80% Depth of Discharge (DOD).
Q: Which grid configurations are compatible with these batteries? A: These batteries are designed for versatility, supporting both Off-Grid and Hybrid Grid connections.
Q: Can I expand the system capacity in the future? A: Yes, the system features a stackable and rack-mounted design, supporting up to 16 units in series for easy expansion.
Q: What are the supported communication protocols? A: The system supports multiple communication interfaces including RS485, RS232, and CAN for seamless integration.
Q: What certifications do these batteries hold for safety and transport? A: The product is fully certified with CE, IEC, UL, UN38.3, MSDS, and ROHS standards.
Q: What is the design life of the battery modules? A: The battery system is engineered with a high-performance design life of over 15 years.
