Product Description

Basic Information

Model NO.

1

Product Description

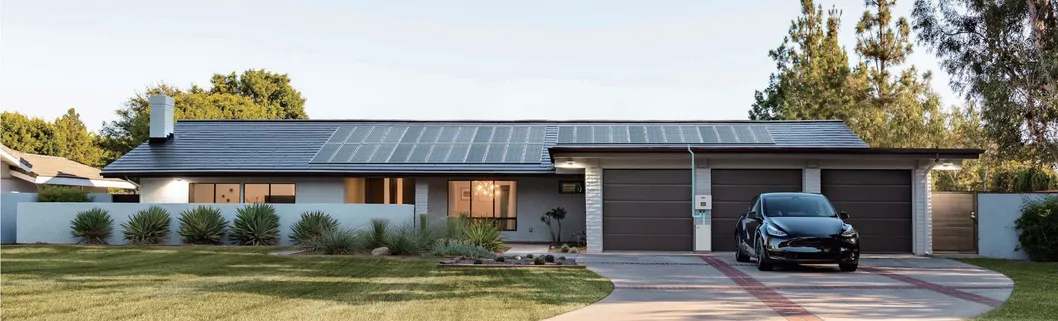

Energy Storage Optimization

Product Highlights

✔ It supports power supply for both single-phase and three-phase loads simultaneously.
✔ Easy to expand and supports flexible configuration of photovoltaic systems.
✔ Integrated design, with built-in interfaces for photovoltaic, battery, power grid or generator, and load.
✔ The DC coupling solution increases system efficiency by 2%.
✔ The AC and DC redundant design of the control power supply makes the system safer and more reliable.

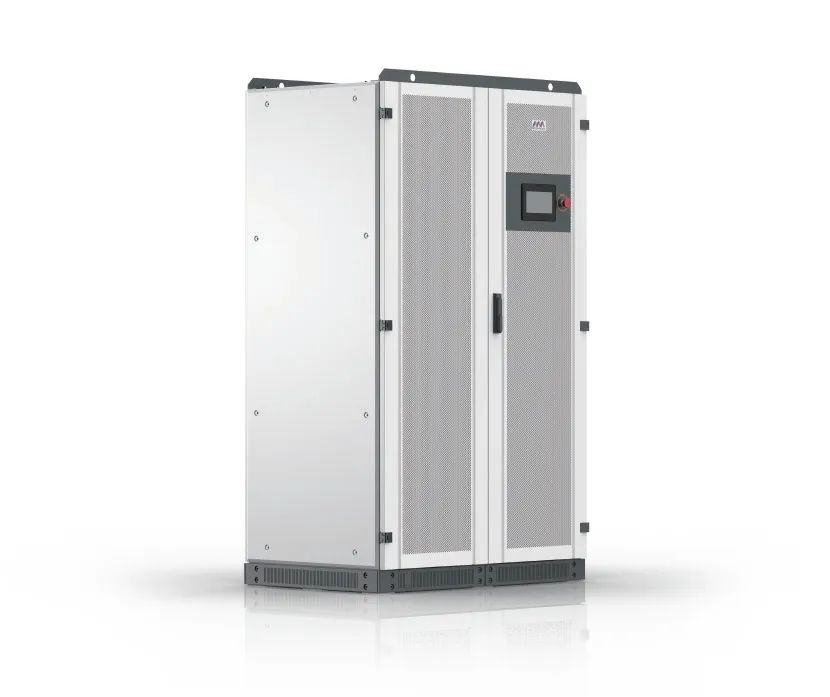

Product View 1

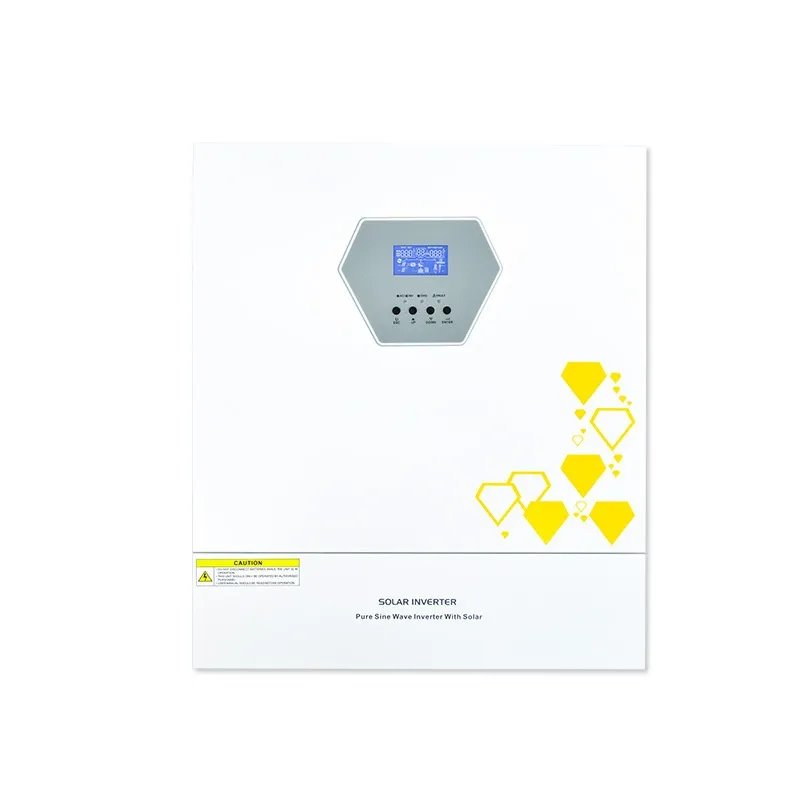

Product View 2

Technical Specifications

Model	MPS0030	MPS0050	MPS0100	MPS0150	MPS0250	MPS0500
Maximum output power (KVA)	33	55	110	165	275	550
Rated output power (KW)	30	50	100	150	250	500
Rated grid voltage (V)	400
Power grid voltage range (V)	320-460
Rated output current (A)	43	72	144	216	361	722
Isolate the voltage transformer ratio	100/400	200/400	270/400	270/400	270/400	315/400
Rated grid frequency (Hz)	50/60
Communication system	3W+N+PE

Detailed Photos

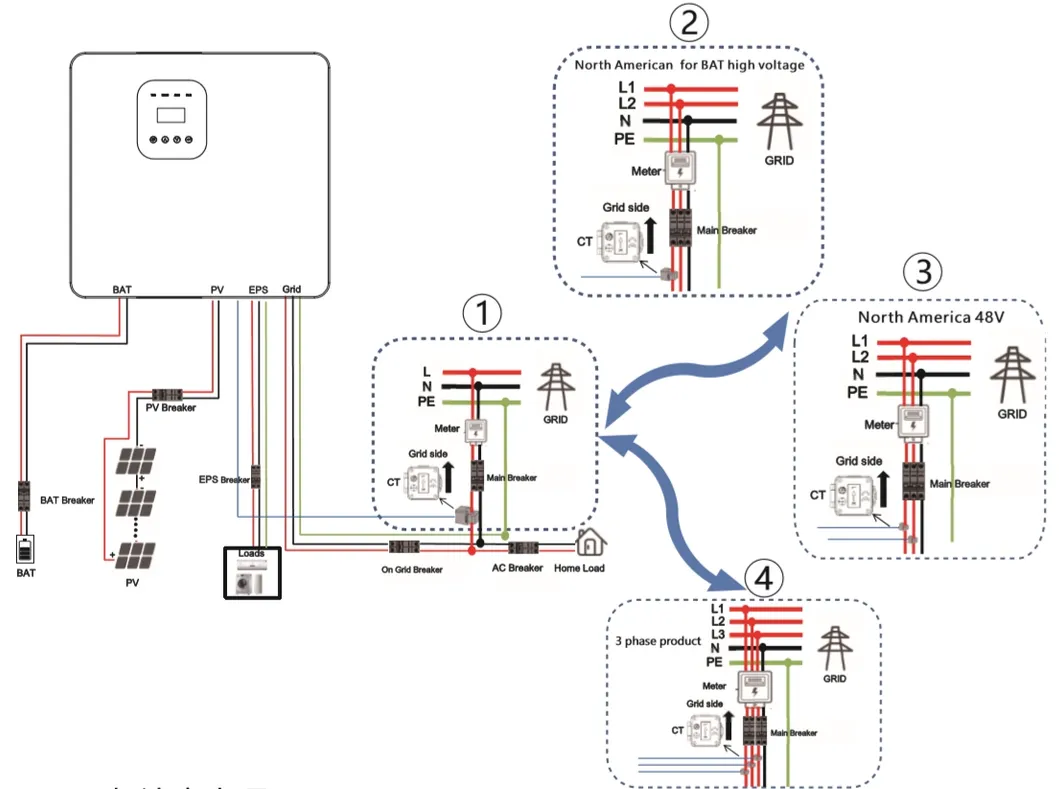

Detailed Product View

Facility Overview

Facility 1

Facility 2

Facility 3

Frequently Asked Questions

How long will the wall battery last?

Answer: 80% DOD more than 8000 cycles.

Can batteries be connected in parallel?

Answer: Yes, it supports more than 16 parallel connections.

Can a wall-mounted battery work with my hybrid inverter?

Answer: Yes, wall-mounted batteries are suitable for all off-grid and hybrid inverters.

What is the warranty for wall-mounted batteries?

Answer: 5 years, and we support extended warranty services.

Does the wall mounted battery include an inverter?

Answer: No, it is only the battery, making it more flexible to use with different brands of preferred inverters.

Does the wall mounted battery have communication functions?

Answer: Yes, the battery includes RS232 and 485 communication for PC interface and smart LCD monitoring.
