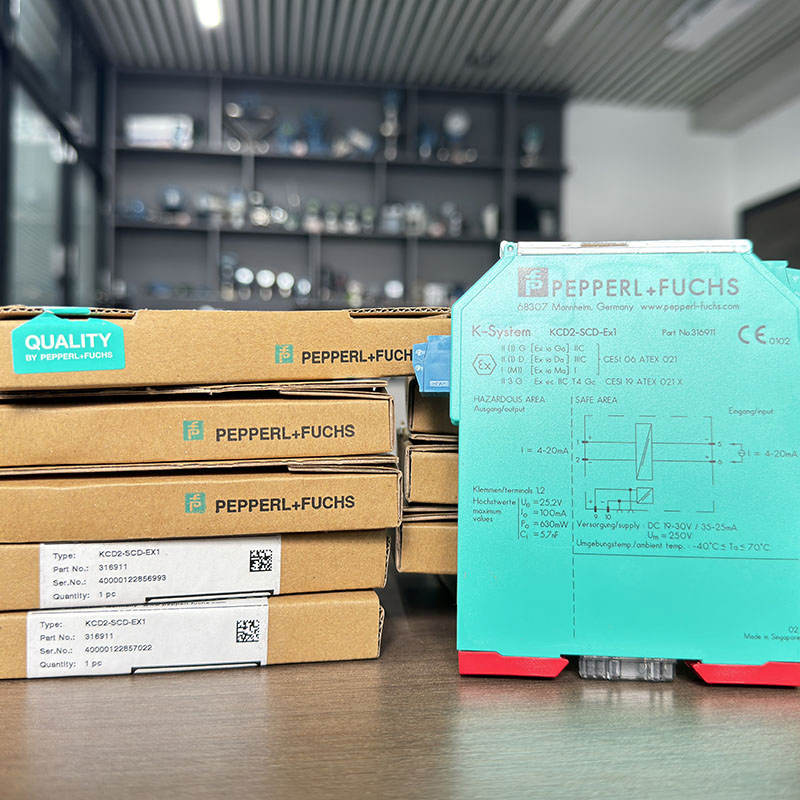

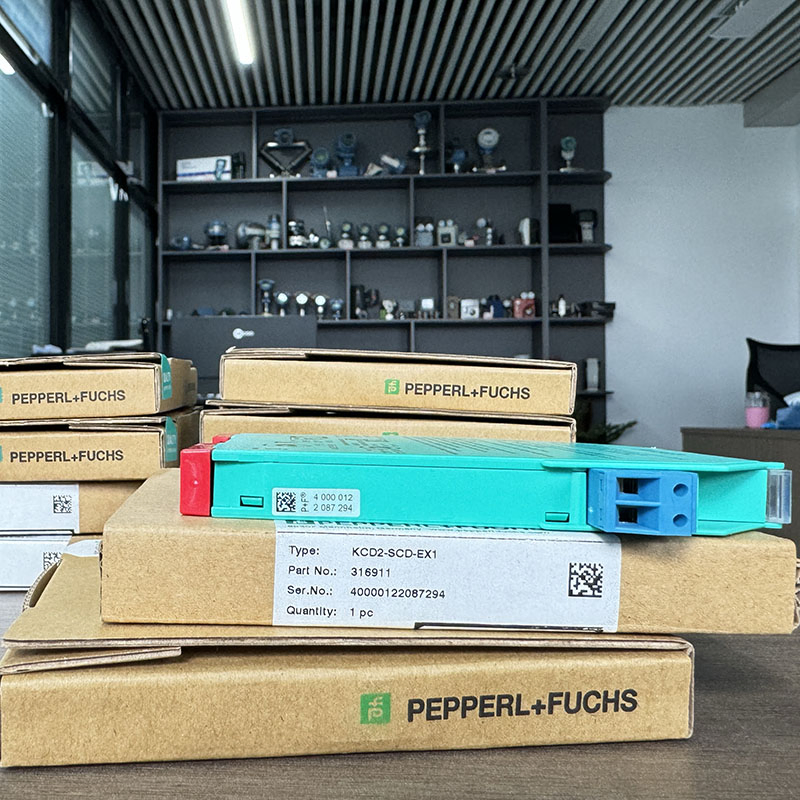

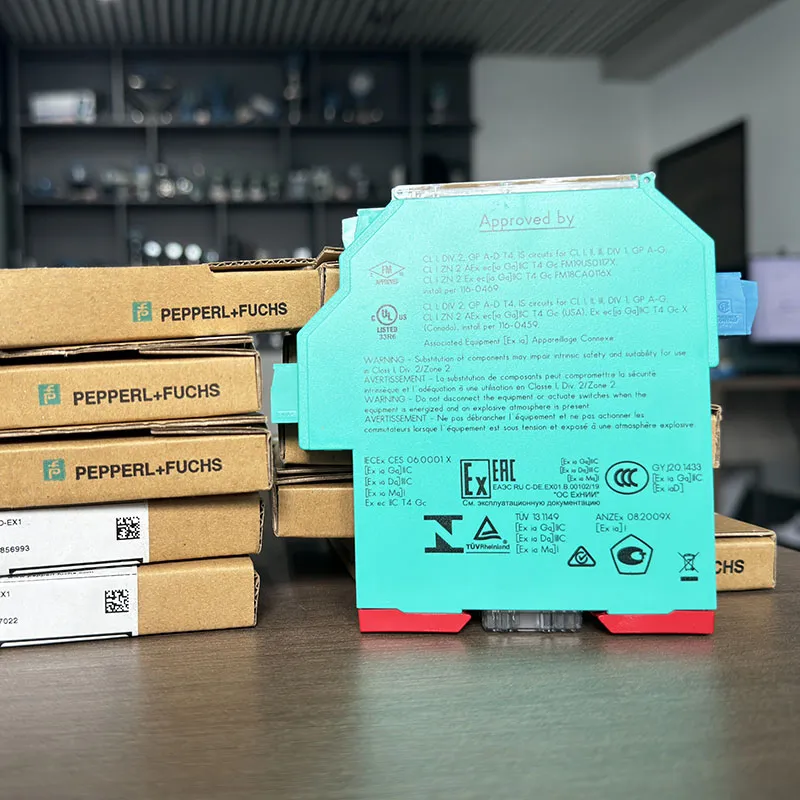

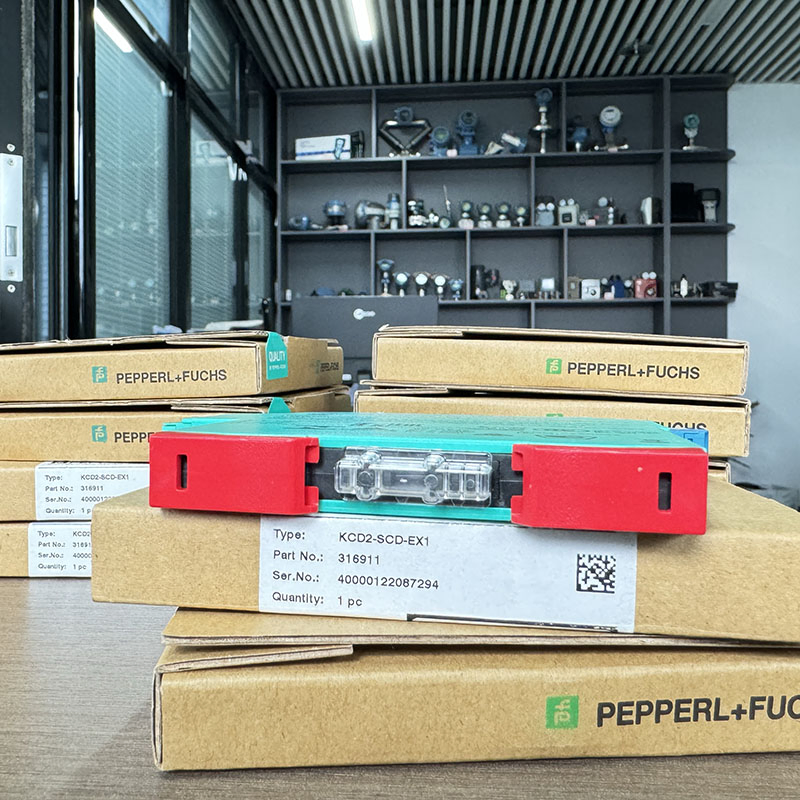

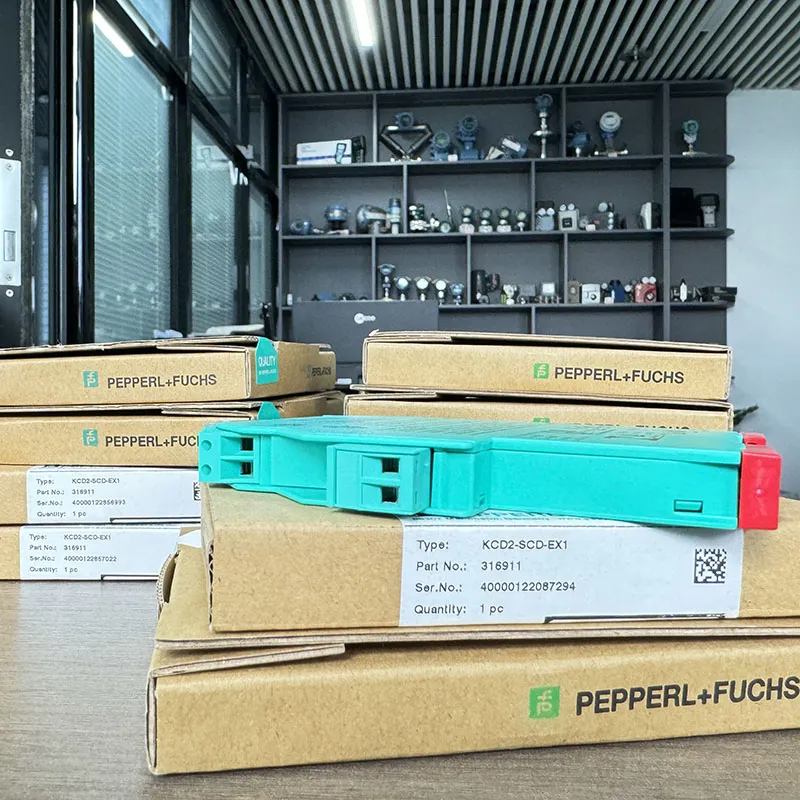

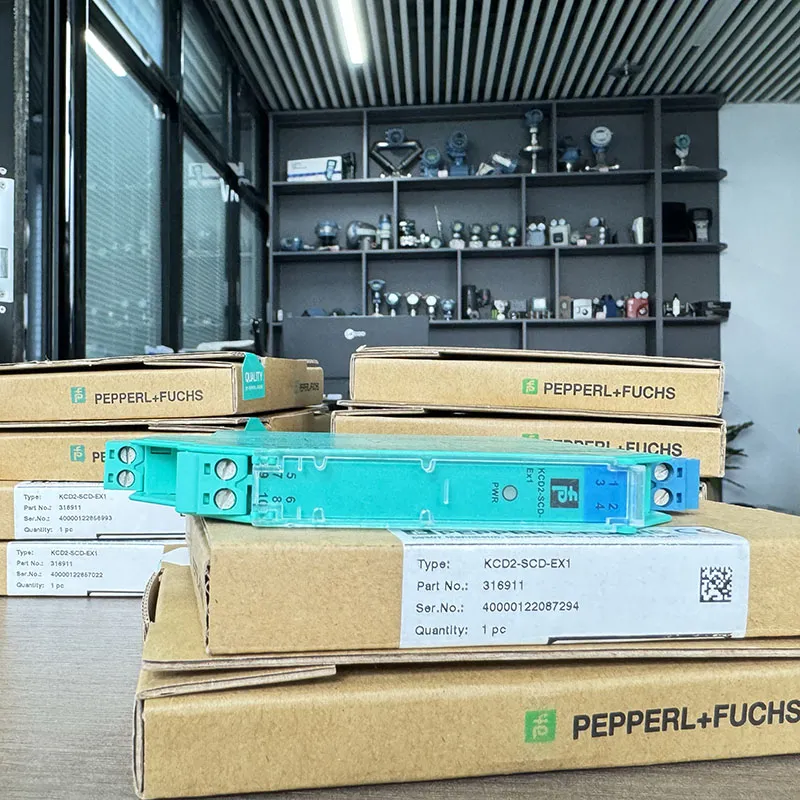

Original Pepperl Fuchs KCD2-SCD-Ex1 316L Switching Input Safety Grid Isolated Barrier

Basic Information

Model NO.

KCD2-SCD-EX1

Output Power

101 - 200W

Input Voltage

110-220V

Connection Mode

Series Switching Power Supply

Modulation System

PFAW

Certification

CE

Material

Stainless Steel

Medium

Liquid, Air, Gas

HS Code

9026100000

Package Size

50.00cm * 40.00cm * 30.00cm

Product Description

In the realm of industrial safety and process control, the KCD2-SCD-EX1 Safety Grid stands as a remarkable and highly reliable solution. This device plays a crucial role in ensuring the safe operation of systems in hazardous areas, making it an essential component in various industries such as oil and gas, chemical, and petrochemical.

The KCD2-SCD-EX1 is a 1-channel isolated barrier designed to meet the stringent requirements of intrinsic safety applications. It serves as a key interface between control systems and field devices located in hazardous areas, providing a reliable and safe connection.

Key Features: The KCD2-SCD-EX1 offers a current output that can drive loads up to 650 Ω. With support for HART-IP, it enables seamless communication between control systems and field devices, particularly beneficial for accurate valve position monitoring and diagnostics.

Featuring a housing width of only 12.5 mm, the KCD2-SCD-EX1 has a compact design. This space-saving feature is highly advantageous in industrial installations where space may be limited. The device is rated up to SIL 2 (SC 3) according to IEC/EN 61508, ensuring a high level of integrity for critical processes.

Product Parameters

Model Number	KCD2-SCD-EX1	Warranty	12 Months
Material	316L Stainless Steel	Color	Green
Rated Voltage	20 ... 30 V DC	Rated Current	approx. 100 mA
Connection	Terminals 23+, 24- or Power Rail	Support	OEM, ODM, OBM

Packaging & Shipping

Standard Industrial Carton Box Packaging

Technical Capability

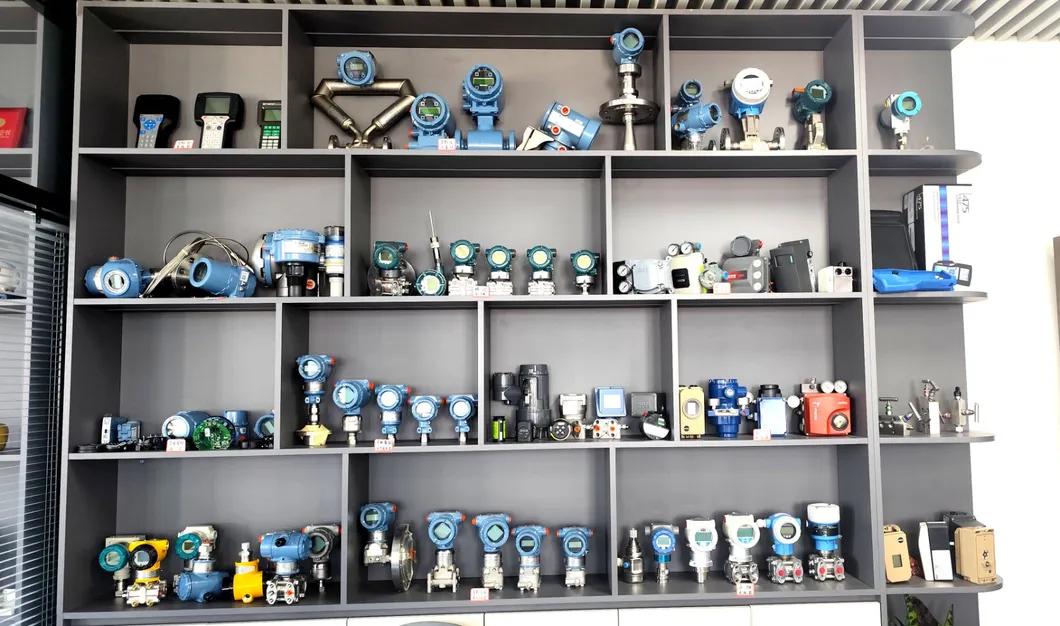

Specializing in industrial automation instrument development, production and sales, technical services, and supporting equipment supply. The main product ranges include flow meters, level meters, temperature meters, pressure meters, and programmable controllers (PLC). These technologies are widely used in electric power, metallurgy, petrochemicals, environmental protection, and food processing industries.

Frequently Asked Questions

How long is the standard delivery time?

Most orders are processed and shipped within 10 days of confirmation.

Is it possible to obtain a sample before a bulk order?

Yes, samples are available. Please contact our sales department for specific arrangements.

What is the Minimum Order Quantity (MOQ)?

Our MOQ starts from just 1 piece, catering to both small projects and large-scale industrial needs.

What is the warranty period for this equipment?

All our safety grids and automation products come with a standard 12-month warranty.

How is product quality controlled?

We utilize an EPR system to monitor every stage from parts sourcing and processing to testing and packing. Each sensor undergoes multiple testing phases before delivery.

Do you support customization like OEM or ODM?

Yes, we provide full support for OEM, ODM, and OBM requirements to meet specific industrial applications.
