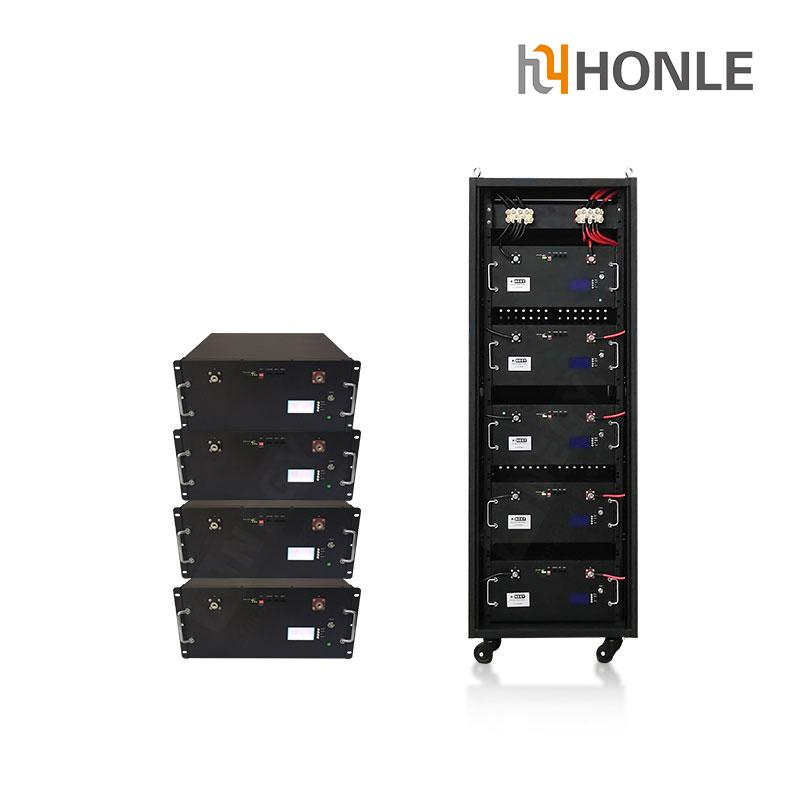

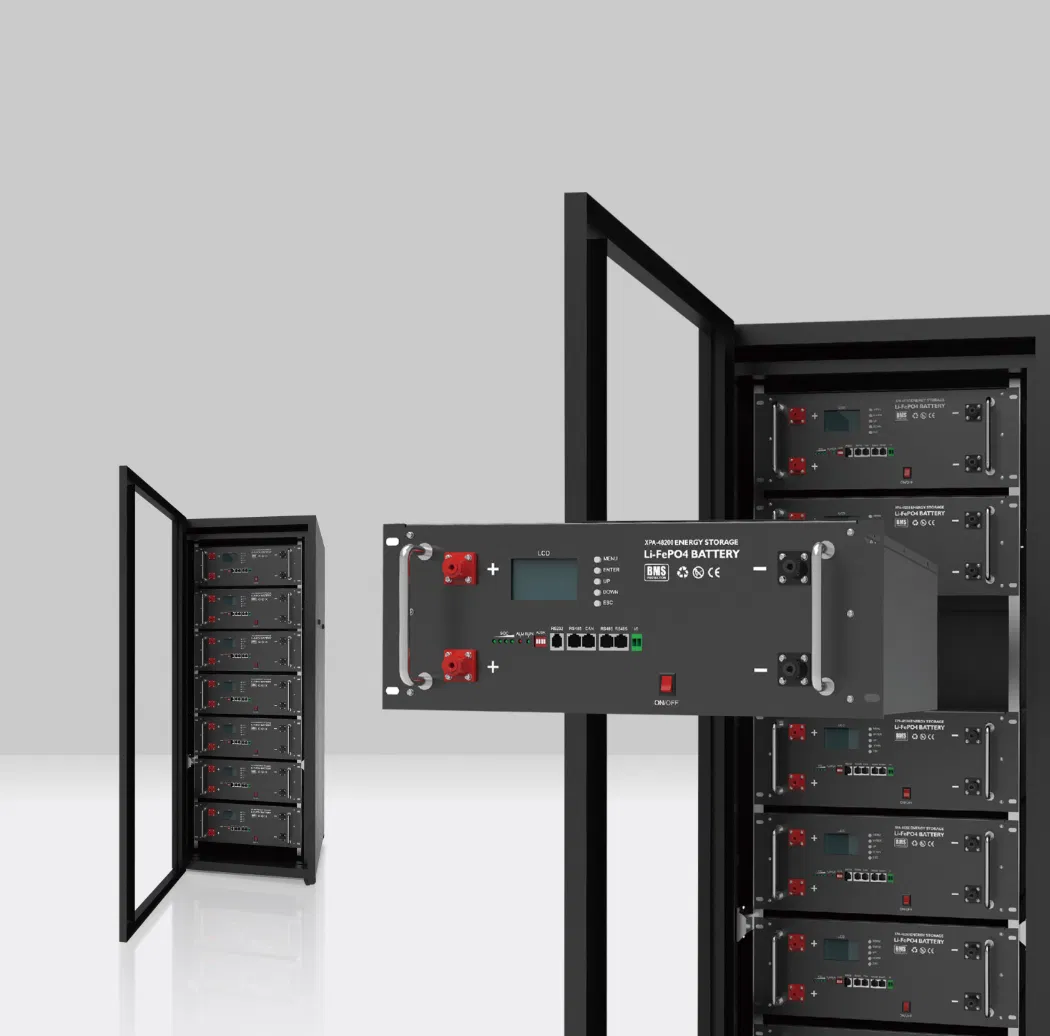

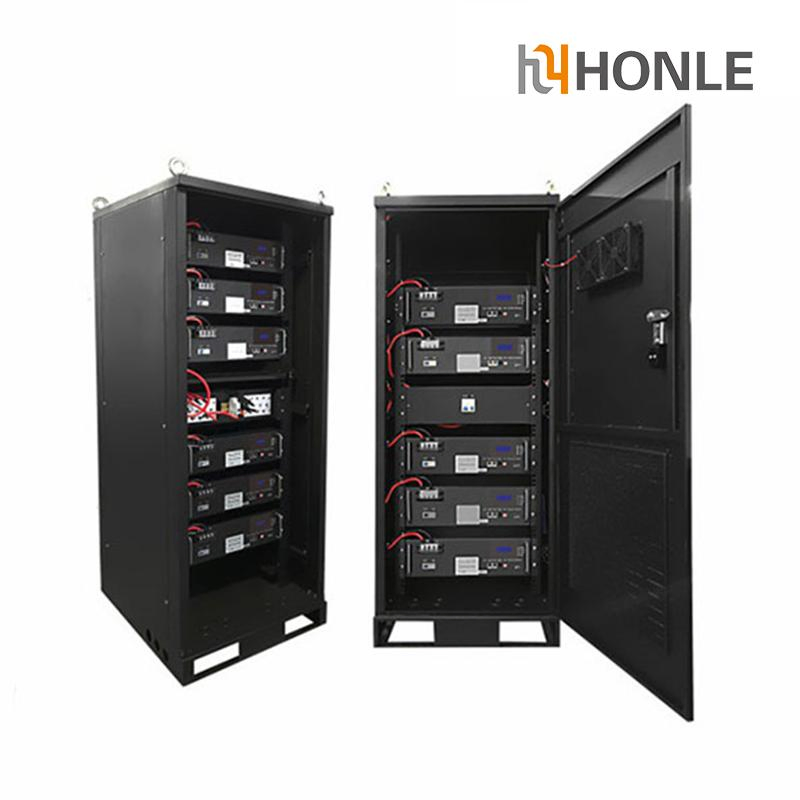

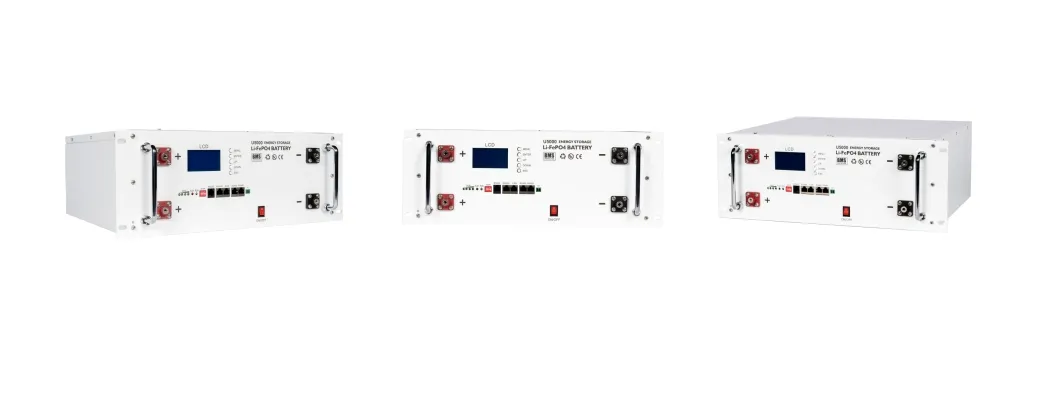

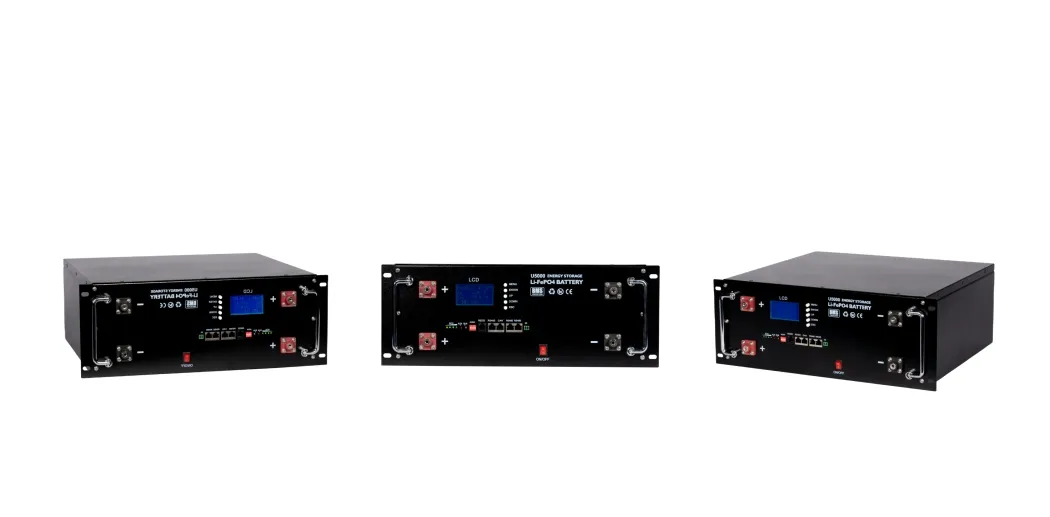

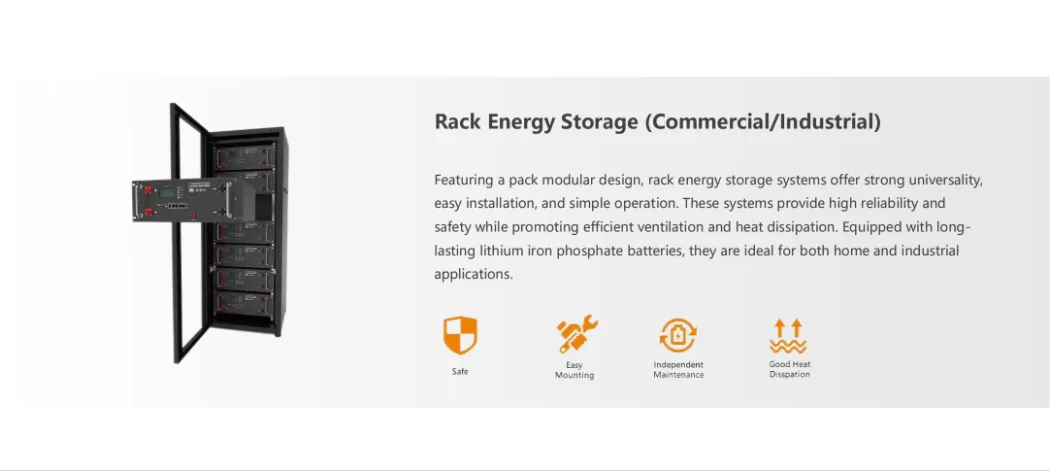

Rack Energy Storage (Commercial/Industrial)

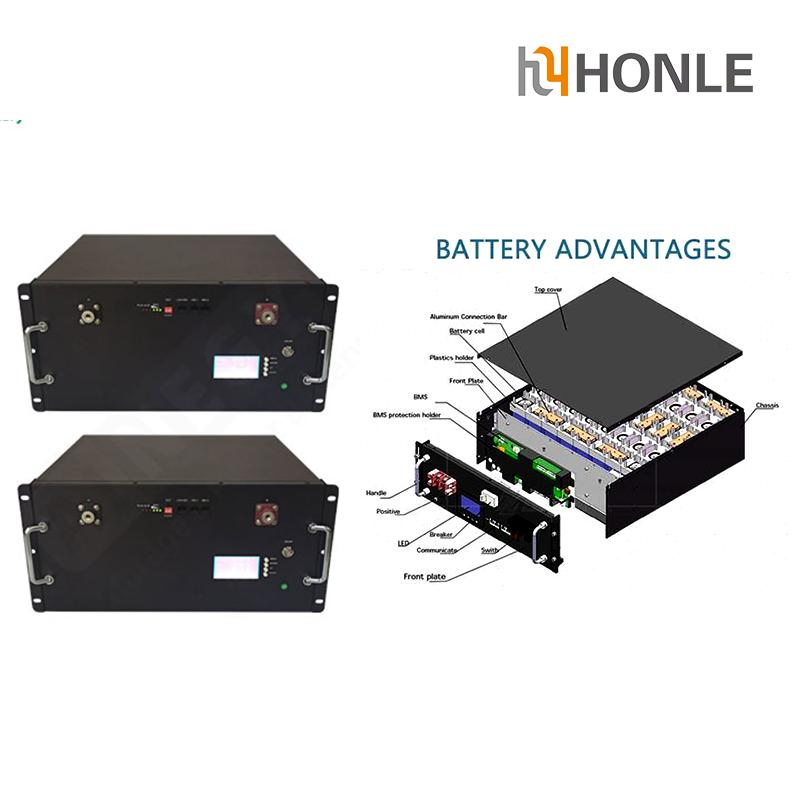

Featuring a pack modular design, rack energy storage systems offer strong universality, easy installation, and simple operation. These systems provide high reliability and safety while promoting efficient ventilation and heat dissipation. Equipped with long-lasting lithium iron phosphate batteries, they are ideal for both home and industrial applications.
| Model | HLA-4850 | HLA-48100 | HLA-48150 | HLA-48200 |
| Standard Voltage | 48VDC | |||
| Nominal Capacity | 50Ah | 100Ah | 150Ah | 200Ah |
| Rated Capacity | 2.4kwh | 4.8kwh | 7.2kwh | 9.6kwh |
| Efficiency (at 0.5C) | 98% | |||
| Cycle Time | 6000 (@ 80% DoD) | |||
| Charge Specifications | ||||
| Max Charge Current | 50A | 100A | 100A | 100A |
| Mechanical Specifications | ||||
| Dimensions | 484*410*120mm | 484*410*178mm | 484*590*178mm | 484*590*178mm |
| Weight | 24.5kg | 38.5kg | 59kg | 70.5kg |

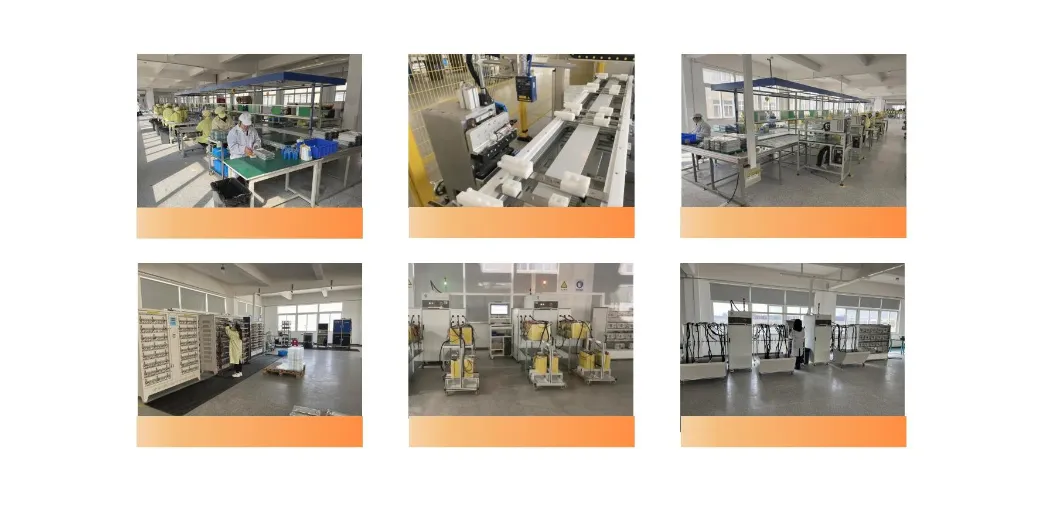

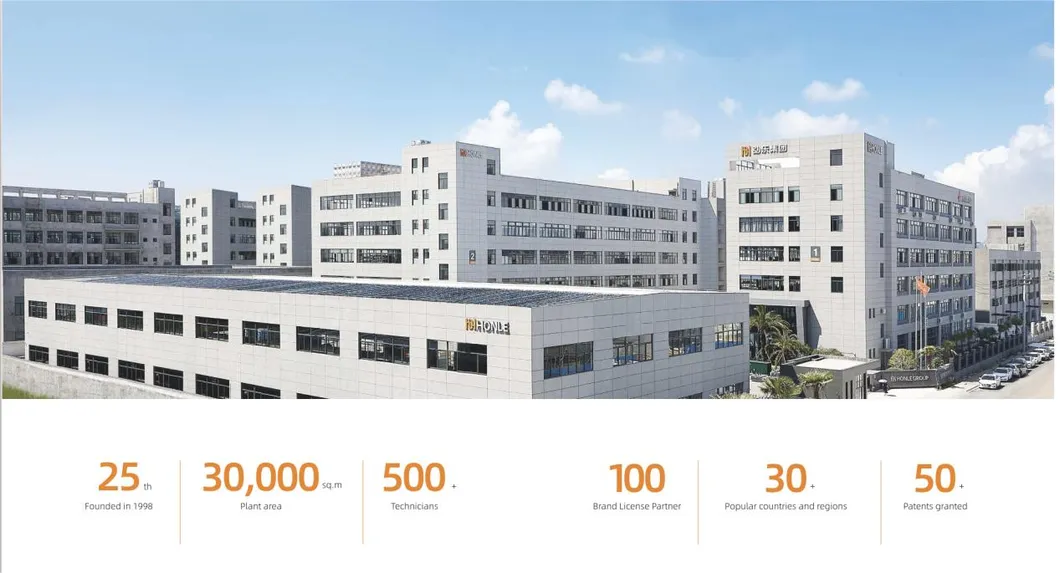

As an innovation-oriented manufacturer, our production line is equipped with the latest technology and machinery, as well as high-level testing devices. Our experienced team ensures that every product meets strict quality standards.
