Liquid Cooled C&I Energy Storage System for Grid Tied Power Management with Multi Level Safety Industrial Liquid Cooled BESS for Grid Tied Power Management with Advanced Protection Multi Level Protection Liquid Cooled C&I Battery Backup for Grid Tied Energy Storage Liquid Cooled Commercial Industrial Battery Backup System for Grid Tied Power Management Grid Tied C&I Energy Storage System with Liquid Cooling and Multi Level Safety Protection

Customization:	Available
Container Size:	650028002896mm
Weight:	44t

Overview - Basic Information

Model NO.

JSKJ-ESS-DC5000-A

Nominal Voltage

1331.2V

Warranty

5 Years

Nominal Capacity

3768ah

Cycle Life

8000

Cell Type

Lfpbattery

Cell Configuration

12p416s

Rated Energy

Expandable to 100mwh+

Charge/Discharge Rate

0.5p

Operating Voltage Range

1164.8-1497.6V

Standard Current

1884A/1884A

Cooling Method

Liquid + Air Cooling Dual Thermal Management

Fire Detection

Temp, Co, Smoke Sensors

Corrosion Resistance

C3/C4/C5 (ISO 12944)

System Architecture

Triple Fire Protection + Triple BMS

Waterproof Design

IP54 (Outdoor Durability)

DC Voltage Range

1500V System Voltage

HS Code

8507600090

Packaging & Delivery

Package Size

650.00cm * 280.00cm * 289.60cm

Package Gross Weight

44000.000kg

Product Description

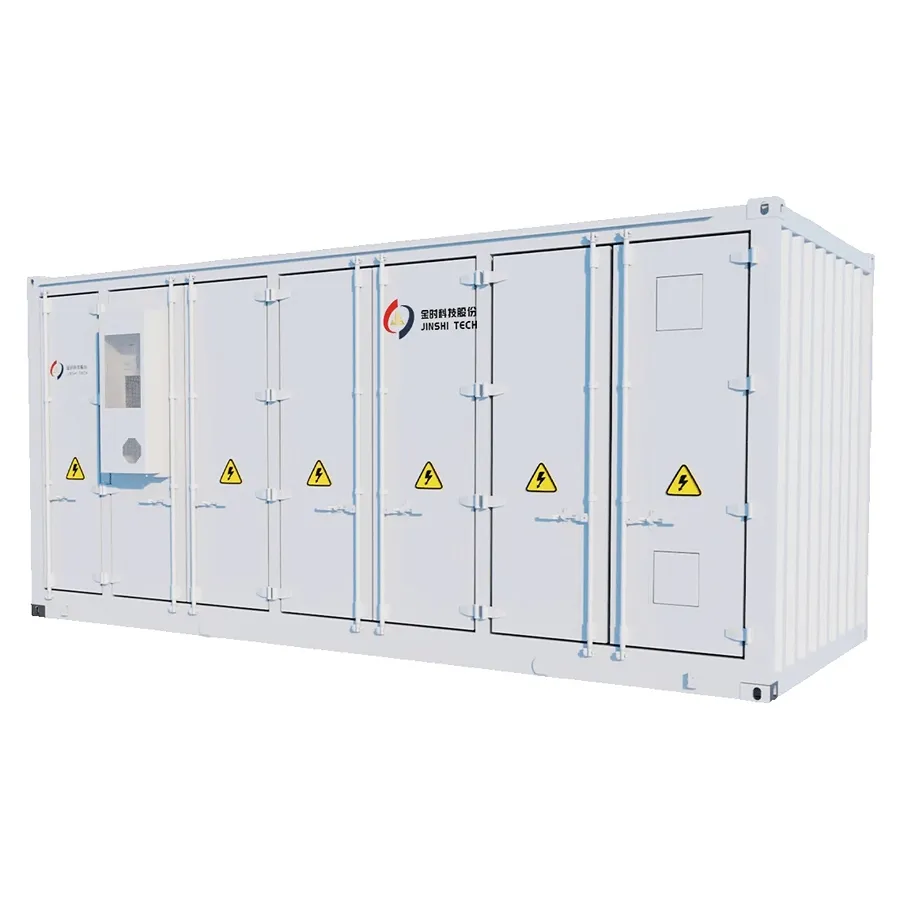

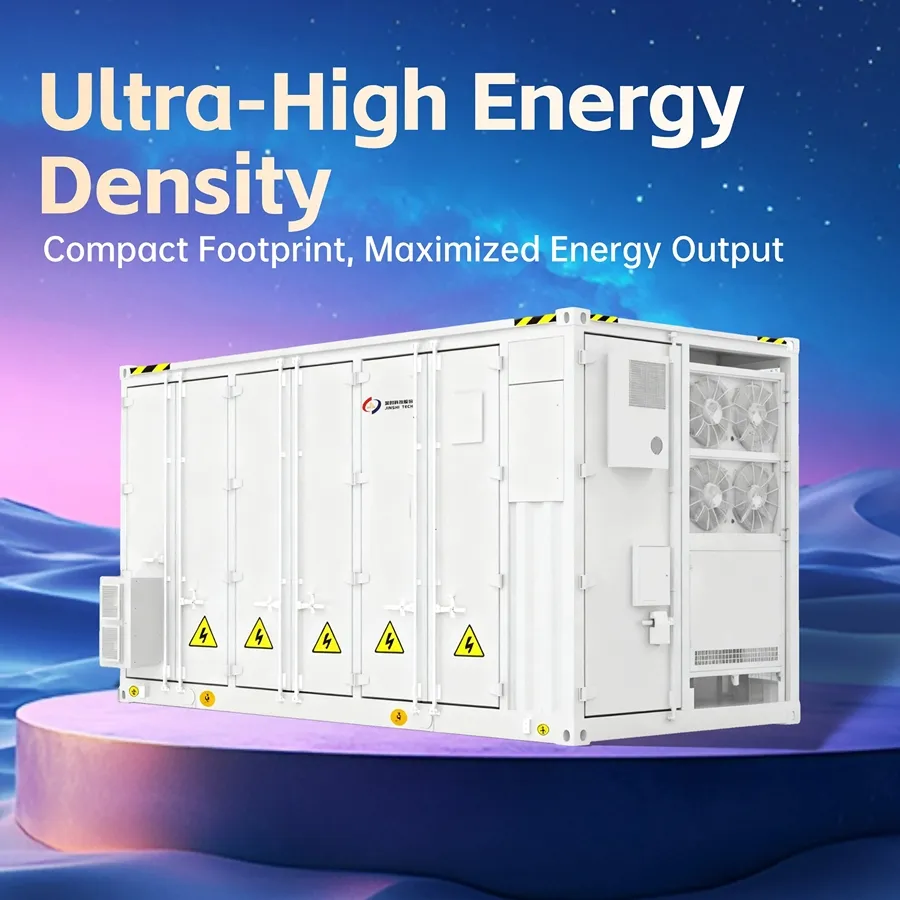

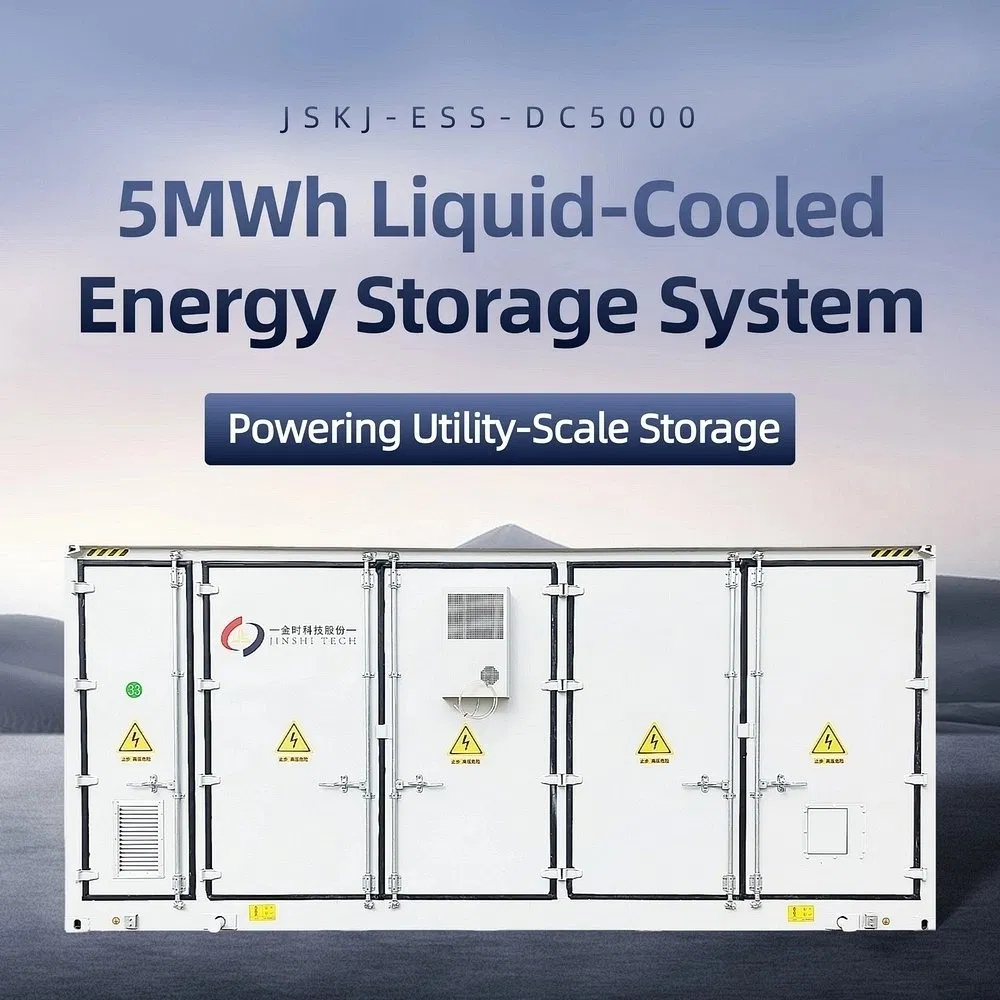

5MWH BATTERY STORAGE CONTAINER

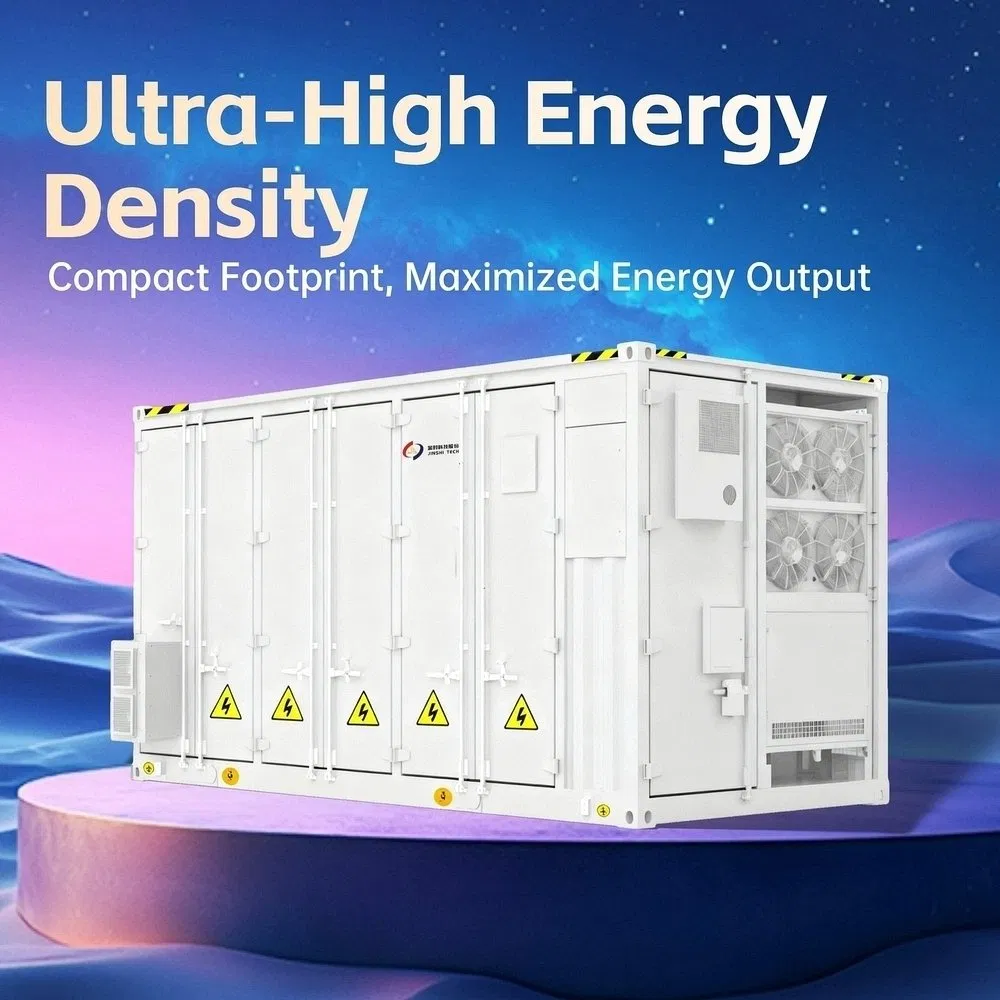

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

Key Product Features

24/7 BMS (Battery Management System) Monitoring
High-Frequency Regulation Compatibility
Supports Fire Suppression Agents: NOVEC 1230, Liquid Nitrogen
Original Three-Level Fusing + Targeted Explosion Discharge Design
Supporting Perfluorohexanone and Liquid Nitrogen
Multi-Cabinet Parallel Connection for Easy Scalability

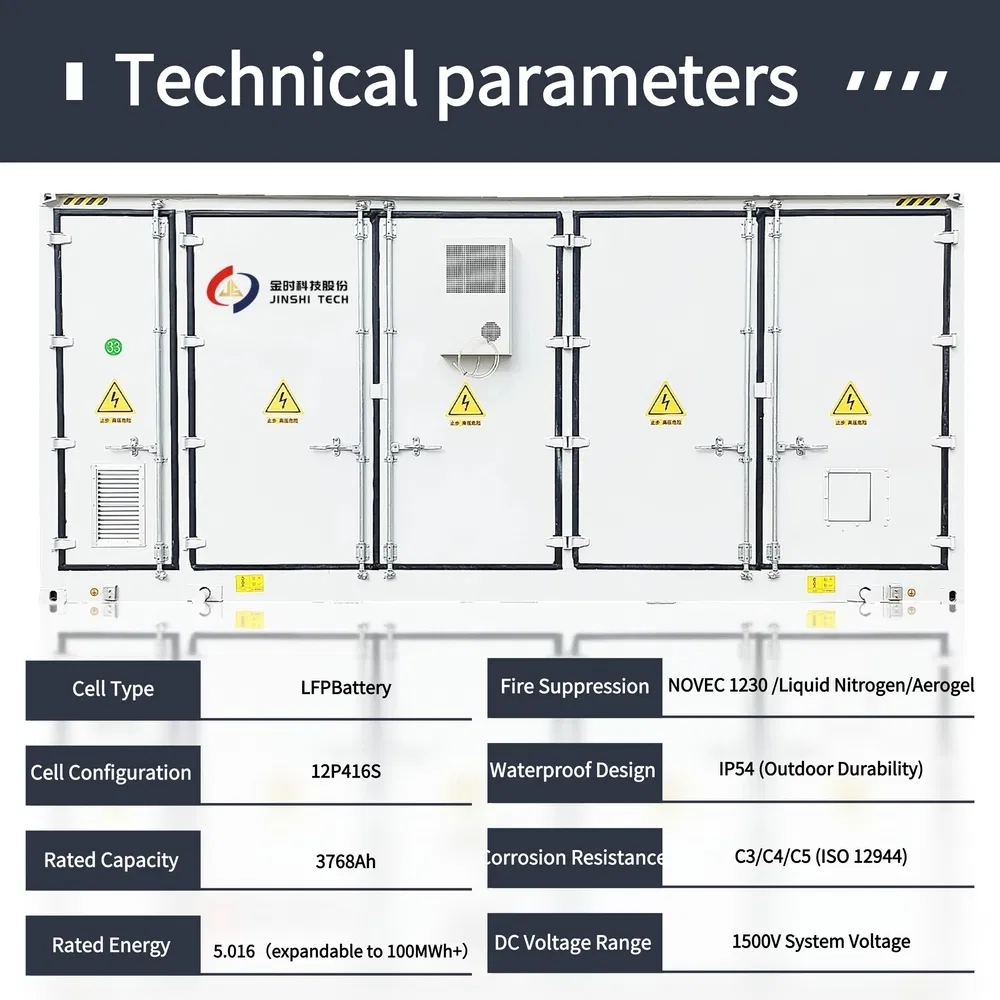

Technical Parameters

TECHNICAL SPECIFICATIONS
Cell Type	LFP Battery
Cell Configuration	12P416S
Rated Capacity	3768Ah
Rated Energy	Expandable To 100MWh+
Rated Voltage	1331.2V
Charge/Discharge Rate	0.5P
Operating Voltage Range	1164.8-1497.6V
Standard Charge/Discharge Current	1884A/1884A
Cooling Method	Liquid + Air Cooling Dual Thermal Management
Fire Detection	Temp, CO, Smoke Sensors
Corrosion Resistance	C3/C4/C5 (ISO 12944)
System Architecture	Triple Fire Protection + Triple BMS
Waterproof Design	IP54 (Outdoor Durability)
Application Scenarios	Inland, Plateau, Coastal
DC Voltage Range	1500V System Voltage

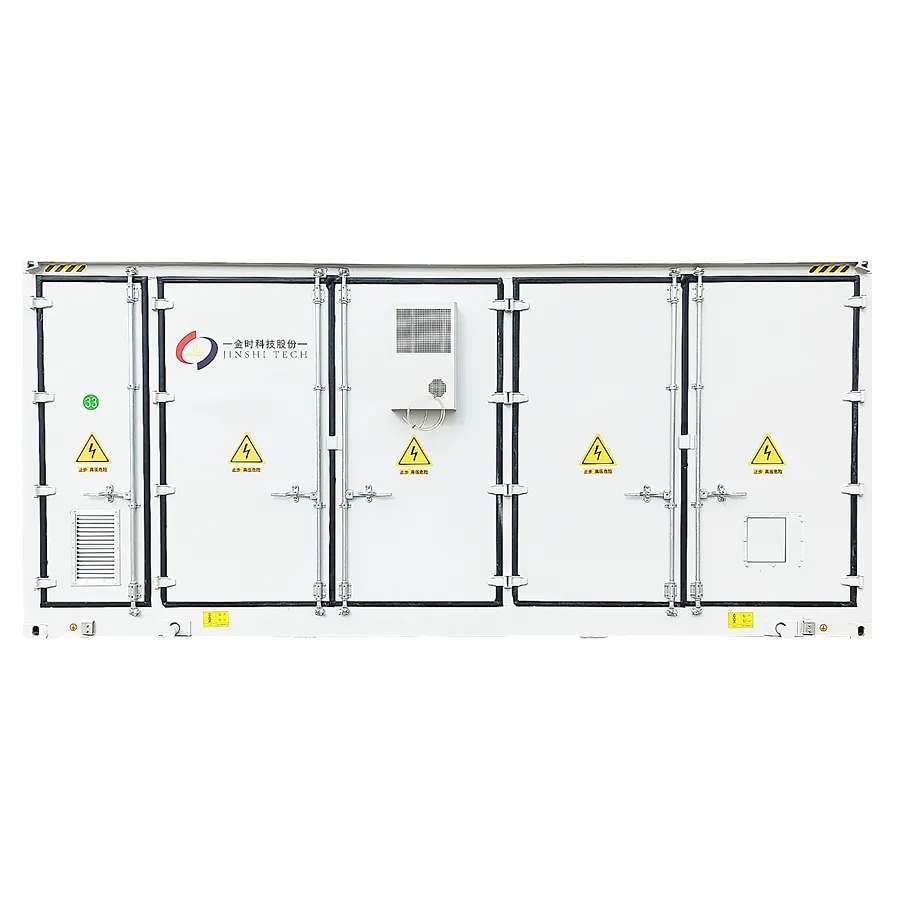

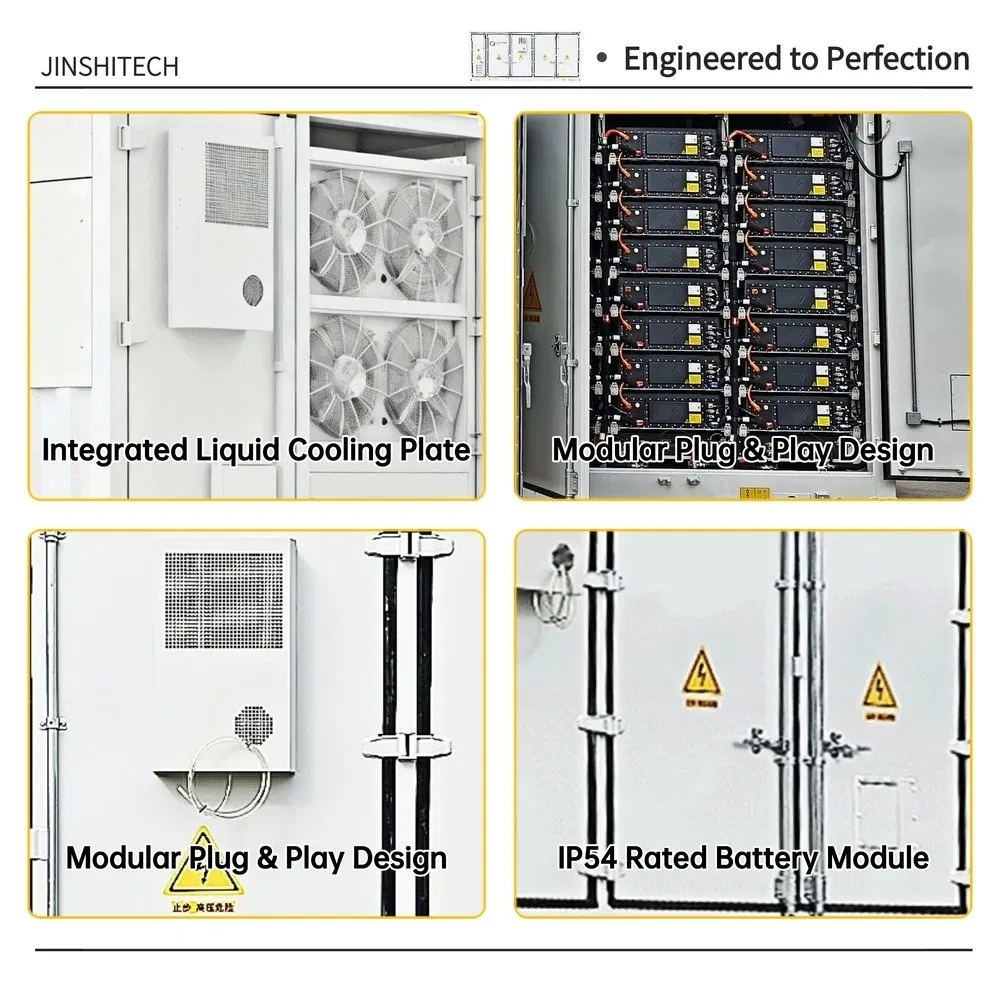

Detailed Photos & Features

TRIPLE-LAYER FIRE PROTECTION

Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents.
