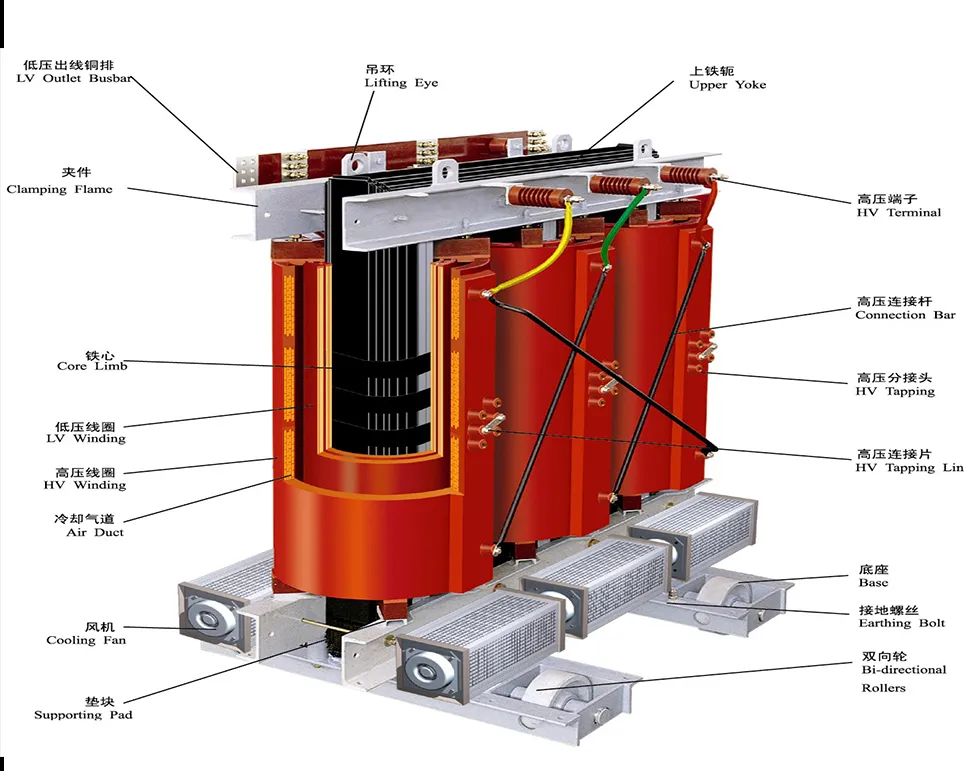

Dry-type transformer meets China's national first level energy efficiency standards. Resin insulated dry-type transformer, due to the coil is encapsulated by epoxy resin, so it is flame retardant, fireproof, explosion-proof, maintenance-free, non-polluting, small in size, and can be directly placed in the load center.
Due to the scientific and reasonable design and casting process, the product has smaller partial discharge, low noise, strong heat dissipation ability, and can be operated for a long time under 125% of the rated load under the condition of forced air-cooling. It is equipped with a temperature controller, which has the functions of fault alarm, over-temperature alarm, over-temperature trip, and black-box function, and can be connected to the computer through the RS485 serial interface to enable centralized monitoring and control.
| Rated Capacity (kVA) | High Voltage (kV) | Tapping Range (%) | Low Voltage (V) | Vector Group | No-load Loss (W) | Load Loss (120℃) (W) | No-load Current (%) | Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 100 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 270 | 1415 | 1.5 | 4 |
| 250 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 490 | 2485 | 0.9 | 4 |
| 400 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 665 | 3590 | 0.8 | 4 |
| 630 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 910 | 5290 | 0.7 | 4/6 |
| 1000 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 1205 | 7315 | 0.7 | 6 |
| 2000 | 6/10/11 | ±5 / ±2×2.5 | 400 | Yyn0 / Dyn11 | 2075 | 13005 | 0.7 | 6 |

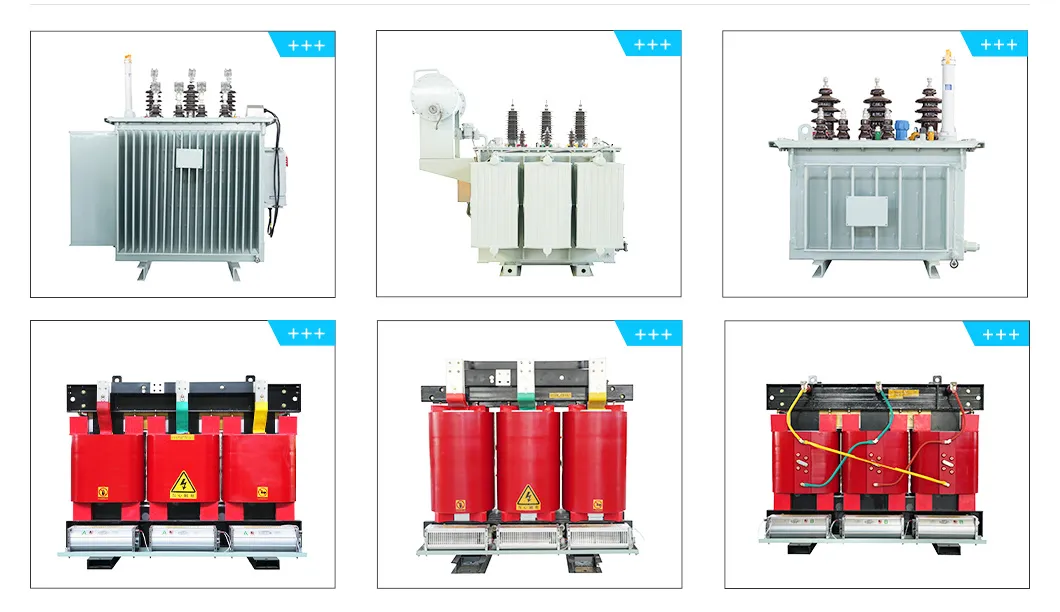

Established in 2011, our facility specializes in the R&D and manufacturing of dry-type transformers, oil-immersed transformers, prefabricated substations, and complete electrical equipment. Our products are widely used in sectors including new energy, urban and rural power distribution networks, highways, railways, and wind/photovoltaic power generation.
We strictly implement ISO9001 Quality Management System, ISO14001 Environmental Management System, and ISO45001 Occupational Health and Safety Management System certifications. Leveraging leading production technology and advanced manufacturing equipment, we ensure high standards and consistent product quality.
