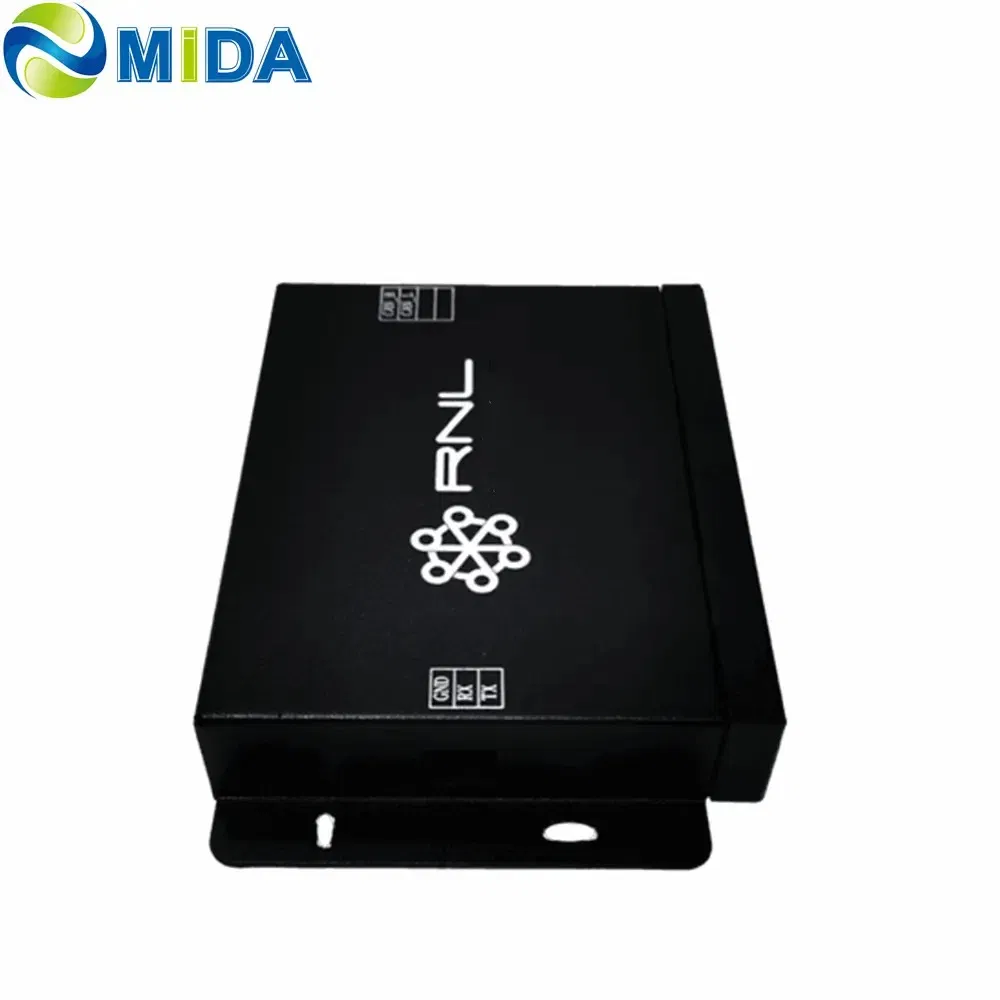

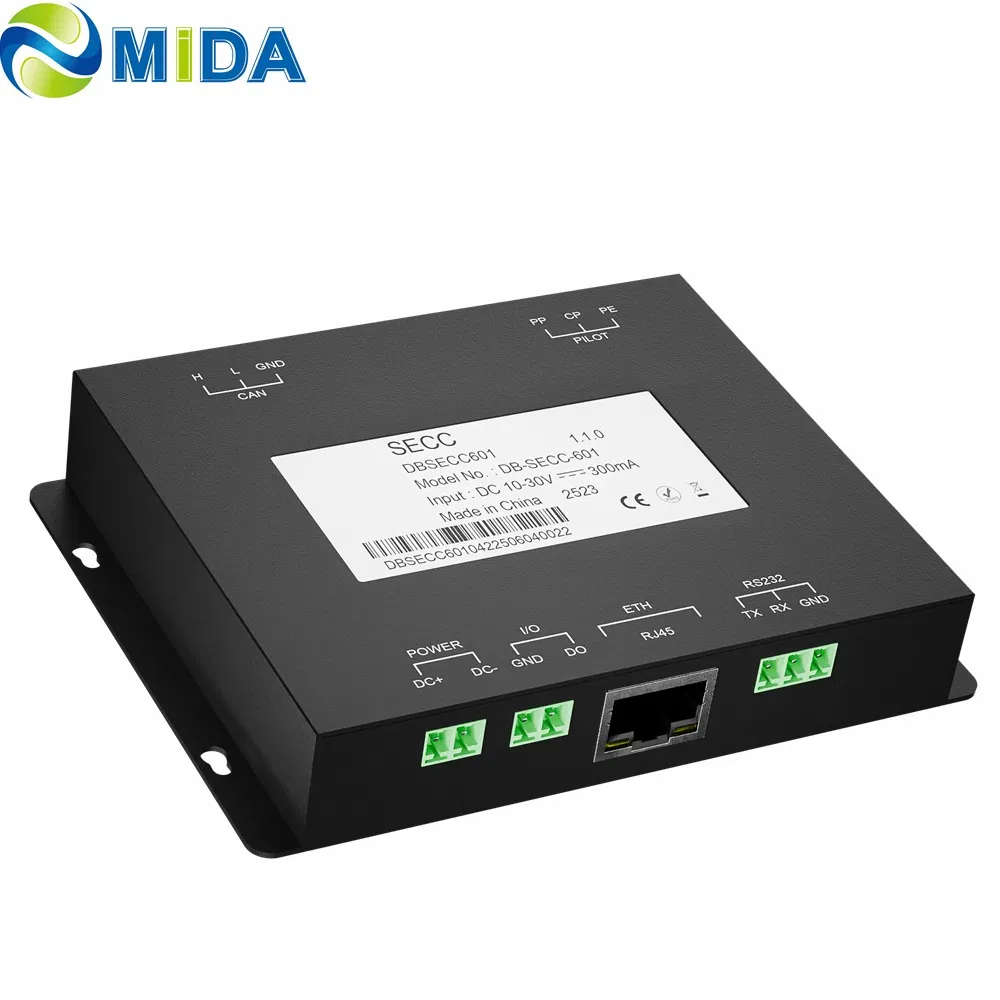

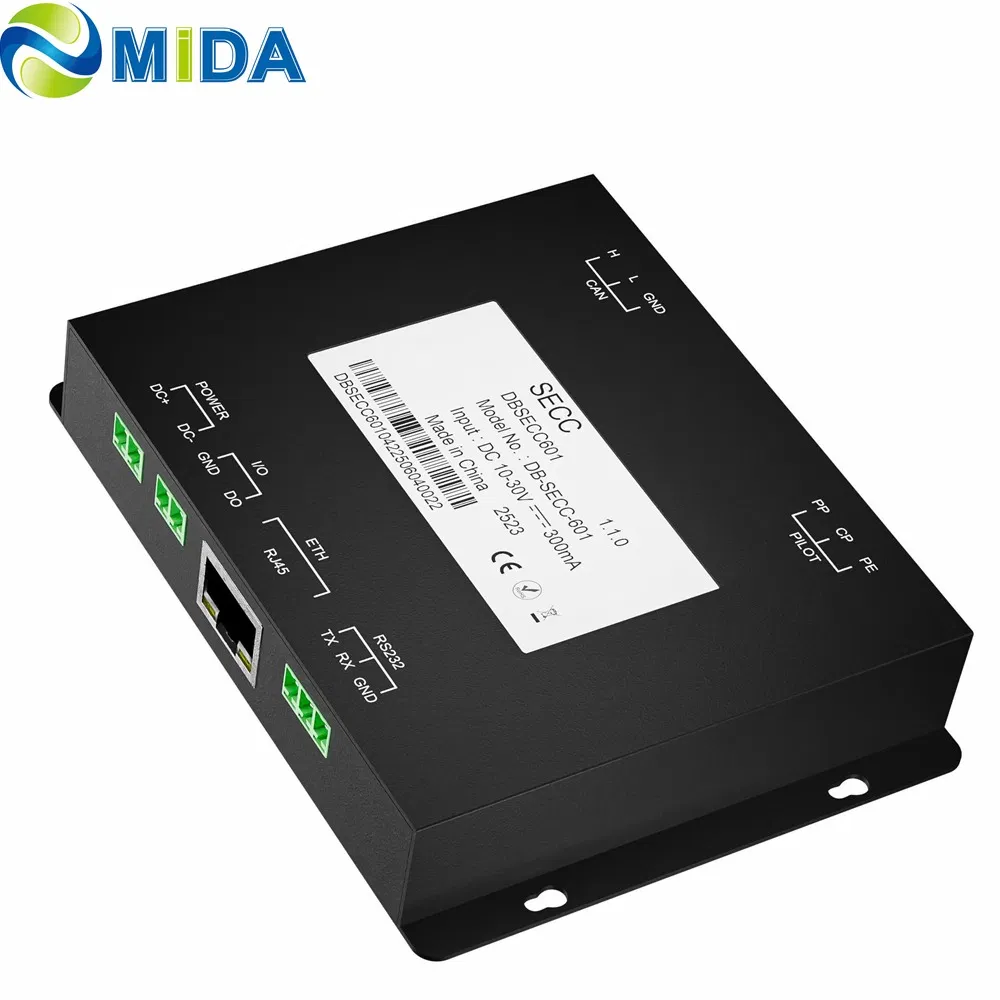

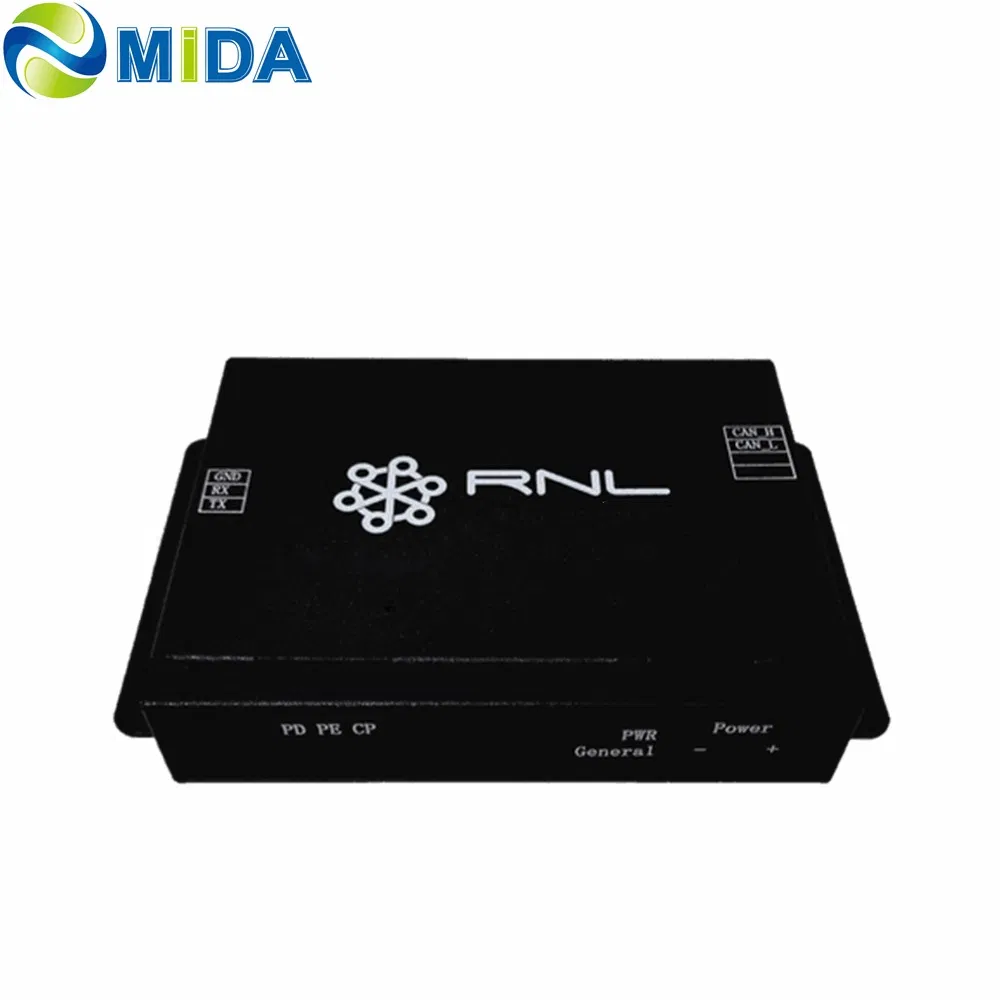

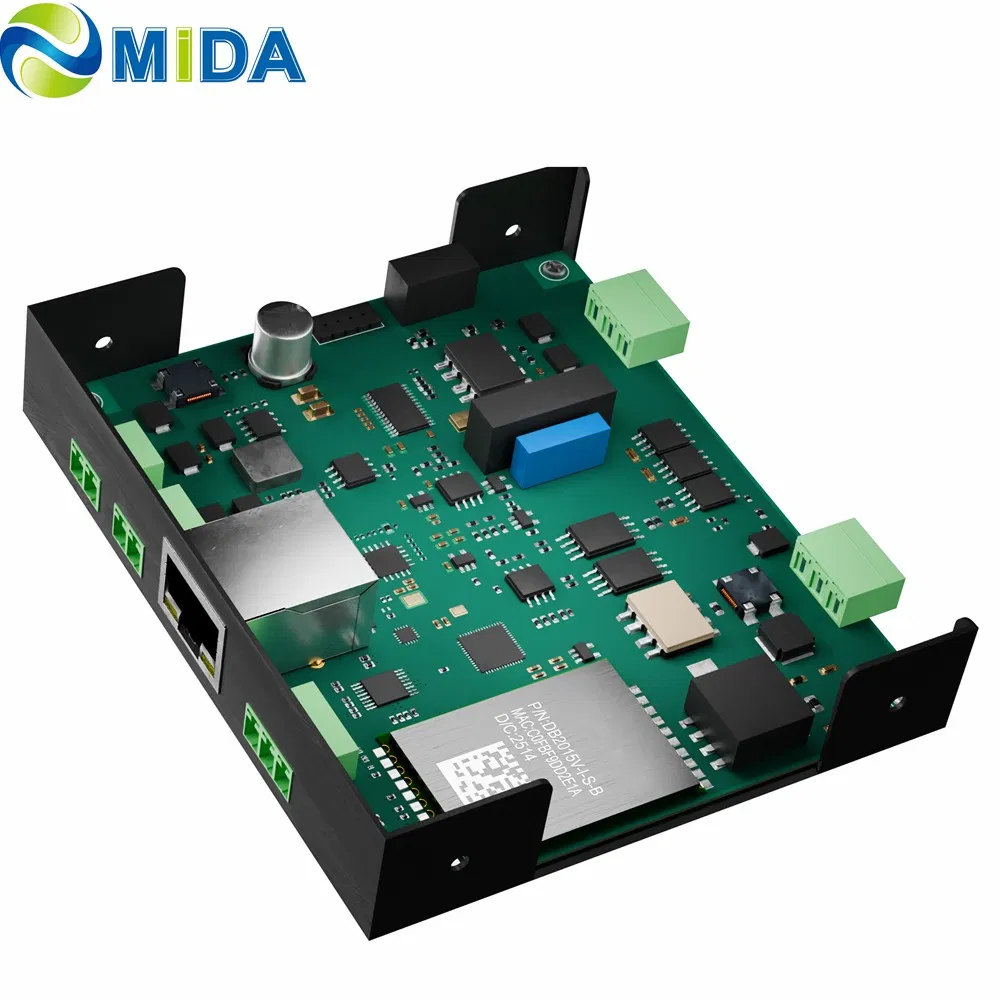

The SECC is a PLC communication converter for full-function power supply equipment at charger side, which conforms to ISO15118 (TLS, Pnc, AC), DIN70121, SAE, CHAdeMO PLC communication protocol standards. It features PD detection on the circuit board to support the two-way communication (V2G protocol) application of electric vehicles to the power grid.
| Model NO. | SECC |
| Information Content | Data |
| Certification | CE |
| Charging Mode | CCS (DIN70121, ISO15118) |
| Serial Port | RS232, CAN (Optional) |
| Dimensions | 151.5x135x35.3 (+0.5) mm |
| Origin | China |

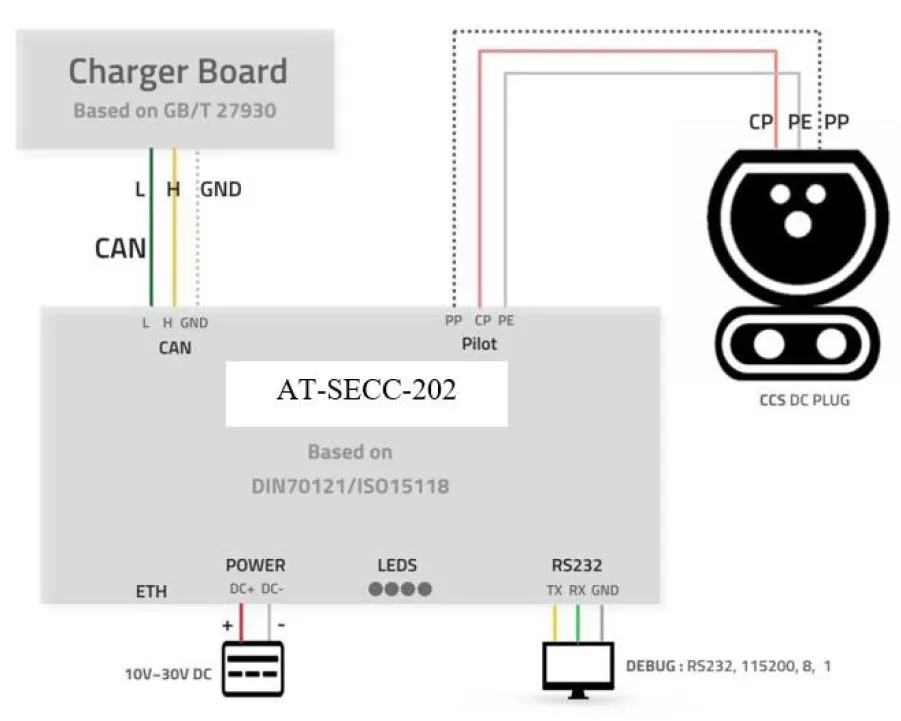

The SECC acts as a bridge between the DC charger power electronics and the electric vehicle's battery management system (BMS), implementing high-level communication via the power line communication (PLC) standard. It can convert the CAN communication signal of a standard charger into a PLC signal that conforms to ISO15118 (EIM) and DIN70121 protocols.
It supports real-time output of diagnostic information from the serial port for easy troubleshooting and can automatically select AC EIM and BC modes. This solution provides a simple, feasible, and scalable standard for charger manufacturers to quickly enter overseas markets such as the EU, Americas, and Asia.
Our solutions are verified by market requirements and time. The SECC series is trusted by global partners and has passed rigorous certification tests by world-renowned companies such as TUV Rheinland and DEKRA. We provide solid quality assurance for overseas charging infrastructure projects.
