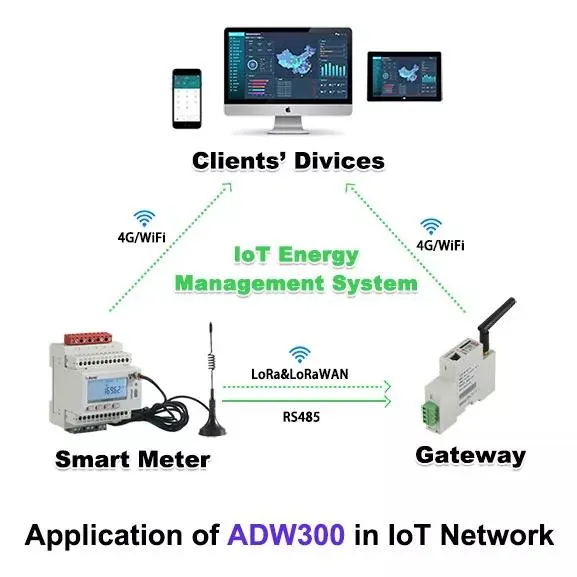

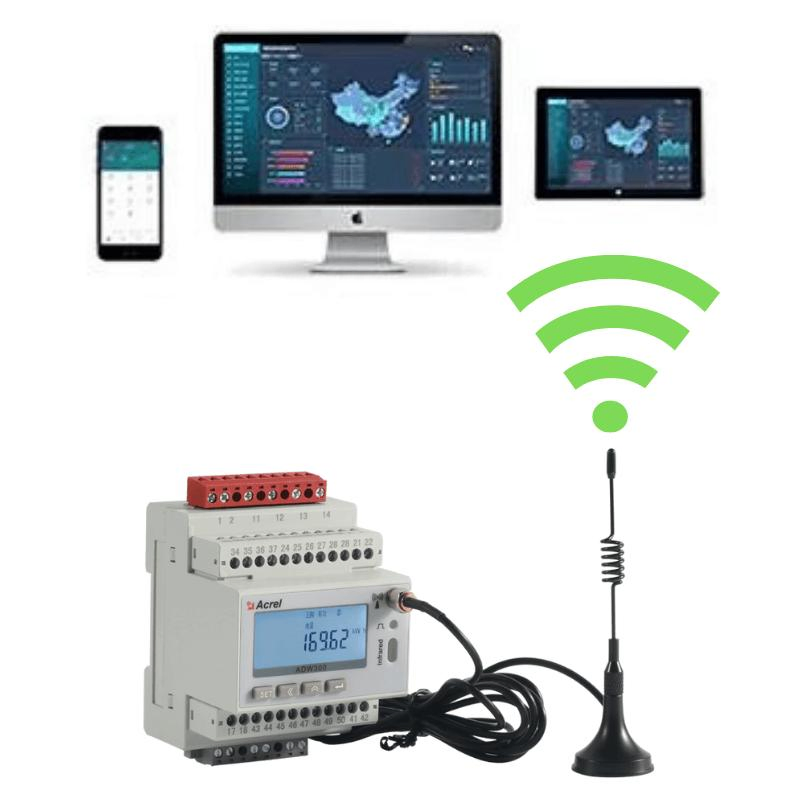

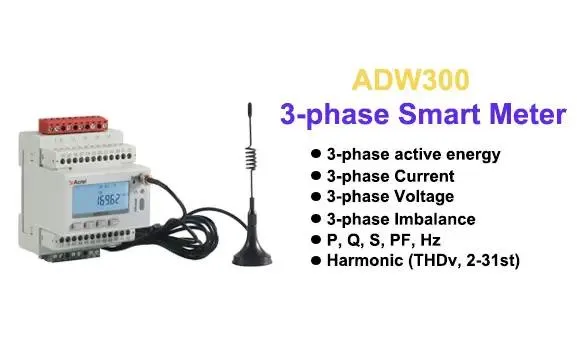

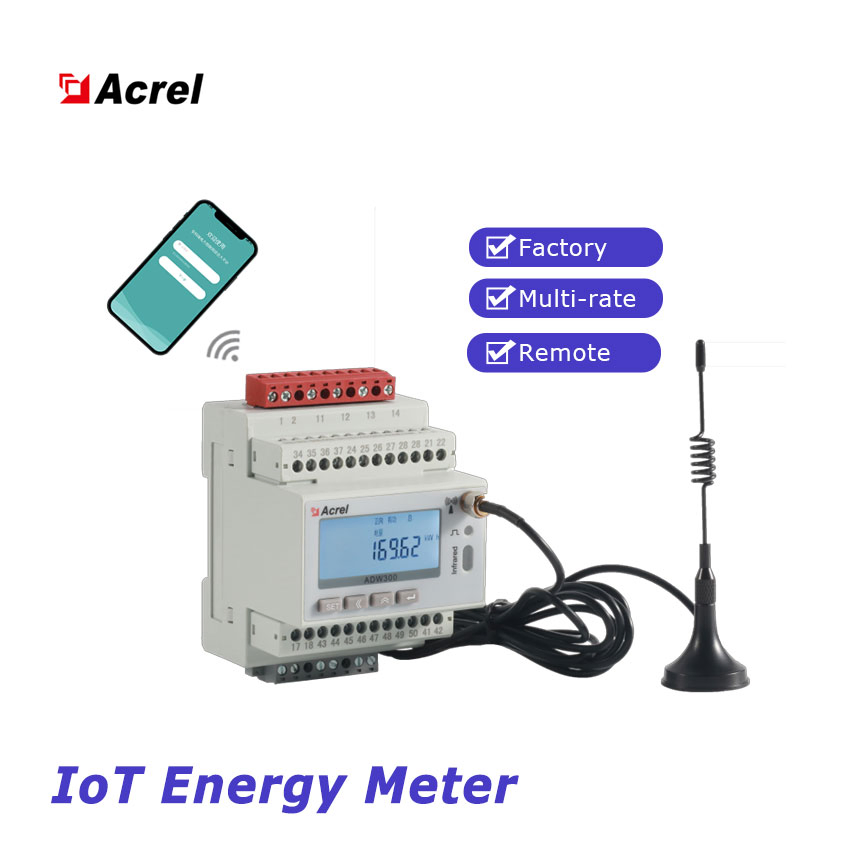

ADW300 wireless meter is mainly used to measure three-phase active power in the low-voltage network. It features RS485 communication and 470MHZ wireless communication, making it highly convenient for users to monitor, collect, and manage electricity data. It can be flexibly installed in distribution boxes to achieve accurate measurement, statistics, and analysis of electric energy across different regions and loads.

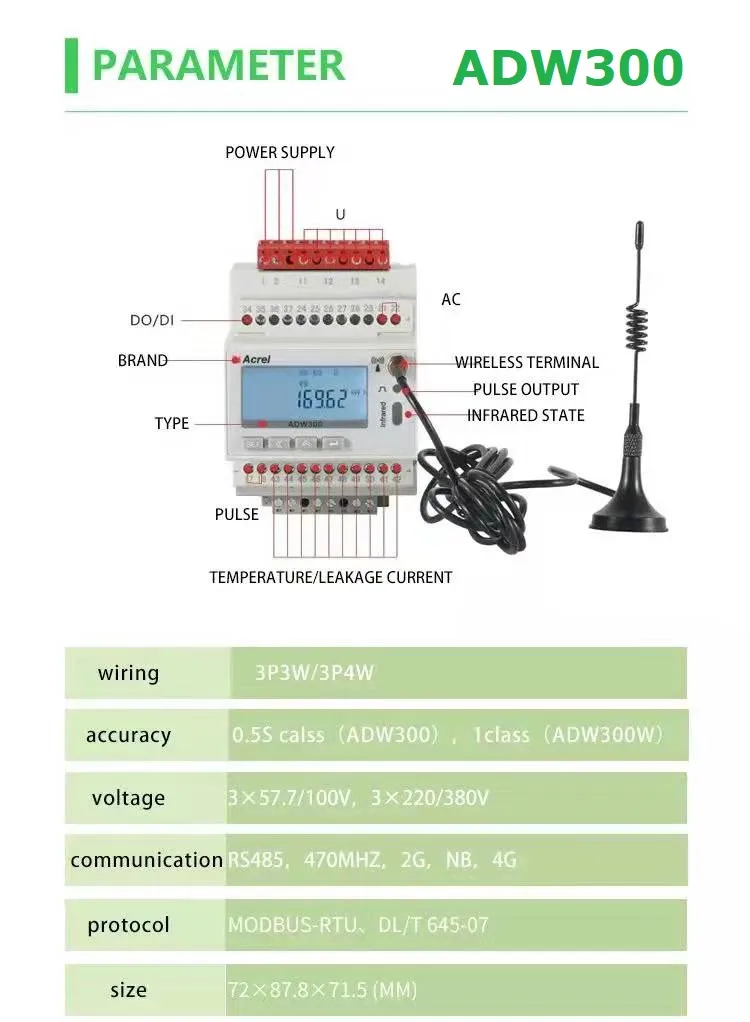

| Category | Parameter | Specifications |
|---|---|---|
| Input Voltage | Nominal voltage | 3*220/380V, 3*380V, 3*57.7/100V, 3*100V |
| Frequency | 50Hz-60Hz | |
| Consumption | <0.5VA (B phase, C phase) | |
| Input Current | Maximum current | 6A |
| Starting current | 0.002A | |
| Accuracy | Class 0.5S | |
| Pulse | Constant | 6400imp/kWh |
| Environment | Operating Temp | -25ºC ~ 55ºC |
| Humidity | ≤95% (No condensation) | |

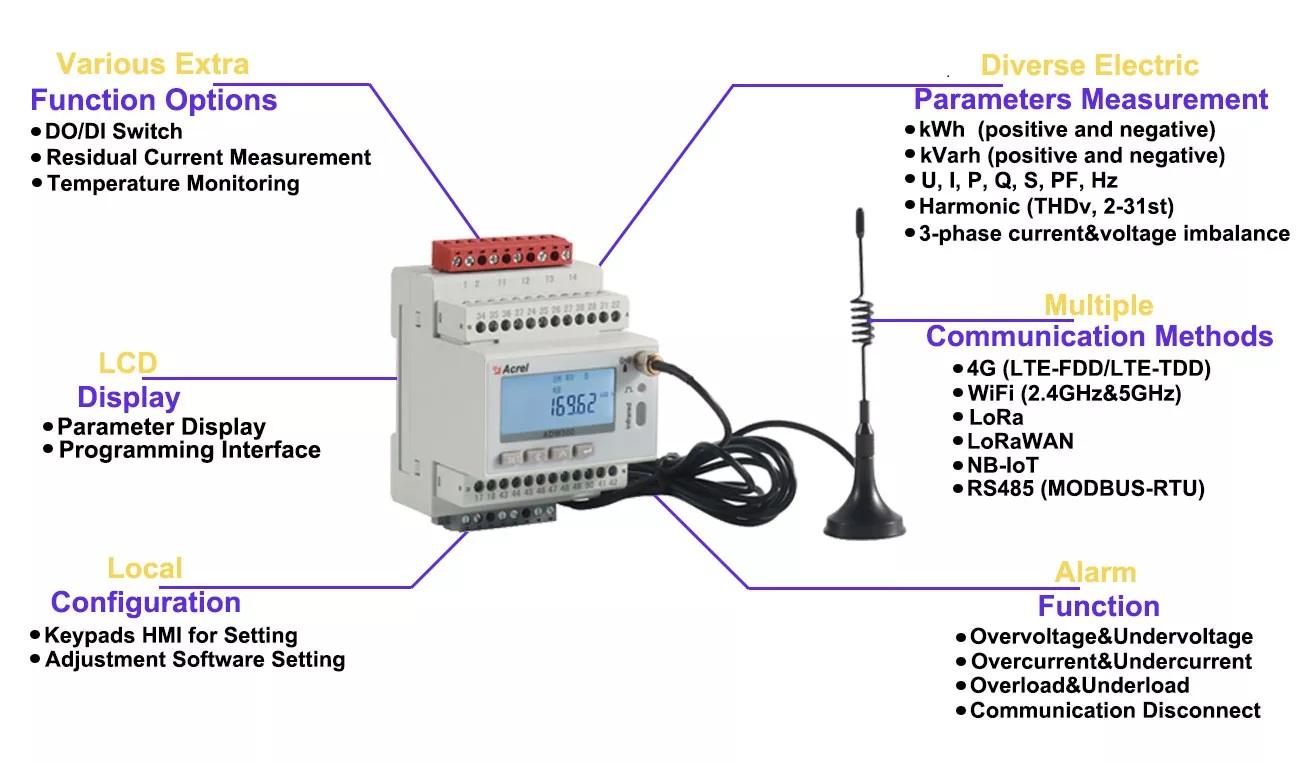

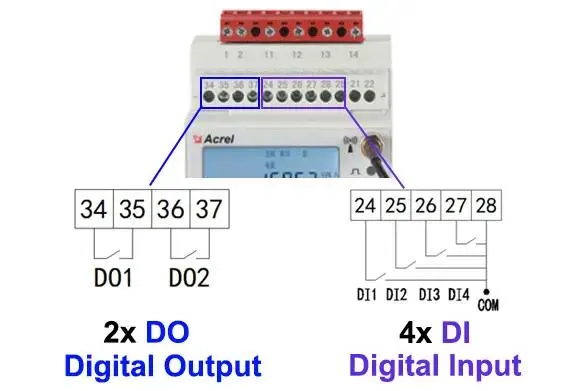

DO/DI Switch Function

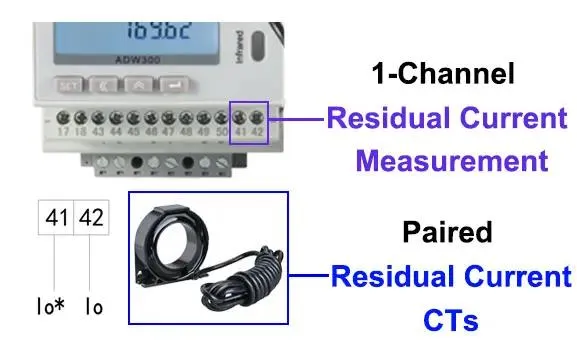

Residual Current Measurement

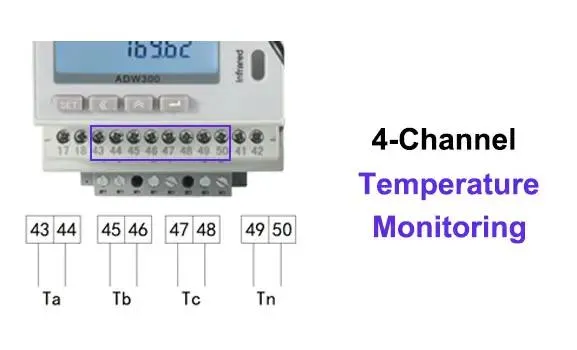

Temperature Monitoring (NTC)

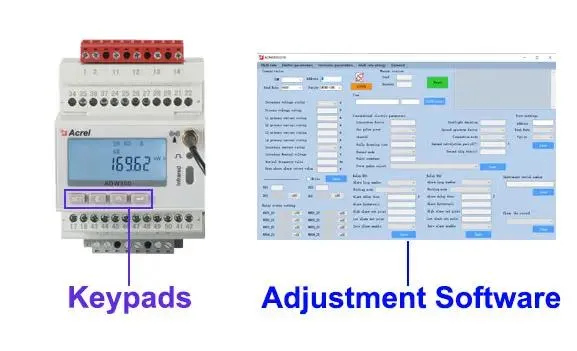

Features keypads HMI for on-site setting of CT/PT ratios and wiring configurations. Also supports adjustment through dedicated software.

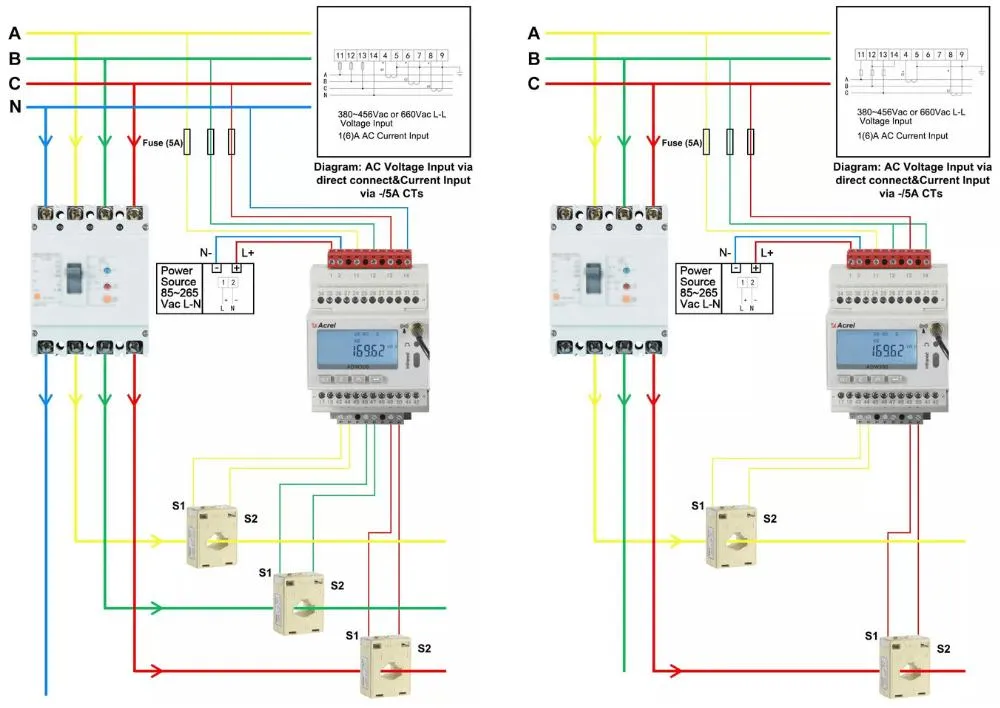

| 3-phase 4-wire CT operated | 3-phase 3-wire CT operated |
