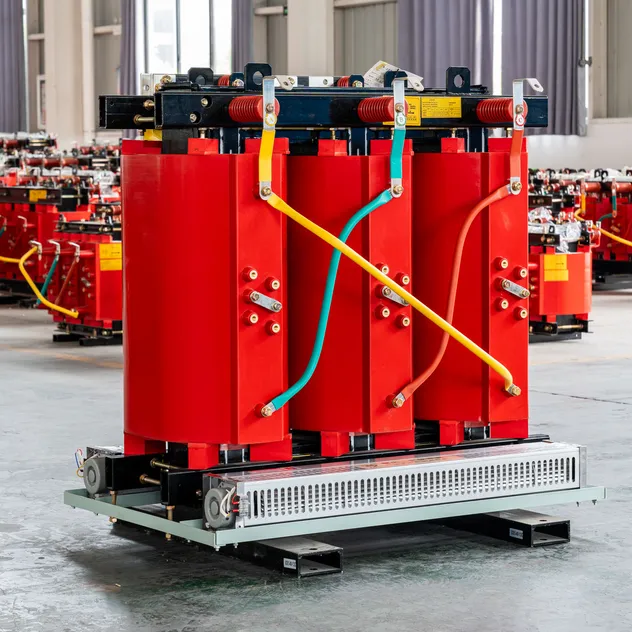

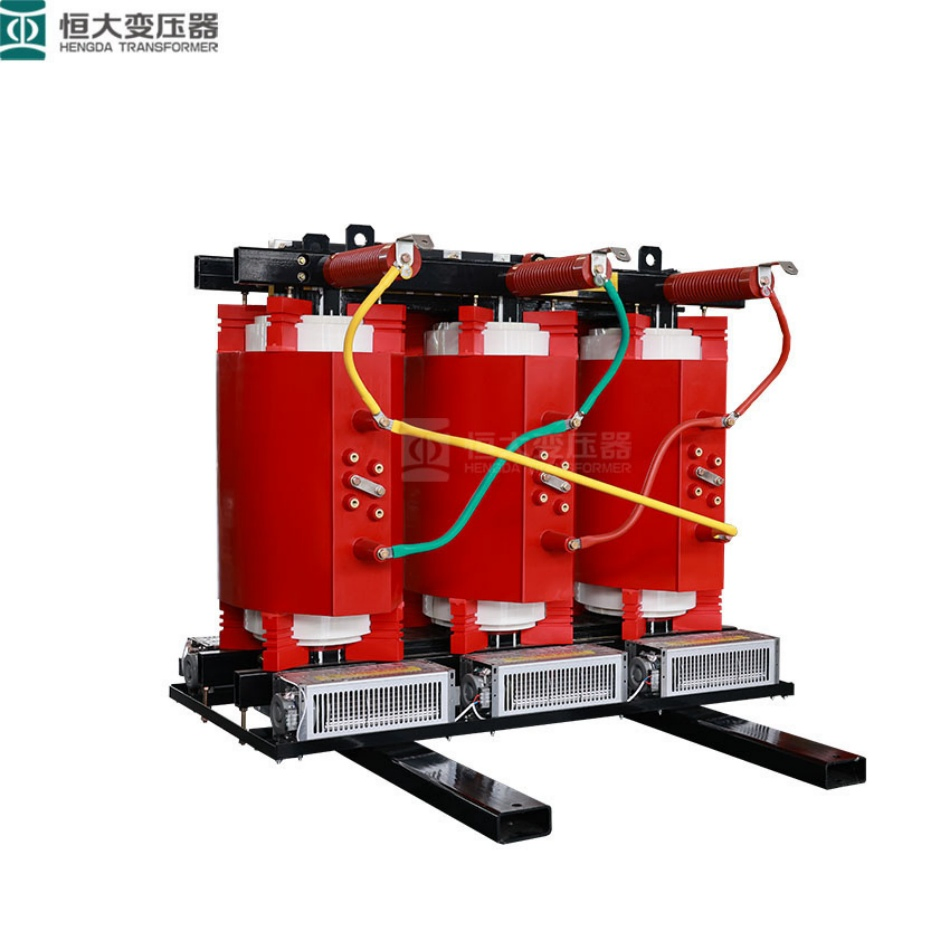

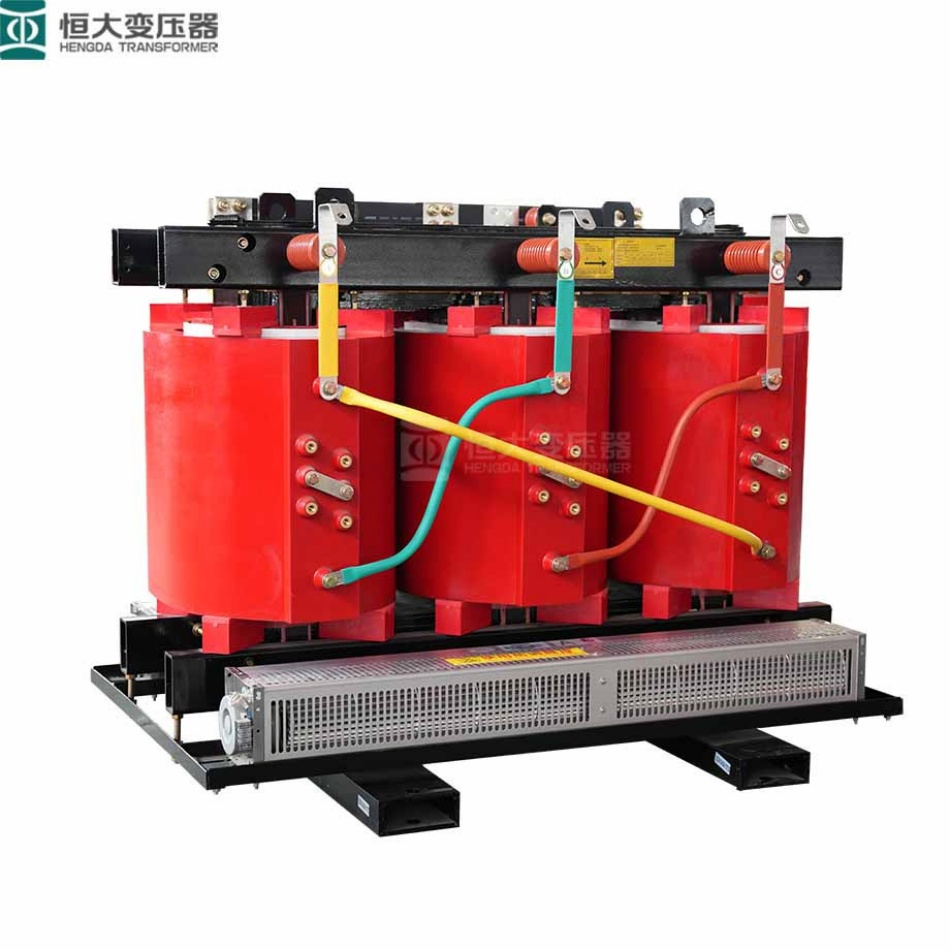

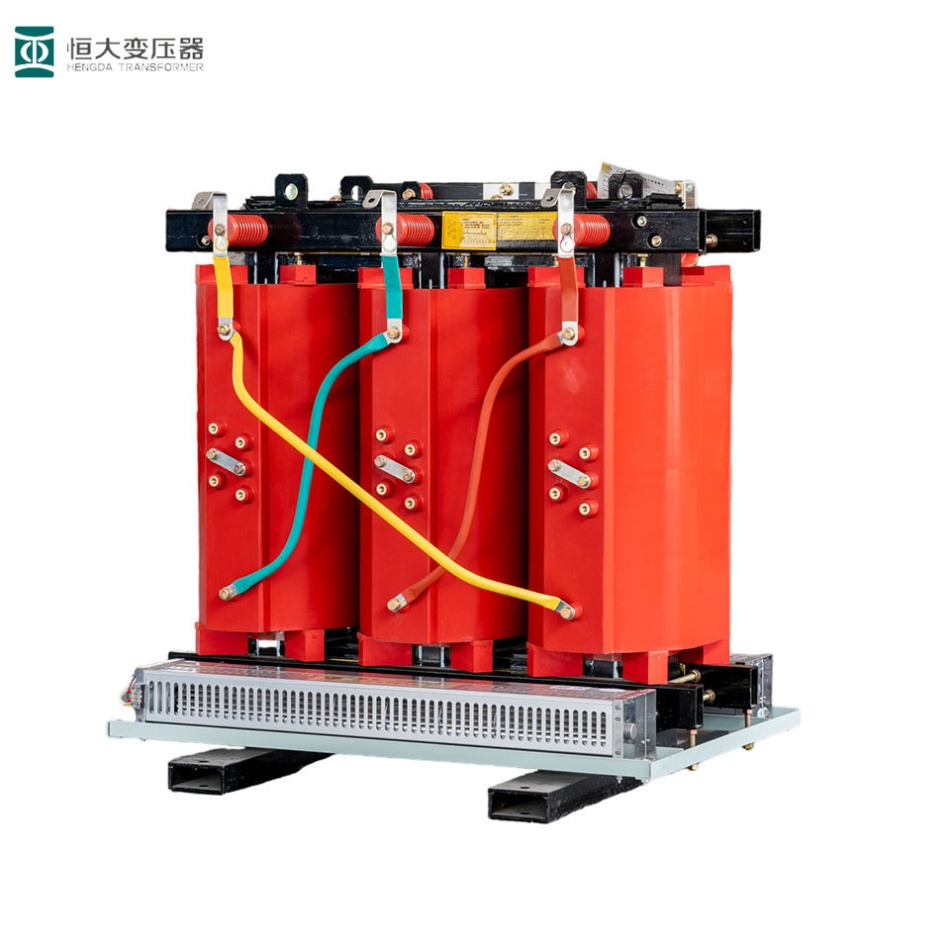

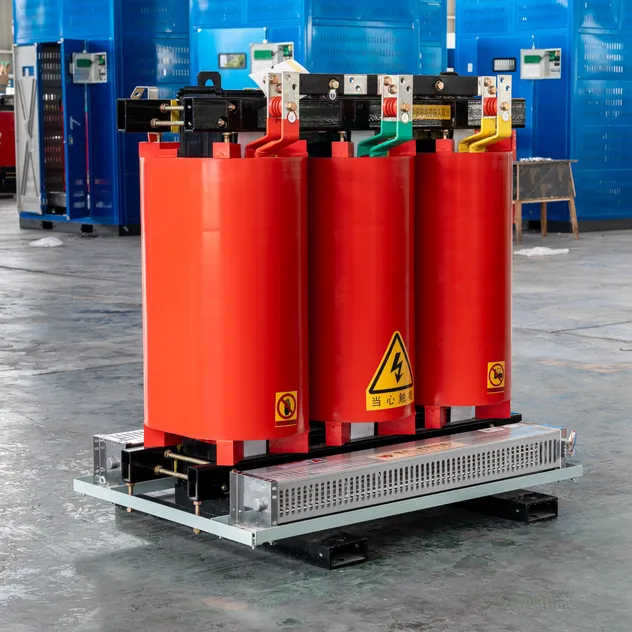

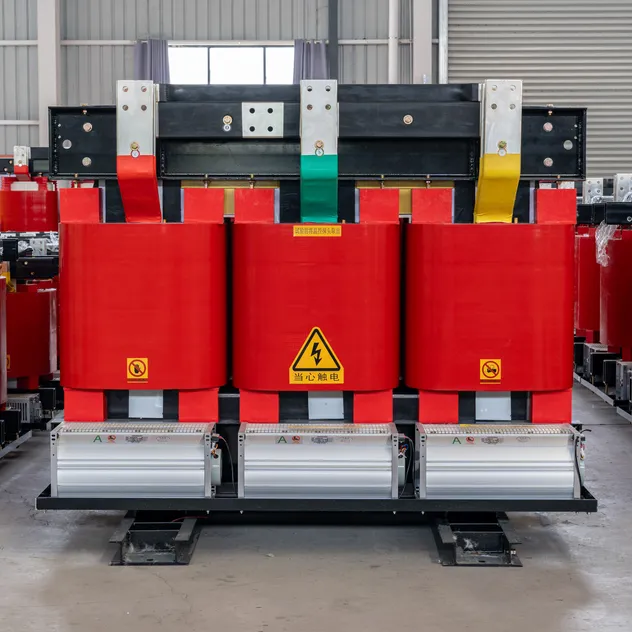

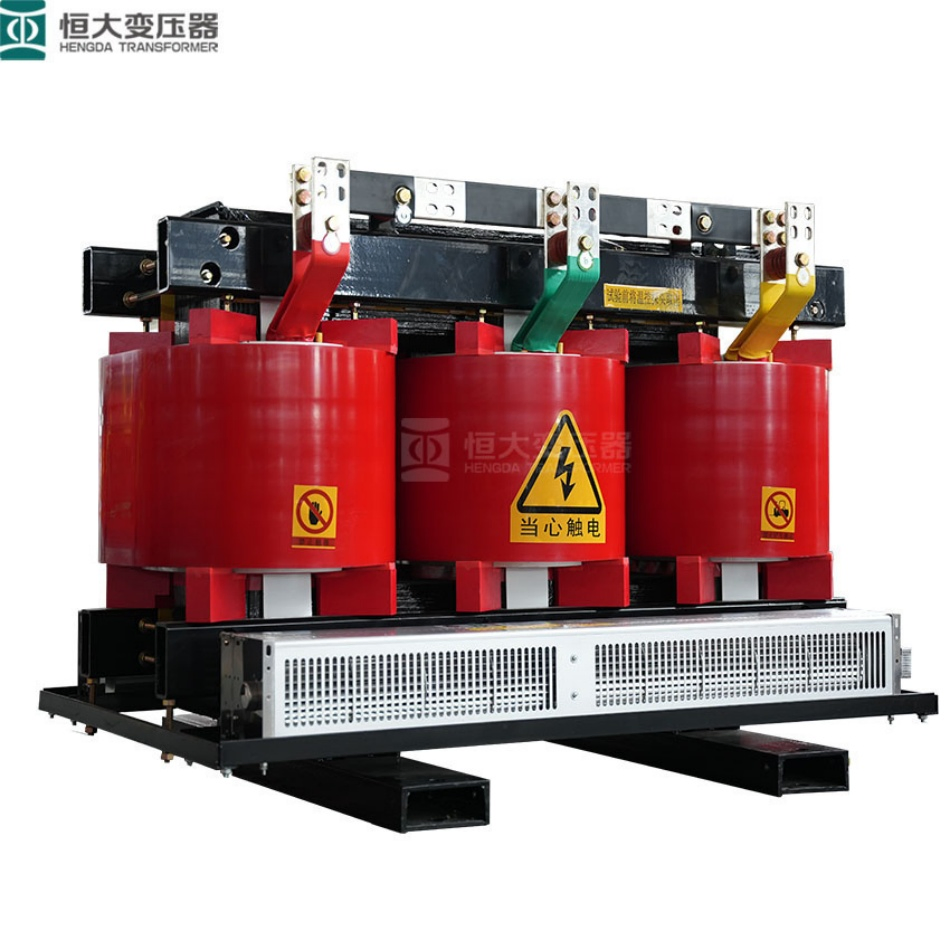

Resin insulated dry-type transformer meets China's national first level energy efficiency standards. Due to the coil being encapsulated by epoxy resin, it is flame retardant, fireproof, explosion-proof, maintenance-free, and non-polluting. It features a compact size and can be directly placed in the load center.

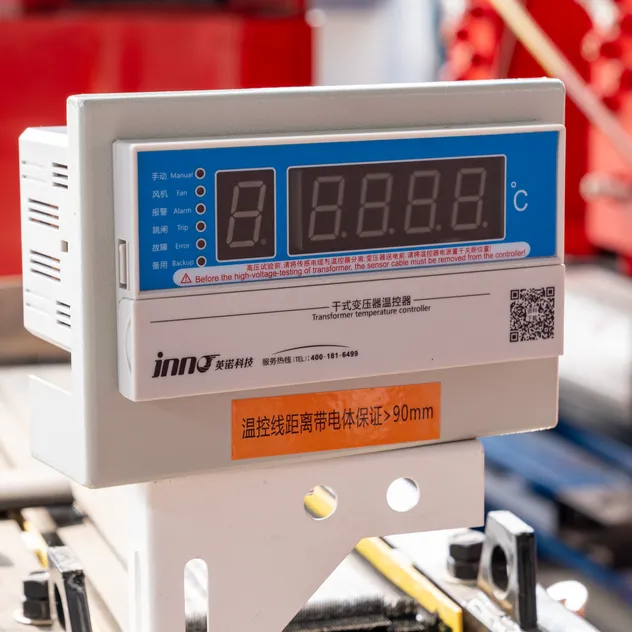

The product offers smaller partial discharge, low noise, and strong heat dissipation ability. It can operate for extended periods under 125% of the rated load with forced air-cooling. Equipped with a temperature controller, it provides fault alarms, over-temperature alarms, over-temperature trip, and black-box functions, connectable via RS485 serial interface for centralized monitoring.
| Rated Capacity(kVA) | Voltage Combination | Vector group | No-load Loss(W) | Load Loss(120℃)(W) | Short-Circuit Impedance(%) | ||
|---|---|---|---|---|---|---|---|
| HV(kV) | Tap Range(%) | LV(V) | |||||
| 30 | 6 / 10 / 11 | ±5 or ±2×2.5 | 0.4 | Yyn0 or Dyn11 | 130 | 640 | 4 |
| 100 | 270 | 1415 | 4 | ||||
| 400 | 665 | 3590 | 4 | ||||
| 630 | 910 | 5290 | 4 | ||||
| 1250 | 1420 | 8720 | 6.0-8.0 | ||||
| 2500 | 2450 | 15445 | 6.0-8.0 | ||||
Established in 2011, the company specializes in the R&D and manufacturing of dry-type transformers, oil-immersed transformers, prefabricated substations, and complete electrical equipment. Our products are widely used in new energy, urban and rural power distribution networks, highways, railways, and wind/photovoltaic power generation.

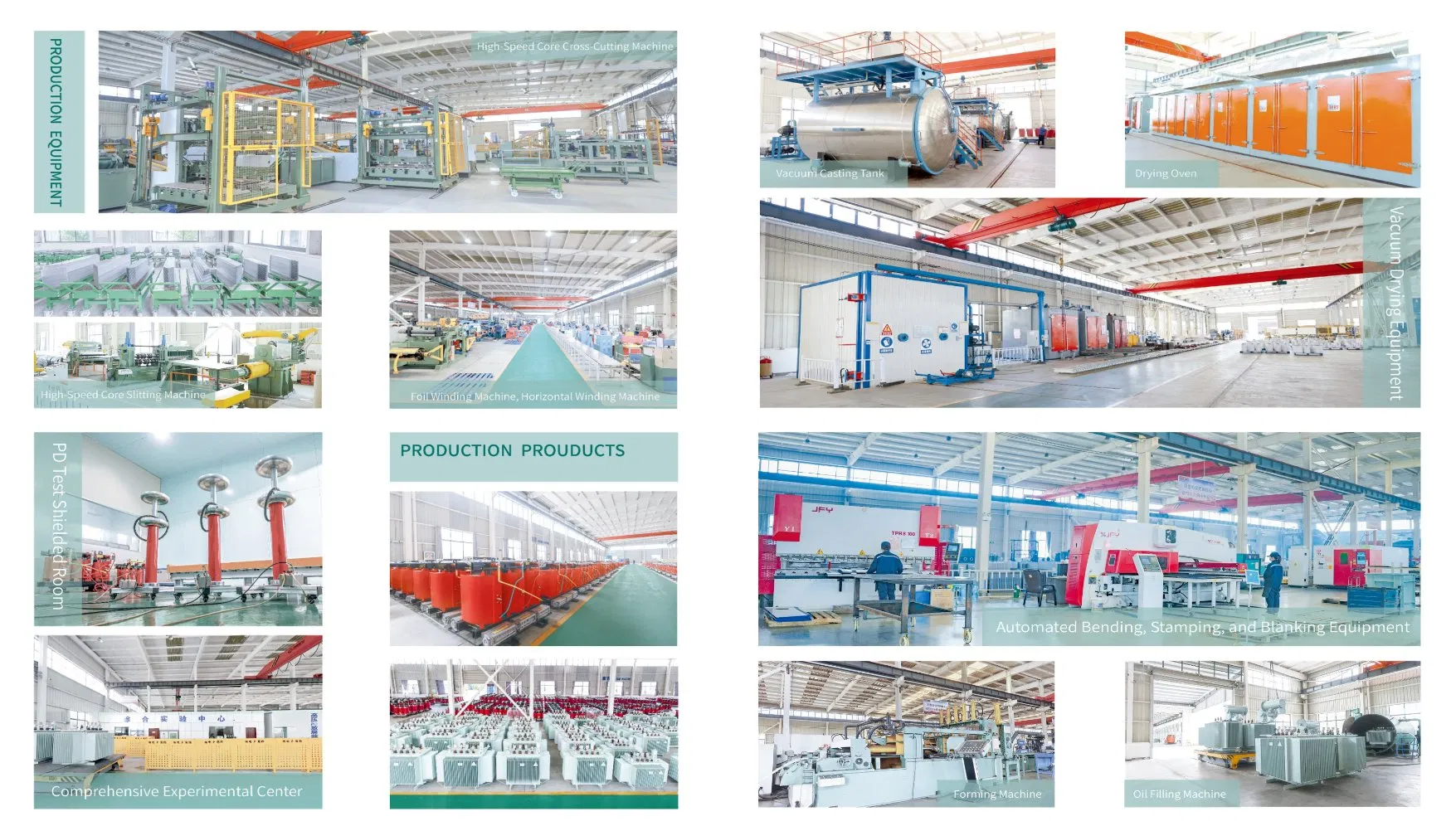

We strictly implement ISO9001 Quality Management, ISO14001 Environmental Management, and ISO45001 Occupational Health and Safety systems. Leveraging leading production technology and advanced manufacturing equipment, we ensure high standards and consistent product quality across S13, S14, S20, S22 series and SCB12, SCB13, SCB14, SCB18 series.
