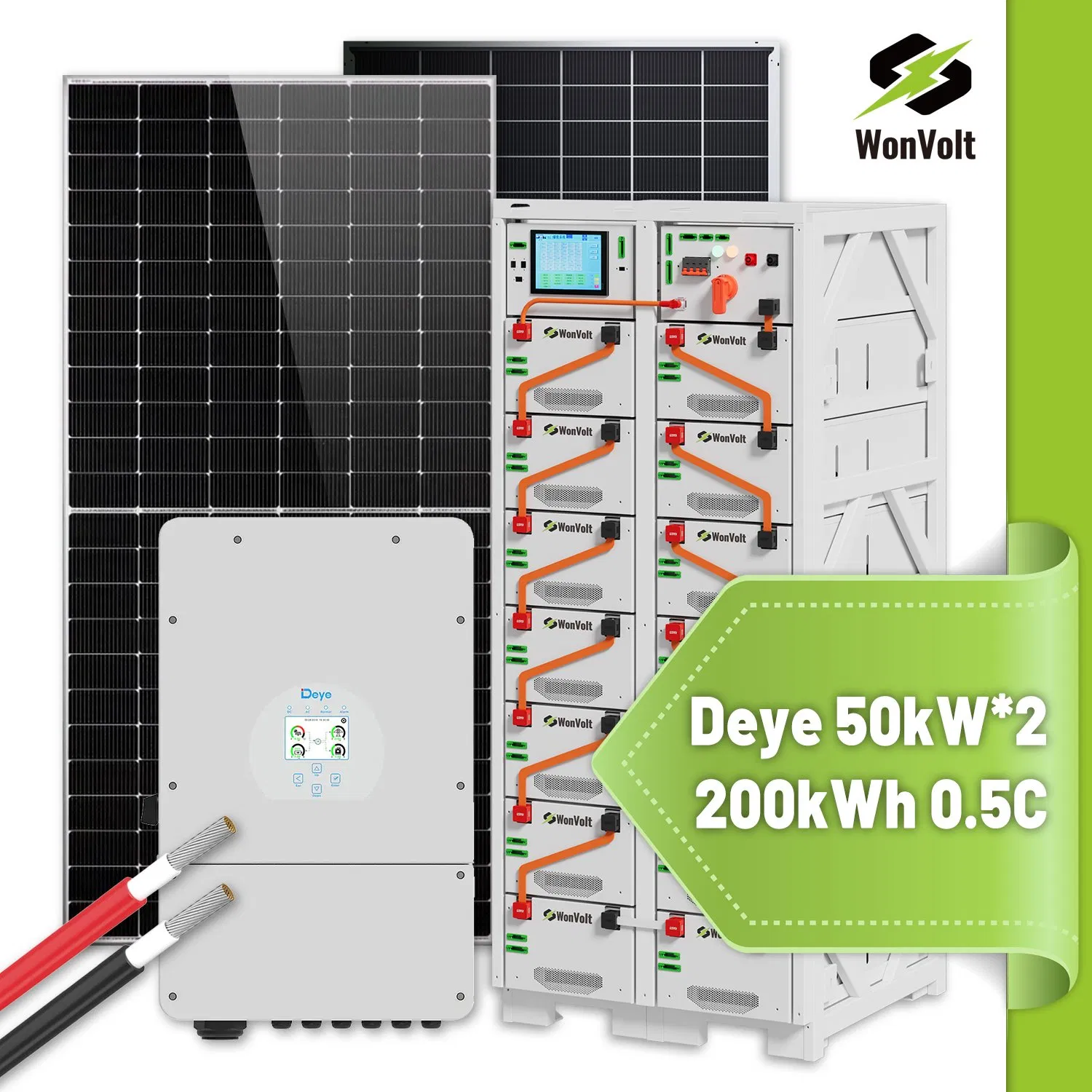

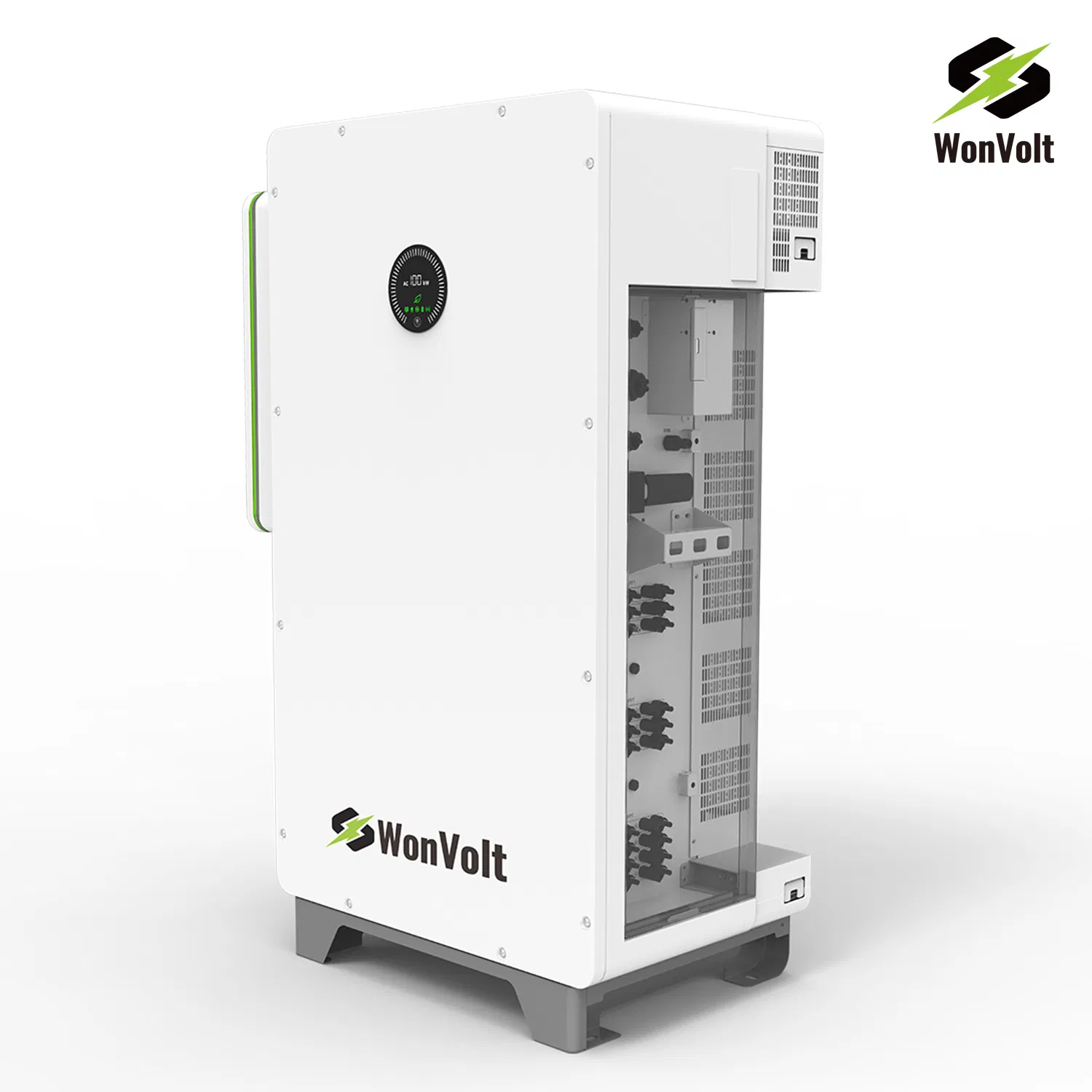

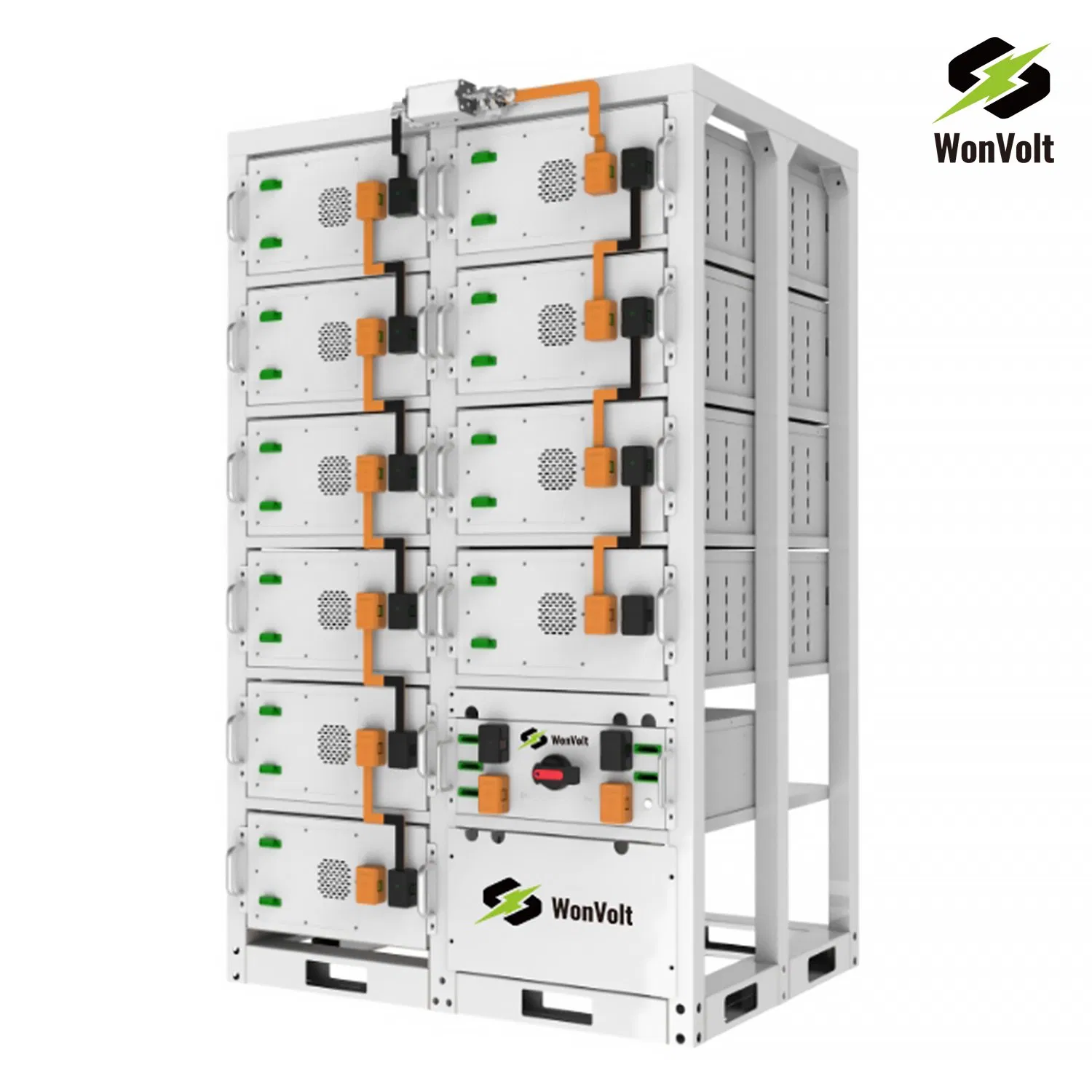

100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
1 / 5
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management
100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management

100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚡ Basic Information
Model:
WV-100KW-215KWh-0.5C
Cycle Life:
6000 Times
Nominal Capacity:
100kw/200kwh+
Application:
Commercial and Industrial
AC Output:
380V/400V/415V
Battery Type:
LiFePO4/Lithium
Cooling:
Smart Air Cooling
Certificate:
CE Un38.3 IEC En50549
Parallel Support:
Yes, up to 3 Units
PV Inputs:
10 Mppts

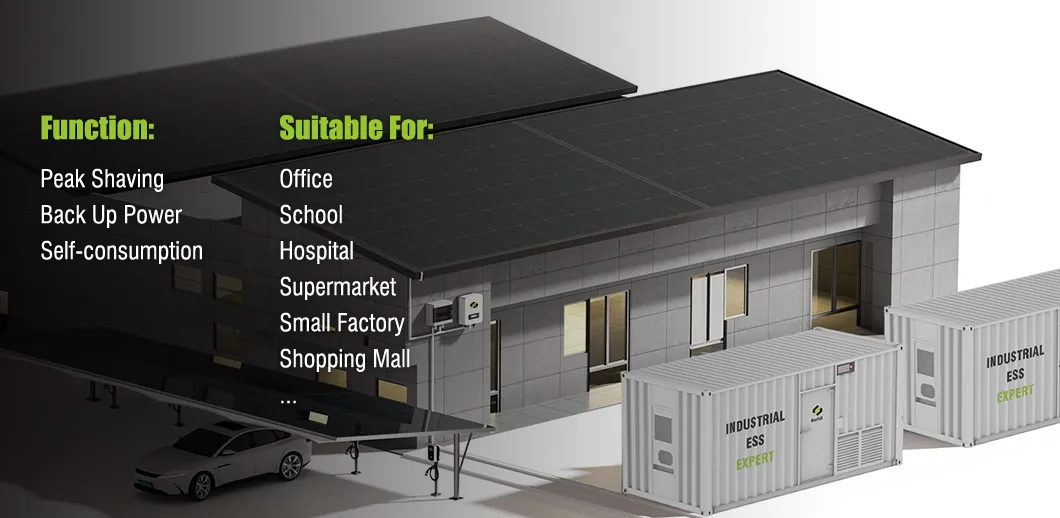

🏢 Commercial ESS Overview
Commercial ESS Battery System
⚙️ System Configuration
Equipment Model 100KW System 200KW System 300KW System

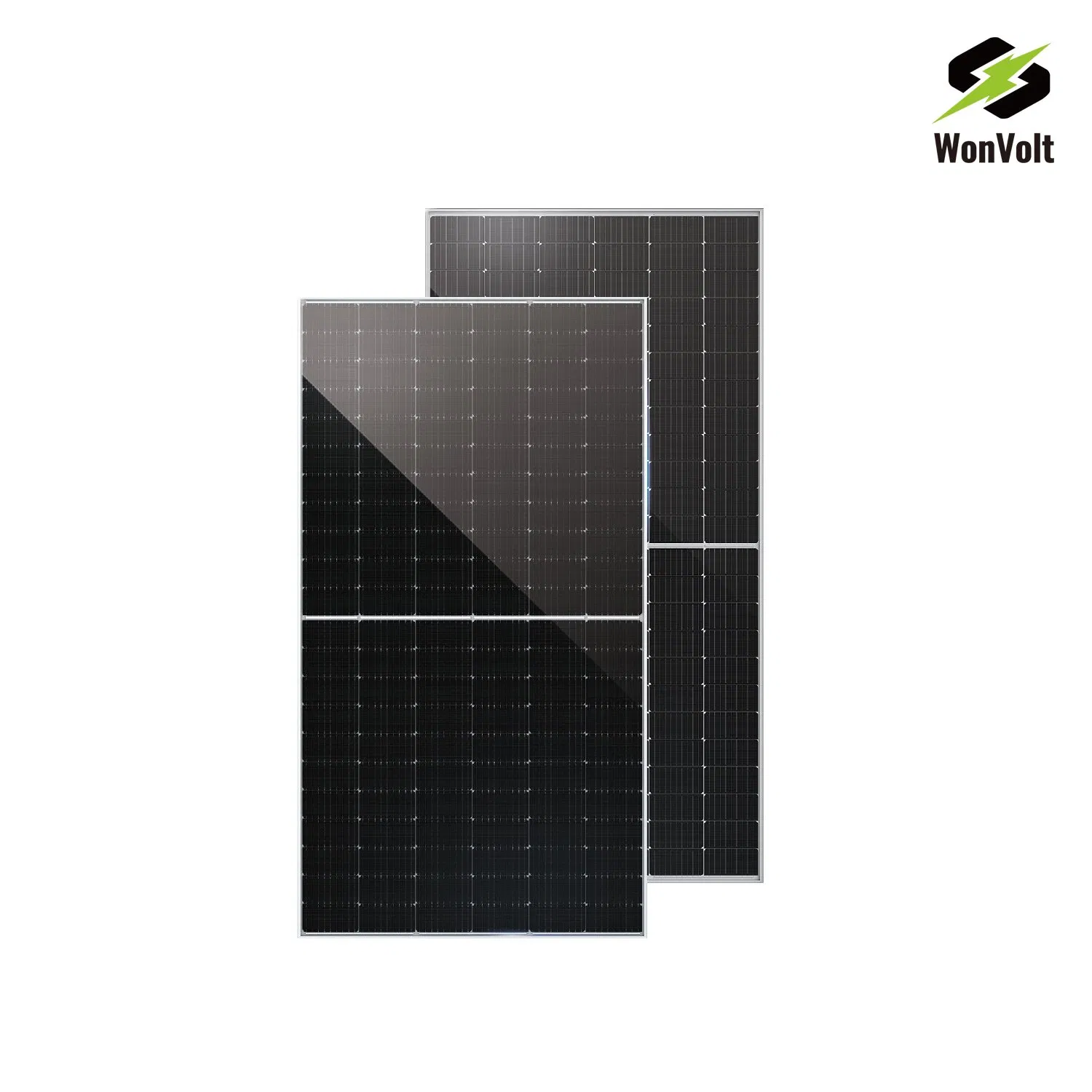

PV Module 565W N-type 187 374 561
Inverter WIT-100K-HU 1 2 3
Battery Module WV51280H 14 28 42
Control Box Standard 1 2 3

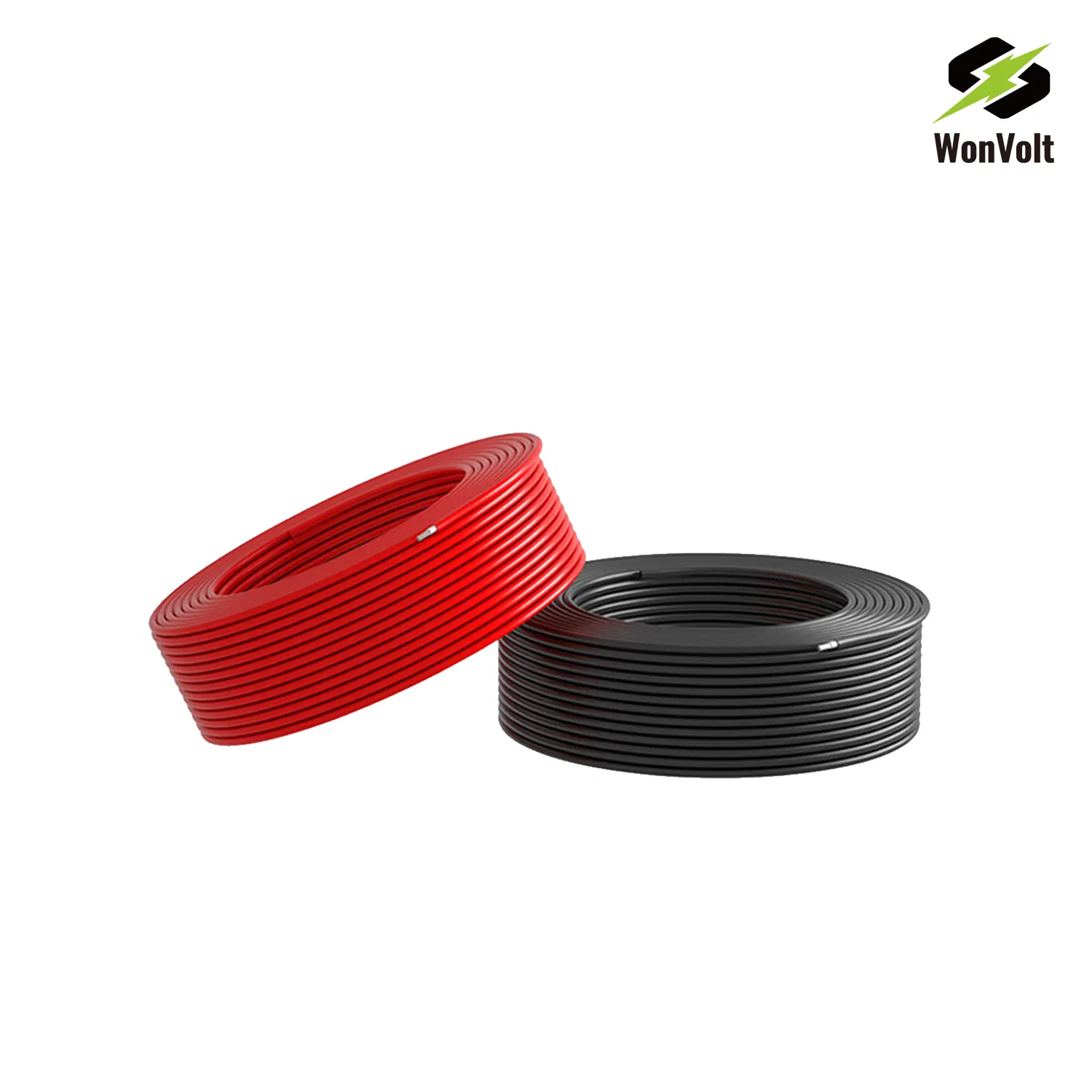

PV Cable 4mm2 1100m 2200m 3300m
ATS (Optional) ATS300KW 1 1 1

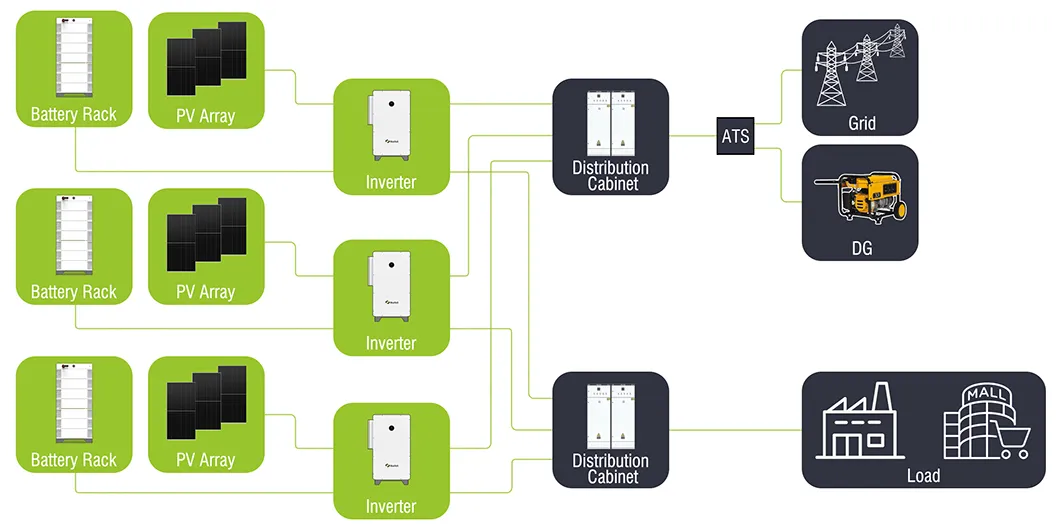

System Configuration Layout
📋 Product Description

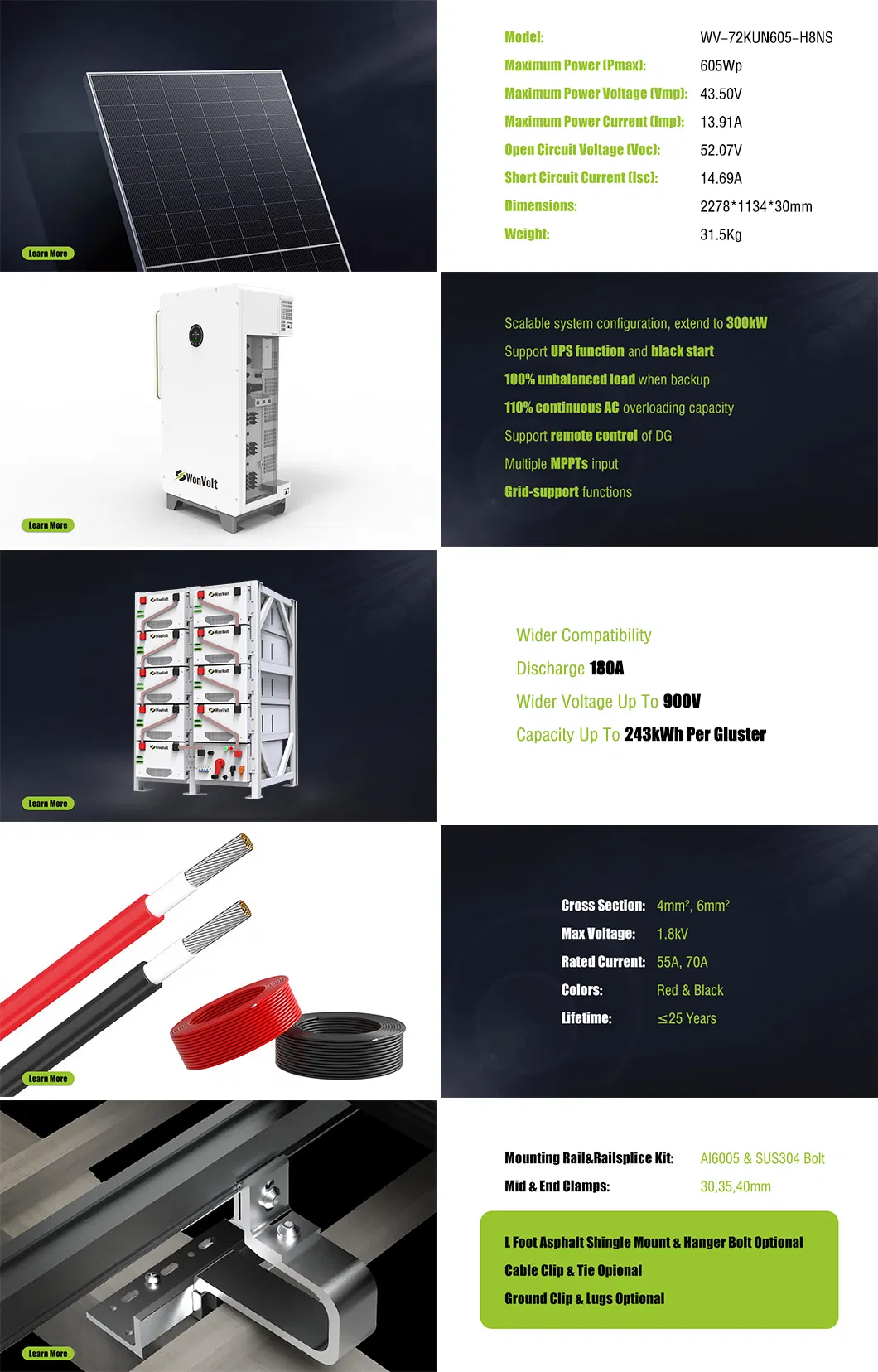

Product Technical Details

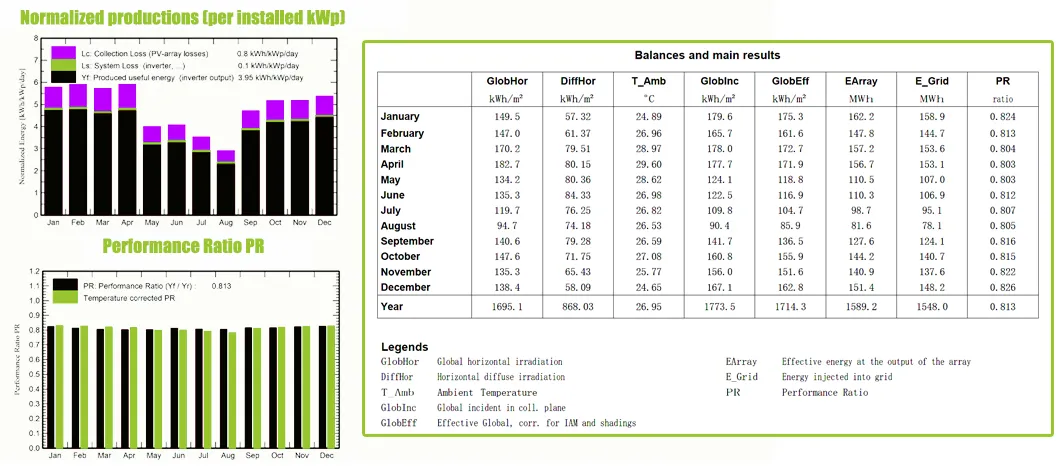

🛠️ Technical Support
Support Image 1

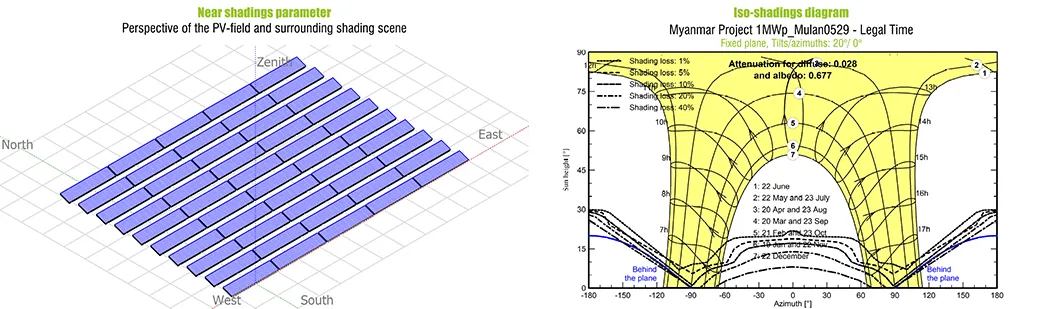

Support Image 2
Support Image 3

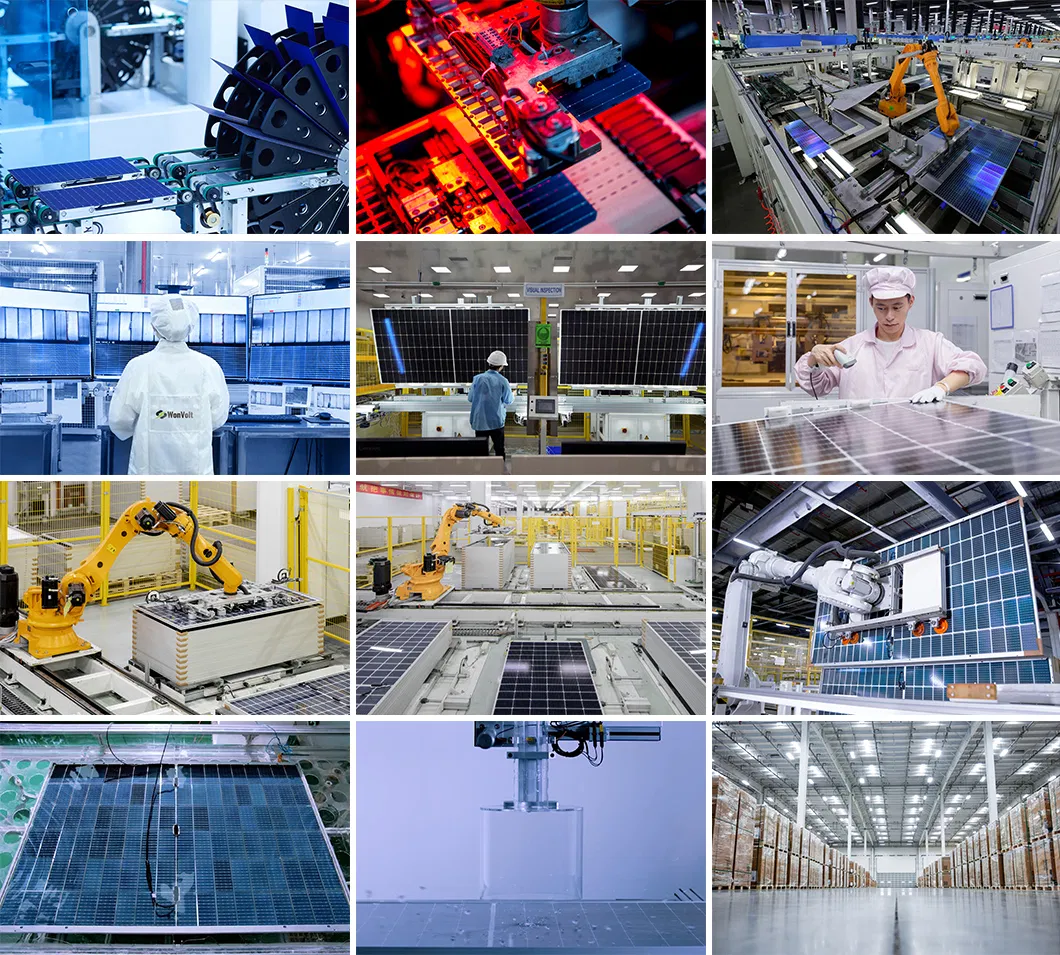

🏭 Manufacturing Facility
Factory Overview

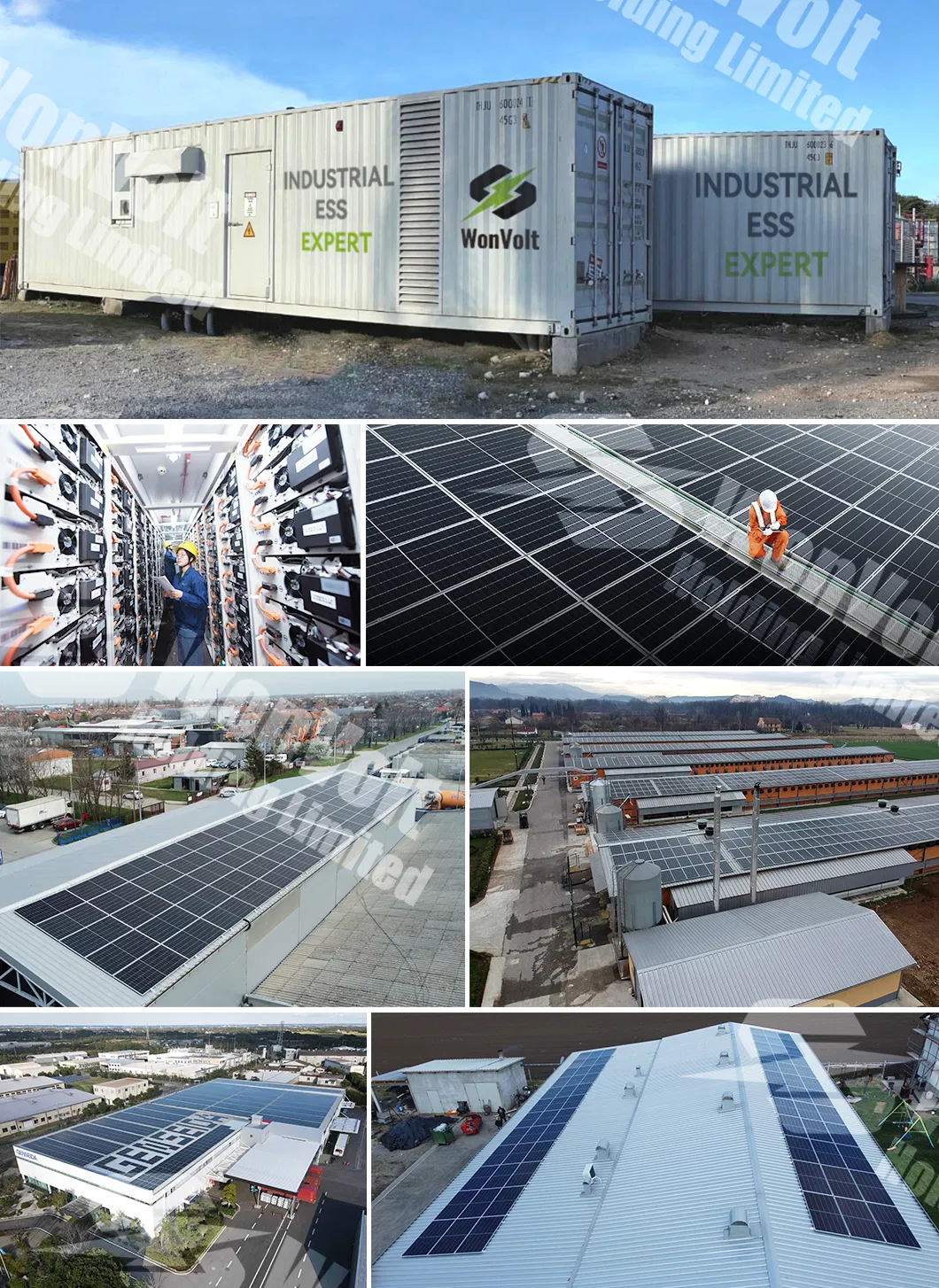

🌟 Reference Projects
Project Case Studies
❓ Frequently Asked Questions
What is the expected lifespan of the battery system?
The system utilizes high-quality LiFePO4 cells with a cycle life of over 6,000 times, ensuring long-term reliability for commercial and industrial applications.
Can multiple units be connected in parallel for larger capacity?
Yes, the system is designed for scalability and supports parallel connection for up to 3 units to meet higher energy demands.
What type of cooling system is used?
The system features a Smart Air Cooling mechanism to maintain optimal operating temperatures and ensure efficiency.
Does the system support backup power functions?
Yes, the system supports UPS functionality, Black Start, and integration with Diesel Generators (Dg) for seamless power management.
What certifications does the ESS carry?
Our energy storage systems are fully certified with CE, UN38.3, IEC, and En50549 standards, ensuring international safety and quality compliance.
Is the system compatible with different AC voltages?
The system provides versatile AC output options, supporting 380V, 400V, and 415V configurations.
