Product Description

■ Basic Specification

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Wind Load

60m/S

Snow Load

1.4kn/M2

HS Code

76109000

Package Size

45.50cm * 26.50cm * 37.50cm

Gross Weight

23.600kg

■ Product Description

Enables easy, fast and cost-effective installation.
Flexible post spacing withstands different wind & snow loads.
High quality material in galvanized steel or Aluminum and SUS 304.
Highly corrosion resistant surface treatment.
Screws and nuts go with every components needed.
Fasteners and rail nut fully configured to save extra parts purchasing.
Mechanical calculation and reliability tested to ensure highest product quality.
12-25 years system and structural guarantee.

Technical Parameters
Installation Site	According to requirements
Fasten Material	Aluminum, SUS304, Steel
Survival Wind Speed	< 60m/s
Design Snow Load	Up to 1.4KN/m²
Solar Panel Type	Framed or Frameless
Panel Orientation	Transverse or Vertical
Design Standard	CE; ISO9001; SGS
Quality Warranty	12-25 Years
Duration	More than 20 years

■ 1KW Tile Roof Materials List

NO.	NAME	SIZE (mm)	QTY	MATERIAL
1	Roof Hook	-	8	AL6063-T5
2	Drilling Screw	M5.5*60	32	304
3	Rail	2100	4	AL6063-T5
4	Rail Joiner	200	2	AL6063-T5
5	Mid Clamp	Viega Profi-press	6	AL6063-T5
6	End Clamp	Viega Profi-press	4	AL6063-T5

■ Mounting Steps

Step 1

Step 01

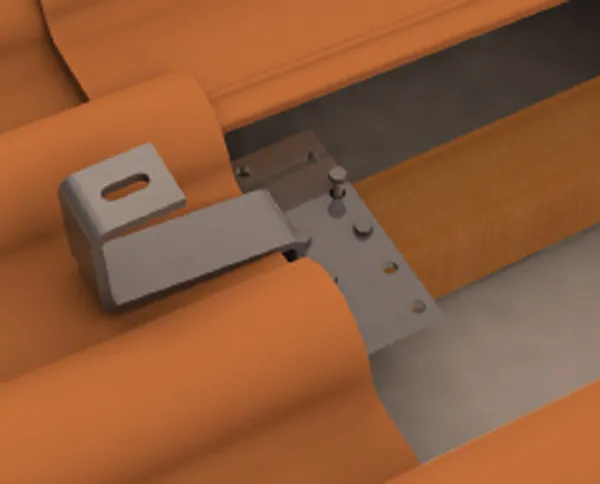

Fix roof hook on to the wooden beam with wood screw. Generally, three wood screws are enough.

Step 02

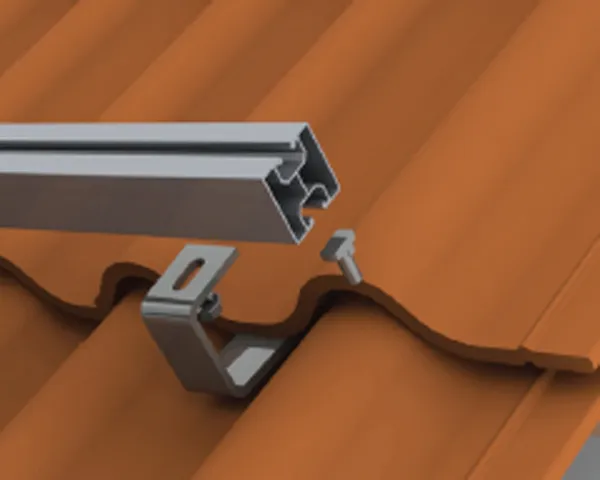

Fix the aluminum rail to the roof hook with T-head bolt and flange nut.

Step 2

Step 3

Step 03

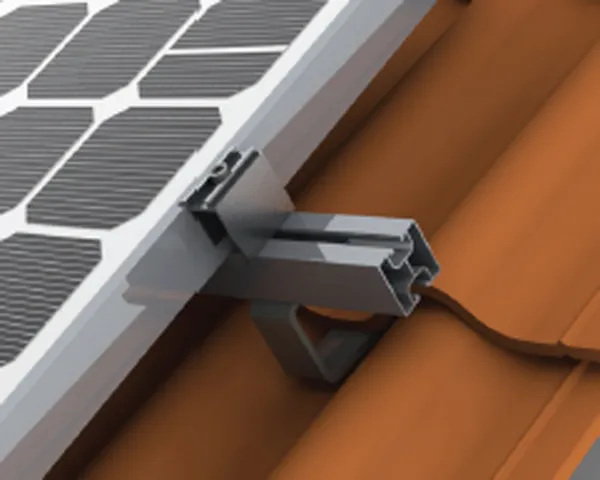

Fasten the hex bolt when the module clamps and PV modules are located.

■ Packaging & Factory

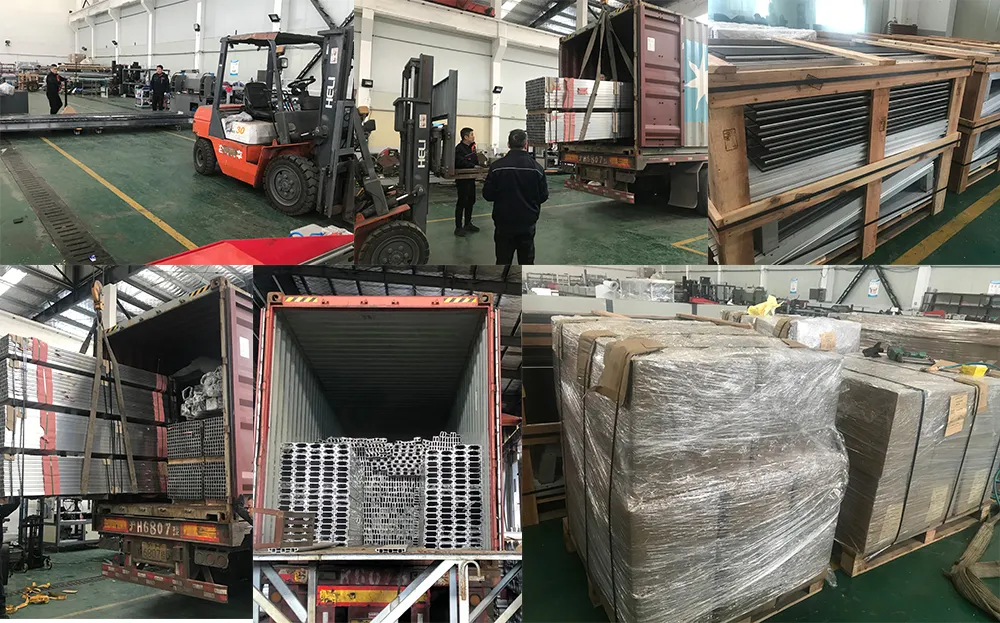

Packaging 1

Packaging 2

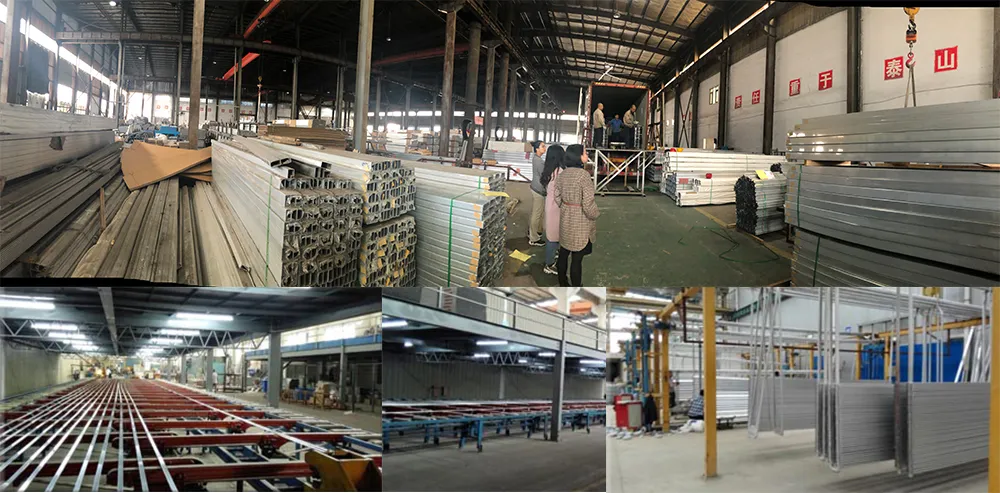

Factory View

■ Certifications & Visits

Customer Visit

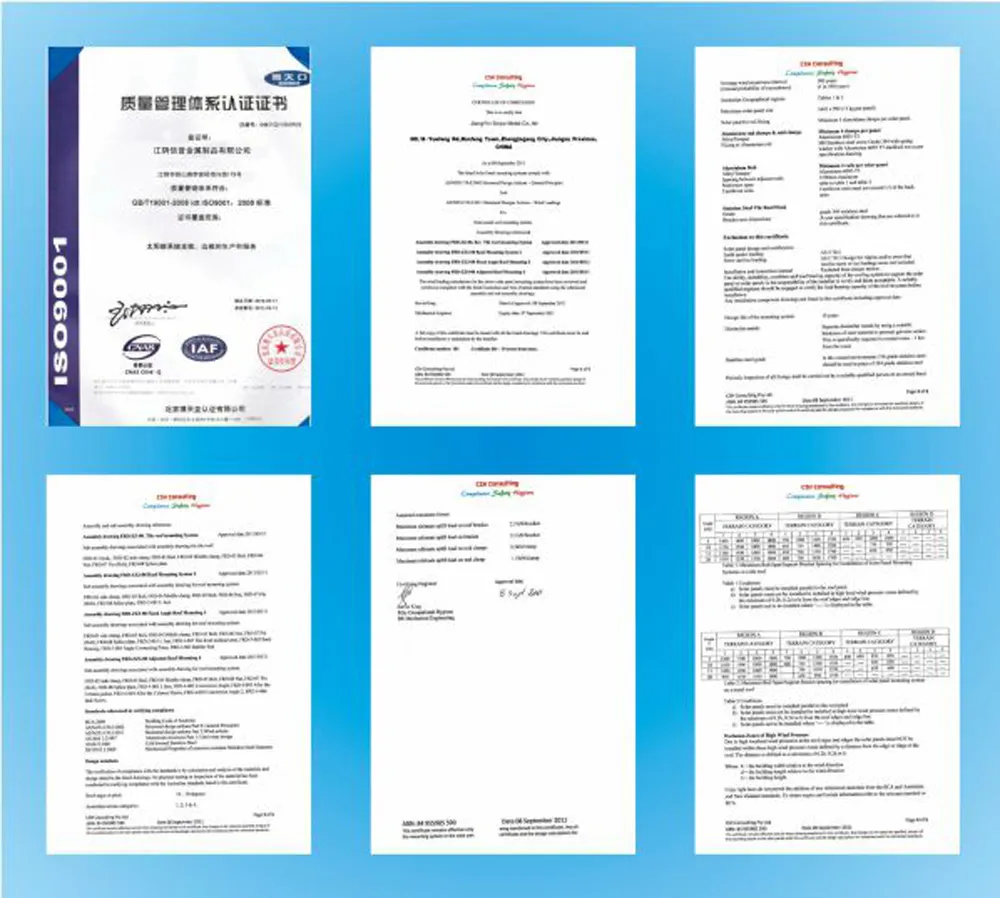

Certifications

System Design Requirements

To help you get the right system, please provide the following information:

Dimensions of solar panels (length*width*thickness)?
Solar panels array layout?
Installation site (type of rooftop or ground)?
Desired tilt angle?
Local wind load and snow load requirements?

■ Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?

500kg for general products and more than 5 tons for new specialized products.

Can you produce aluminum profiles based on custom drawings?

Yes, we have professional engineers to design CAD drawings and establish molds according to customer requirements.

What certifications and standards do you follow?

We hold ISO certification. Our products comply with DIN, AAMA, AS/NZS, and China GB standards.

What is the typical delivery time?

It takes 2-3 weeks to open new molds and make samples, and 3-4 weeks for mass production after deposit receipt and order confirmation.

What are your standard packing methods?

Commonly we use shrink films or kraft paper. Custom packaging solutions are also available upon request.

What are the accepted payment terms?

Usually, we accept T/T (30% deposit and balance before shipment) and L/C.
