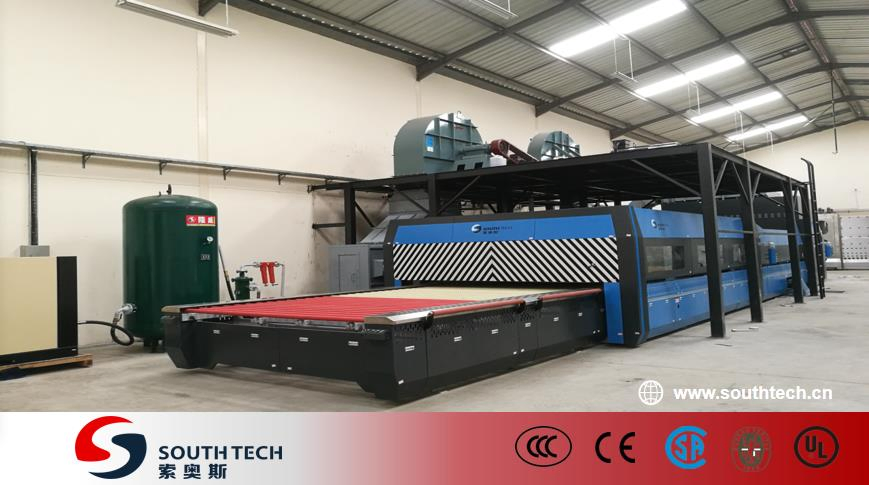

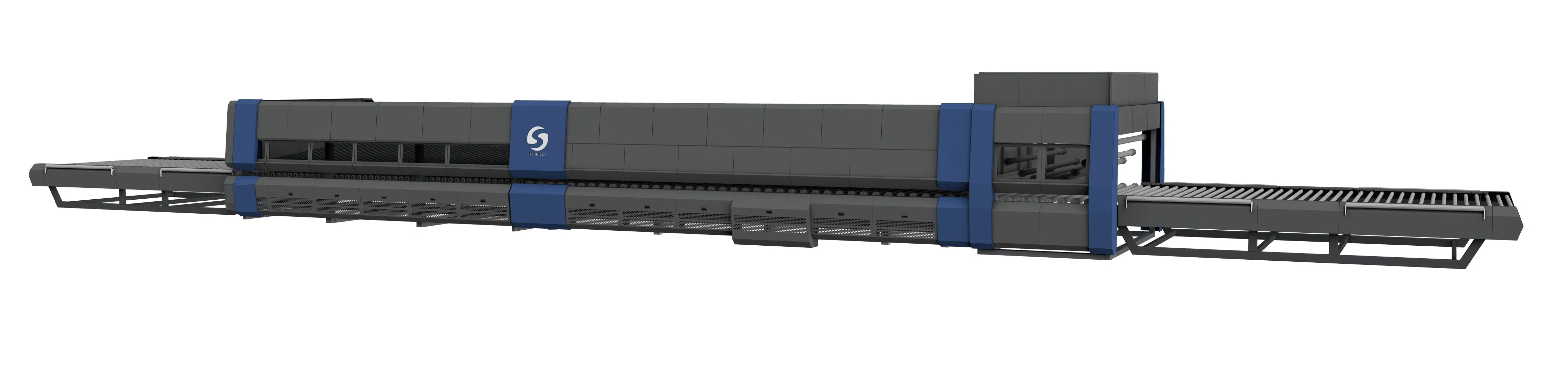

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Toughened Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)

1 / 5

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Toughened Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)

Customization:	Available
Certification:	CE, ISO
Control System:	PLC + Industrial Computer

Send Inquiry

Product Description

Basic Specifications

Model NO.

NTPWG-V

Power Supply

380V, 440V

Installed Capacity

500kVA, 800kVA, 1000kVA

Suitable for

Ordinary Flat Glass, Ultra-Clear Glass etc

Glass Thickness

Flat: 4-19mm Bend: 5-12mm

Max Loading

Customized Requirement

Min Loading

Flat: 400*400mm Bend: 400*400mm

Convection Type

Vortech Convection

Structure

Horizontal

Condition

New

Package

Standard Export Package

HS Code

8475299000

Product Description & Features

Energy Saving Zero Wind Mark Flat and Cross Bending Toughened Glass Processing Equipment with New Generation Vortech Convection

Multi-Functional Integration: Combines at least two functional units to save investment costs.
Customized Techniques: Flexible allocations to meet various customer requirements.
Upgradeable Structure: Modern equipment structure allows for future replacement and upgrades.
Broad Glass Compatibility: Suitable for Ordinary Flat, Ultra-Clear, Screen Printing, Embossed, Colored, and all kinds of Low-E glass.
Vortech Convection: Advanced heating system that significantly increases endothermic efficiency.
Uniform Heating: Ensures high-quality glass output through balanced convection heating.

Mode	Max. Loading Flat Size	Max. Loading Bend Size	Radius	Thickness (mm)	Installed Capacity
NTPWG4224+12-V	4200×2440	1200curved×2440	450/900	3.8-19	≥630kva
NTPWG5026+15-V	5000×2600	1500curved×2600	750/1500	4-19	≥800kva
NTPWG6028+20-V	6000×2800	2000curved×2800	1000/2000	4-19	≥1000kva

Self-Developed Core Technology

1. Vortech Technology: Reduces heating time for Low-E and Clear glass significantly.

2. Energy Efficiency: Quenching section achieves up to 60% energy saving.

3. Jumbo Size Processing: Tempered perfectly up to 2000mm x 1000mm x 2mm using special quenching technology.

4. Power Adjustment: Reduces voltage transformer capacity requirement by 200-300 KVA compared to standard systems.

5. High Borosilicate Tempering: Capable of processing glass that passes a 120-minute burning test.

6. Heat Leak Protection: Rational convection structure ensures no side heat leaks, protecting roller bearings.

Conclusion

We deliver customized and tailor-made machines designed to help you grow your business. Our performance is proven through high-efficiency results and reliable machinery.

Frequently Asked Questions (FAQ)

What types of glass can this equipment process?

The equipment is highly versatile and suitable for processing ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, and all types of Low-E glass.

What is the energy-saving capability of the quenching section?

Thanks to our unique passing-section technology, the quenching section can achieve up to a 60% reduction in energy consumption compared to traditional designs.

Can the machine handle high borosilicate glass?

Yes, the machine is designed to temper high borosilicate glass, which is capable of passing intensive 120-minute burning tests.

How does the Vortech convection technology benefit the production?

Vortech technology increases the endothermic efficiency of the glass and significantly reduces the heating time required for both Low-E and clear glass types.

Is the machine customizable for specific size requirements?

Absolutely. We specialize in customized and tailor-made machines where the dimensions of each section are based on the maximum glass size and unit quantity required by the customer.

What thicknesses can be processed for flat and bent glass?

The standard thickness range is 4-19mm for flat glass and 5-12mm for bent glass, though specific models like the NTPWG-V series can handle a range of 3.8-19mm.
