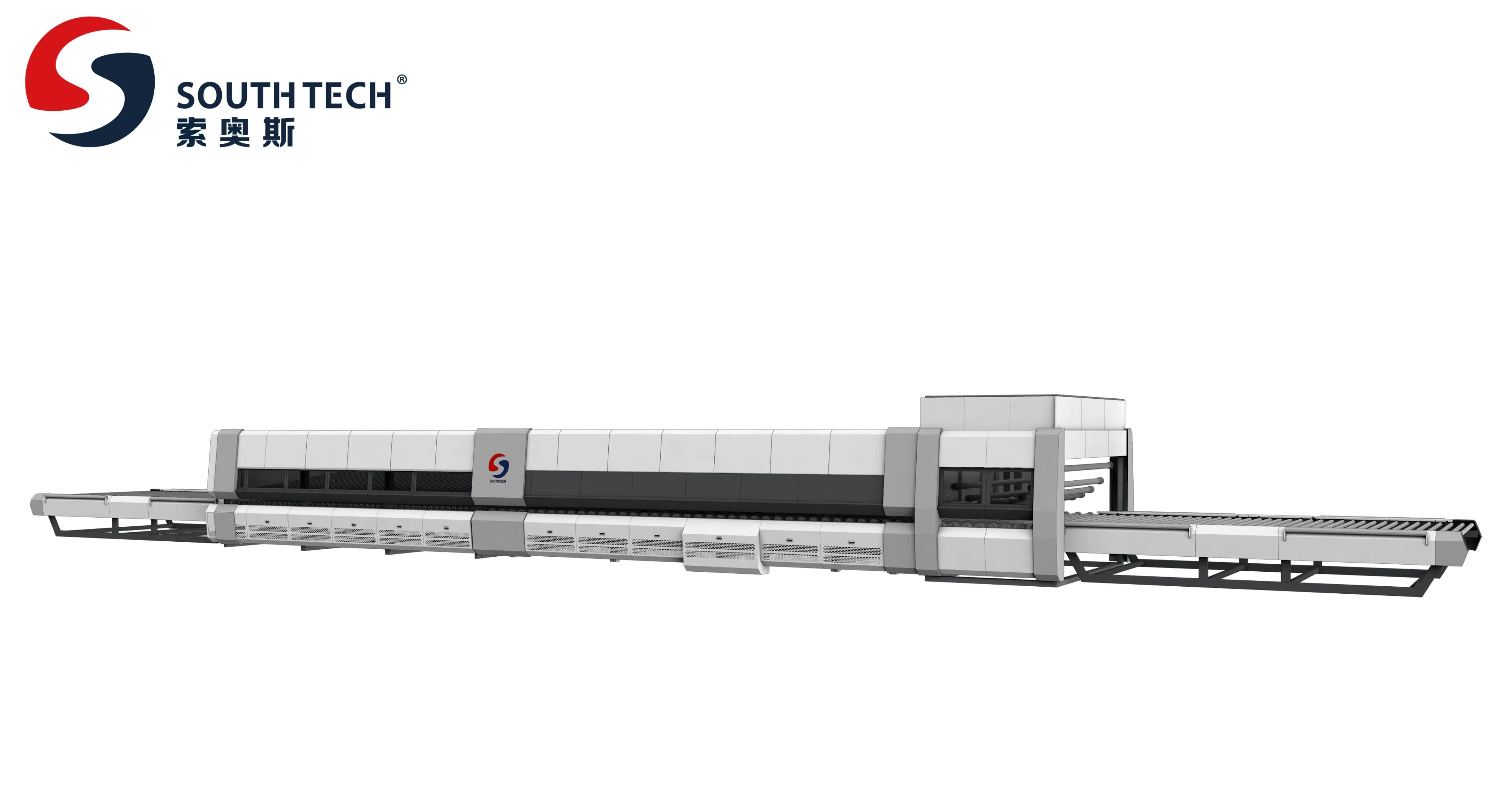

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
1 / 5
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications
Model NO.
NTPWG-V
Installed Capacity
500kVA, 800kVA, 1000kVA
Suitable for
Ordinary Flat Glass, Ultra-Clear Glass etc
Glass Thickness
Flat: 4-19mm Bend: 5-12mm
Max. Loading Dimension
Customized Requirement
Min. Loading Dimension
Flat: 400*400mm Bend: 400*400mm
Convection Type
Vortech Convection
Structure
Horizontal
Condition
New
HS Code
8475299000
Product Description

Energy Saving Zero Wind Mark Flat and Cross Bending Hardening Glass Processing Equipment (NTPWG-V Series)

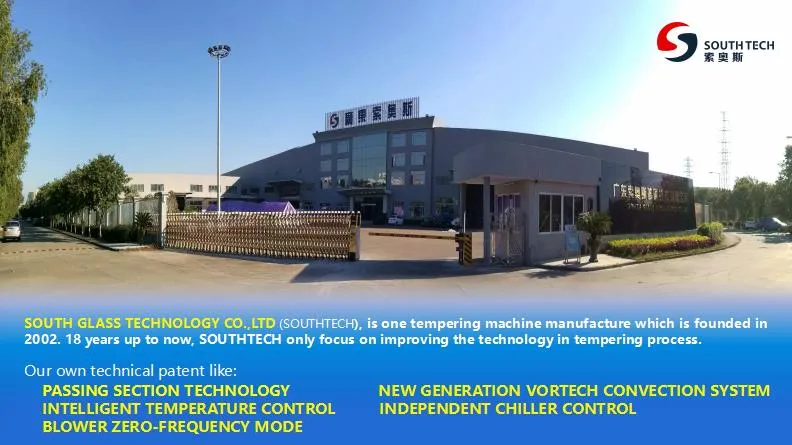

Glass Processing Equipment
  • Multi-function capability: Integrates at least two functional units to save investment costs.
  • Flexible Configuration: Different techniques and allocations to meet specific customer requirements.
  • Sustainable Investment: Upgradeable equipment structure ensures long-term value.
  • Broad Compatibility: Suitable for Ordinary Flat Glass, Ultra-Clear Glass, Screen Printing Glass, Embossed Glass, Colored Glass, and Low-E Glass.
  • Advanced Convection: New generation Vortech Convection system increases endothermic efficiency.
  • Heating Uniformity: Ensures consistent glass quality through balanced convection heating.
Technical Parameters
Model Max. Loading Flat Size Max. Loading Bend Size Radius Thickness (mm) Installed Capacity
NTPWG4224+12-V 4200×2440 1200curved×2440 450/900 3.8-19 ≥630kva
NTPWG5026+15-V 5000×2600 1500curved×2600 750/1500 4-19 ≥800kva
NTPWG6028+20-V 6000×2800 2000curved×2800 1000/2000 4-19 ≥1000kva
Advanced Technology Highlights
Technical Illustration
Vortech Technology
  • Vortech Technology: Drastically reduces heating time for both Low-E and Clear glass.
  • Energy Efficiency: Quenching section achieves up to 60% energy saving compared to traditional methods.
  • Jumbo Size Processing: Specialized quenching technology allows perfect tempering for jumbo sizes (e.g., 2000mm x 1000mm x 2mm).
  • Power Adjustment: Modern power-adjustment technology allows reducing voltage transformer capacity by 200-300 KVA.
  • High Borosilicate Support: Capable of tempering glass that passes 120-minute burning tests.
  • Rational Convection Structure: Eliminates side heat leaks, protecting roller bearings and improving safety.
Equipment Service

Conclusion: We offer both standard and customized tailor-made machines. Our technology is designed to help grow your business through high performance and efficiency.

Frequently Asked Questions
What types of glass can this equipment process?
The machine is compatible with a wide range of glass types including Ordinary Flat Glass, Ultra-Clear Glass, Screen Printing Glass, Embossed Glass, Colored Glass, and various types of Low-E Glass.
How does Vortech Convection technology improve production?
The New Generation Vortech Convection system significantly reduces heating time for both Low-E and Clear glass while ensuring more uniform heating across the entire glass surface.
What is the energy-saving potential of this machine?
Thanks to advanced quenching technology and power-adjustment systems, the equipment can achieve up to 60% energy savings in the quenching section compared to conventional machines.
Can the machine be customized for specific sizes?
Yes, we provide customized and tailor-made machine solutions. Loading dimensions and section configurations can be adjusted based on your specific production requirements.
What are the supported glass thickness ranges?
The machine supports flat glass tempering with thicknesses ranging from 4mm to 19mm, and bending glass tempering from 5mm to 12mm.
Does the convection system protect the mechanical components?
Yes, the rational convection structure is designed to prevent side heat leaks, which minimizes the heat risk on roller bearings, ensuring a longer lifespan for the machine parts.
