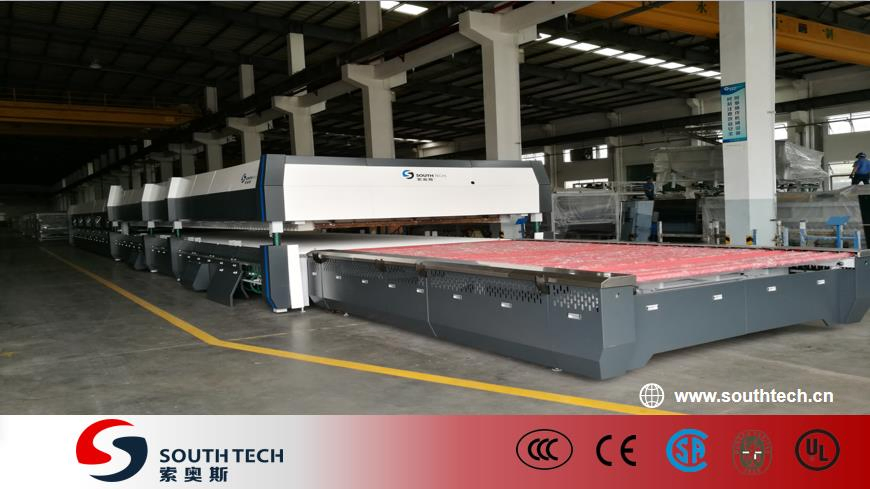

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
1 / 5
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)
Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)

Southtech Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection Price (NTPWG-V Series)

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications

Model NO.
NTPWG-V
Installed Capacity
500kVA, 800kVA, 1000kVA
Suitable for
Ordinary Flat Glass, Ultra-Clear Glass etc
Glass Thickness
Flat: 4-19mm Bend: 5-12mm
Max. Loading Size
According to Requirement
Min. Loading Size
400*400mm (Flat/Bend)
Convection Type
Vortech Convection
Structure
Horizontal
Condition
New
HS Code
8475299000

Product Overview

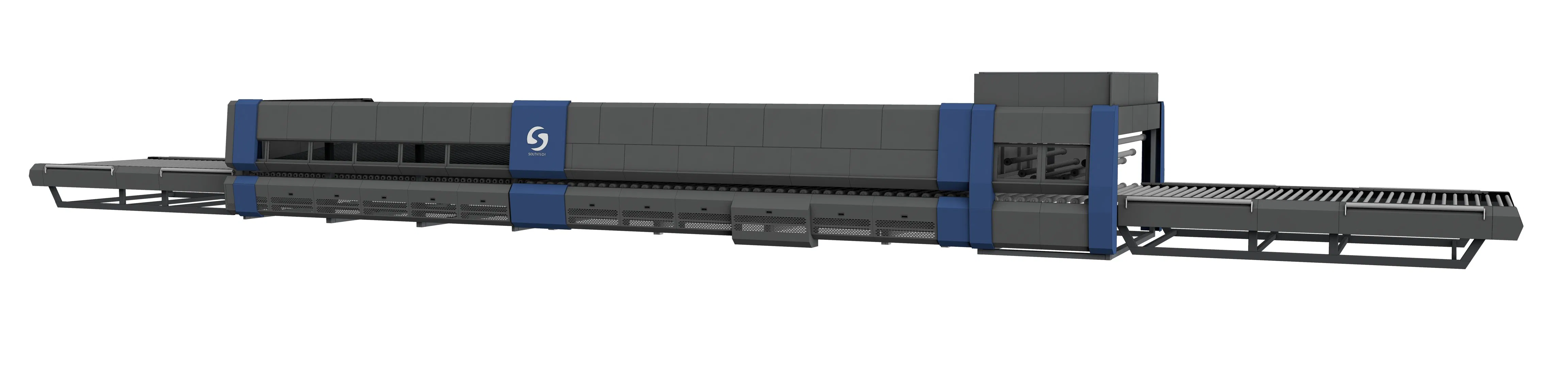

Energy Saving Zero Wind Mark Flat and Cross Bending Tempered Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)
Glass Processing Equipment
Tempered Glass Production
1
Multi-functional units combining at least two units into one machine to optimize investment.
2
Versatile techniques and allocations designed to meet specific customer requirements.
3
Suitable for ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, and all kinds of Low-E glass.
4
Advanced convection heating system increases endothermic efficiency and ensures uniform heating.

Technical Parameters

Mode Max. Loading Flat Size Max. Loading Bend Size Radius Thickness (mm) Installed Capacity
NTPWG4224+12-V 4200×2440 1200curved×2440 450/900 3.8-19 ≥630kva
NTPWG5026+15-V 5000×2600 1500curved×2600 750/1500 4-19 ≥800kva
NTPWG6028+20-V 6000×2800 2000curved×2800 1000/2000 4-19 ≥1000kva

Advanced Technology

Technology Detail

1. Self-developed Vortech technology significantly reduces heating time for Low-E and Clear glass.

2. Unique passing-section ensures higher quality tempered glass with 60% energy saving in the quenching section.

3. Special quenching technology allows for 2000mm x 1000mm x 2mm jumbo size tempering.

4. Newest power-adjustment technology reduces voltage transformer capacity by 200-300 KVA compared to competitors.

5. Capabilities include tempering high borosilicate glass that passes 120-minute burning tests.

6. Rational convection structure ensures no side heat leaks, protecting roller bearings.

Machine Service Detail
Conclusion: We deliver customized, tailor-made, and standard machines designed to help grow your business through high performance and reliability.

Frequently Asked Questions

What types of glass can this equipment process?
The machine is suitable for processing ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, and all types of Low-E glass.
What is the advantage of Vortech Convection technology?
Vortech technology increases the endothermic efficiency of the glass, ensures uniform heating, and significantly reduces heating time for both Low-E and clear glass.
How much energy can be saved with this equipment?
Thanks to the unique passing-section and quenching technology, the machine can achieve up to a 60% energy saving in the quenching section.
Can the machine handle jumbo size glass?
Yes, the specialized quenching technology allows it to perfectly temper jumbo sizes such as 2000mm x 1000mm x 2mm.
Does the equipment support high borosilicate glass?
Yes, the machine is capable of tempering high borosilicate glass which can pass a 120-minute burning test.
Are customized solutions available?
Absolutely. We offer both standard equipment and customized, tailor-made machines to meet specific production requirements.
