Customization: Available
Certification: CE, ISO
Control System: PLC + Industrial Computer
Send Inquiry

Product Description

Basic Specifications
Model NO. NTPWG-V
Power Supply 220V, 380V, 440V
Installed Capacity 500kVA, 800kVA, 1000kVA
Suitable for Ordinary Flat Glass, Ultra-Clear Glass etc
Glass Thickness Flat: 4-19mm Bend: 5-12mm
Max. Loading Dimension Customizable
Min. Loading Dimension 400*400mm
Convection Type Vortech Convection
Structure Horizontal
Condition New
HS Code 8475299000
Product Description

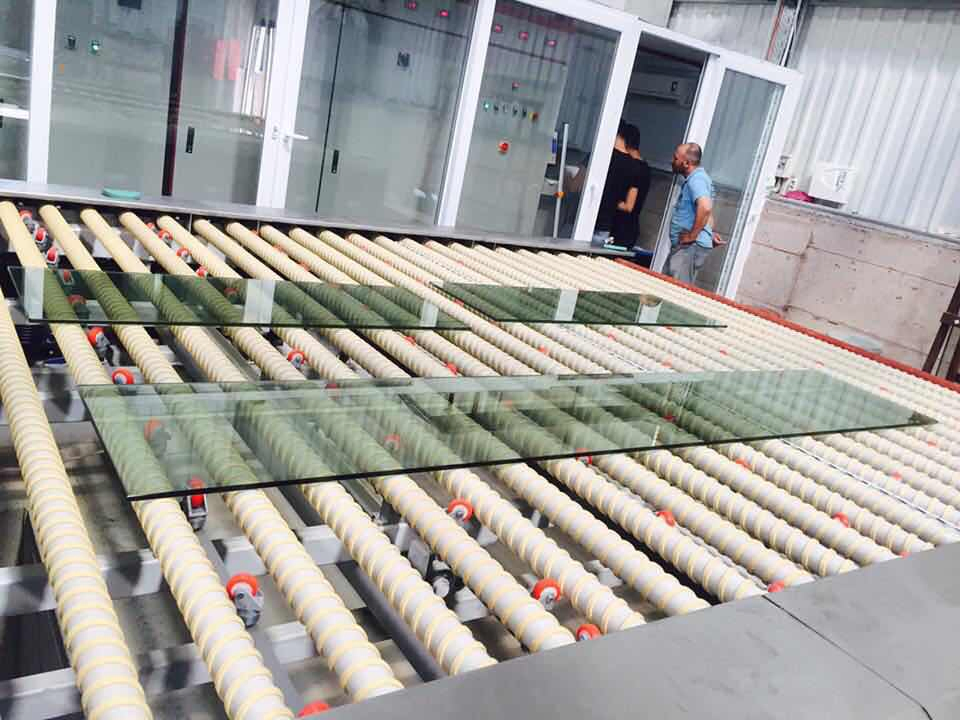

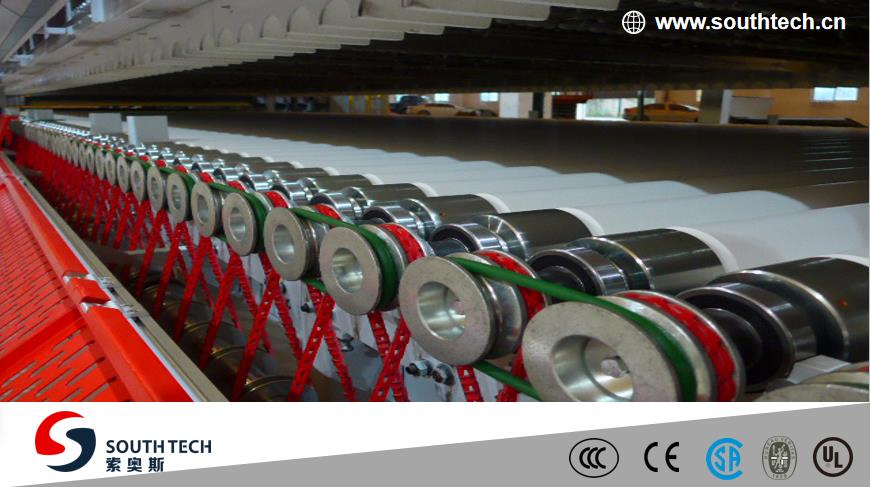

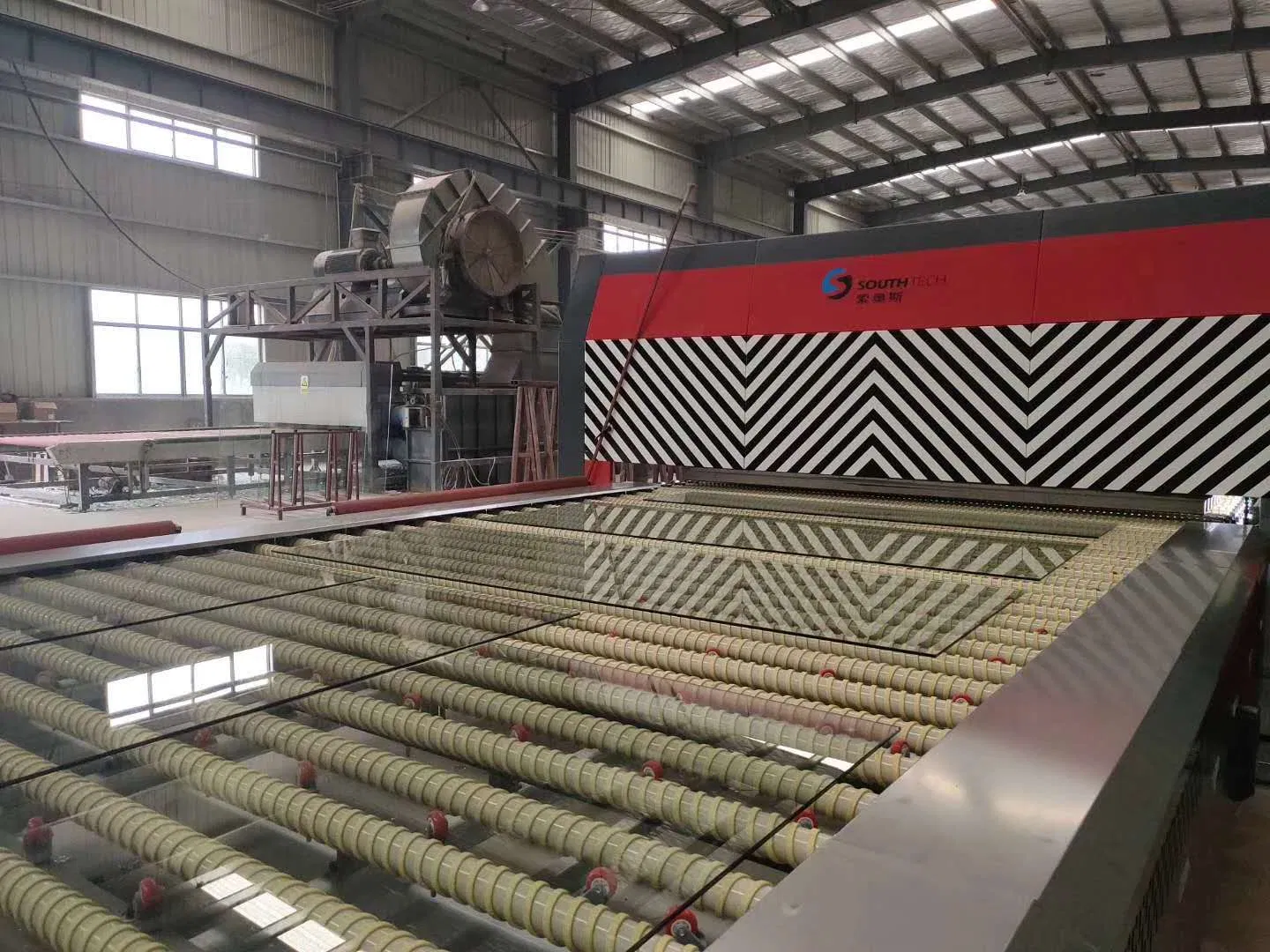

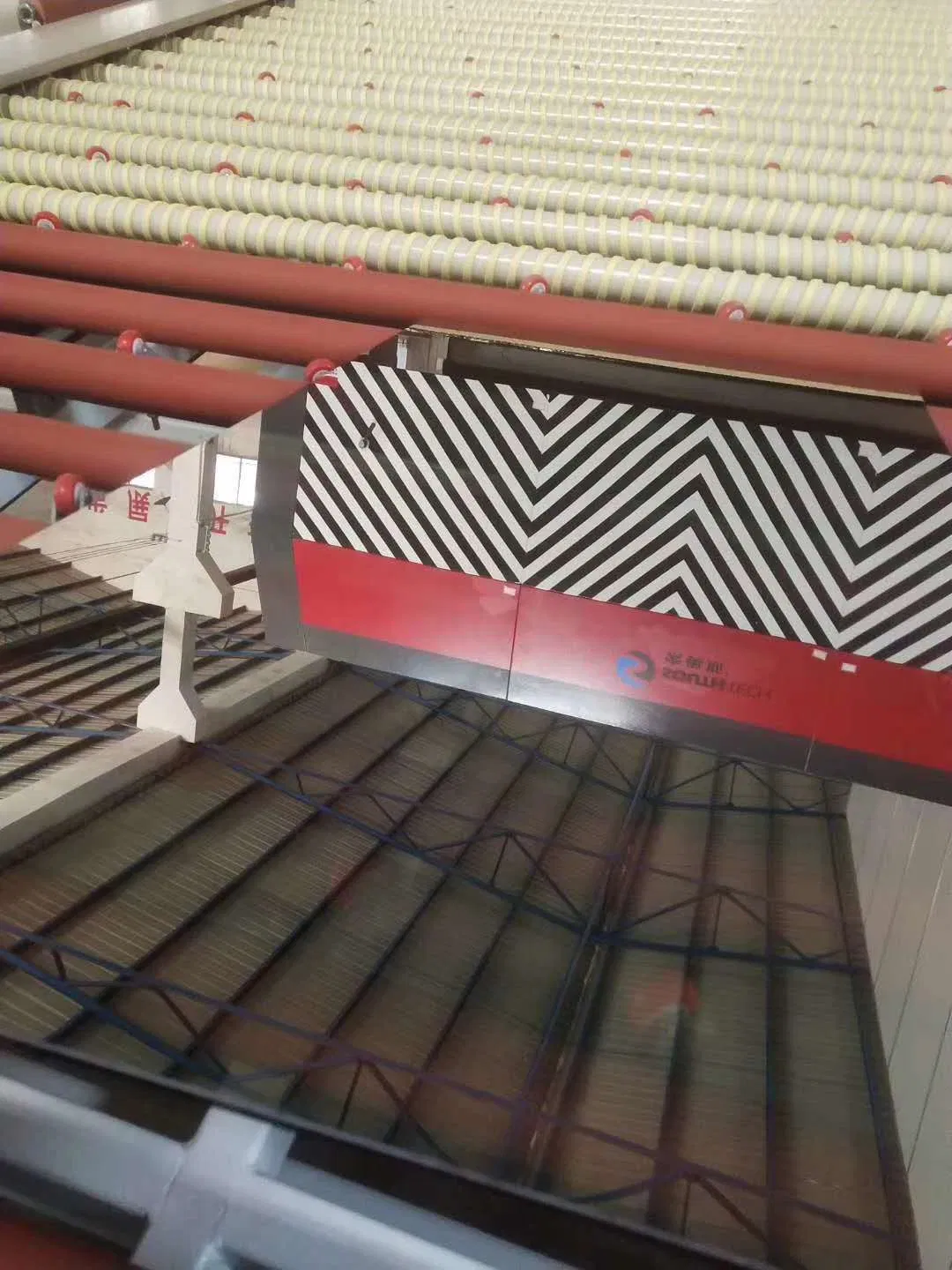

Energy Saving Zero Wind Mark Flat and Cross Bending Toughening Glass Processing Equipment with New Generation Vortech Convection (NTPWG-V Series)

Glass Processing Equipment
  • With at least two functional units combining together, it achieves multi-function of only one machine to save investment.
  • Combination of different techniques and allocations can meet various customer requirements.
  • Upgrade or replacement structure of the equipment saves the investment for customers.
  • Suitable for: Ordinary Flat Glass, Ultra-Clear Glass, Screen Printing Glass, Embossed Glass, Colored Glass, and all kinds of Low-E Glass.
  • The dimensions of each section are based on the maximum size and unit quantity.
  • Equipped with advanced convection heating system, increased the endothermic efficiency of the glass.
  • Beneficial to the uniformity of heating through the convection heating system.
Mode Max. Loading Flat Size Max. Loading Bend Size Radius Thickness Installed Capacity
NTPWG4224+12-V 4200×2440 1200curved×2440 450/900 3.8-19 ≥630kva
NTPWG5026+15-V 5000×2600 1500curved×2600 750/1500 4-19 ≥800kva
NTPWG6028+20-V 6000×2800 2000curved×2800 1000/2000 4-19 ≥1000kva
Processing Equipment Detail
Self-Developed Technology

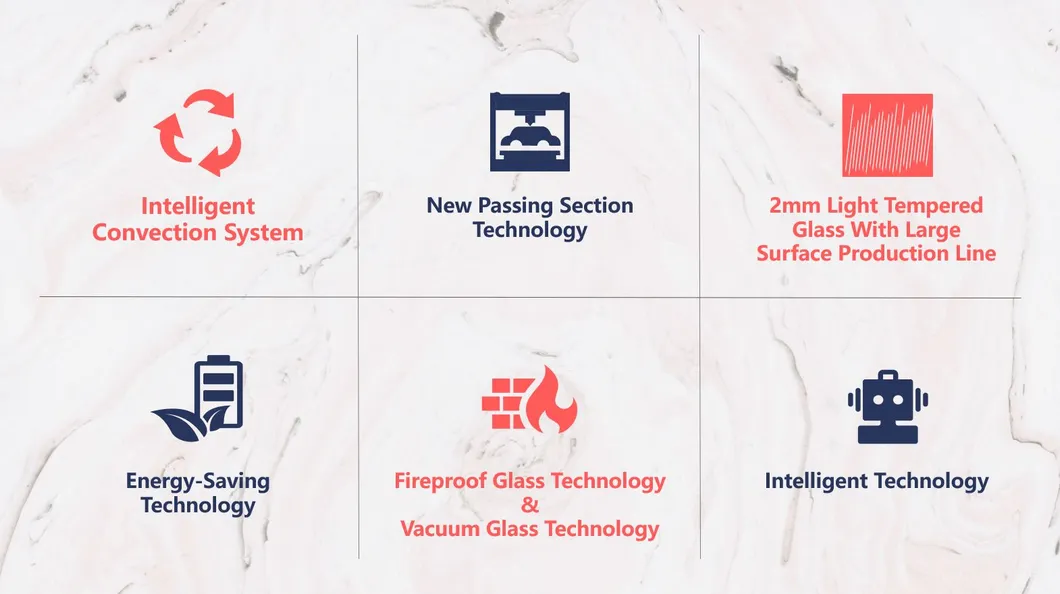

Technology Overview
  • Machine applies self-developed Vortech technology which reduces heating time for Low-E glass and Clear glass.
  • Unique passing-section ensures higher quality tempered glass with 60% energy saving in the quenching section.
  • 2000mm x 1000mm x 2mm jumbo size is tempered perfectly with special quenching technology.
  • Ability to reduce voltage transformer capacity by 200-300 KVA due to the newest power-adjustment technology.
  • Capable of tempering high borosilicate glass which can pass 120mins burning test.
  • Rational convection structure ensures no side heat leak and no risk to the roller bearings.
Conclusion
Service and Promise

We deliver customized and tailor-made machines as well as standard models. Performance is verified through actual results, ensuring the machine helps grow your business.

Frequently Asked Questions
What types of glass can this equipment process? The machine is suitable for processing ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, and all types of Low-E glass.
What is the advantage of the Vortech Convection system? Vortech technology significantly reduces the heating time required for Low-E and Clear glass while ensuring uniform heating throughout the process.
How much energy can be saved during operation? Thanks to the unique passing-section and quenching technology, the equipment can achieve up to 60% energy saving in the quenching section.
Can the machine handle jumbo-sized glass? Yes, it is capable of perfectly tempering jumbo sizes, such as 2000mm x 1000mm x 2mm, using specialized quenching techniques.
Can I get a machine tailored to my specific size requirements? Absolutely. We offer customized and tailor-made machines designed according to your specific production and loading dimension requirements.
Does the equipment support high borosilicate glass? Yes, the machine can temper high borosilicate glass, enabling it to pass a 120-minute burning test.
