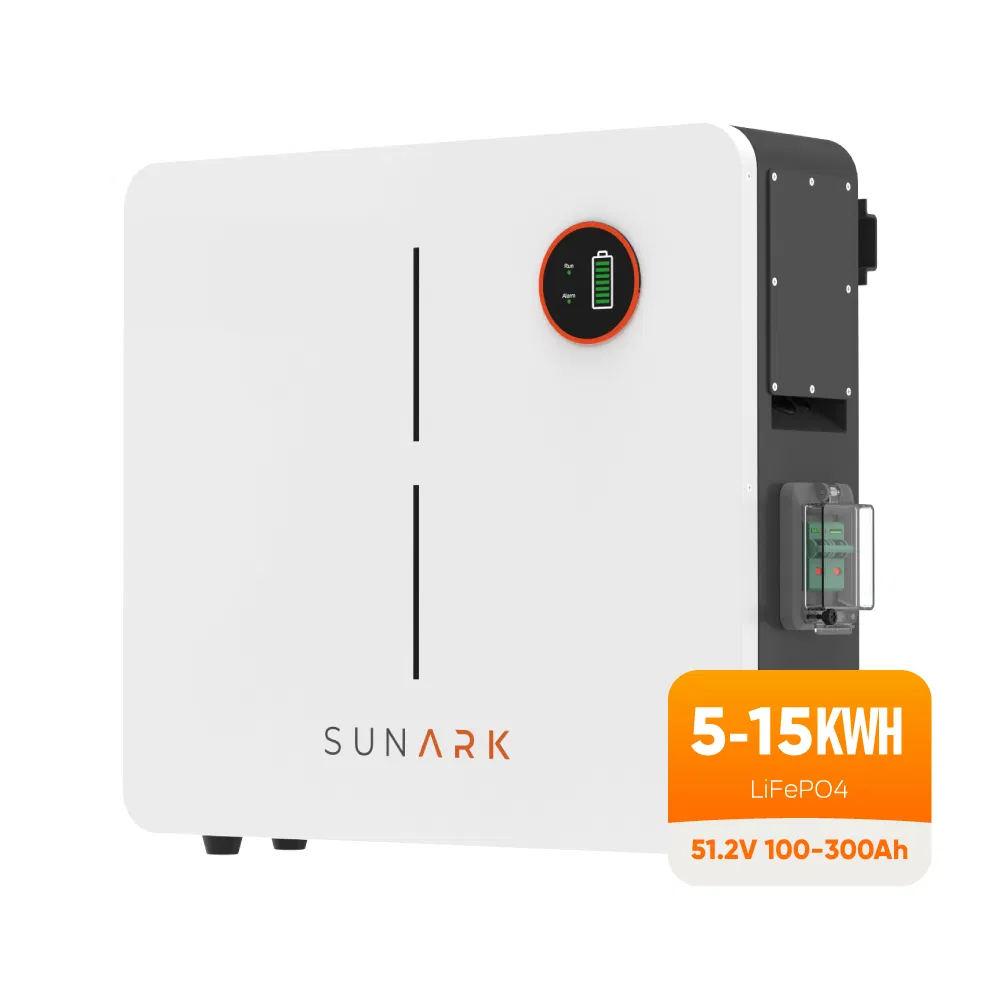

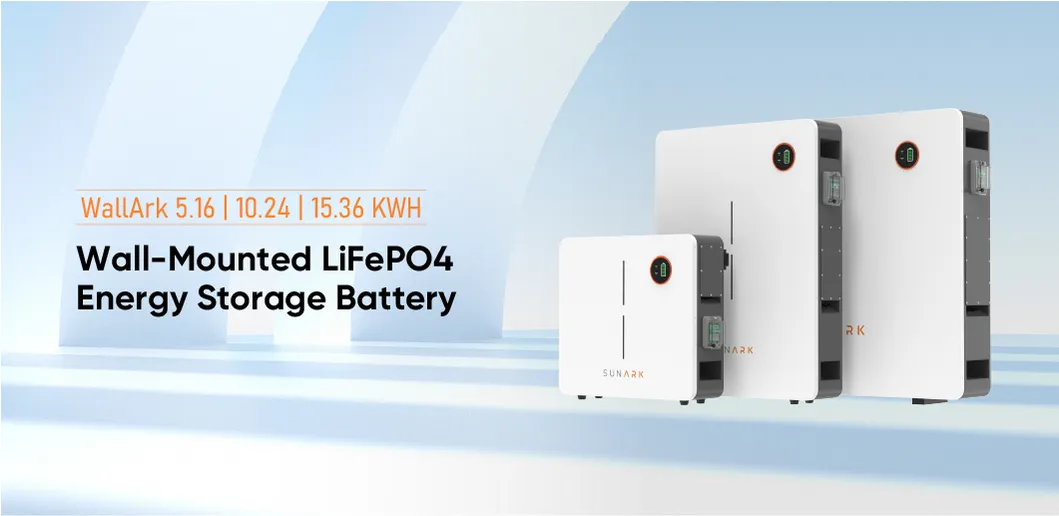

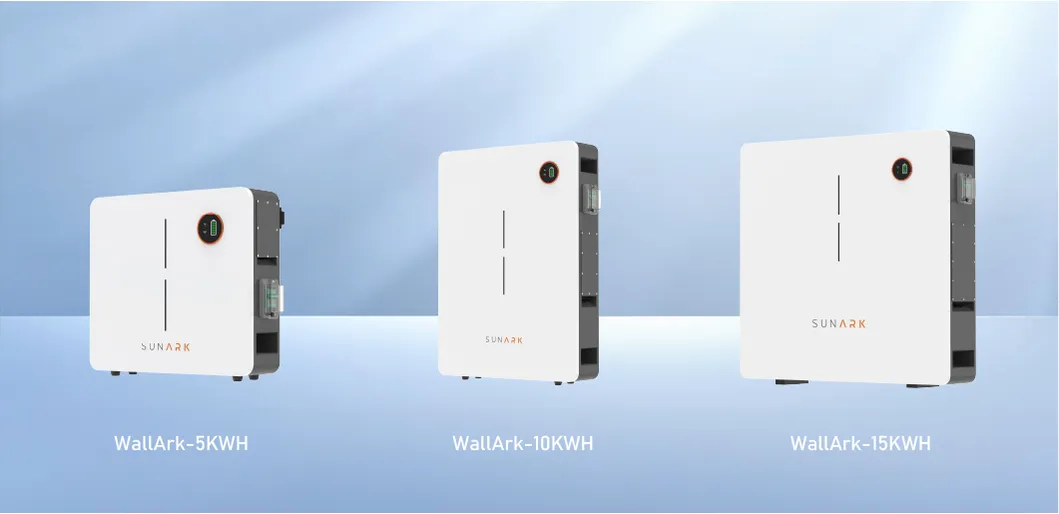

| Model | WallArk-5120/10240/15360 | ||
| Nominal Voltage(Vdc) | 51.2 | ||
| Nominal Capacity(Wh) | 5120/10240/15360 | ||
| Working Voltage Range(VDC) | 44.8-56.16 | ||
| Charge Voltage(VDC) | 58.4 | ||
| Nominal Charge/Discharge Current(A) | 50/100/150 | ||
| Cycle life | 6000 @ 80% DOD, 25°C / 0.5C | ||
| IP rating | IP65 | ||
| Communication Port | RS485, CAN | ||

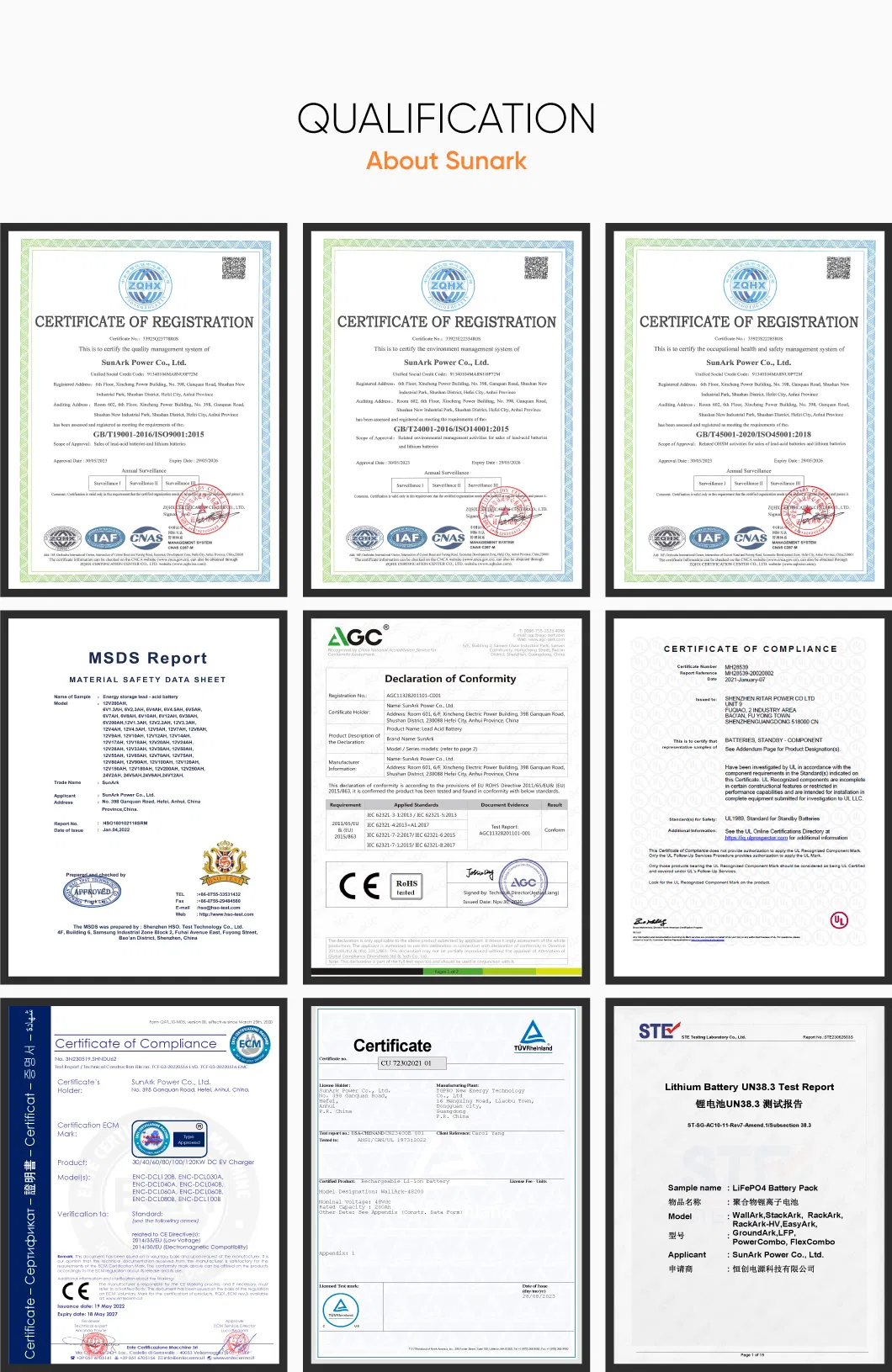

| Certification | CB, IEC62619, CE, UKCA, UN38.3, MSDS |

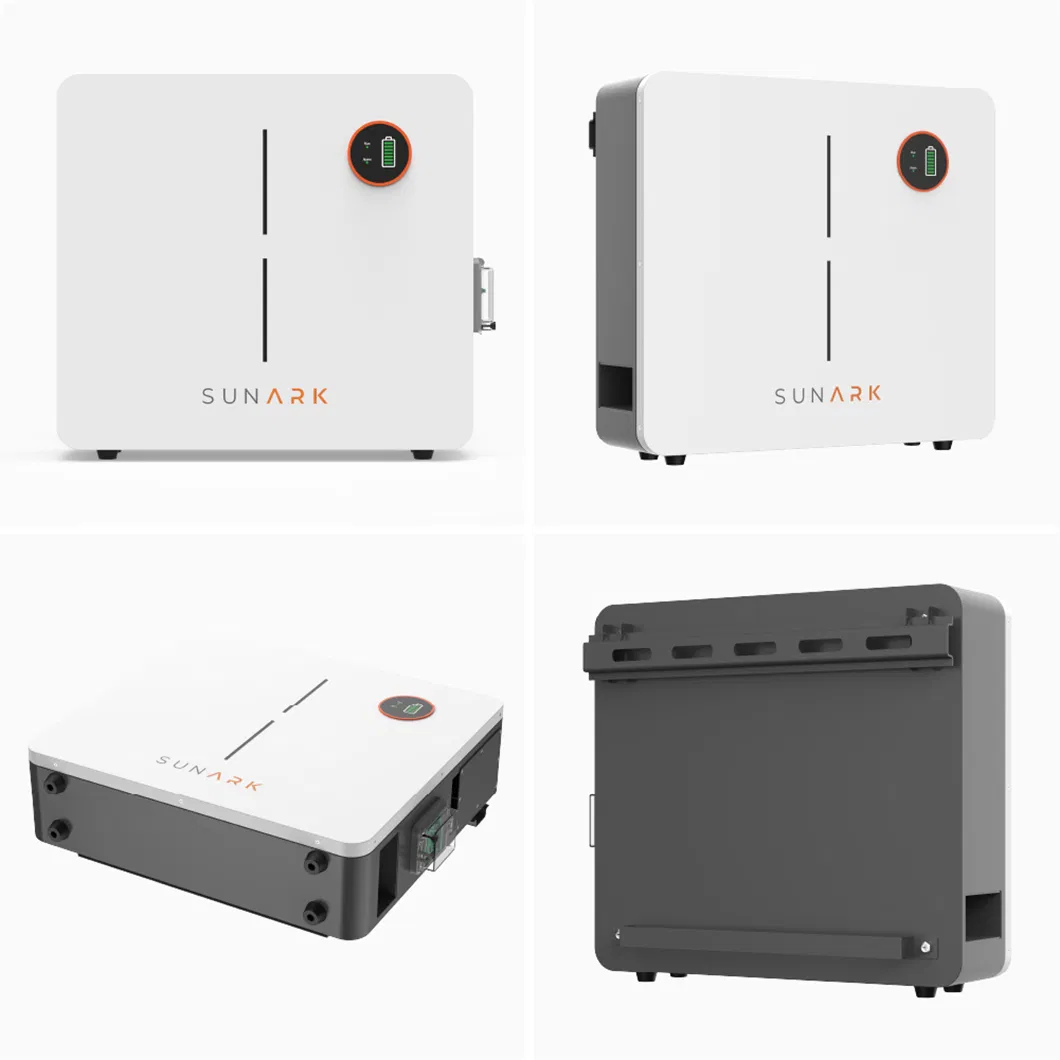

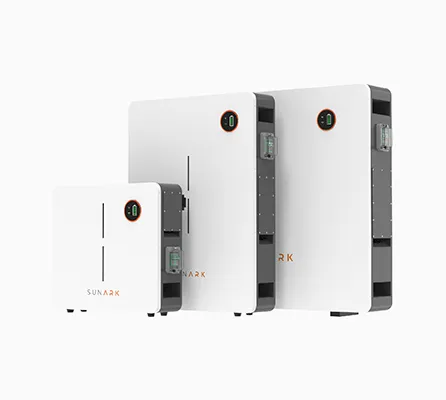

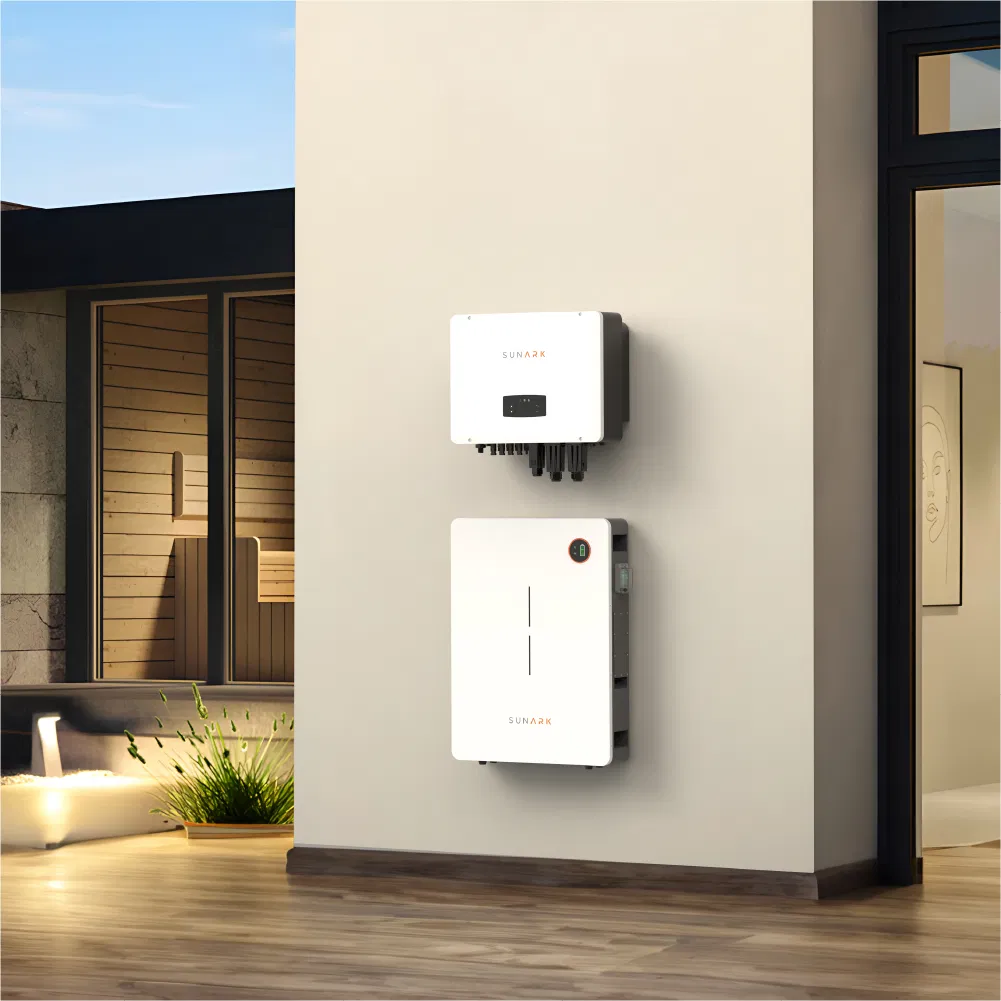

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh

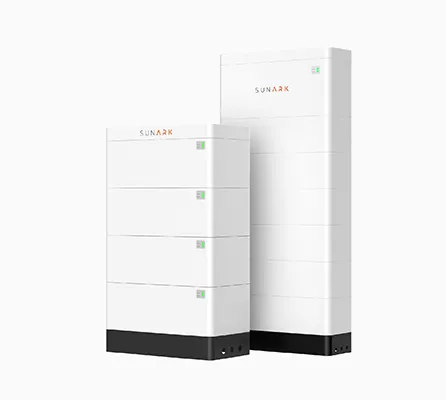

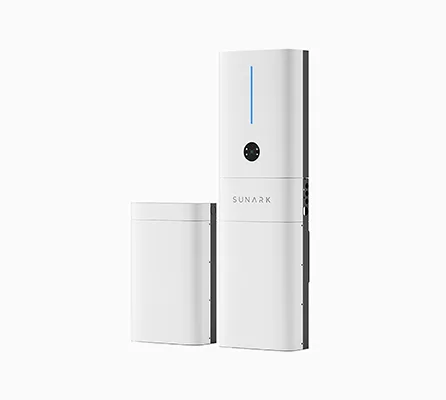

Stackable Low Voltage & High Voltage Pack
Voltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh

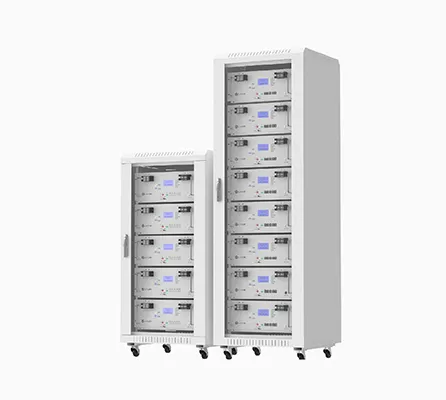

Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah
All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
We are a professional battery manufacturer since 2002, specializing in environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. By adopting the world's most advanced production equipment and testing measures, we ensure long product life, high energy density, and environmental protection features such as cadmium-free.

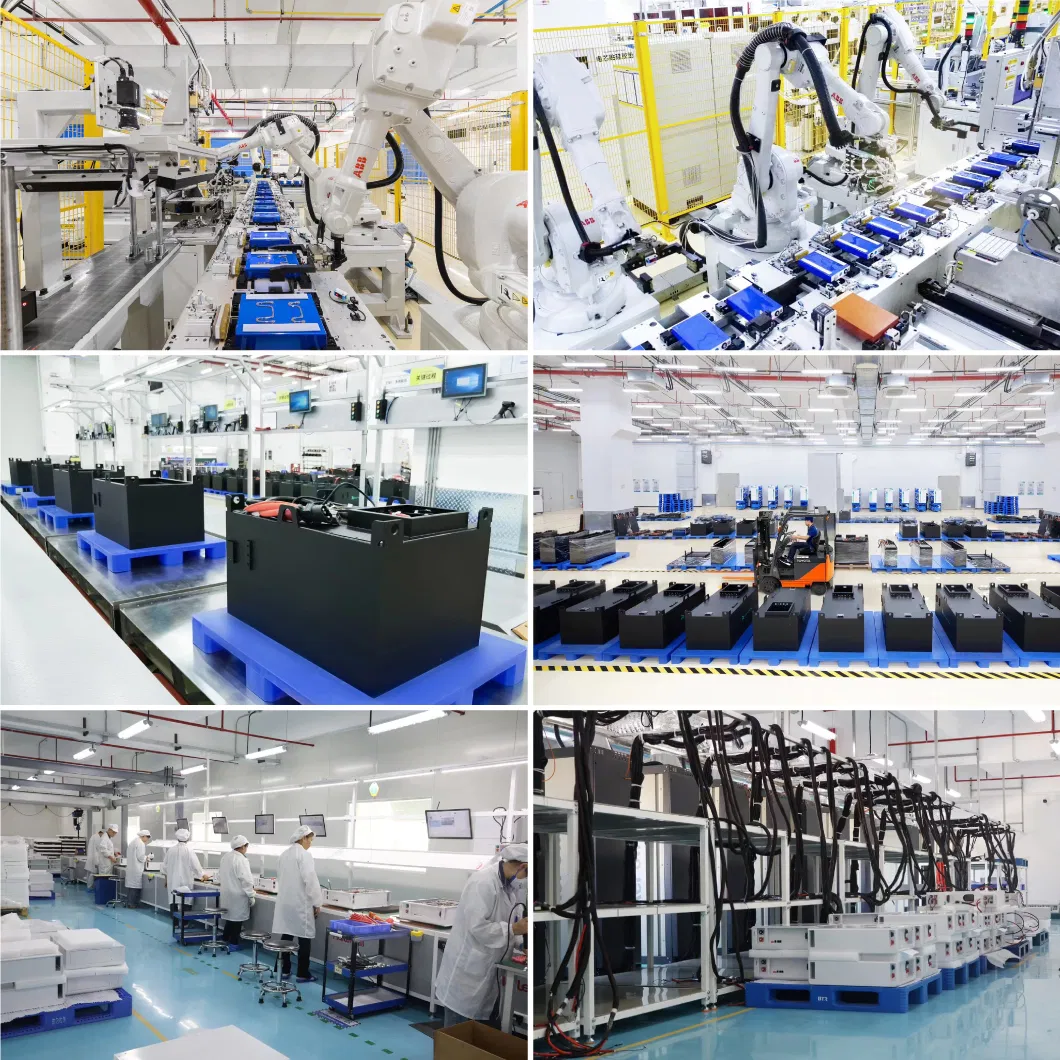

Our facilities house approximately 2,000 employees, including expert professors with over 40 years of experience in battery research and over 50 research engineers. We have invested heavily in scientific research to overcome technical difficulties, ensuring our product performance exceeds international standards and holds numerous national and international patents.
