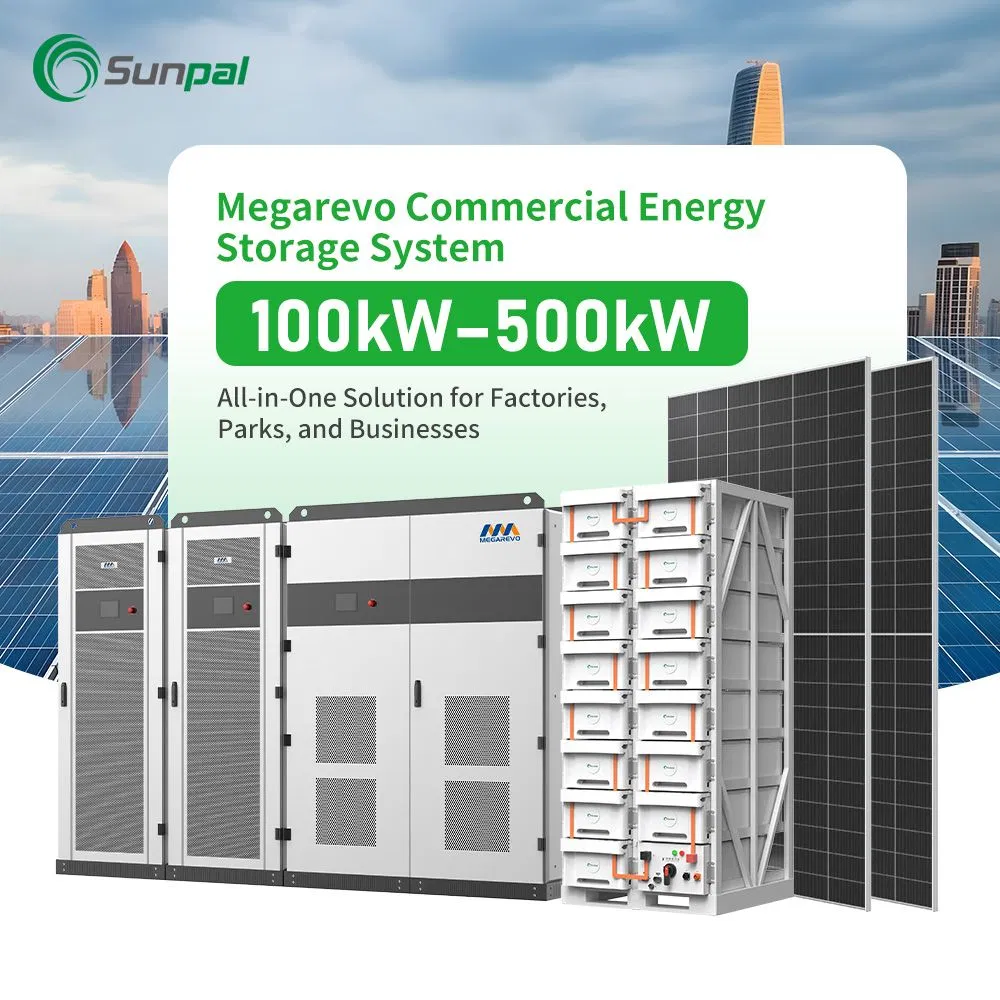

Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
1 / 5
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System

Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System

Customization: Available
Warranty: 10 Years
Solar Panel Type: Topcon Monocrystalline Silicon
Send Inquiry

Product Description

📋 Overview - Basic Information
Model NO.
100kW-500kW Commercial Storage System
Mounting Type
Roof/Ground Mounting
AC Voltage
230V/400V, 127V/220V
Output Frequency
50/60HZ
Communication
Smart Wifi; RS485; 4G; CAN
Controller Type
MPPT
Battery Type
Lithium Ion
Protection
IP67
Solar Panel
Bifacial Topcon High Efficiency
OEM/ODM
Acceptable
Production Capacity
50 sets/Day
HS Code
8504403090
📦 Packaging & Delivery
Package Size
231.50cm * 112.50cm * 127.50cm
Gross Weight
1228.000kg
Package Type
Wooden with Pallet
📷 Product Description

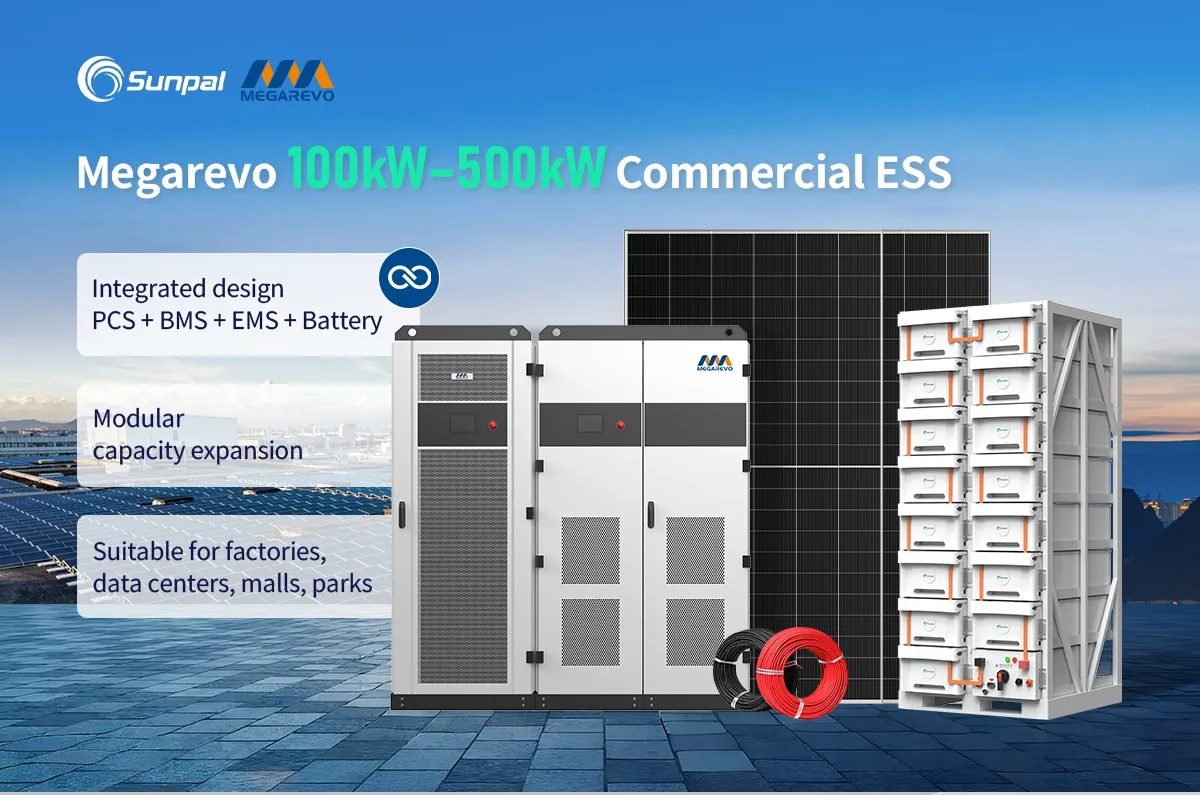

Commercial Energy Storage System Kit
Hybrid Solar Electrical Pv System

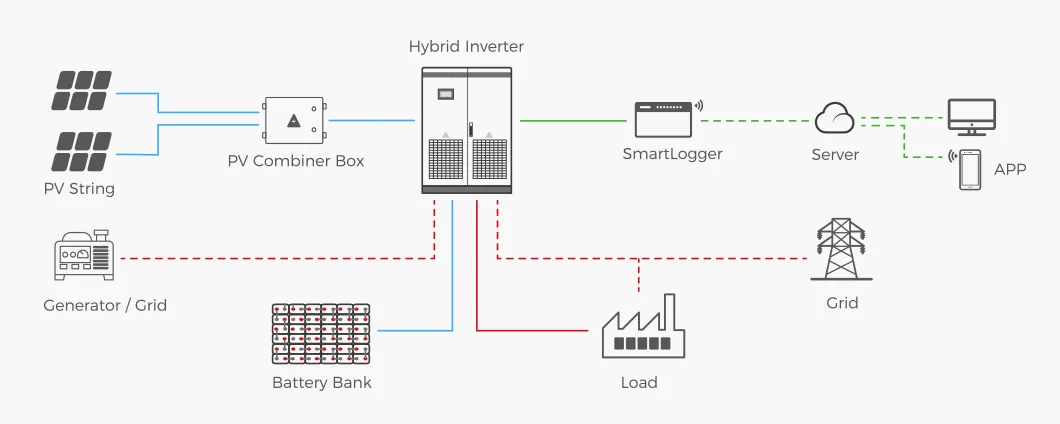

Energy Storage Solution Overview
⚙ Technical Specifications

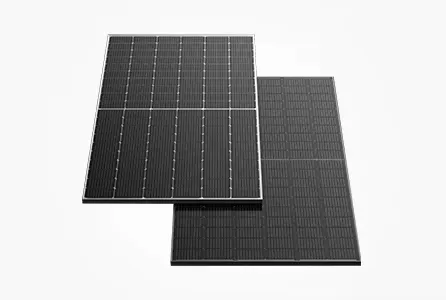

Topcon Half Cut Solar Panel

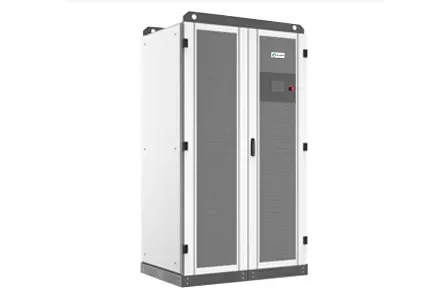

Hybrid Solar Inverter

Topcon Half Cut Solar Panel

Peak Power: 580W/620W/720W
Max Power Voltage: 42.71V
Open Circuit Voltage: 51.79V
Size: 2279*1134*30mm | Weight: 31.5 kg

Hybrid Solar Inverter

Flexible: Various working modes set flexibly.
Convenient: Supports loads, batteries, grids, diesel generators, and PV.
Reliable: Intelligent battery management.

High Voltage LiFePo4 Battery
PV Mounting System

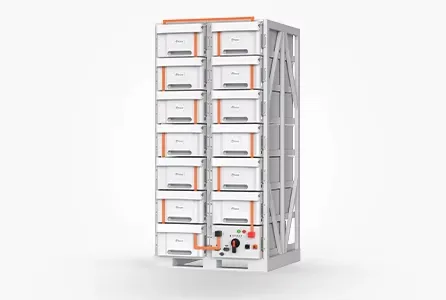

High Voltage LiFePo4 Battery

Long cycle life: 6000 cycles.
Safety: Smart BMS system.
Function: Emergency-Backup and Off-Grid functionality.

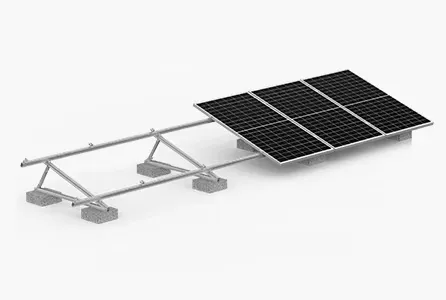

PV Mounting System

Material: AI6005 & SUS304 Bolt.
Clamps: 30 and 35mm Mid & End Clamps.
Optional: L Foot, Hanger Bolt, Cable Clips, and Ground Lugs.

System Model SP-100KW-HY
PV Module Specification
Power(W)580W
Voc(V) / Vmp(V)51.79 / 42.71
Dimensions (mm)2279*1134*30
Inverter Specification
Inverter Size (KW)100
MPPT Voltage Range(V)200-850
Output Frequency / Voltage50/60Hz / 320-460V
Battery Pack Specification
Battery TypeLiFePO4
Battery Bank Power(kWh)200.704
Battery Bank Voltage(V)716.8

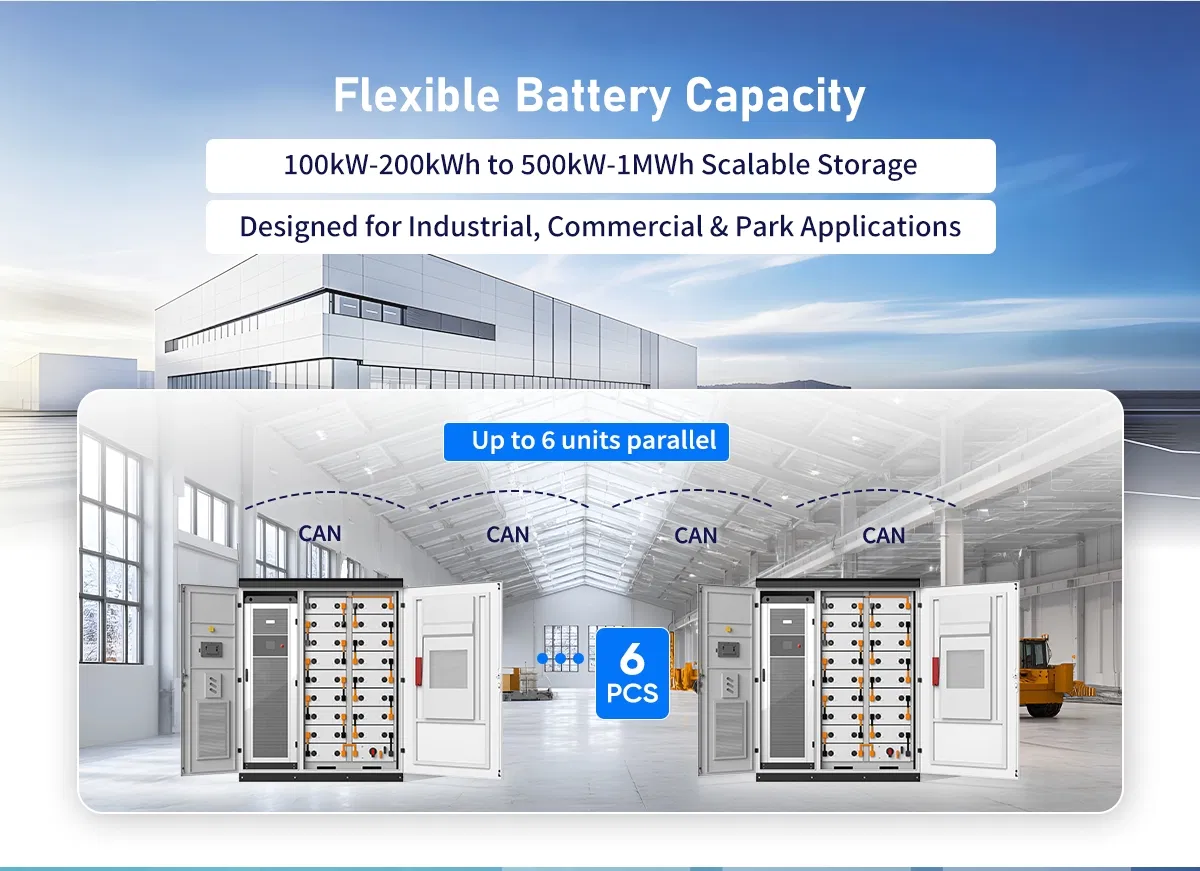

Detailed Spec Sheet 1

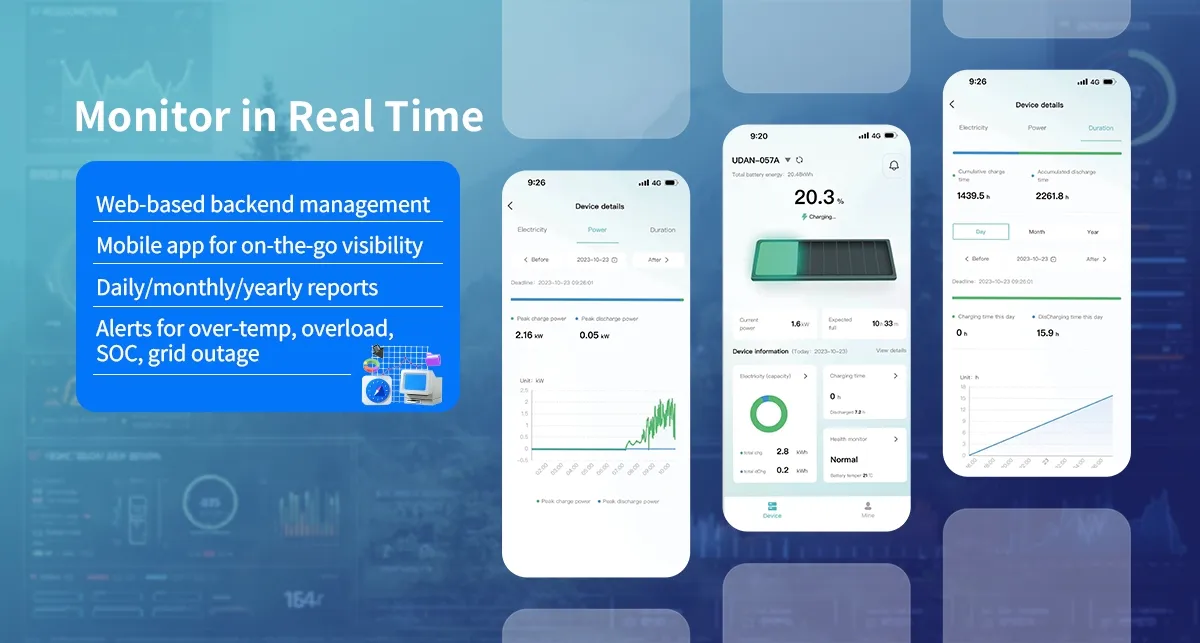

Detailed Spec Sheet 2

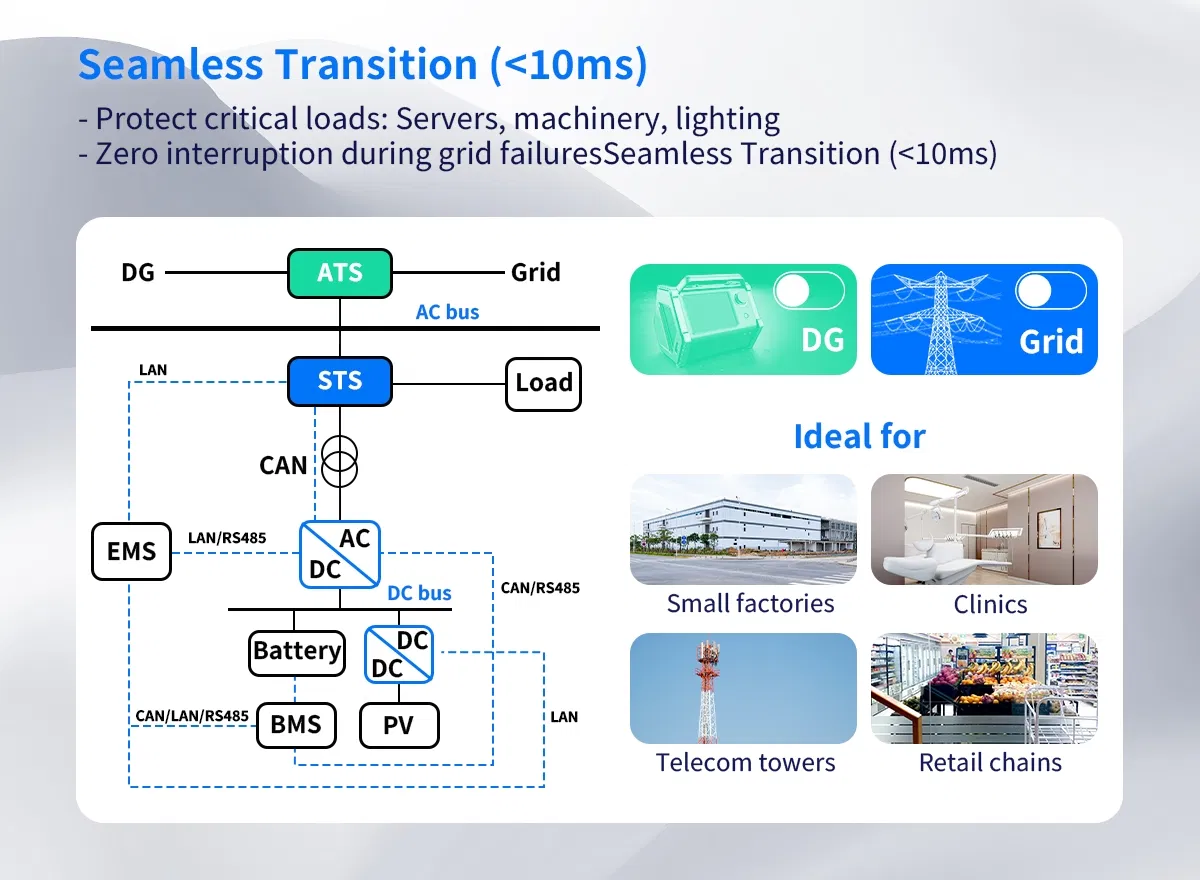

Detailed Spec Sheet 3
📜 Certifications
Product Certifications
🏗 Commercial Project Cases

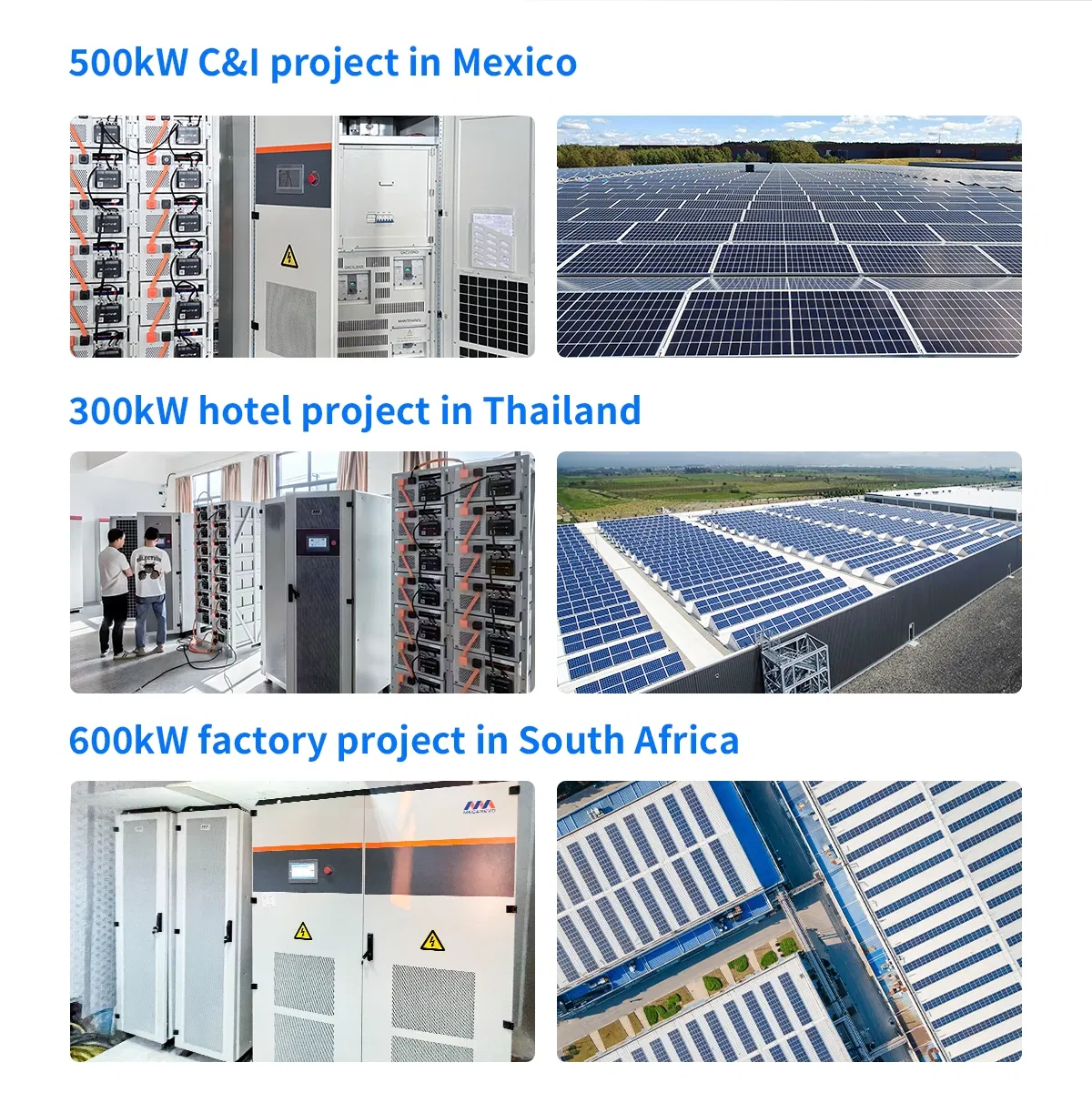

Energy Storage Project Case
🍂 Global Exhibition
Industry Exhibition
❓ Frequently Asked Questions
What is the expected lifespan of the battery system?
The system utilizes high-quality LiFePO4 batteries with a cycle life of approximately 6000 cycles, ensuring long-term reliability for commercial use.
Can this system operate off-grid?
Yes, the system supports both hybrid and off-grid functionality, providing emergency backup power during grid failures.
Is the system compatible with existing diesel generators?
Absolutely. The integrated design of the hybrid inverter allows for seamless connection with diesel generators, PV arrays, and the power grid.
How do I monitor the system performance?
The system comes with a smart monitoring solution supporting WiFi, 4G, and RS485 communication, allowing you to track data via a mobile app or web portal.
What kind of maintenance does the solar mounting system require?
The mounting system is made of high-grade AI6005 aluminum and SUS304 stainless steel, which are highly corrosion-resistant and require minimal maintenance over their 25-year lifetime.
Are OEM or ODM services available?
Yes, we provide flexible OEM and ODM solutions to meet specific commercial energy storage requirements and branding needs.
