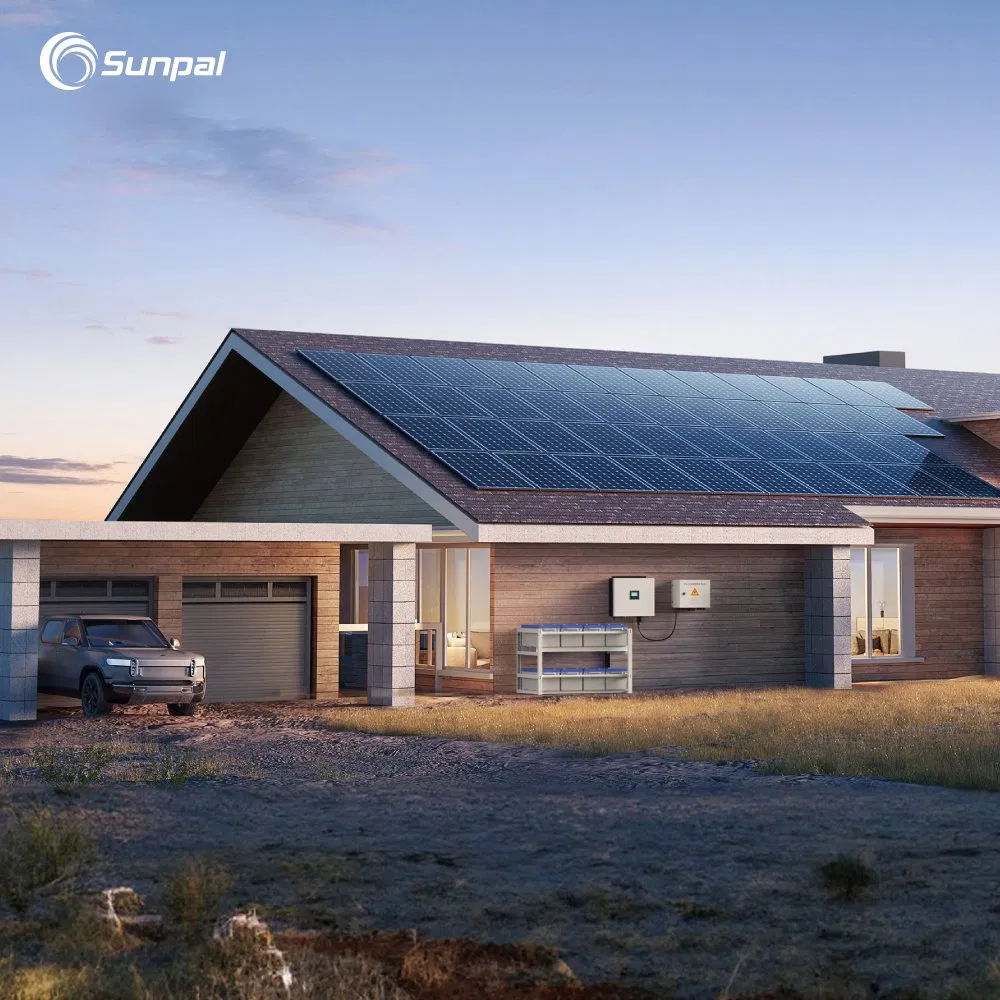

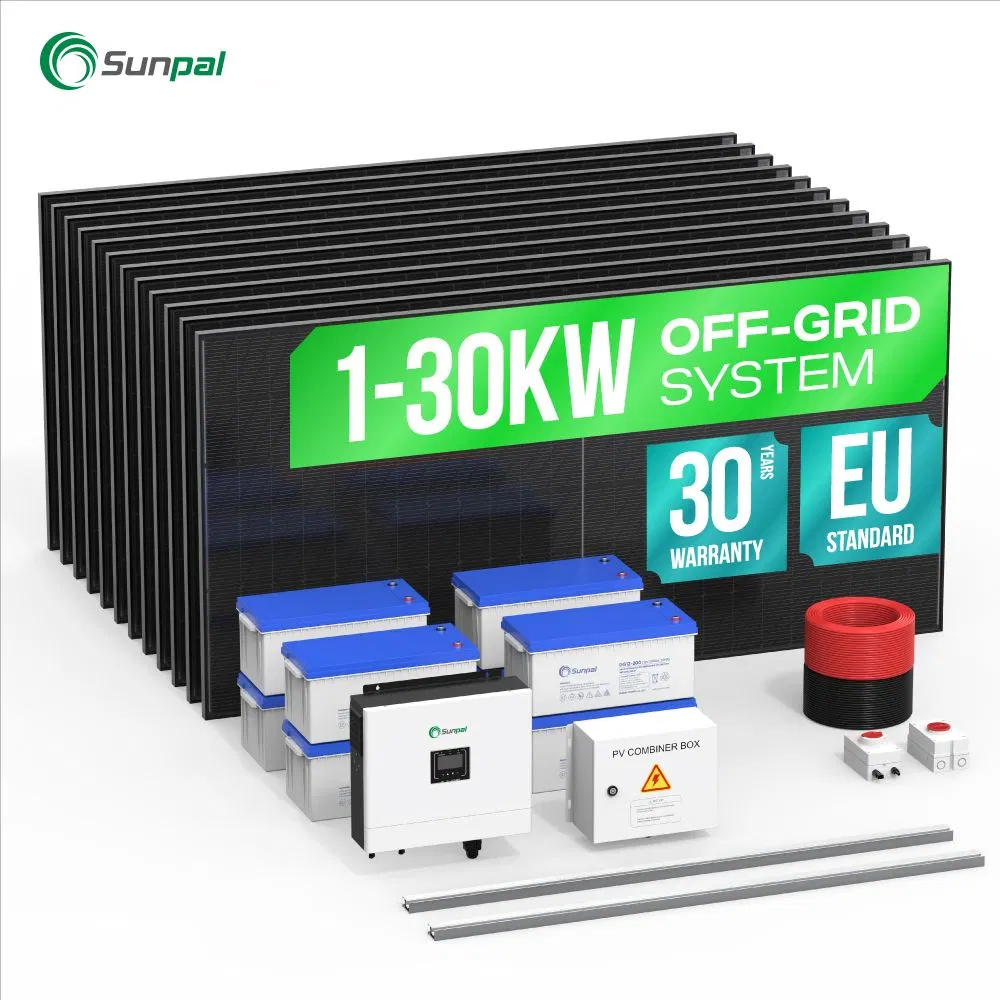

Sunpal Off The Grid House Solar Systems 30Kw 6 Kw 5Kw 1.5Kw Complete Solar Panel Energy System

1 / 5

Sunpal Off The Grid House Solar Systems 30Kw 6 Kw 5Kw 1.5Kw Complete Solar Panel Energy System

Customization:	Available
After-sales Service:	Yes
Warranty:	10 Years

Send Inquiry

Product Description

📋 Basic Information

Certification

ISO, CE, TUV, VDE, CSA

Application

Home

Specification

Normal, 1-10CBM

Battery Type

Lead-Acid, Lithium Ion

Mounting Type

Roof Mounting

Output Voltage

240V/380V

Output Frequency

50/60Hz

Solar Panel

Monocrystalline 400-700W

Solar Inverter

Off grid 1-30KW

Monitoring

App Available for PC and Phone

Origin

China

Capacity

50000 sets/Year

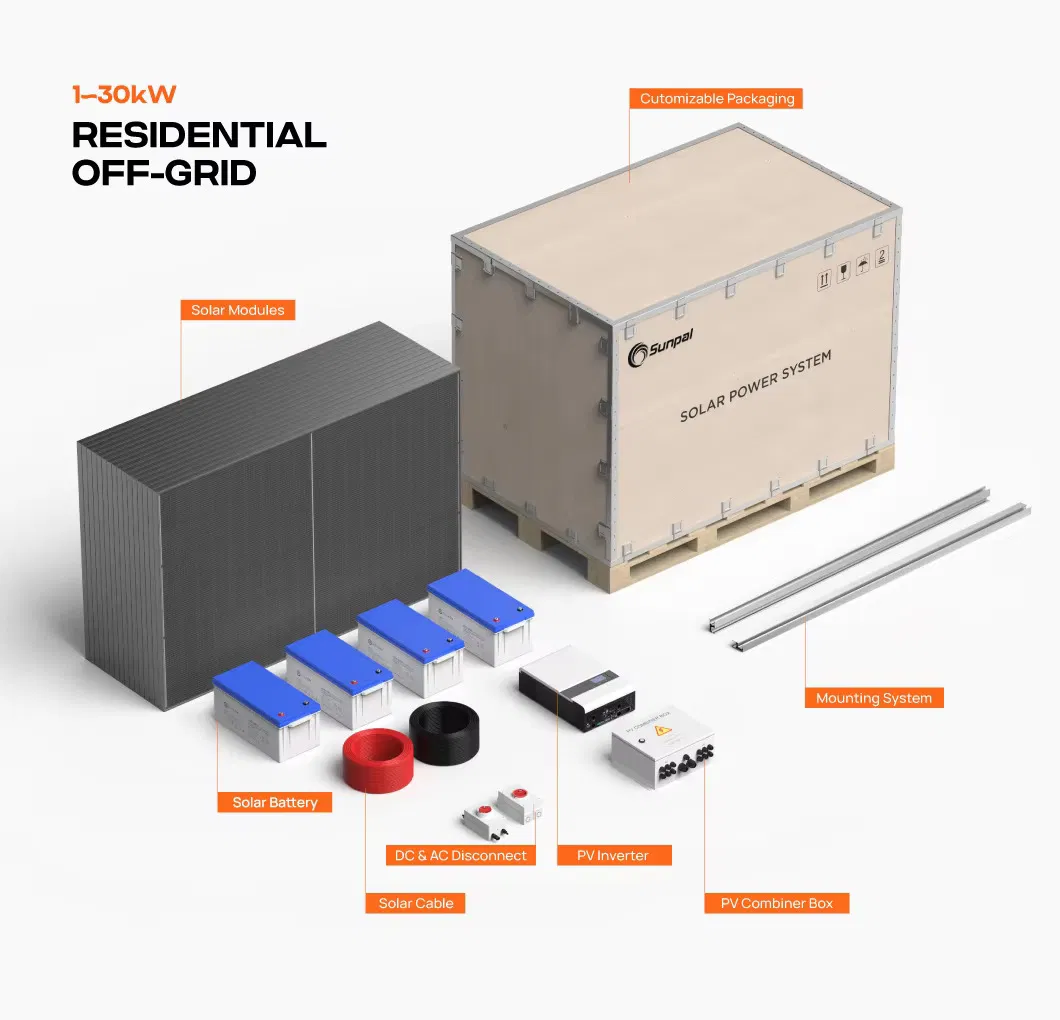

📦 Product Overview

🛡️ Warranty Information

📊 Technical Specifications

Model	SE-3KW-OFF	SE-5KW-OFF	SE-10KW-OFF
Mono 550W Solar Panels	6 pcs	8 pcs	16 pcs
PV Combiner Box	1 pc	1 pc	1 pc
Off Grid Solar Inverter	1 pc	1 pc	1 pc
Gel Batteries 12V 200Ah	2 pcs	4 pcs	4 pcs
PV Cable 4mm2	100m	100m	200m
Earthing cable 6mm2	100m	100m	100m
Roof Mounting System	1 set	1 set	1 set

Model	SE-20KW3-OFF	SE-30KW3-OFF	SE-50KW3-OFF
Mono 550W Solar Panels	32 pcs	48 pcs	80 pcs
PV Combiner Box	1 pc	1 pc	1 pc
Off Grid Solar Inverter	1 pc	1 pc	1 pc
Gel Batteries 12V 200Ah	8 pcs	12 pcs	20 pcs
PV Cable 4mm2	300m	500m	1000m
Roof Mounting System	1 set	1 set	1 set

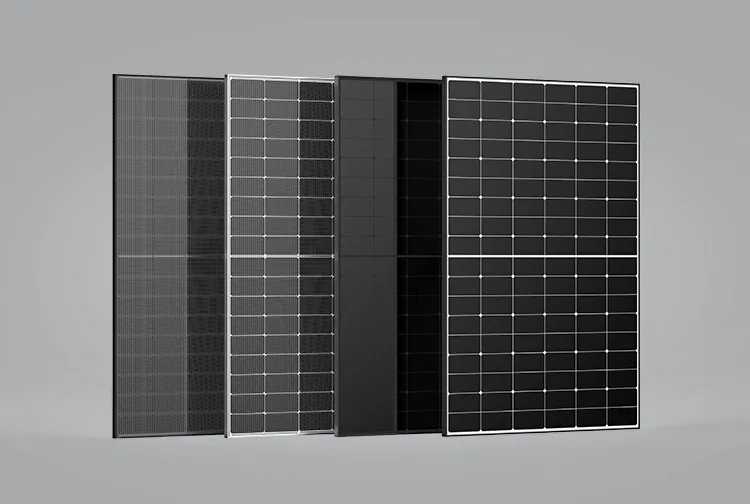

☀️ Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

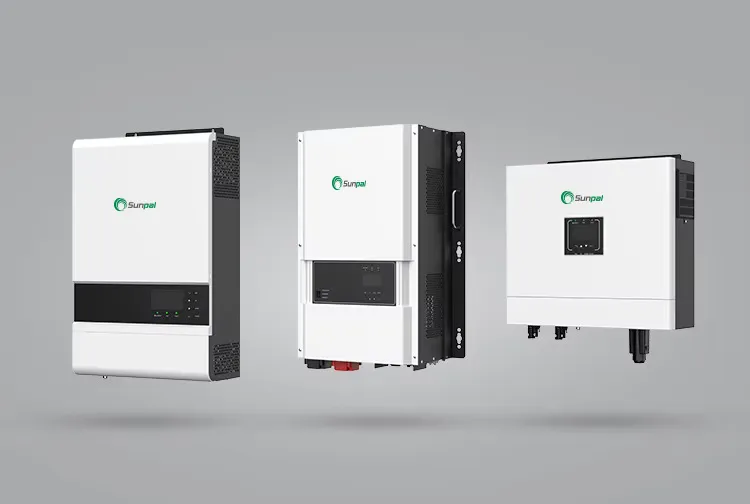

🔌 Off Grid Solar Inverter

Support both single phase and three phase. Transformer isolation design with different working modes. Charging/discharging current of 240A. Supports max 6pcs in parallel. DC and AC couple options available to retrofit existing solar systems.

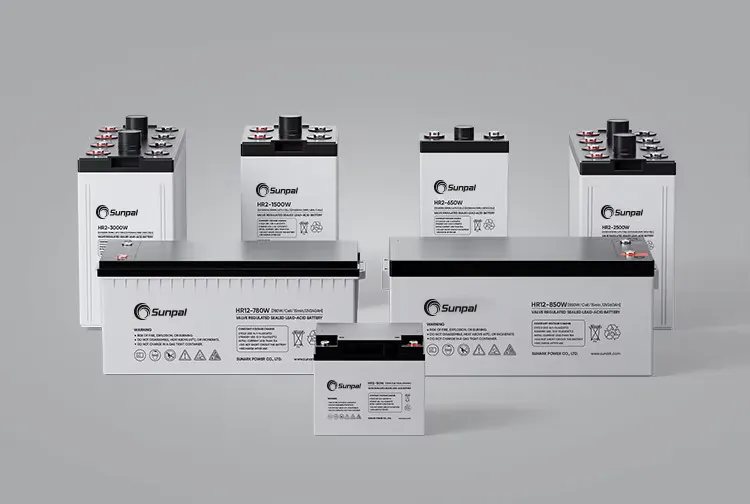

🔋 Low Voltage Gel Battery Bank

8-10 years design life. Up to 1500+ cycle life. Ground stack brick design, simply connecting to inverter. Battery module is scalable for any larger storage system. Lithium iron phosphate options available for maximum home safety.

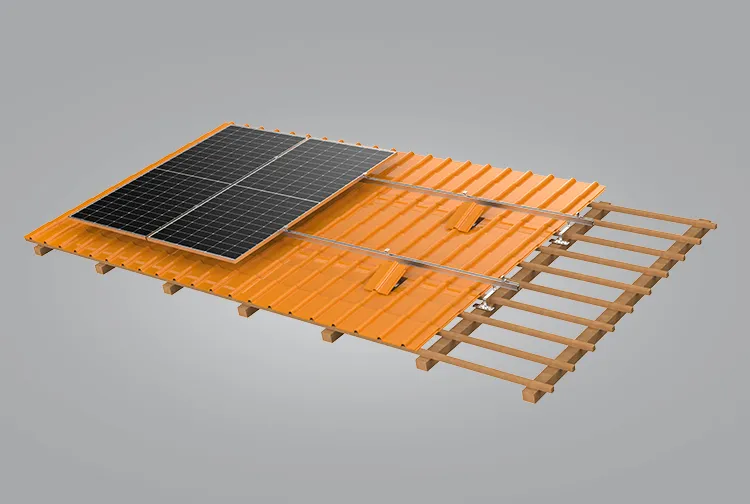

🏗️ PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35,40,45,50mm. L Foot Asphalt Shingle Mount & Hanger Bolt Optional. High durability for various roof types.

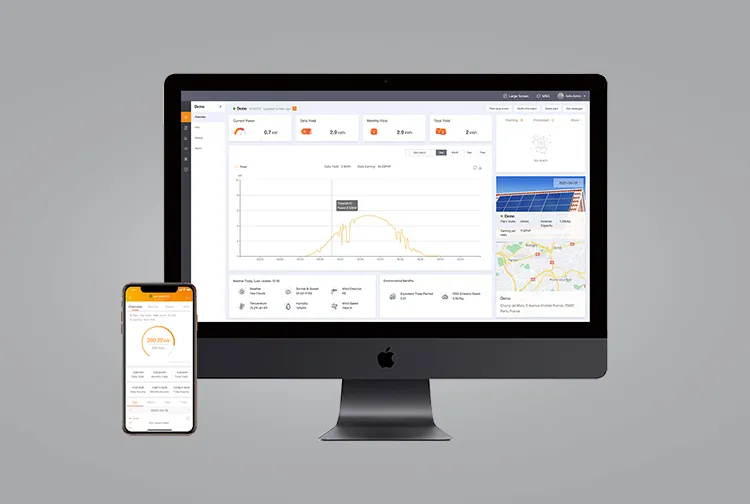

📱 Smart Monitoring System

Open station supports one-click installation and registration. Supports full lifecycle data storage to ensure reliability. Traceable logs and safe operation management through mobile app or PC.

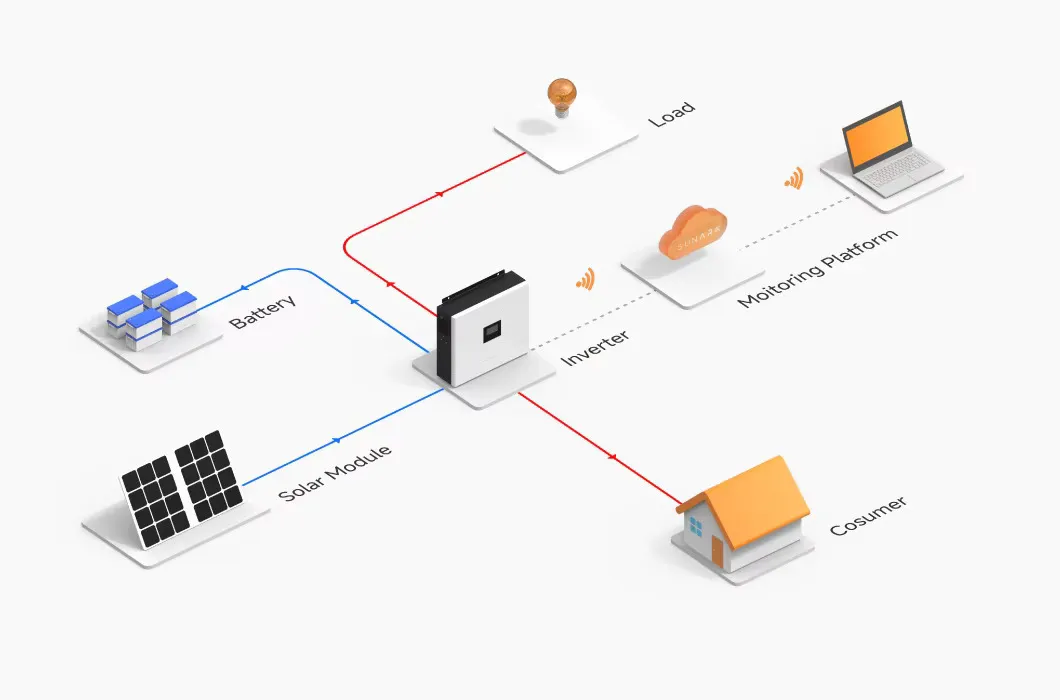

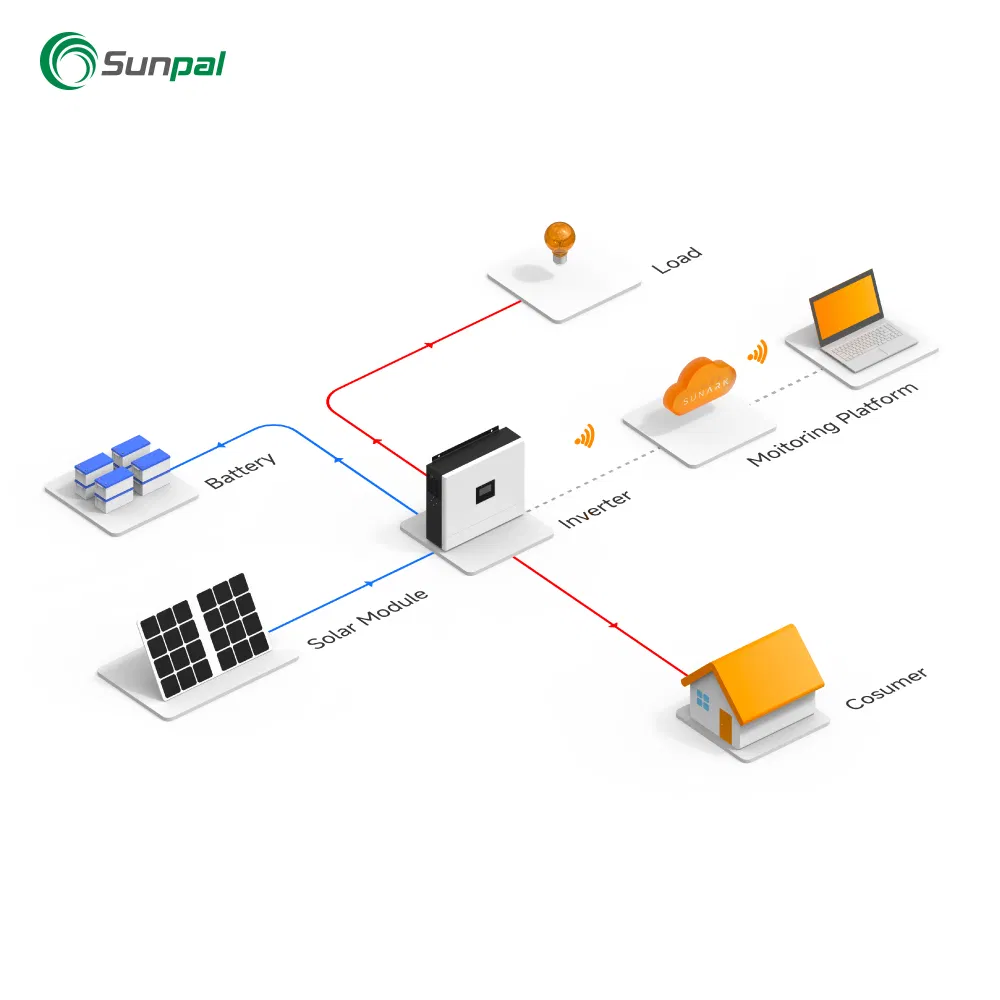

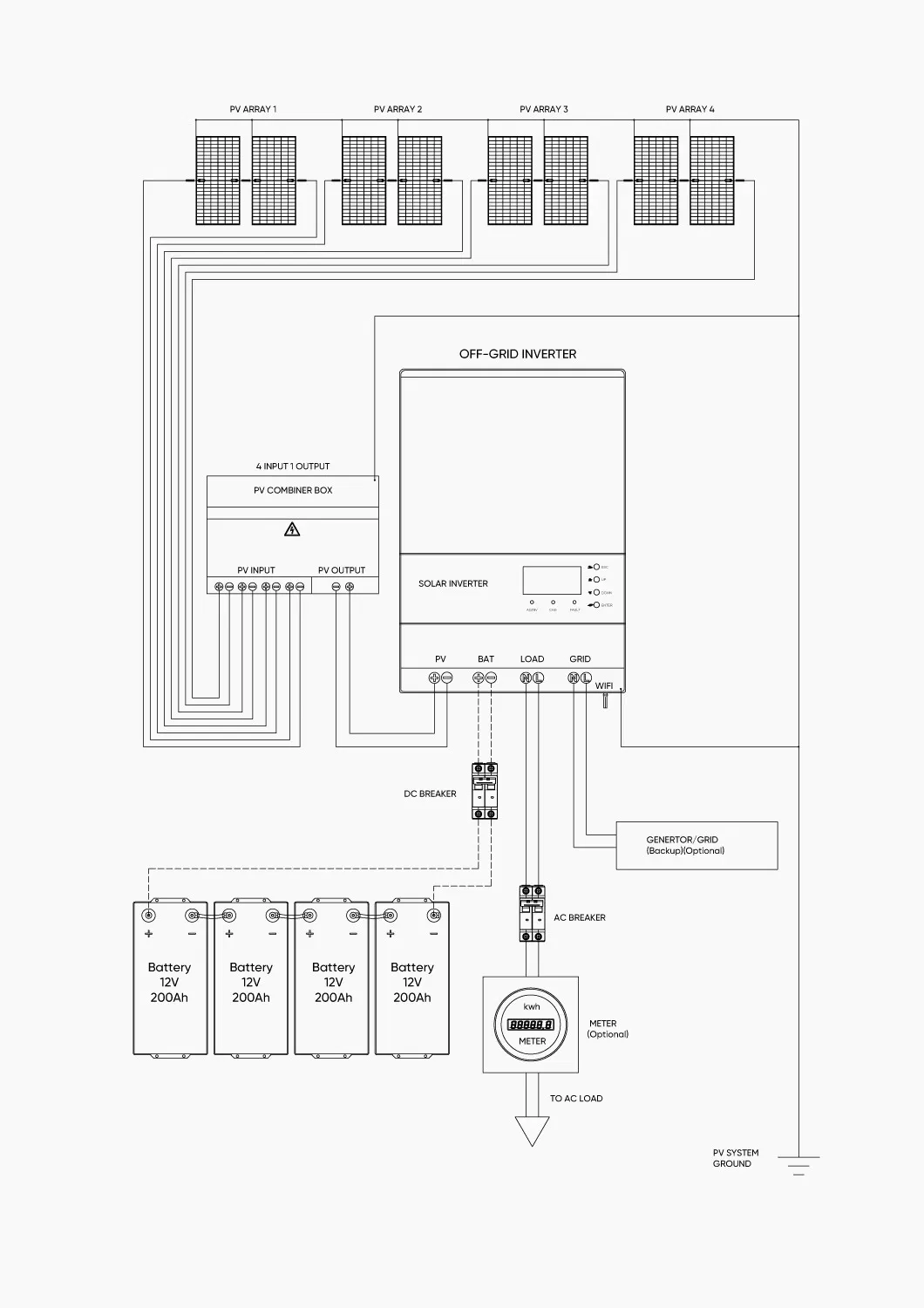

⚙️ How It Works

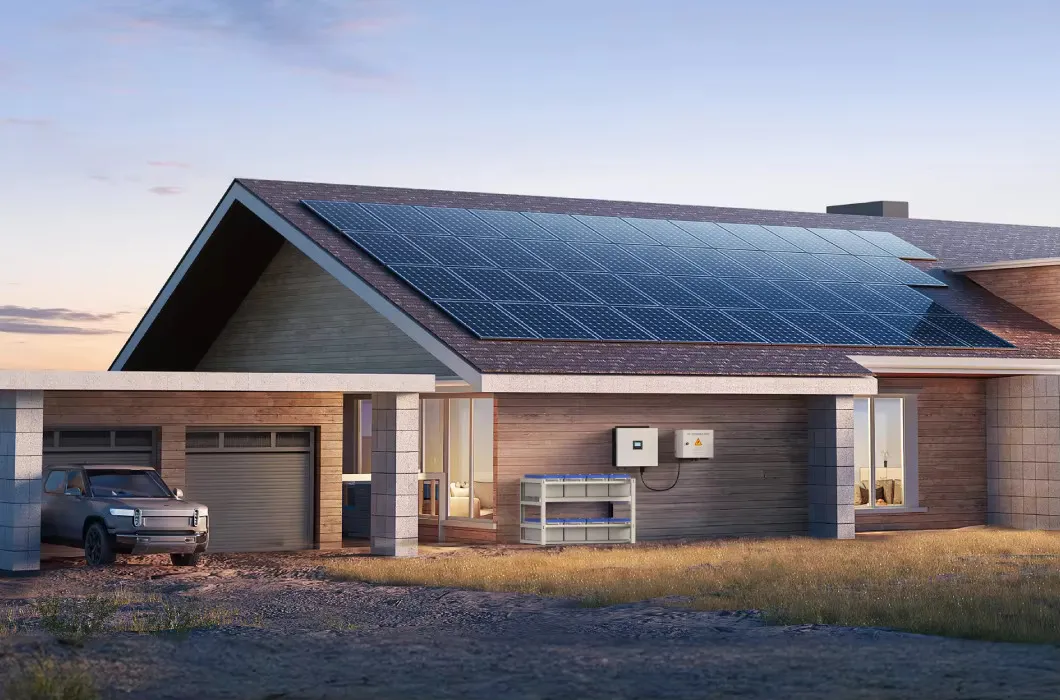

🏠 Application Scenarios

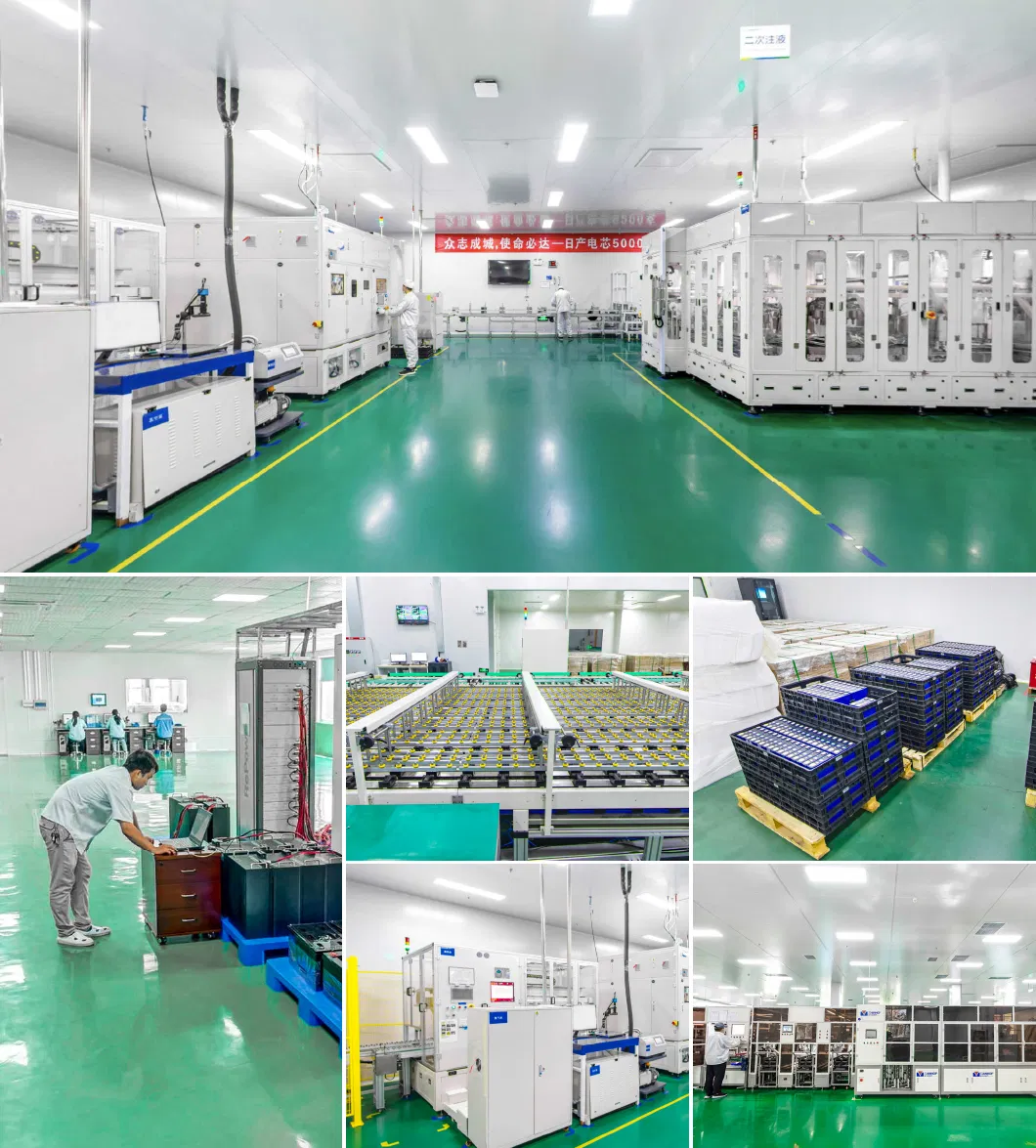

🏭 Production & Packaging

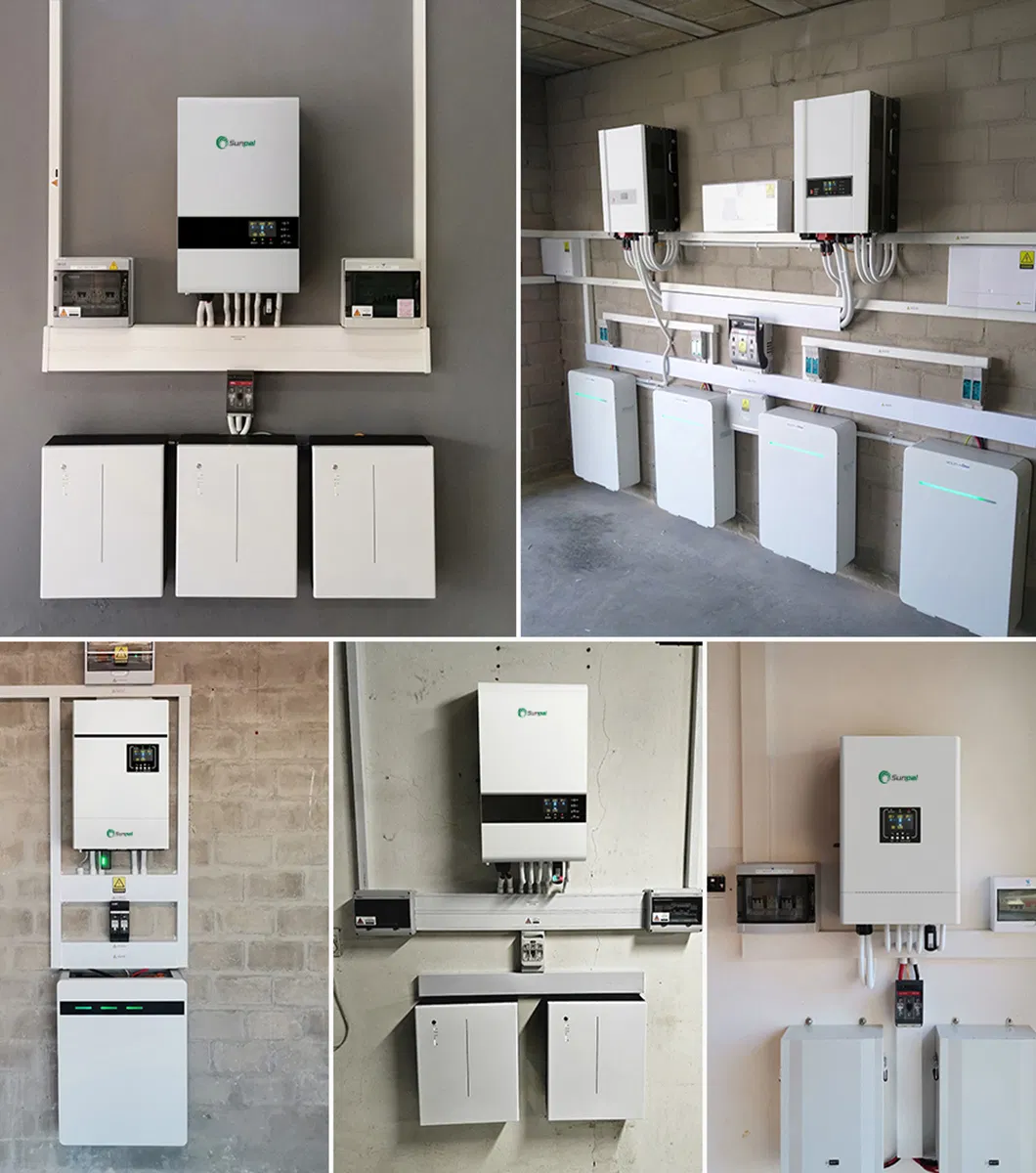

🌟 Worldwide Project Cases

❓ Frequently Asked Questions

What certifications do your solar systems hold?

Our systems are fully certified with ISO, CE, TUV, VDE, and CSA standards, ensuring international quality and safety compliance.

Can I monitor the energy production remotely?

Yes, the system includes a smart monitoring gateway that allows you to track real-time data and system performance via a dedicated App on your phone or PC.

What is the lifespan of the battery bank?

The low voltage Gel battery bank is designed with an 8-10 year service life and can withstand over 1500 charging cycles.

Is the mounting system compatible with all roof types?

The PV mounting system includes adjustable rails and clamps compatible with various roof structures, including asphalt shingles and flat surfaces.

Does the system support three-phase power?

Yes, our off-grid solar inverters are designed to support both single-phase and three-phase output configurations.

Is the system scalable if my energy needs increase?

Absolutely. Both the solar panel array and the battery modules are scalable, allowing you to expand your storage and generation capacity in the future.
