HYBO Energy
HYBO Energy

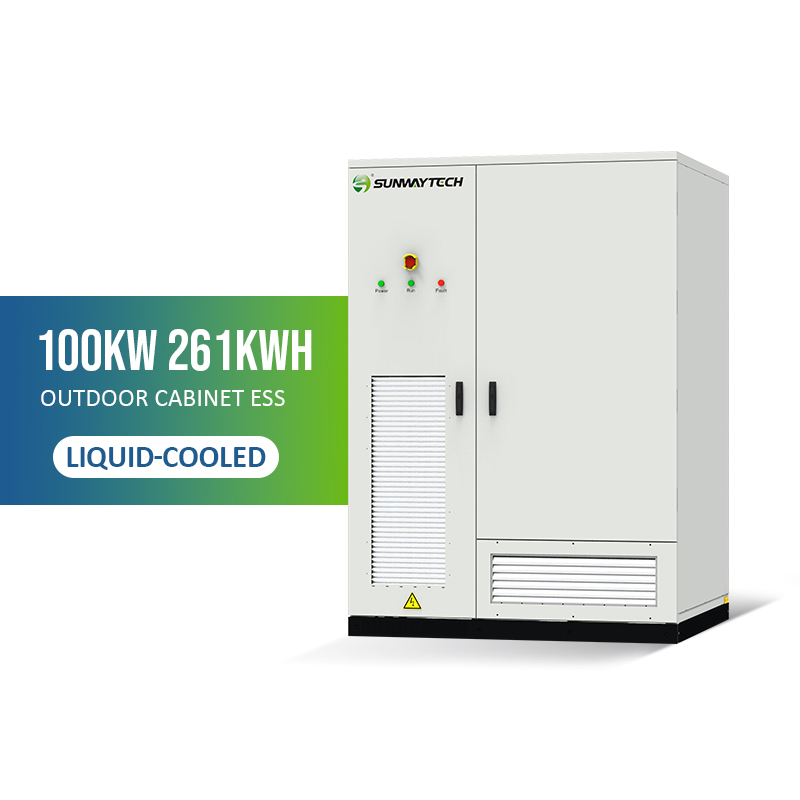

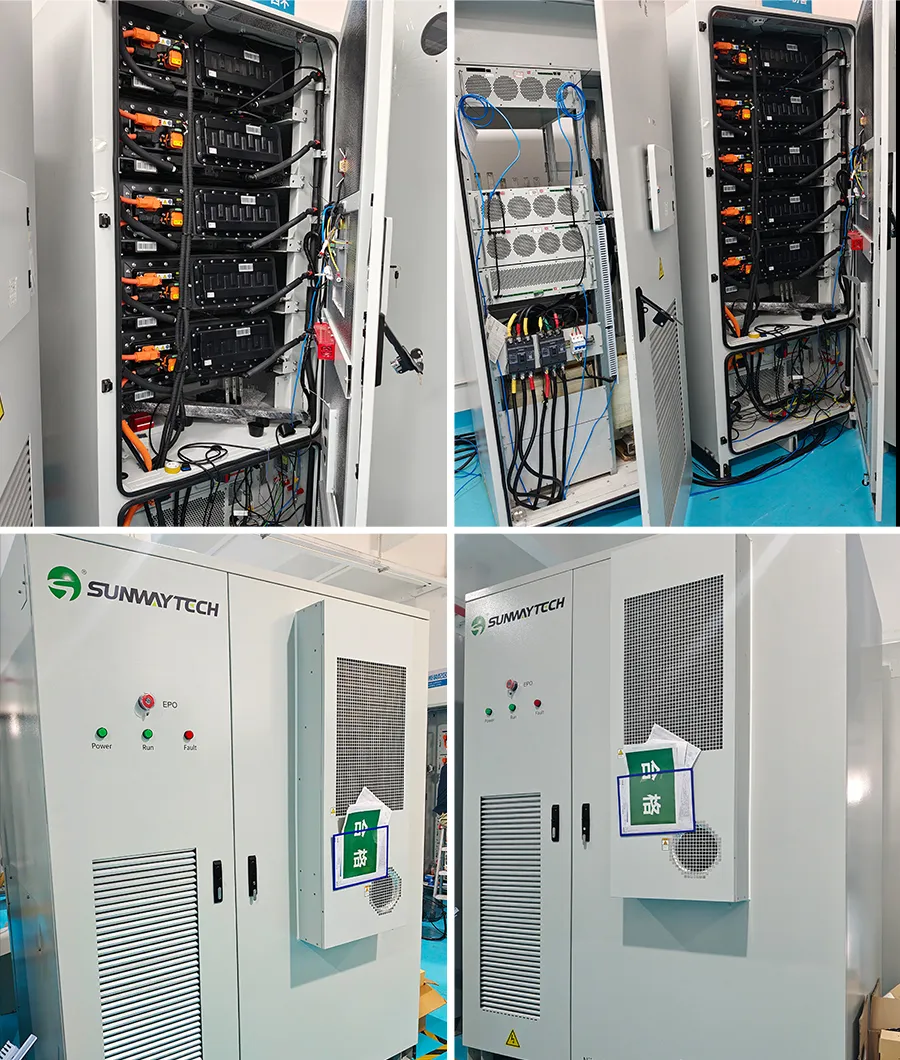

This product is a highly efficient energy storage solution designed for outdoor applications. It can be configured according to specific requirements to provide customized energy management. The liquid-cooling system ensures optimal temperature control and longevity of the battery cells.
Note: Mounting structures can be selected based on different roof materials. All systems can be designed per specific requests.
| Battery & System Parameters | |
|---|---|
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate (LFP) |
| Cell Capacity | 314Ah |
| Max. Charge/Discharge Power | 0.5P |
| PV Voltage Range | 250~500V (MPPT) |
| Rated AC Power | 125kW |
| Rated AC Current | 180A |
| Rated AC Voltage | 400V, 3W+N+PE |
| Protection Level | IP55 |
| Ambient Temperature | -25°C to +60°C |

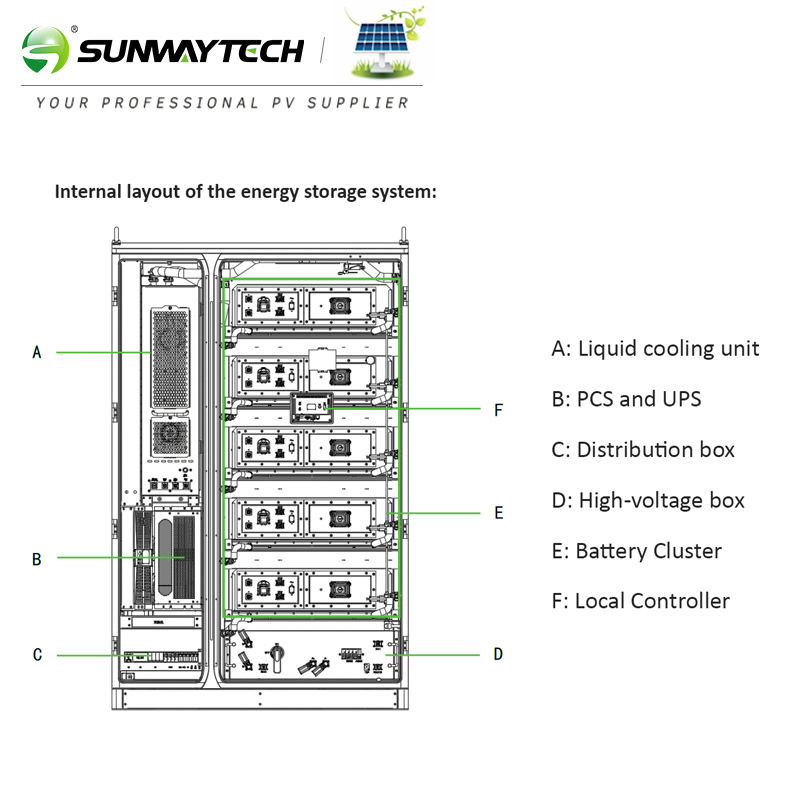

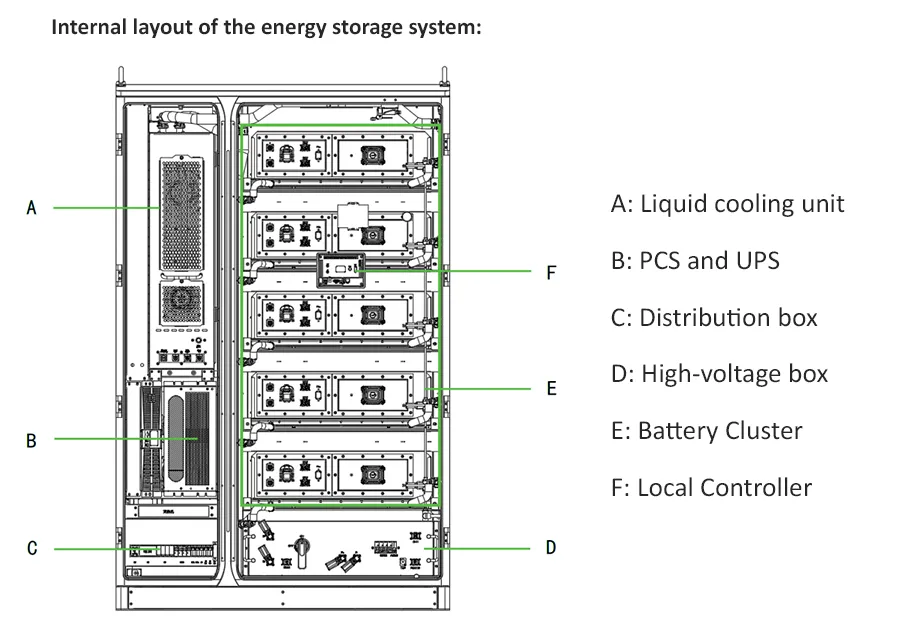

| Cooling Mode | Intelligent liquid-cooled |

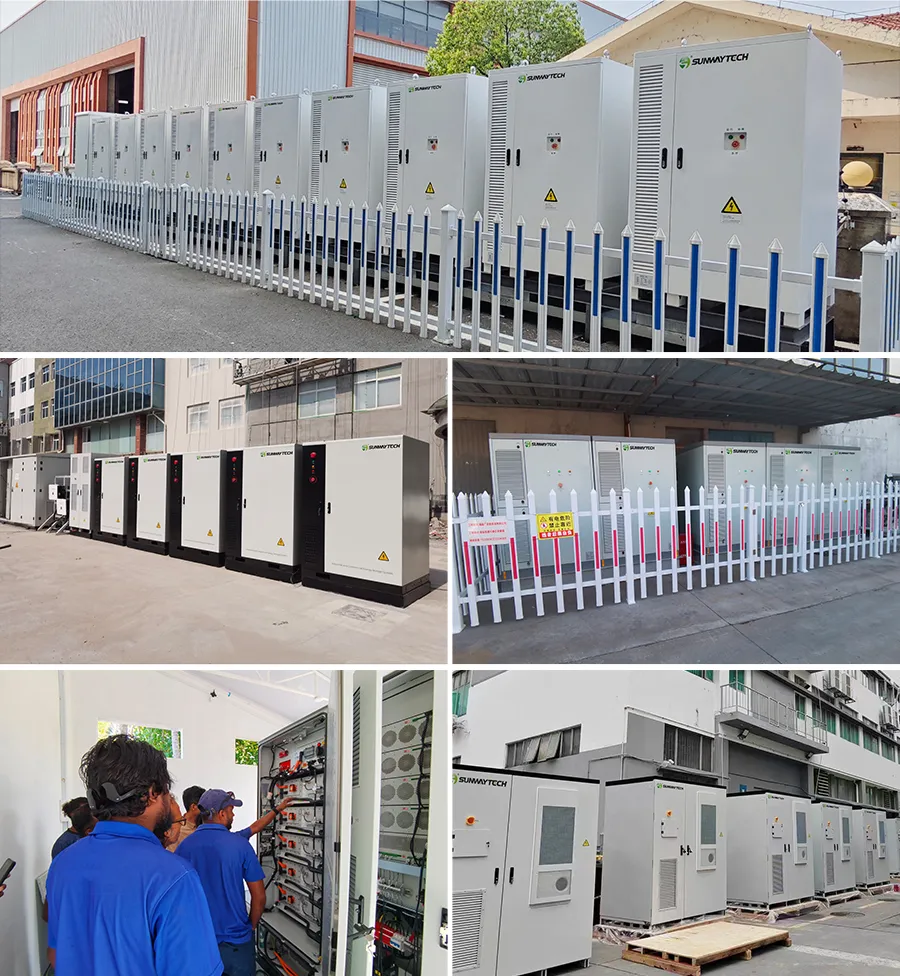

Schools, factories, gas stations, and other commercial buildings with high energy demands can maximize energy use independence and reduce grid power demand through solar PV and battery storage. This one-stop solution helps facilities save on electricity bills, reduce the risk of rising energy prices, and generate additional revenue while reducing environmental impact.

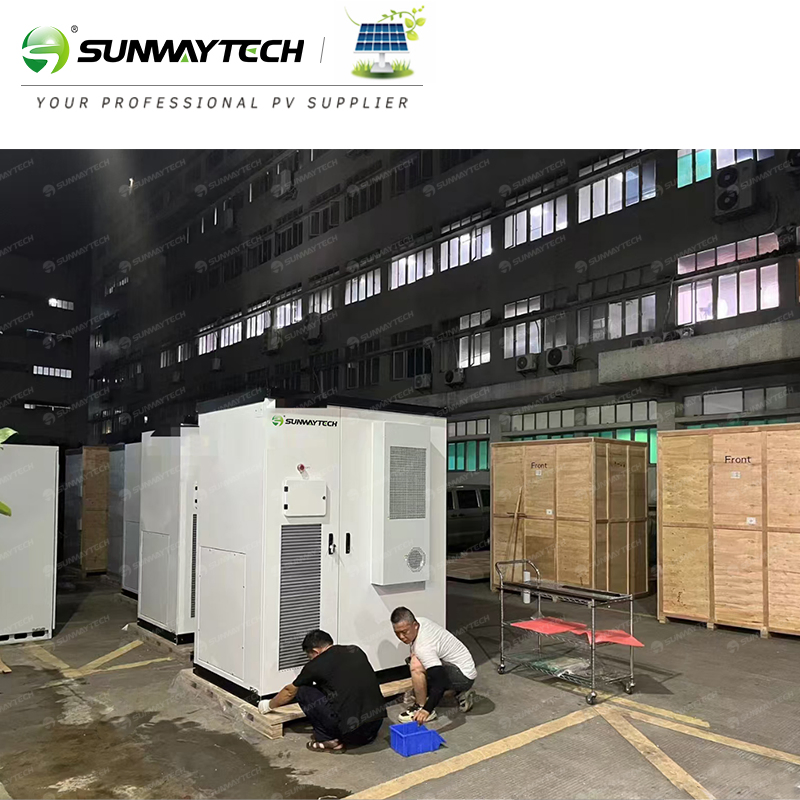

Packaging Advantage: High-strength wooden box packaging allows for secure stacking, simple operation, and cost-effectiveness. Extra large and long sizes are easily accommodated. The gold internal/external size ratio allows for efficient transport as flat kits or pre-assembled units.
