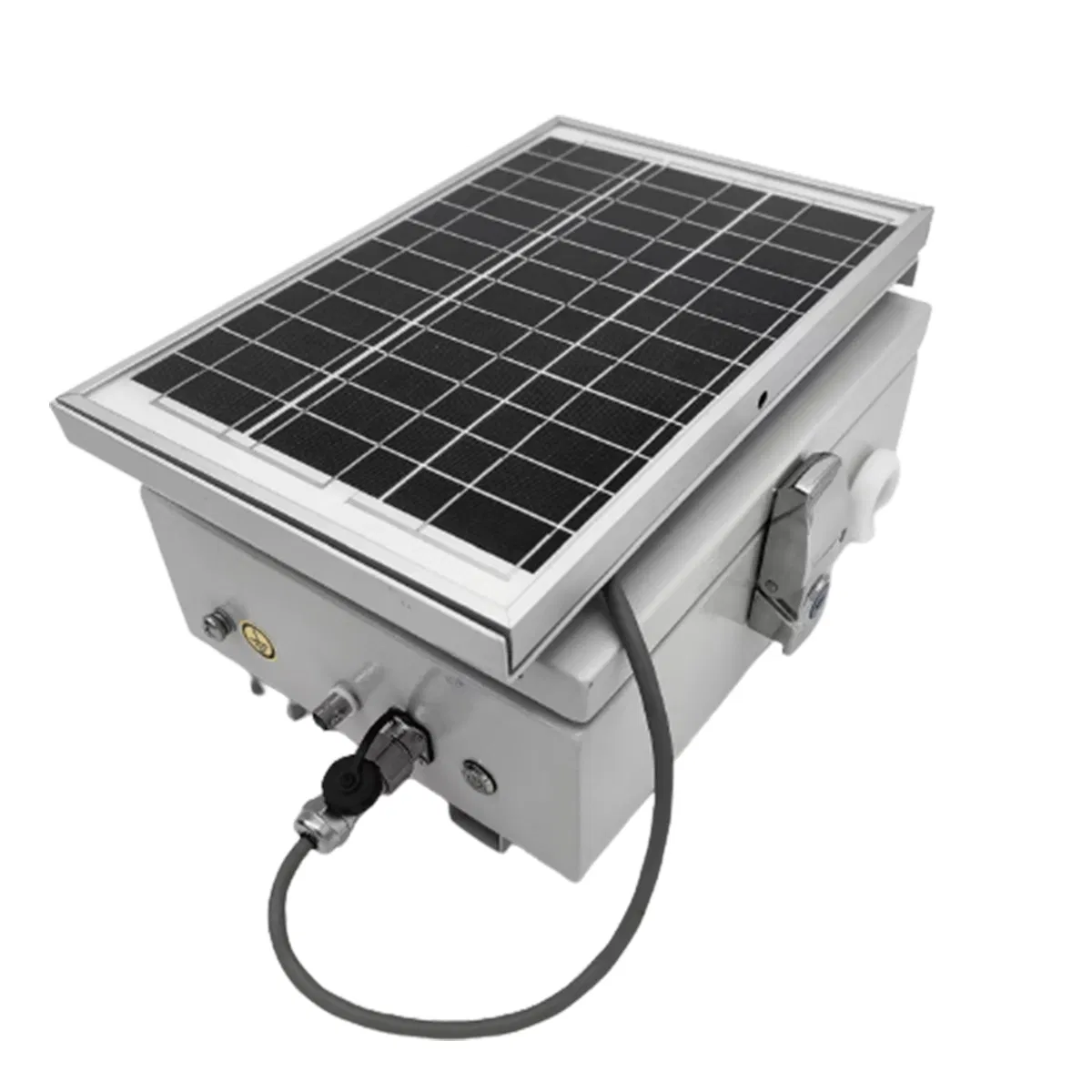

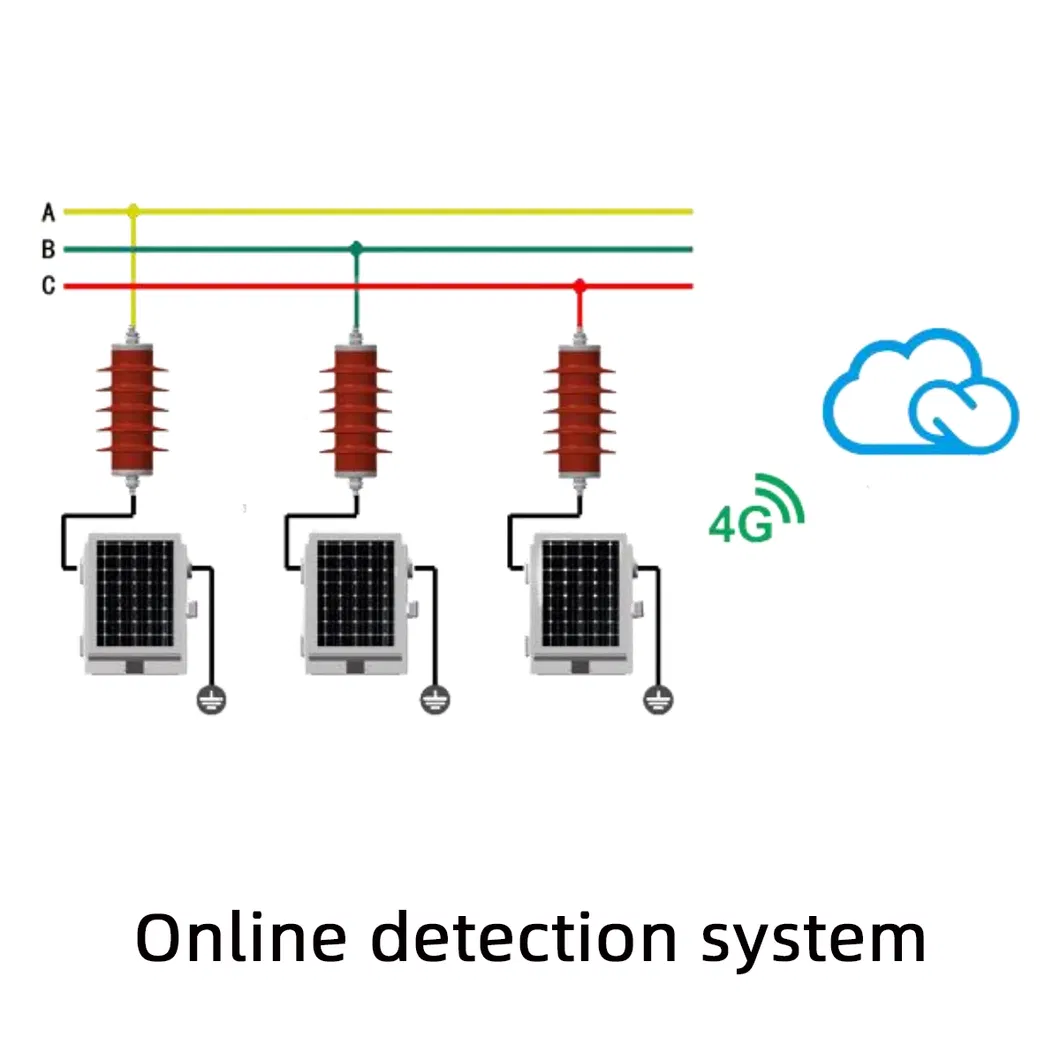

The TR-ICM-10 arrester online monitoring device is designed to monitor the leakage current, third harmonic current, and action times of lightning arresters. It accurately assesses the operating status of the equipment. By utilizing 4G wireless communication and cloud platform monitoring, it establishes a comprehensive Internet of Things (IoT) monitoring system for lightning arresters.
Lightning damage is a critical factor impacting the safety of power grids, factories, and mines. Over 60% of distribution network faults are caused by lightning strikes, leading to unforeseen serious consequences. Due to the high number and wide distribution of Metal Oxide Arresters (MOAs), maintenance typically involves heavy manpower and economic pressure. This online monitoring system is developed to provide a solution for various monitoring occasions, ensuring reliable power grid operation.
?
Frequently Asked Questions
What parameters does the TR-ICM-10 monitor?
The device monitors the lightning arrester's leakage current, third harmonic current, and the number of discharge actions.
How is the data transmitted to the monitoring center?
The system supports RS485 and 4G wireless communication methods, allowing data to be uploaded to an IoT cloud platform.
What is the applicable voltage range for this device?
The TR-ICM-10 is designed to work with high voltage systems ranging from 10kV to 1000kV.
Can the device operate in extreme outdoor environments?
Yes, it features an IP65 protection level and can operate in temperatures ranging from -25ºC to +70ºC.
What are the power supply options available?

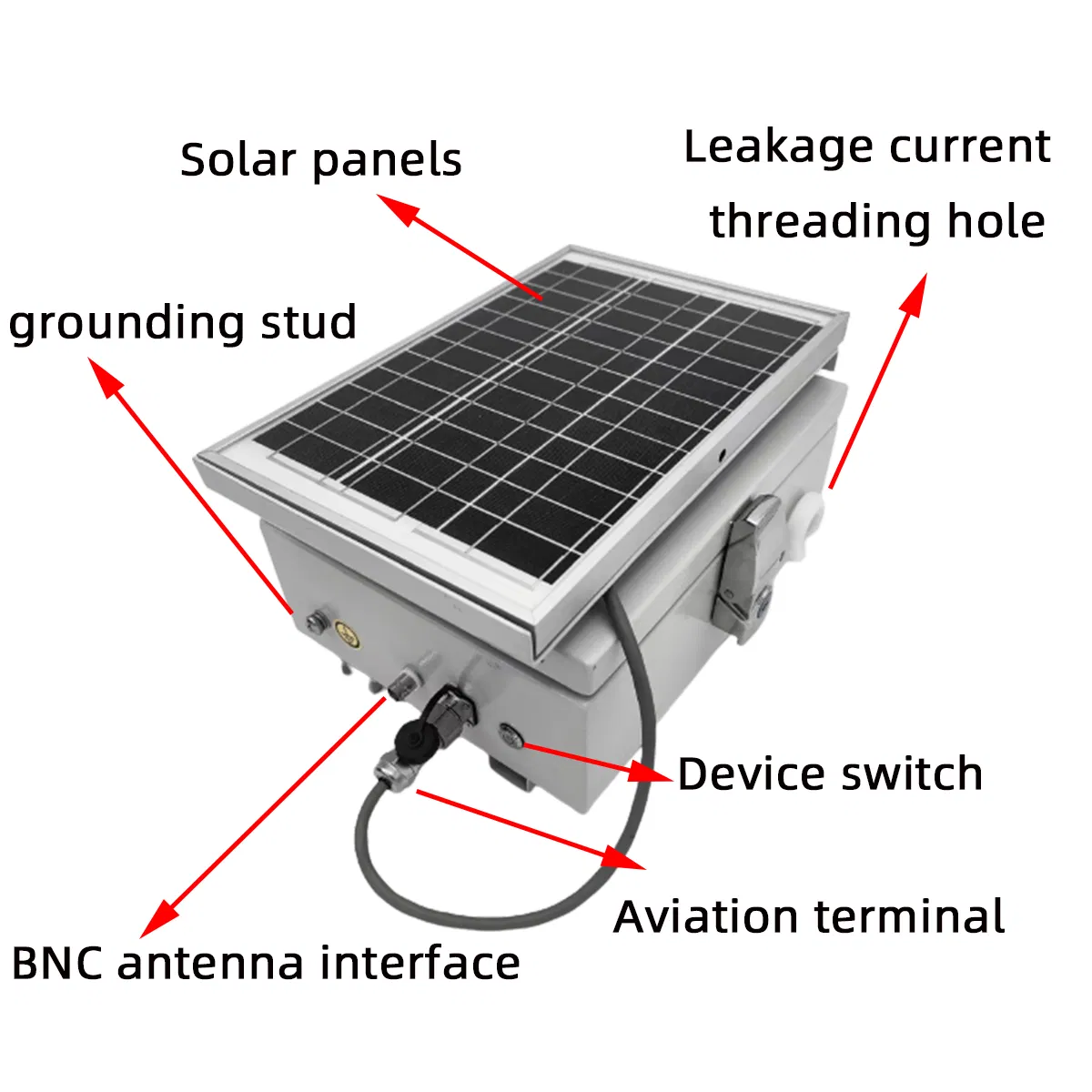

The device can be powered through solar energy or an external power supply, depending on the site requirements.

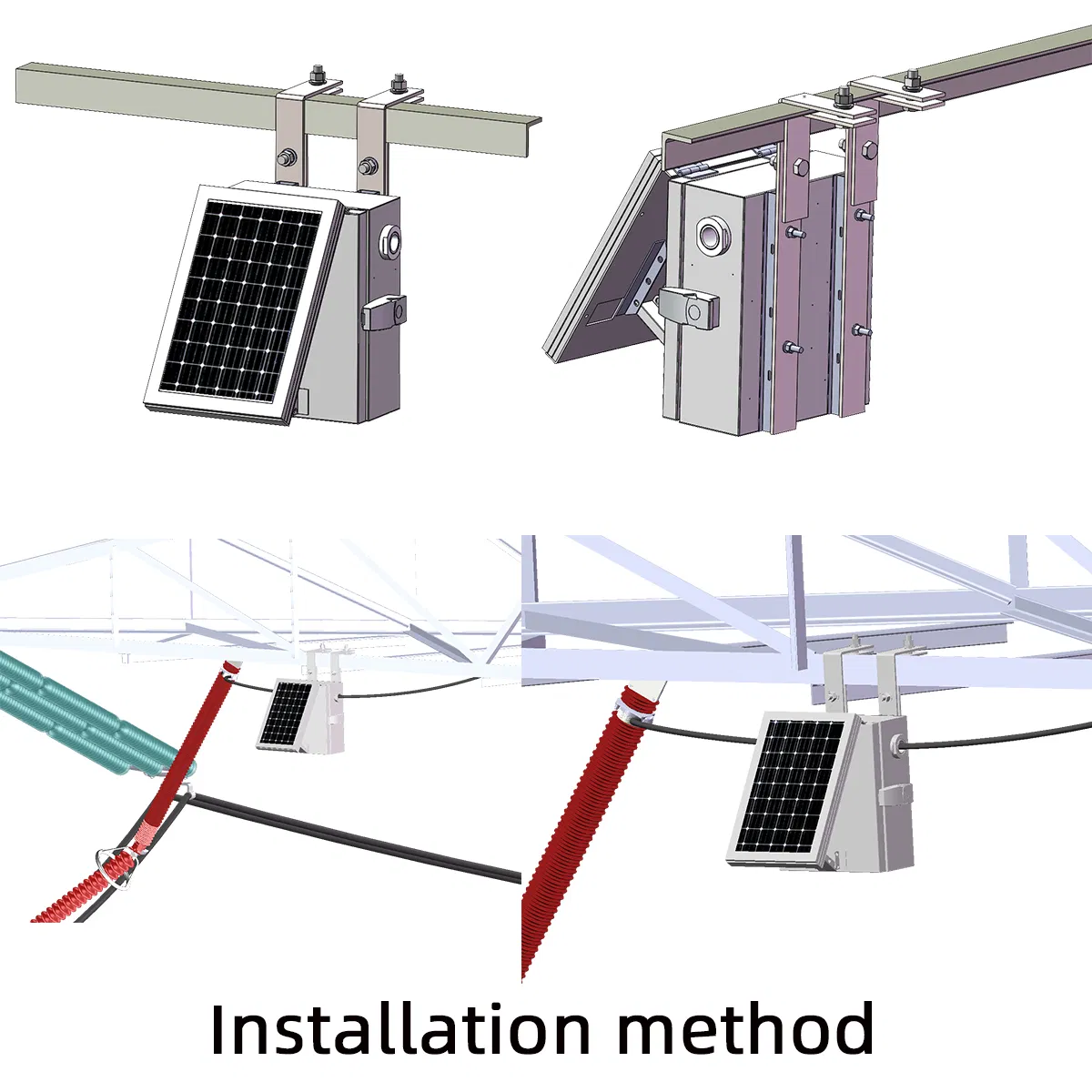

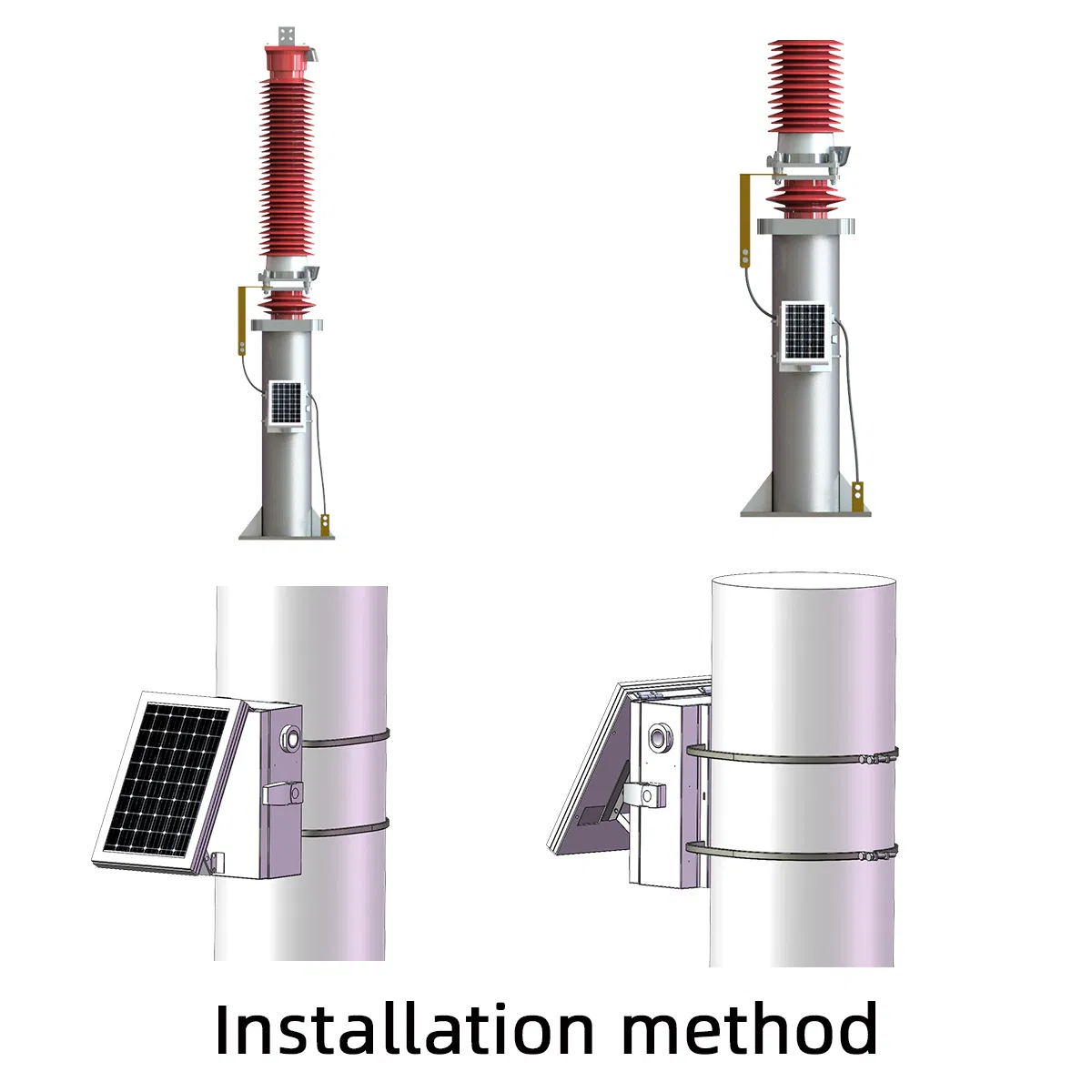

Is the installation of this device complex?
No, the device is designed for easy installation with a wireless passive configuration and intelligent self-diagnosis features.
