Commercial EV Charging Station Turnkey Solutions for Global Business Installations

■ Overview

Model NO.	QSCDZ
Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw
Protection Grade	IP54 / IP65 Universal Outdoor
Charging Type	AC Charging; DC Charging; AC&DC Integrated
Charging Efficiency	≥93% (AC); ≥95% (DC)
Service Life	8 - 10 Years
Production Capacity	5000 PCS/Year

■ Product Description

✔

Flexible Expansion: Wide compatibility with various vehicle models and modular power configurations.

✔

Certified Safety: Rock-solid reliability with complete protective functions.

✔

Effortless Operation: Low-maintenance design suitable for both residential and commercial use.

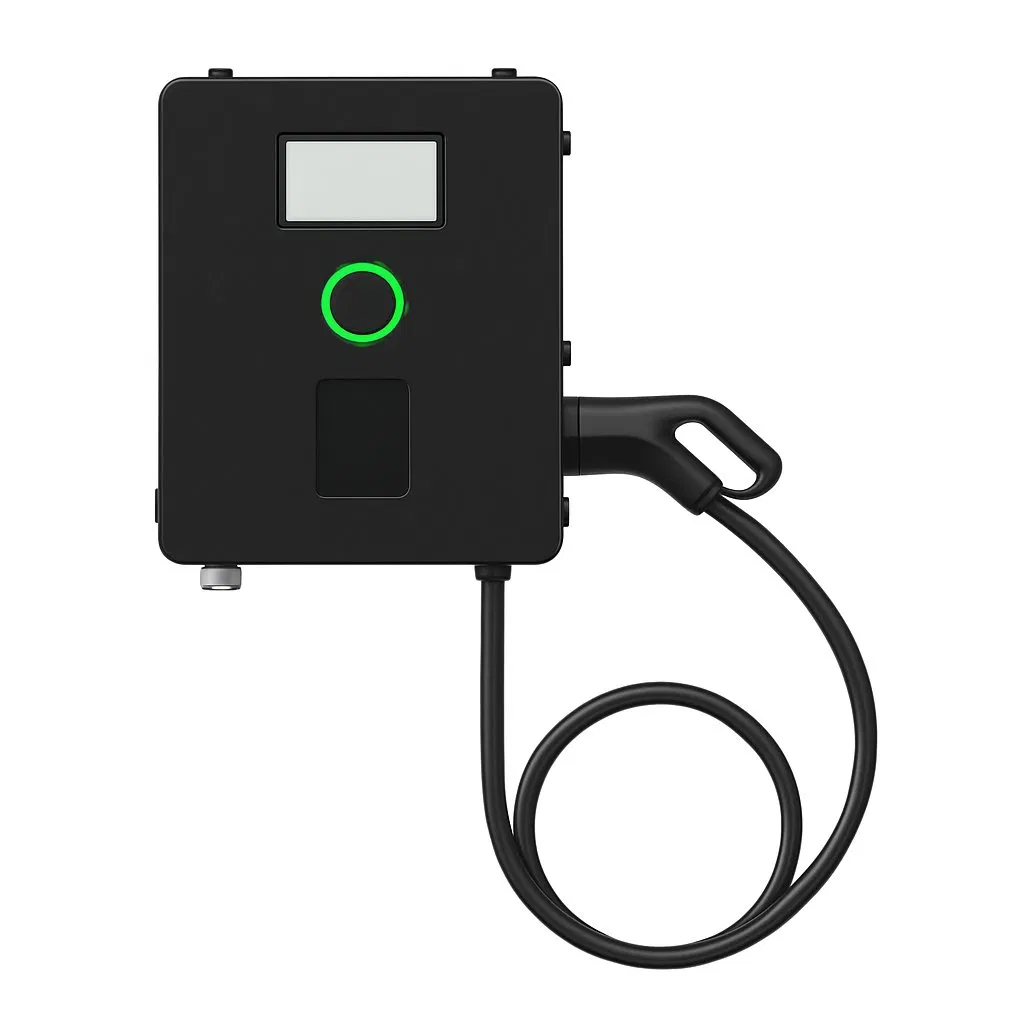

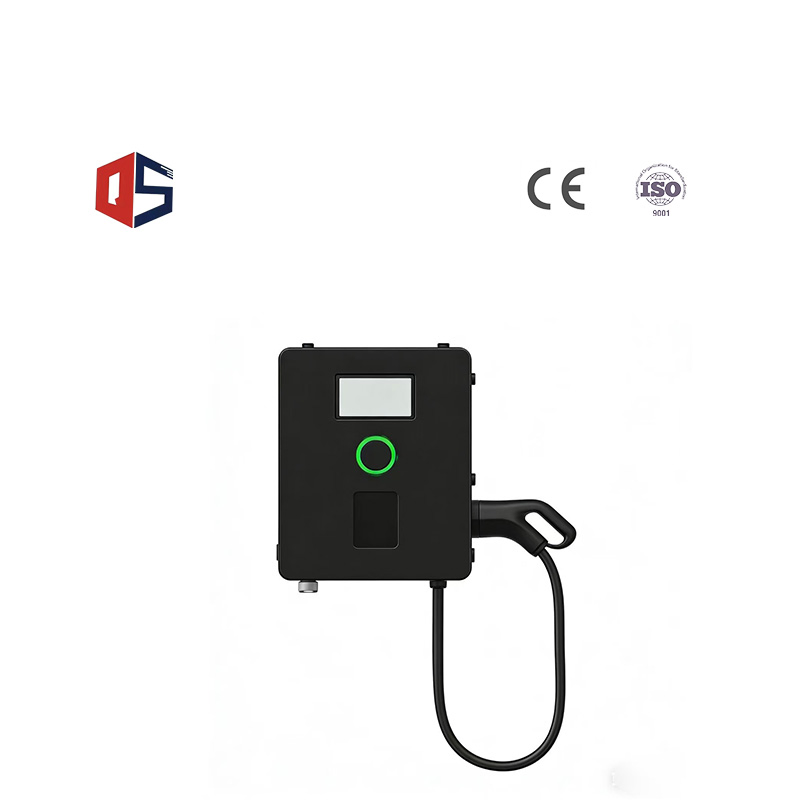

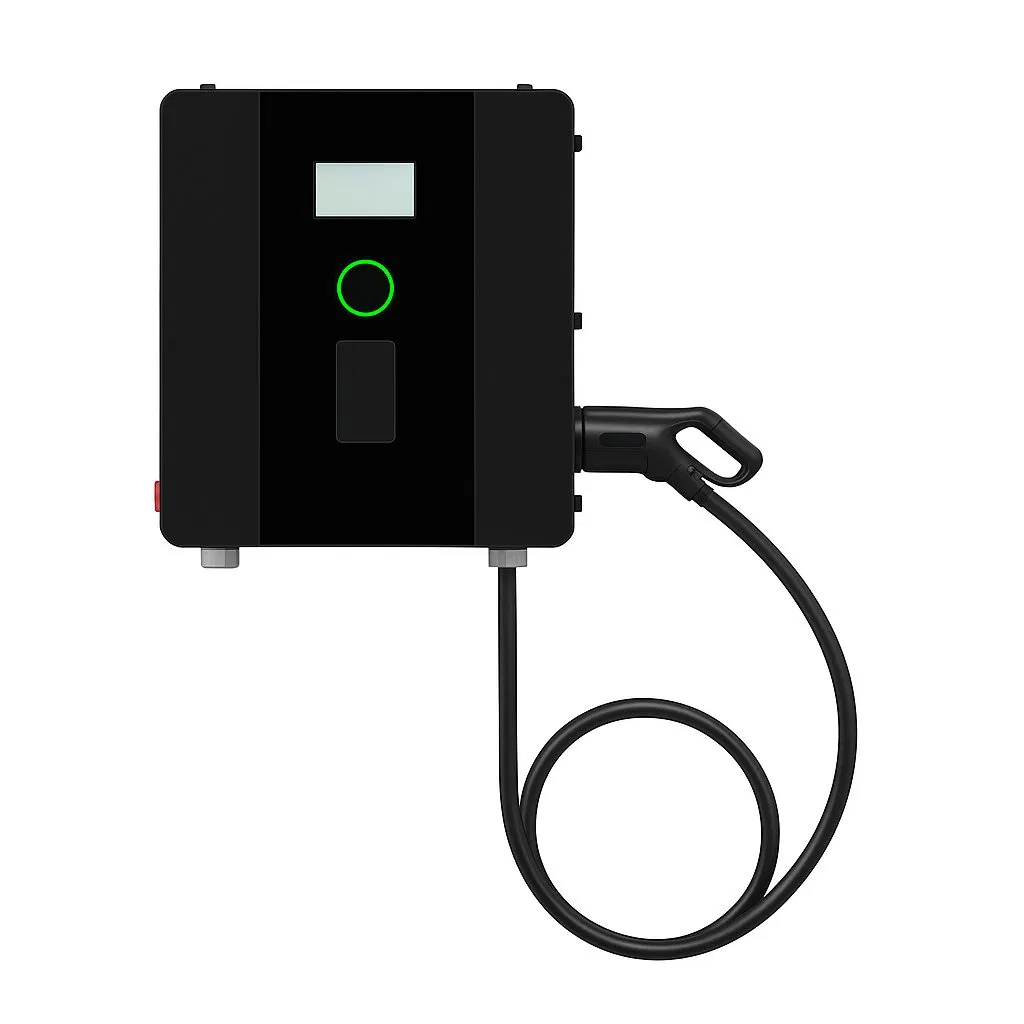

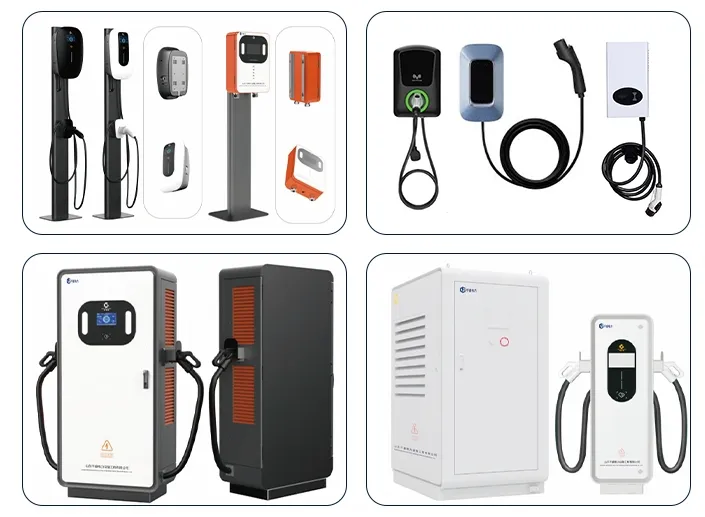

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and modular power make them highly efficient.

■ Technical Specification

Power Output	20KW / 40KW / 120KW / 160KW / 240KW
Input Rating	110V/220V/380V ±15%
Working Frequency	50/60Hz ±10%
Output Voltage	200V ~ 1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Communication	OCPP1.6J (OCPP2.0 upgradable) via 4G/Ethernet
Protection Rating	IP55

■ Best Sellers

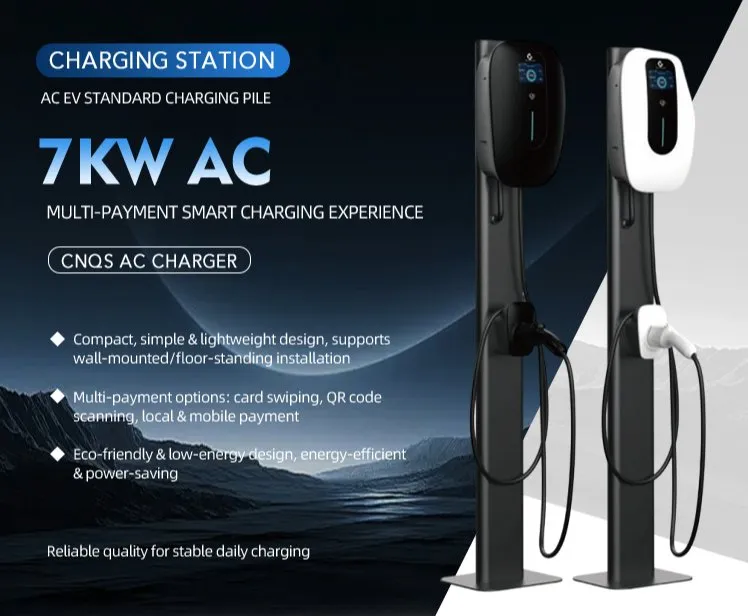

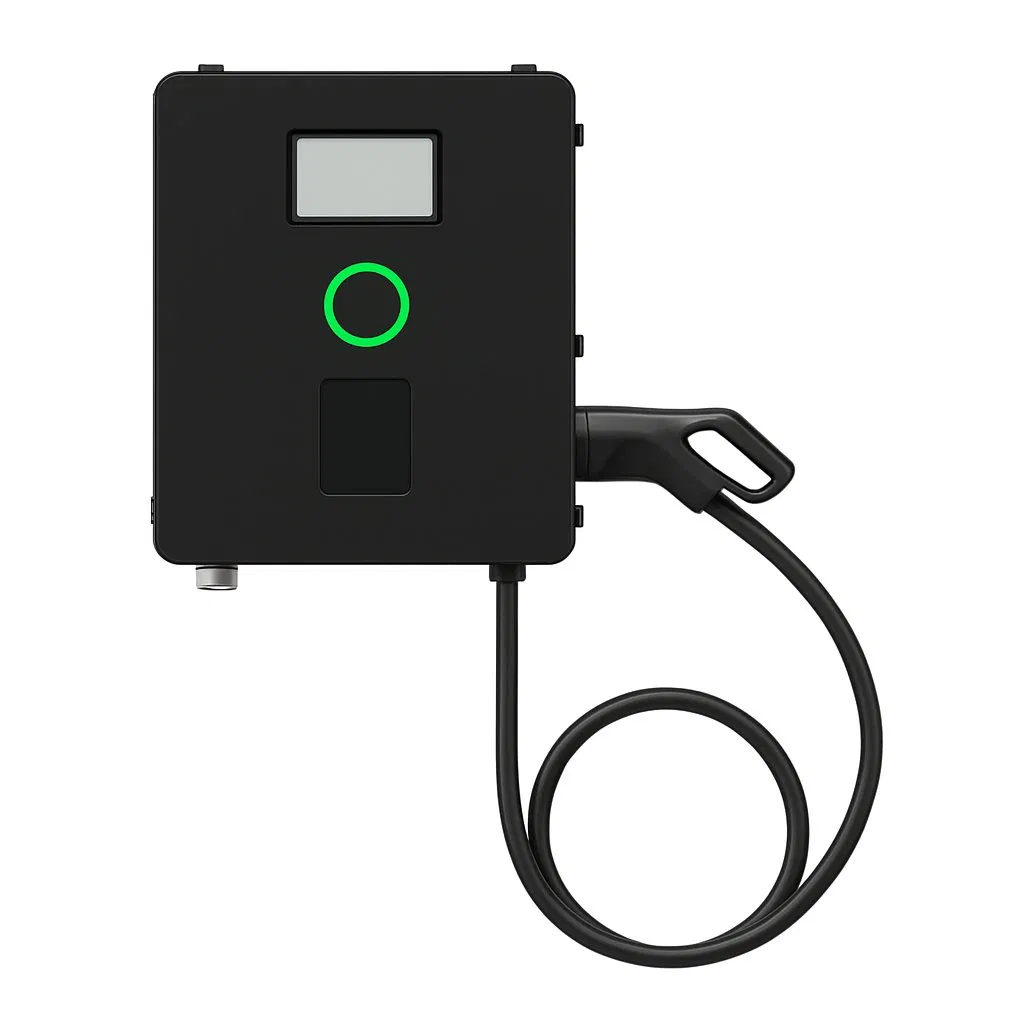

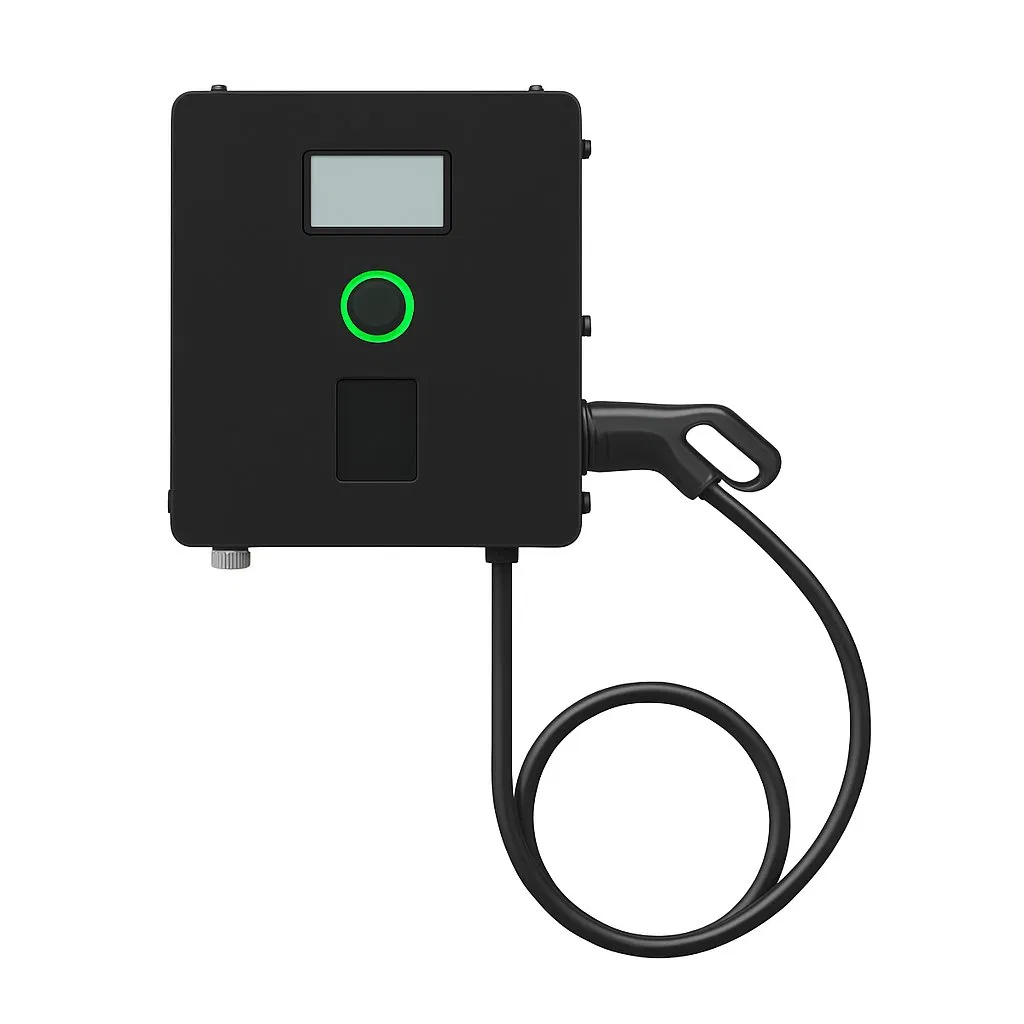

7KW AC Charger

• 100% compliance rate with CE/UL/PSE/KC certifications.

• Supports ISO 15118-20 & PNC Plug & Charge.

• Billing accuracy ±0.5% (MID/UL certified).

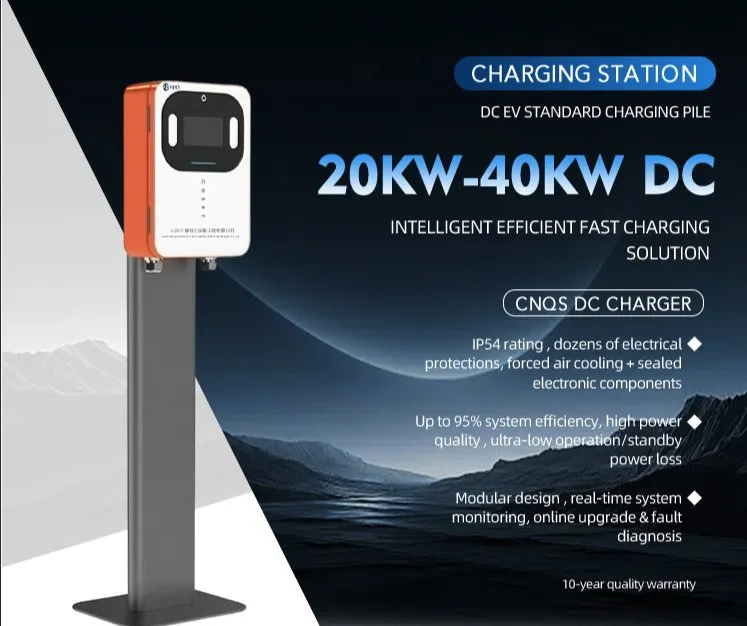

20KW-40KW DC Charger

• 80% power replenished in 30 mins.

• IP65 waterproof & wide temp adaptation (-30℃ to 60℃).

• Supports Apple Pay/Google Pay/Credit Cards.

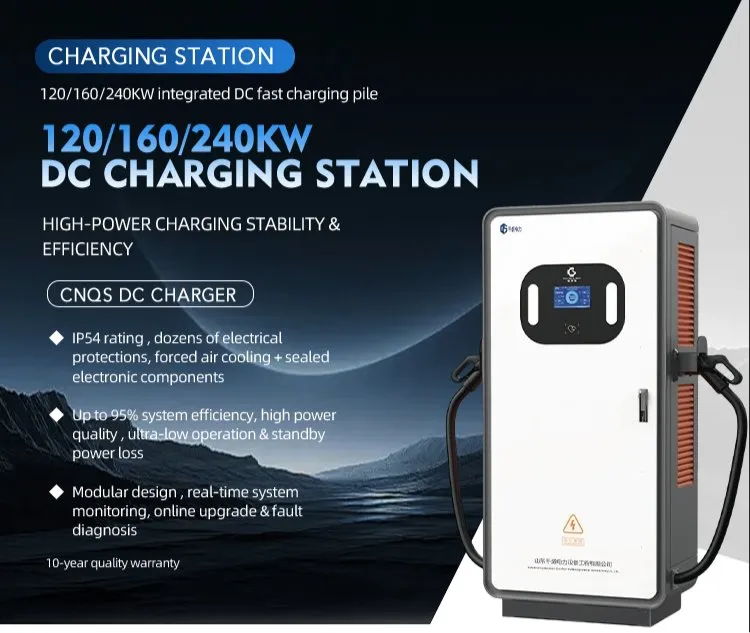

120/160/240KW DC Station

• Dual-gun simultaneous charging; 120% increase in utilization.

• 240kW ultra-fast charge: 80% battery in 15 mins.

• Industrial-grade protection for flagship hubs.

■ Product's Details

✦

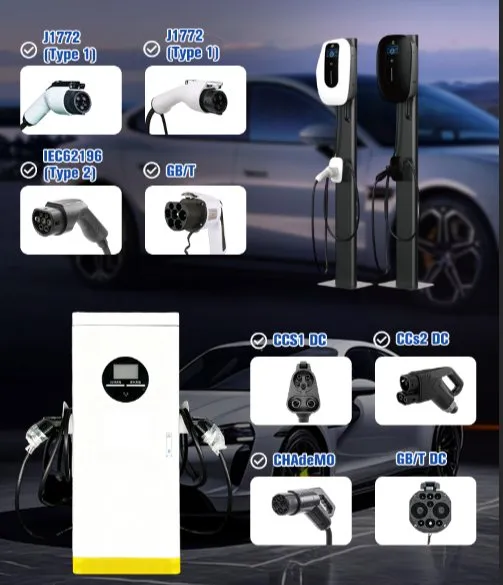

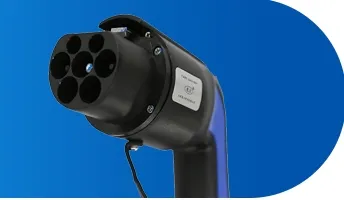

Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO) for zero adaptation barriers.

✦

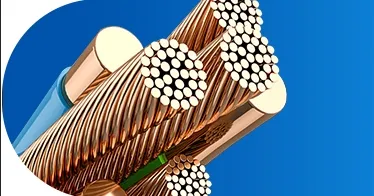

Thickened high-temperature resistant cables, anti-aging and durable for harsh outdoor conditions.

■ Features & Protection

Packaging & Shipping

■ Professional Capability

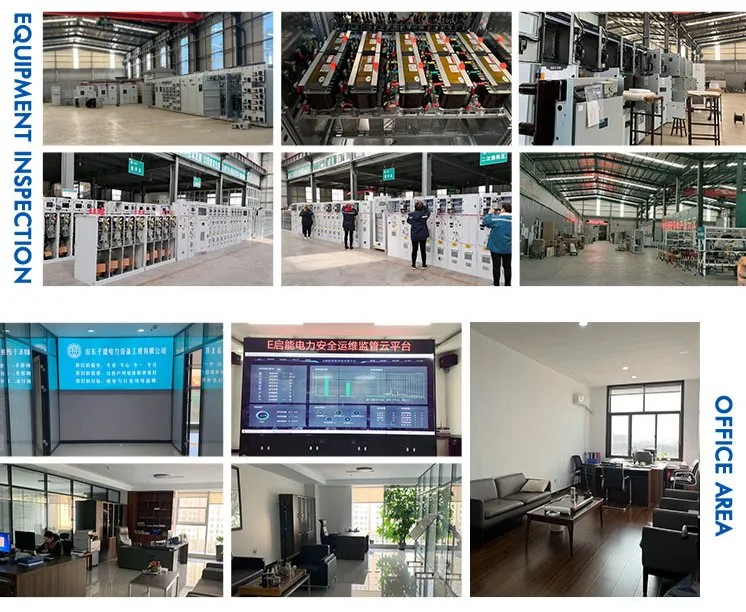

As an experienced power equipment manufacturer with over 20 years of expertise, we serve global markets with reliable power distribution and new energy solutions.

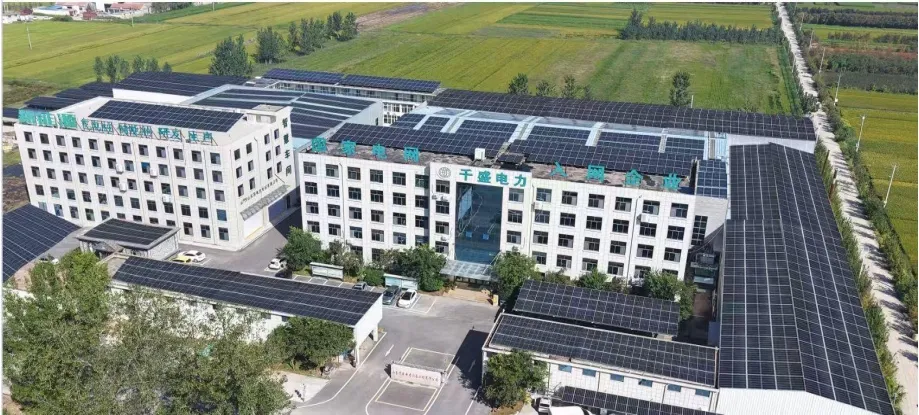

• Facilities: Covers over 16,000 sqm with advanced production lines.

• Team: Nearly 100 staff with 80% holding college degrees.

• Certifications: ISO9001:2000, CCC, CQC, and CE/UL compliance.

■ Frequently Asked Questions

What situations are not covered by the warranty?

Warranty excludes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events (fire, earthquake, etc.).

Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, cleaning, and software updates. Quarterly maintenance packages for commercial units can reduce fault rates by 35%.

Do your services comply with local data regulations?

We are fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). All maintenance data is encrypted to ensure user privacy.

Can the warranty period be extended?

Yes, paid extensions are available: 2 years for residential chargers and 1-3 years for commercial models, covering the main unit and core components.

Is the after-sales service universal across regions?

Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East. Standard services are available locally with the equipment serial number.

What is the charging efficiency of the units?

Our AC chargers achieve ≥93% efficiency, while our DC chargers reach ≥95% efficiency, ensuring minimal energy loss.
