Product Description

ℹ Basic Information

Model NO. WE X7

Location Private Use

Charging Interfaces One Pile with One Charge

⚡ Technical Specifications

Electrical Characteristics
Product Model	WE X7
Rated Input/Output Voltage	220VaC 1P+N+PE
Rated Input/Output Current	32A

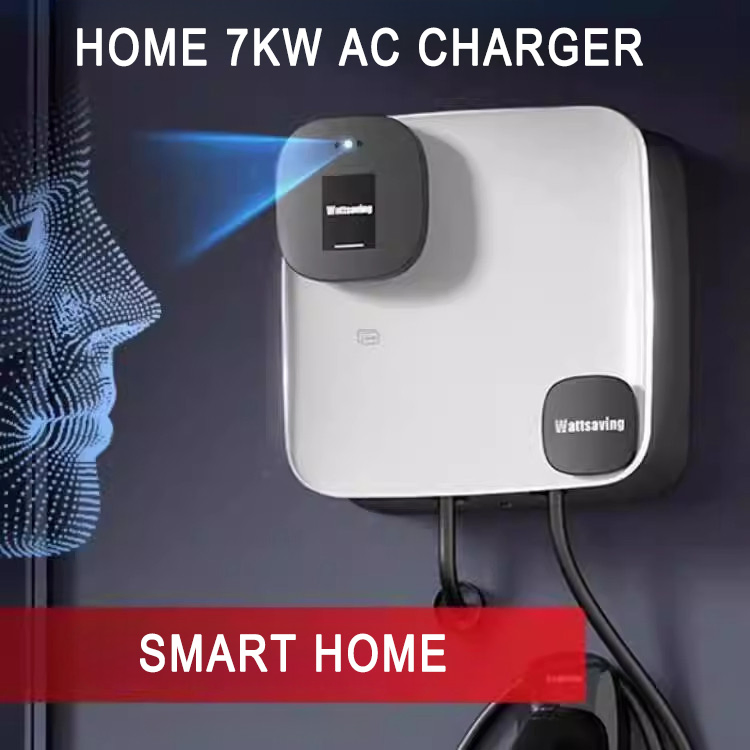

Output Power	7kW Max
Frequency	45-65HZ
Residual Current Detection	AC 30mA+DC 6mA
Standby Power Consumption	5W
Protection Functions	Overcurrent, earth leakage, overtemperature, short-circuit, electrostatic discharge, relay sticking, overvoltage, undervoltage, lightning, overcharge, flame retardant, anti-theft, waterproof, dustproof, ground continuity.
Measurement Accuracy	Level 2
MTBF	43,800 hours
Wireless Connectivity	Bluetooth / 4G
Human-Machine Interaction

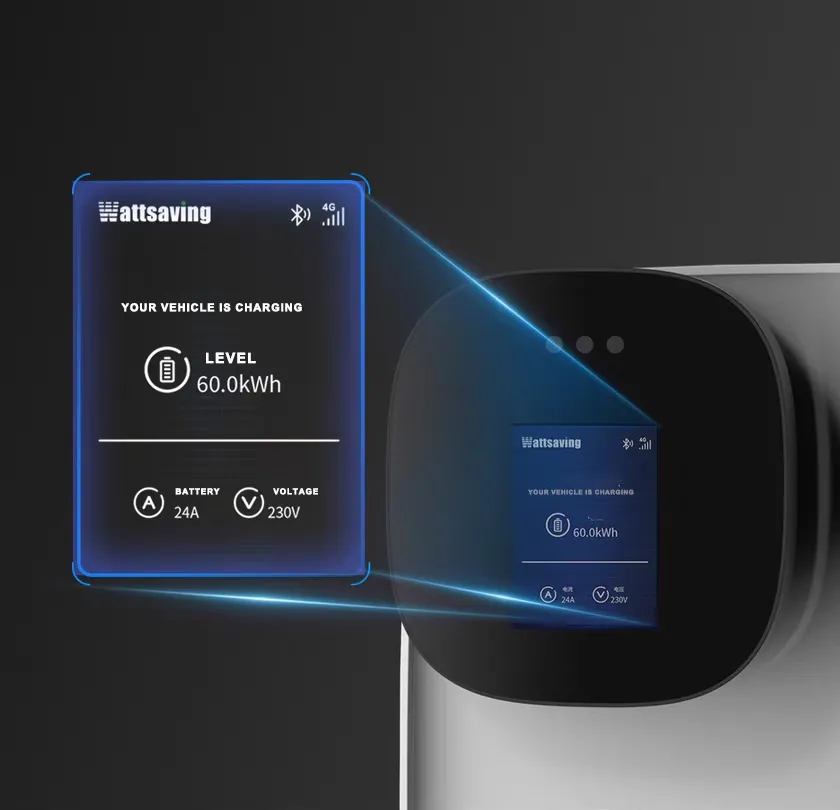

Display Function	2.8-inch LCD screen

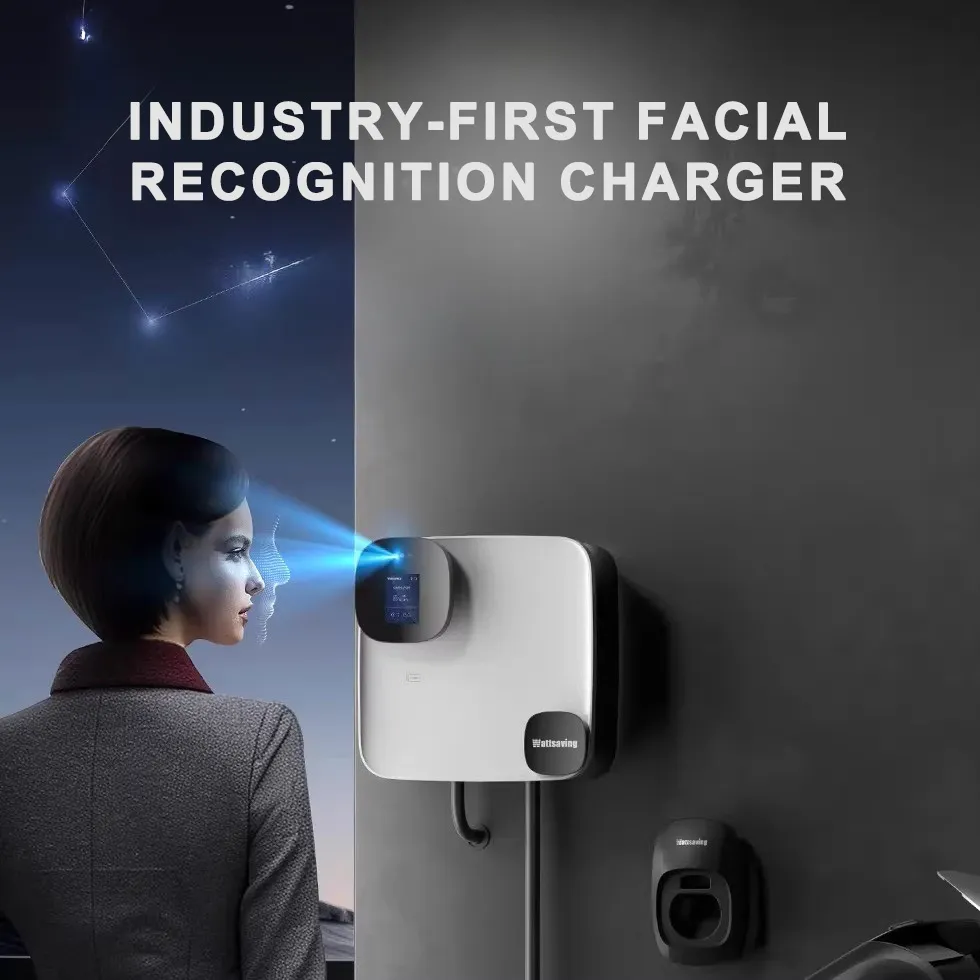

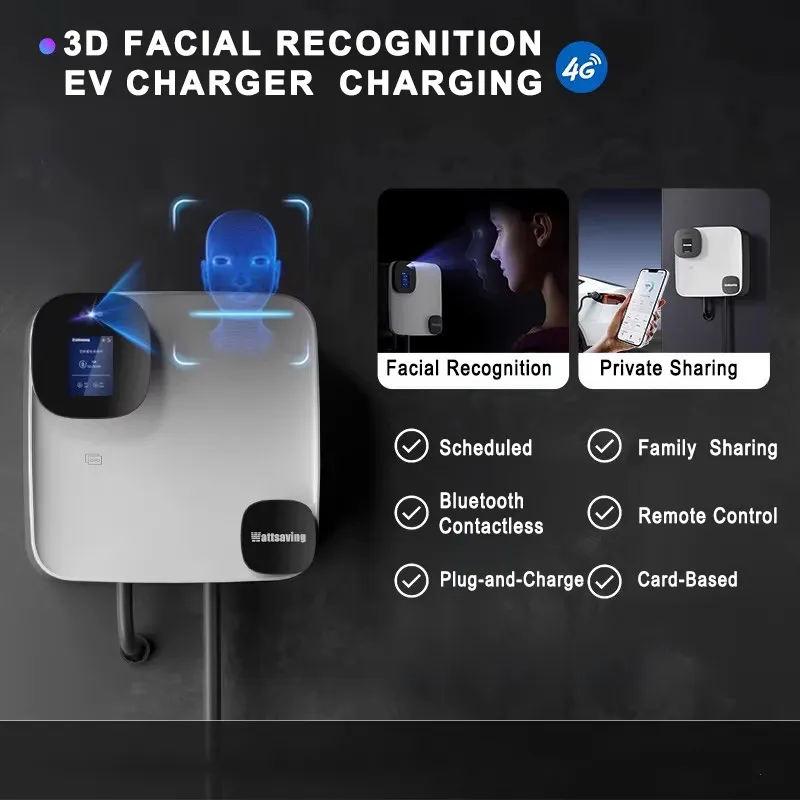

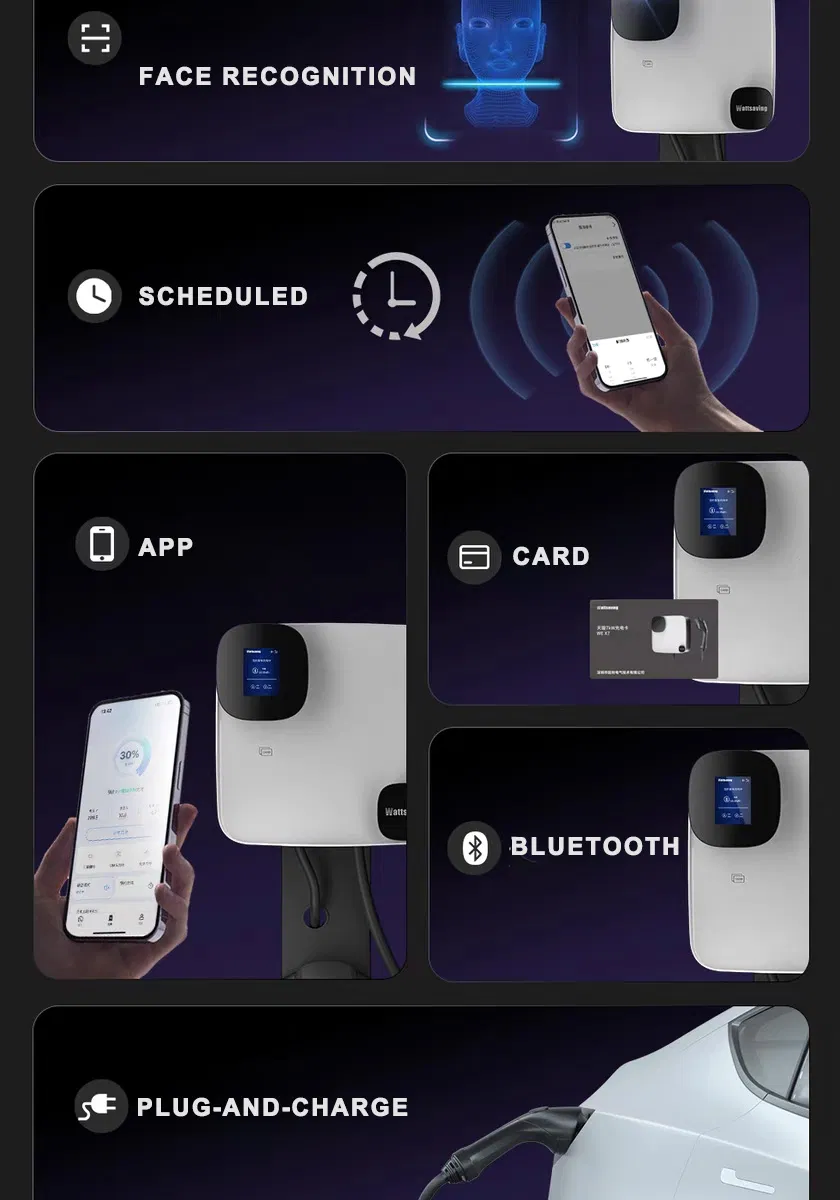

Startup Method	Face recognition / Scheduled / App / Contactless / Card swipe / Plug-and-charge
Structure & Environment
Housing Material	PC: UV-resistant flame retardant (UL94V-0)
Dimensions (HxWxD)	290mm x 290mm x 120mm
Net Weight	6 kg
Cable Length	5 m
Protection Rating	IP65 (Indoor/Outdoor)
Operating Temperature	-30 °C to +55 °C

🌟 Key Features

Smart and Secure Access Control

Features high brightness, energy saving, environmental protection, and easy installation. Suitable for schools, parks, factories, and squares with a waterproof rating of IP67.

Easy and Fast Charging Experience

Designed for efficiency and user convenience, ensuring a seamless charging process for everyday use.

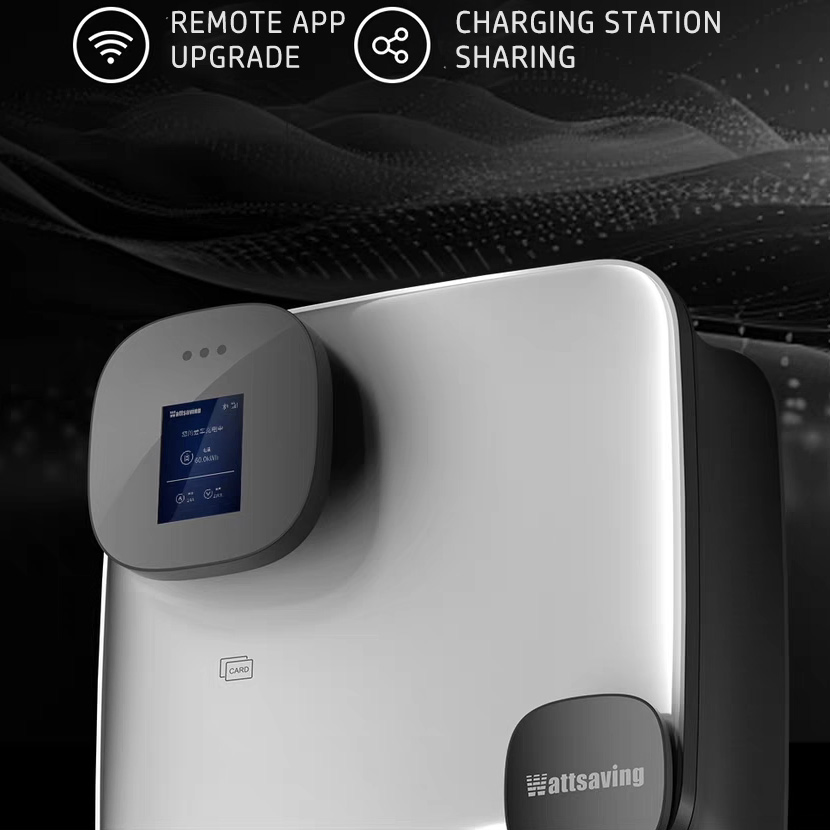

Remote Control and Smart Management

Through remote control functions, users can start, stop, and monitor charging sessions anytime and anywhere via a mobile app or centralized management system.

Multi-User Sharing

Supports private and family sharing, ideal for households, residential communities, and offices. Access rights can be managed securely.

🖼 Product Gallery

Frequently Asked Questions

Q1: What is the maximum power output of the WE X7? A: The WE X7 provides a maximum output power of 7kW with a 32A rated current.

Q2: Can the charging station be installed outdoors? A: Yes, it has an IP65 protection rating, making it suitable for both indoor and outdoor environments.

Q3: What startup methods are supported for charging? A: It supports multiple methods including face recognition, scheduled charging, App control, card swiping, and simple plug-and-charge.

Q4: Does the charger offer safety protection against leakages? A: Yes, it features residual current detection of AC 30mA and DC 6mA, along with overcurrent and short-circuit protection.

Q5: How long is the integrated charging cable? A: The unit comes with a 5-meter long charging gun cable for flexible reach.

Q6: What wireless connectivity options are available? A: The device is equipped with both Bluetooth and 4G connectivity for smart management and app integration.
