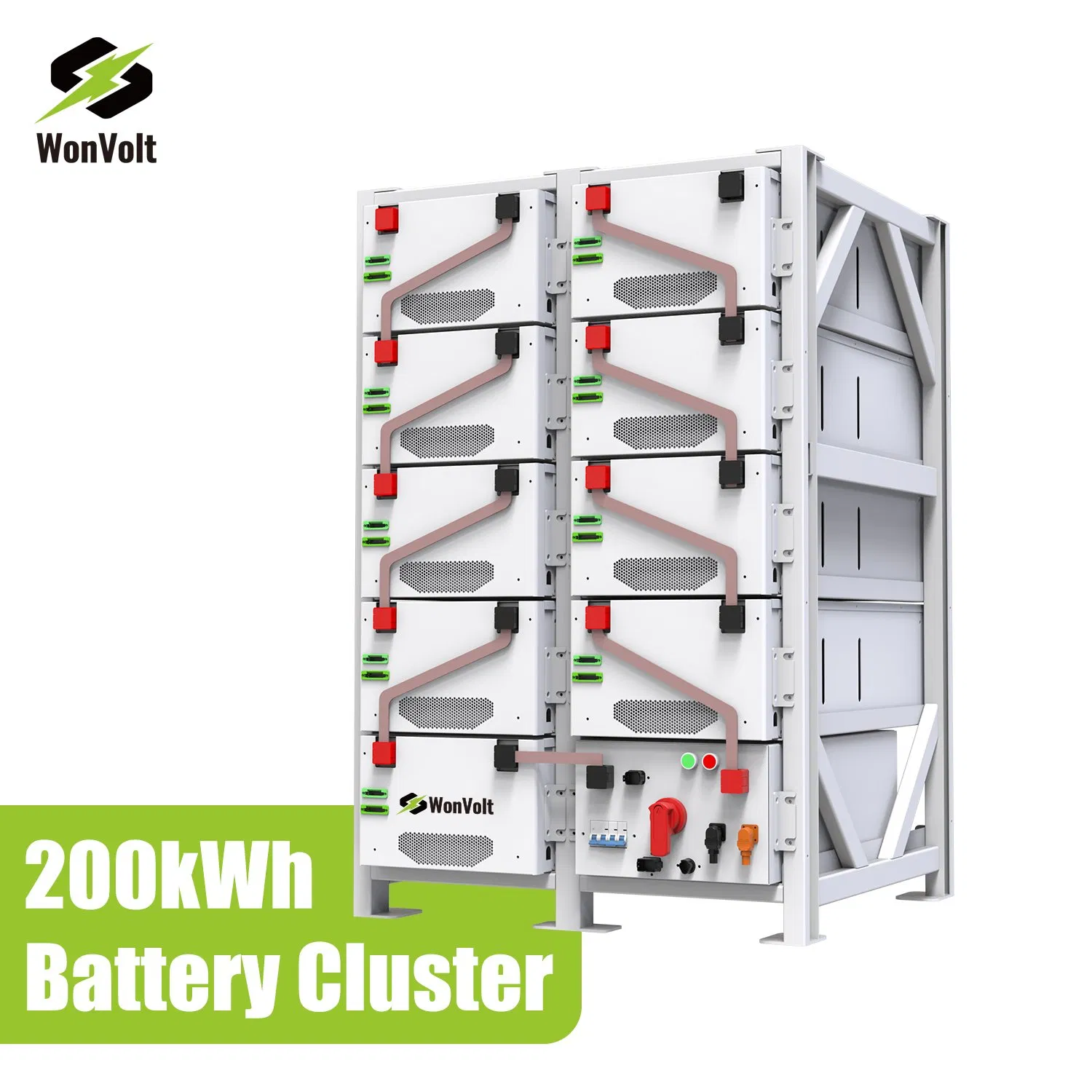

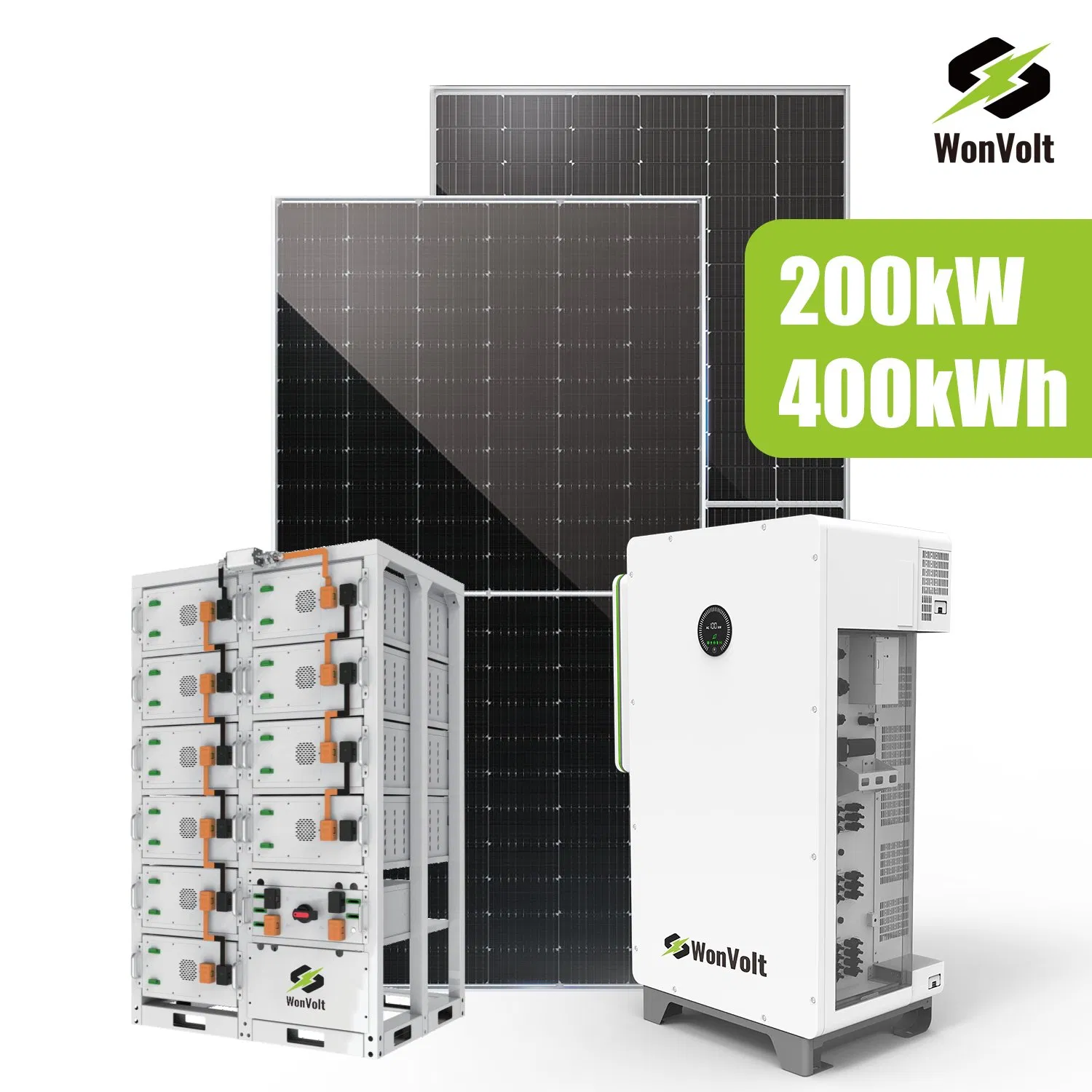

Wonvolt System Solar 200kw 100kwh 200kwh All in One Energy-Storage-System Solution

1 / 5

Wonvolt System Solar 200kw 100kwh 200kwh All in One Energy-Storage-System Solution

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

WV-200KW-400KWh-C

Certification

ISO, CB, CE, Un38.3 MSDS

Application

Home, Industrial, Commercial, Microgrid

Cycle Life

10000 Times and up Lithium Battery

Nominal Capacity

200kw/241kwh Solar Battery

AC Output

380V/400V/415V/480V/220V

Battery Type

LiFePO4/Lithium Solar Storage Battery

Cooling

Smart Air Cooling

Mounting

Metal Rooftop, Tile Rooftop or Ground

Support

UPS/Black Start/Dg

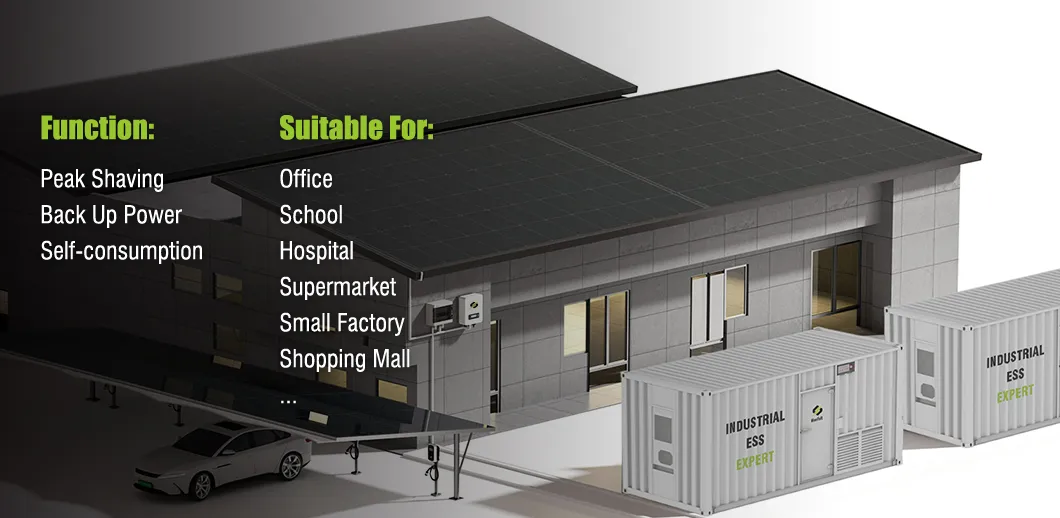

Commercial Energy Storage System (ESS)

System Configuration

Equipment	Model	30KW/46kWh	50KW/100kWh	100KW/201kWh
N type Solar Panel	WV-72KUN605-H8NS	51pcs	96pcs	170pcs
Hybrid Inverter	220 / 380 / 480VAC	30KW	50KW	100KW
Lithium Ion Battery	WV51280H	46kWh	100kWh	201kWh

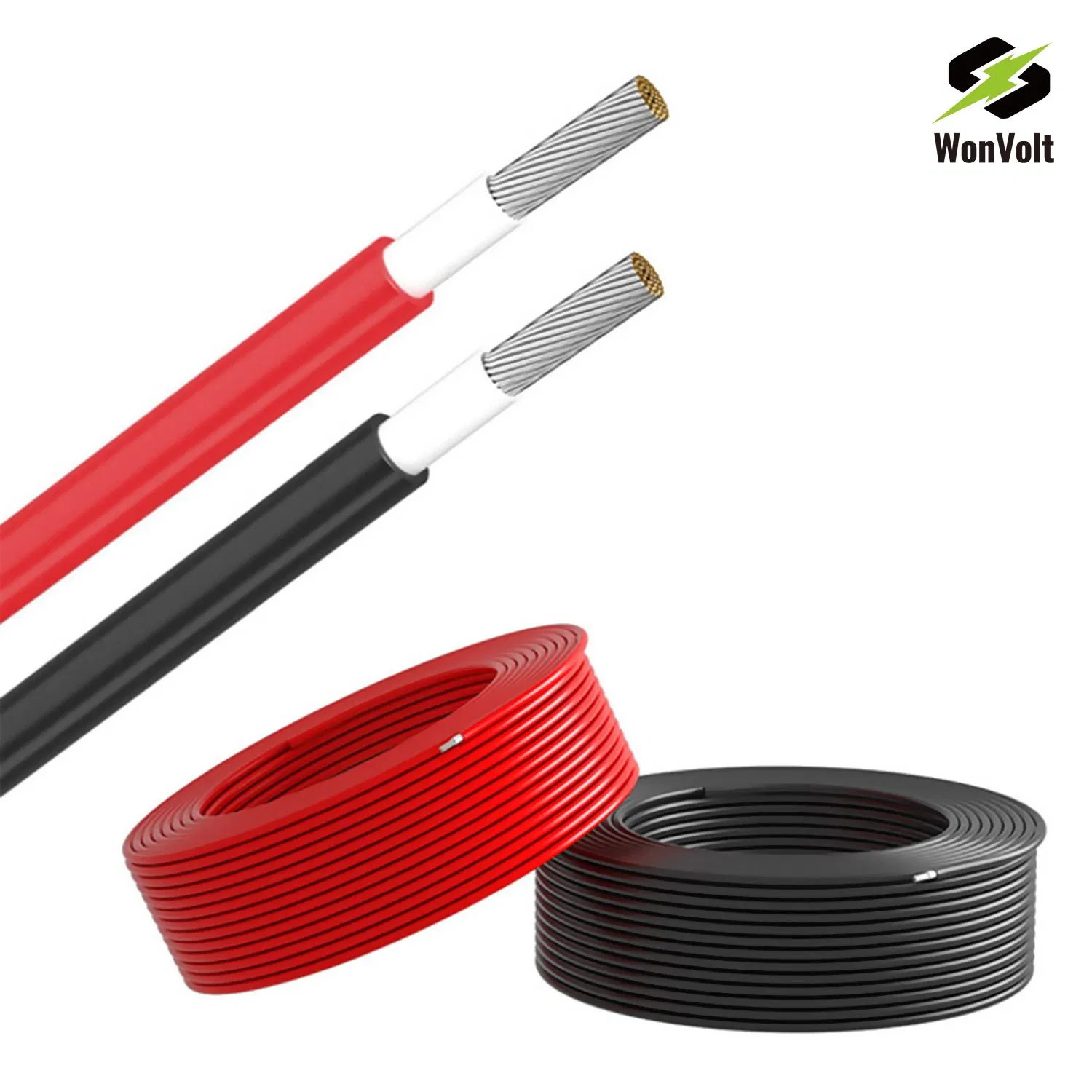

PV cable	PV1-F 1*4/6mm2	300m	600m	1000m
Equipment	Model	150KW/286kWh	250KW/559kWh	500KW/1075kWh
N type Solar Panel	WV-72KUN605-H8NS	255pcs	420pcs	840pcs
Hybrid Inverter	220 / 380 / 480VAC	150KW	250KW	500KW
Lithium Ion Battery	WV51280H	286kWh	559kWh	1075kWh

Product Key Features

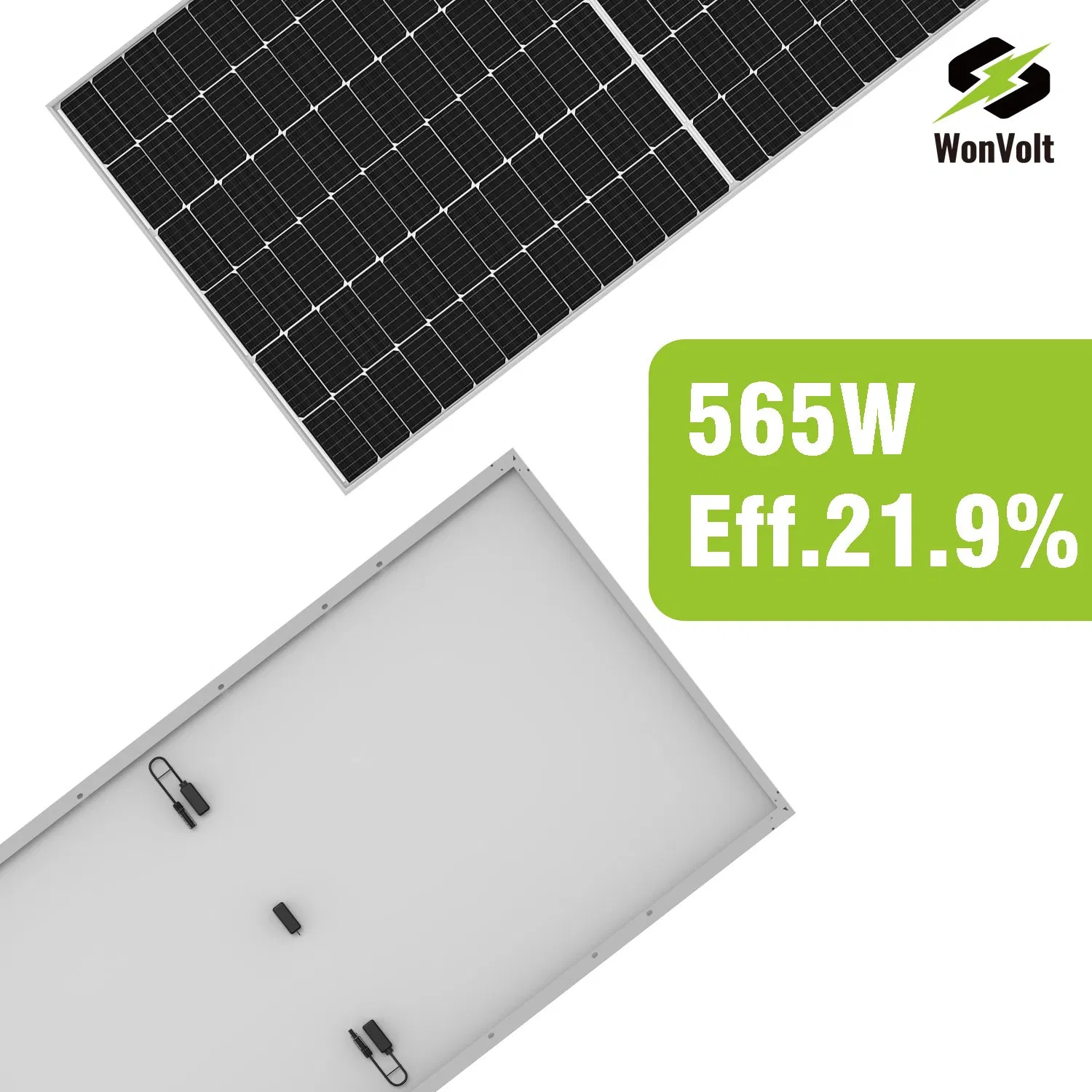

Solar Panels

N type Monofacial or Bifacial dual glasses solar PV panels 420W-750W optional, available in black or silver frames.

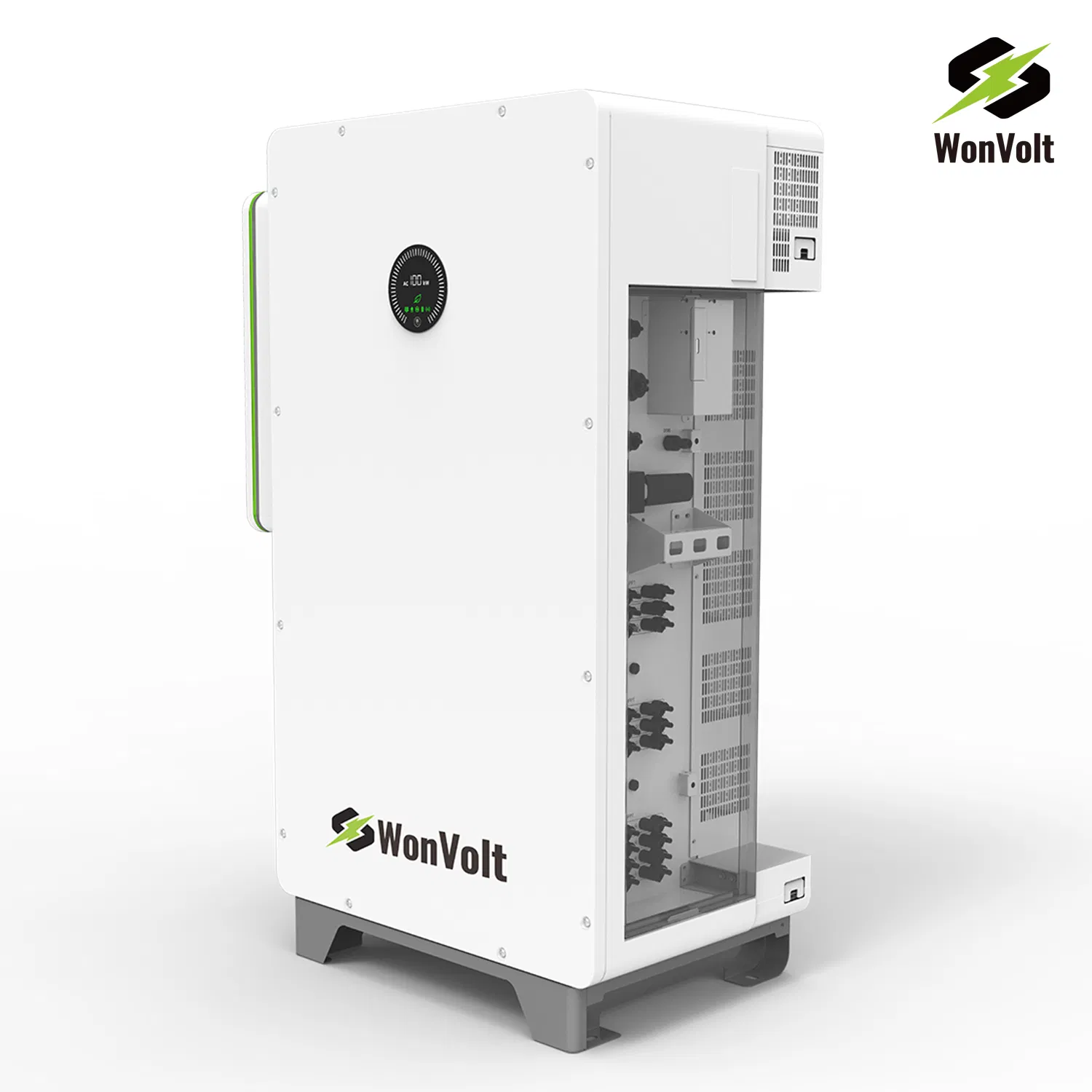

Solar Inverter

Comprehensive solutions for On-grid, Stand-alone Off-grid, and Hybrid systems (1KW-100MWH). Supports single phase (220V-230V), split phase (110V/220VAC), and three phases (208V/220V/380V/480VAC).

Battery Storage System

0.5C or 1C battery cell lithium solutions, including battery clusters with BMS, cables, and optional EMS.

BESS Container & Cabinet

IP65 outdoor ESS integrated solutions (10ft, 20ft, or 40ft) equipped with fire protection and ventilation systems.

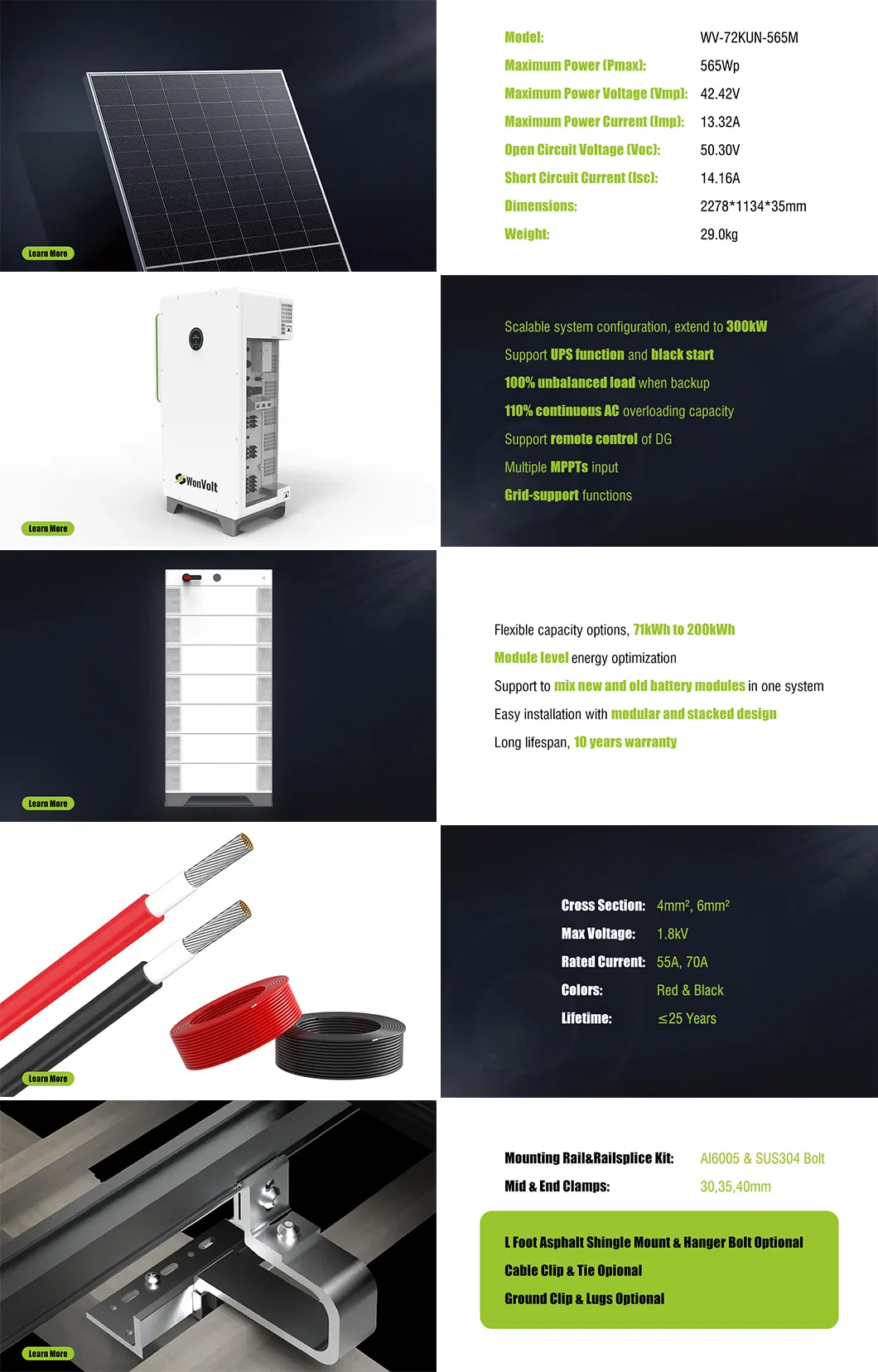

Detailed Specifications

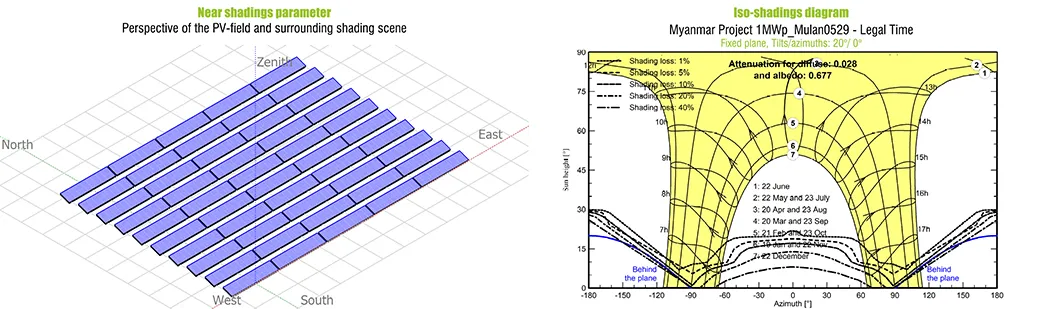

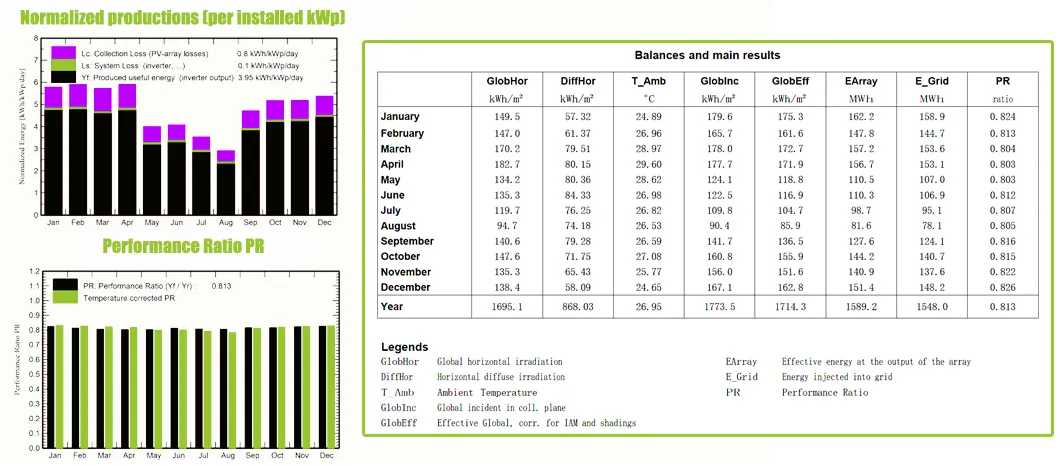

Technical Support & Components

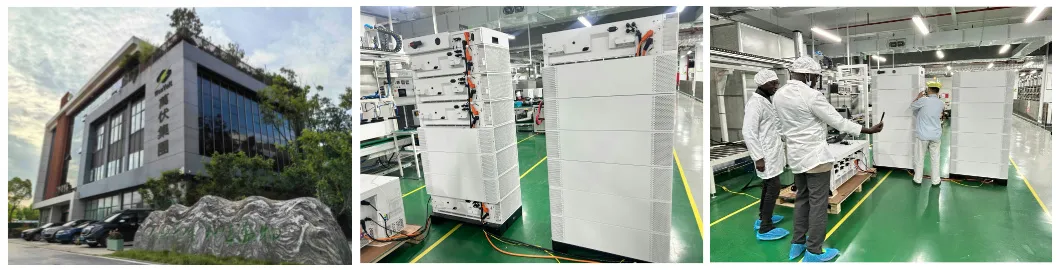

Factory Overview

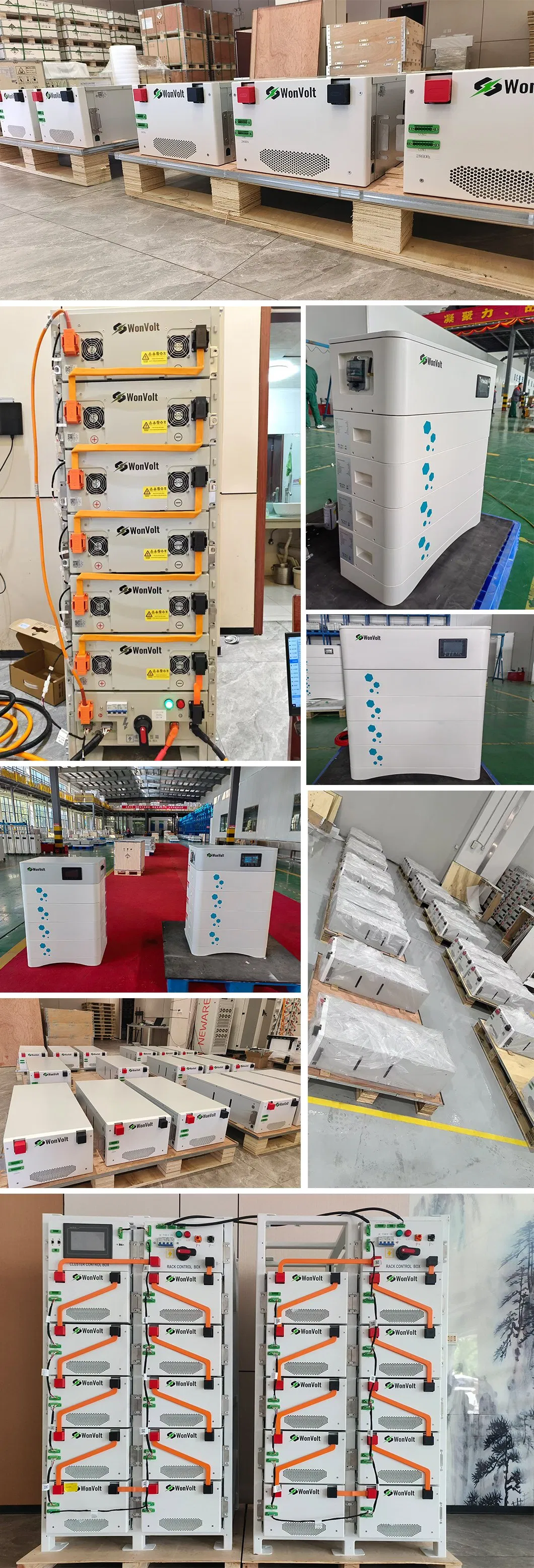

Reference Projects

Wonvolt Hybrid System: Professional 50KW, 70KW, 100KW, 120KW Energy Storage System Manufacturer.

Frequently Asked Questions

What is the expected cycle life of the lithium battery system?

The system utilizes high-quality lithium batteries designed for a cycle life of 10,000 times and above.

Which applications are suitable for this Energy Storage System?

It is versatile and can be used for residential (home), industrial, commercial buildings, schools, hospitals, factories, and microgrid applications.

Does the system support backup power during a grid failure?

Yes, the system supports UPS functionality, Black Start, and integration with Diesel Generators (DG) for reliable backup power.

What cooling method is used for the energy storage cabinet?

The system employs Smart Air Cooling to ensure optimal temperature management and battery performance.

Are the BESS containers customizable for outdoor use?

Yes, we provide IP65-rated outdoor cabinets and containers (10ft, 20ft, 40ft) that include fire protection and ventilation systems.

What certifications does the WonVolt ESS hold?

The system is certified with ISO, CE, CB, UN38.3, MSDS, and IEC EN50549, ensuring international safety and quality standards.
