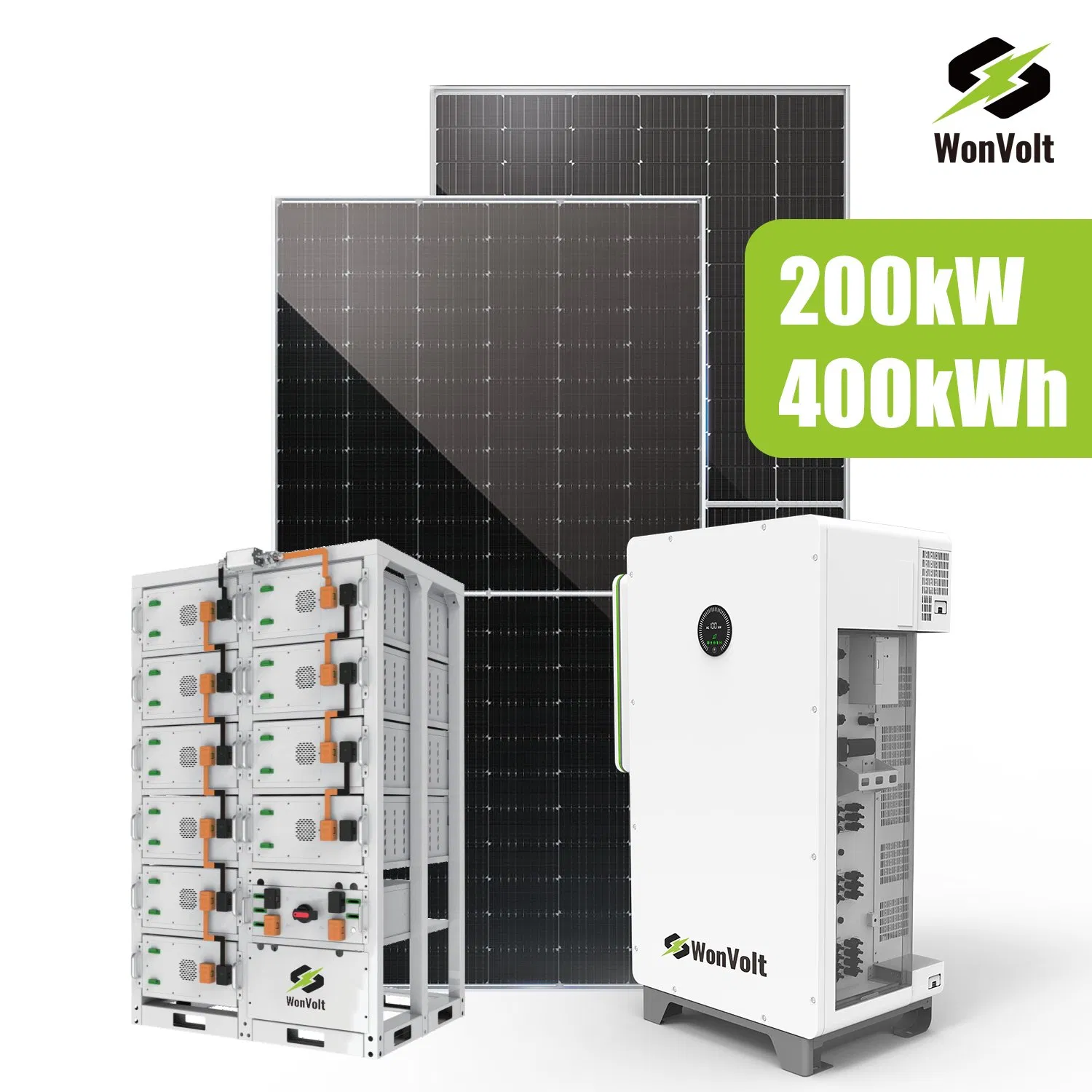

Wonvolt Hybrid Solar Storage System 150kw 215kwh 230kwh for Commercial Use with LiFePO4 Battery

1 / 5

Wonvolt Hybrid Solar Storage System 150kw 215kwh 230kwh for Commercial Use with LiFePO4 Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

WV-100KW-200KWh-C

Certification

ISO, CB, CE, Un38.3 MSDS

Application

Home, Industrial, Commercial, Microgrid

Cycle Life

10000 Times Solar Battery

Nominal Capacity

200kwh - 600kwh Lithium Battery

AC Output

380V/400V/415V/220V/480VAC

Battery Type

LiFePO4/Lithium Battery 48V 51.2V

Support

UPS/Black Start/Dg

Production Capacity

50000sets/Year

Mounting

Metal Rooftop, Tile Rooftop or Ground

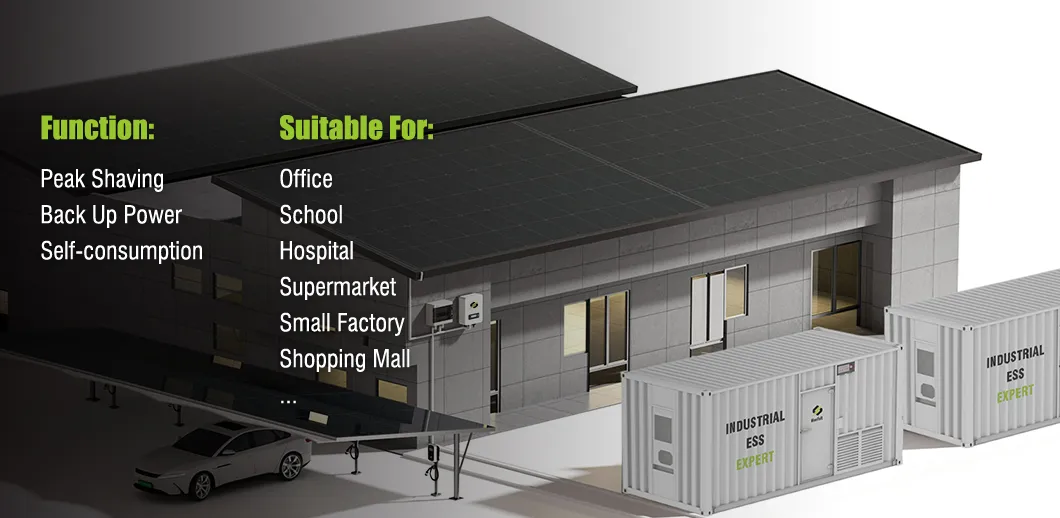

Commercial Energy Storage System

System Configuration Matrix

Equipment	Model	30KW/46kWh	50KW/100kWh	100KW/201kWh
N type Solar Panel	WV-72KUN605-H8NS	51pcs	96pcs	170pcs
Hybrid Inverter	220 / 380 / 480VAC	30KW	50KW	100KW
Lithium Ion Battery	WV51280H	46kWh	100kWh	201kWh

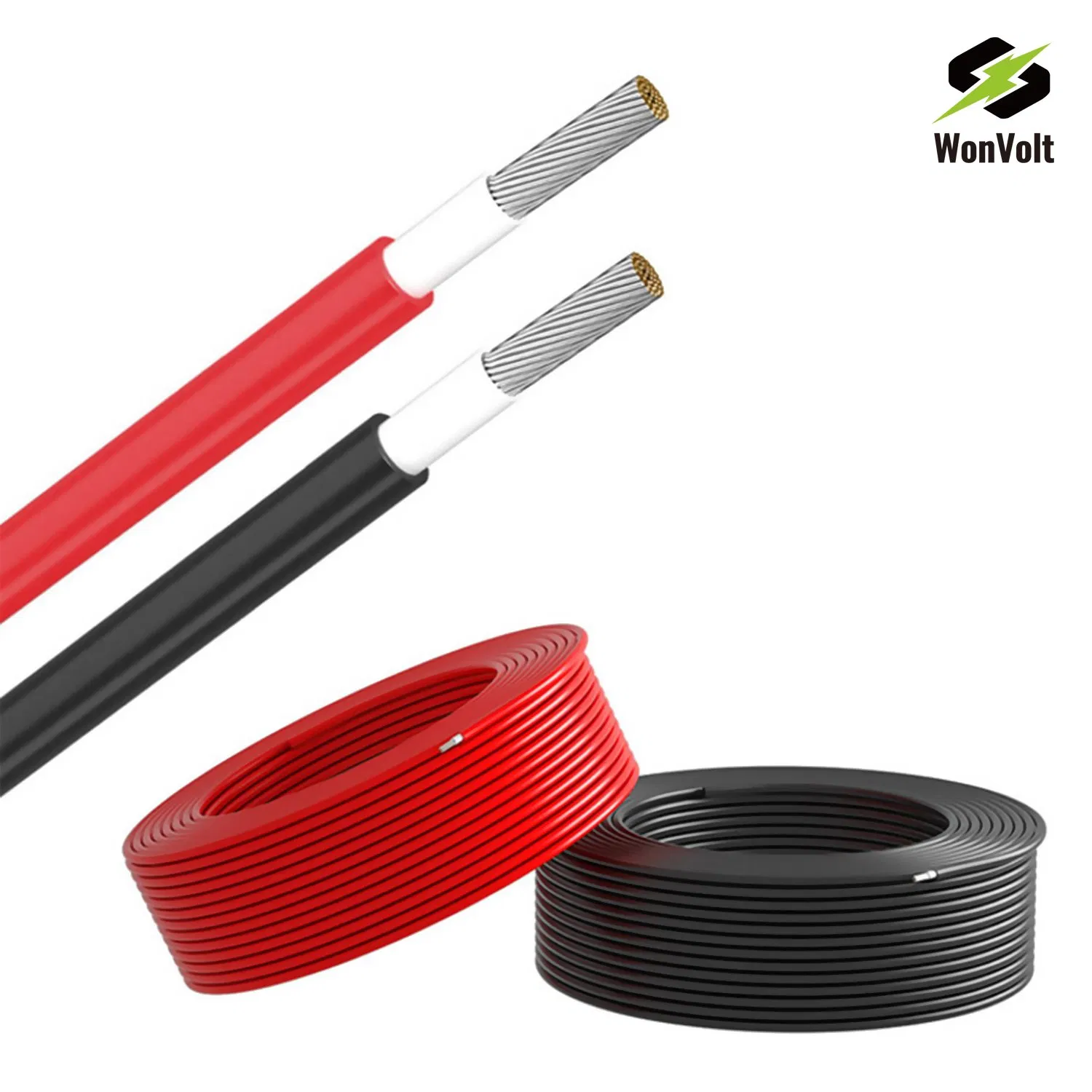

PV cable	PV1-F 1*4/6mm2	300m	600m	1000m

Equipment	Model	150KW/286kWh	250KW/559kWh	500KW/1075kWh
N type Solar Panel	WV-72KUN605-H8NS	255pcs	420pcs	840pcs
Hybrid Inverter	220 / 380 / 480VAC	150KW	250KW	500KW
Lithium Ion Battery	WV51280H	286kWh	559kWh	1075kWh
PV cable	PV1-F 1*4/6mm2	1500m	2500m	5000m

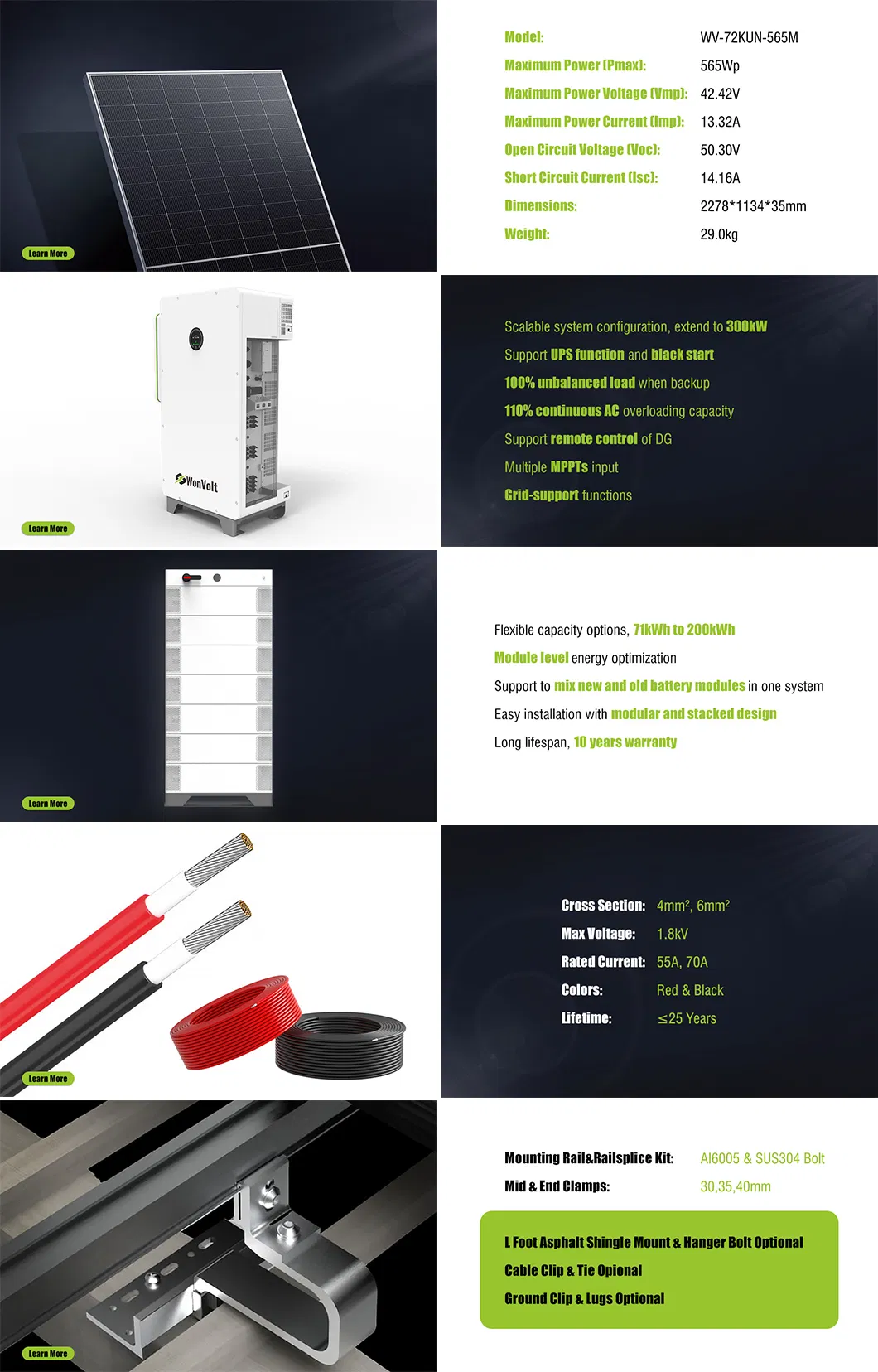

Technical Components

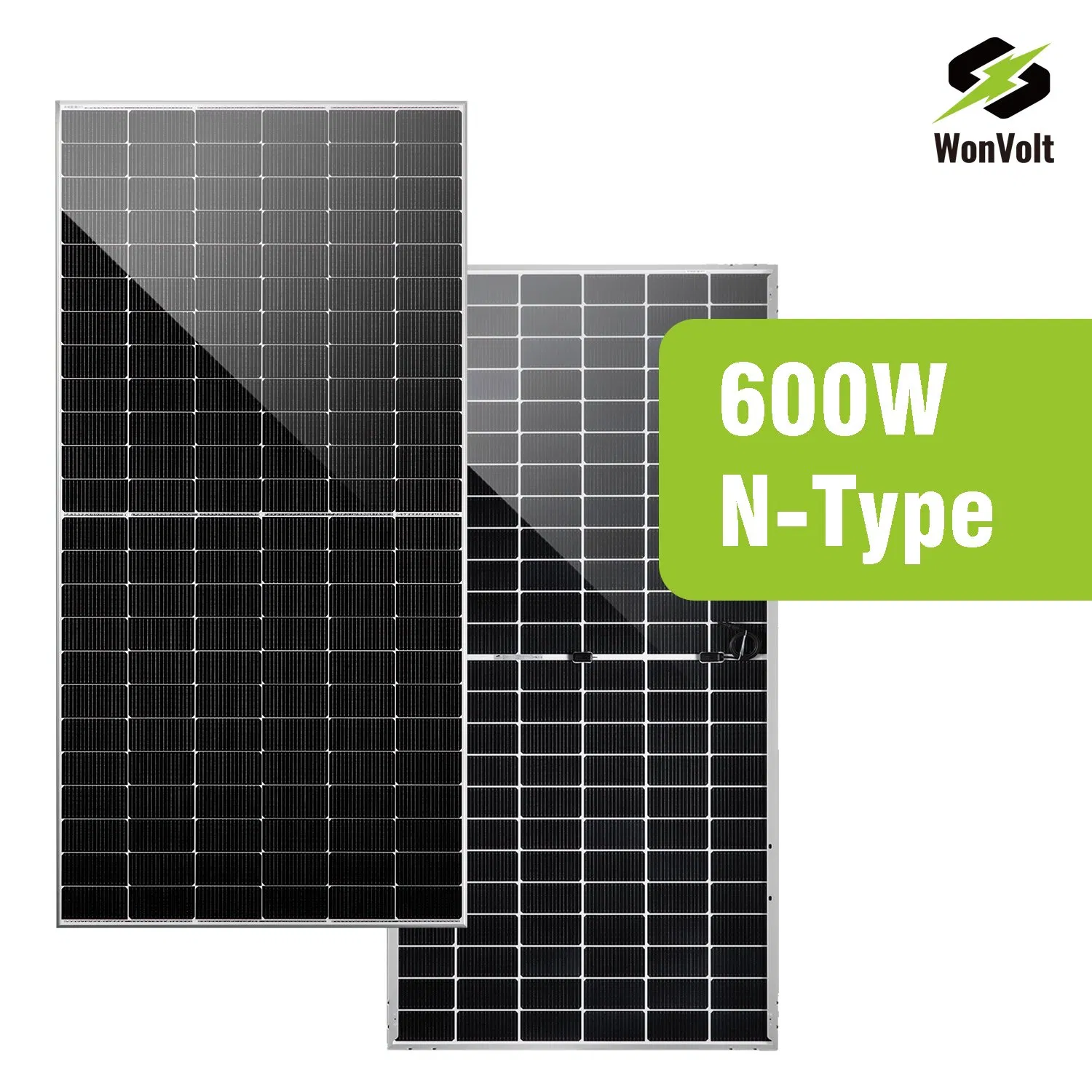

Solar Panel N type Monofacial or Bifacial dual glasses solar pv panel 420W-750W optional, black frame or silver frame.

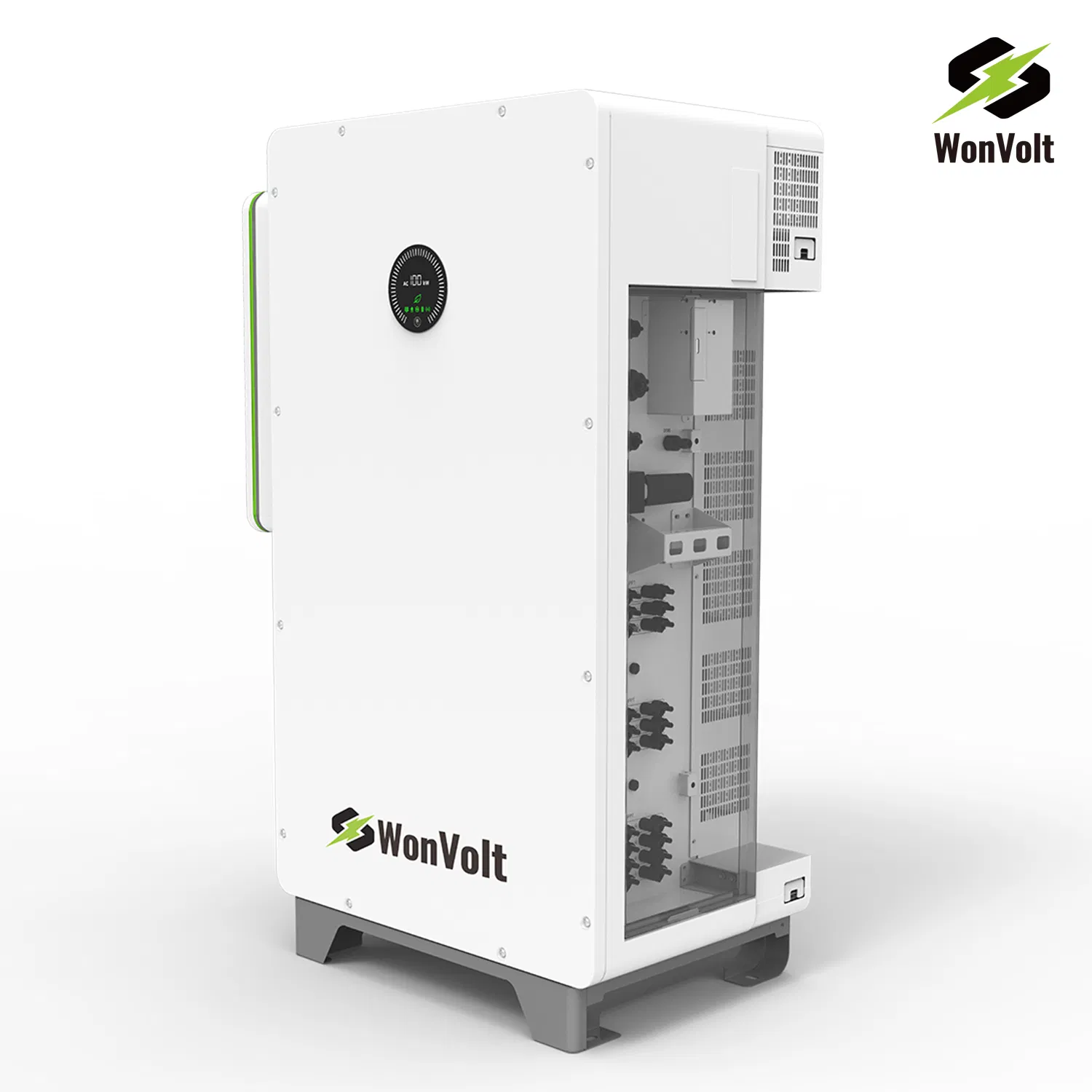

Solar Inverter On grid system with PCS battery inverter and lithium battery. Stand alone off grid and hybrid options available from 1KW to 100MWH storage systems. Supports single phase (220V-230V), split phase (110V/220VAC), and three phases (208V/220V/380V/480VAC).

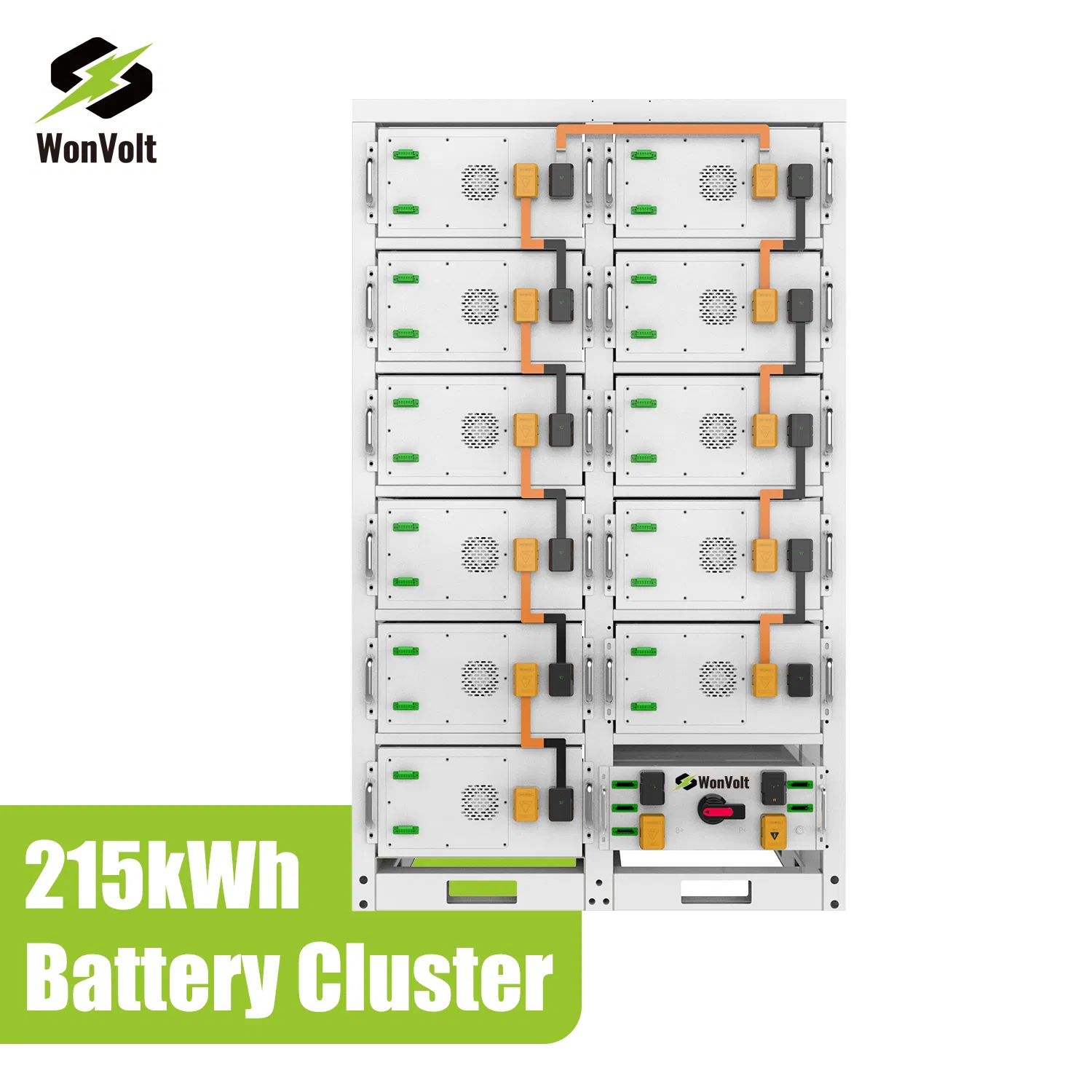

Battery Storage System 0.5C or 1C battery cell lithium solutions. Complete battery cluster with BMS, including optional EMS.

BESS Container & Outdoor Cabinet Customized IP65 outdoor cabinets with fire protection and ventilation systems. Available in 10ft, 20ft, or 40ft sizes. Integrated 100KW/215KWH or 100KW/260KWH solutions.

Mounting Structure Aluminum roof mounting, ground mounting, adjustable brackets, and screw piles customized for various environments.

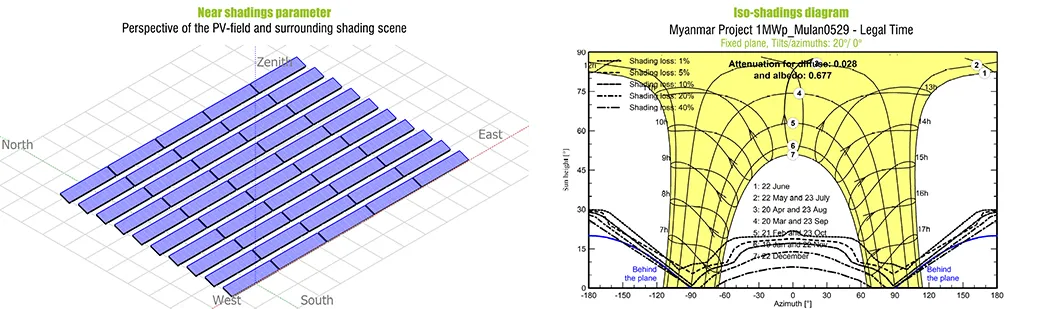

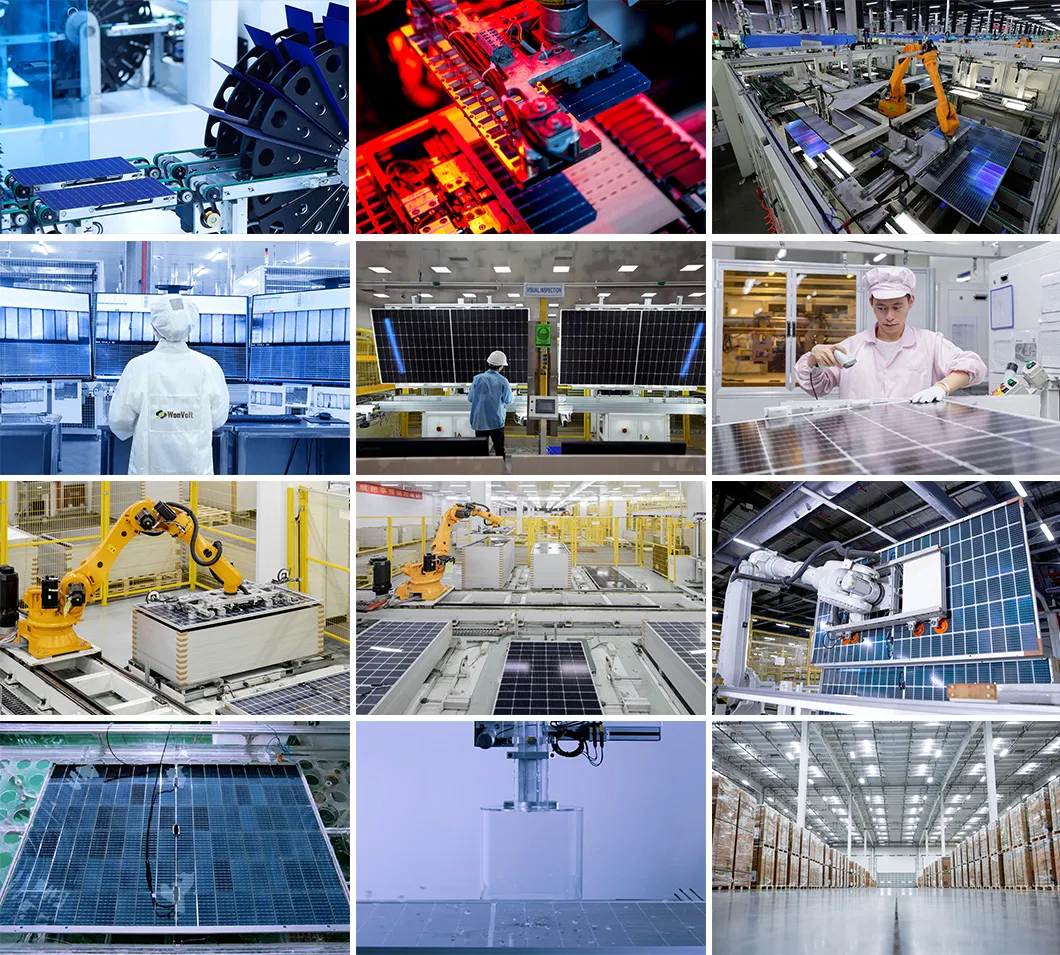

System Architecture & Production

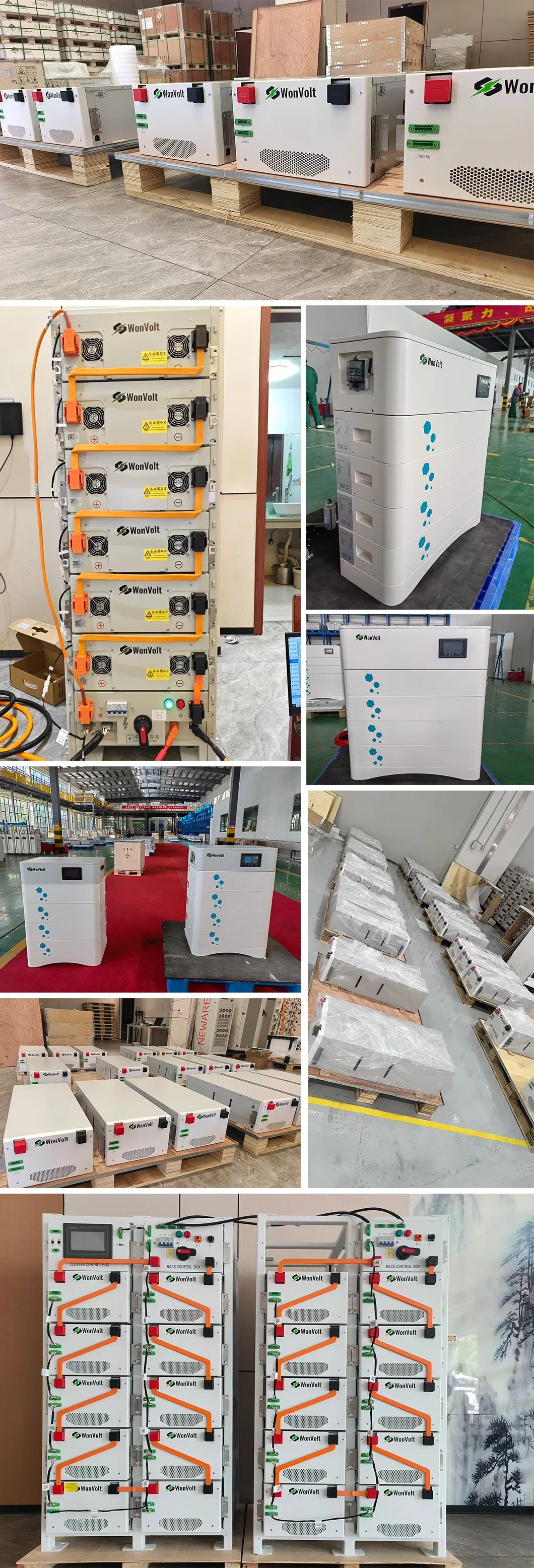

Reference Projects

Frequently Asked Questions

What is the expected cycle life of the lithium battery?

The system utilizes high-quality LiFePO4 cells designed for a long lifespan of up to 10,000 cycles, ensuring reliable performance for over a decade.

Can the system be customized for specific industrial needs?

Yes, the Energy Storage System (ESS) is fully customizable. We can adjust capacity (kWh), power output (kW), and container sizes (10ft/20ft/40ft) to match your requirements.

Does the system support off-grid or emergency power?

Absolutely. Our systems support UPS functionality, Black Start capabilities, and can integrate with Diesel Generators (DG) for complete energy independence.

What certifications do these systems hold for international use?

The components and systems are certified with ISO, CB, CE, UN38.3, MSDS, and IEC standards, making them suitable for global deployment in commercial and industrial sectors.

What voltage levels are supported by the AC output?

Our hybrid inverters support a wide range of output voltages including 220V, 380V, 400V, 415V, and 480VAC to suit different regional grid standards.

How is the system protected against outdoor environmental factors?

The BESS is housed in IP65-rated outdoor cabinets or containers equipped with advanced fire protection, climate control, and ventilation systems.
