Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
1 / 5
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery
Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery

Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.WV-300KW-602KWh-C
CertificationISO, CB, CE, TUV /IEC
ApplicationHome, Industrial, Commercial, Micro Grid
Cycle Life10000 Times
Nominal Capacity100kw/200kwh+
AC Output380V/400V/415V
Battery TypeLiFePO4/Lithium
Battery Capacity100-600kwh
ParallelYes, up to 3 Units
CoolingSmart Air Cooling
Transport PackageWooden Box
Production Capacity50000sets/Year
🏢 Commercial Energy Storage System
Energy Storage System Overview
⚙️ System Configuration
Equipment Model 100KW-200.7KWh 200KW-401KWh 300KW-602KWh
PV Module WV-72KUN-565 187 374 561
Inverter WIT-100K-HU 1 2 3
Battery WV51280H 14 28 42
Control Box Standard 1 2 3
PV Cable 1*4mm2 1100 2200 3300
ATS (opt) ATS300KW 1 1 1

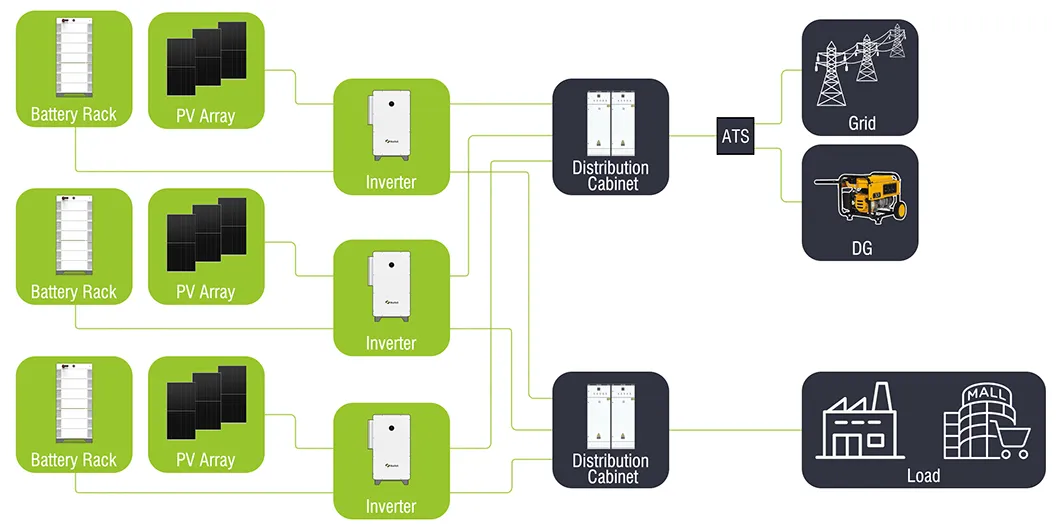

Hybrid Energy System
📝 Product Description

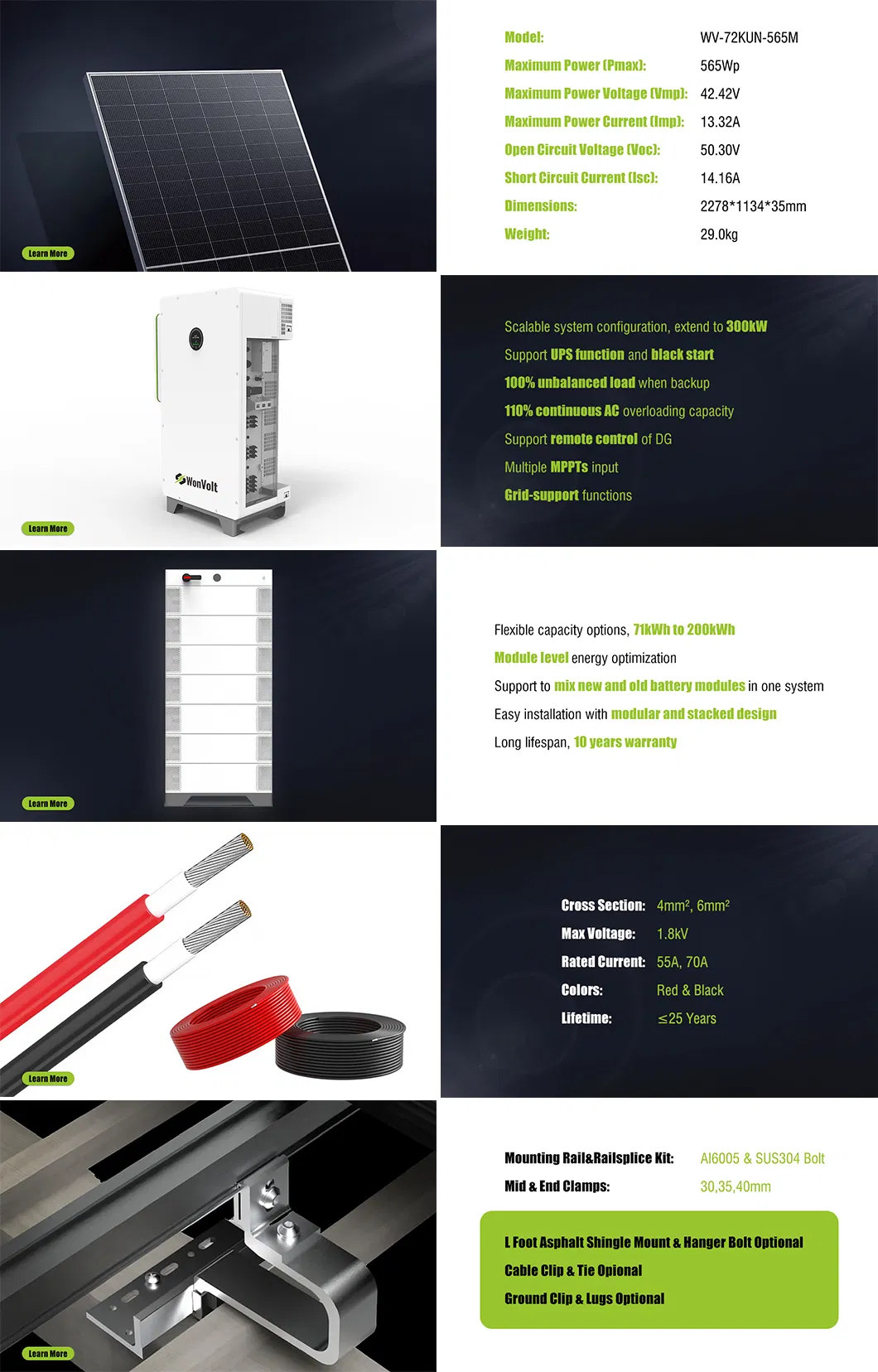

Product Technical Details
🛠️ Technical Support
Support 1

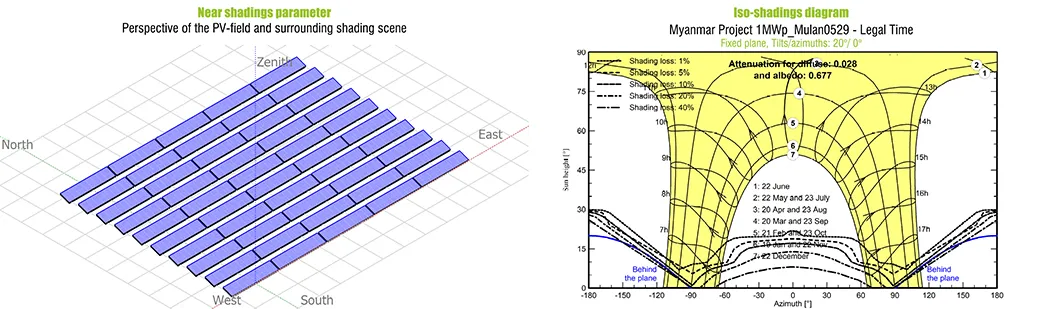

Support 2

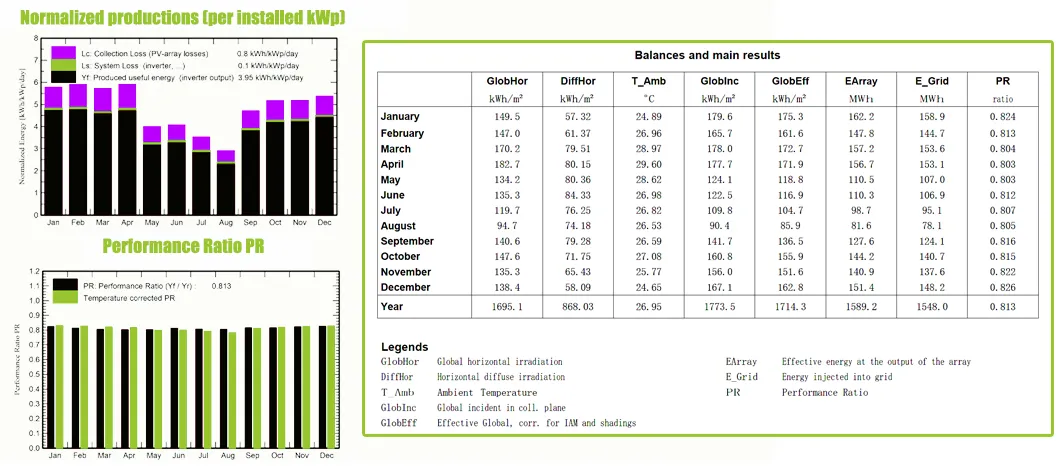

Support 3
🏭 Manufacturing & Logistics

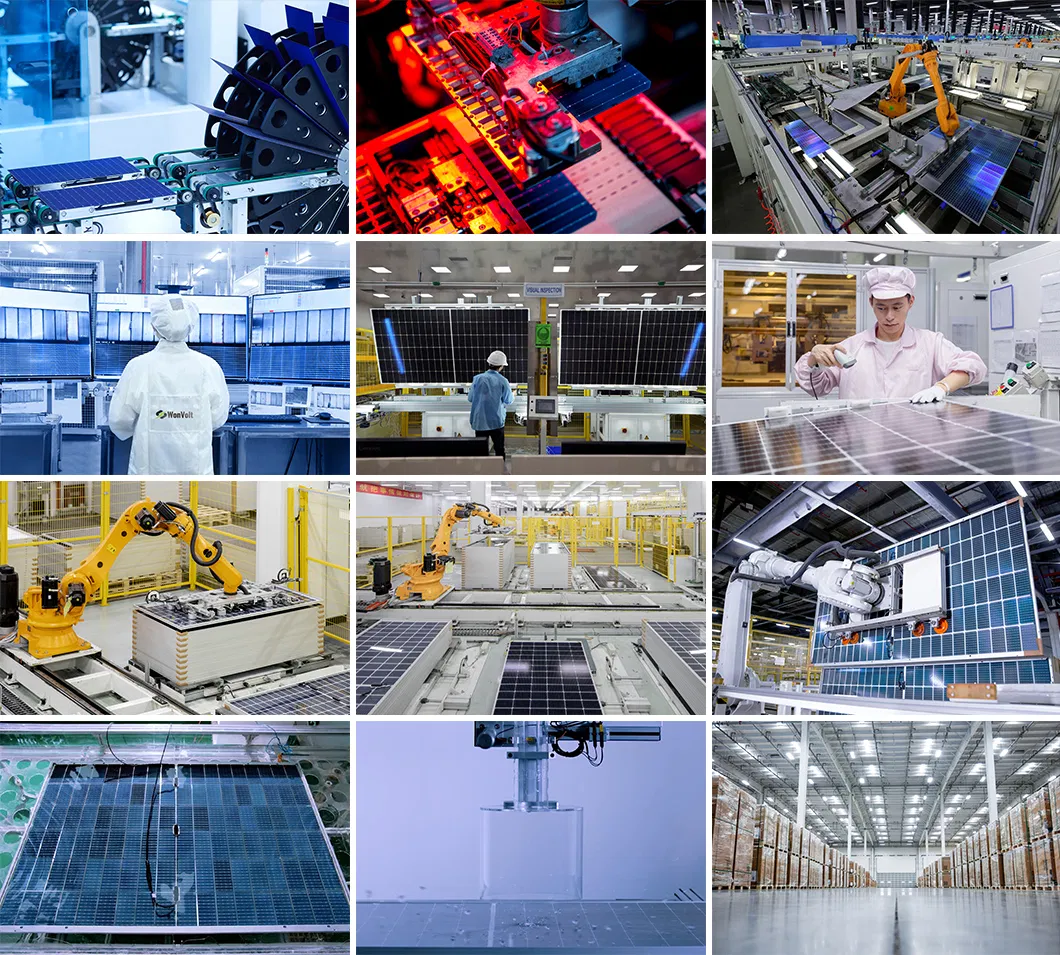

Factory Overview
Packaging and Shipping
🌟 Reference Projects & Photos

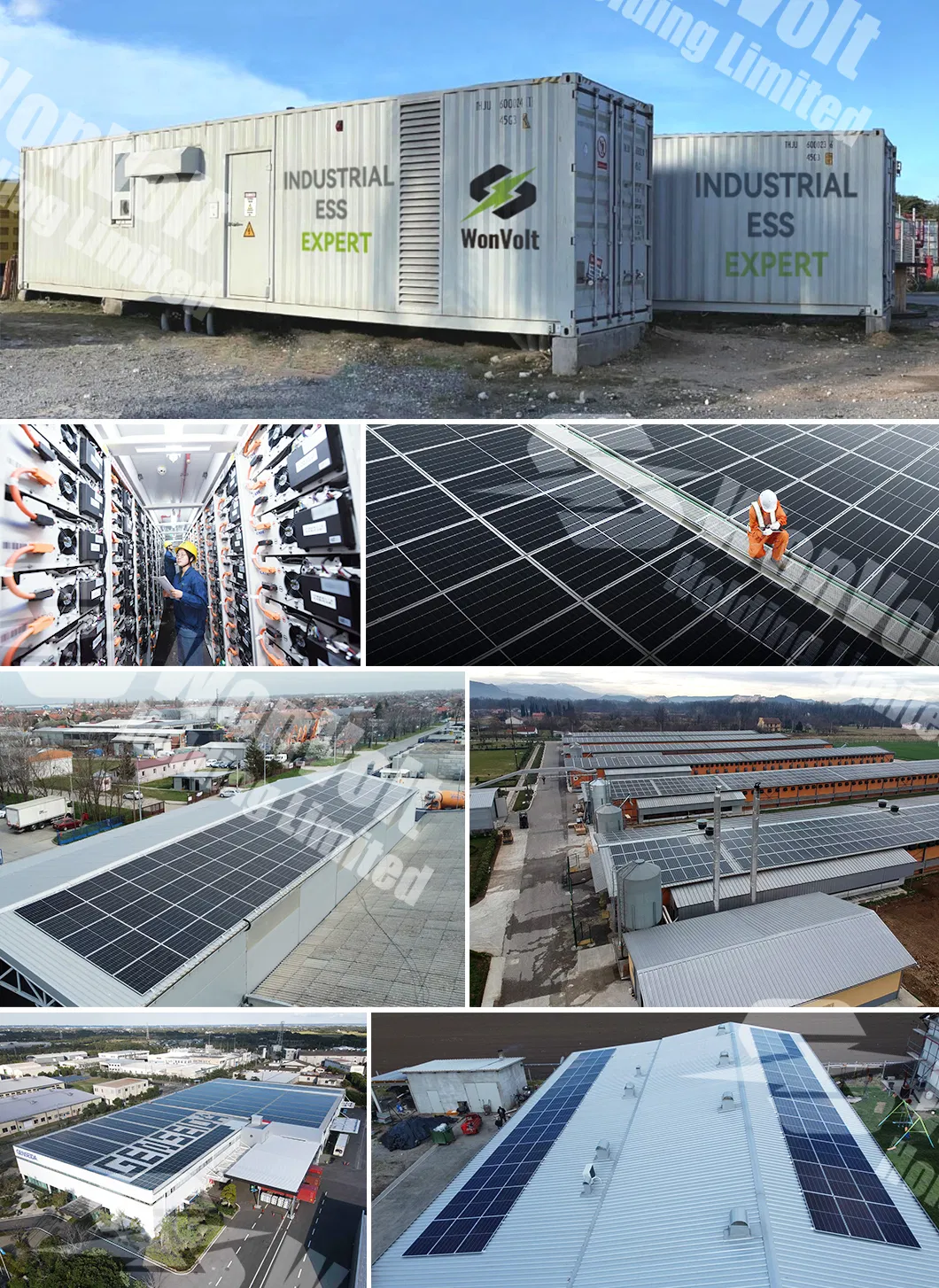

Reference Project

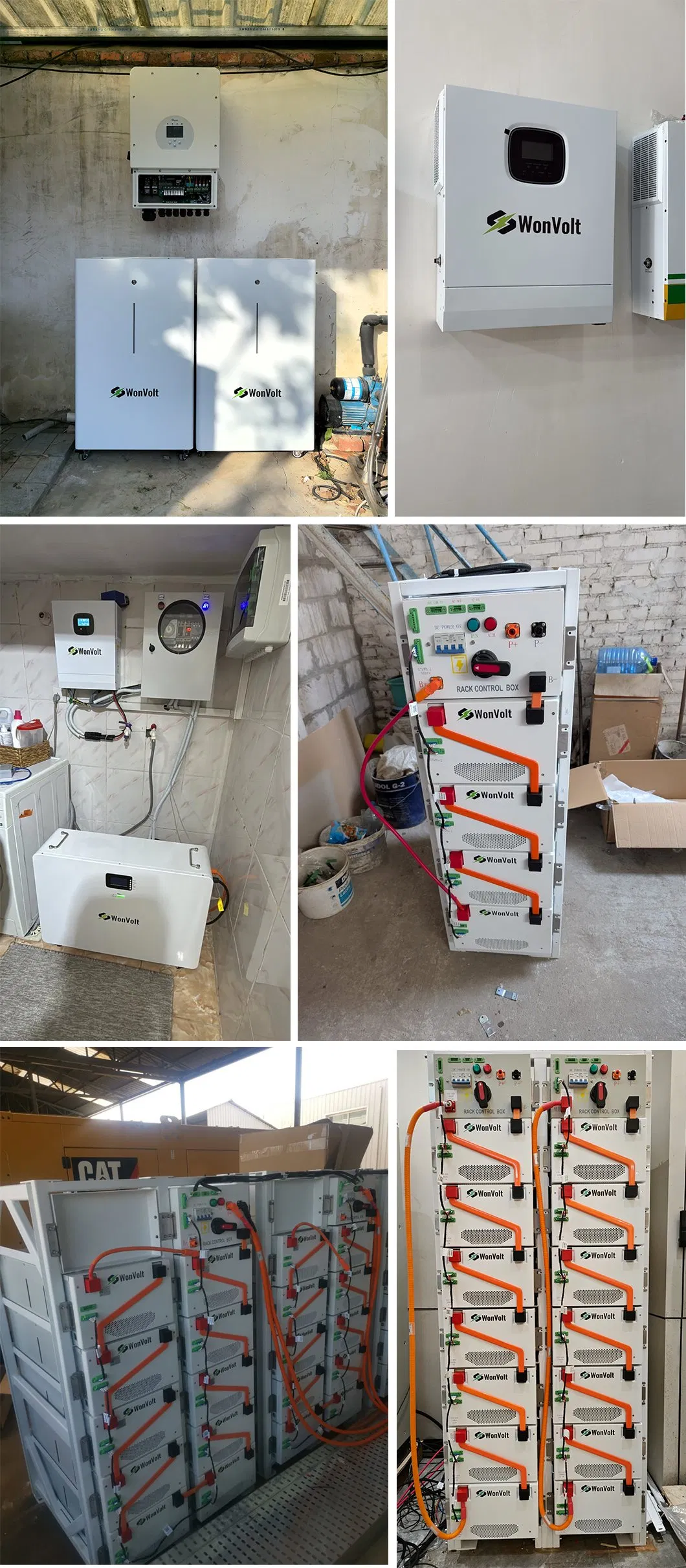

Detailed Product Photo
Off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 500kwh LiFePO4 Battery
❓ Frequently Asked Questions
What is the expected cycle life of the battery system?
The system features high-quality LiFePO4 batteries with a cycle life of up to 10,000 times, ensuring long-term reliability for commercial and industrial use.
Can multiple units be connected in parallel?
Yes, the system is designed for scalability and supports parallel connection for up to 3 units to meet higher energy requirements.
What applications is this Energy Storage System (ESS) suitable for?
It is ideal for a wide range of applications including residential, industrial, commercial sectors, and micro-grid configurations.
Does the system support emergency power functions?
Yes, the system supports UPS functionality, Black Start, and integration with Diesel Generators (DG) for continuous power supply.
What certifications does the product hold?
The system is fully certified with ISO, CB, CE, TUV, and IEC standards, including UN38.3 for battery safety and EN50549 for grid compliance.
What kind of cooling system is used?
The system utilizes a Smart Air Cooling mechanism to maintain optimal operating temperatures and ensure equipment longevity.
