Product Description

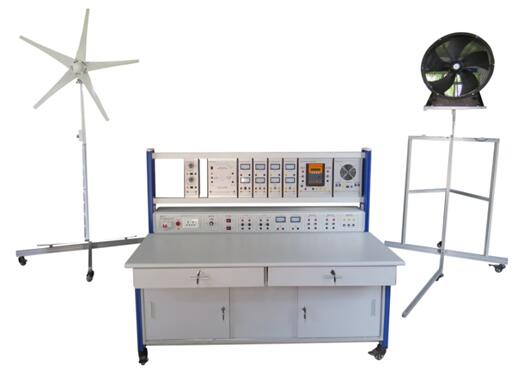

ZE3719 Wind Energy Trainer with Wind Turbine
1.1 Overview
This training device includes modules such as solar power generation devices, photovoltaic panel power generation devices, inverters, and light-emitting controllers. Through related experiments, you can study the principles of solar and wind power generation, and cultivate students' corresponding knowledge and skills. It is suitable for vocational and vocational colleges, secondary vocational schools, and technical school related professional teaching and skills assessment.
1.2 Key Features
- The training device adopts an aluminum column frame structure, and the power supply is integrated and installed.
- The unit circuit hanging box is fully configured and can be used in combination to complete the training content of various courses.
- The relevant units can be flexibly added to or deleted from the experimental subjects to meet the needs of different users.
- The device has a good safety protection system.
2 Performance Parameters
| Input Power |
Single-phase AC230V ± 10% 60Hz |
| Wind Power Device Dimensions |
1210mm × 1210mm × 2440mm |
| Solar Power Device Dimensions |
1500mm × 1500mm × 2750mm |
| Training Platform Size |
1610mm × 800mm × 1350mm |
| Overall Capacity |
100VA |
| Operating Temperature |
-10 ºC ~ + 40 ºC |
| Relative Humidity |
< 85% (25 ºC) |
3 Product Composition
3.1 Platform
The power box contains the battery box, AC output, measuring instruments, AC power distribution panel, and circuit breaker and emergency stop switch.
3.2 Wind Turbines and Photovoltaic Panels
Wind turbines will follow the wind direction and be able to turn freely on vertical support. Key specifications include:
- Control battery panel with speed and wind direction sensors.
- 3 composite shelves with rotor diameter of 1.17m.
- Energy generation: 30kWh / month at 5.8 m/s wind speed.
- Startup wind speed: 3.6m/s; operational up to 49.2 m/s.
- Microprocessor regulator and 12Vcc output tension.
- Torque electronic control and stainless steel support bar.
3.3 Blower and 600W Solar Simulator
3.4 Main Supporting Experimental Hanging Boxes
- 1 controller box.
- 1 sine wave inverter hanging box (Continuous 600W, Peak 1200W).
- 4 instrument boxes.
- 1 load box (Includes five 30W lamps and wind speed simulation).
4 Experimental Training Projects
- Understanding of solar energy principles.
- Understanding of wind energy systems.
- Wind power practical training.
- Solar power practical training.
- Collection of training data for wind and solar power analysis.
Frequently Asked Questions
Q1: What educational levels is the ZE3719 suitable for?
A: It is designed for vocational colleges, secondary vocational schools, and technical schools for professional teaching and skills assessment in renewable energy.
Q2: Can the trainer simulate different wind conditions?
A: Yes, the system includes a blower and a load box capable of simulating various wind speeds to test the turbine's response.
Q3: What are the output specifications of the included inverter?
A: The sine wave inverter provides a continuous output of 600W with a peak power of 1200W, converting 12Vcc to 230Vac-50Hz.
Q4: What safety features are integrated into the device?
A: The device includes an emergency stop switch, circuit breakers, and protection against overloads, short circuits, and overheating.
Q5: What is the physical structure of the training platform?
A: It features a durable aluminum column frame structure with an integrated power supply and modular hanging boxes for flexible experimentation.
Q6: Does the wind turbine include sensors?
A: Yes, it is equipped with microprocessor-regulated speed and wind direction sensors installed for all wind directions.
